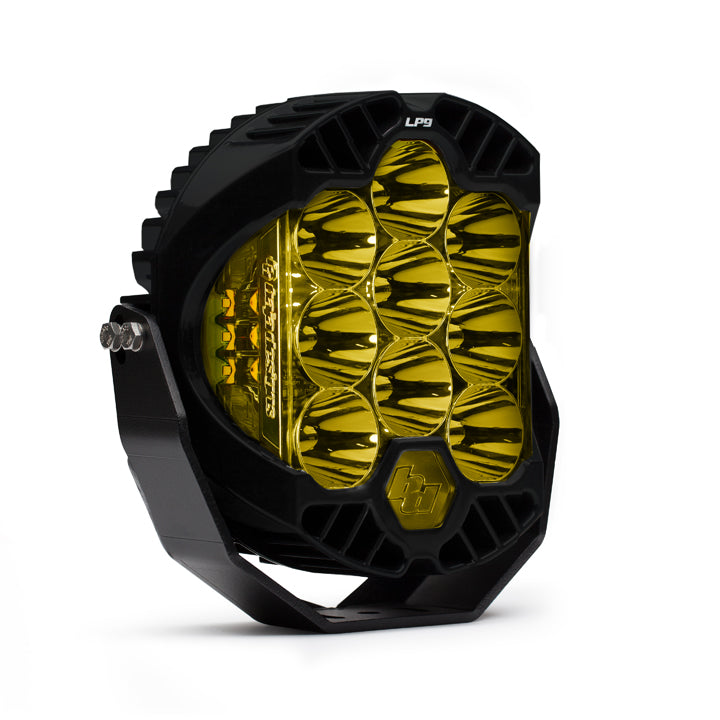

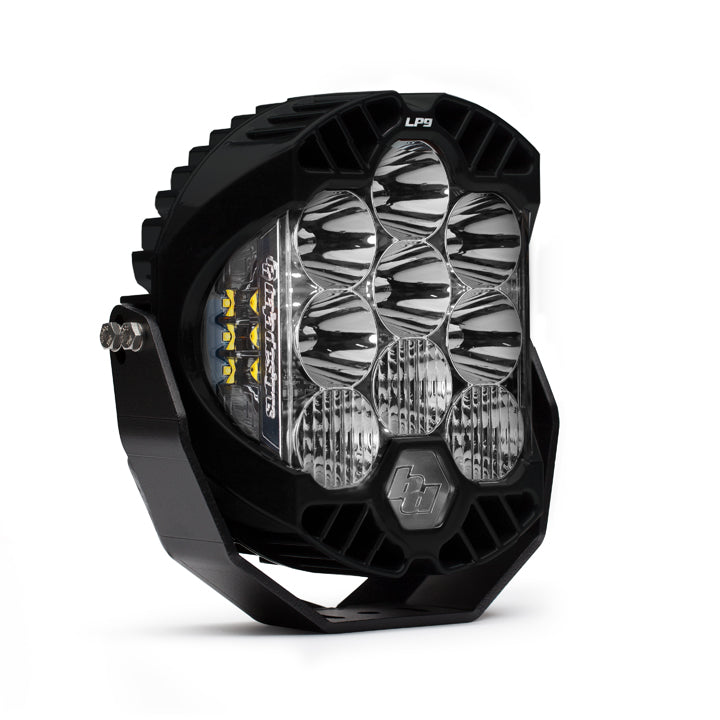

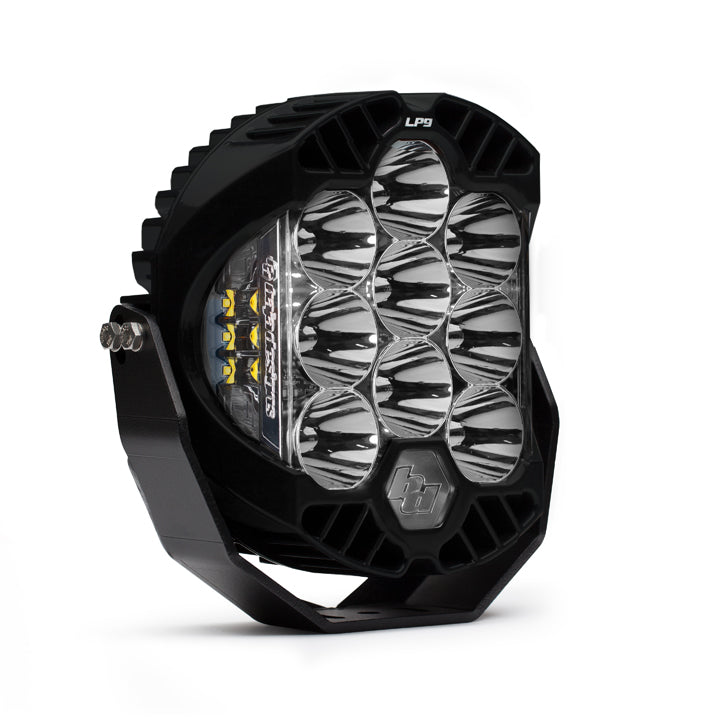

Step up to full-size off-road lighting performance with the Baja Designs LP9 Sport LED Light Pod. Designed for enthusiasts who want modern styling, powerful output, and proven durability, the LP9 Sport delivers impressive forward projection and wide peripheral illumination for trail, desert, and overland driving.
Important notes
• Harness: This light does not come with a wiring harness. The applicable wiring harness for this light is 640175
• Operation: Simple on and off function with no high or low beam modes
• Backlight: Does not include amber backlight feature found on LP9 Pro and Racer Editions
• Warranty: Limited lifetime warranty provides complete purchase protection
• Guarantee: Covered by a 30 day satisfaction guarantee
Features
• Output: Produces up to 9,421 lumens using 9 forward-projecting LEDs
• Peripheral lighting: Integrated Peripheral Technology adds 6 LEDs delivering a 200 degree spread of usable light
• Cooling: Direct Ducted Cooling improves airflow across heat sinks for consistent performance
• Serviceability: uService technology allows lens pattern and color changes for different driving conditions
• Performance: CopperDrive system safely drives LEDs at 100 percent for maximum efficiency
• Visibility: 5000K daylight color temperature helps reduce driver fatigue and improve terrain clarity
Specifications
• Primary amperage: 6.4 amps
• Primary wattage: 88.32 watts
• Primary brightness: 9,421 lumens
• Secondary amperage: 1.52 amps
• Secondary brightness: 2,302 lumens
• Secondary wattage: 21 watts
• Beam pattern: Spot
• Rated life: 49,930 hours
• Lens material: Hardcoated polycarbonate
• Housing material: Powder coated cast aluminum
• Depth: 3.25 inches
• Height: 8 inches
• Length: 8 inches
• Weight: 6.5 lbs
Included in the box
• Light: LP9 Sport LED light pod
• Hardware: Stainless steel mounting hardware included
Fitment
• Application: Universal fit for trucks, SUVs, UTVs, Jeeps, and off-road vehicles requiring high-output auxiliary lighting
• Lighting zones: Designed for forward projection and wide peripheral coverage depending on setup
