Baja Designs Reflex Light Actuator Harness – Rocker Switch Universal Motor Actuator Adaptor Harness – Universal

The Reflex Light Actuator Rocker Switch Universal Harness allows users to control the up and down movement of Reflex actuators at the touch of a button. Designed for simple, reliable control without a power management module, this harness is ideal for users who want direct rocker switch operation.

Enthusiasts can choose between a pair harness for smaller setups or a single-lead harness paired with actuator linking harnesses to control three to eight actuators simultaneously. Harnesses are sold separately to provide maximum flexibility for existing lighting setups.

Important note

• Power-only linking: Actuator linking harnesses provide power between actuators only.
• Light power not included: Lights require a separate power harness.
• Harnesses sold separately: Select the correct harness based on actuator count.
• Actuators not included.
• Compatibility: Actuators are not compatible with XL Linkable light bars.

Features

• Rocker switch control: Adjust actuator movement instantly with a button press.
• Flexible configurations: Supports single, paired, and multi-actuator setups.
• Clean wiring solution: Reduces complexity in multi-light installs.
• Direct actuator control: No power management module required.
• Modular system: Expandable as lighting systems grow.

Configuration options

Single / Pair light configuration

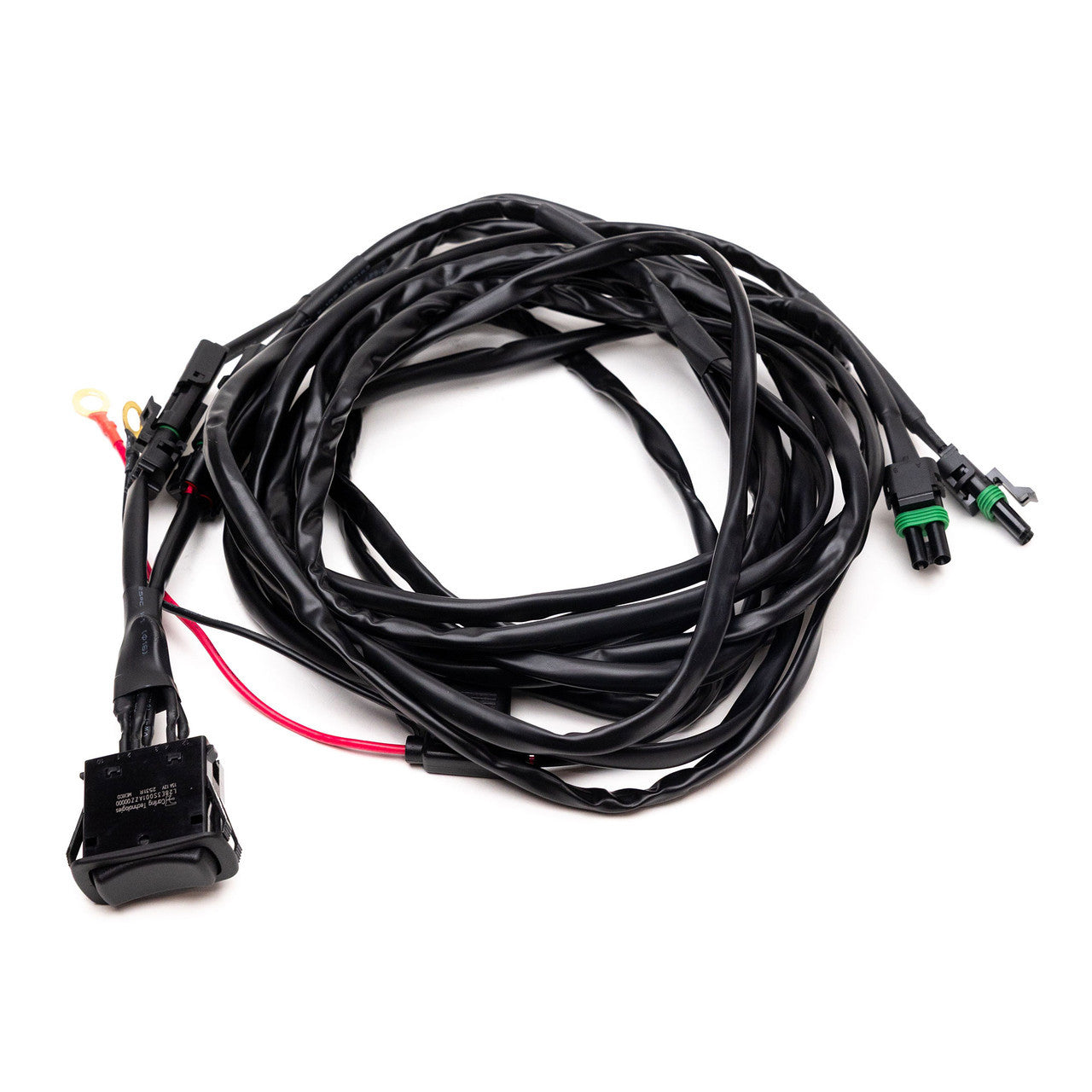

64-6307 – Pair Harness

Designed for single and paired actuator setups, including light bars and A-pillar kits.

• Powers 1–2 actuators in sync
• Ideal for compact lighting systems
• For 10" light bars using a single actuator, the extra lead can be tucked away for a clean install

3–8 light configuration

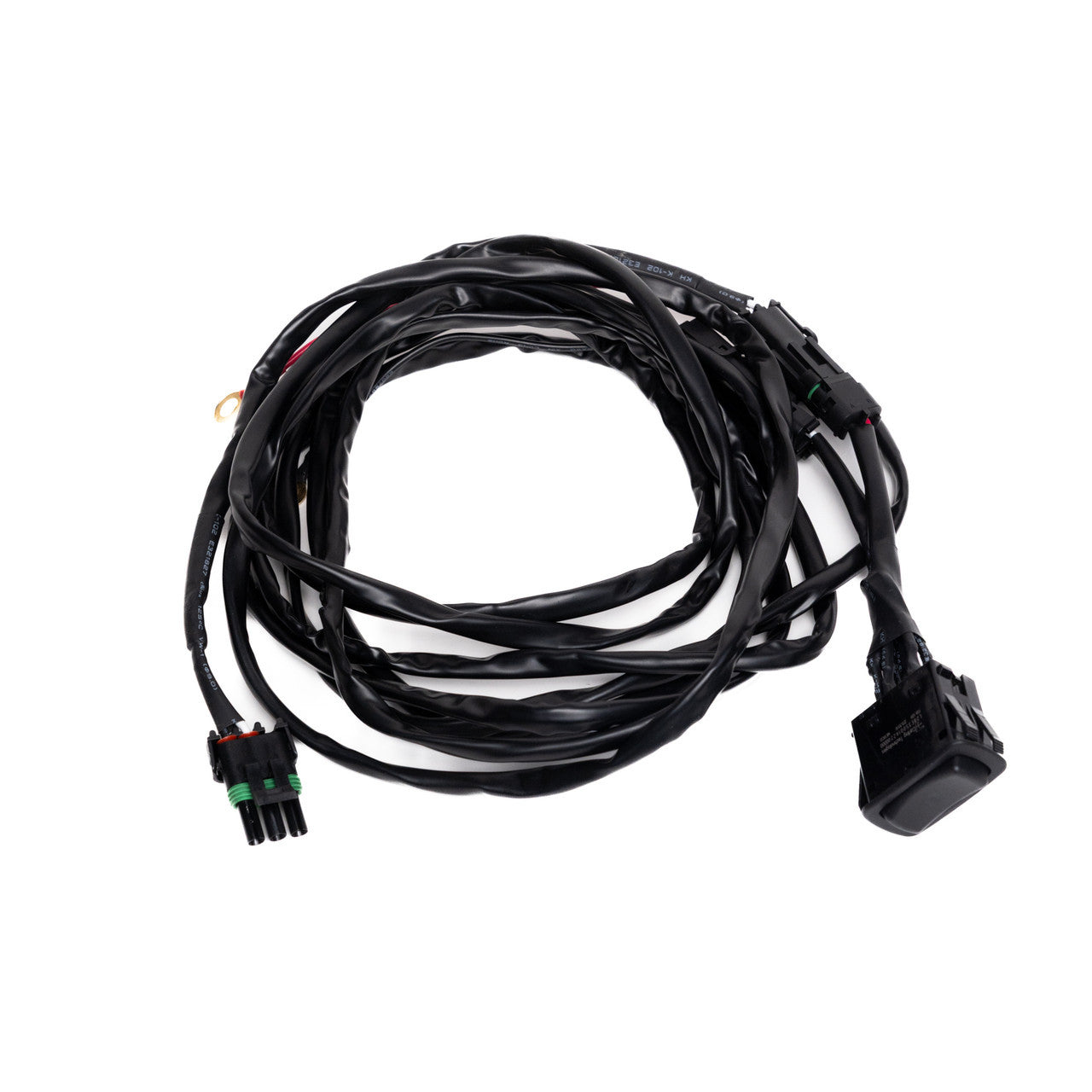

64-6306 – Single Lead 3-Pin Actuator Rocker Switch Harness

Designed for multi-actuator control using a rocker switch.

• Powers 3–8 actuators when paired with an actuator linking harness
• Single-lead design simplifies wiring
• Ideal for bumper, roof, or rack-mounted multi-light setups
• Example setup:
  To actuate a 4-light LP9 bumper setup using one actuator per light:
• (1×) 64-6306 Rocker Switch Single Lead Actuator Harness
• (1×) 64-0194 4-Actuator Linking Harness

Actuator linking harness options

(For use with 64-6306)

• 64-0193: 3-Actuator Linking Harness
• 64-0194: 4-Actuator Linking Harness
• 64-0195: 5-Actuator Linking Harness
• 64-0190: 6-Actuator Linking Harness
• 64-0191: 7-Actuator Linking Harness
• 64-0192: 8-Actuator Linking Harness

Package contents

• Includes: (1) Reflex Light Actuator Rocker Switch Harness (variant selected)
• Not included: Actuators, actuator linking harnesses, lights, or light power harnesses
