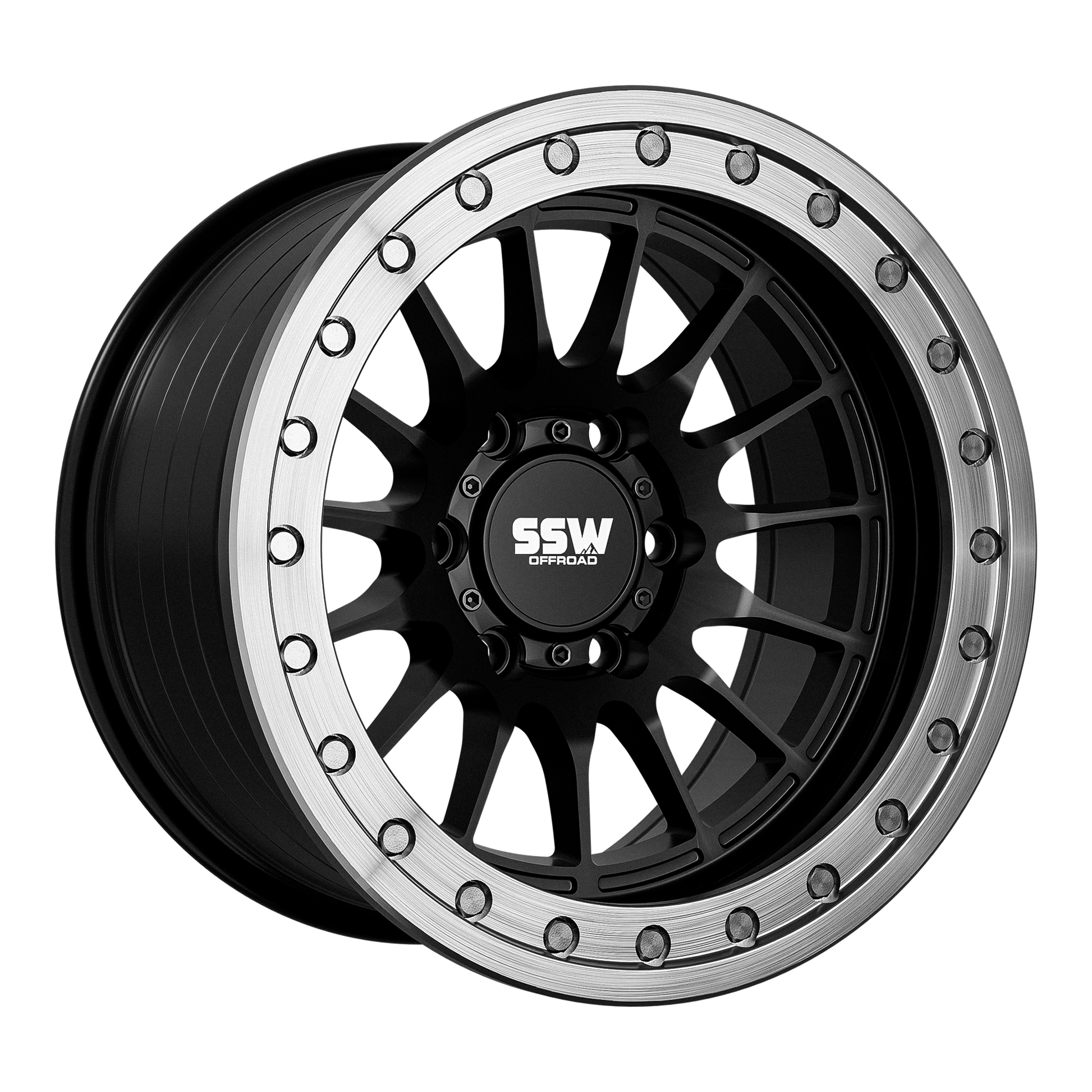

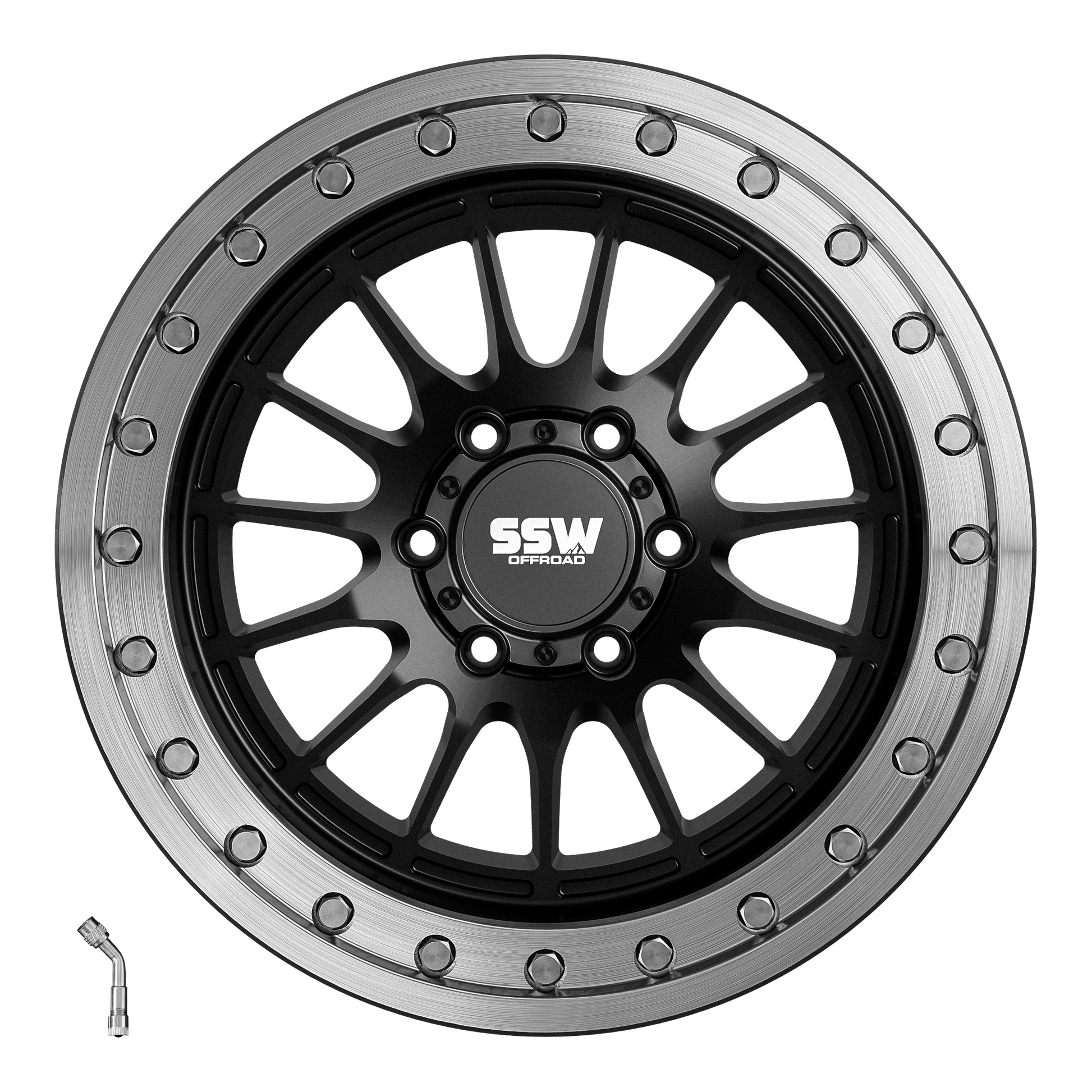

Designed for those who push their rigs past the limit, the Beadlock Dakar is built to maintain maximum grip on the toughest trails. This is a true functional beadlock wheel, designed to clamp the outer tire bead against the rim. This allows you to run aggressively low tire pressures for maximum footprint and traction without the risk of the tire debeading. Price listed is per individual wheel.
DISCLAIMERS:
- BEADLOCK RINGS ARE STRICTLY FOR OFF-ROAD USE ONLY and are NOT DOT approved for highway use.
- DO NOT over-torque. Improper torquing can cause the threads to strip. Torque in a star pattern to 8 ft lbs. Once that is done, set torque wrench to 16 ft lbs.
- We recommend running a minimum tire width of 12.5" with these wheels.
-
Highly recommend seeking a professional tire shop, preferably one that specializes in off-road or 4x4 vehicles, for proper installation.
Specifications:
- Beadlock Ring Bolt Pattern: 24x3/8" (KMC, Method, etc)
- Beadlock Ring Bolt Material: Grade 8 M8x1.25
- Size: 17x9 -25
- PCD: 6x139.7
- Center Bore: 106.1
- Color: Matte Black
- Weight: 35.5 lbs
- Load Rating: 2500 lbs
Includes:

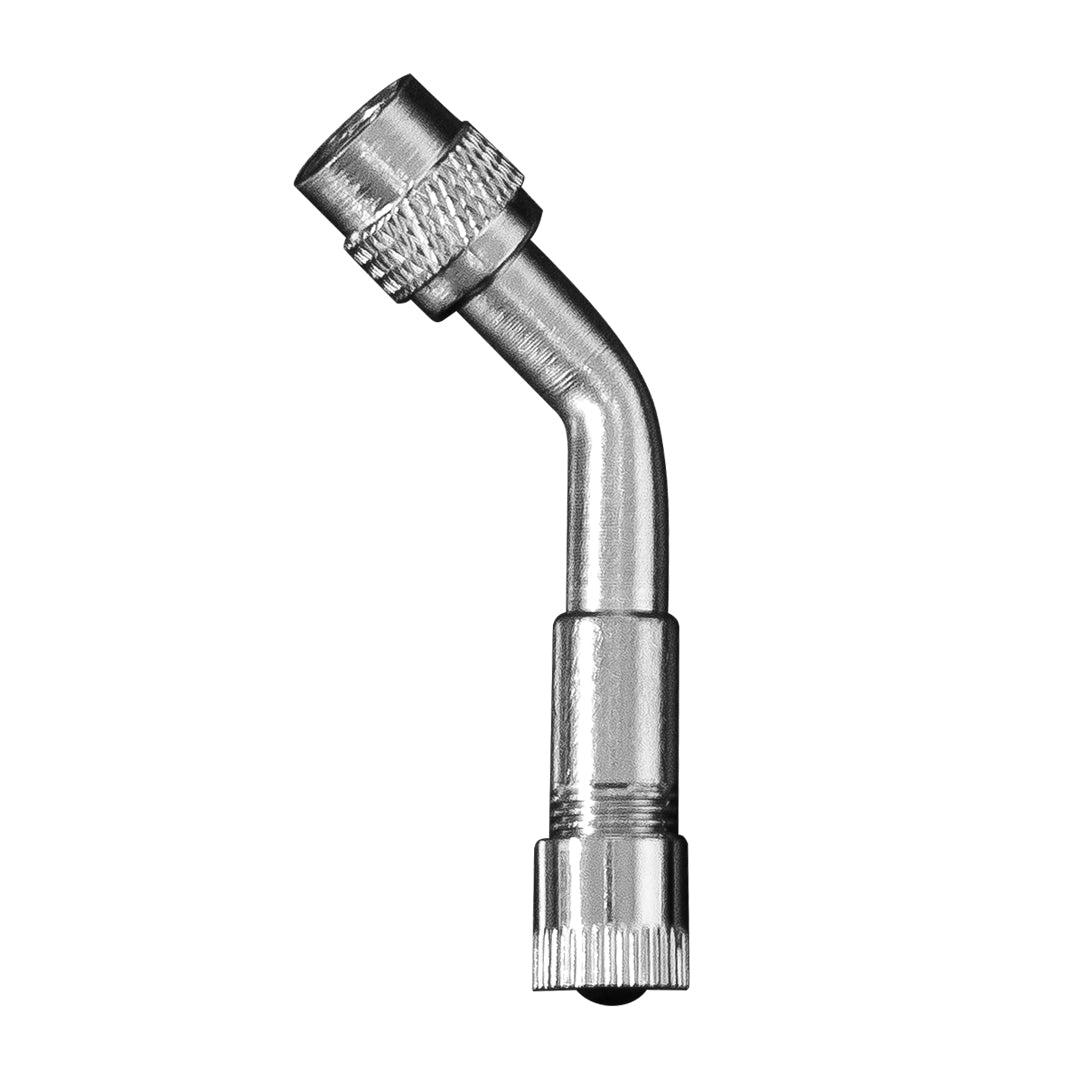

- Valve stem extension
- Center cap
- Center cap hardware & hex key included
- Use conical/acorn/tapered seat lug nuts only.
- Not compatible with extended thread (ET) lug nuts.
