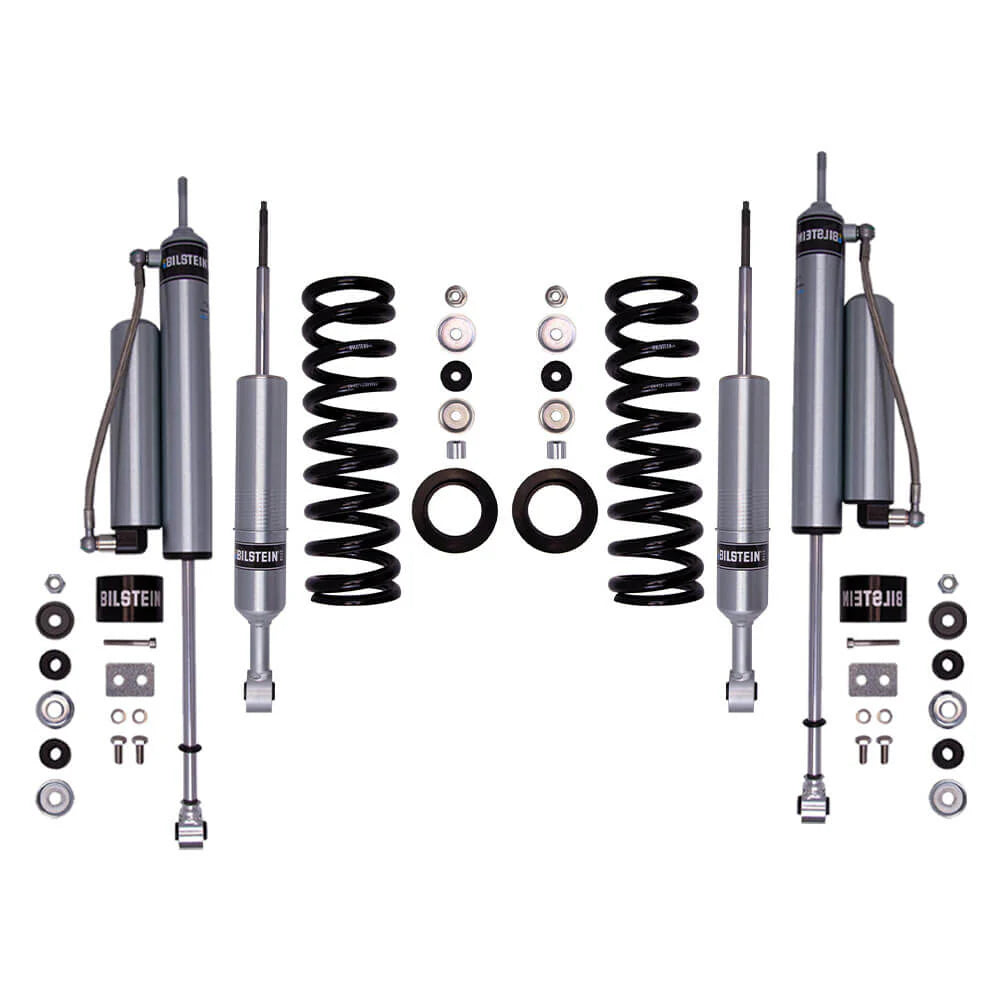

Upgrade your Tacoma’s suspension performance with the proven combination of the Bilstein B8 6112 Front Leveling Kit and B8 5160 Remote Reservoir Rear Shocks. This complete suspension package is engineered to deliver increased ground clearance, improved wheel travel, and consistent fade-free performance whether you are daily driving, road tripping, or tackling demanding off-road terrain. With Bilstein’s legendary monotube design, digressive piston technology, and vehicle-specific tuning, this direct-fit system provides confident handling, enhanced durability, and superior ride quality.
IMPORTANT NOTES
• Front Lift Capability: Multiple snap-ring grooves allow adjustable ride height and provide approximately 0–2.75 inches of front lift depending on application
• Direct Fit Design: Engineered specifically for lifted trucks and SUVs for straightforward installation
• Remote Reservoir Performance: Rear shocks feature remote reservoirs for increased cooling capacity and improved wheel travel
• Vehicle Specific Tuning: Digressive valve settings are tuned for optimal on-road comfort and off-road control
• Non-Adjustable Damping: Pre-valved suspension components designed for balanced performance
FEATURES
• Monotube Construction: Provides consistent fade-free damping performance
• 60mm Digressive Piston: Improves damping control and stability in varied driving conditions
• Adjustable Spring Perch: Allows ride height tuning and larger tire clearance
• 360 Degree Swivel Banjo Fitting: Enables clean and low-profile reservoir hose routing
• Billet Reservoir Mounts: Included for secure remote reservoir installation
• Zinc Coated Shock Bodies: Enhances corrosion resistance and long-term durability
• Vehicle Specific Suspension Tuning: Optimized for Tacoma suspension geometry
INCLUDED

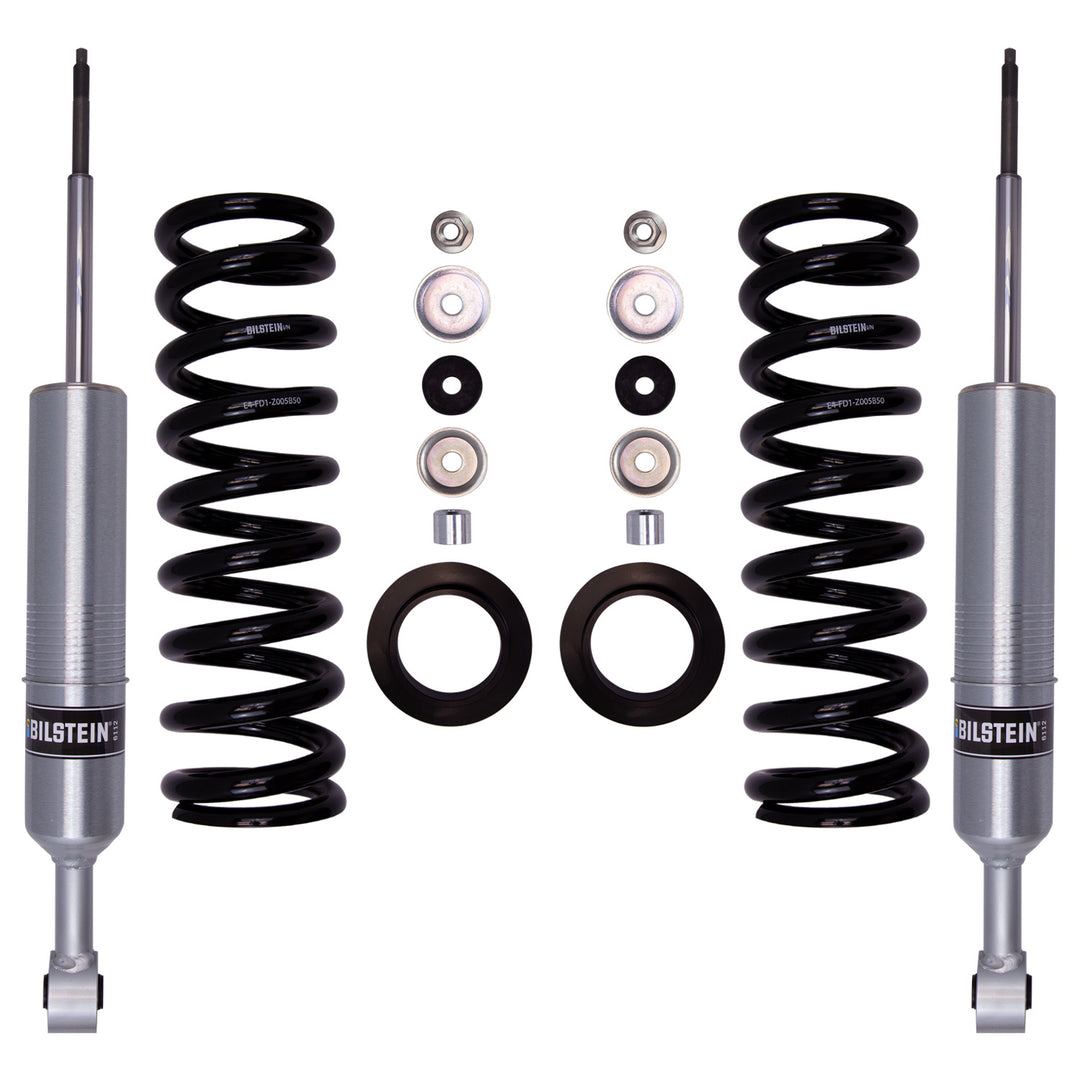

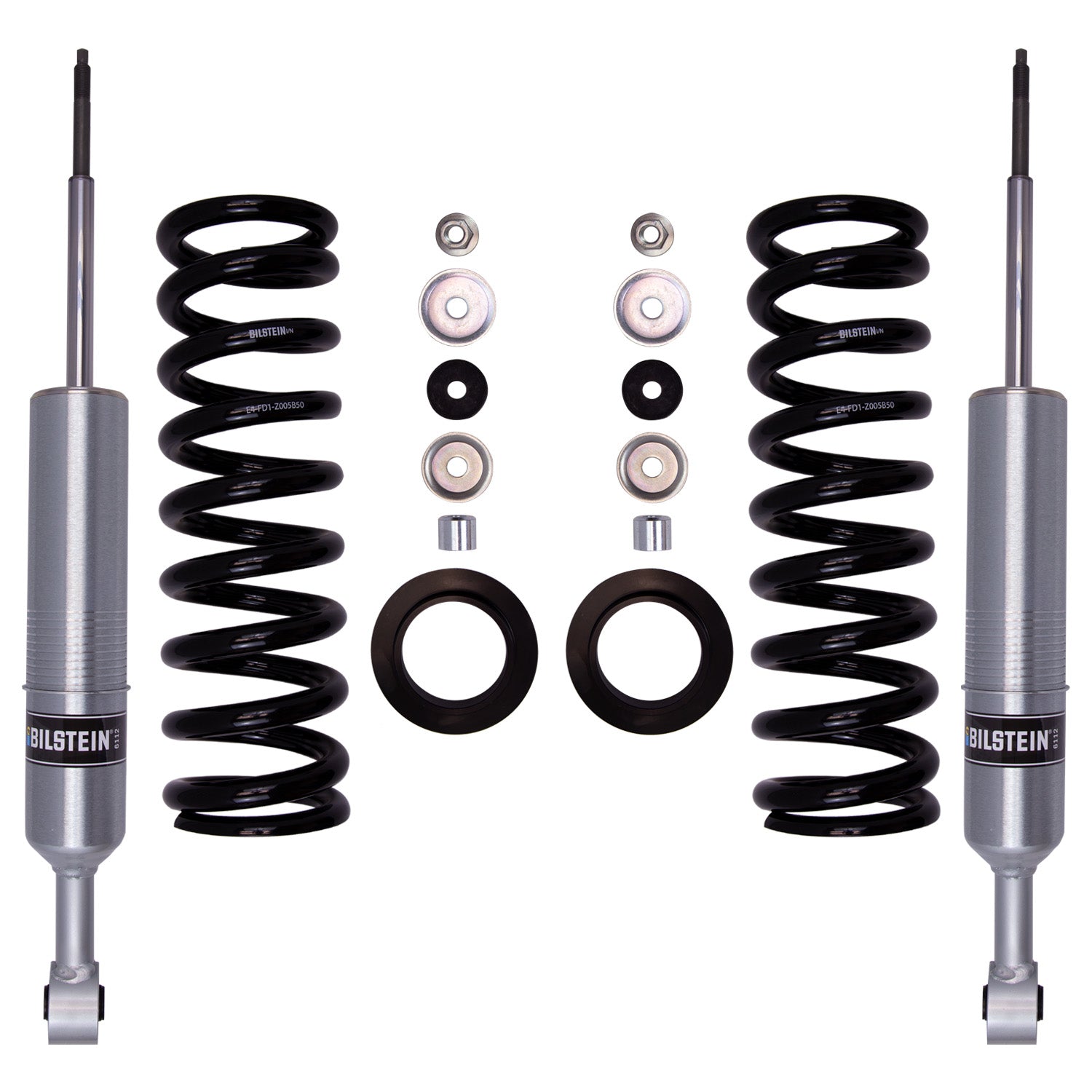

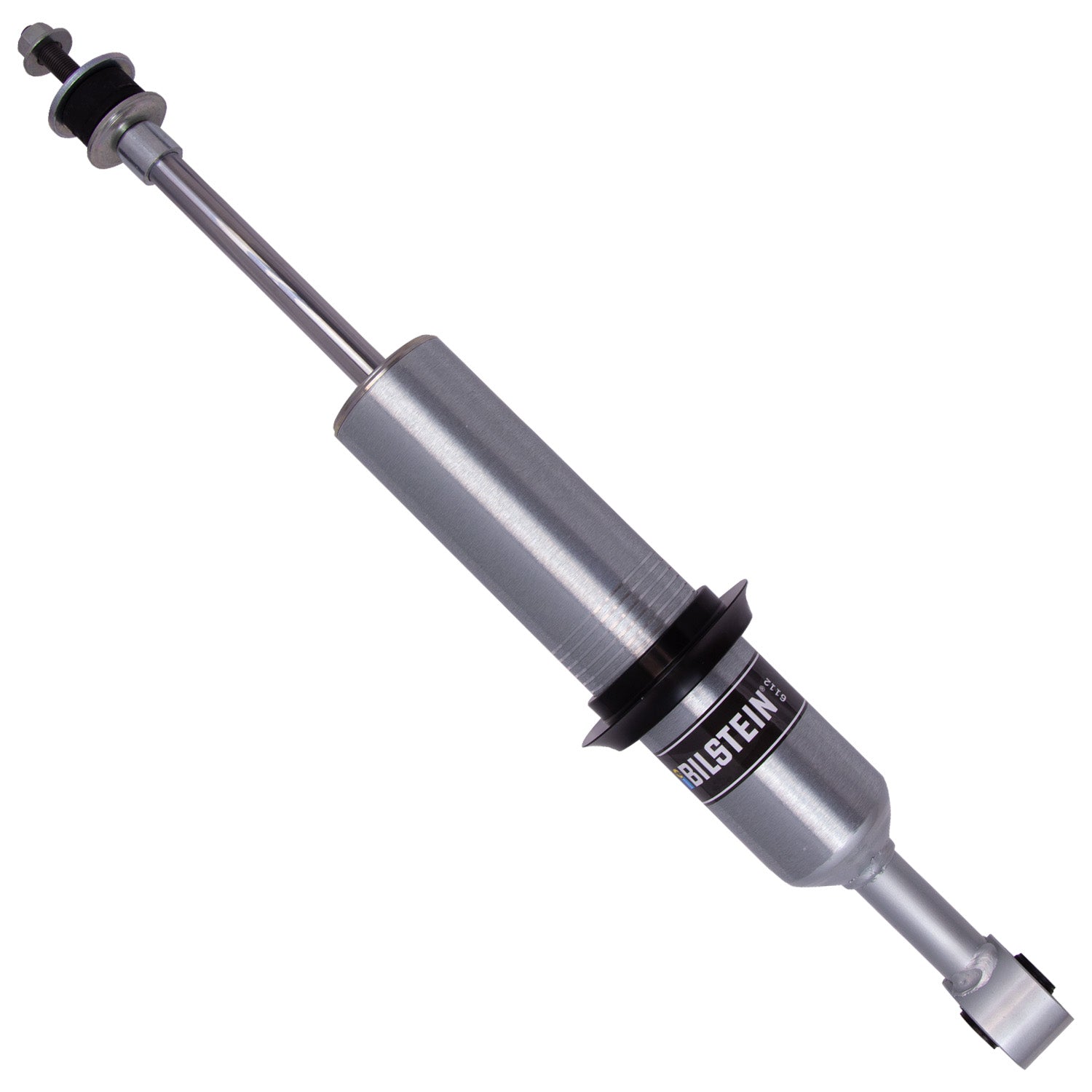

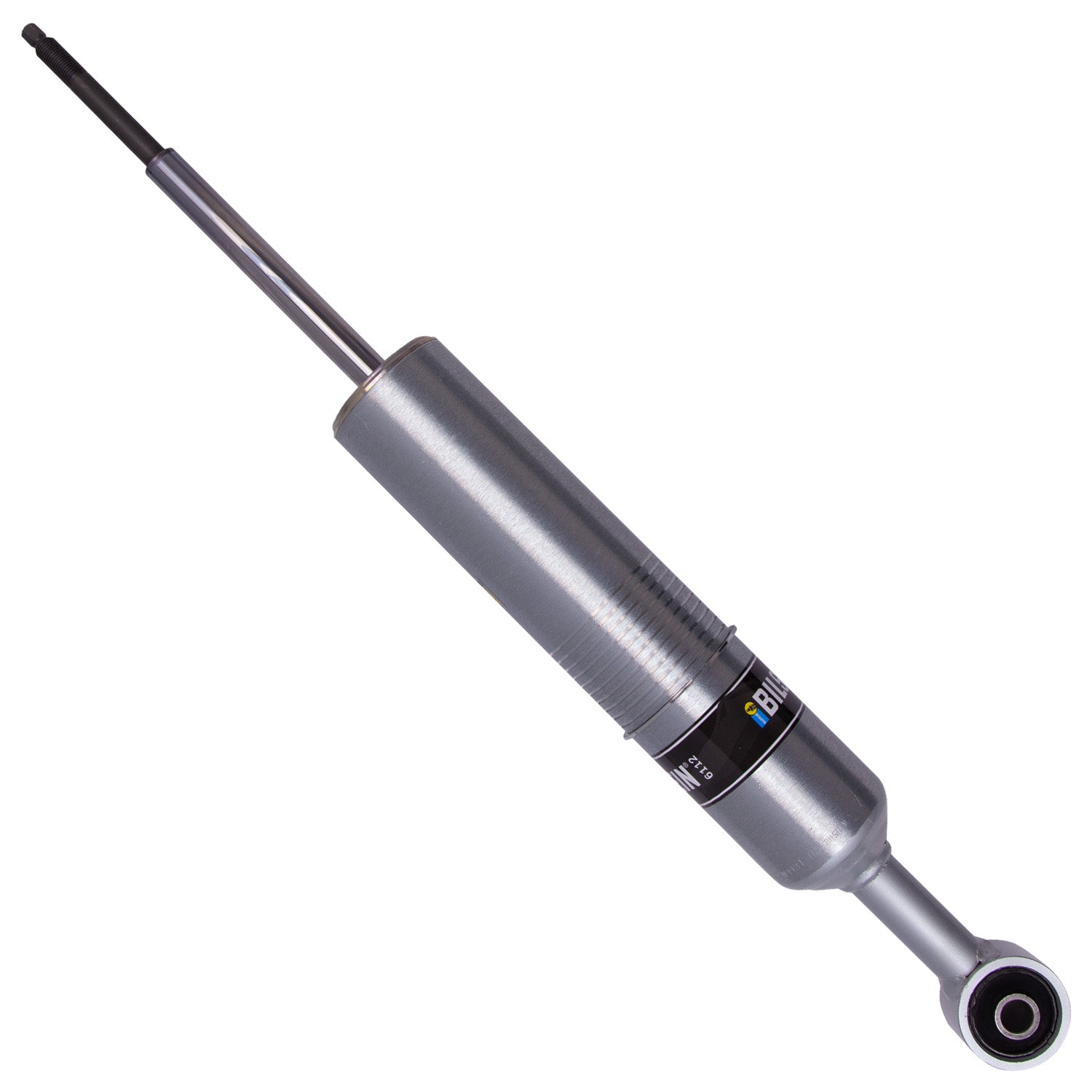

• Shock Absorbers: Two Bilstein B8 6112 front 60mm shock absorbers

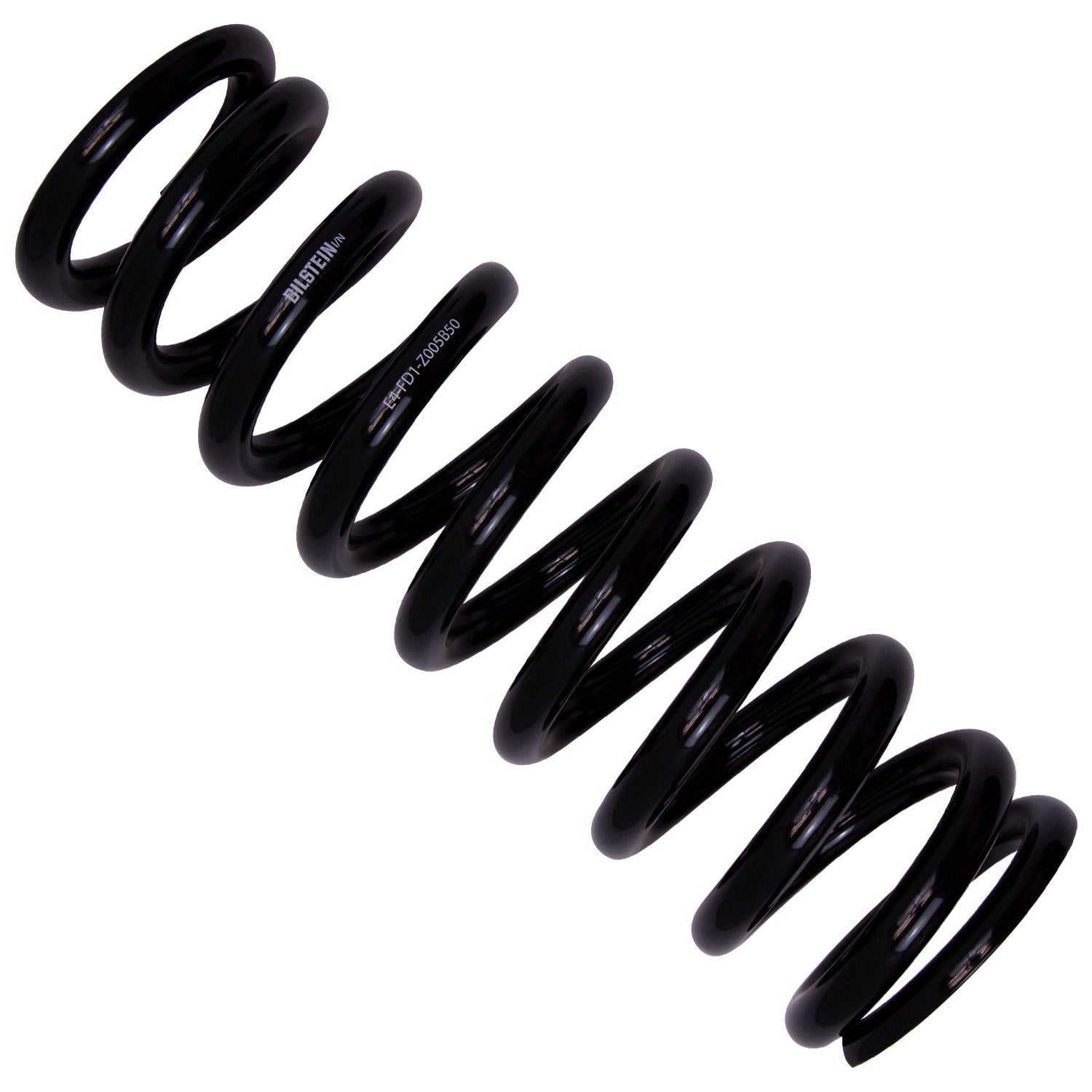

• Coil Springs: Two custom matched cold wound front coil springs

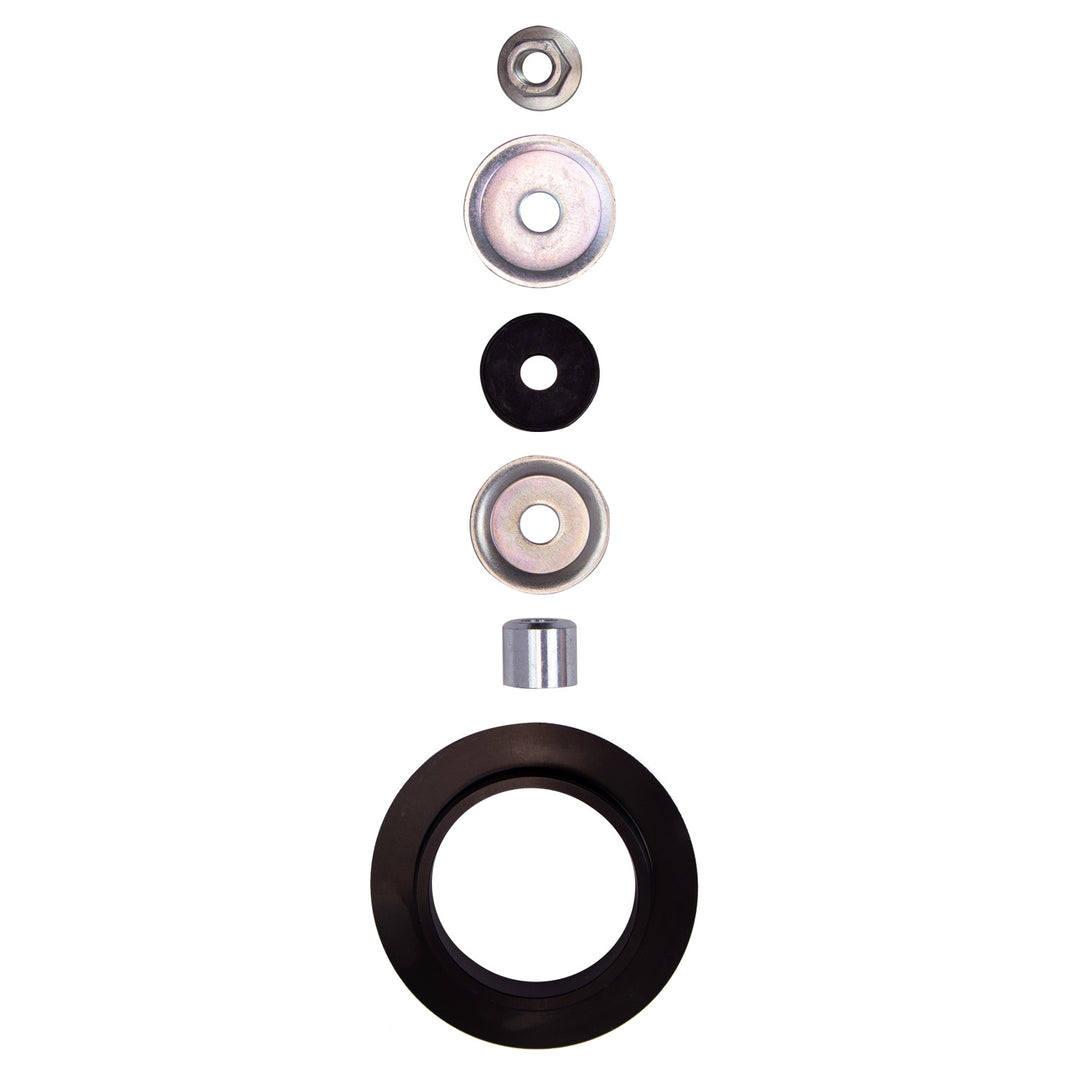

• Spring Seats: Two billet aluminum spring seats

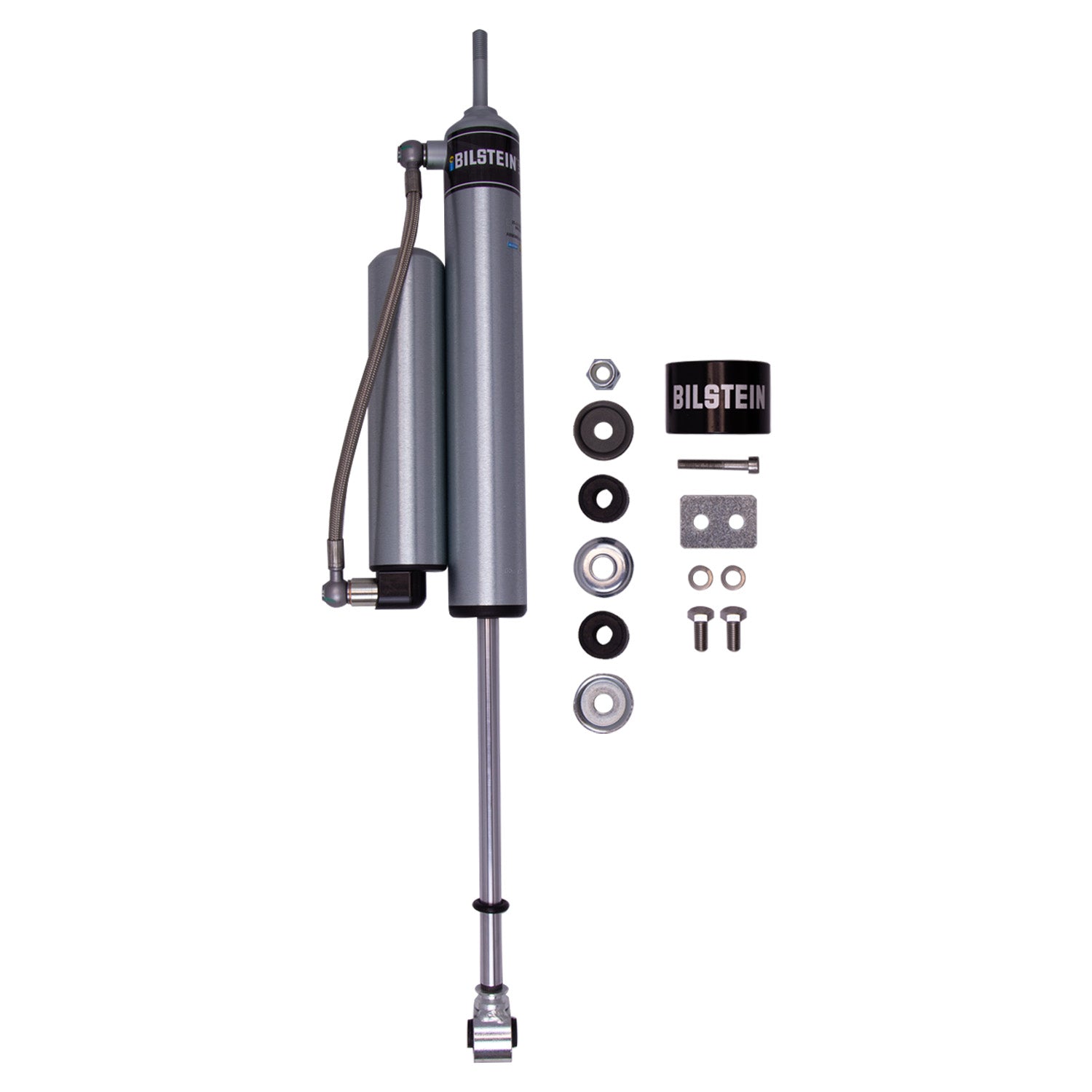

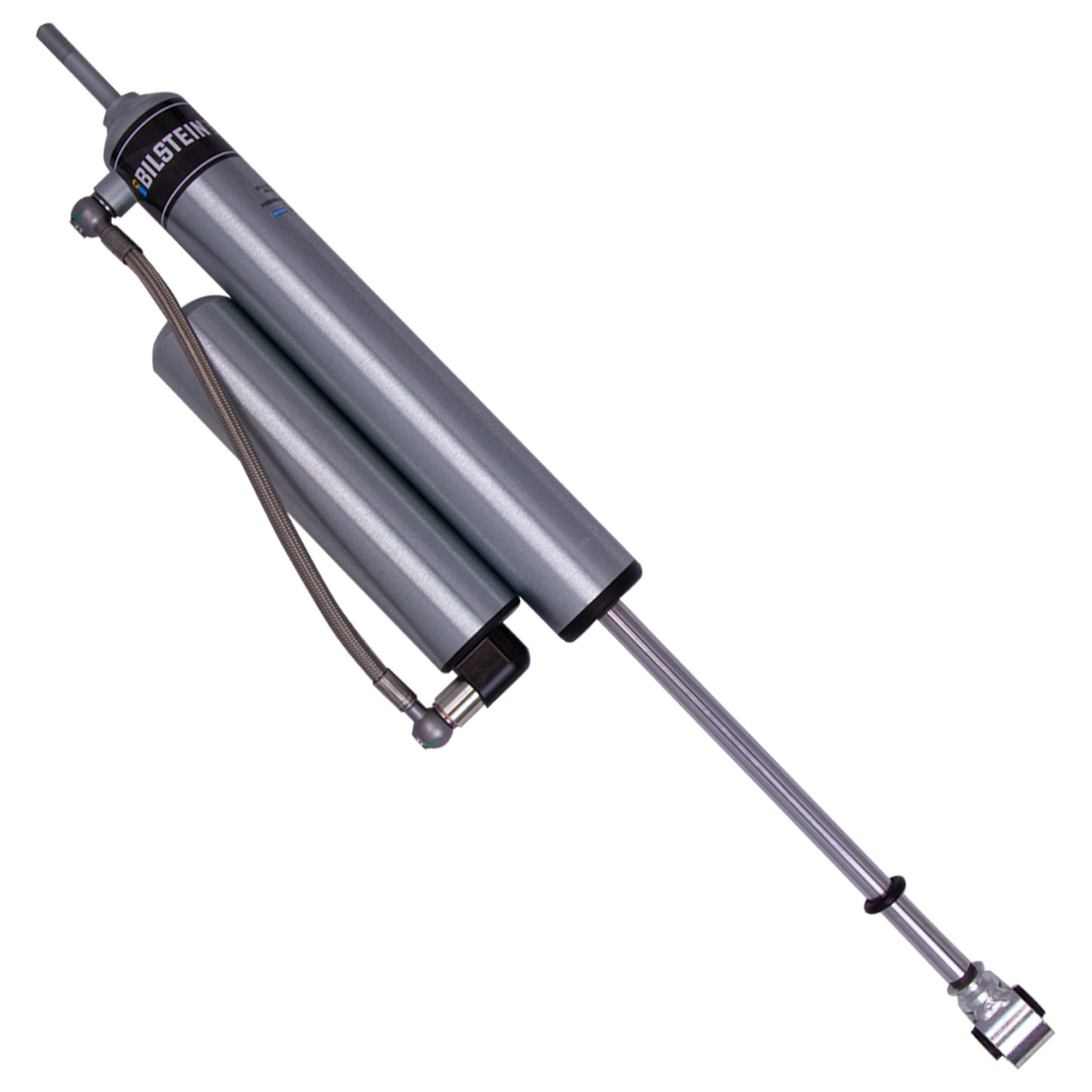

• Rear Shocks: Two Bilstein B8 5160 remote reservoir shock absorbers
SPECIFICATIONS

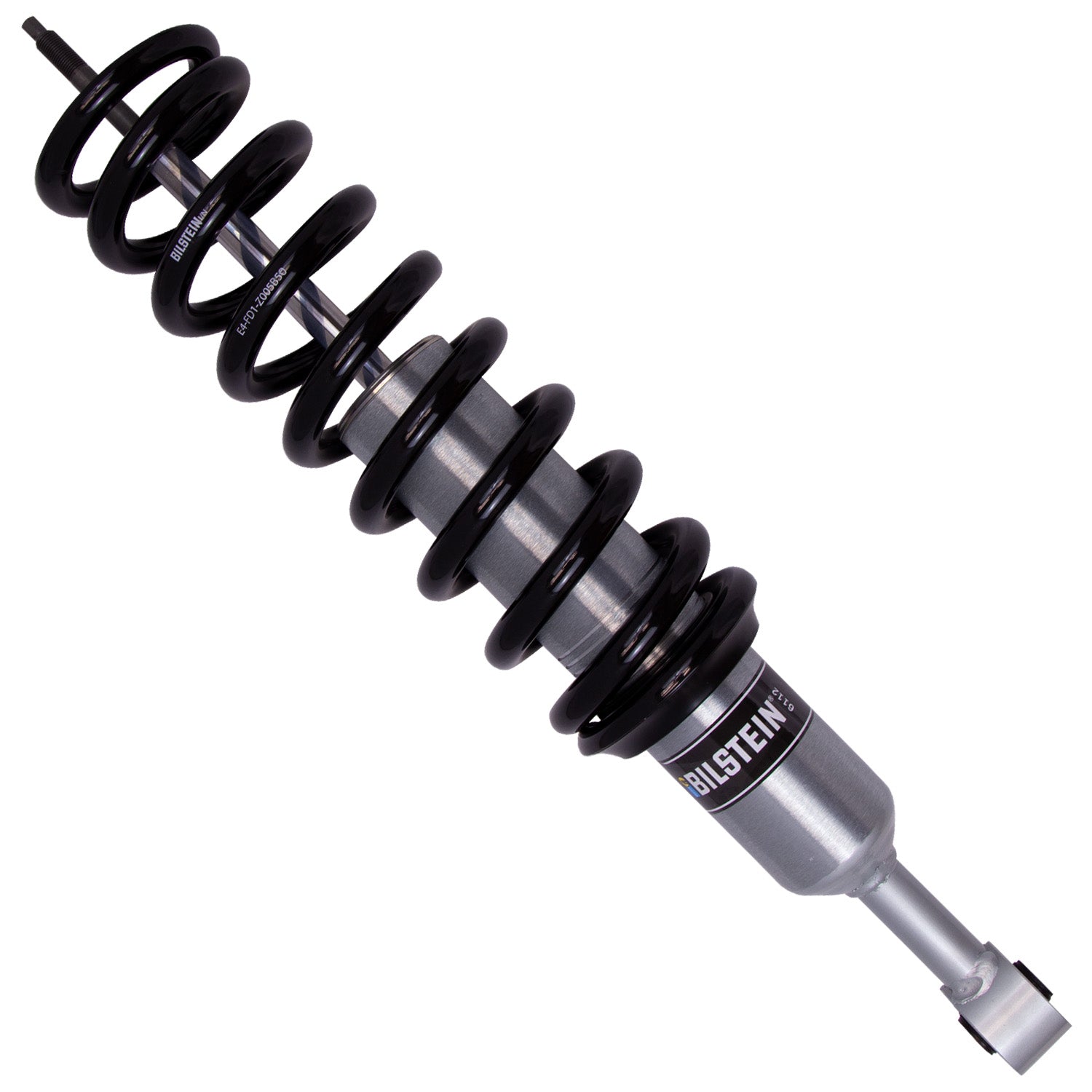

B8 6112 Suspension Kit — Front Position
• Body Design: Snap ring grooved coilover body
• Body Diameter: 60mm
• Reservoir: No
• Finish: Zinc plated dampers with black powder coated springs
• Spring Seat: Included

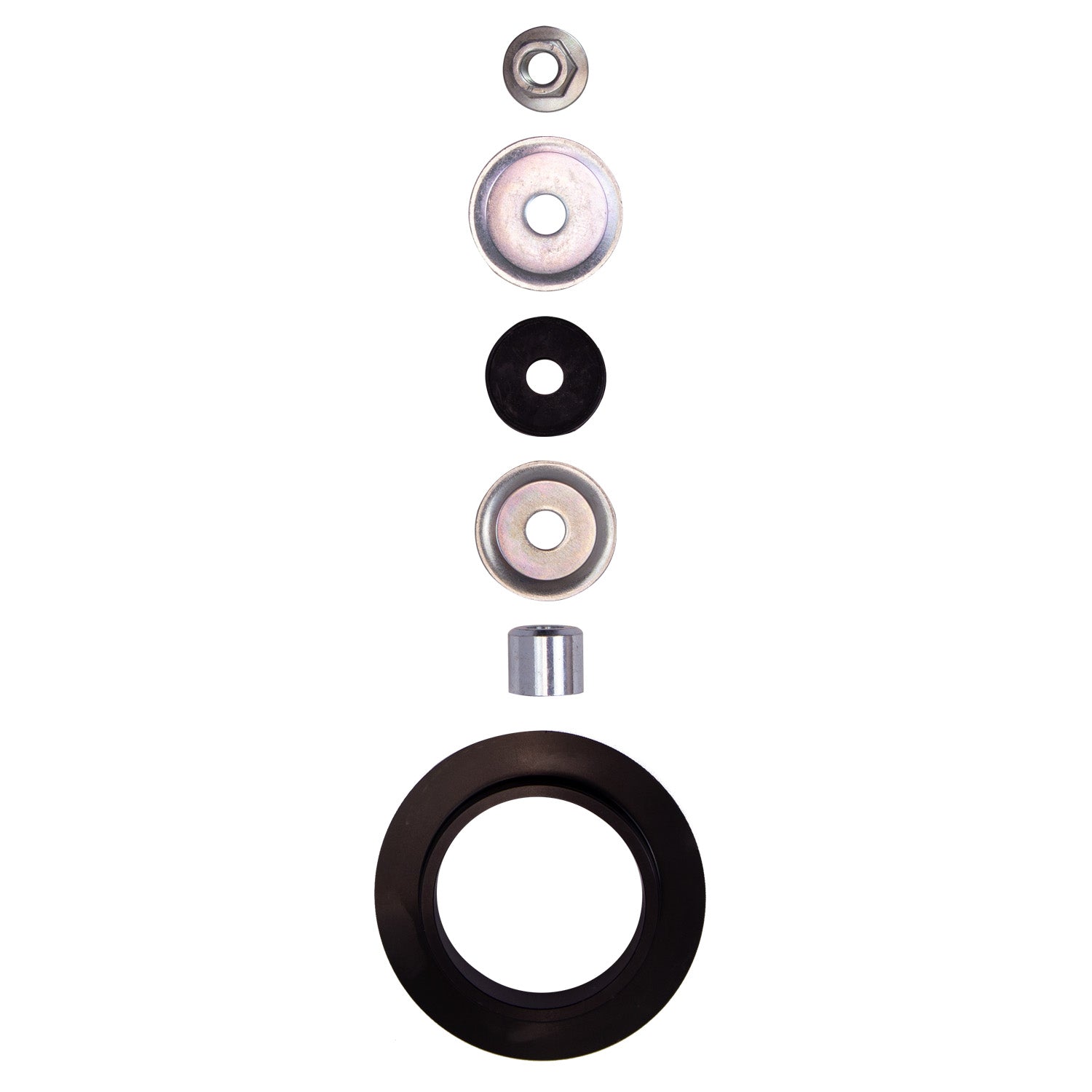

• Replacement Mounting Kit: B4-KT1-Z452A00

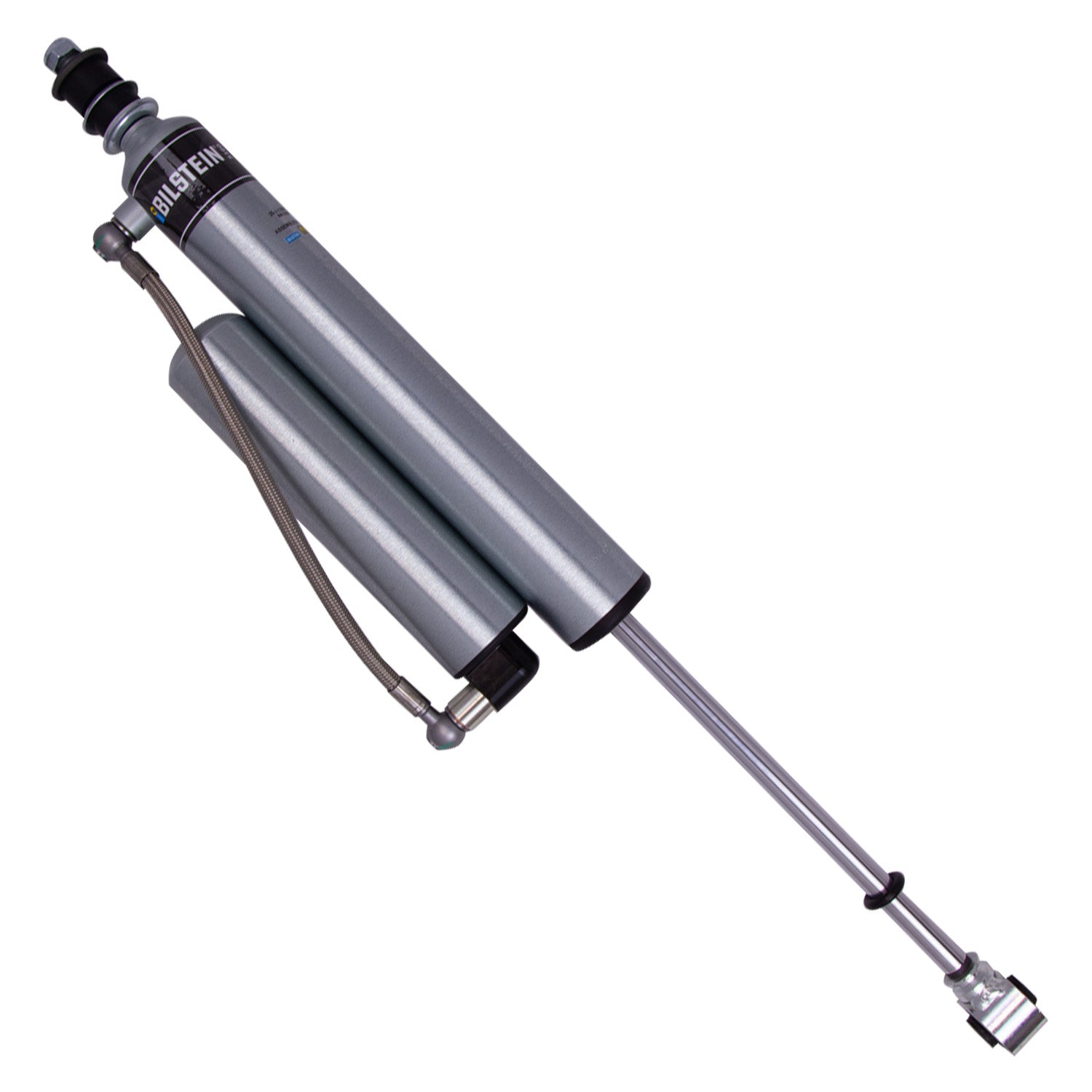

B8 5160 Suspension Shock Absorber — Rear Position
• Collapsed Length: 14.22 in (361.1 mm)
• Extended Length: 23.63 in (600.3 mm)
• Body Design: Smooth body non-coilover
• Reservoir: Yes (Remote Reservoir)
• Billet Reservoir Clamp: Included
• Body Diameter: 46mm
• Finish: Zinc plated
• Spring Seat: Not included
• Adjustable Damping: Non-adjustable

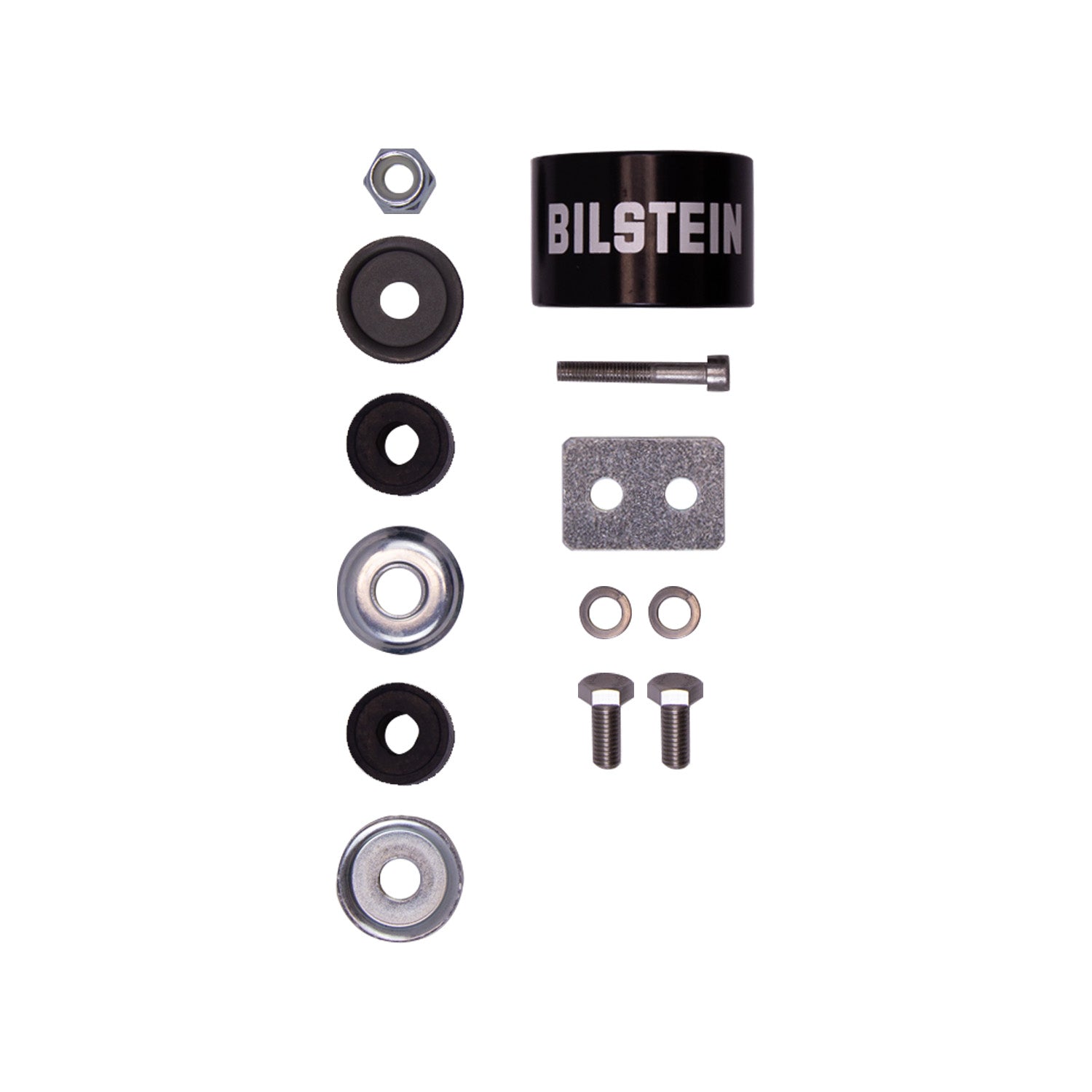

• Replacement Mounting Kit: B4-KT1-Z008A00
FITMENT
• Vehicle: Toyota Tacoma
• Years: 2005–2023
• Front Position: Bilstein B8 6112 Suspension Kit
• Rear Position: Bilstein B8 5160 Remote Reservoir Shock Absorbers
