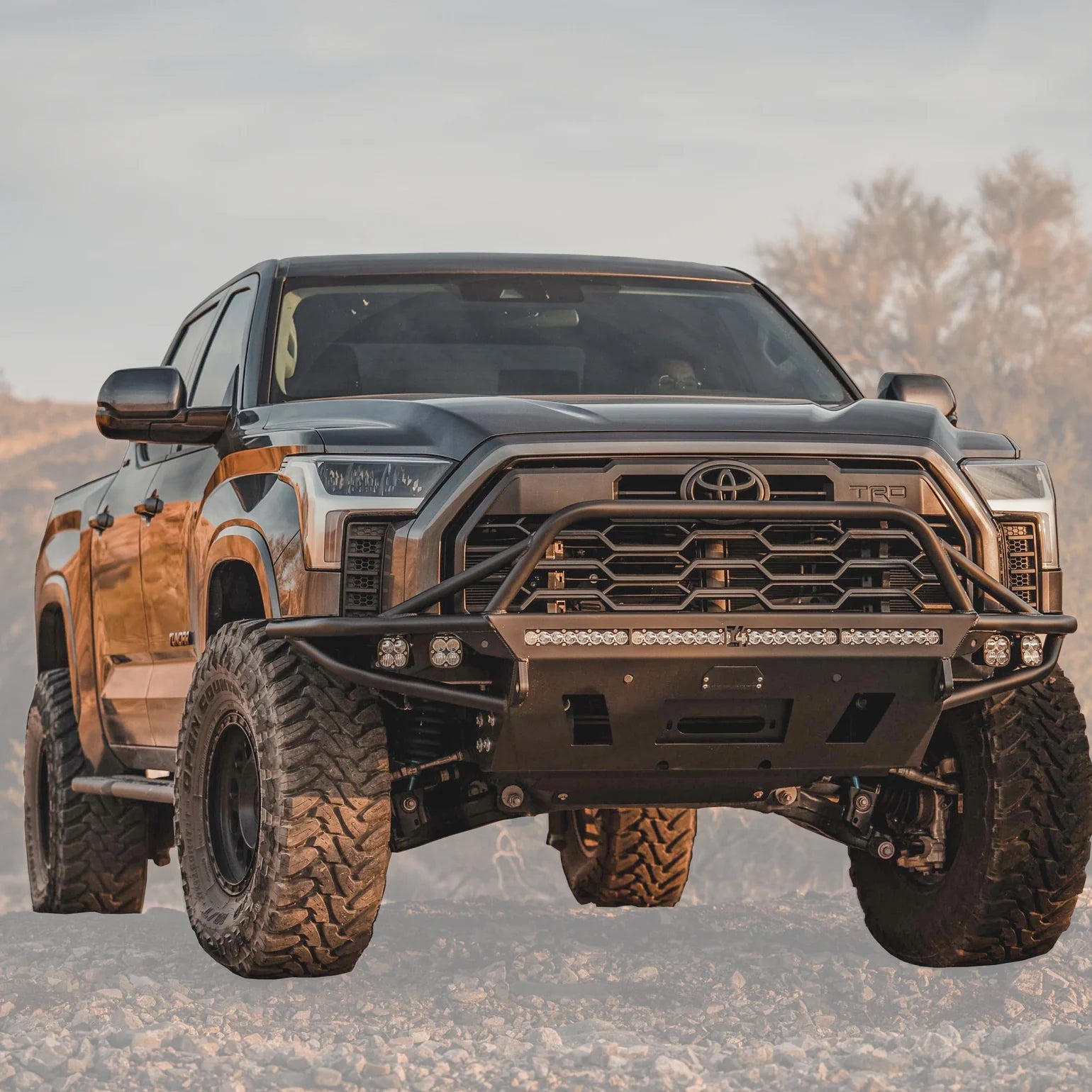

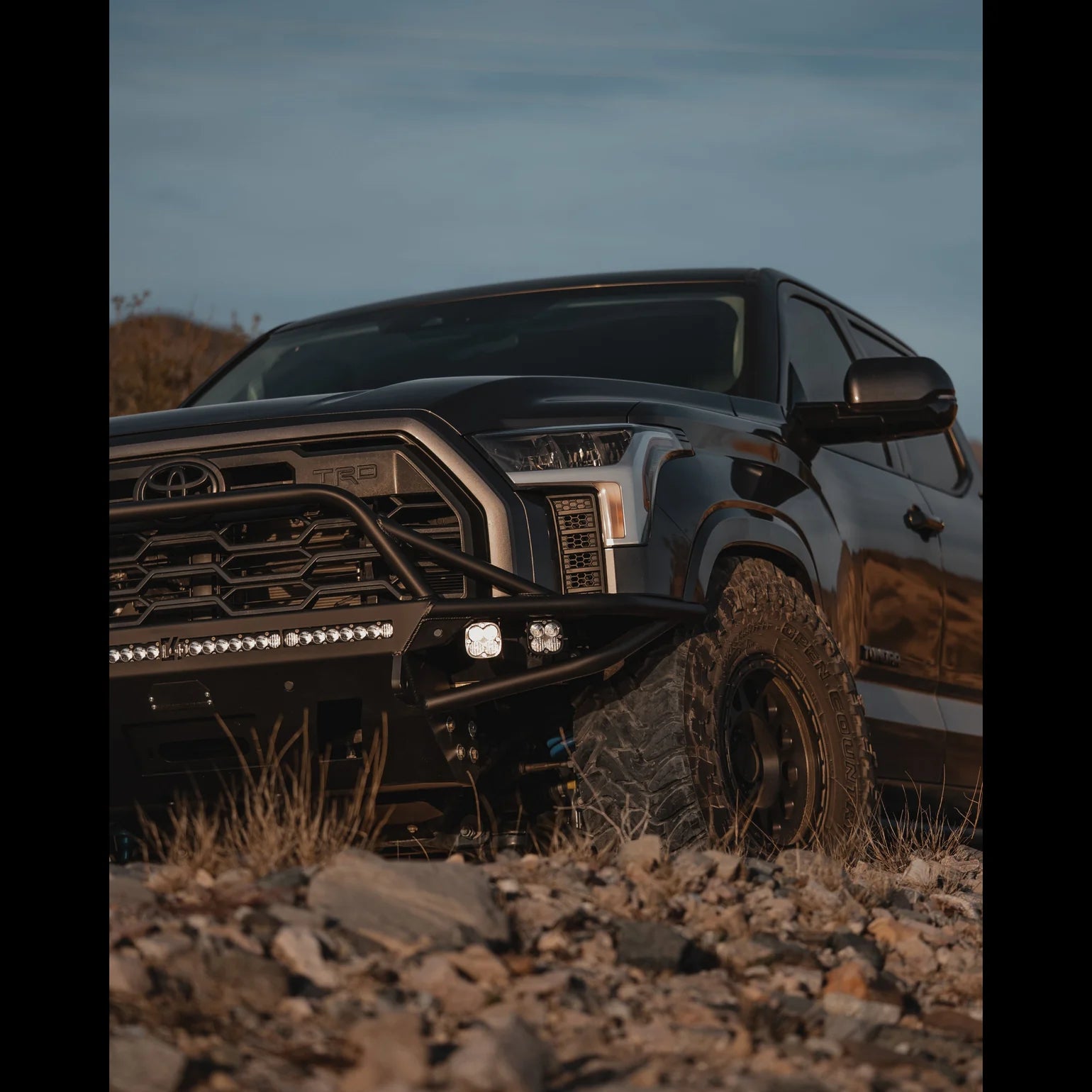

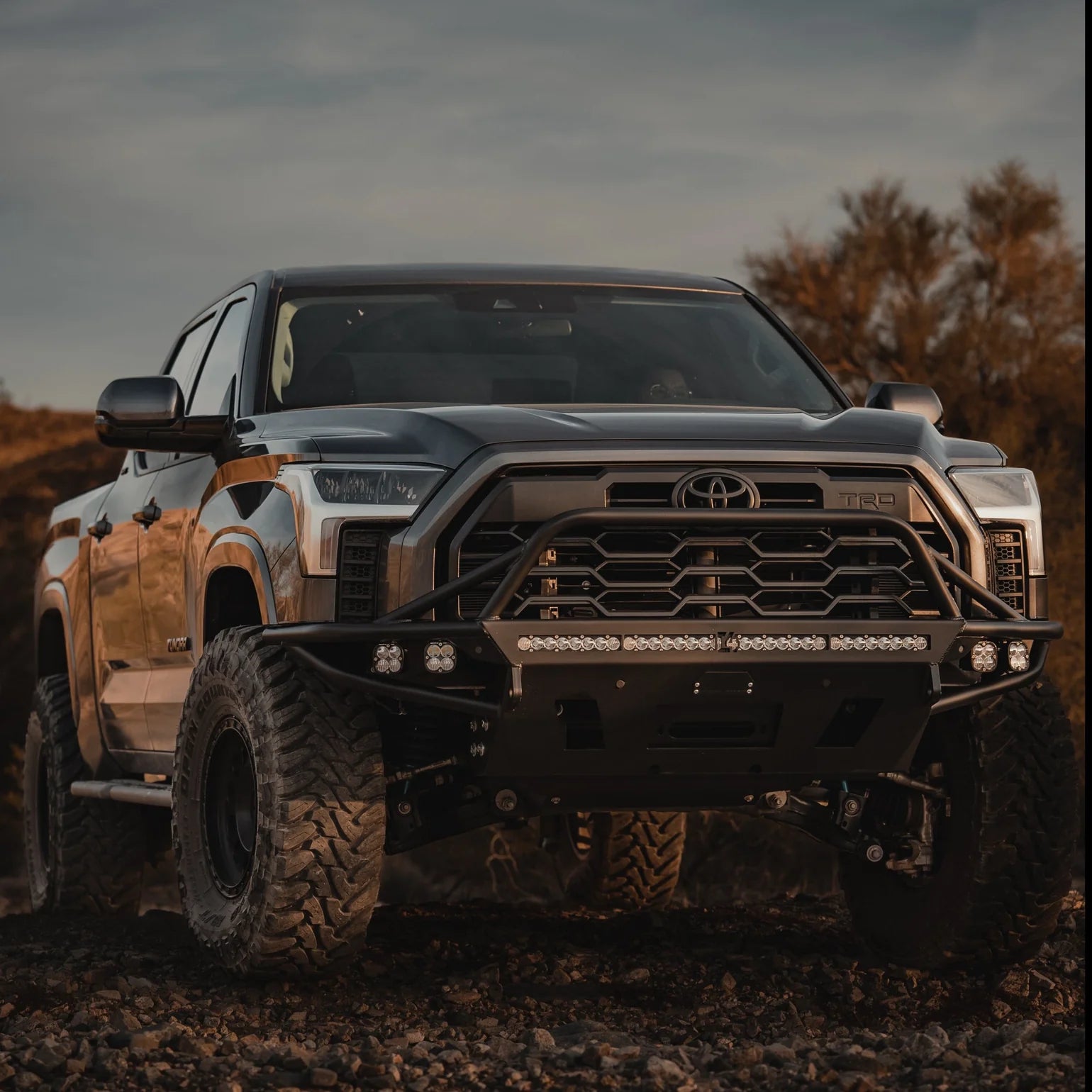

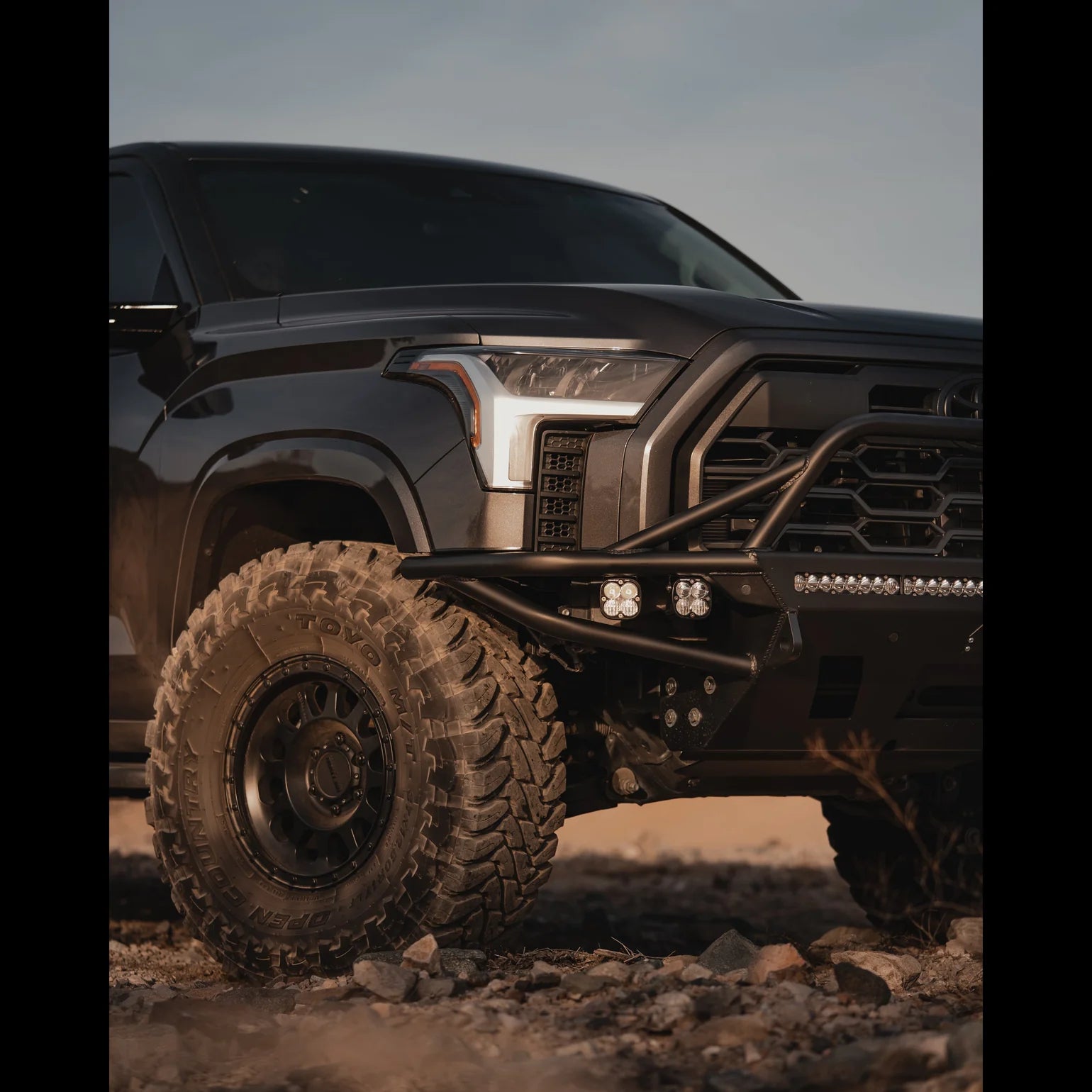

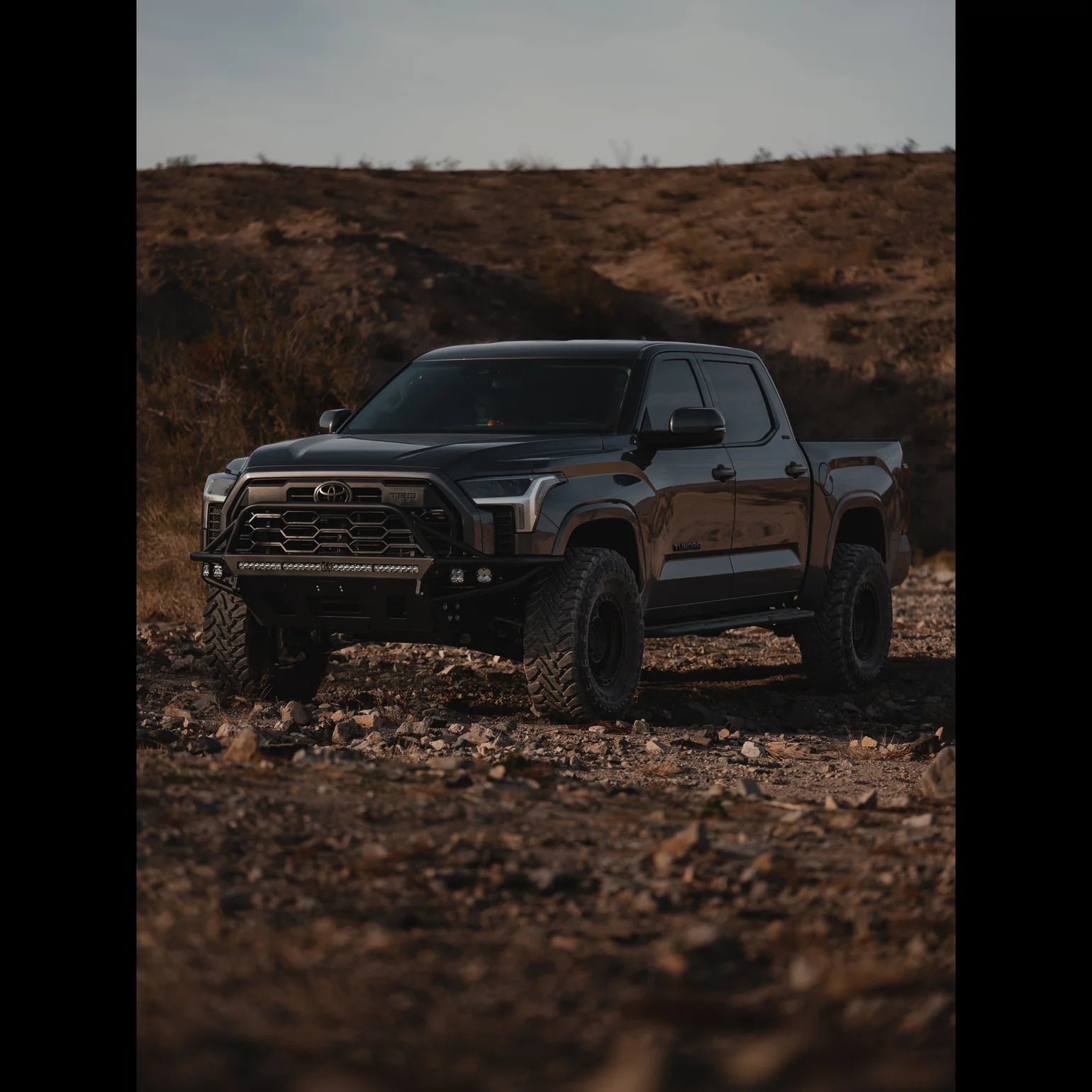

The Hybrid Series Front Bumper is designed to improve protection, clearance, and recovery capability for the 2022+ Toyota Tundra while maintaining compatibility with factory safety systems. Built from heavy duty laser cut steel, the bumper provides improved approach angles and winch capability while integrating lighting options and retaining key vehicle sensors. The design balances strength and functionality for both off road and overland applications.
Important notes
• Lead time: This item has an estimated 6–8 week lead time before shipping
• Finish requirement: Raw steel versions must be painted or powder coated before installation to prevent rust unless the powder coated option is selected
• Installation: Requires cutting the factory plastic bumper panels under the headlights and trimming the ends of the fender flares
• Safety system compatibility: Retains functionality of Toyota Safety Sense, parking sensors, and the front mounted camera
• Sensor calibration: Toyota Safety Sense recalibration may be required after installation depending on sensor positioning
• Sensor orientation: Parking sensors must be oriented correctly during installation to avoid malfunction
Features
• Sensor compatible design: Retains Toyota Safety Sense, parking sensors, and front camera functionality
• Heavy duty steel construction: Built from 3/16 inch laser cut P&O steel with 1/4 inch mounting and winch plates for durability
• Integrated recovery points: 3/4 inch thick D ring tabs fully welded on both sides provide strong recovery capability
• Steel skid plate included: Replaces the factory plastic skid plate to improve front underbody protection
Specifications
• Material: 3/16 inch laser cut P&O steel with 1/4 inch mounting plates and winch plate and HREW steel tubing
• Weight: 160 lbs no bull bar, 168 lbs low bull bar, 174 lbs mid height with gussets
• Dimensions: Not specified

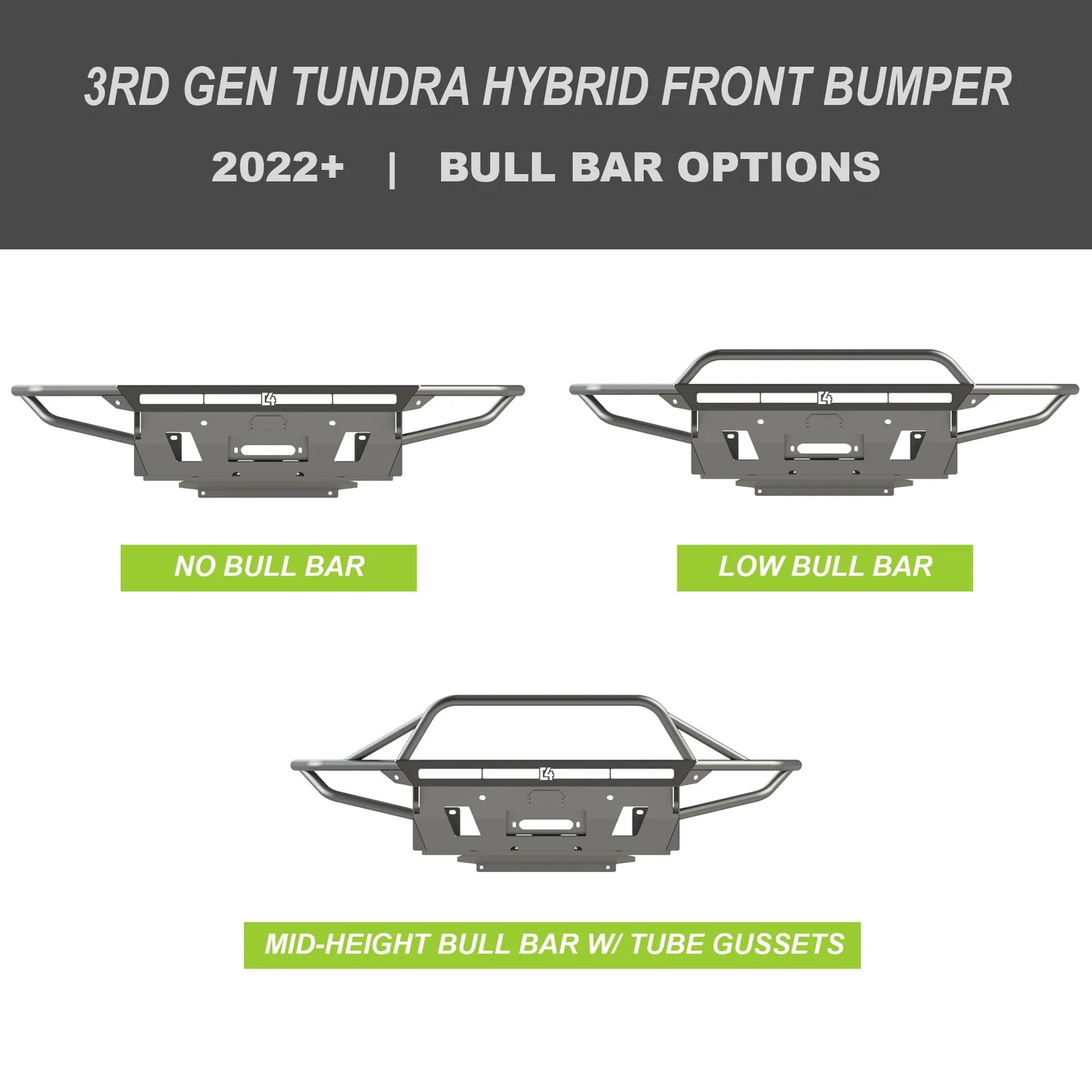

• Construction: Laser cut steel bumper with tubular bull bar options
• Finish: Raw steel or optional powder coat
• Installation type: Bolt on with required trimming of factory bumper components
Vehicle fitment
• Vehicle compatibility: Toyota Tundra 2022+ (3rd Gen)
• Safety system compatibility: Compatible with Toyota Safety Sense and factory parking sensors
• Camera compatibility: Front mounted camera remains functional with all bull bar options
Included in the box
• Front bumper: Hybrid Series front bumper assembly
• Front skid plate: Steel skid plate replacing the factory plastic skid
• Frame mounting brackets: Reinforcement brackets for bumper installation
• Hardware: Mounting hardware for installation
