Name: C4 Fabrication Overland Series Front Bumper for 4Runner (2003-2009)
Brand: C4 Fabrication
SKU: 1100-3103-30-NB
Price: 1949.0 USD
Availability: InStock

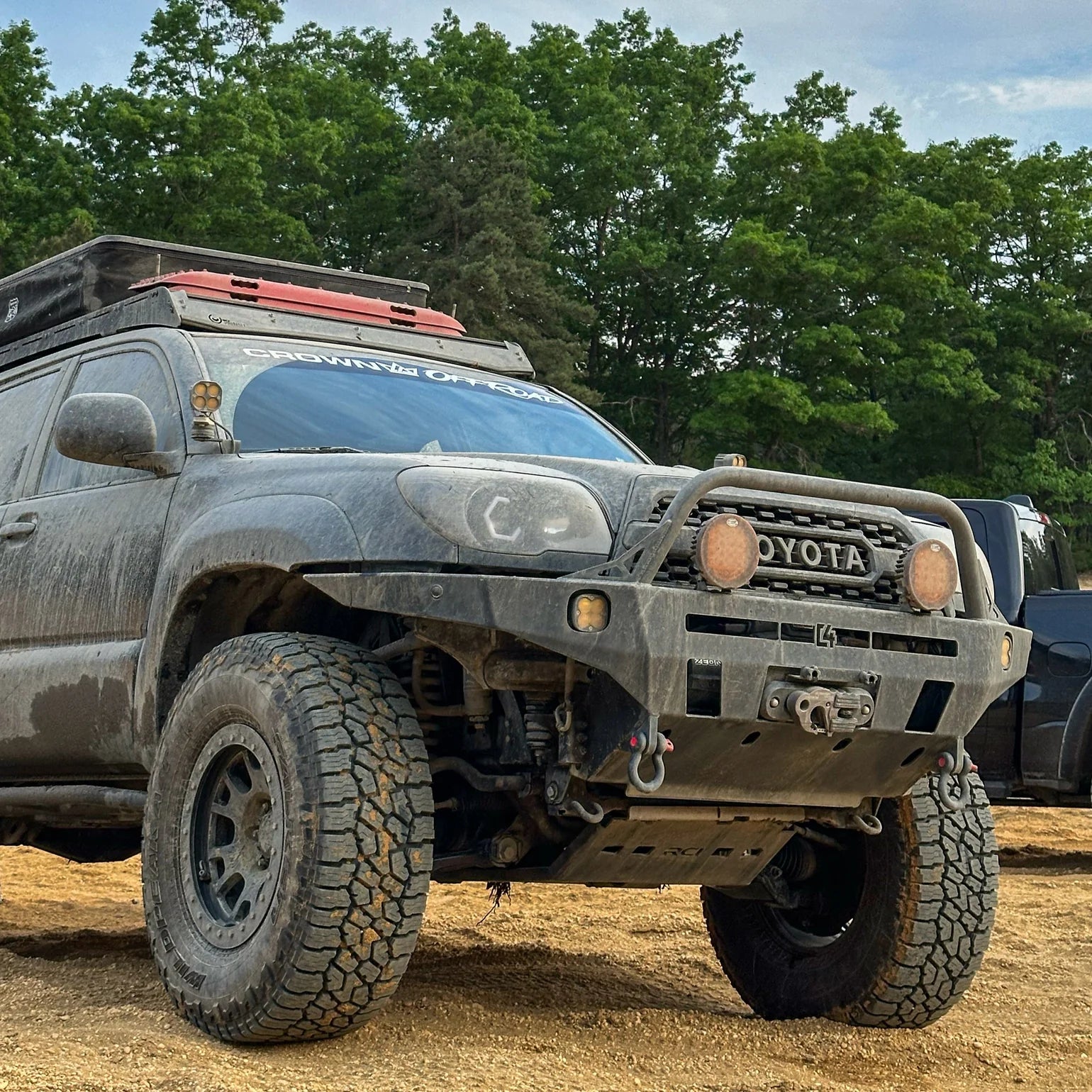

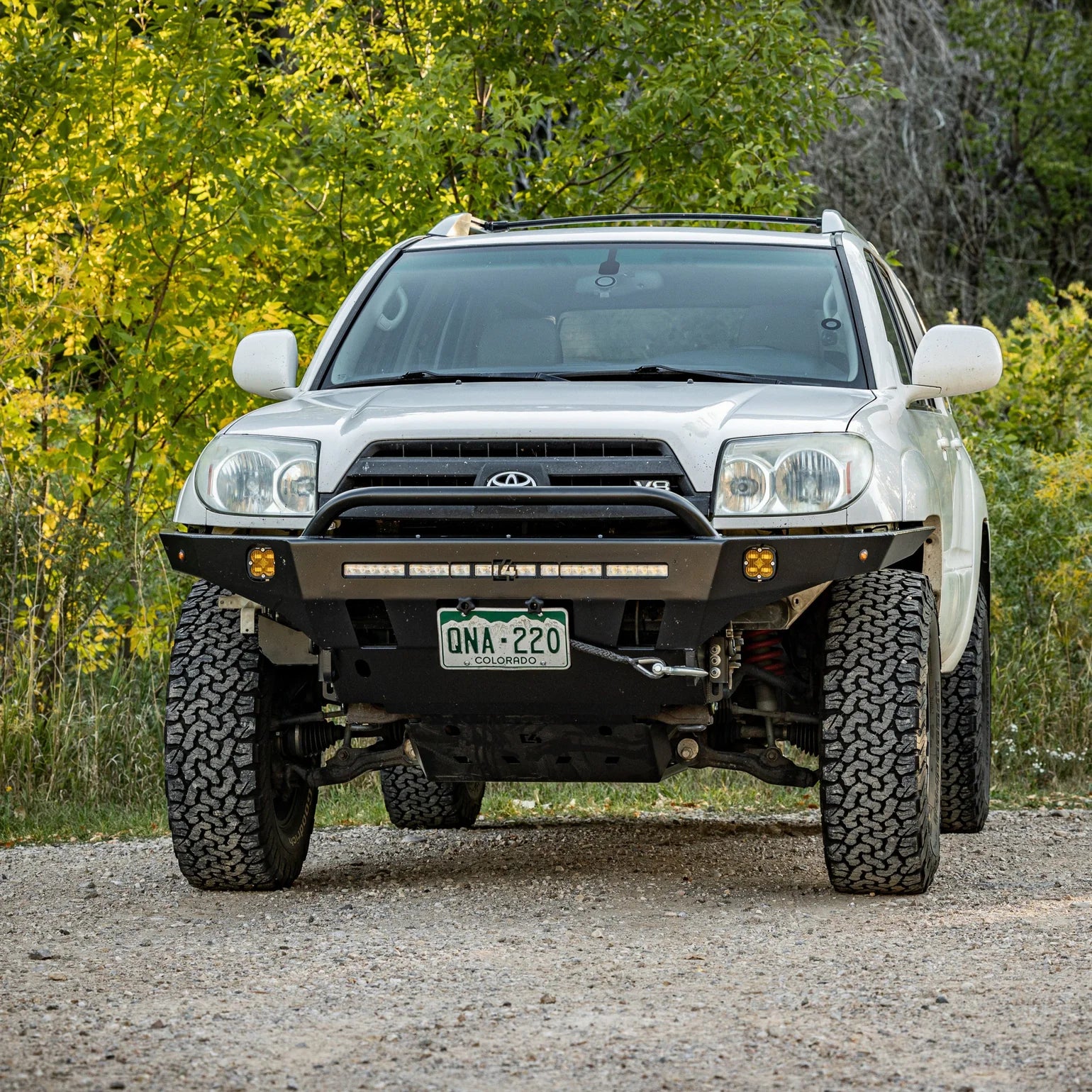

C4 Fabrication Overland Series Front Bumper for 4Runner (2003-2009)

$1,949.00

Shipping calculated at checkout.

Select Finish

Raw

Powder Coat

Select Year

2003-2005

2006-2009

Select Bull Bar

No Bull Bar

Mid-Height Bull Bar

Full-Height Bull Bar w/Plate Gussets

Low stock - 10 items left
Backordered, shipping soon

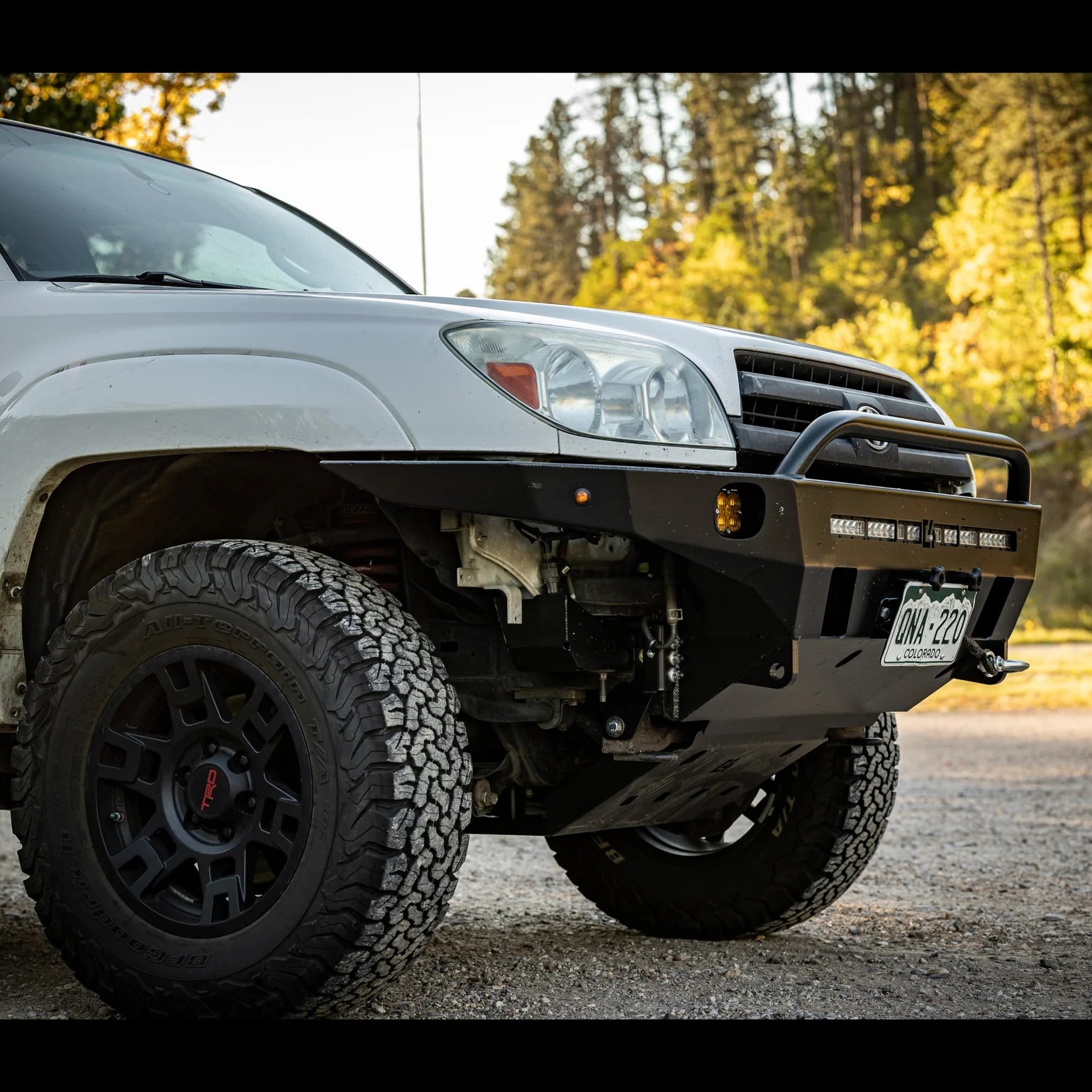

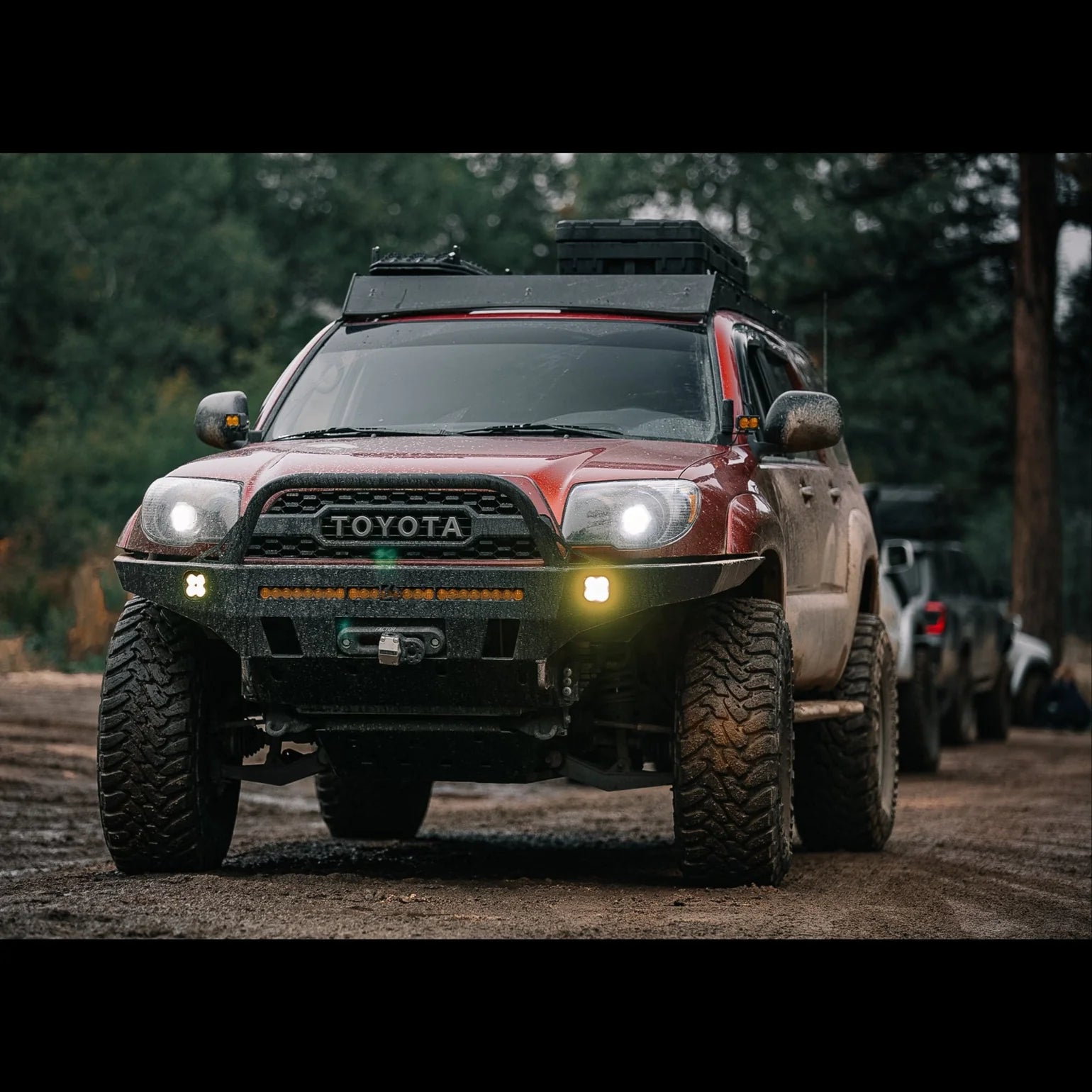

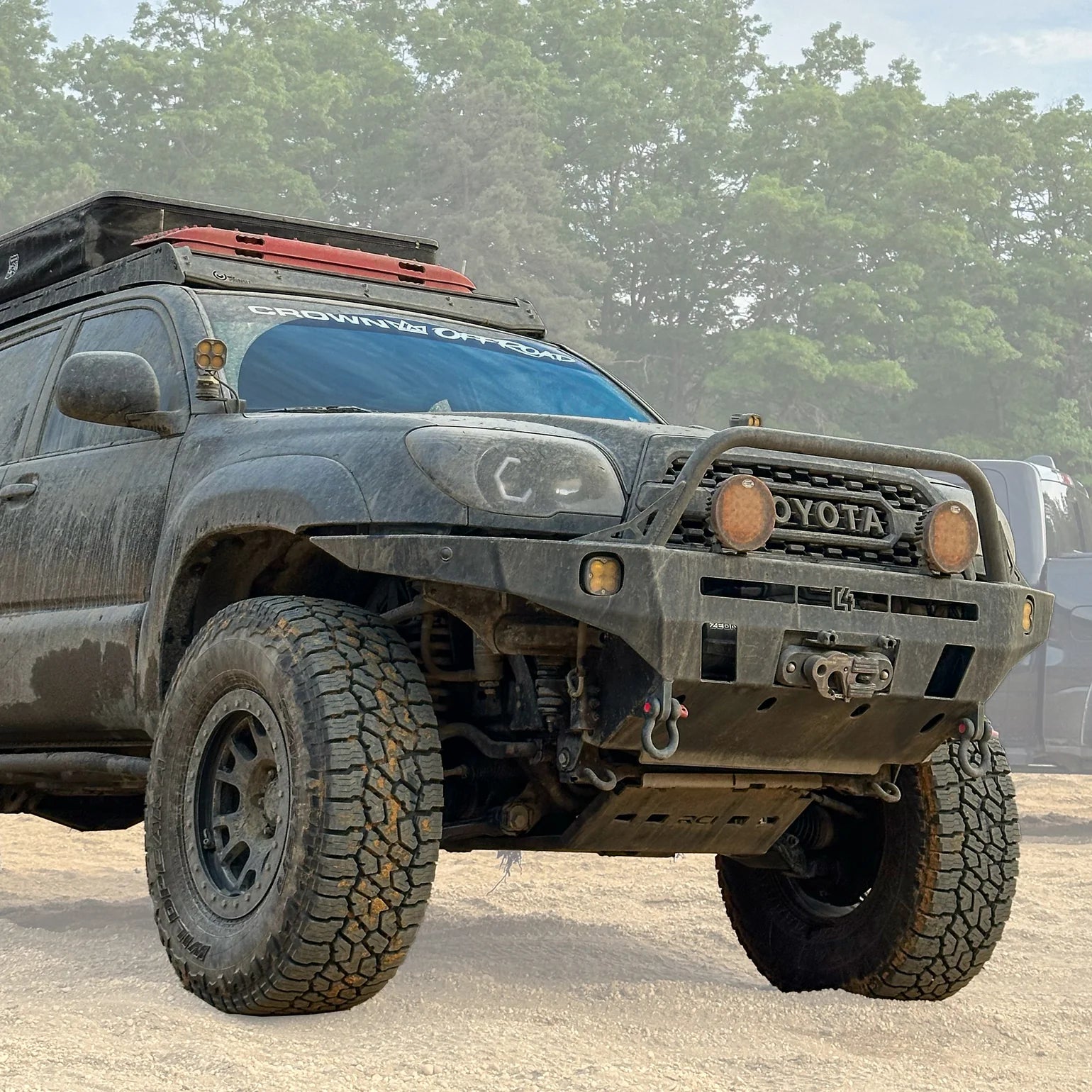

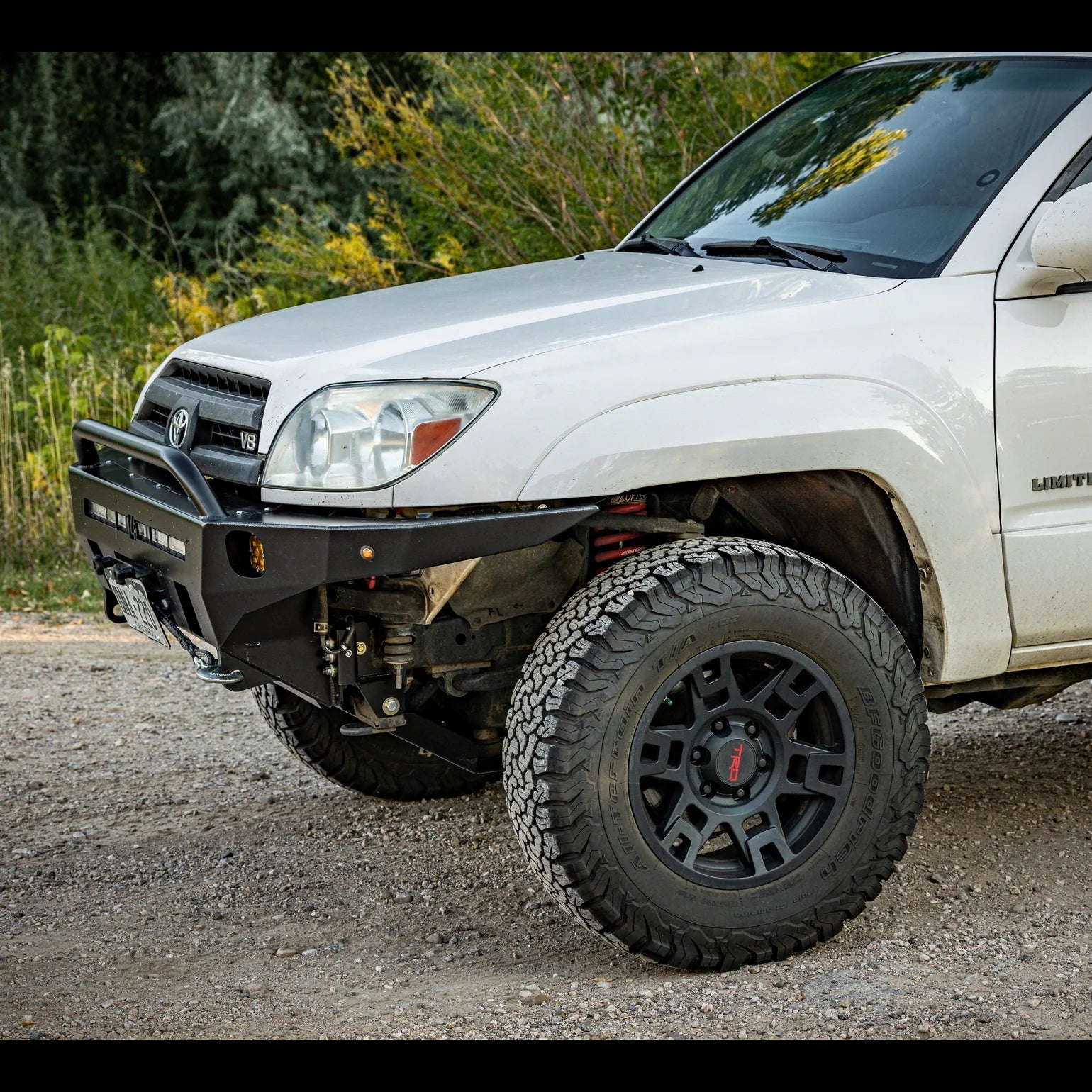

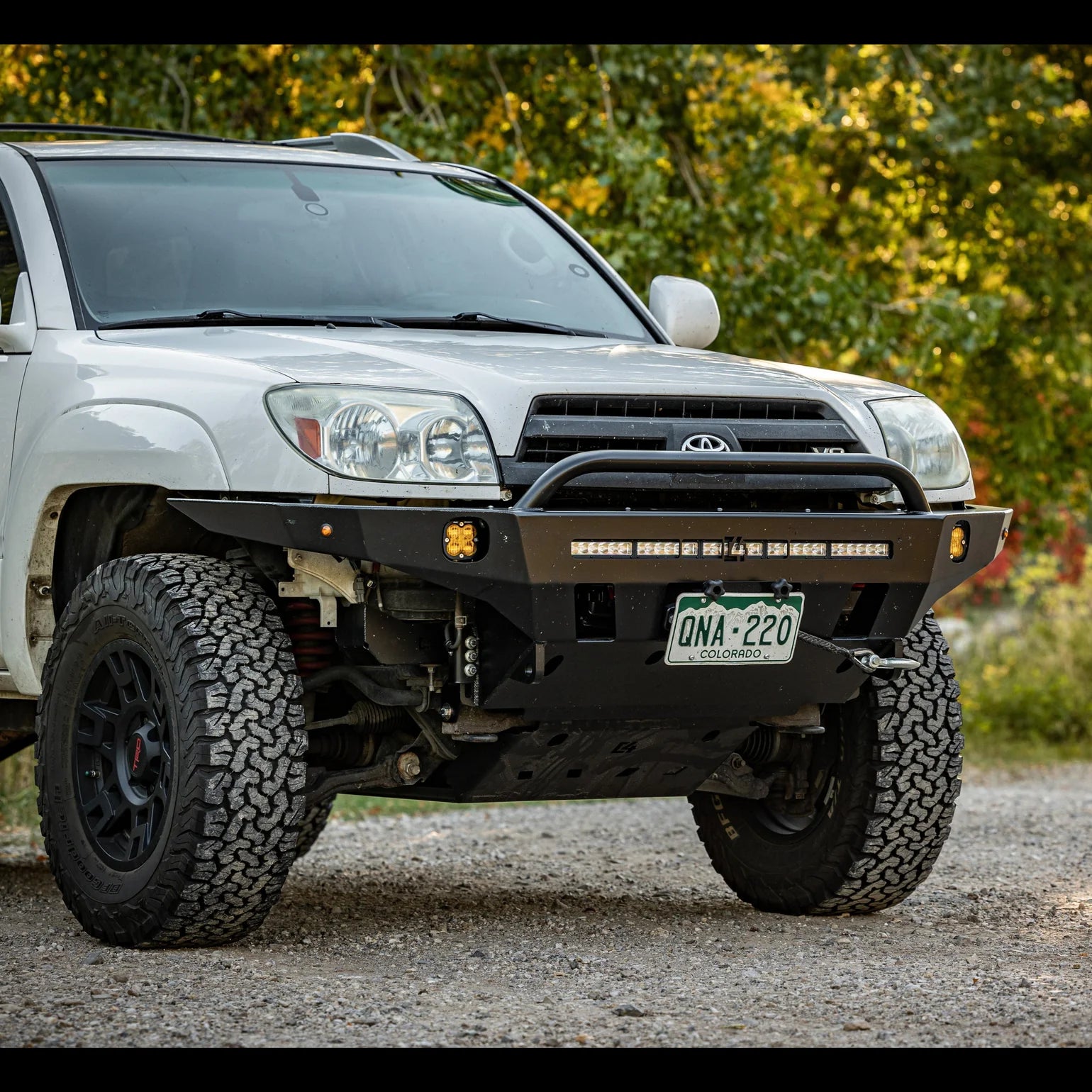

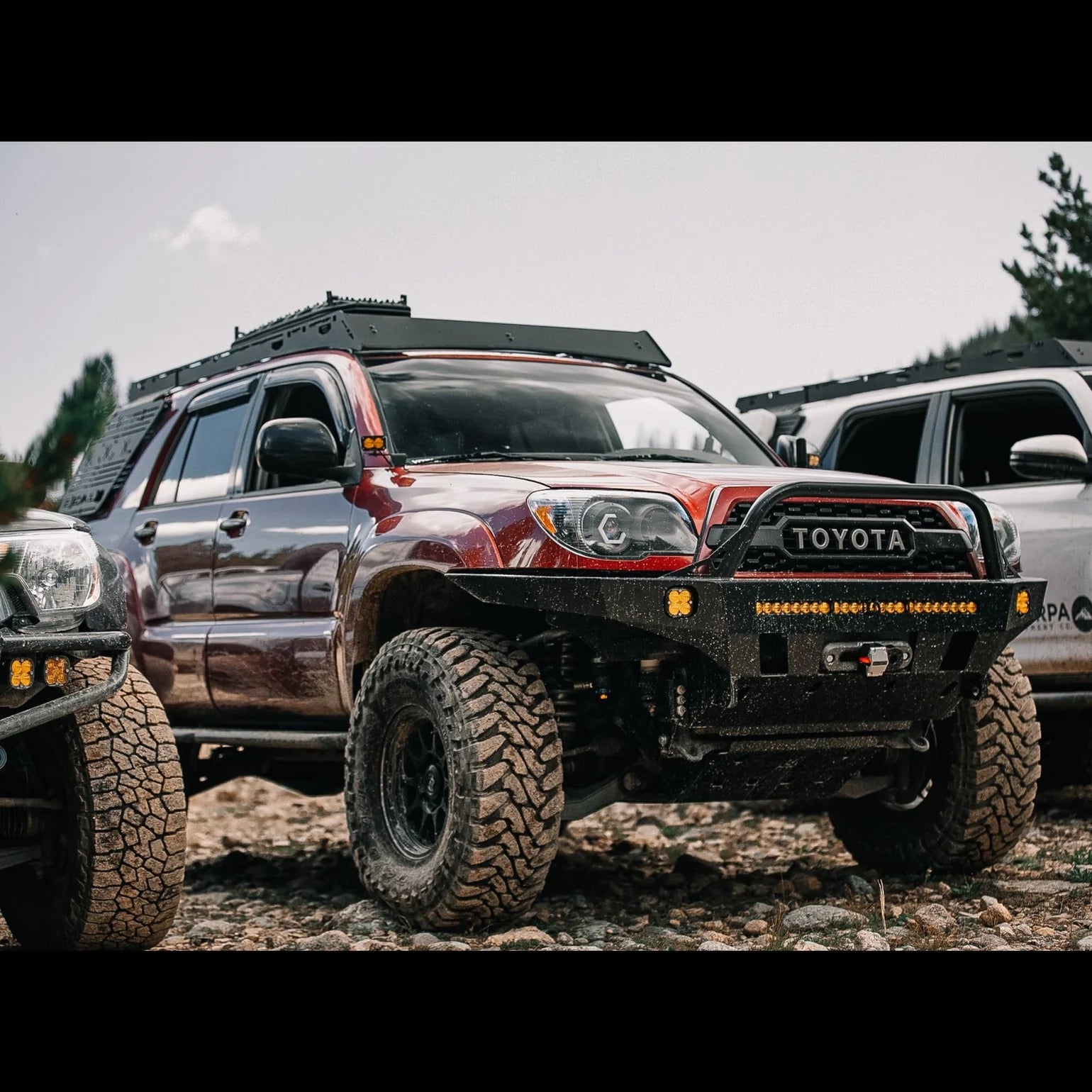

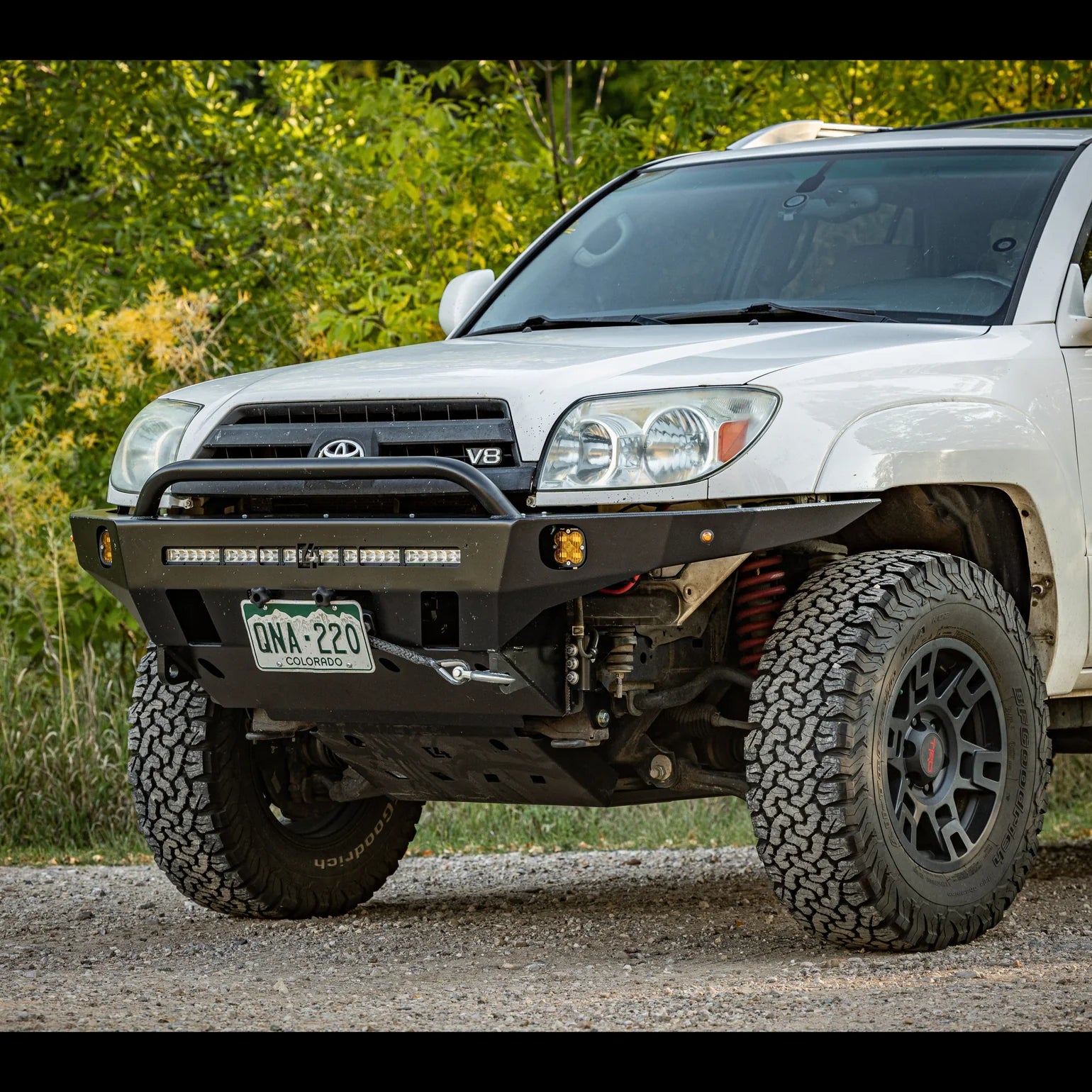

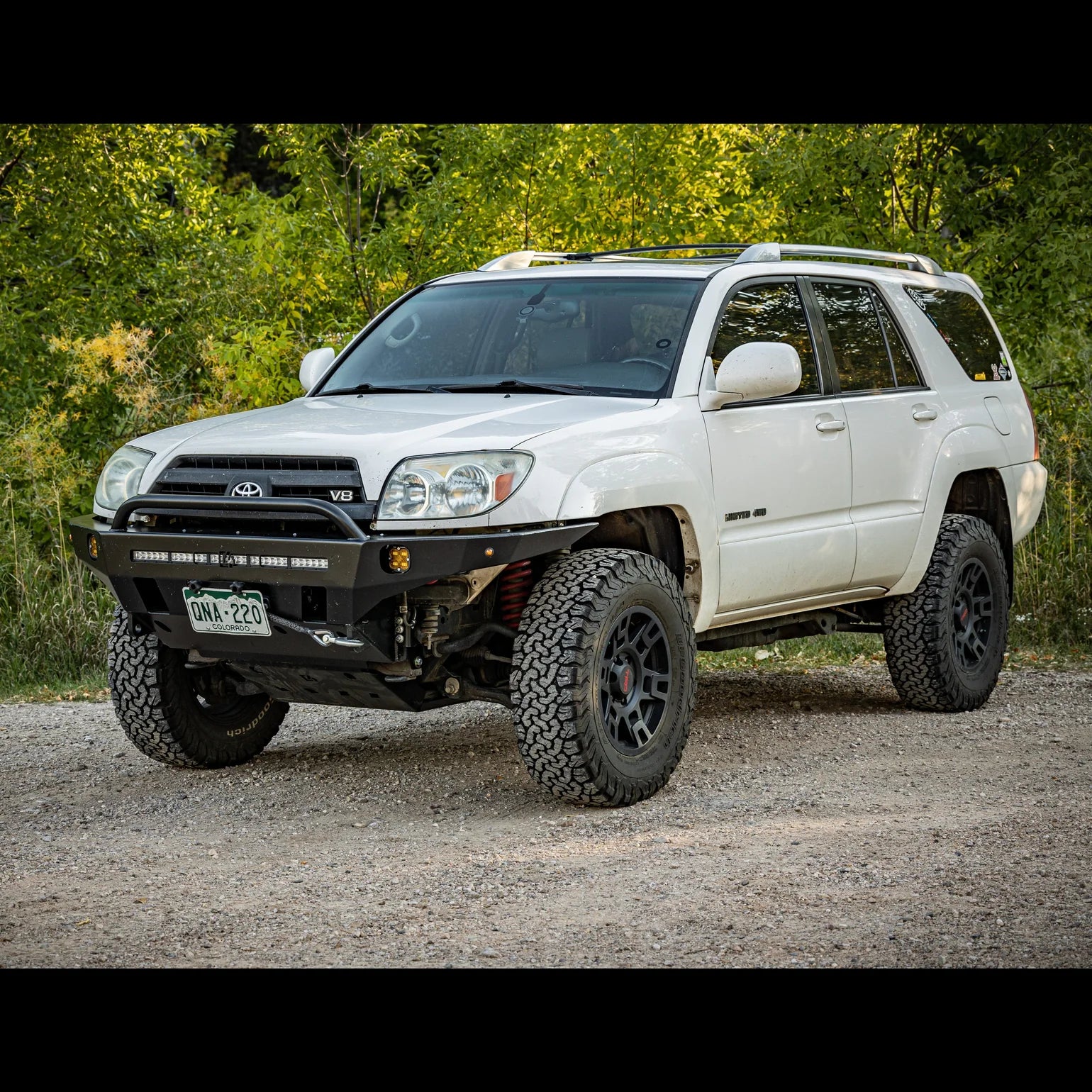

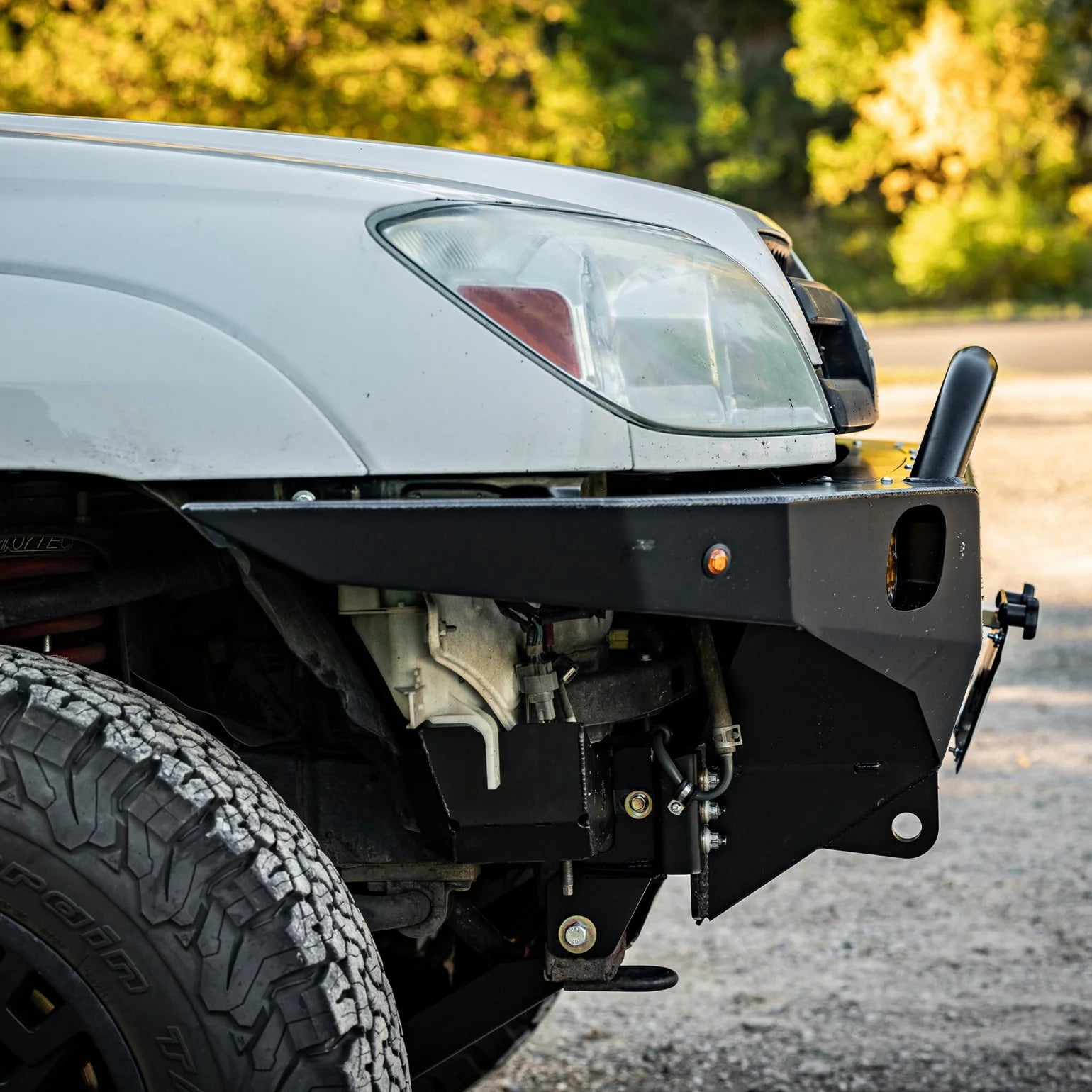

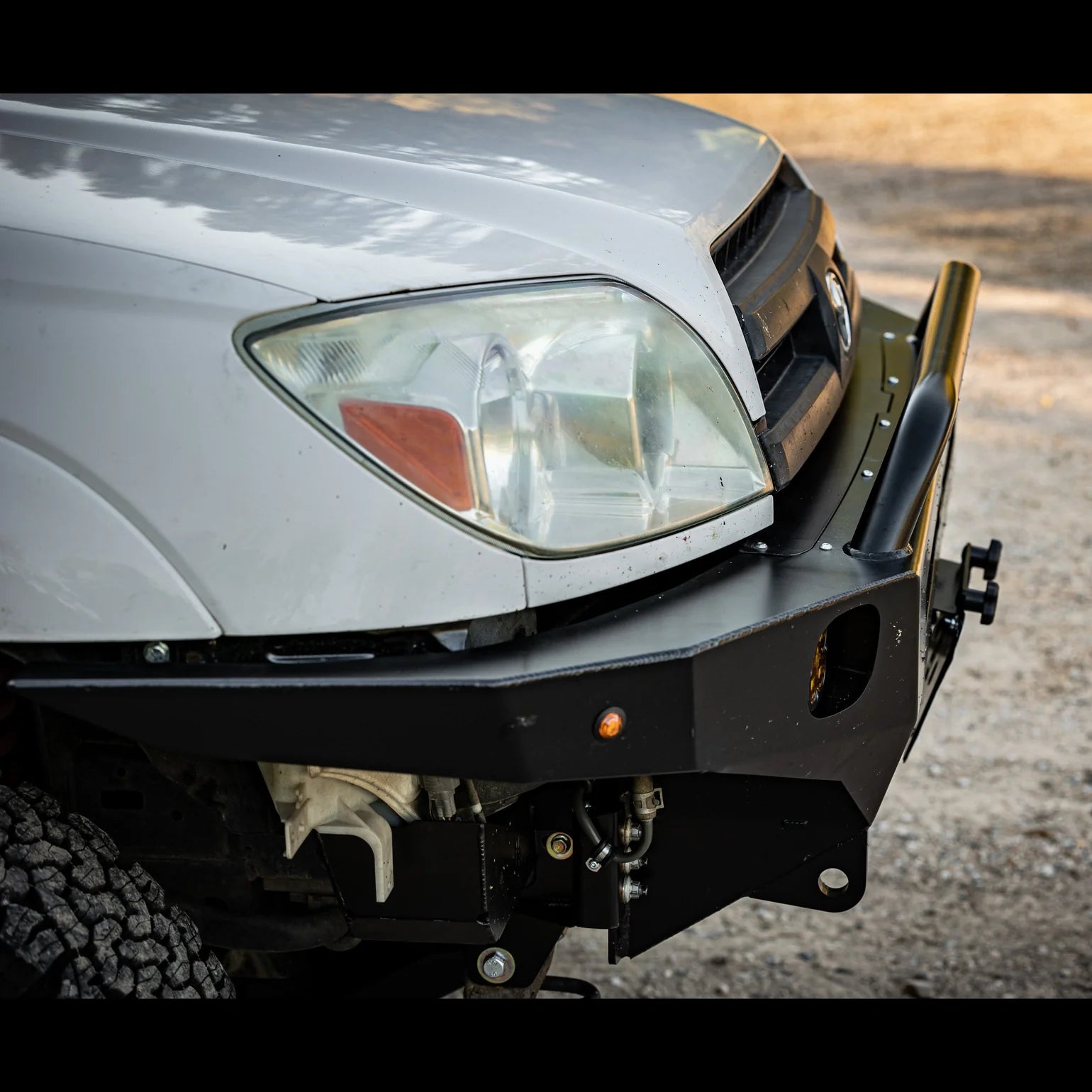

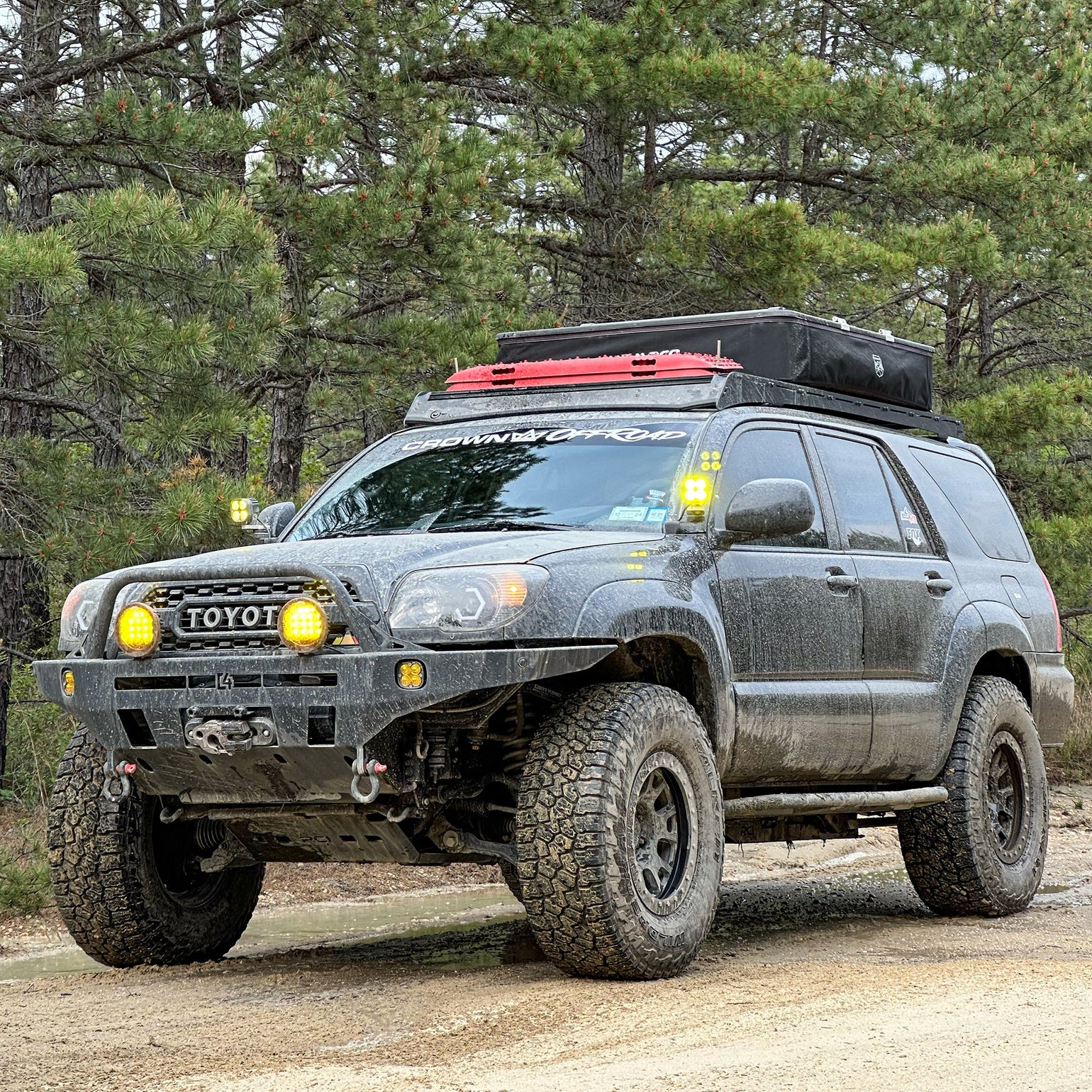

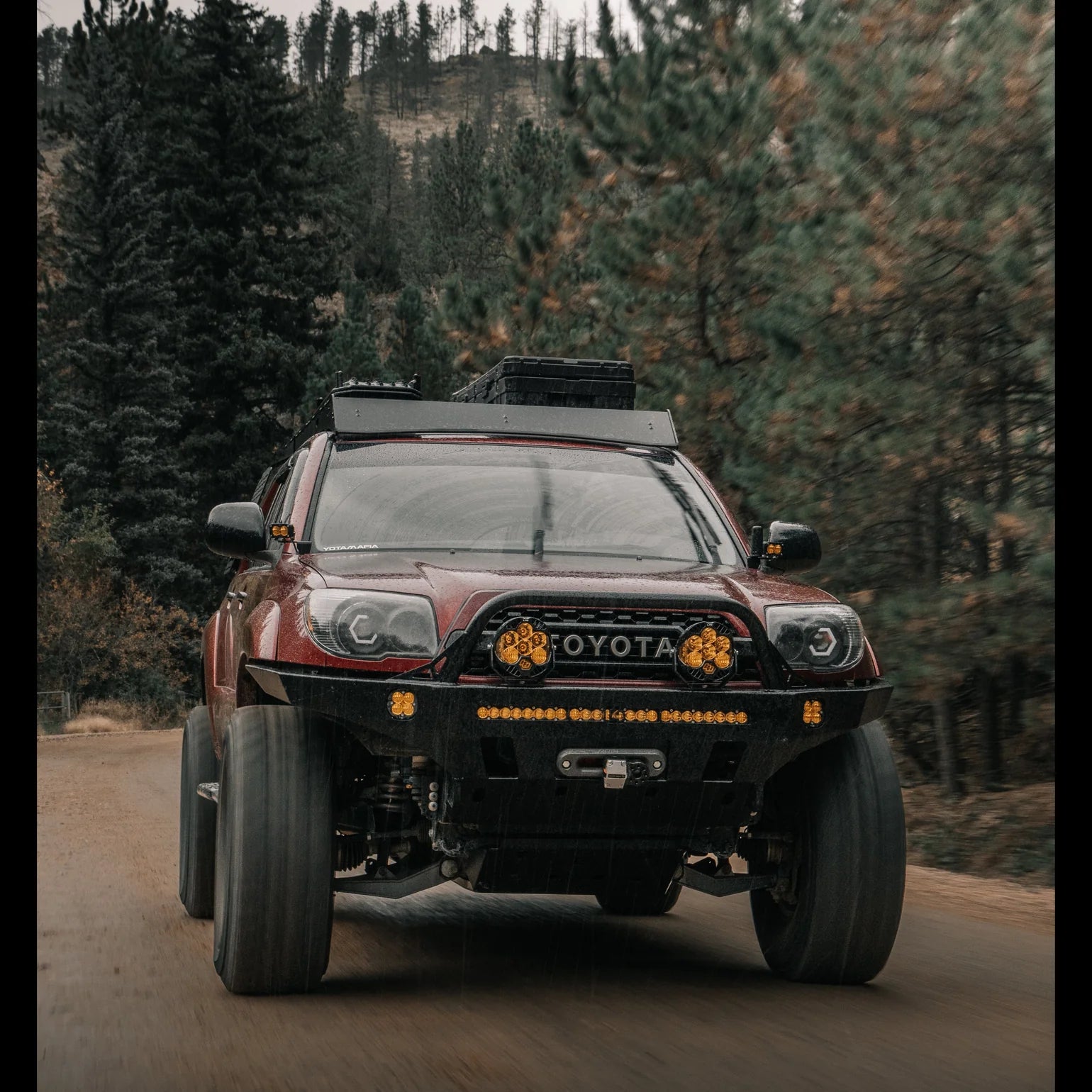

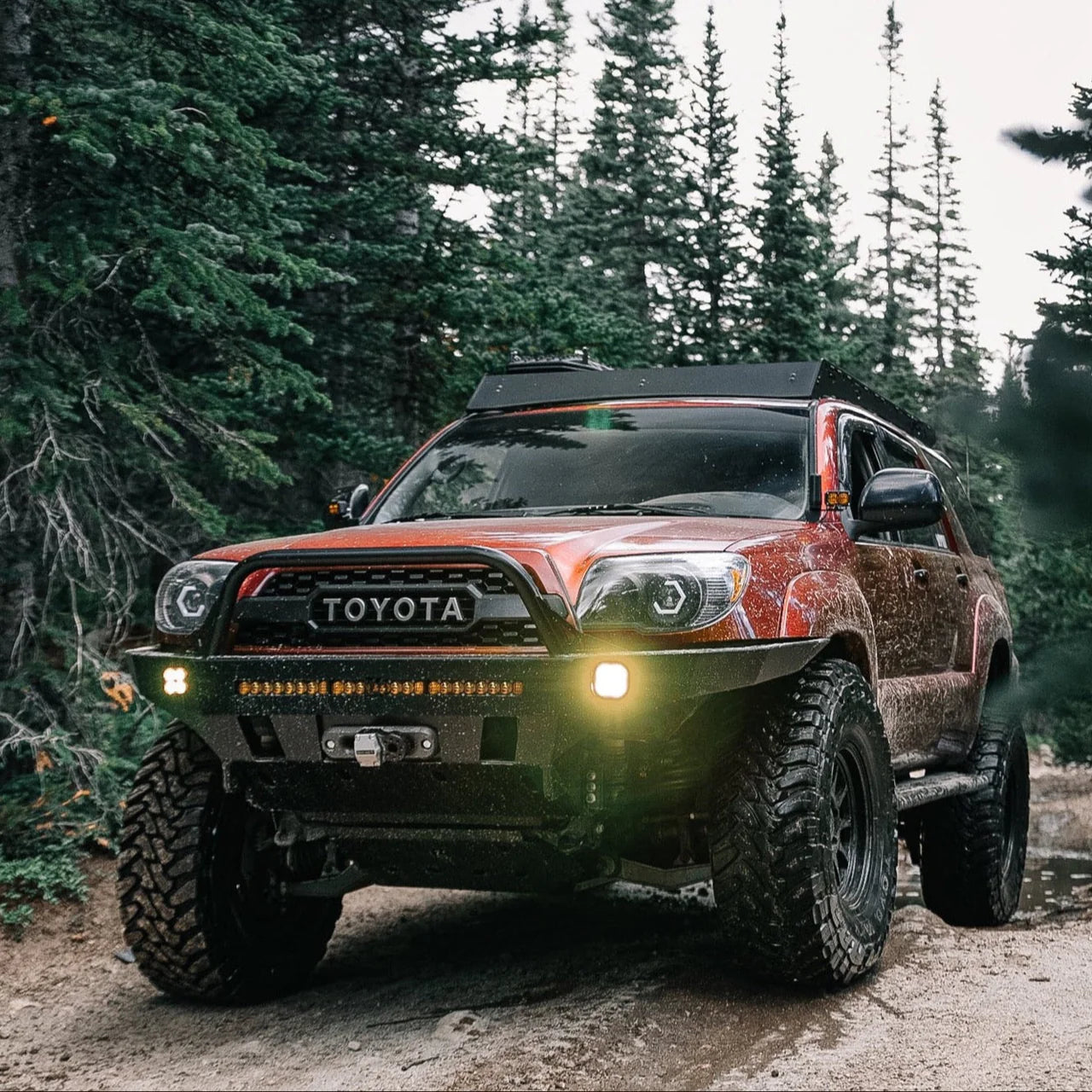

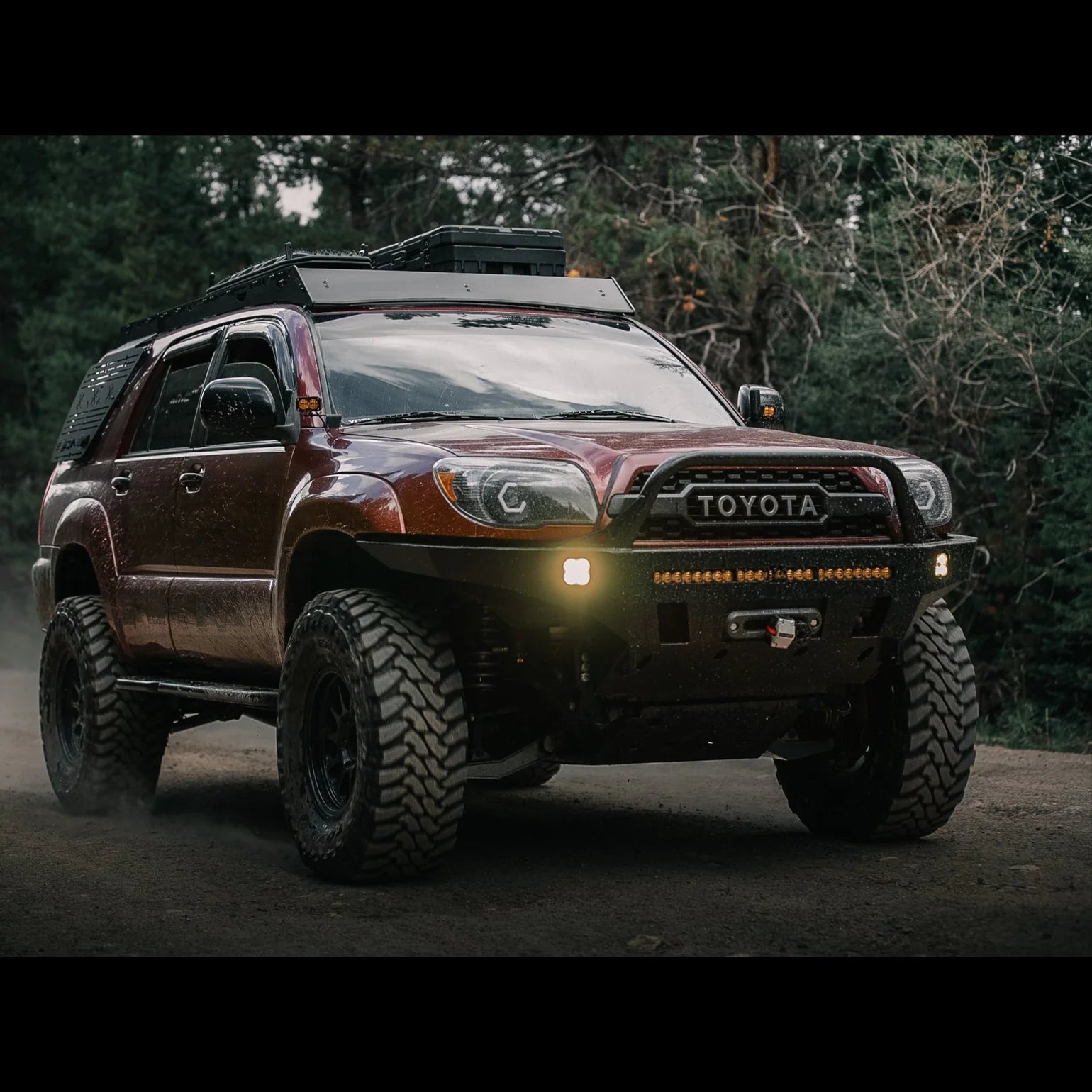

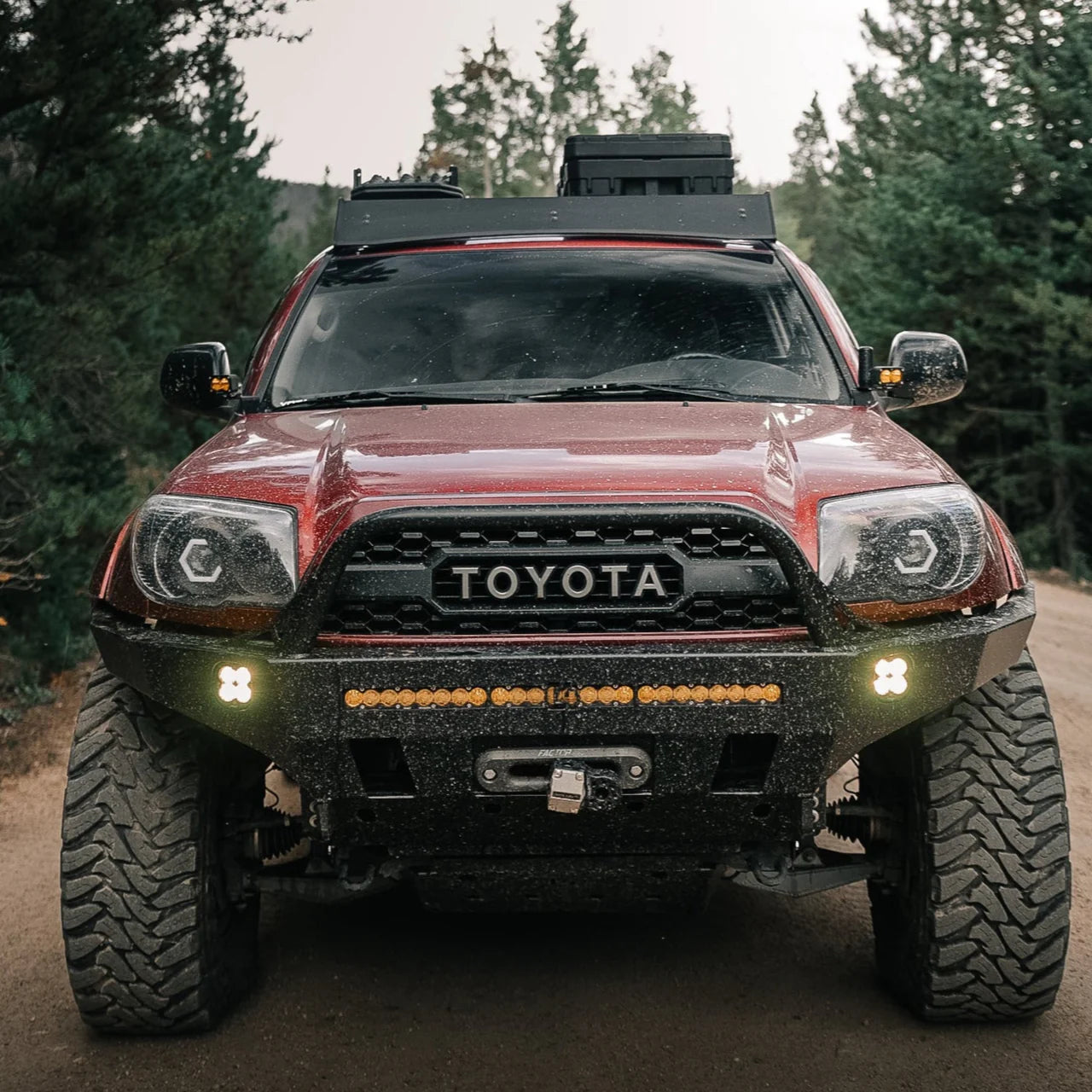

The Overland Series Front Bumper is designed to improve off road capability and front end protection on the 2003–2009 Toyota 4Runner. Built from thick laser cut steel with reinforced frame and winch mounting plates, this bumper increases approach angle while providing space for larger tires. Integrated recovery points, winch compatibility, and lighting options make it a functional upgrade for off road builds and overland setups.

Important notes

• Lead time: This item has an estimated 6–8 week lead time before shipping
• Finish requirement: Raw steel versions must be painted or powder coated before installation to prevent rust unless the powder coated option is selected
• Installation: Designed as a bolt on installation using frame mounting points
• Body lift compatibility: Compatible with vehicles running up to a 2 inch body lift
• Model year note: A bolt on top fill plate is included for 2003–2005 model years

Features

• Improved approach angle: High clearance bumper design improves approach angles and allows easier fitment of larger tires
• Heavy duty steel construction: Built from 3/16 inch laser cut P&O steel with 1/4 inch thick frame and winch plates for durability
• Integrated recovery points: 3/4 inch thick D ring tabs are fully welded on the front and back for reliable recovery points

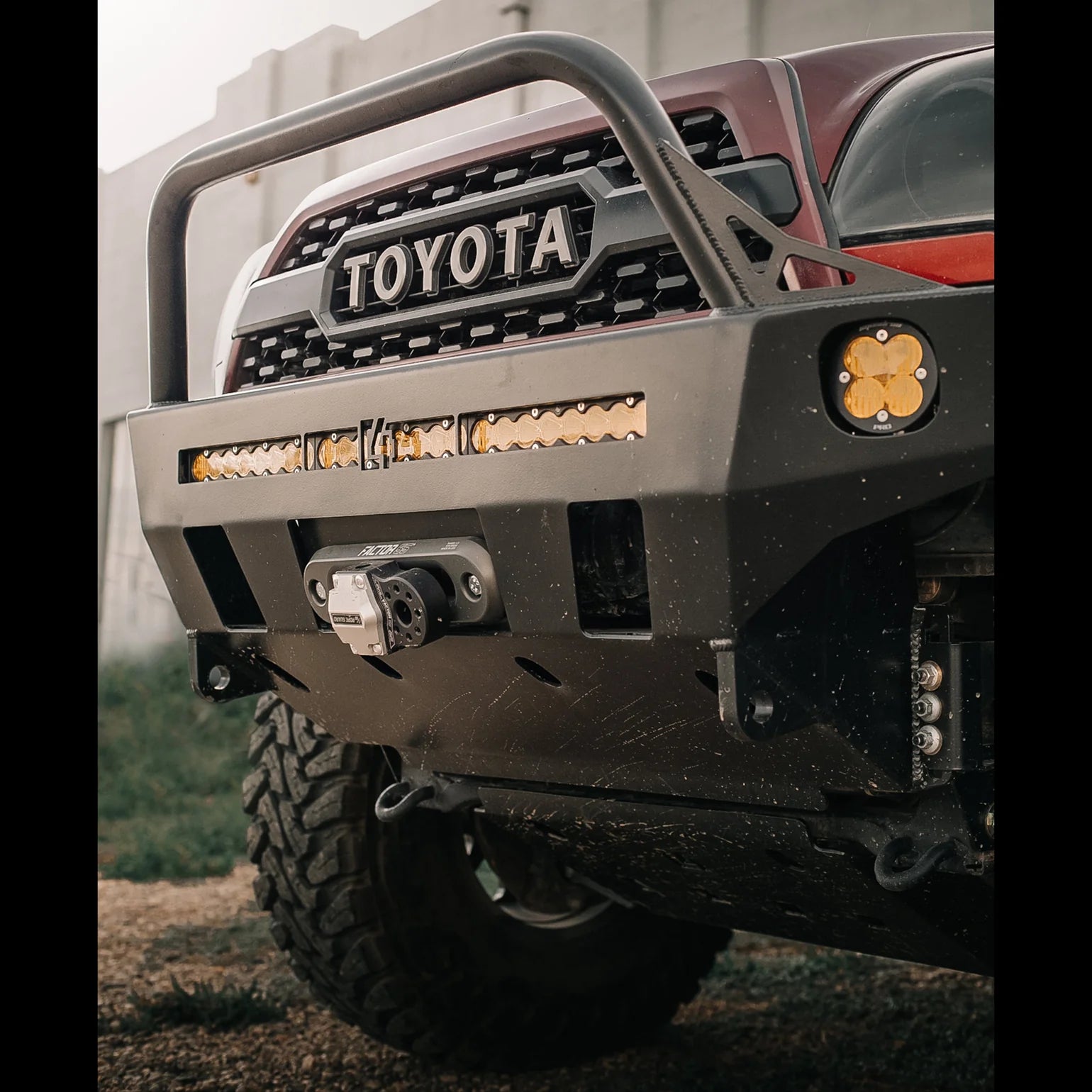

• Lighting and winch ready: Designed to fit most 8,000 to 12,000 lb winches and compatible with 30 inch single row light bars

Specifications

• Material: 3/16 inch P&O steel with 1/4 inch frame and winch plates
• Weight: 120 lbs without bull bar, 128 lbs with mid height bull bar, 130 lbs with full height bull bar
• Dimensions: Not specified
• Construction: Laser cut steel bumper with HREW bull bar tubing
• Finish: Raw steel or optional powder coat
• Installation type: Bolt on

Vehicle fitment

• Vehicle compatibility: Toyota 4Runner 2003–2009 (4th Gen)
• Body lift compatibility: Works with vehicles running up to a 2 inch body lift
• Additional fitment: Pre drilled turn signal holes with signals or caps included depending on selected year range

Included in the box

• Front bumper: Overland Series front bumper
• Frame support brackets: Reinforcement brackets for bumper mounting
• Washer tank skid: Protective skid plate for washer reservoir
• Top fill plate: Included for 2003–2005 model years
• Hardware: Mounting hardware for installation
