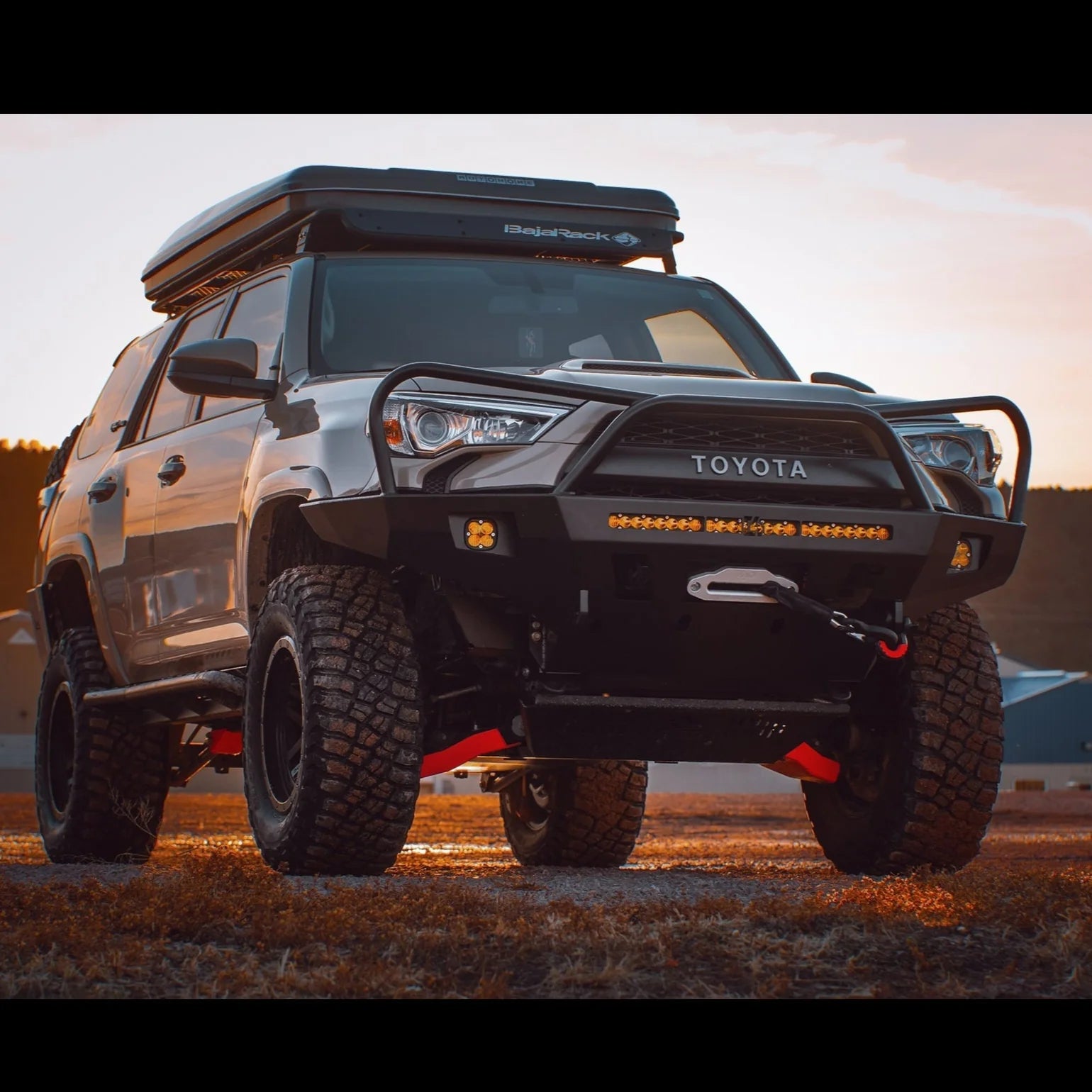

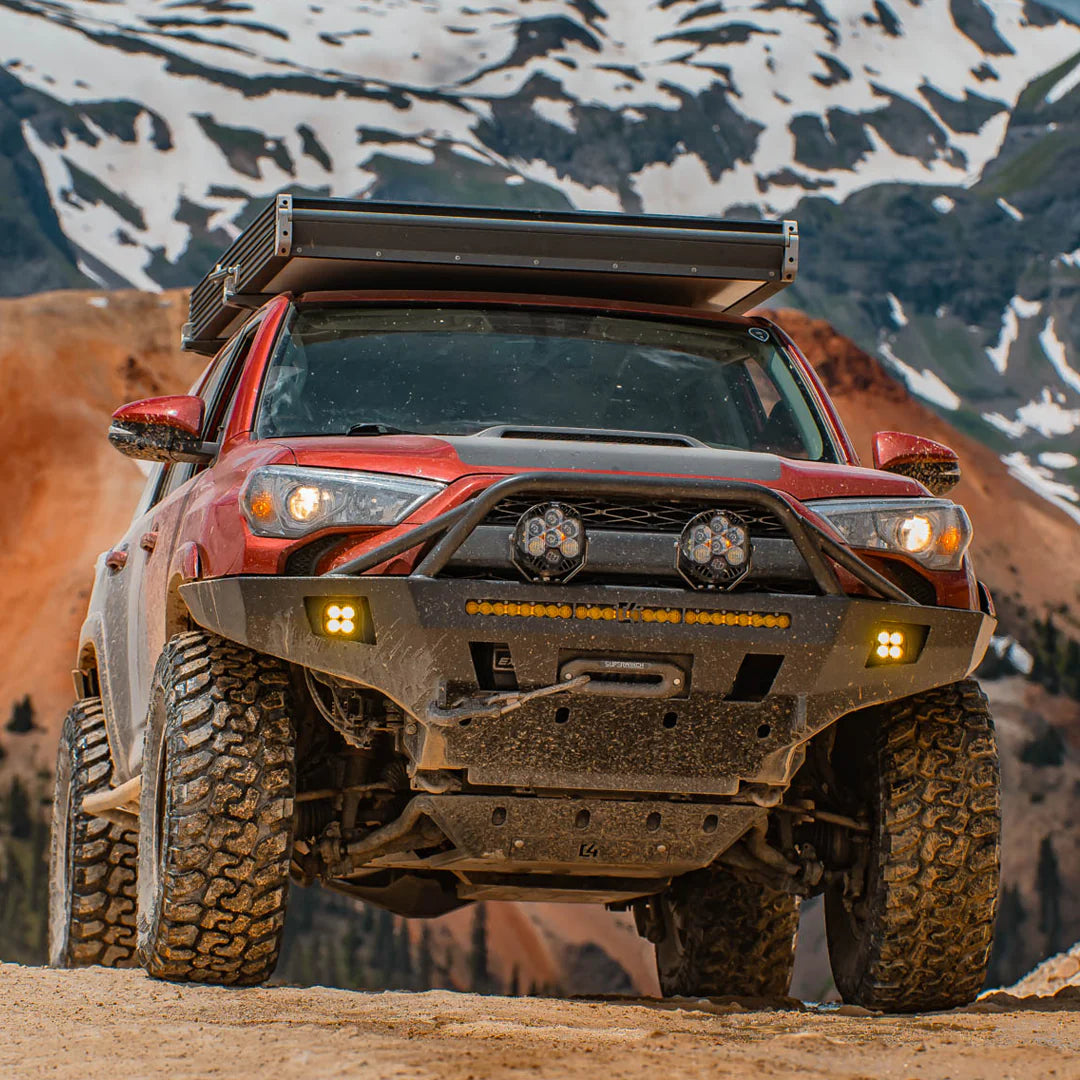

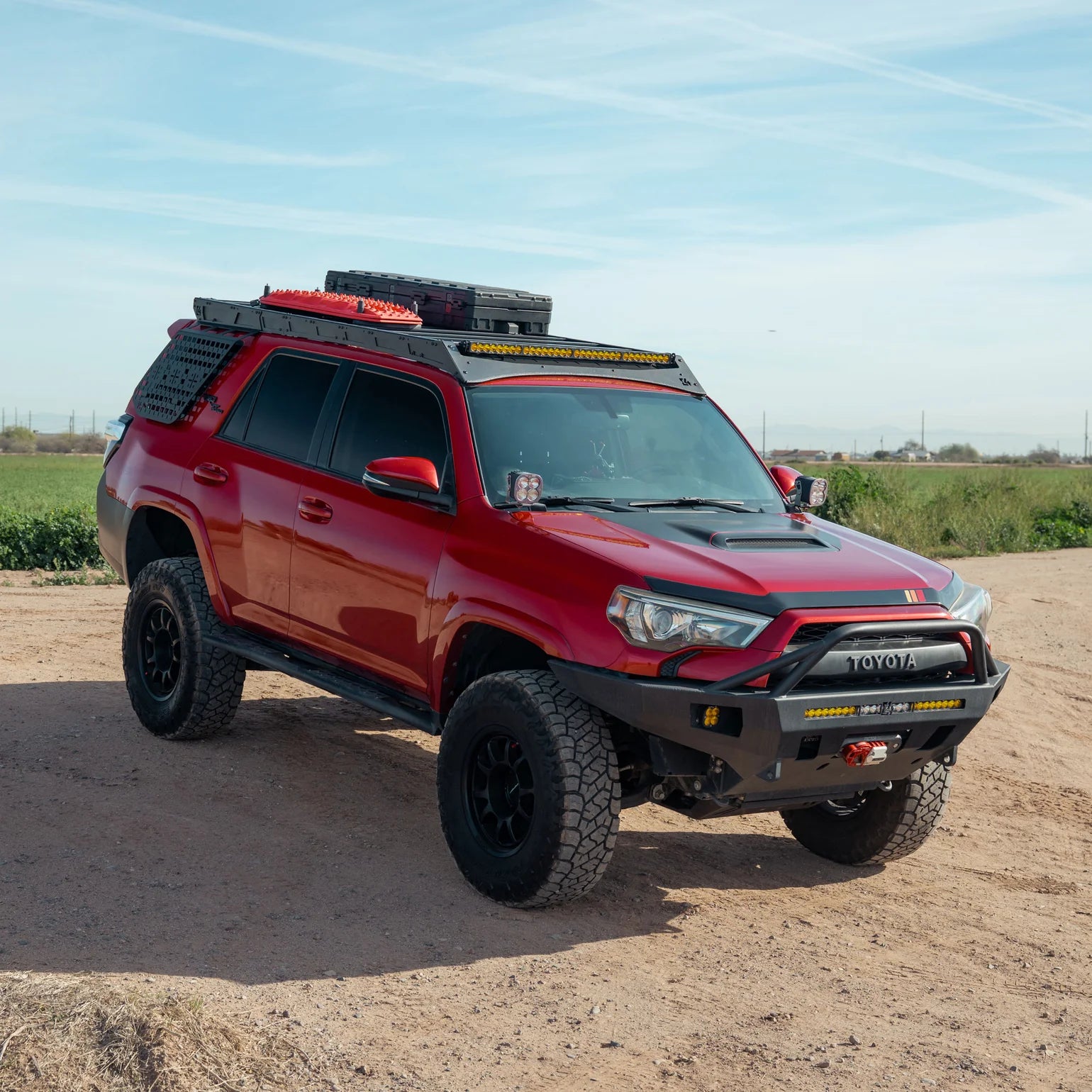

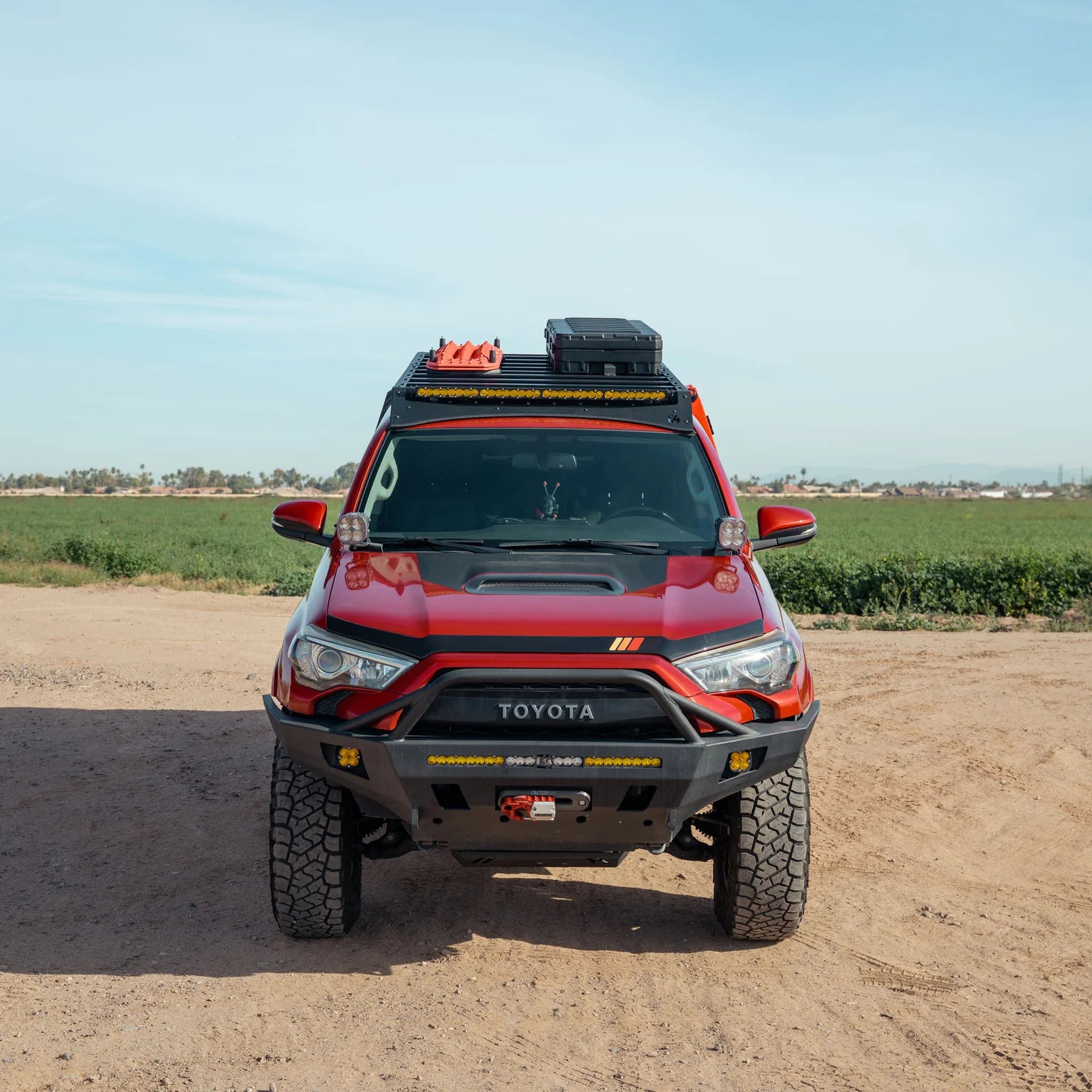

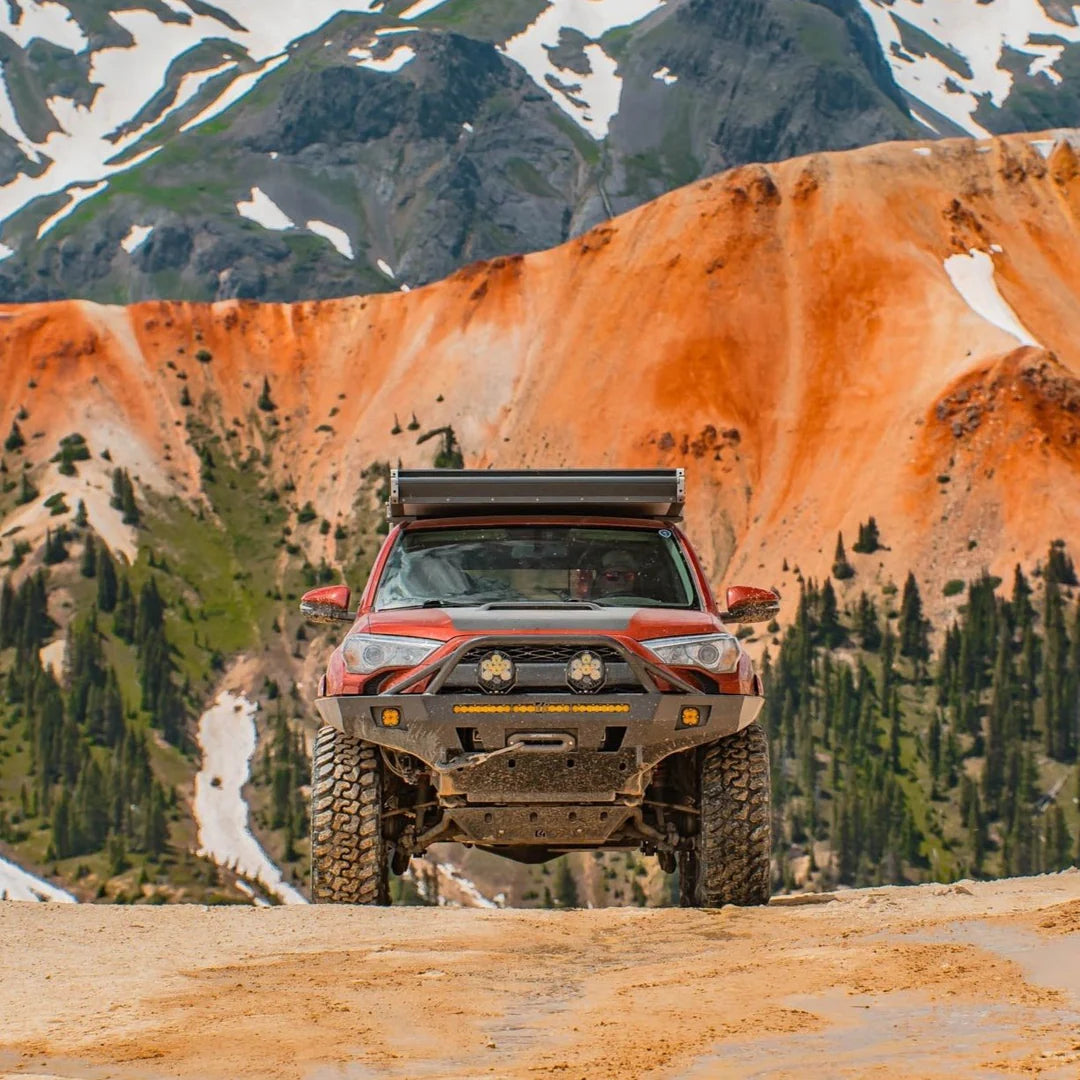

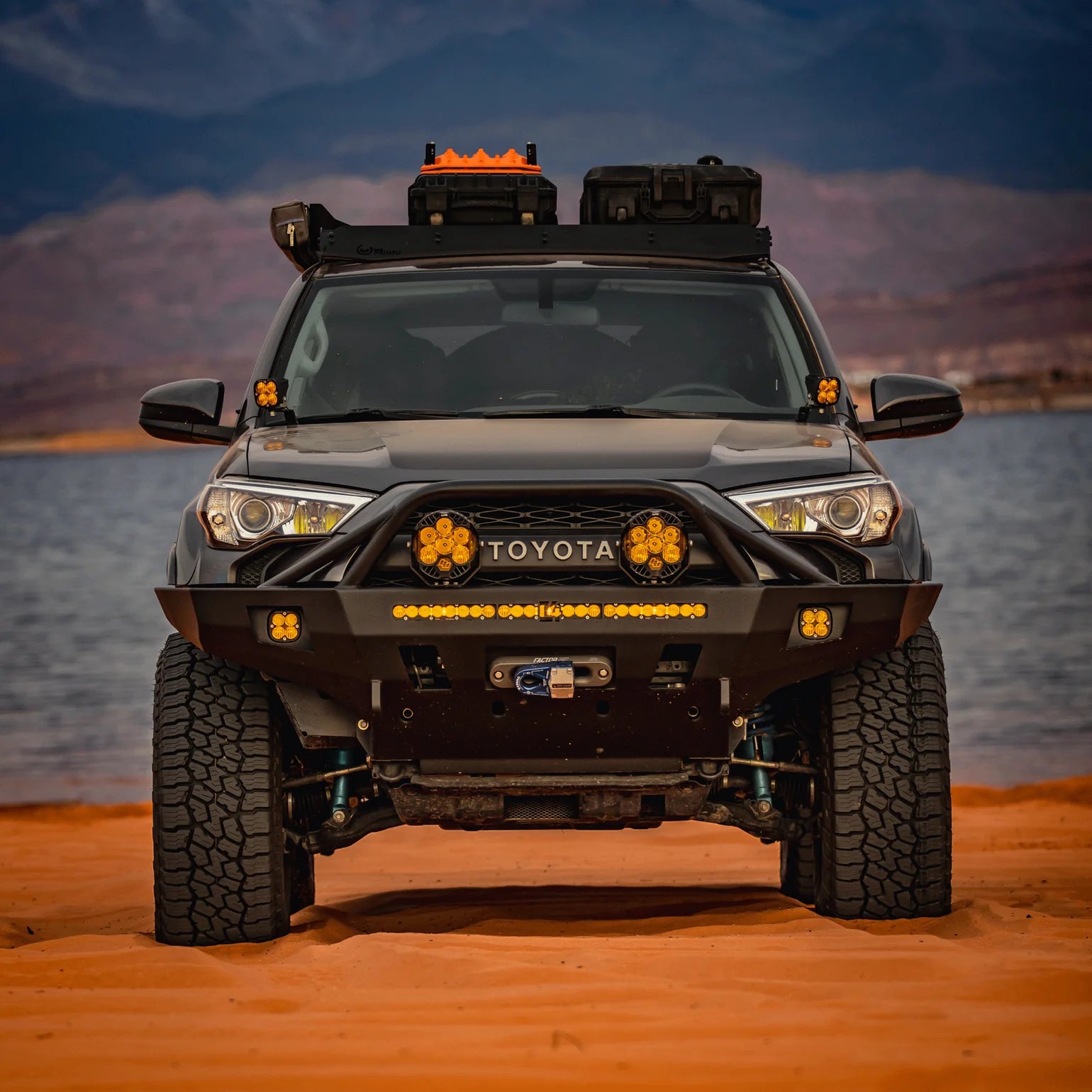

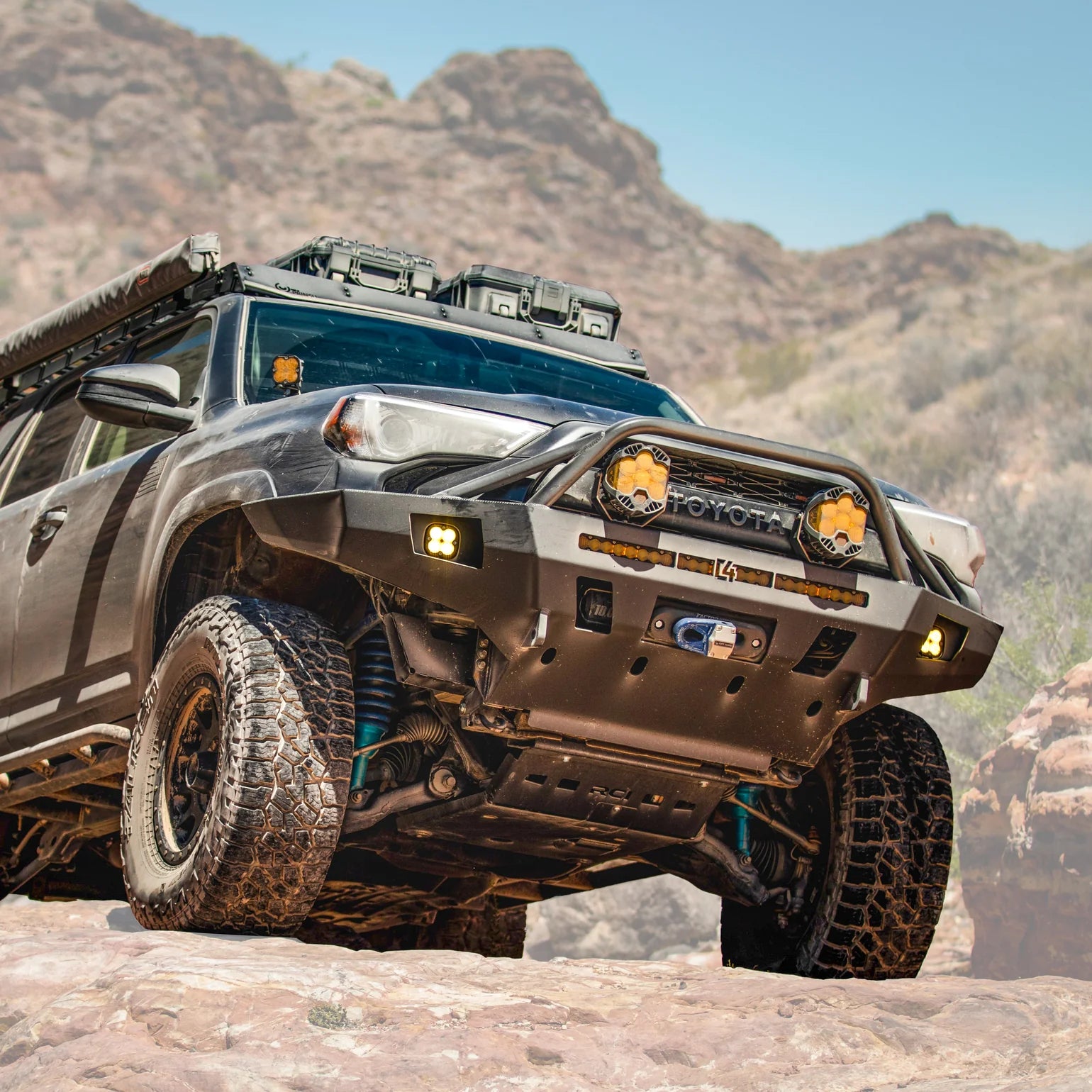

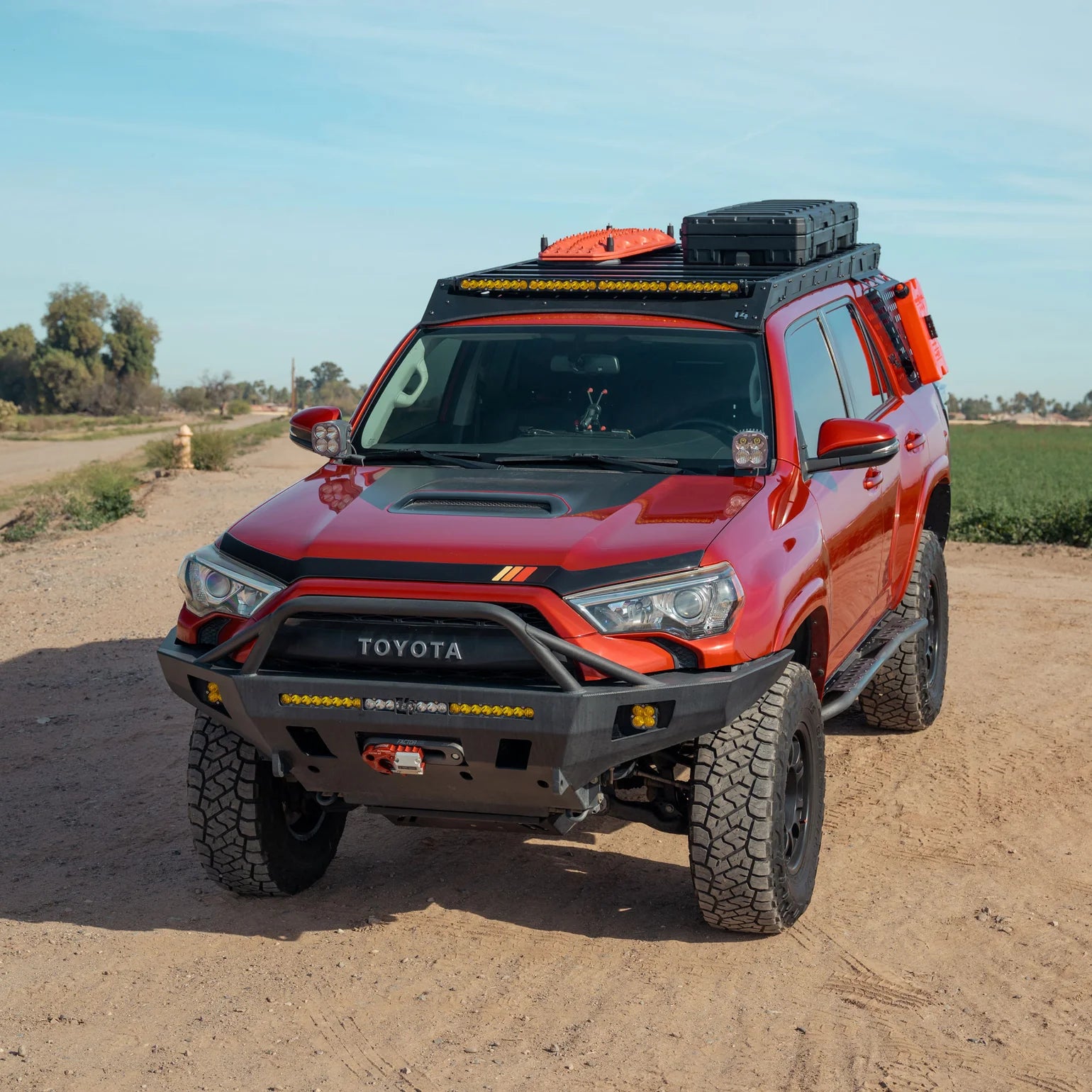

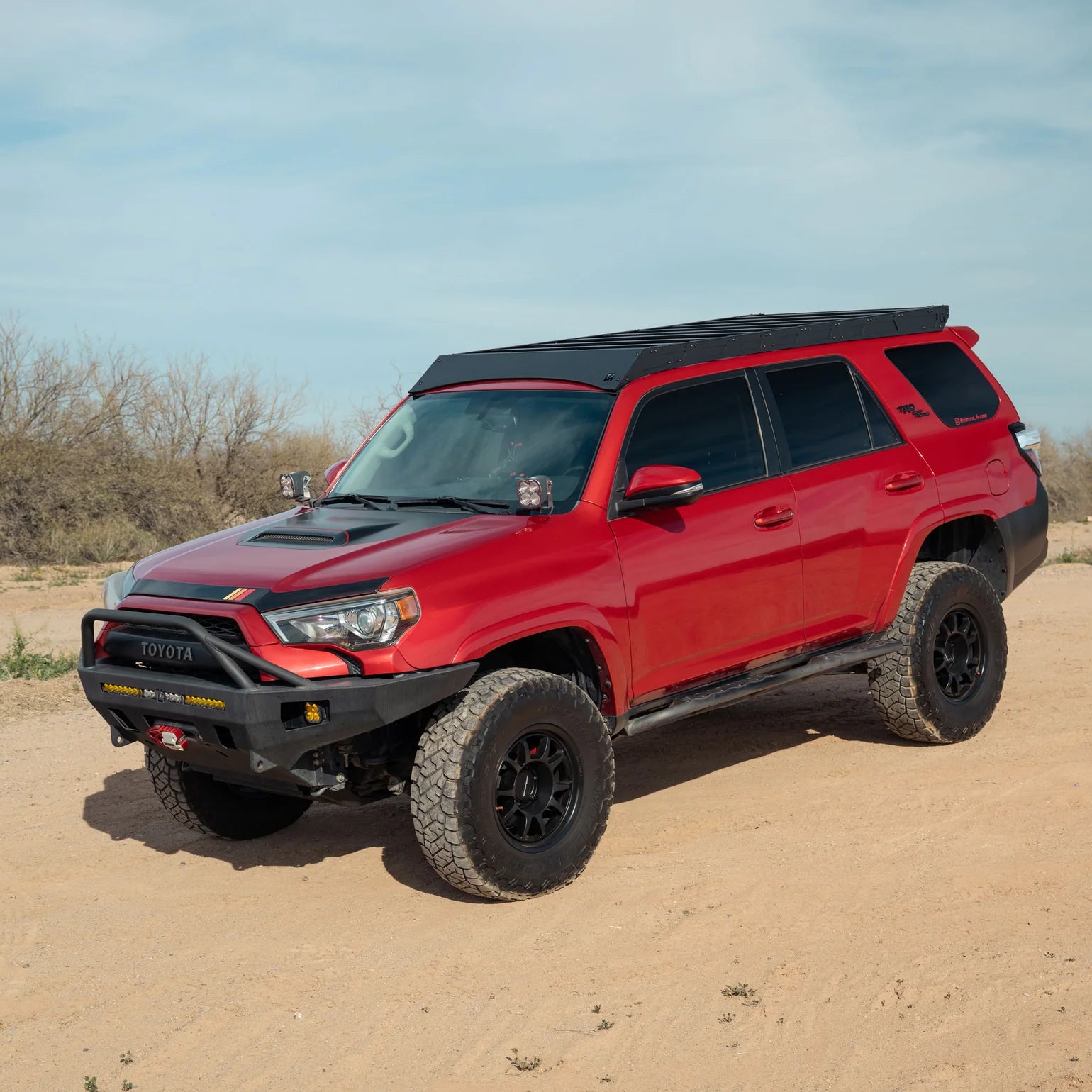

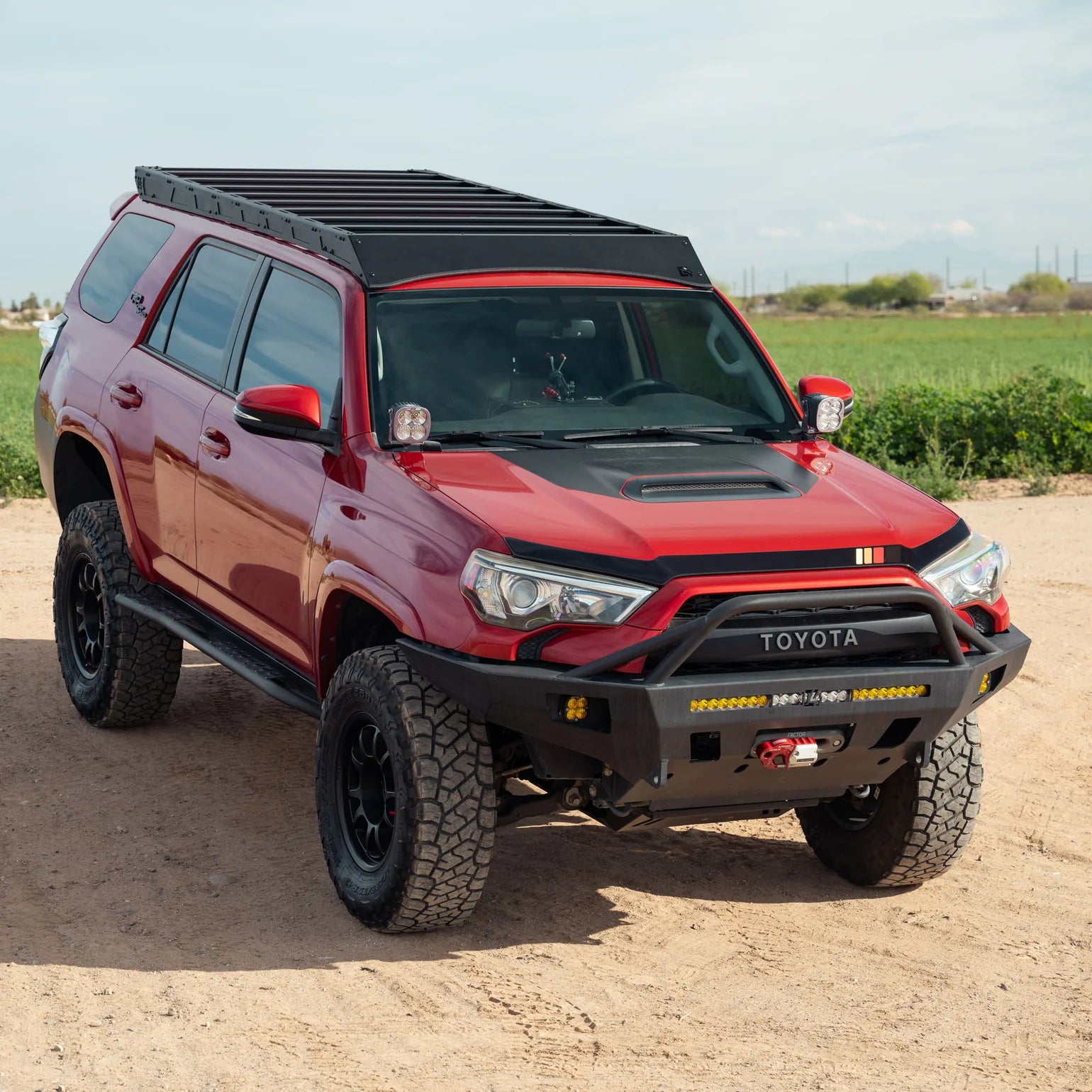

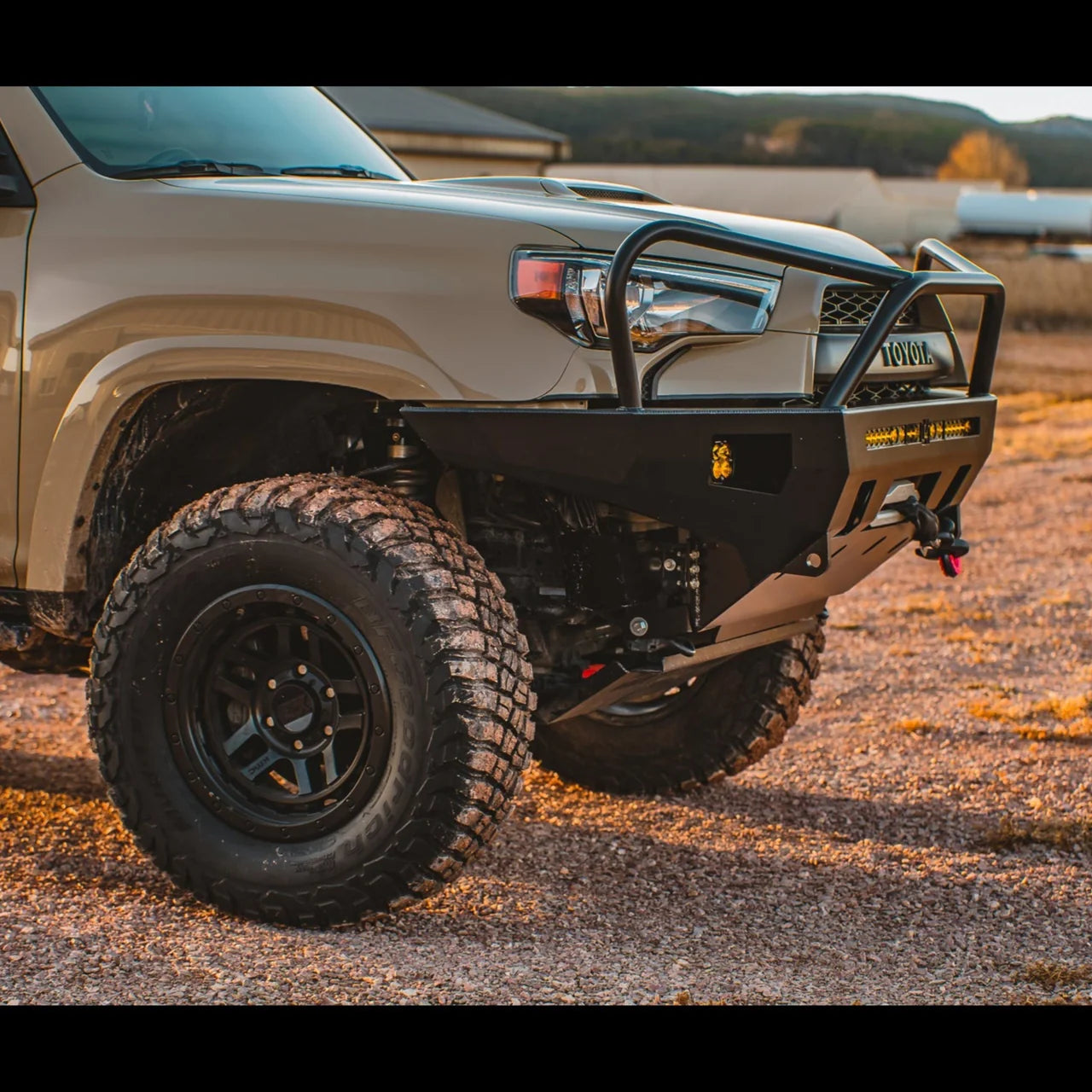

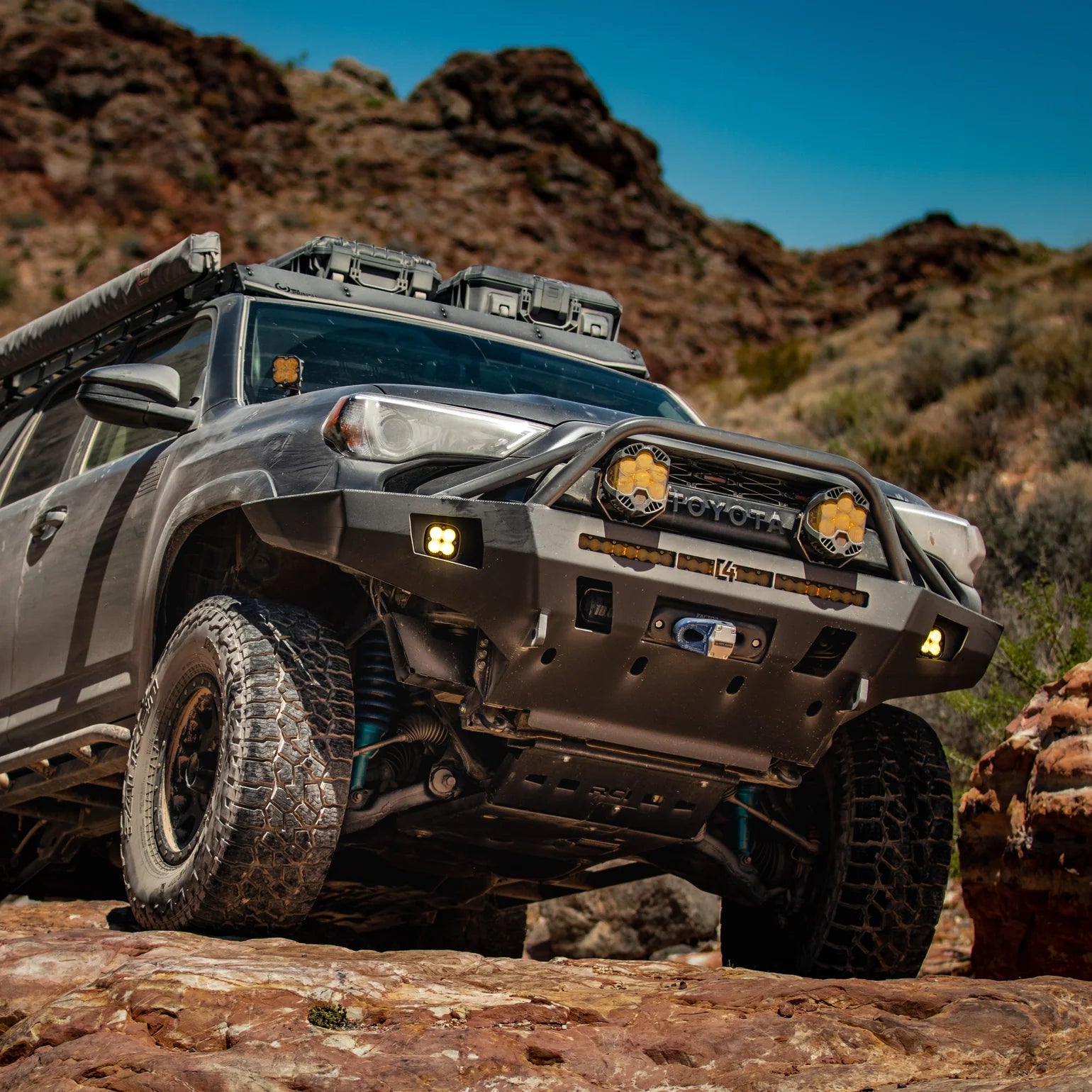

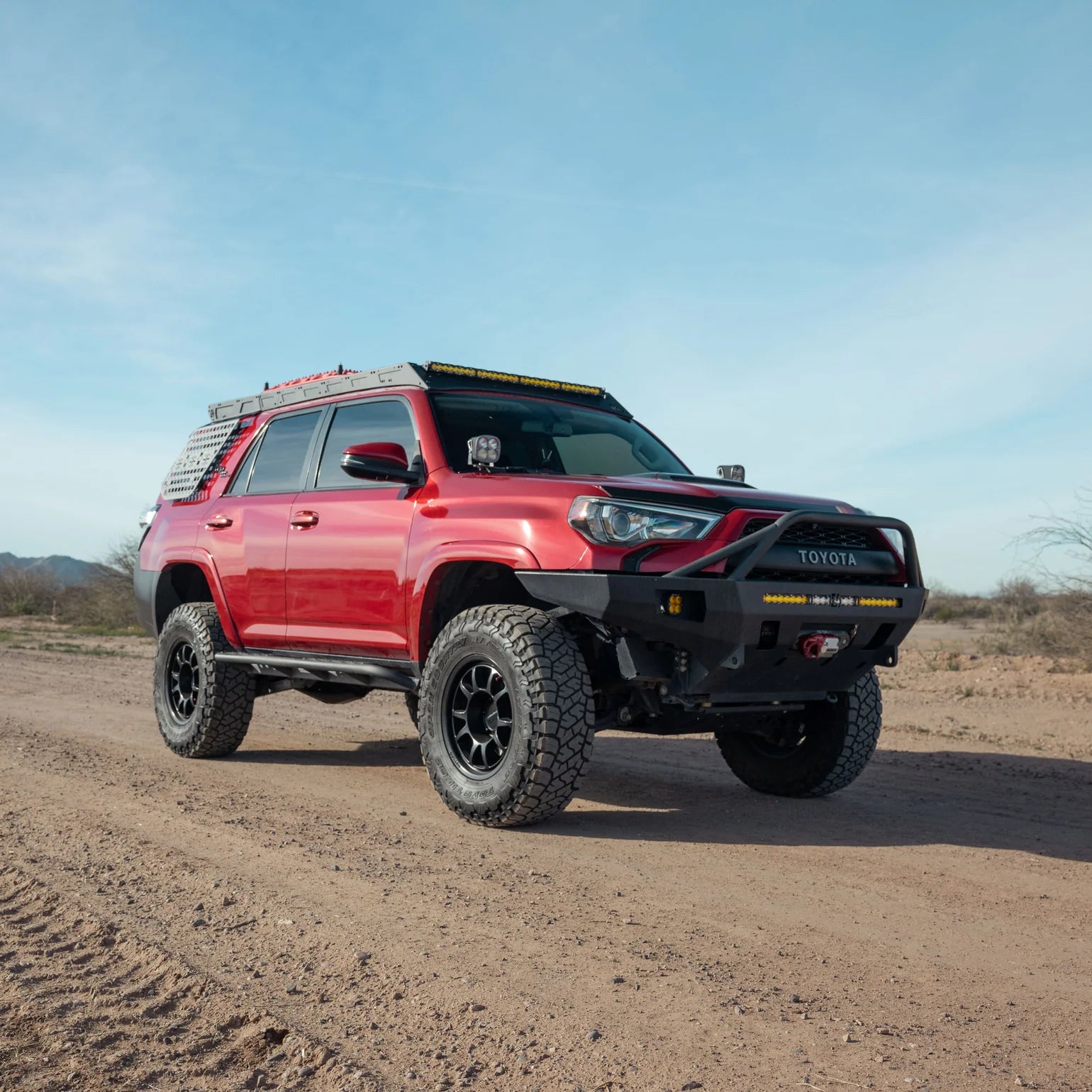

Upgrade the front-end protection and off-road capability of your Toyota 4Runner with the Overland Series Front Bumper designed for 2014–2024 models. Built for serious trail use, this bumper improves approach angles and creates additional clearance for larger tires while providing strong recovery points and winch compatibility. Constructed from laser-cut steel with reinforced mounting plates, it delivers the strength and durability needed for demanding off-road environments.
Important notes
• Lead time: This item has a 6–8 week lead time
• Installation requirement: Factory plastic bumper cover must be trimmed for installation
• TSS compatibility: Requires TSS relocation bracket if equipped with Toyota Safety Sense
• MTM camera: Not compatible with factory MTM front camera unless relocated above the bumper
• Power steering cooler kit included: Replaces factory cooler lines for improved clearance
Key features
• Improved approach angle: Provides greater front-end clearance for off-road obstacles and larger tires
• Heavy-duty steel construction: Made from 3/16 inch laser-cut P&O steel with 1/4 inch thick mounting plates
• Reinforced recovery points: 3/4 inch thick D-ring tabs fully welded on both front and rear sides

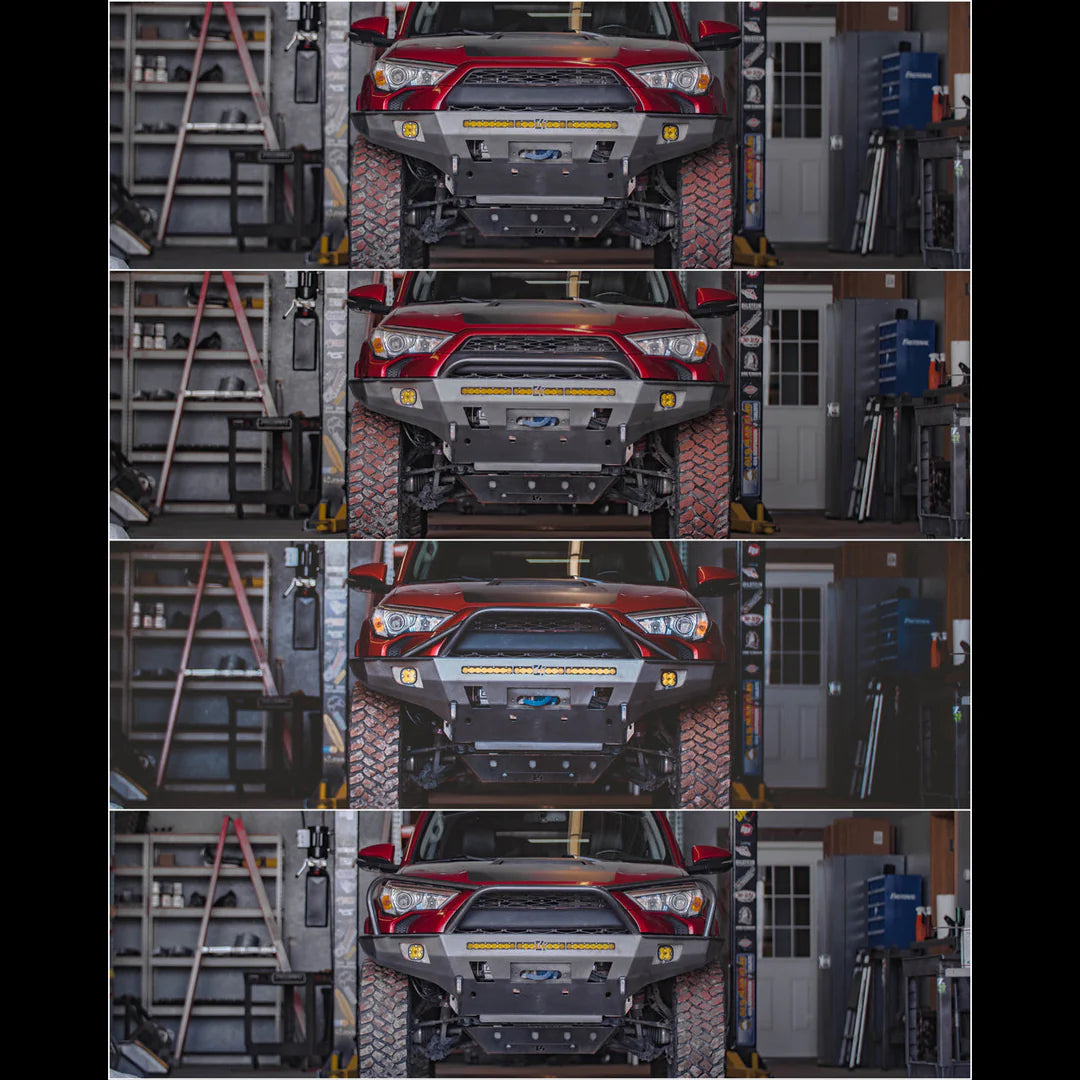

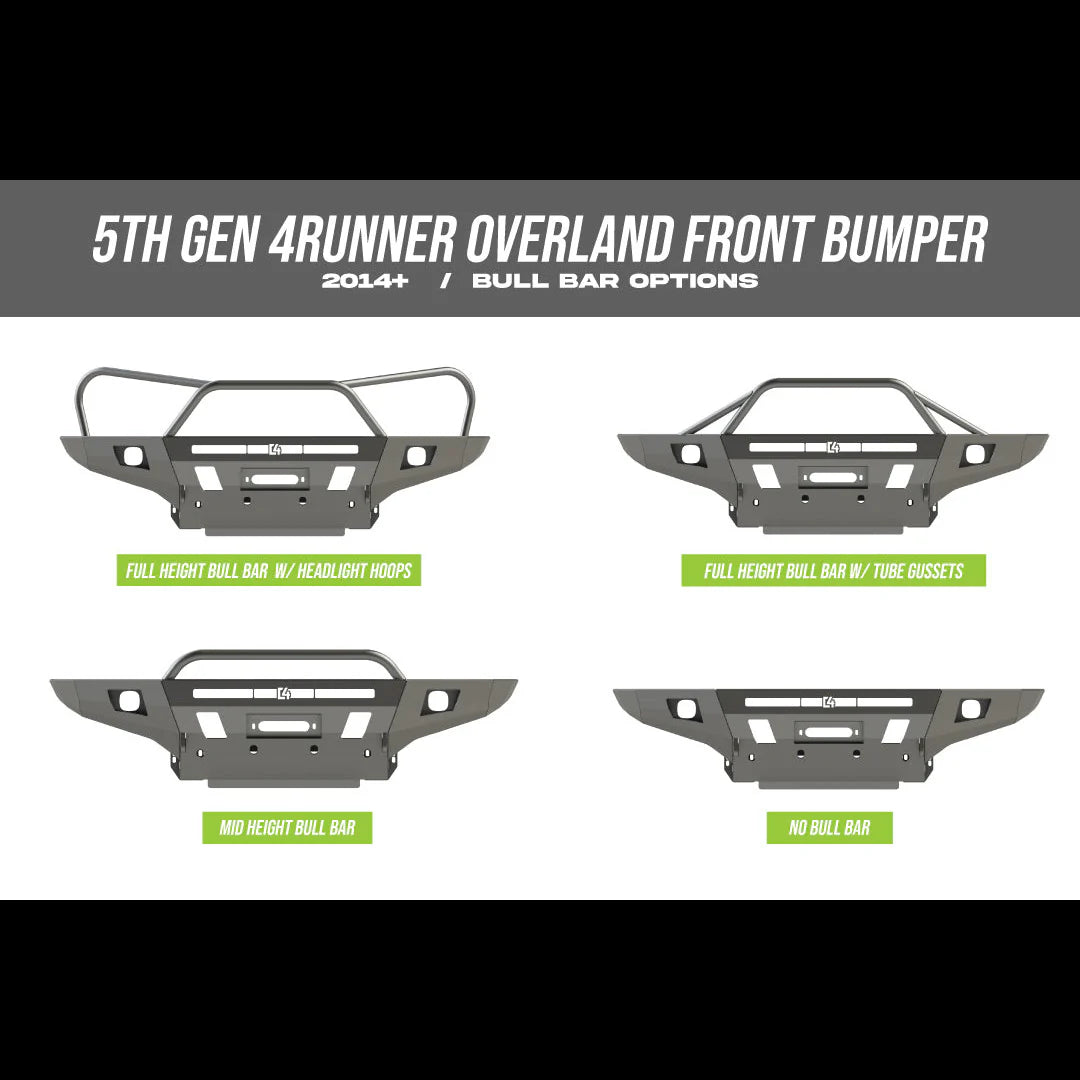

• Bull bar protection options: Available with multiple bull bar configurations for added front-end protection
• Winch compatible design: Fits most 8,000–12,000 lb winches for recovery and off-road capability
• Light bar ready: Designed to support most 30 inch single-row LED light bars
• Trail-ready design: Built for durability and protection in rugged off-road environments
Specifications
• Steel thickness: 3/16 inch P&O steel bumper construction
• Mounting plates: 1/4 inch thick steel mounting plates
• Bull bar tubing: 1.75 inch diameter HREW tubing with .120 wall thickness
• Weight:
• 135 lbs without bull bar
• 140 lbs with mid-height bull bar
• 150 lbs with full-height bull bar
• 155 lbs with full-height bull bar and headlight hoops
Vehicle fitment
• Toyota 4Runner: 2014–2024
• Additional compatibility notes:
• Requires TSS relocation bracket if equipped with Toyota Safety Sense
• Mid-height bull bar not compatible with TSS relocation bracket
• MTM front camera must be relocated above bumper if equipped
Winch compatibility
• Supported winch size: 8,000 lb to 12,000 lb winches
• Recommended winches: ComeUp, Smittybilt X20, Warn Zeon, and Warn VR series
• Recommended setup: Synthetic rope with hawse fairlead
Included in the box
• Front bumper: Overland Series steel bumper assembly
• Power steering cooler kit: Replacement cooler line kit
• Recovery tabs: Integrated 3/4 inch D-ring mounts
• Hardware: Required mounting hardware for installation
