The Oversized Tire Fitment Kit is designed to create the necessary clearance for running 35 inch tires on the 2010–2024 Toyota 4Runner equipped with a 3 inch lift. This system increases space within the wheel well while maintaining protection for exposed components such as the air intake and door areas. With high clearance liners, trim templates, and a body mount relocation solution, the kit provides a comprehensive setup for larger tire fitment with minimal rubbing.
Important notes
• Lead time: This item has an estimated 6–8 week lead time before shipping
• Installation requirement: Requires cutting and removing the factory body mount and welding in the replacement body mount
• Fender trimming: Cutting of factory fenders is required for proper tire clearance
• Lift requirement: Designed for vehicles equipped with approximately a 3 inch suspension lift
• Fitment purpose: Designed to help accommodate 35 inch tires with minimal to no rubbing
Features
• 35 inch tire clearance: Designed to allow fitment of 35 inch tires on lifted 5th Gen 4Runner builds

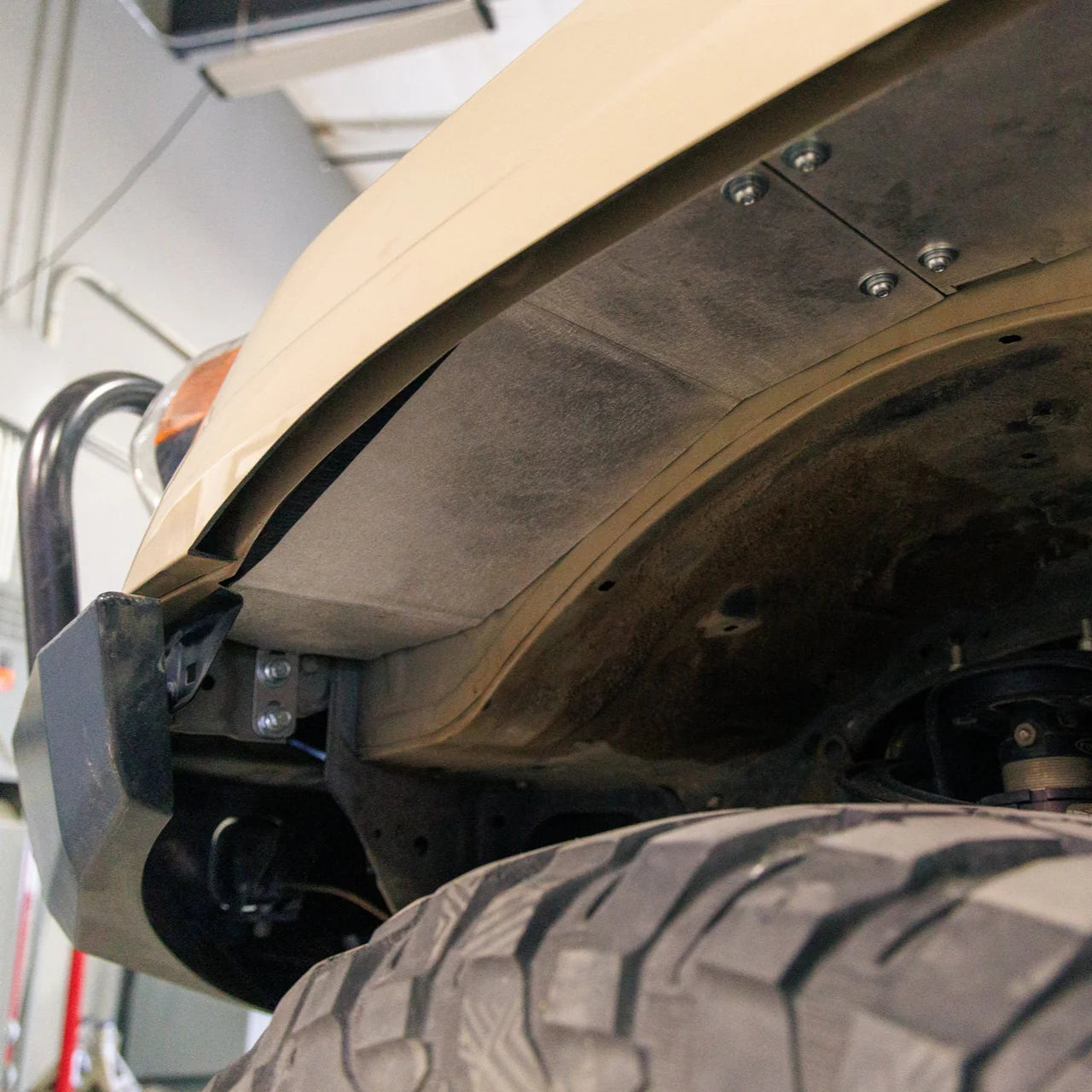

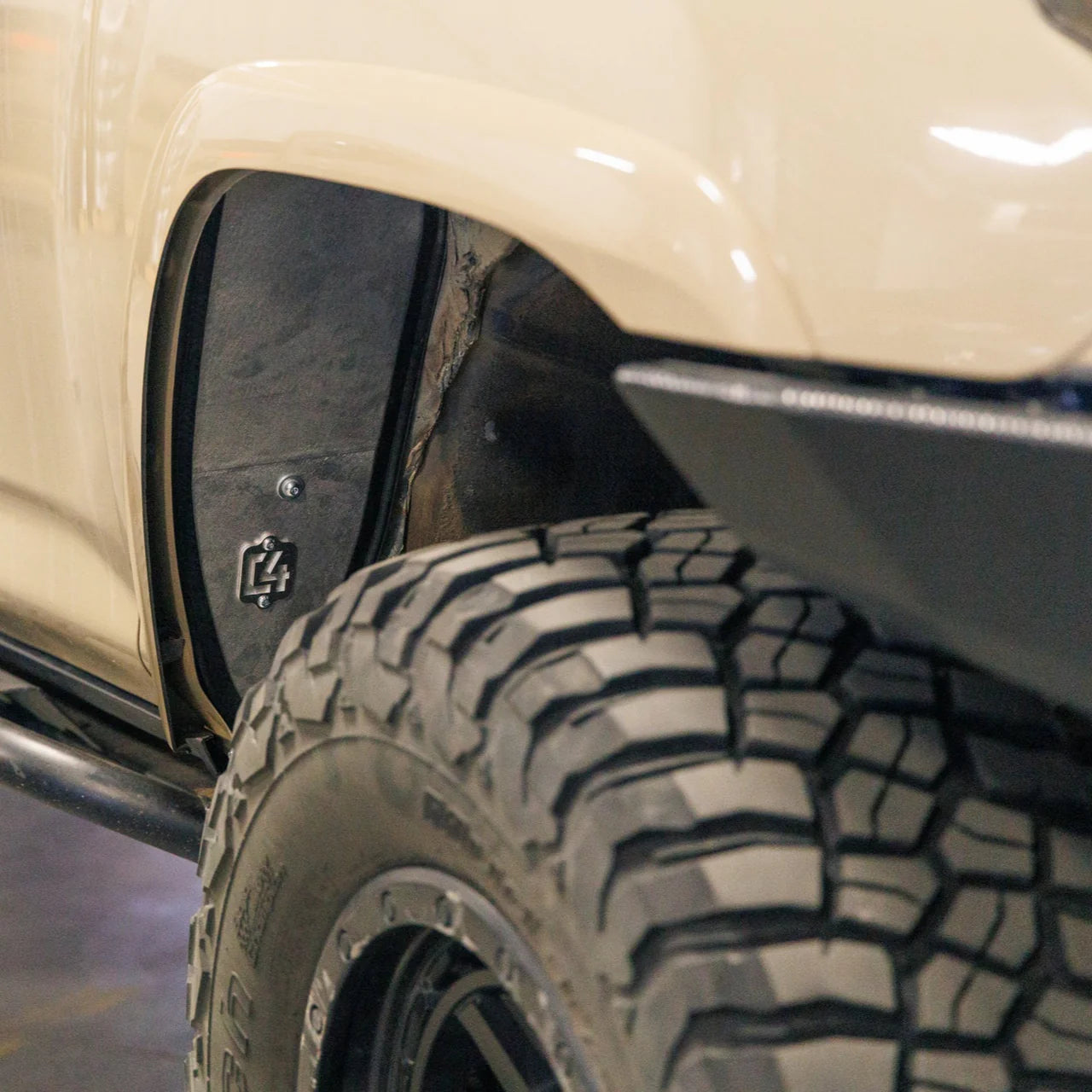

• High clearance liners: Custom liners increase tire clearance while protecting exposed air intake and door areas

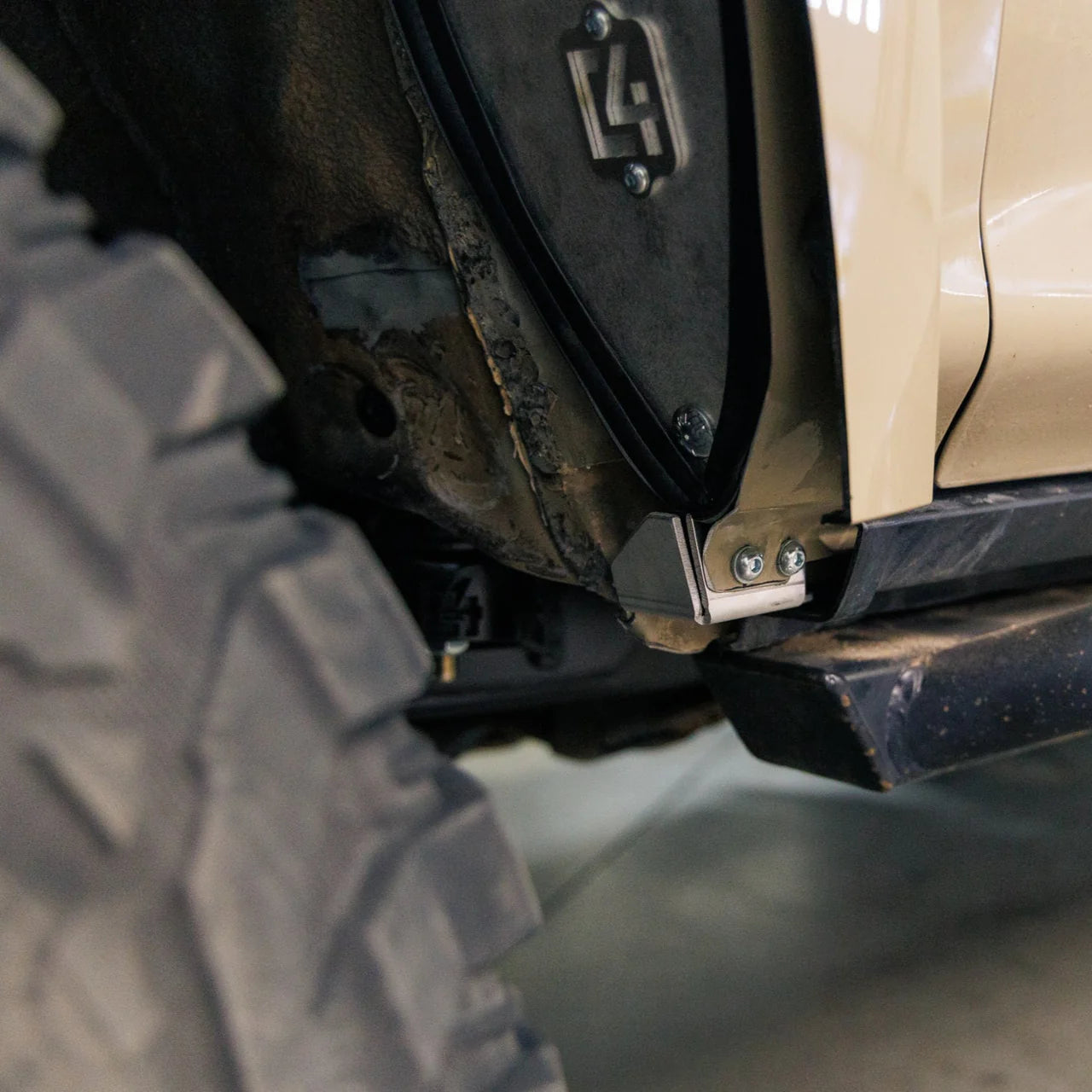

• Sealed edge trim: Edge trim seals the liners against the fenders to keep mud, dirt, and debris out

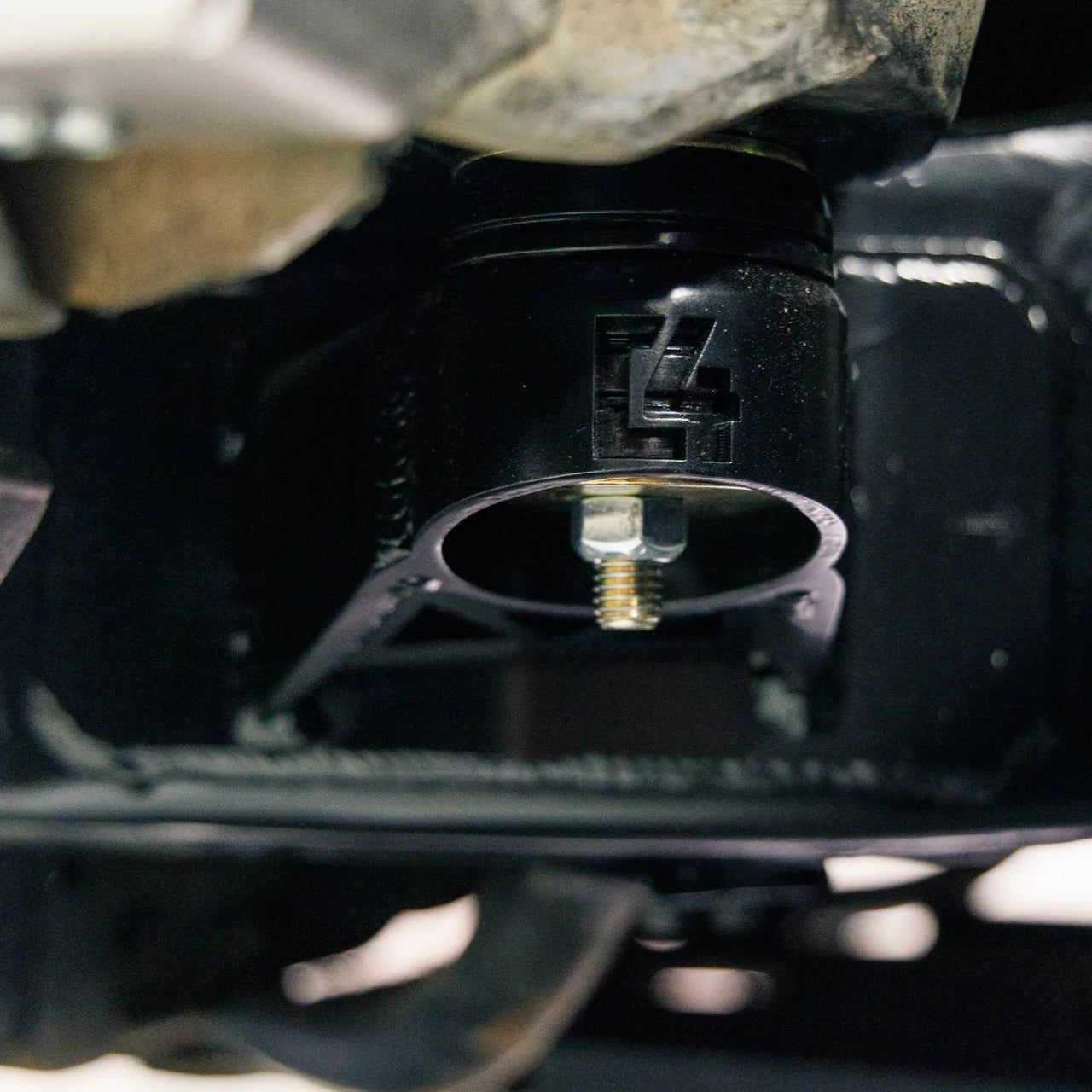

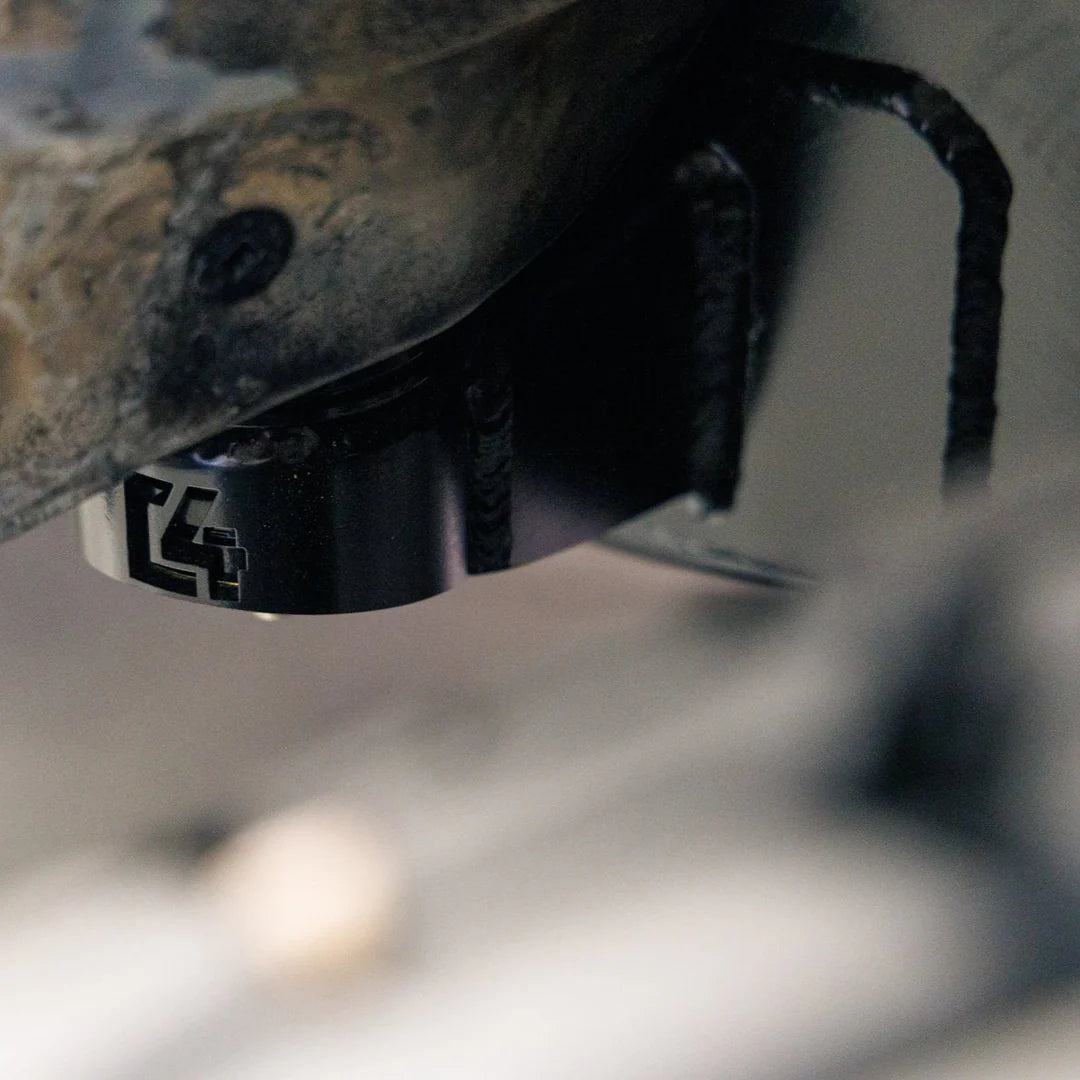

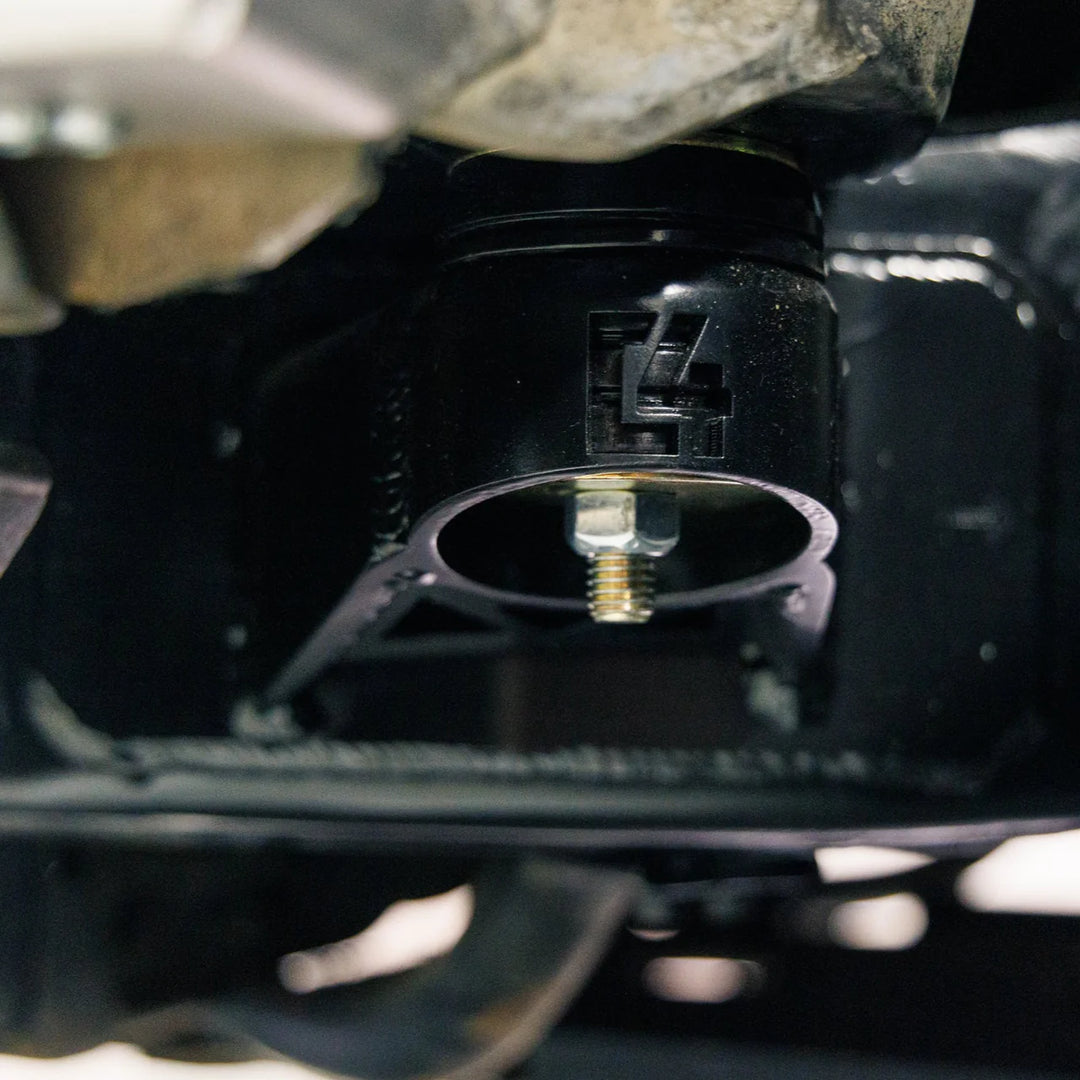

• Body mount relocation: Replacement body mount allows removal of the factory mount to create additional tire clearance
Specifications
• Material: Steel body mount components and aluminum liner components
• Weight: Not specified
• Dimensions: Not specified
• Construction: Fabricated steel body mount relocation kit with formed high clearance liners
• Finish: Bare metal components requiring finishing as needed
• Installation type: Bolt on components with required cutting and welding
Vehicle fitment
• Vehicle compatibility: Toyota 4Runner 2010–2024 (5th Gen)
• Lift requirement: Designed for vehicles equipped with approximately a 3 inch lift
• Tire fitment: Designed to allow 35 inch tire fitment with minimal rubbing when properly installed
Included in the box
• Fender liners: High clearance driver and passenger side liners
• Body mount components: Body mount relocation brackets and components
• Trim templates: Fender cut templates for accurate trimming
• Edge trim: Sealing trim for liner edges
• Hardware: Mounting hardware for installation
