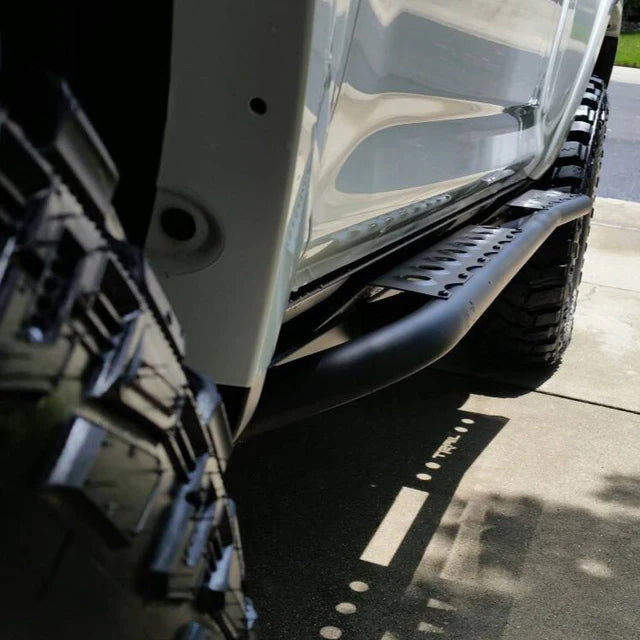

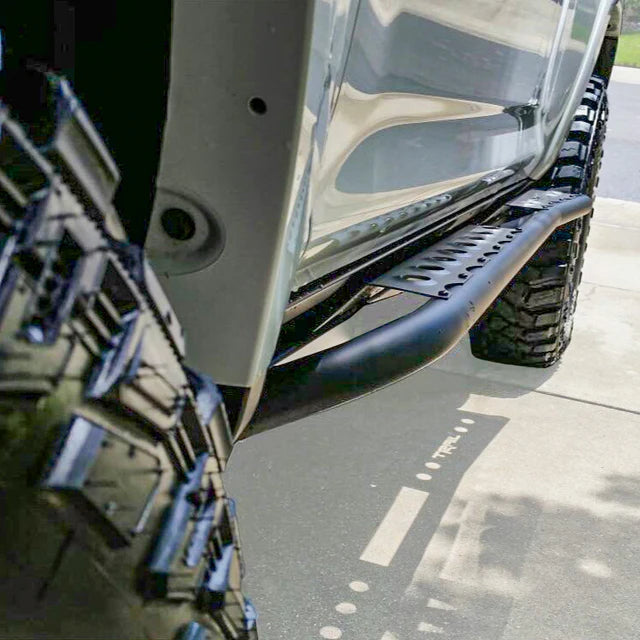

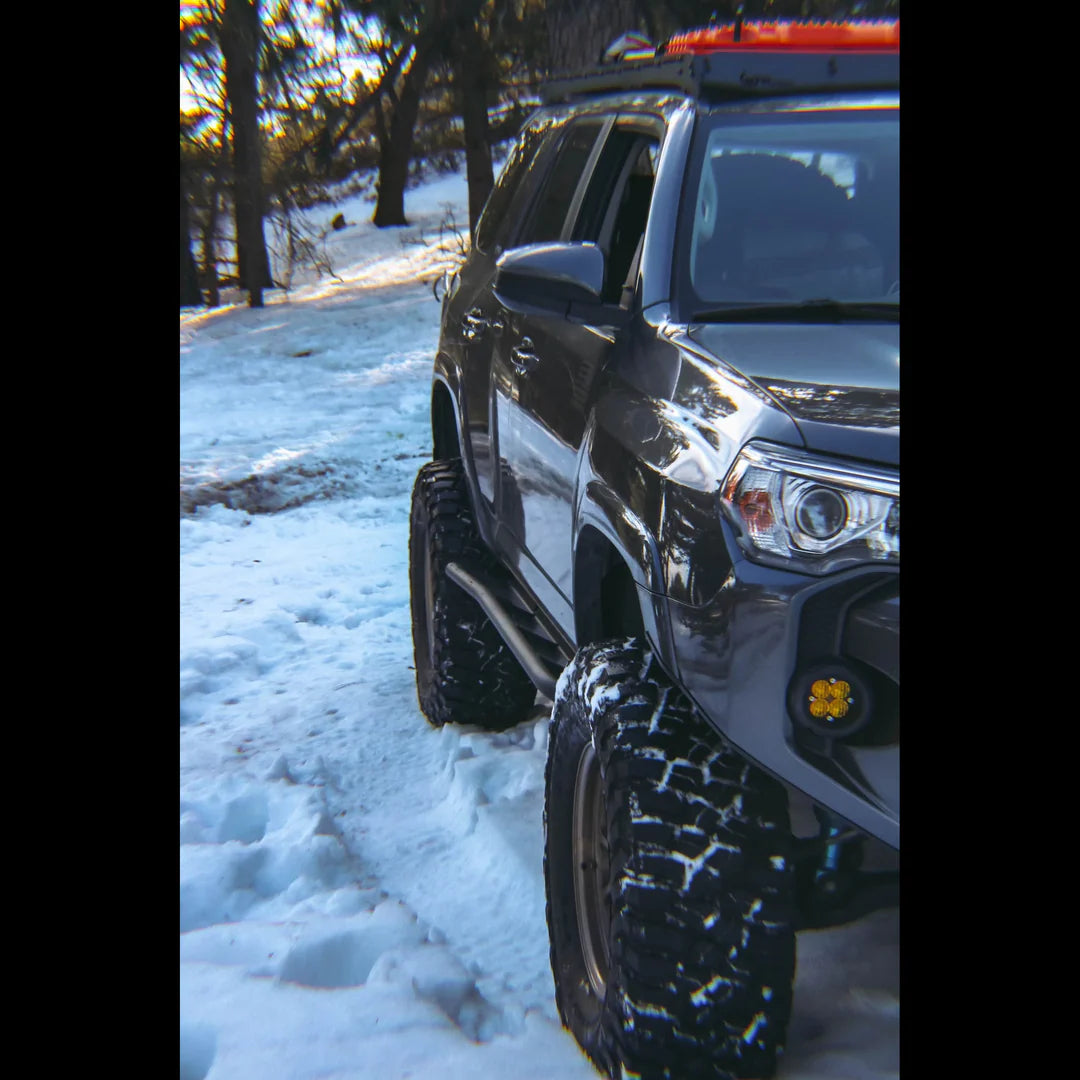

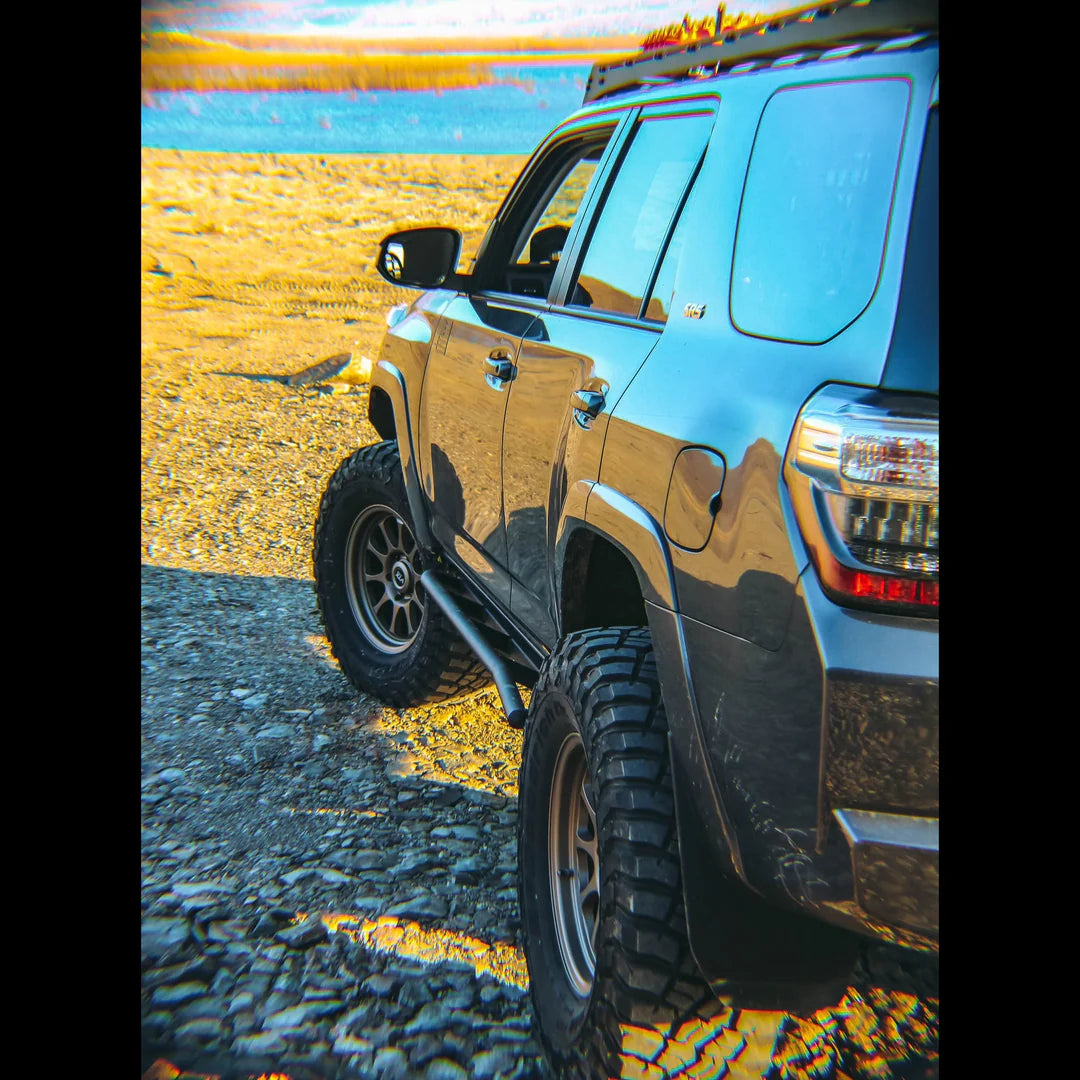

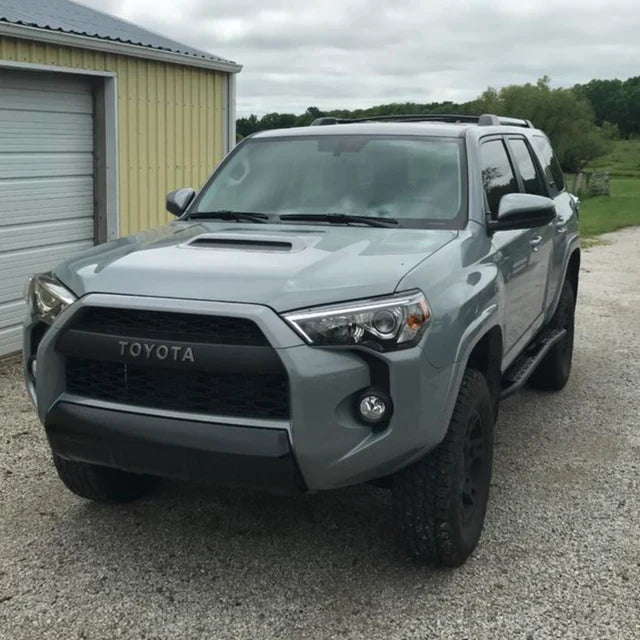

These rock sliders are designed to protect the rocker panels of the 2014–2024 Toyota 4Runner during off road driving while also providing a stable step for entering and exiting the vehicle. Built with DOM tubing and reinforced frame mounting plates, they are engineered to withstand impacts from rocks and trail obstacles. The angled outer tube improves ground clearance while the removable dimple died step plates provide traction and easy cleaning in mud, dirt, or snow.
Important notes
• Lead time: This item has an estimated 6–8 week lead time before shipping
• Finish requirement: Raw steel versions must be painted or powder coated before installation to prevent rust unless the powder coated option is selected
• Installation: Bolt on installation with minor drilling required, no welding necessary
• Compatibility warning: Not compatible with Toyota 4Runner Limited models or 2022 Sport models
Features
• DOM tubing construction: .120 wall DOM tubing provides excellent strength and resistance to dents from trail impacts

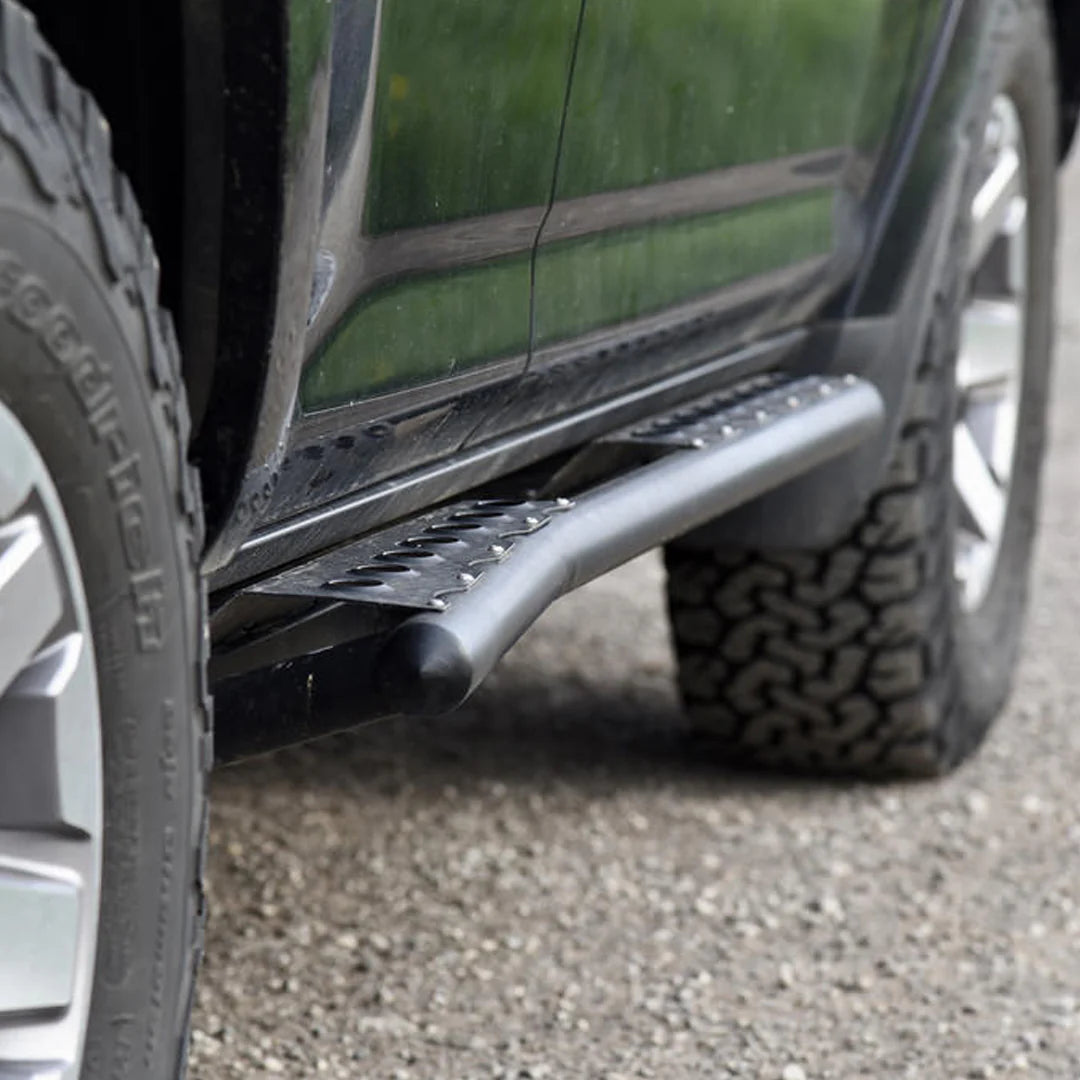

• Angled outer tube: Outer round tube is sloped upward at 25 degrees to improve ground clearance while maintaining step functionality

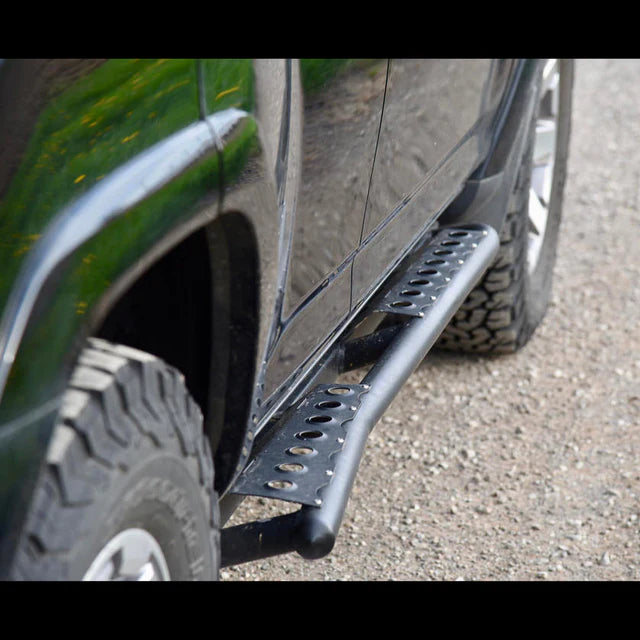

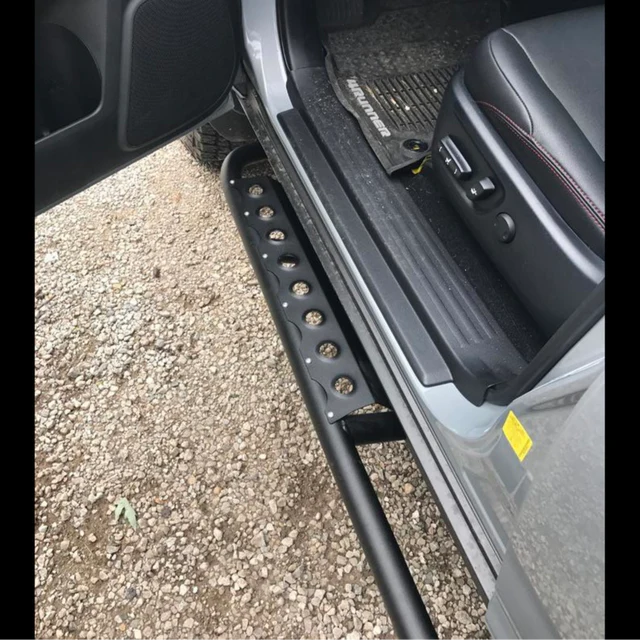

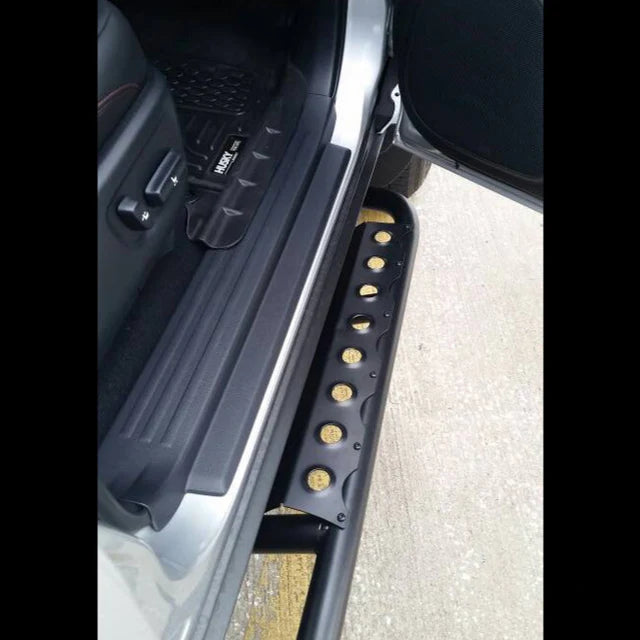

• Dimple died step plates: Removable step plates provide traction for standing and allow mud, dirt, and snow to clear easily
• Optimized support leg design: Support legs are welded at a 45 degree rotation to help prevent the slider from hanging up on sharp rocks
Specifications
• Material: DOM steel tubing with steel frame mounting plates
• Weight: 65 lbs each with step plates, 60 lbs each without step plates
• Dimensions: Not specified
• Construction: .120 wall DOM tubing with .188 thick frame mounting plates and gussets
• Finish: Raw steel or optional powder coat
• Installation type: Bolt on with minor drilling required
Vehicle fitment
• Vehicle compatibility: Toyota 4Runner 2014–2024 (5th Gen)
• Trim restrictions: Not compatible with Limited models or 2022 Sport models
• Mounting style: Frame mounted rock sliders using included hardware
Included in the box
• Rock sliders: Driver and passenger side rock slider assemblies
• Step plates: Removable dimple died step plates
• Hardware: Grade 10.9 mounting hardware and zinc plated Torx self threading screws
