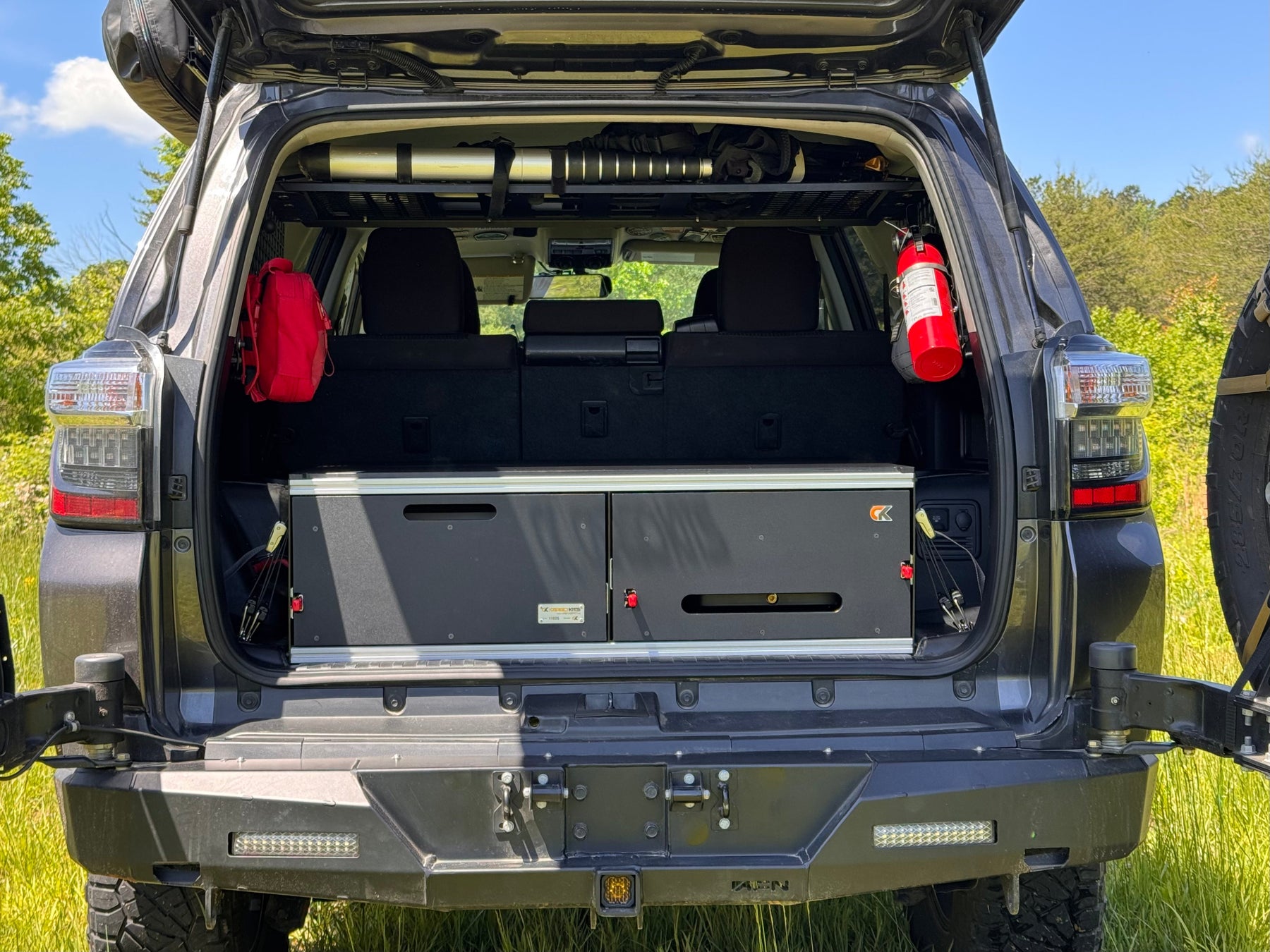

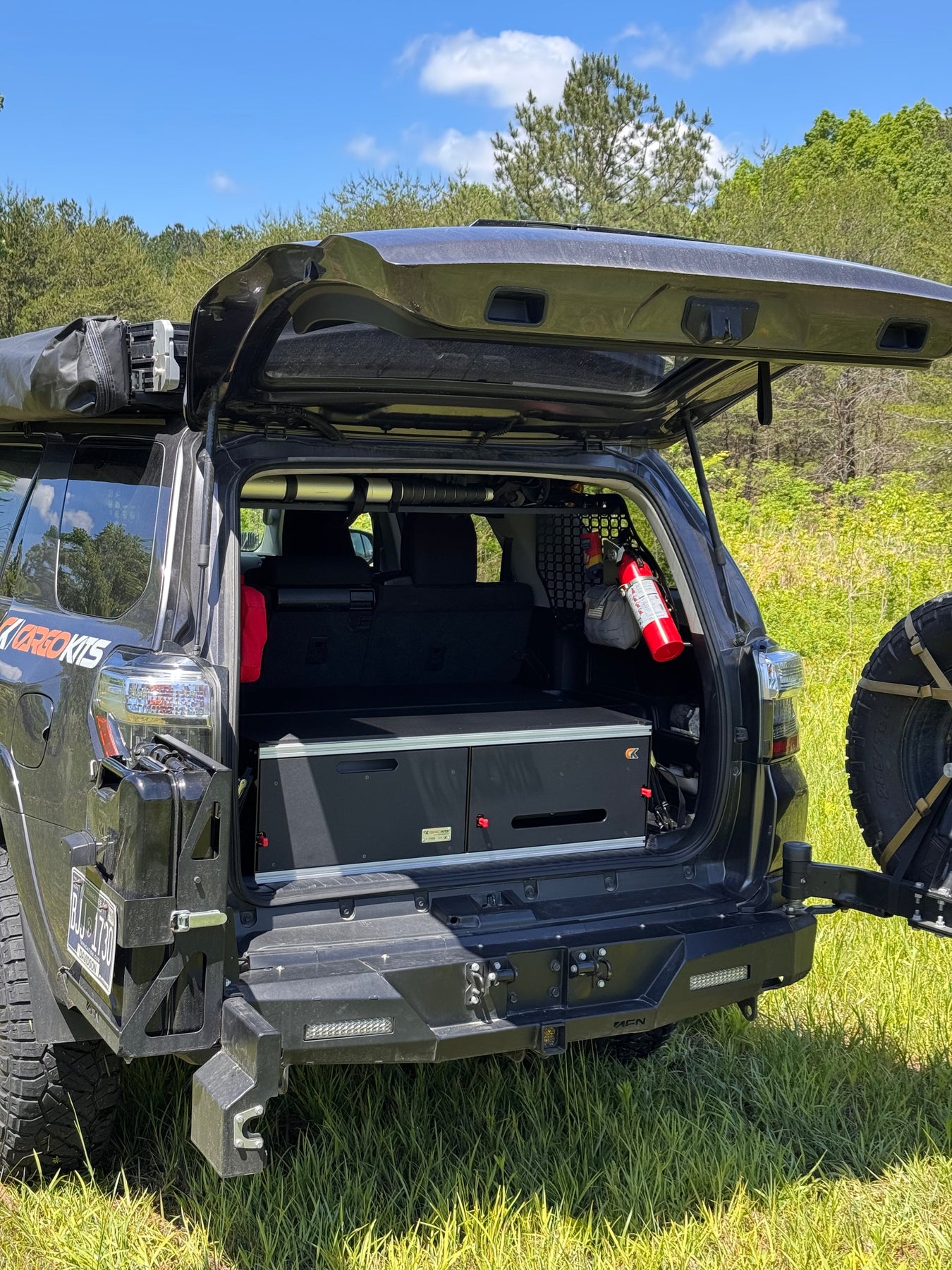

CargoKits Drawers are a purpose-built storage system designed to maximize strength, organization, and modular capability while keeping overall weight low. Engineered for demanding adventure use, this drawer system replaces traditional plywood designs with premium materials and integrates seamlessly with modular cargo and power solutions.
Features
-
All-Aluminum Construction: Powder-coated aluminum framework with extruded aluminum crossbars delivers exceptional strength without excess weight.
-
HDPE Drawer Panels: Marine-grade HDPE panels are solid throughout, eliminating the wear issues associated with coated plywood.
-
High Load Capacity: Each drawer is rated to support heavy gear while maintaining smooth operation.
-
Locking Drawer Slides: Lock-in and lock-out functionality keeps drawers secure on uneven terrain.
-

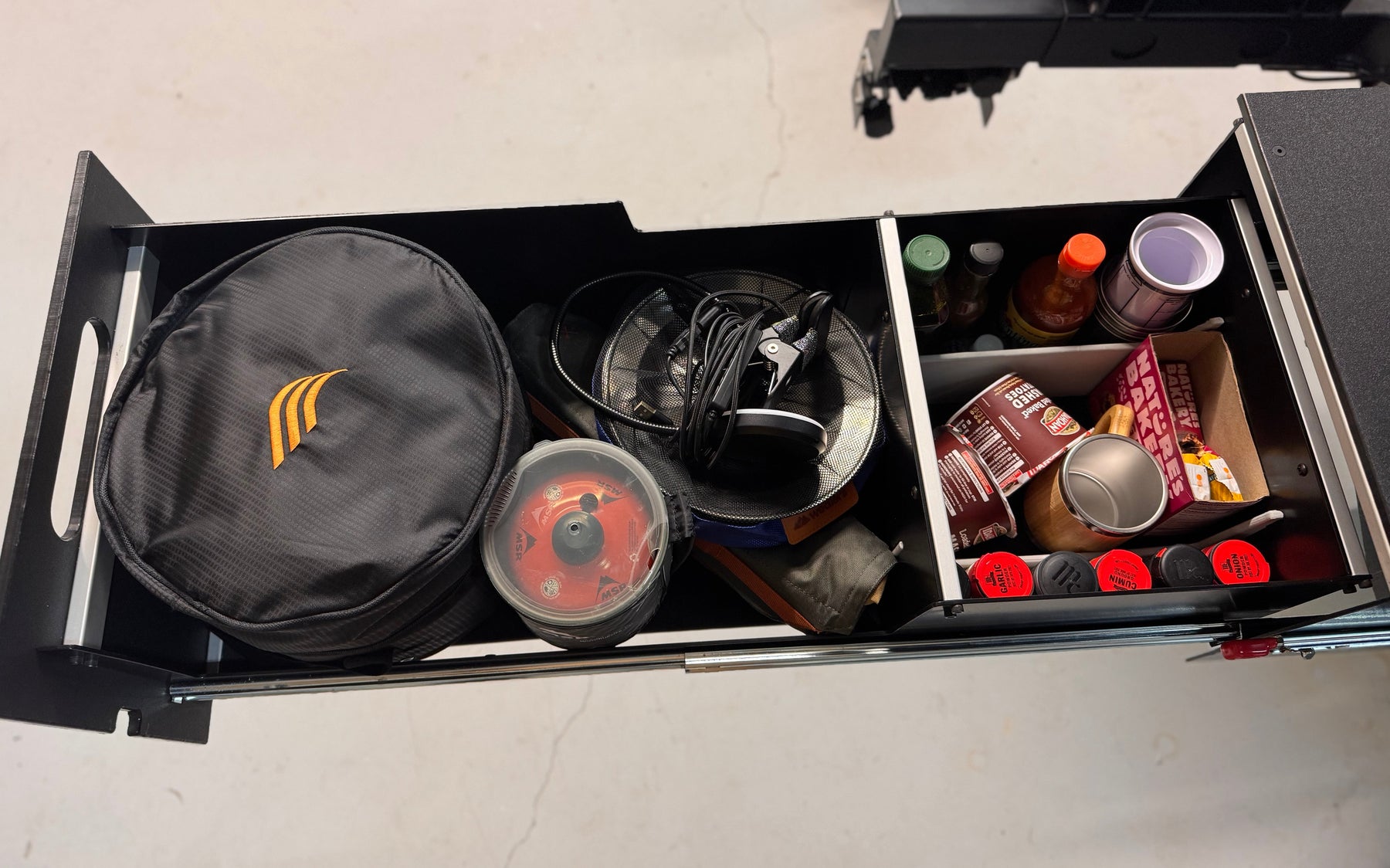

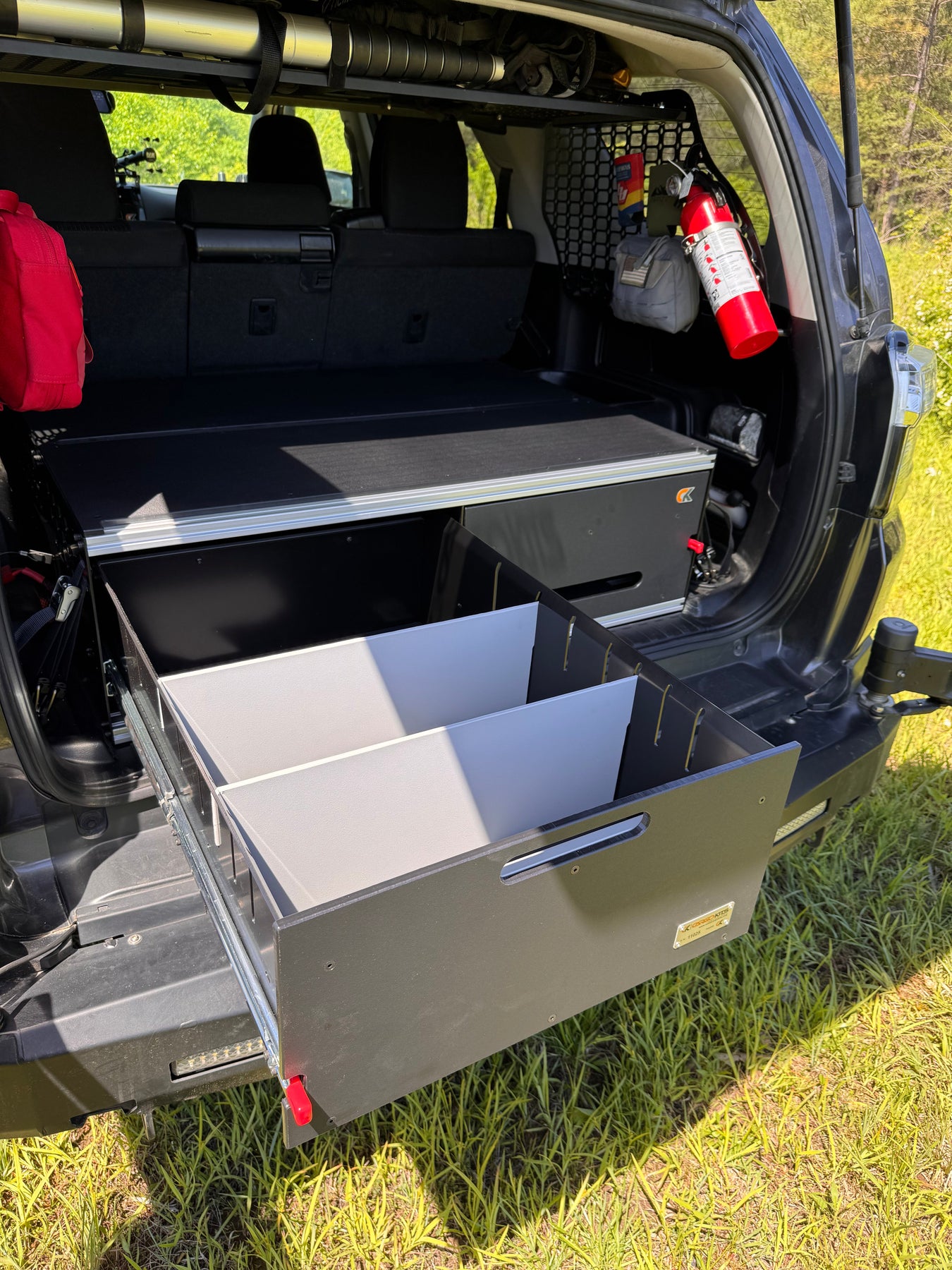

Adjustable Organization: Each 2025 drawer system includes adjustable dividers for customizable storage.
-
Cargo Deck Track System: Integrated mounting tracks provide flexible attachment points for gear and accessories.
-
Modular Expansion Ready: Designed to support kitchen drawers, battery systems, and additional accessories.
Specs
-
Drawer Weight Rating: 225 lbs per drawer
-
Slide Type: Heavy-duty lock-in / lock-out drawer slides
Standard Equipment
-
Heavy-Duty Drawer Slides: Lock-in / lock-out mechanism with 225 lb rating per drawer
-

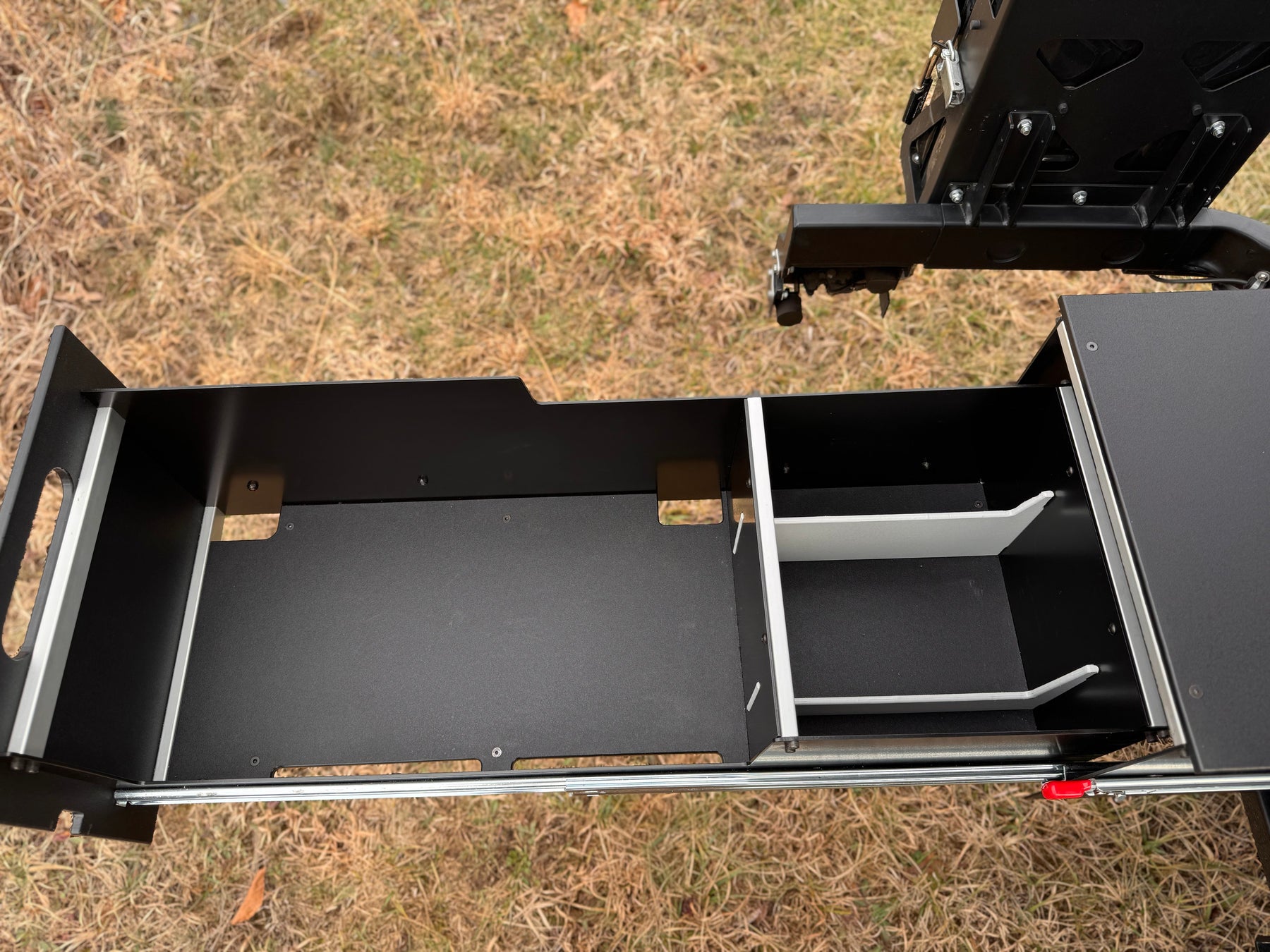

Drawer Dividers: Two dividers included per drawer (2025 design)
-
Mounting Track System: Integrated tracks for expanded mounting and cargo options
Optional Equipment
-

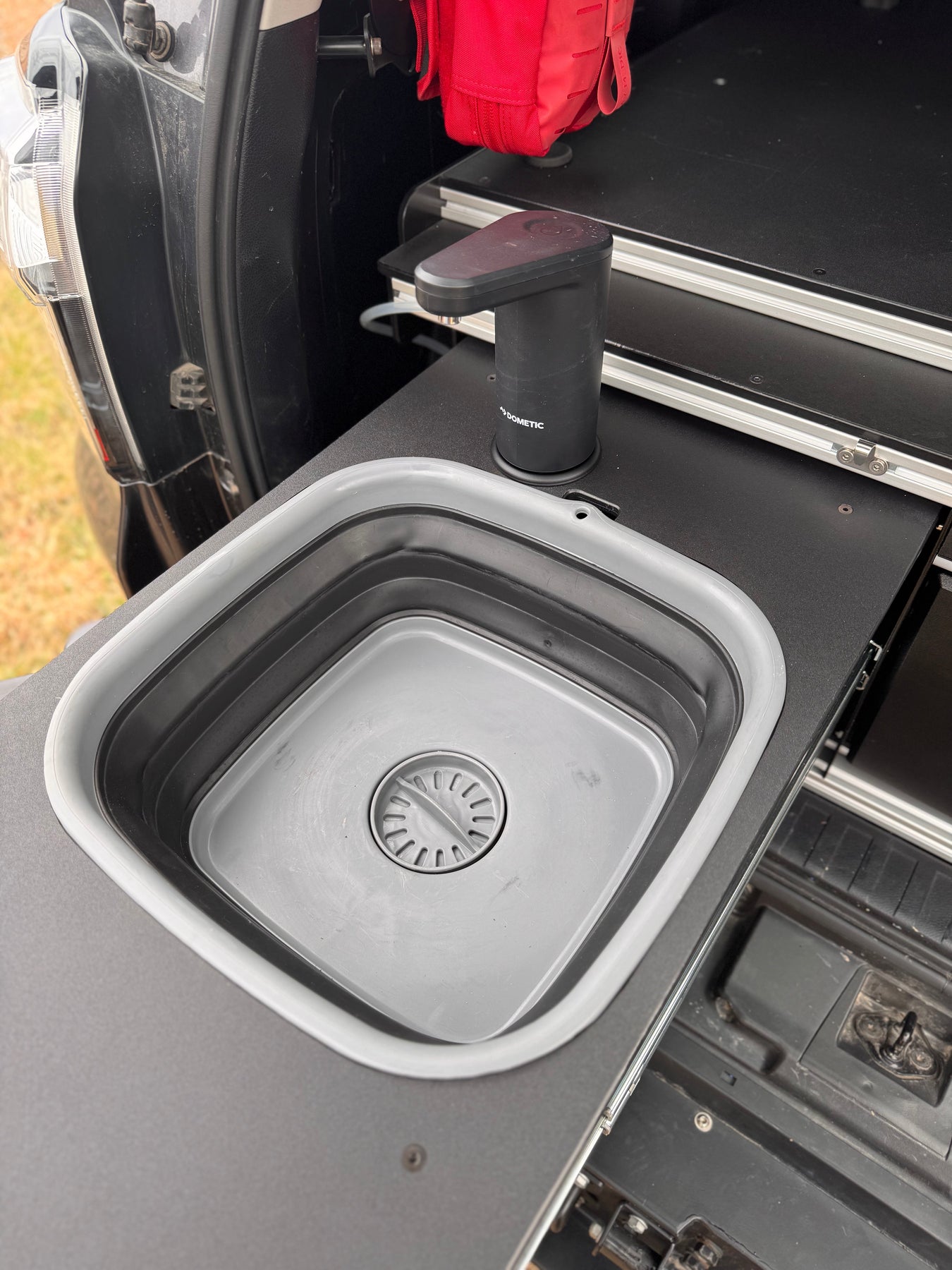

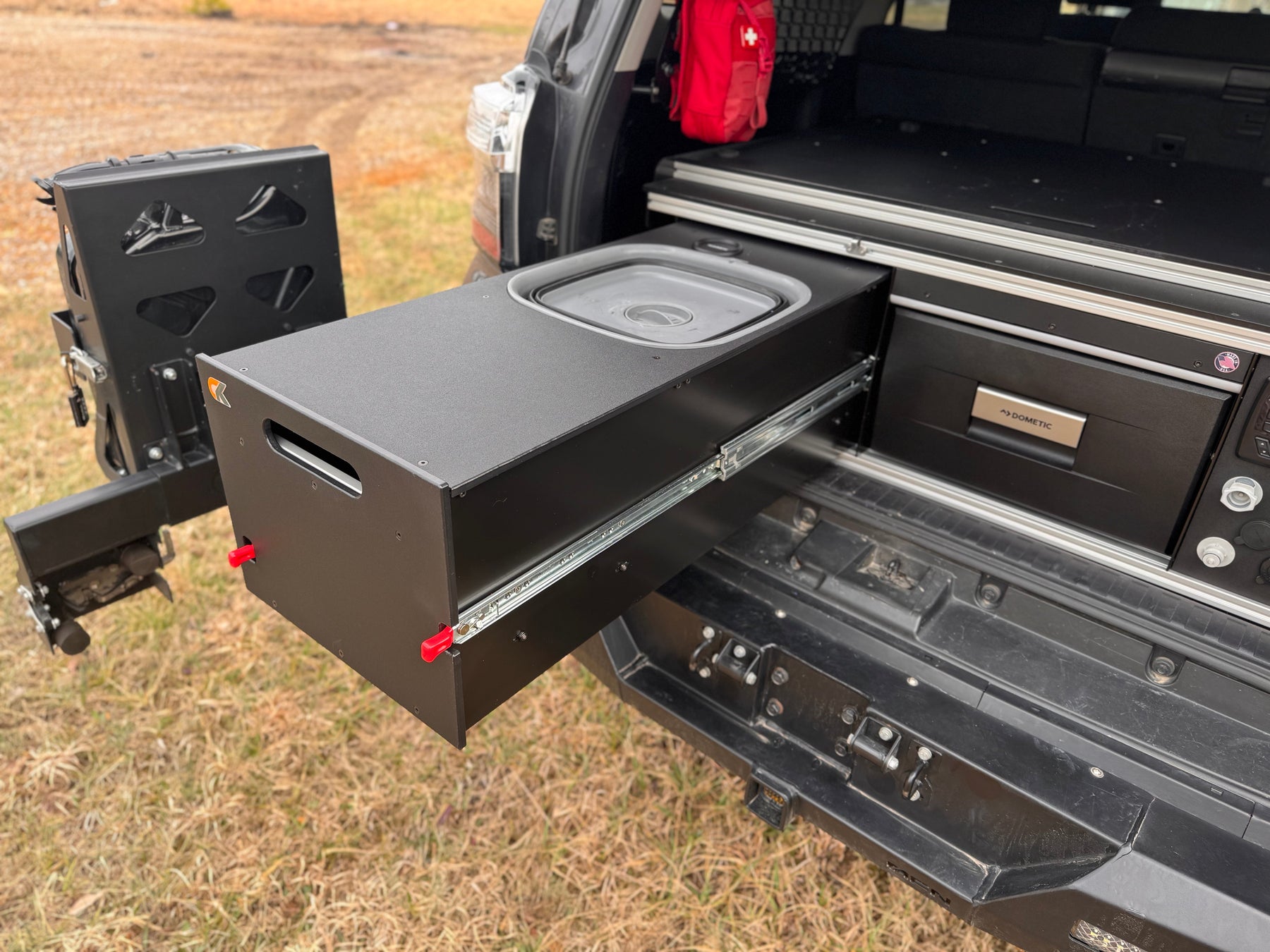

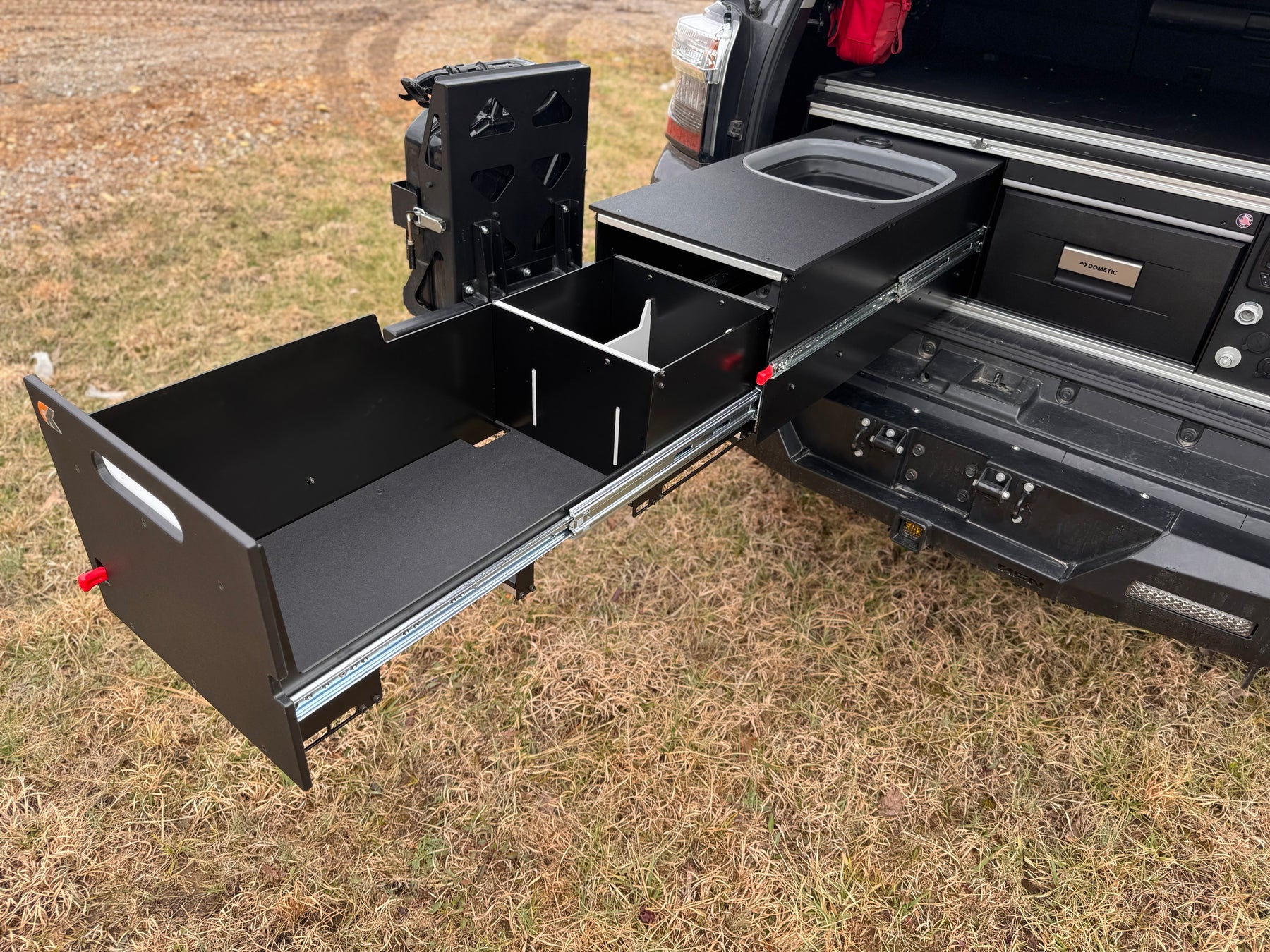

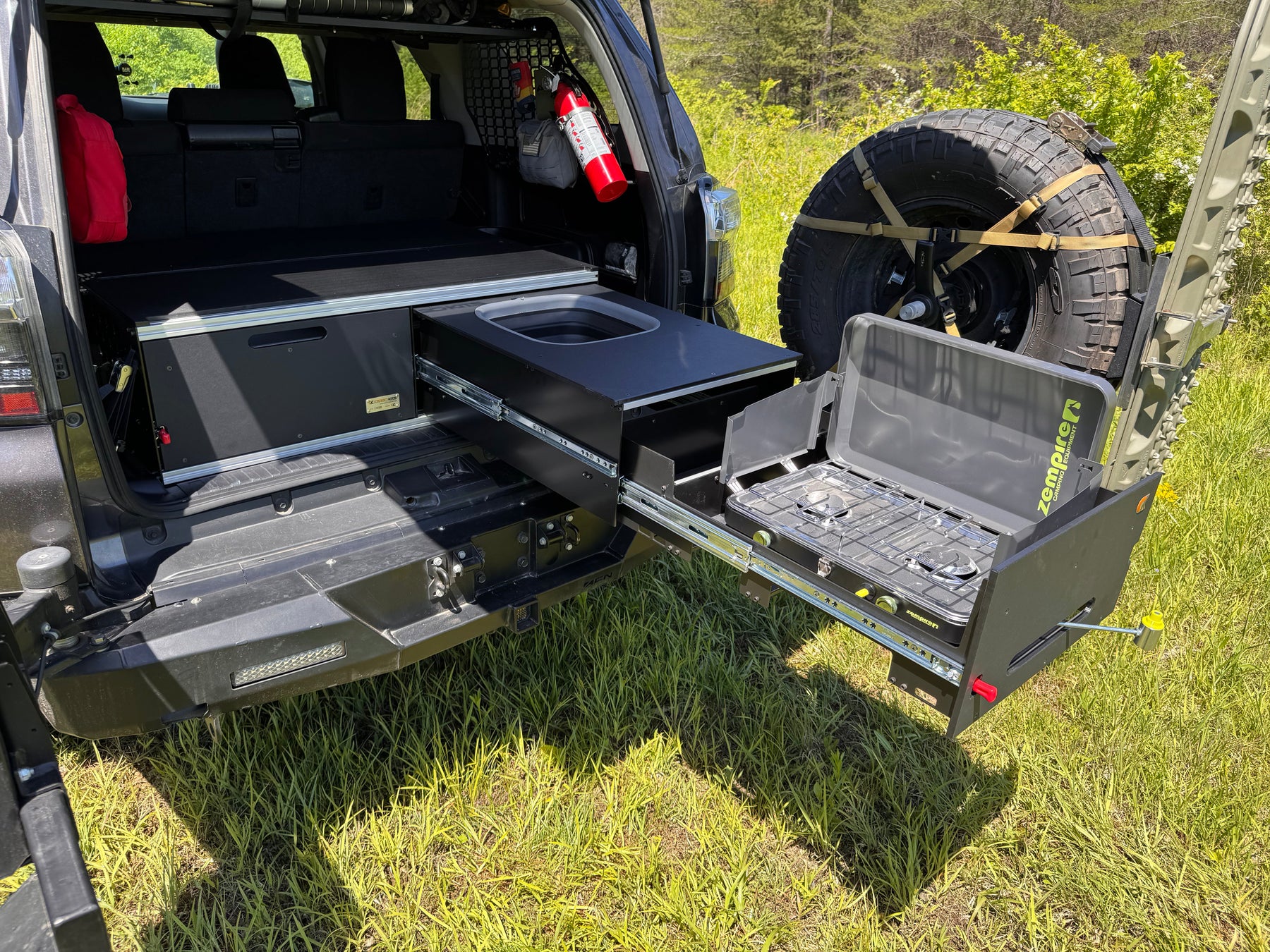

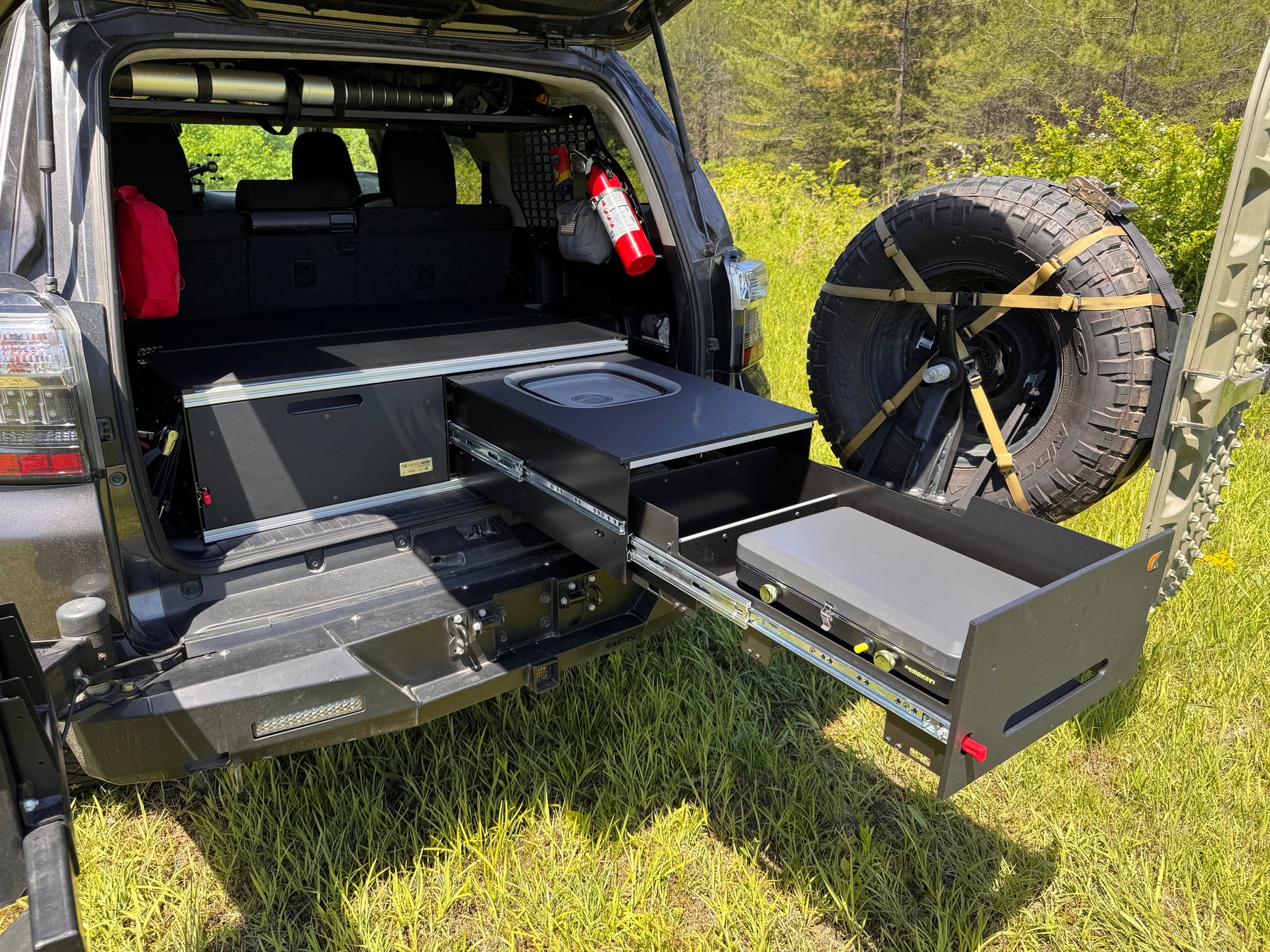

CargoKitchen Drawer Options: Double slide-out design featuring counter space, storage, built-in stove alcove with wind screen, and integrated sink
-

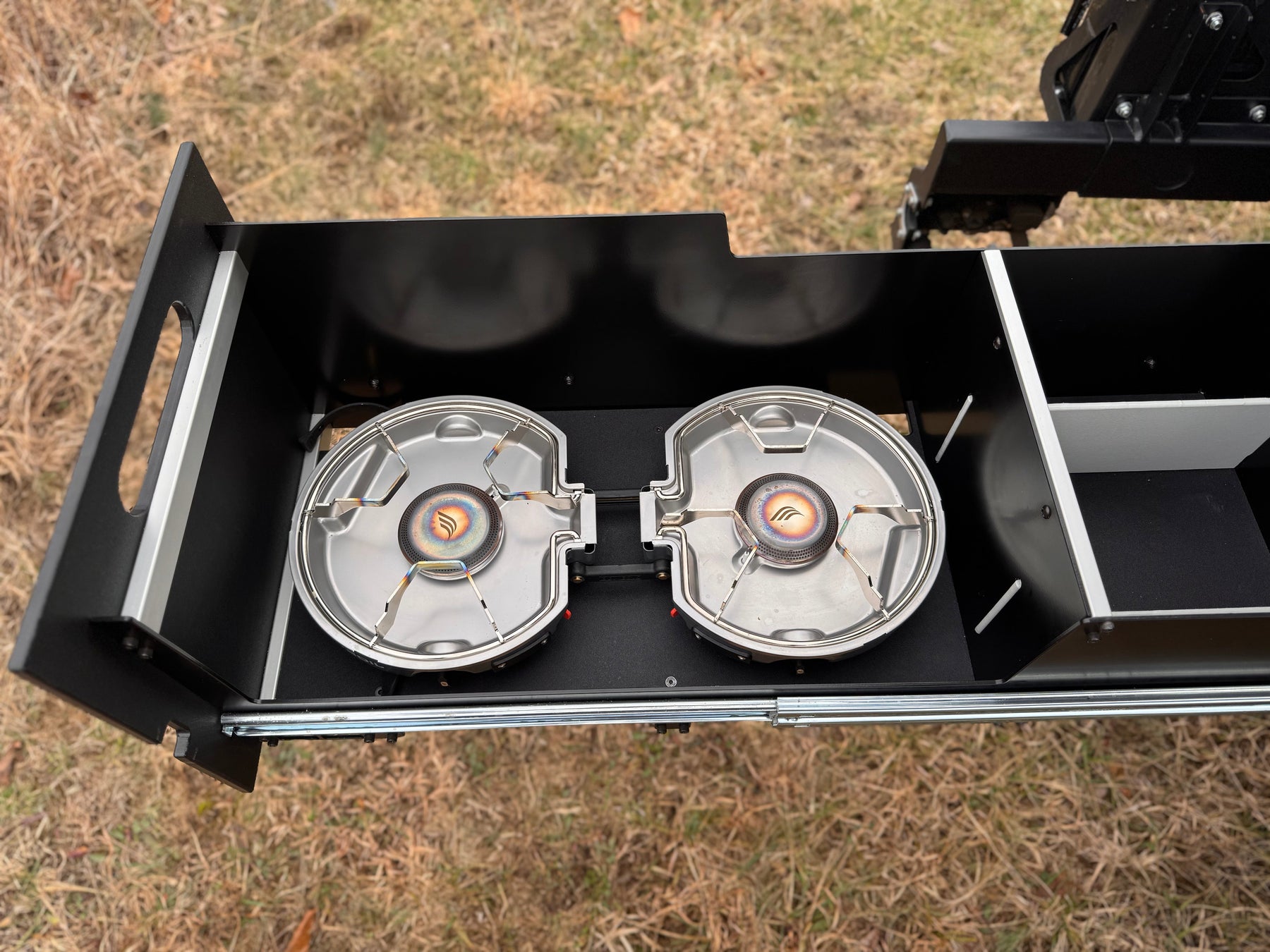

Jetfoil Genesis CargoKitchen: Most compact kitchen drawer option, optimized for systems using a battery setup with a 15" drawer width
-
Universal Stove CargoKitchen: Compatible with most stoves up to 19" long and 13" wide
-
Gas Connection Orientation:
- Right-side gas connection requires a Right Drawer CargoKitchen
- Left-side gas connection requires a Left Drawer CargoKitchen
-
Pre-Installed Power Systems: Optional integration with Redarc Electronics products, pre-installed and prewired within the drawer system
Battery System Options
-
Charging & Distribution: Redarc BCDC Alpha 25 Charger and 12-circuit fuse panel
-
Power Outputs:
- (2) 12V plugs
- (1) 4.8A twin USB-A outlet
- (1) twin USB-C 90W outlet
-
Battery Choices:
- Redarc Alpha 150 LiFePO4 battery, 150Ah capacity, self-heating, Bluetooth app
- Renogy Pro LiFePO4 battery, 100Ah capacity, self-heating, Bluetooth app
-
Optional Power Management:

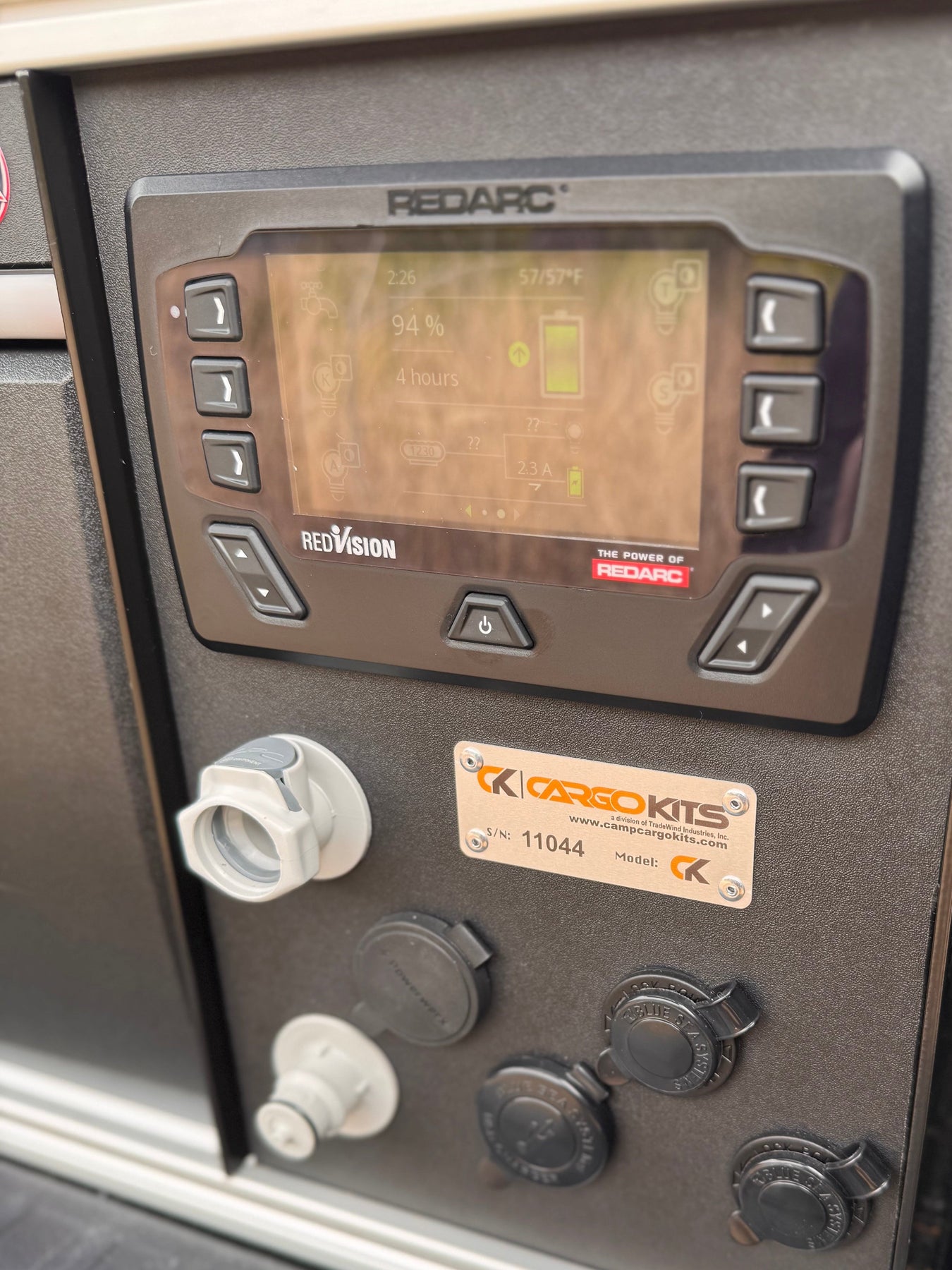

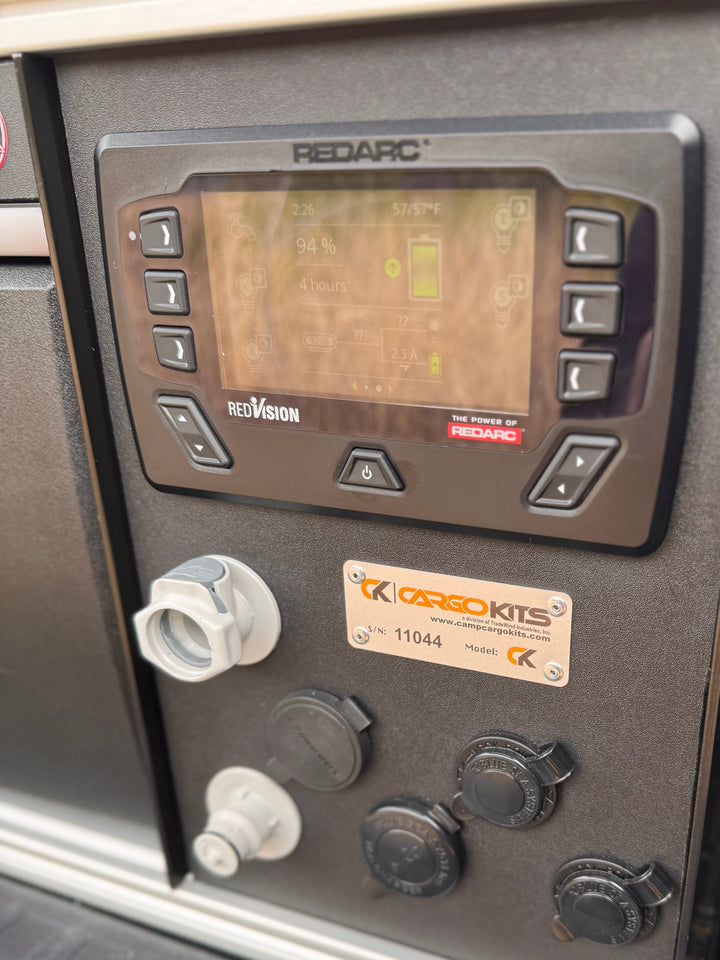

- Redarc RedVision with TVMS Rogue system featuring 10 switchable 10A circuits, app control, battery and temperature monitoring, and water tank level support
- Blue Sea power distribution system with eight fused switch circuits (15A max per circuit)
