The Stage Series HitchMount Reverse Light Kit for the Toyota Tacoma adds serious functionality in a compact, bolt-on package. Designed to install in minutes using the factory trailer connector, this kit delivers a powerful reverse light, an additional running light, and—when equipped with the C1R—an optional high-output 4th brake light with SafetyStrobe capability.
Important note
-
Hitch compatibility: Trailer hitch must have an open back before ordering.
-
Lighting scope: This product is not intended to replace original factory tail lamps.
-
Trailer pin option: A locking trailer pin can be used with a minor modification (video available).
-
Receiver adapter: The included snap-in 2.5-inch receiver adapter is not used during installation on this vehicle.

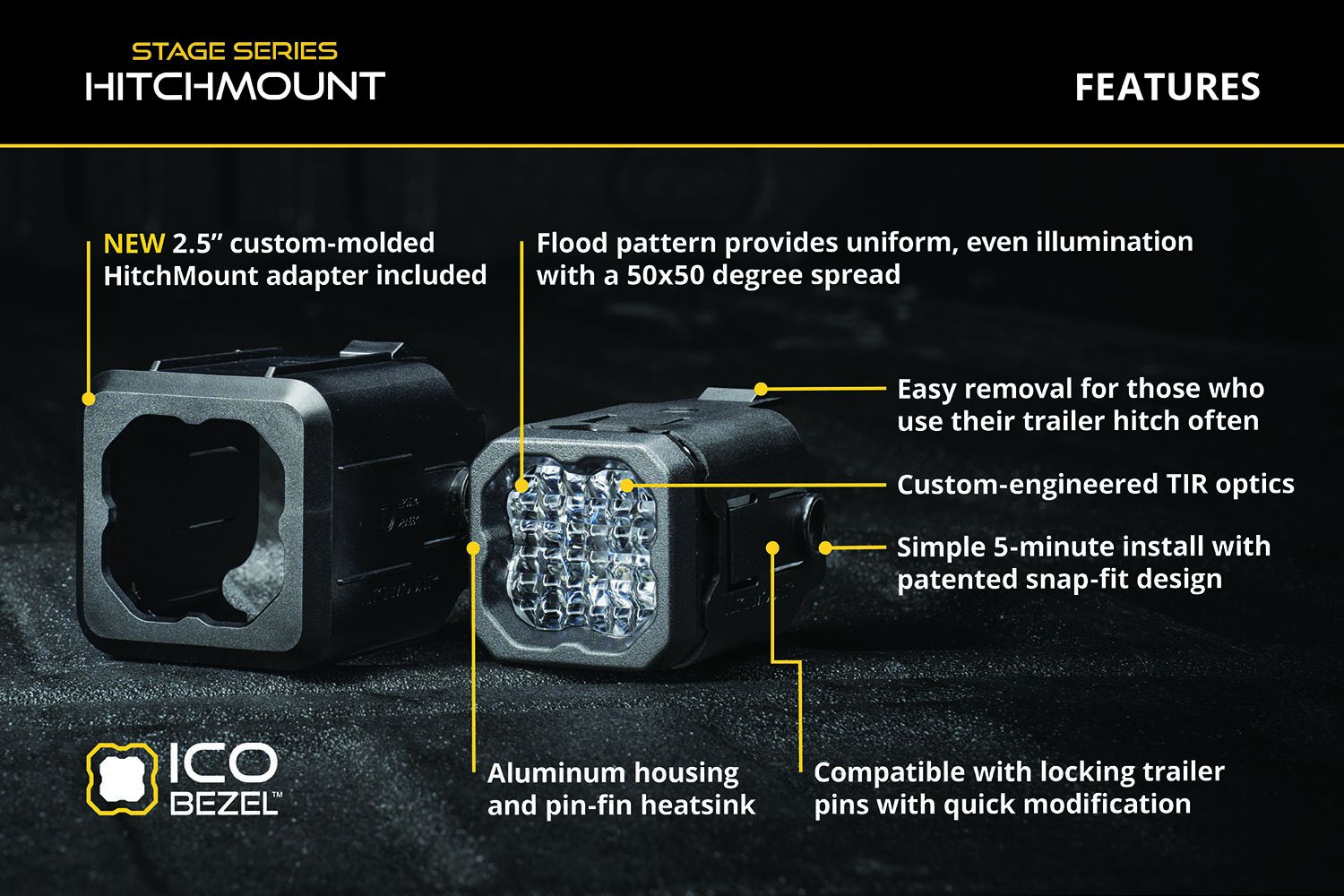

Features
-

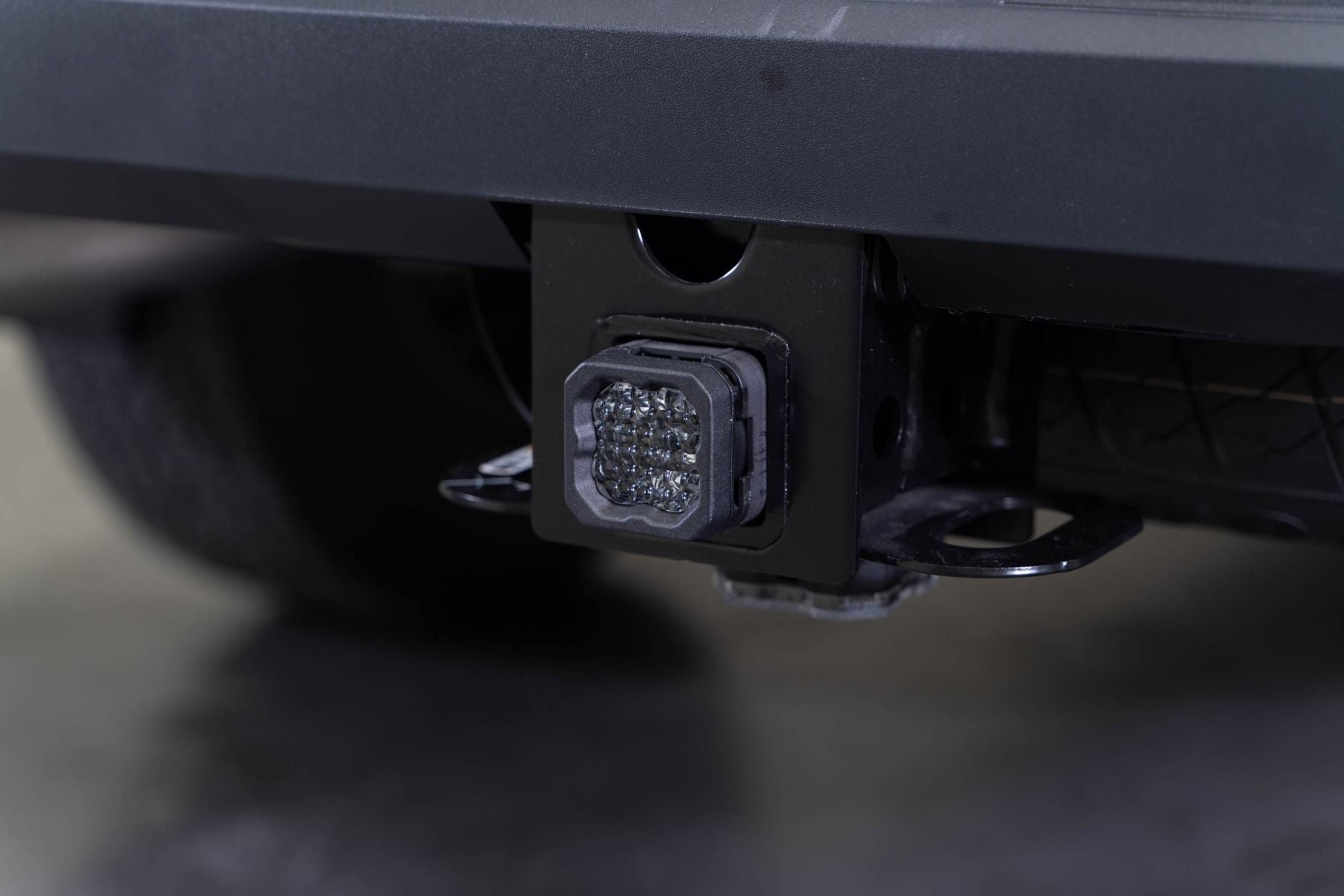

HitchMount design: Mounts one SSC1 or C1R LED pod directly in the trailer hitch receiver.
-
3-in-1 lighting: Adds a high-power reverse light, red running light, and optional 4th brake light (C1R).
-
Fast install: Patent-pending snap-fit design installs in about five minutes with no drilling or hitch pin.
-
Plug-and-play wiring: Connects directly to the factory 7-pin trailer harness for everyday operation.
-
SafetyStrobe option: C1R model includes optional brake-light strobing for increased visibility.
-
Quick removal: Snap-fit design allows fast removal for frequent towing use.
-
Made in USA: Designed and assembled in the USA using globally sourced materials.
Specifications
-
Measured lumens: SSC1 Sport – 1,030 lm; C1R – 1,080 lm
-
Intensity: SSC1 Sport – 400 cd; C1R – 480 cd
-
Color temperature: 6000K
-
Power: SSC1 Sport – 12.8W; C1R – 14.1W
-
Current (@12.8V): SSC1 Sport – 1.0A; C1R – 1.1A
-
Operating voltage: 9–16V
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Cree XP-L HI, Osram 1414 Pure
-

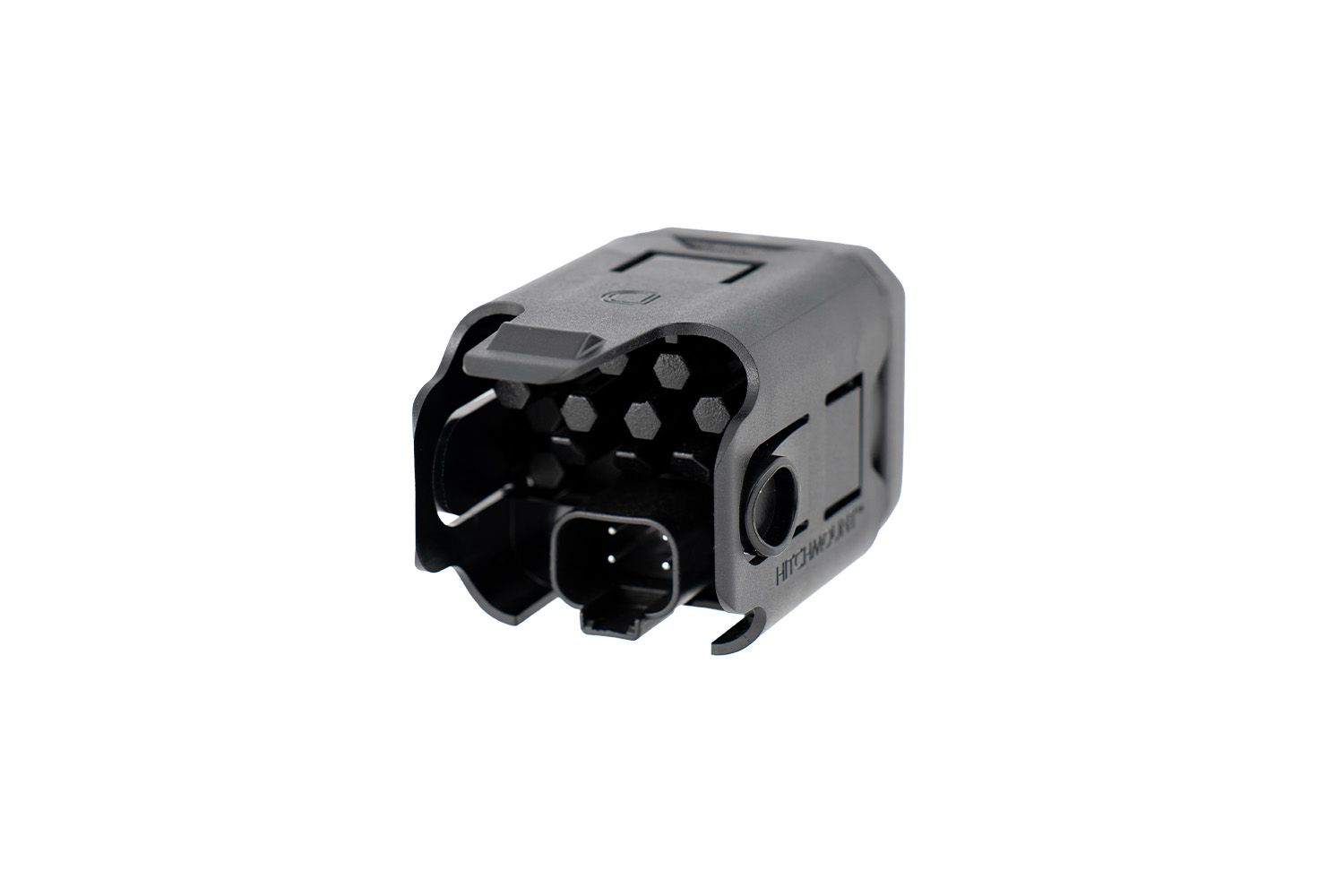

Connector: Deutsch DT input
-
Driver features: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high pressure
-
Harness length: 25.59 inches (DT connector to inline harness)
-
Unit weight: 0.35 lb
-
Product weight: SSC1 – 0.95 lb; C1R – 1.0 lb
-
Shipped weight: 1.5 lb
Fitment
-
Application: Backup / Reverse light
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)

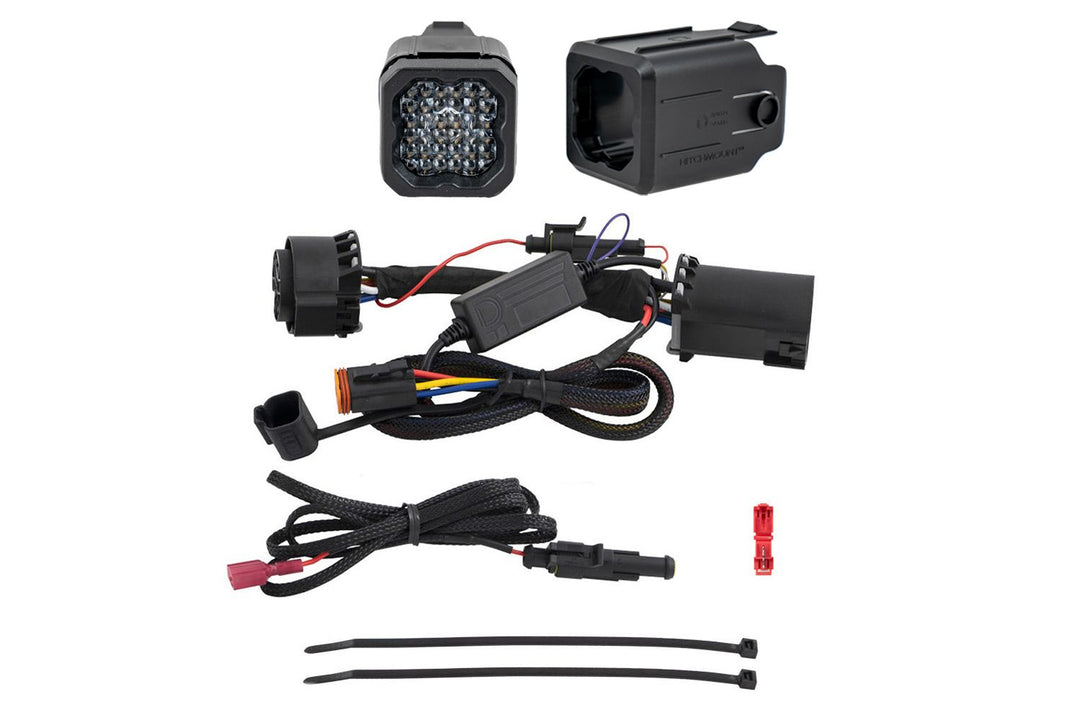

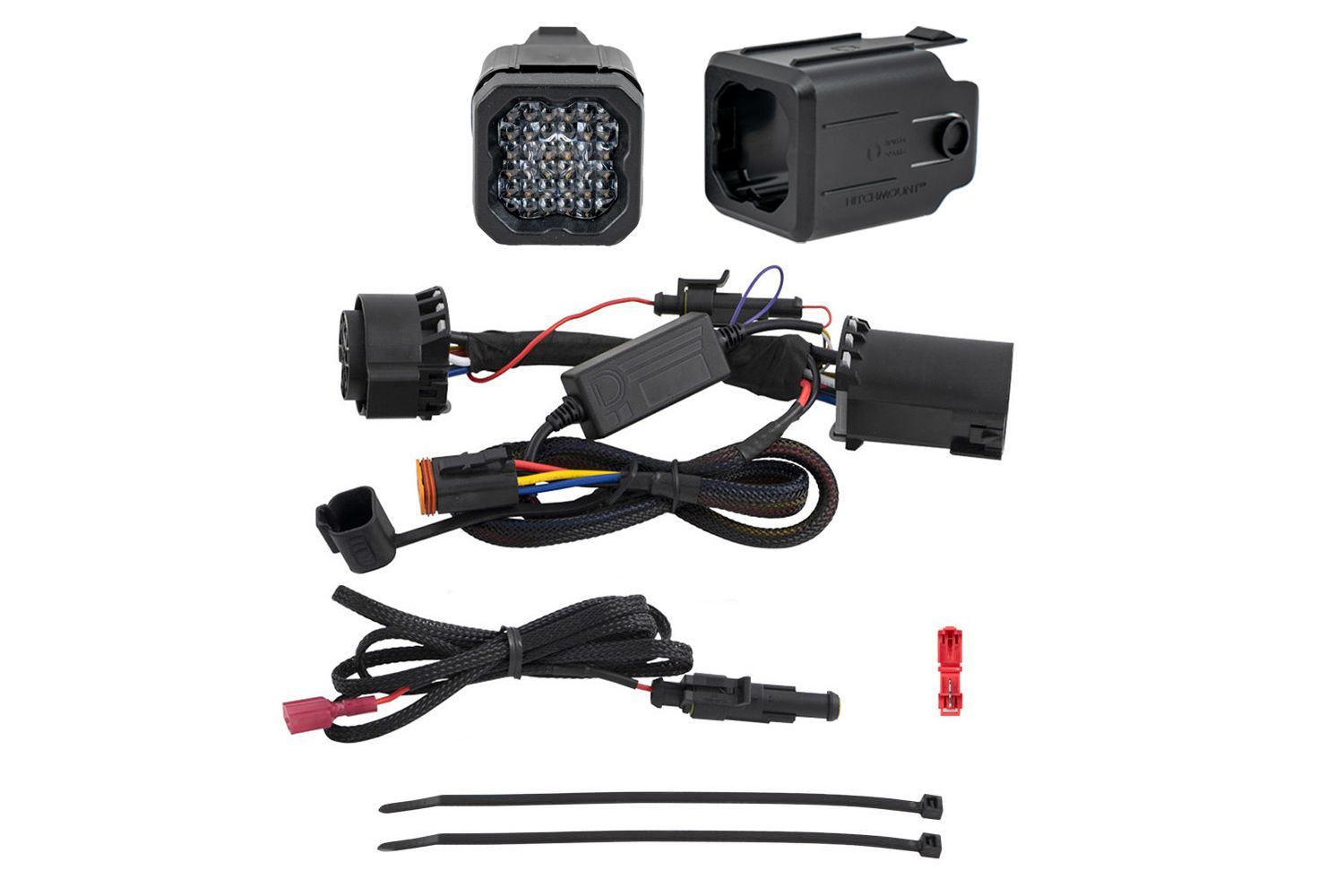

Included in the box
-

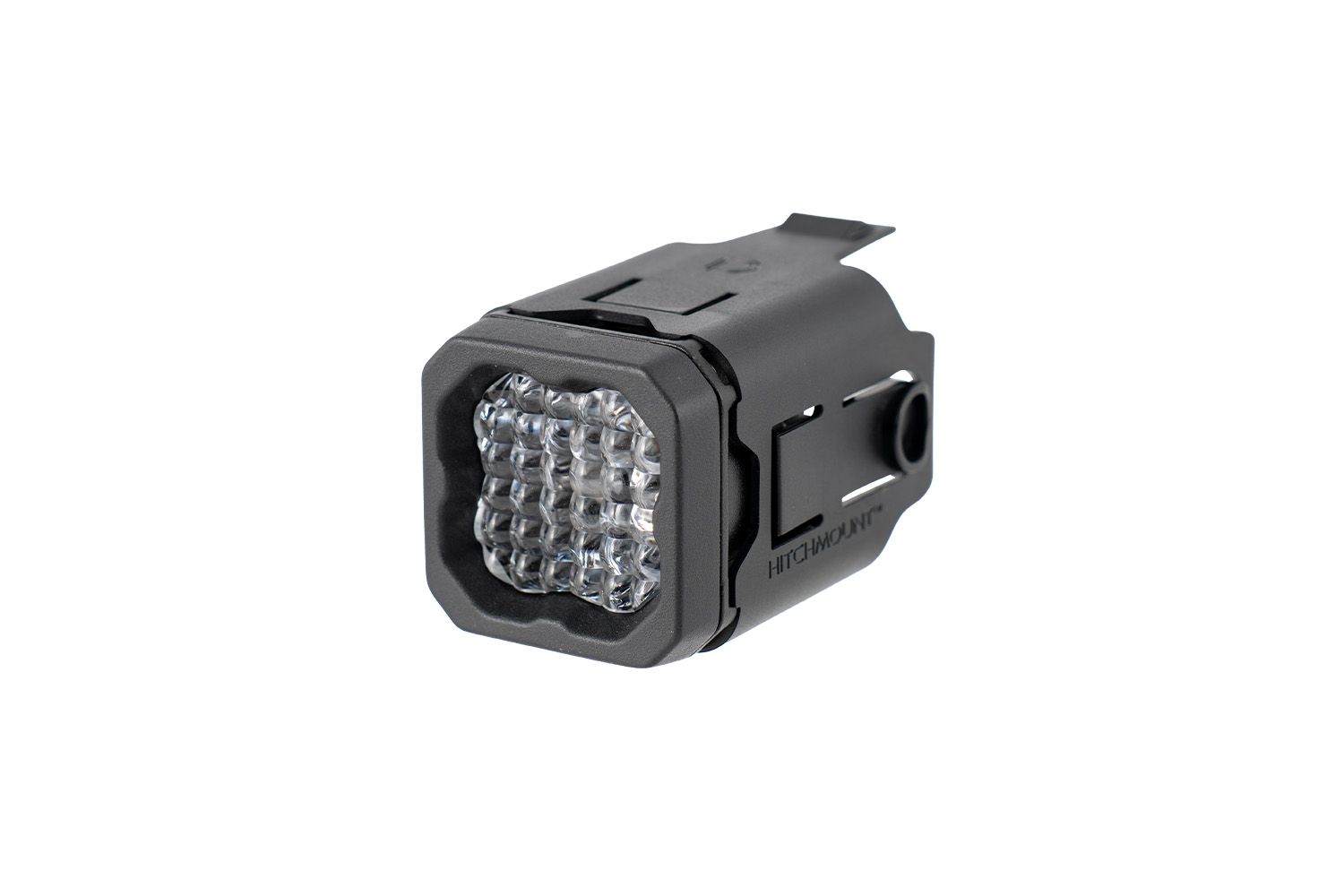

LED pod: One (1) SSC1 Sport or C1R HitchMount LED pod
-
Adapter: One (1) snap-in 2.5-inch receiver adapter
-
Harness: One (1) 7-pin trailer single-output harness
-
Hardware: Two (2) zip ties
-
Documentation: Installation guide
Additional details
-
Quantity: One (1)
-
Installation time: 5–10 minutes
-
Tools required: Basic toolset
-
Modification: None
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
