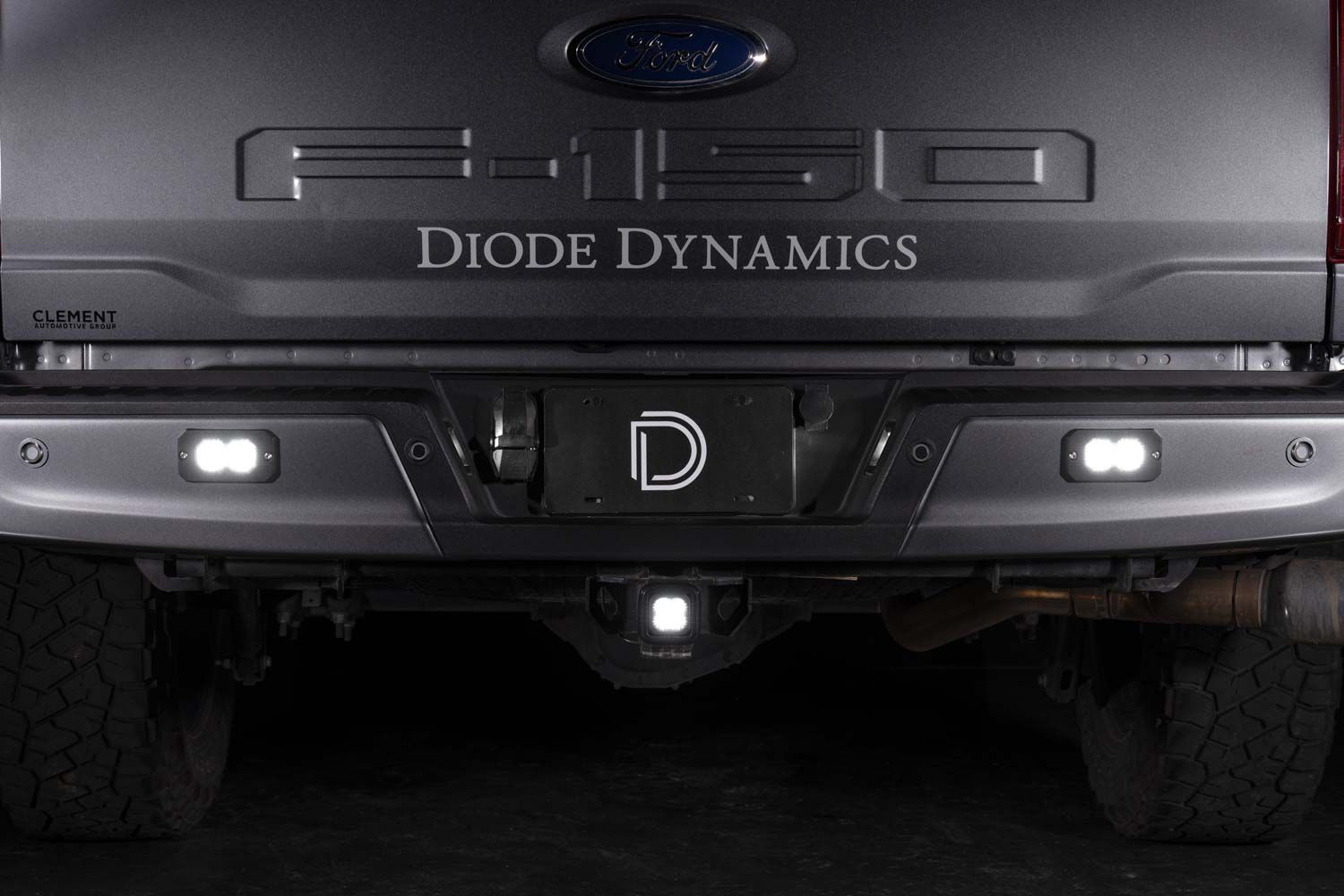

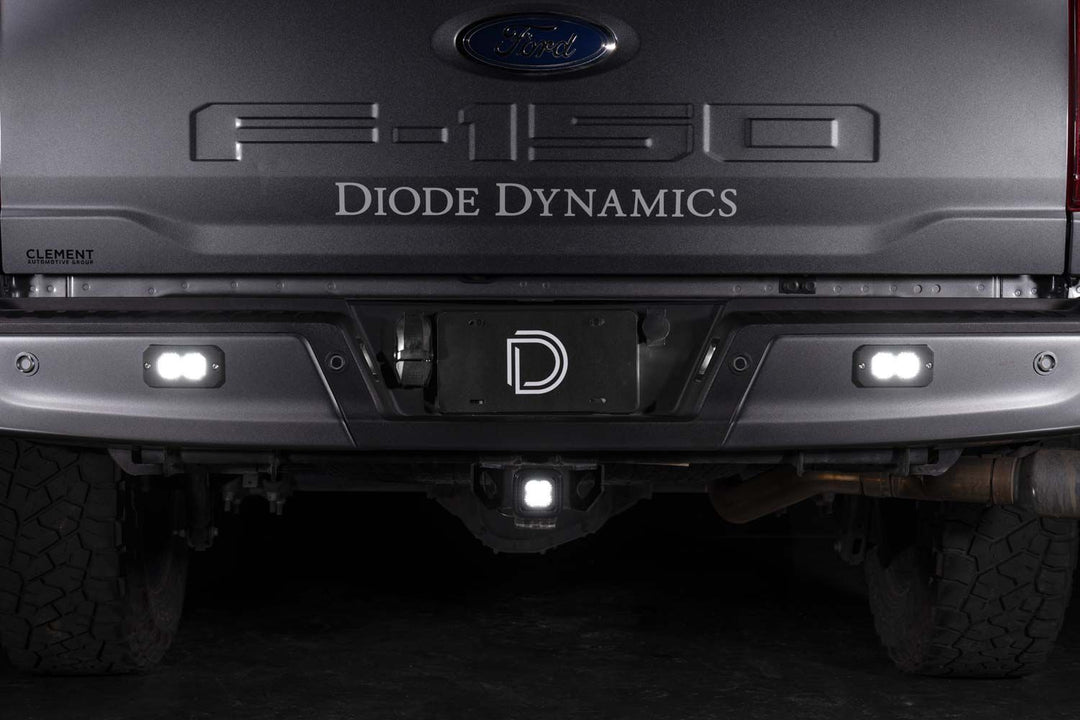

The Stage Series Flush Mount Reverse Light Kit delivers a sleek, OEM-style solution for adding powerful rear lighting to your vehicle. Designed to flush-mount two Stage Series LED pods directly into the rear bumper, this kit provides a high-output reverse light and a distinctive red accent light, all while maintaining a clean, low-profile appearance.
Important note
-
Installation method: This kit requires bumper drilling using the included template.
-
Manual control: The included toggle switch allows the main beam to be activated independently of vehicle signals.
-
Manufacturing origin: Designed and assembled in the USA.
Features
-

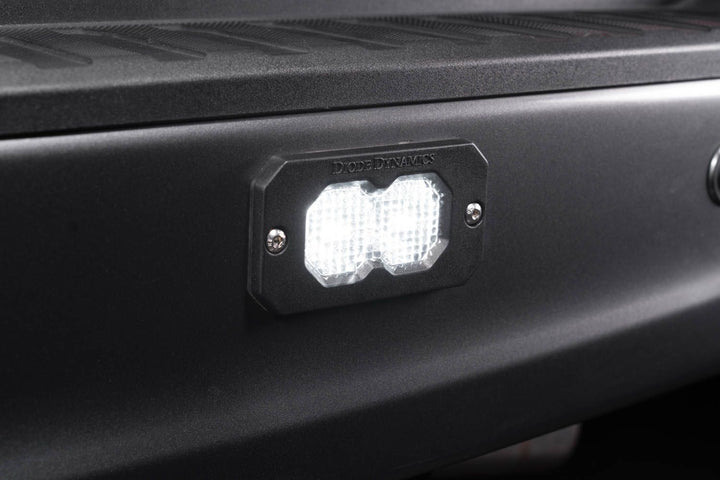

Flush-mount design: Allows clean, low-profile installation of SSC1 or C2 2.0 LED pods in the rear bumper.
-
Dual-pod configuration: Mounts two LED pods for balanced, high-output rear illumination.
-
High-power reverse light: Automatically activates when the vehicle is placed in reverse.
-

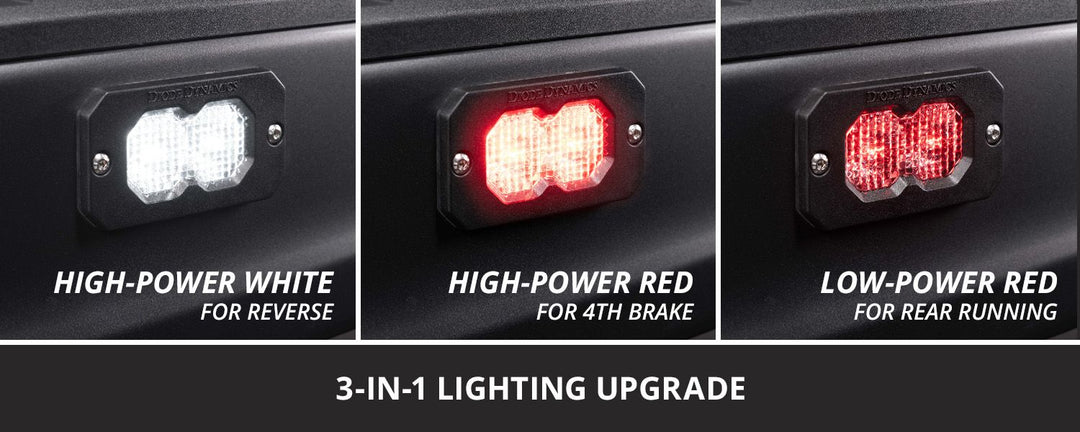

Red accent backlight: Integrated red backlight functions as an additional accent light while driving.
-
Vehicle signal integration: Connects directly to vehicle wiring for simple, everyday operation.
-
Manual override switch: Toggle switch allows on-demand activation of the main beam.
-
TIR optics: Patented Total Internal Reflection optics focus light efficiently while reducing glare.
-
Flood beam pattern: Optically engineered flood pattern for wide, even illumination.
-
Multiple output levels: Available in Sport and Pro configurations depending on pod selection.
-
Durable construction: Powdercoated aluminum housings built for harsh environments.
-
Proven reliability: Tested to SAE standards for vibration, moisture, corrosion, and temperature extremes.
-
Designed and assembled in USA: Built using globally sourced materials for long-term performance.
Specifications
-
Color temperature: 6000K
-
Operating voltage: 9–16V
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Osram Ostar Projection Compact, Lumileds automotive-grade LEDs
-
Connector: Deutsch DT input
-
Driver features: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Compliance: SAE J575 durability test
-
Ingress rating: IP69K waterproof, high pressure
Per-pod output ratings
-
SSC1 Sport: 400 cd, 4 lux @10m, 1,449 lm
-
SSC1 Pro: 925 cd, 9 lux @10m, 2,375 lm
-
C2 2.0 Sport: 750 cd, 8 lux @10m, 1,190 lm
-
C2 2.0 Pro: 1,550 cd, 16 lux @10m, 3,140 lm
Power consumption
-
SSC1 Sport: 12.8W
-
SSC1 Pro: 19W
-
C2 2.0 Sport: 15W
-
C2 2.0 Pro: 23W

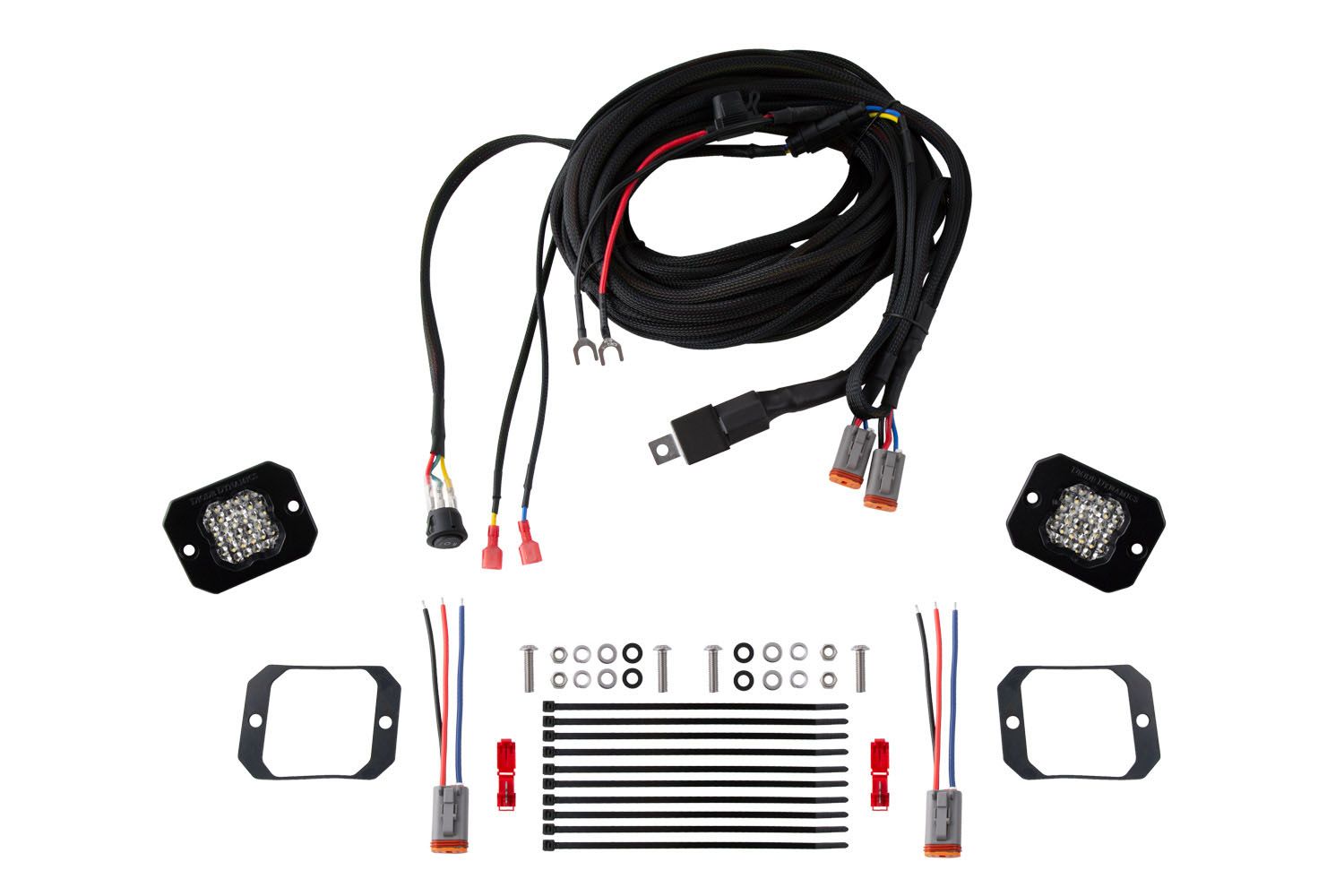

Included in the box
-
LED pods: Two (2) SSC1 or C2 2.0 flush mount LED pods
-
Wiring harness: One (1) universal reverse light wiring harness
-
Flush gaskets: Two (2) flush frame gaskets
-
Zip ties: Ten (10)
-
T-taps: Two (2)
-
Templates and hardware: Mounting hardware and drilling template
Additional details
-
Quantity: Two (2)
-
Installation time: 1–2 hours
-
Tools required: Basic toolset
-
Modification: Basic wiring only
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
