The Diode Dynamics D-Switch with vehicle-specific hub mount delivers total control over your lighting and 12V accessories while keeping your engine bay clean, organized, and OEM-looking. Designed specifically for the Toyota Tundra (2022–2026), this system combines an advanced 8-channel solid-state switch panel with a bolt-on stainless steel hub mounting solution that installs using factory mounting points—no drilling, cutting, or guesswork required.
Important notes
-
Vehicle specific: Designed for Toyota Tundra (2022–2026)
-
Mounting options: Available as bracket-only or complete D-Switch system
-
Electrical setup: High-power applications may require direct battery access
-
Environmental rating: Electronics rated IP67 (excluding wiring terminals)

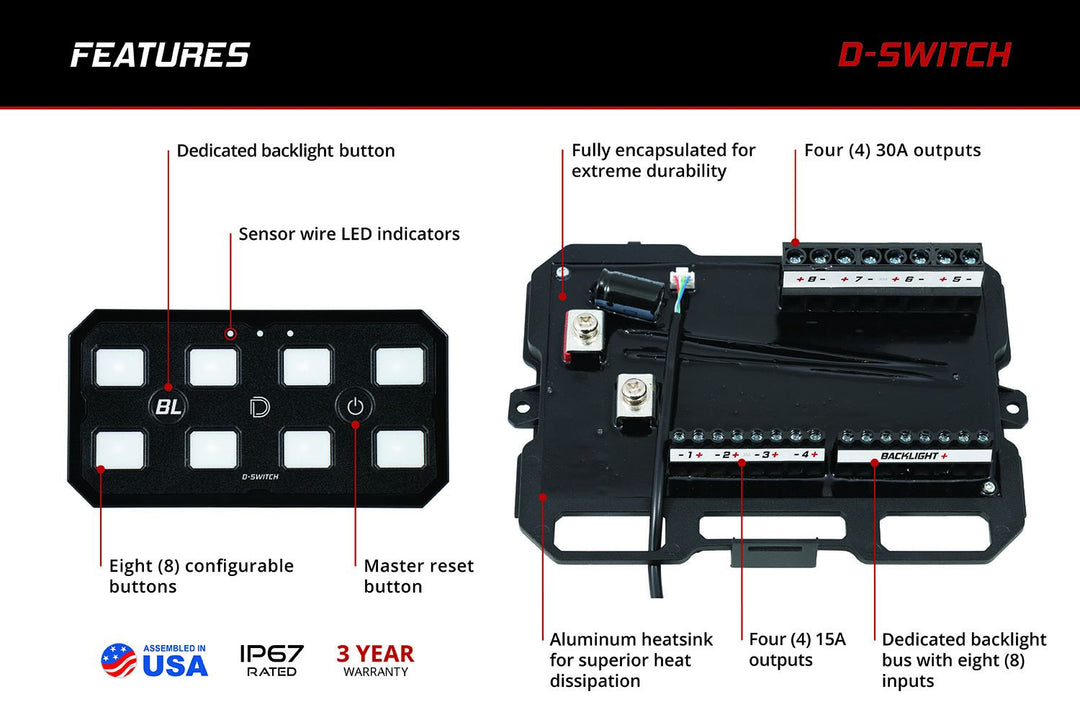

Features
-

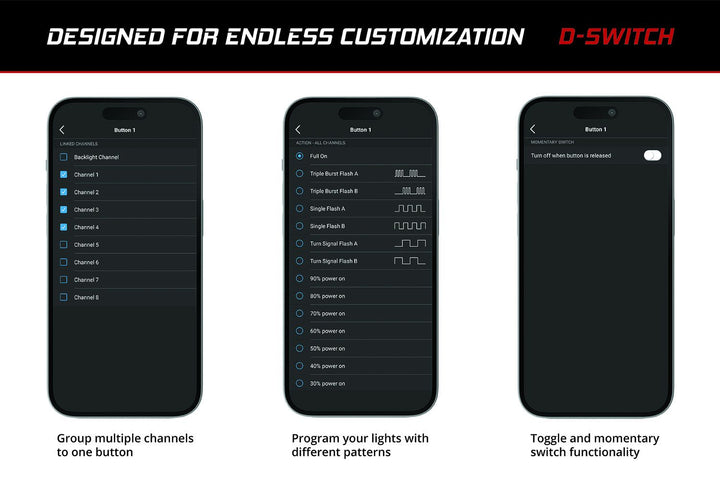

Dynamic channel assignment: Group multiple outputs to one button or control one output with multiple patterns
-
Dedicated backlight channel: Separate bus bar and button for accent and backlit accessories
-

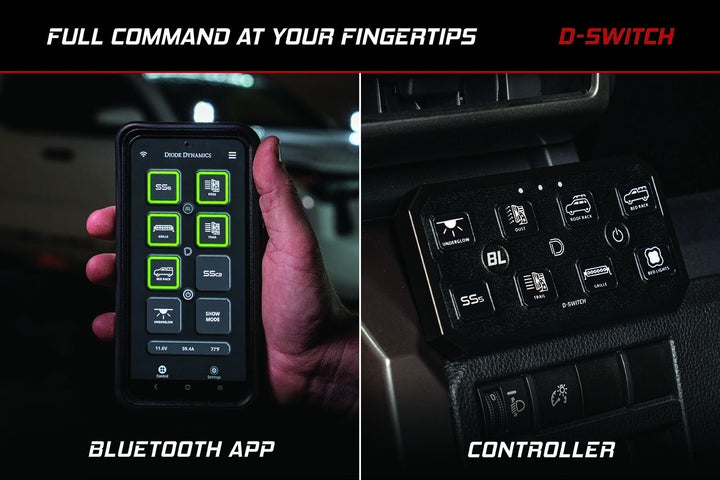

Bluetooth app control: Fast, responsive iOS and Android app with no lag or loading delays
-
OEM signal integration: Trigger wires allow automatic control via factory signals
-
Solid-state design: Fully encapsulated hub with no mechanical relays or fuses
-

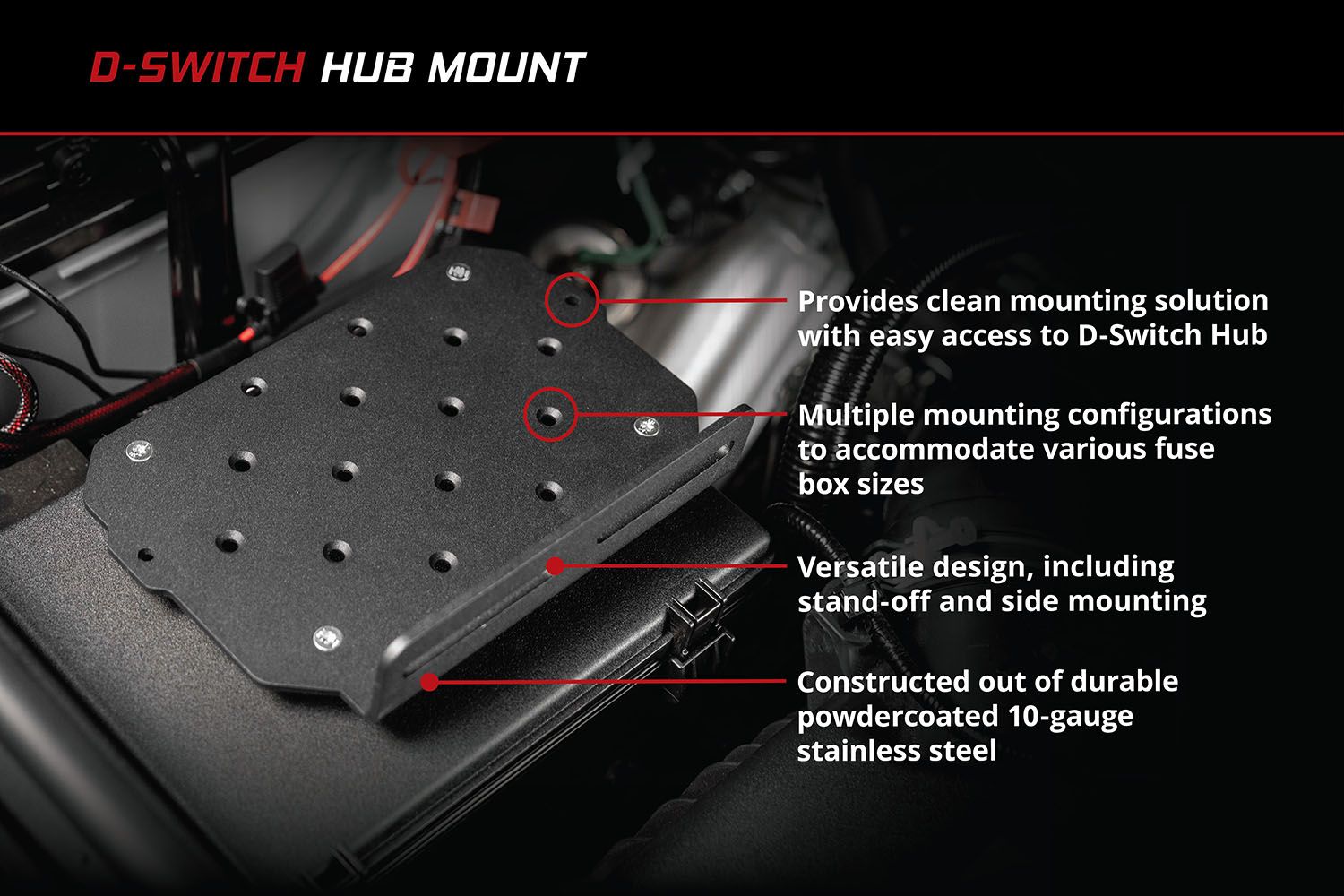

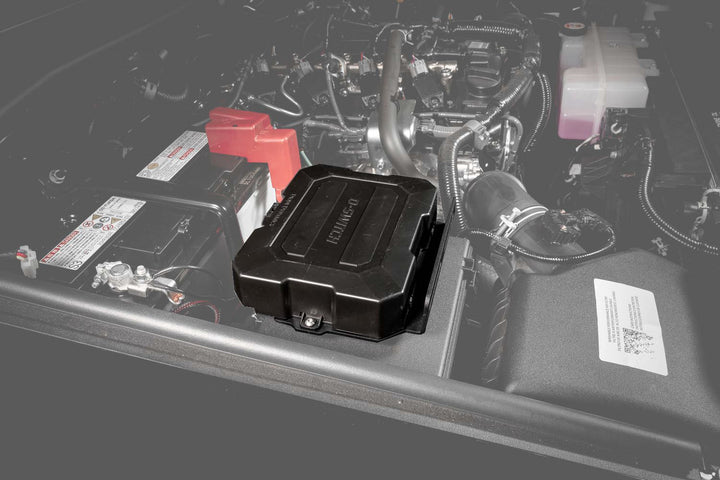

Engine bay mounting: Bolt-on stainless steel bracket designed specifically for the Tundra
-
USA engineered: Designed and assembled in the USA using global materials
In the box

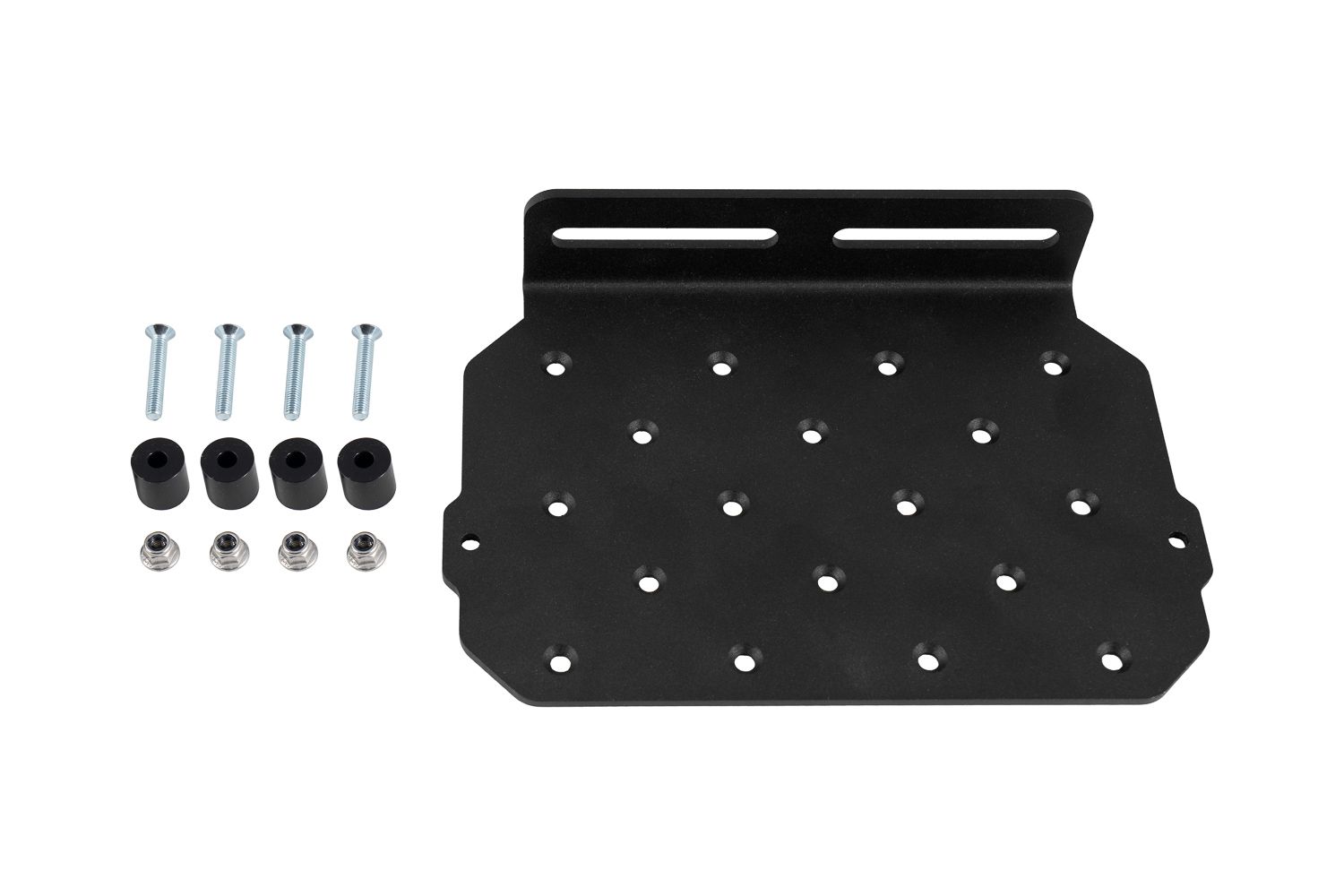

Bracket only
-
Hub bracket: One (1) universal D-Switch hub bracket
-
Spacers: Four (4) 15mm spacers
-
Hardware: Installation hardware

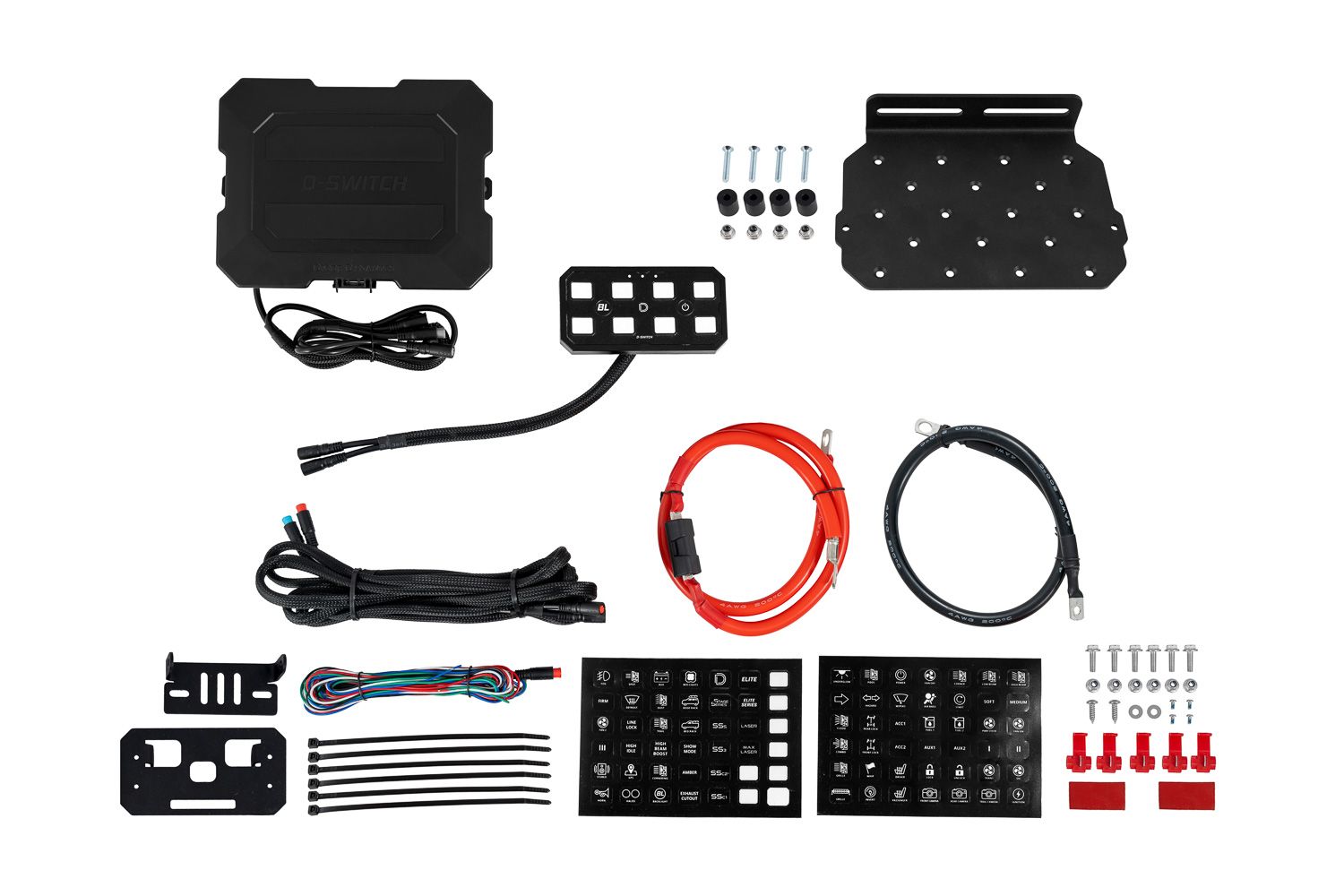

D-Switch with bracket
-
Switch hub: One (1) D-Switch hub
-
Controller: One (1) switch panel controller
-
Mounting: Controller universal mounting bracket + hub bracket
-
Wiring:
- 10-ft controller wiring harness
- Trigger wires + night mode harness
- 3-ft 4AWG battery cable
- 3-ft 4AWG ground cable
-
Accessories:
- Two (2) button sticker sheets
- Five (5) T-taps
- Six (6) zip ties
- Four (4) 15mm spacers
- Double-sided tape
-
Documentation: Installation & programming guide
-
Quantity: One (1) complete system
Specifications
-
Channel power:
- Channels 1–4: 15A each
- Channels 5–8: 30A each
- Backlight circuit: 15A total
-
Max current: 125A
-
Operating voltage: 9–16V DC
-
Wire size:
- Battery: 4AWG
- Sensors: 22AWG
- Controller: 26AWG
-
Operating temperature: -40°F to 250°F
-
Materials: FR4 PCB, powder-coated steel, aluminum casting, ASA plastic
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP67 weatherproof
-
Controller dimensions: 5.06" × 2.66" × 0.45"
-
Hub dimensions: 8.33" × 6.26" × 1.79"
Fitment
-
Application: Off-road / accessory control
-
Make: Toyota
-
Model: Tundra
-
Years: (2022–2026)
Installation
-
Install time: 30–60 minutes
-
Tools needed: Basic toolset
-
Modification: None
Warranty & guarantee
-
Warranty: 3-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
