Factory fog lights are designed to meet minimum standards, not maximize performance. The Diode Dynamics Elite Series Fog Lamps for the Toyota Tundra are engineered from the ground up to deliver real-world visibility and true performance. With a custom-designed optic and OEM-style fitment, these fog lights produce up to five times more output than factory halogen lamps while maintaining a clean, factory appearance and full road legality.
Important note
-
OEM replacement: Designed to replace factory fog lamps only
-
Factory fog lights required: Vehicles without OEM fog lights may require additional wiring
-
Road legal: SAE F3 compliant when properly aimed
Features
-
OEM-grade replacement: Direct-fit fog lights designed specifically for the Toyota Tundra
-
High-output performance: Delivers up to five times the output of factory halogen fog lights
-
Advanced optic design: Patent-pending toroidal lens provides an ultra-wide, smooth beam pattern
-
SAE compliant: Road-legal fog light output meeting SAE F3 standards
-
Integrated amber backlight: Built-in amber accent light for enhanced styling and visibility
-
Plug-and-play main beam: Connects directly to factory fog light wiring with no modification
-
Bolt-on installation: Uses factory mounting locations with reinforced brackets
-
Precision construction: Aluminum housings with copper-core circuit boards
-
Made in USA: Designed and assembled in the United States
Specifications
-
Raw lumens:
- White: 1,850 lm
- Yellow: 1,650 lm
- Backlight: 14 lm
-
Peak intensity:
- White: 10,200 cd
- Yellow: 8,700 cd
-
Color temperature: 6000K white or 3000K selective yellow
-

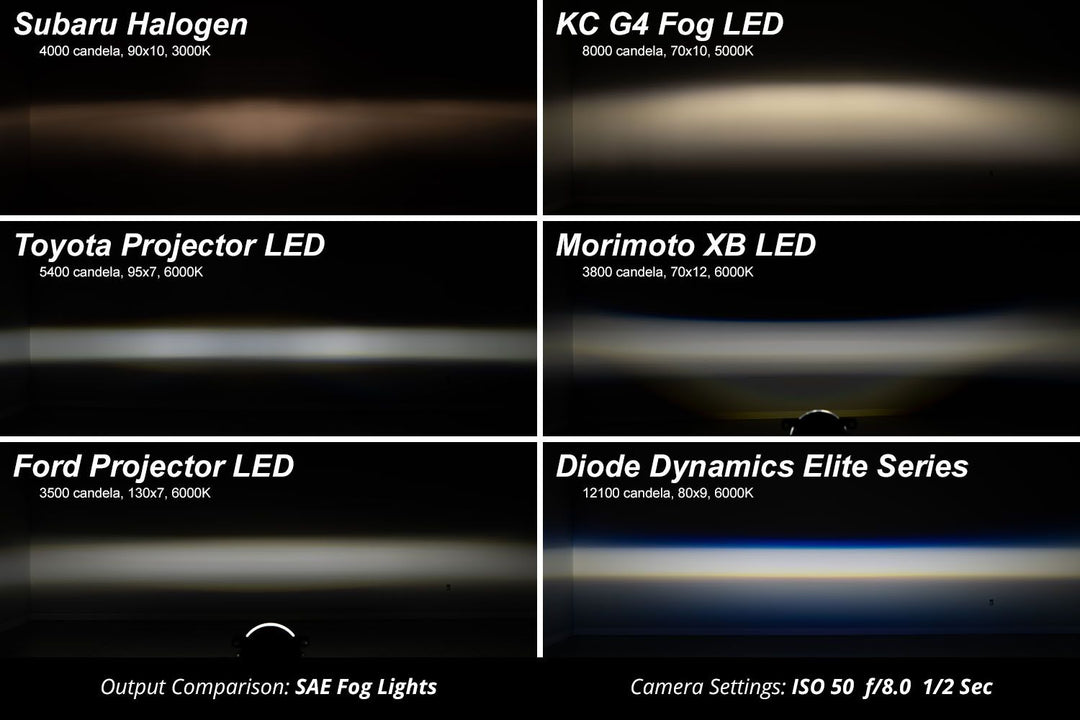

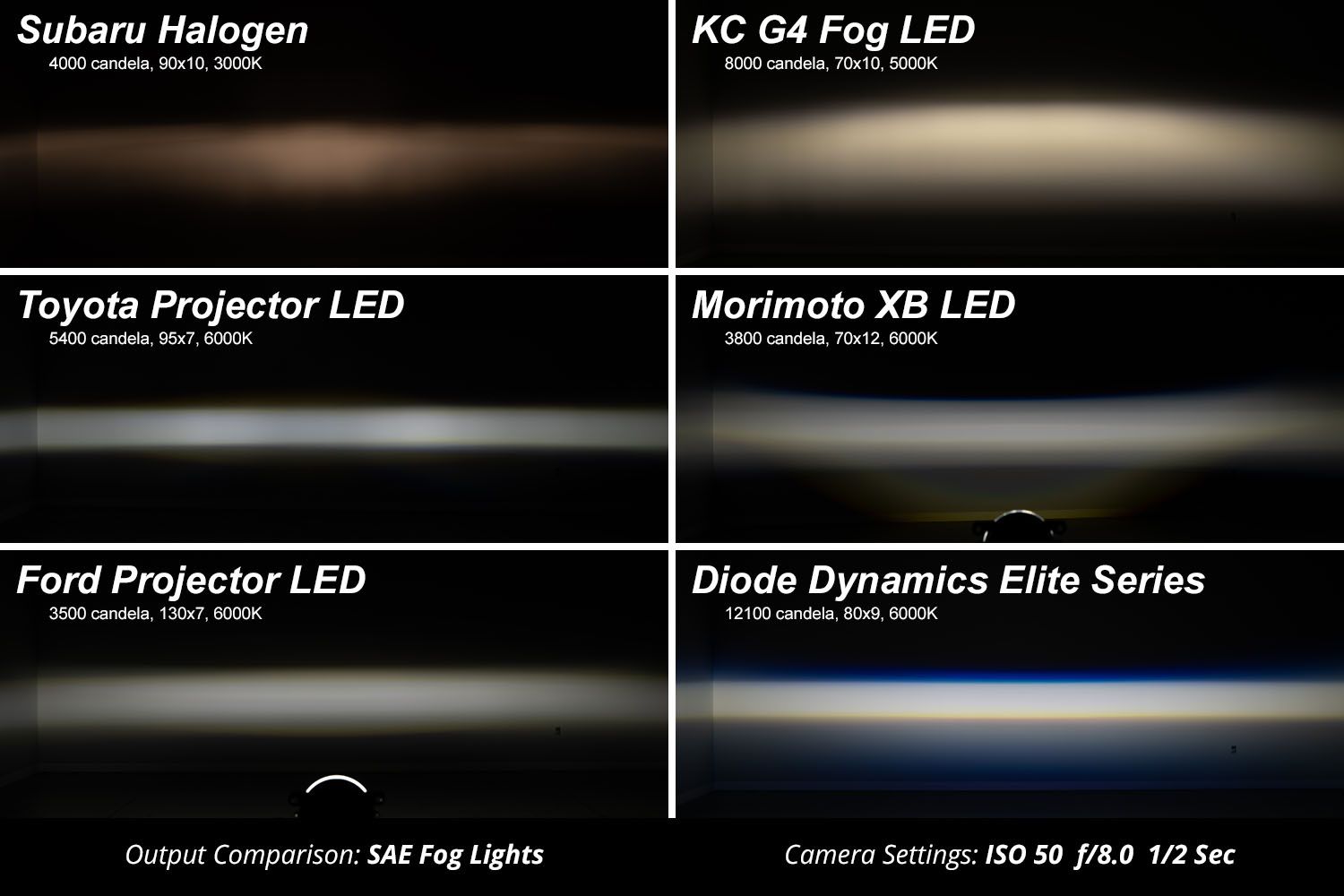

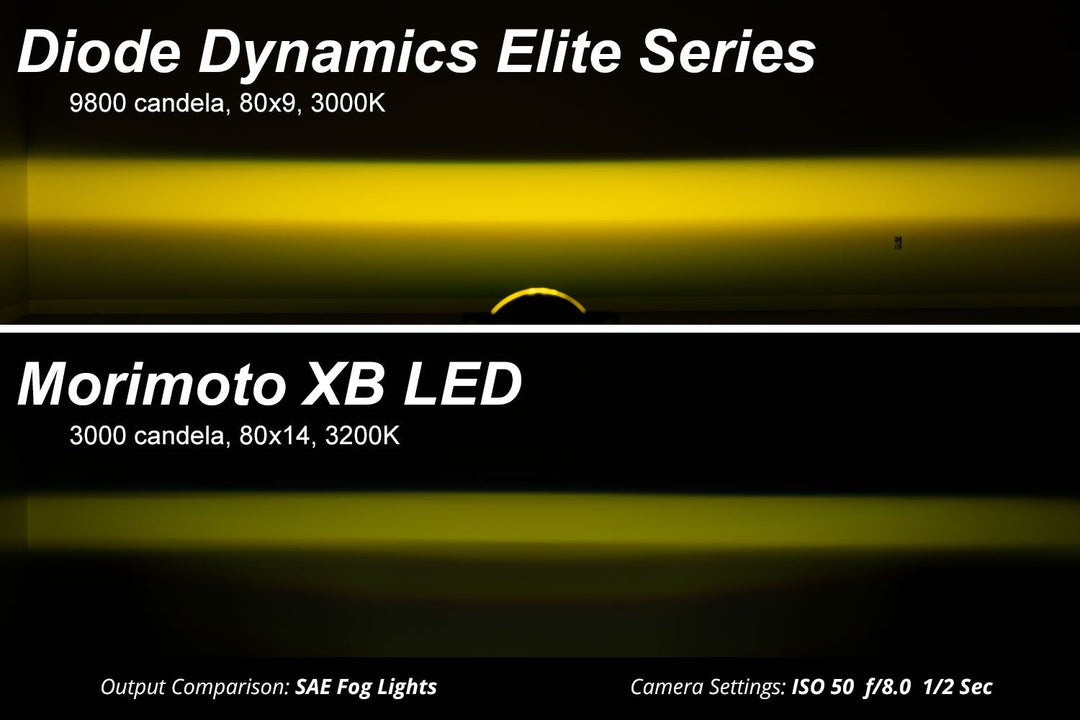

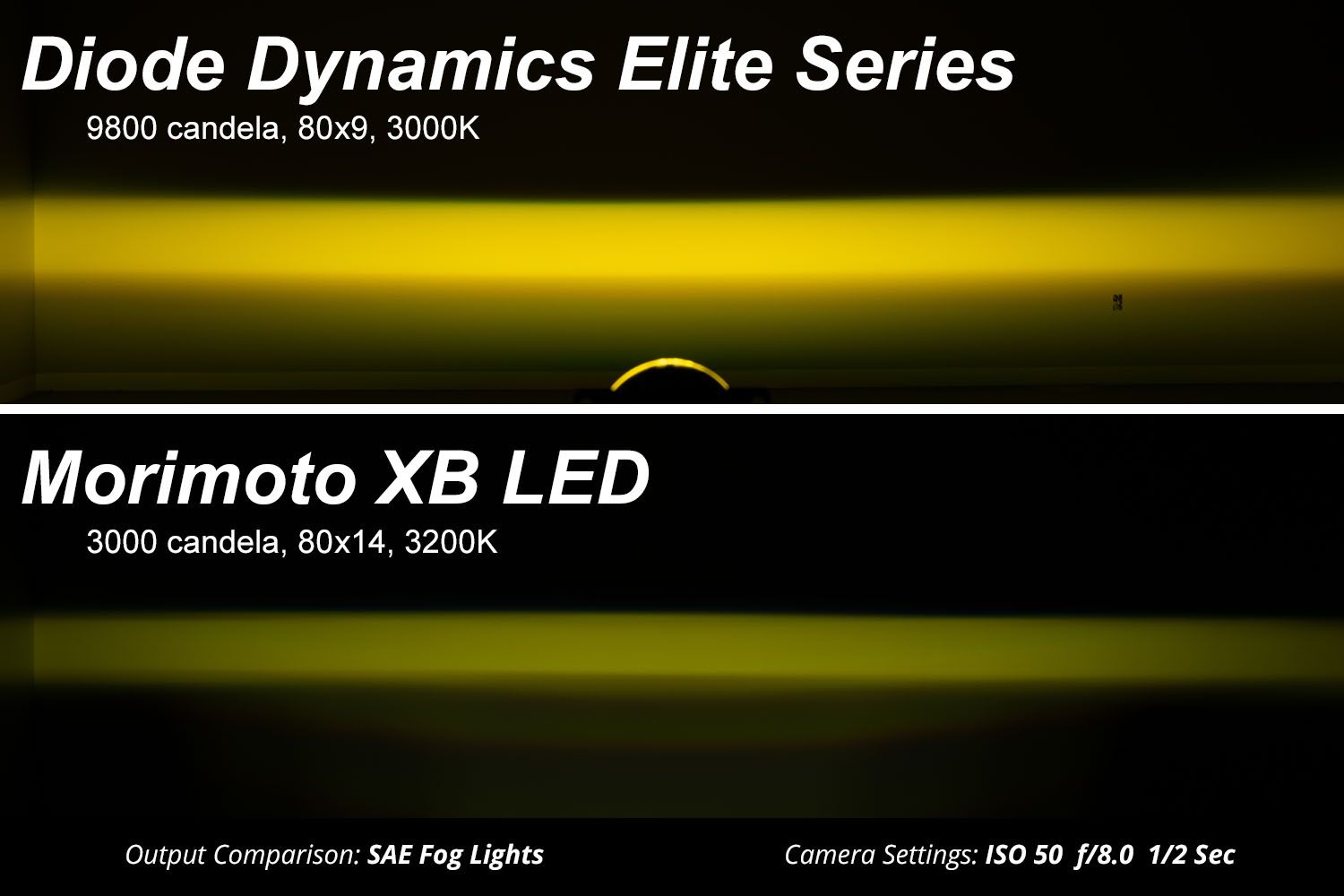

Beam pattern: Fog, 80° x 6°
-
Power consumption:
- White main beam: 17W
- Yellow main beam: 15W
- Backlight: 0.3W
-
Operating voltage: 9–16V
-
Current draw @ 13.2V:
- White: 1.3A
- Yellow: 1.2A
- Backlight: 0.025A
-
LED emitters: Multi-die automotive-grade LEDs
-

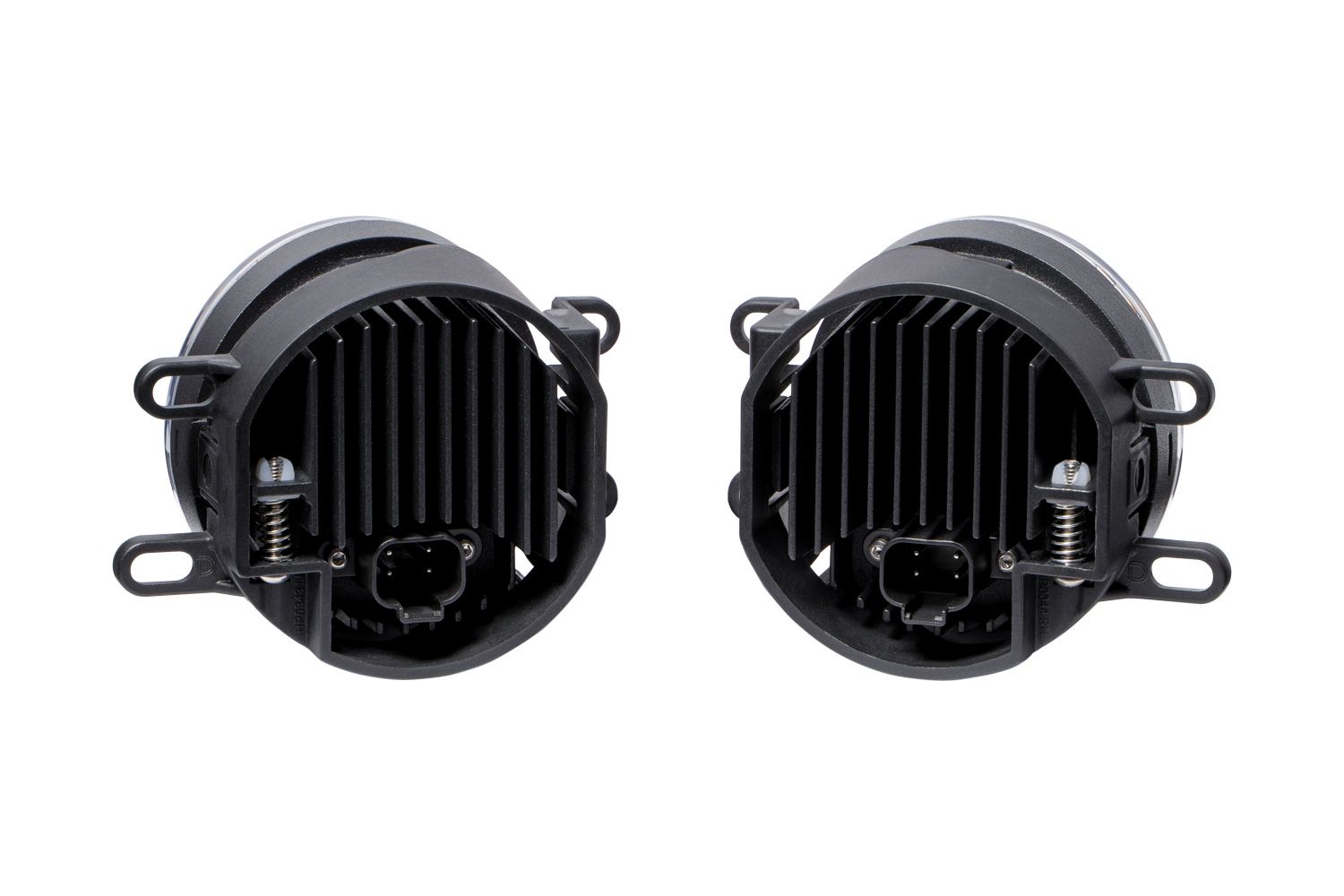

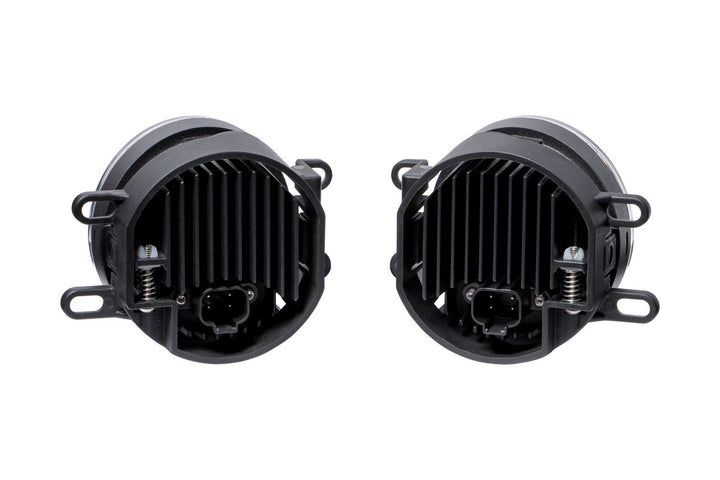

Cooling: Passive pin-fin heatsink
-
Ingress rating: IP68 waterproof
-
Compliance: SAE J575 durability test and SAE J583 foglamp beam pattern

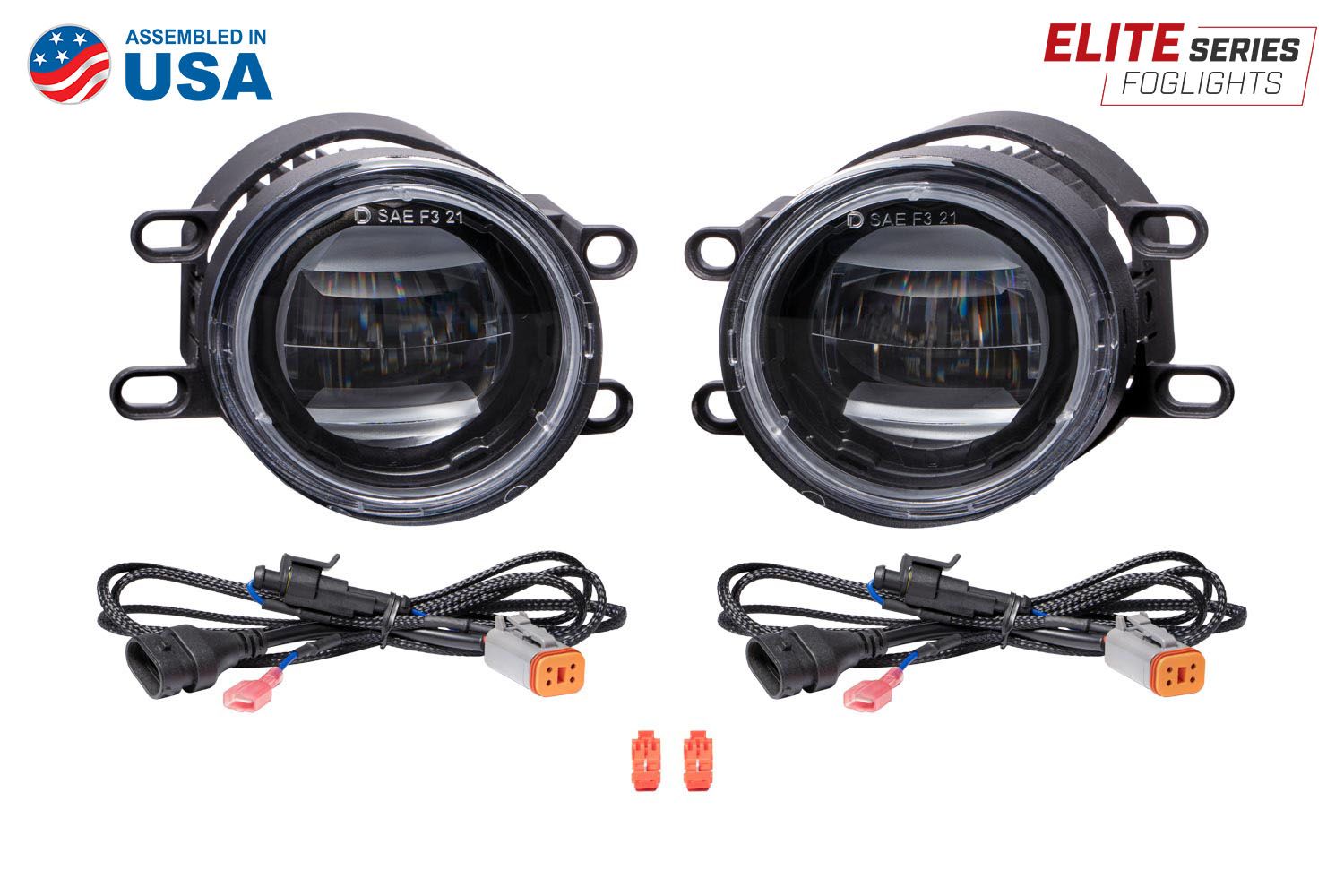

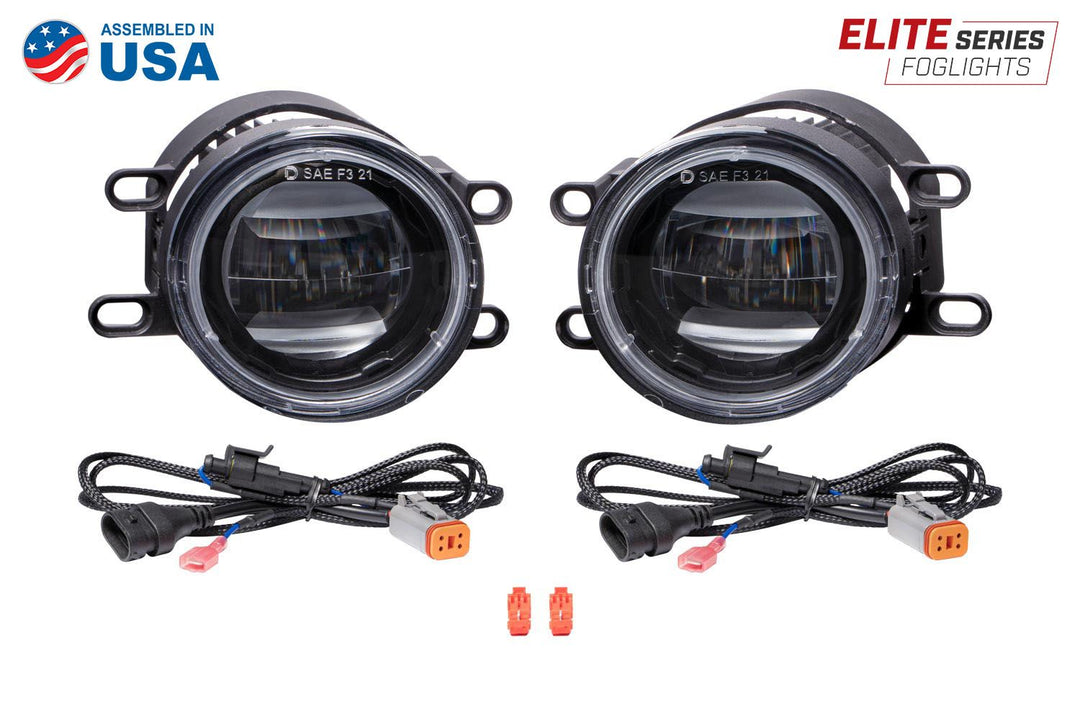

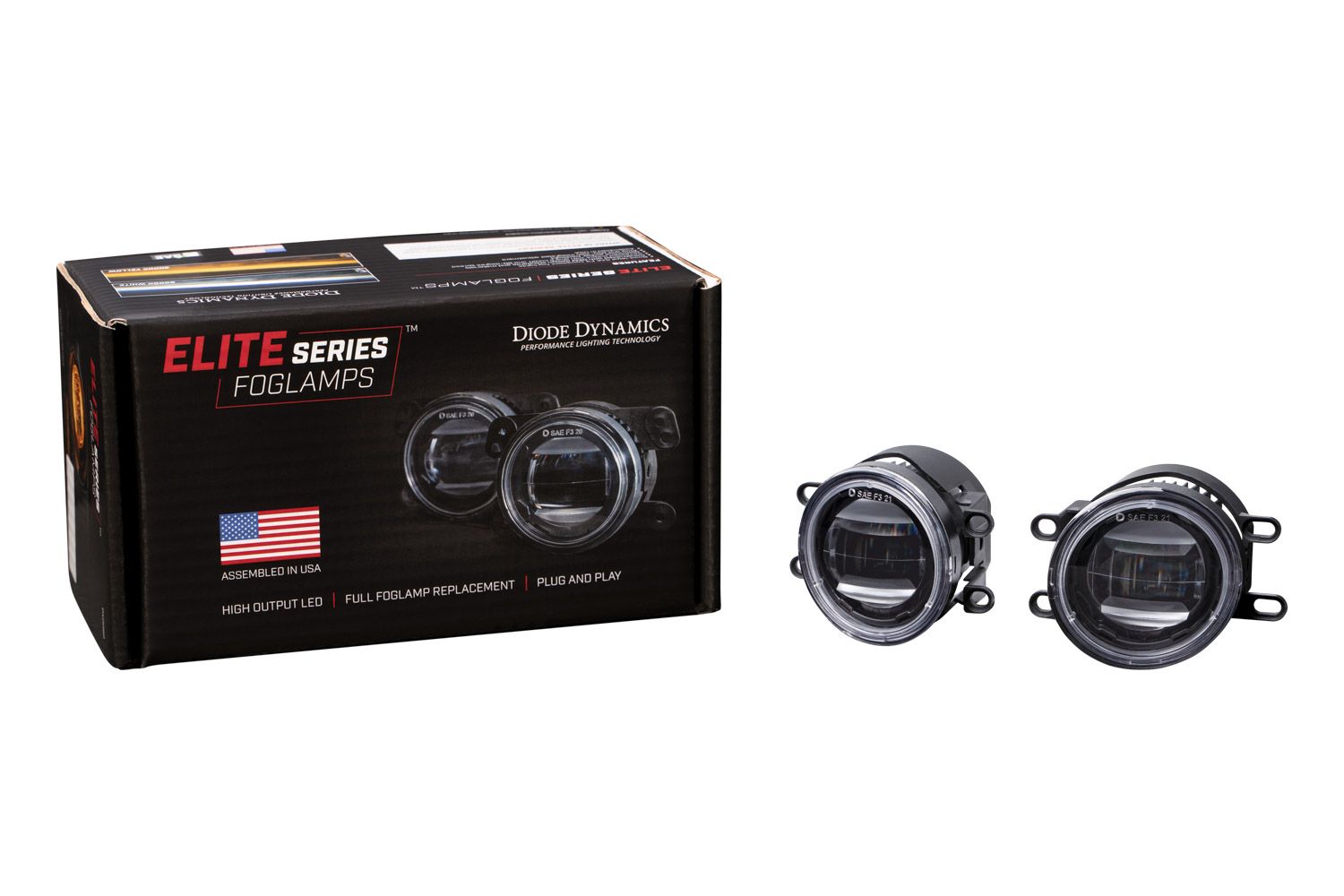

Package contents
-

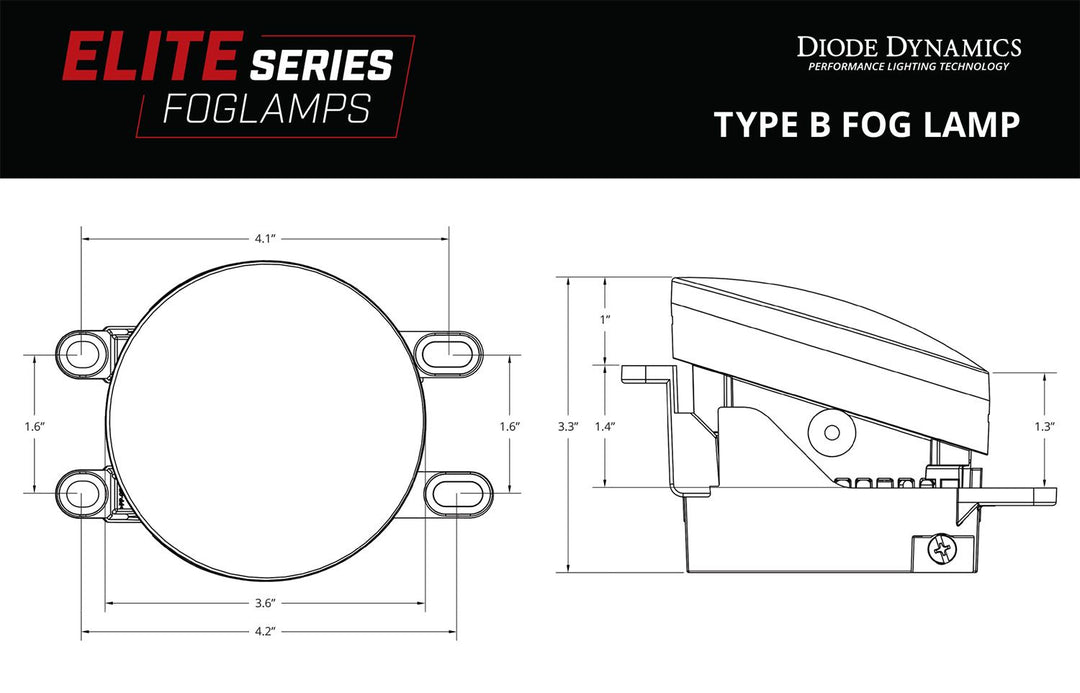

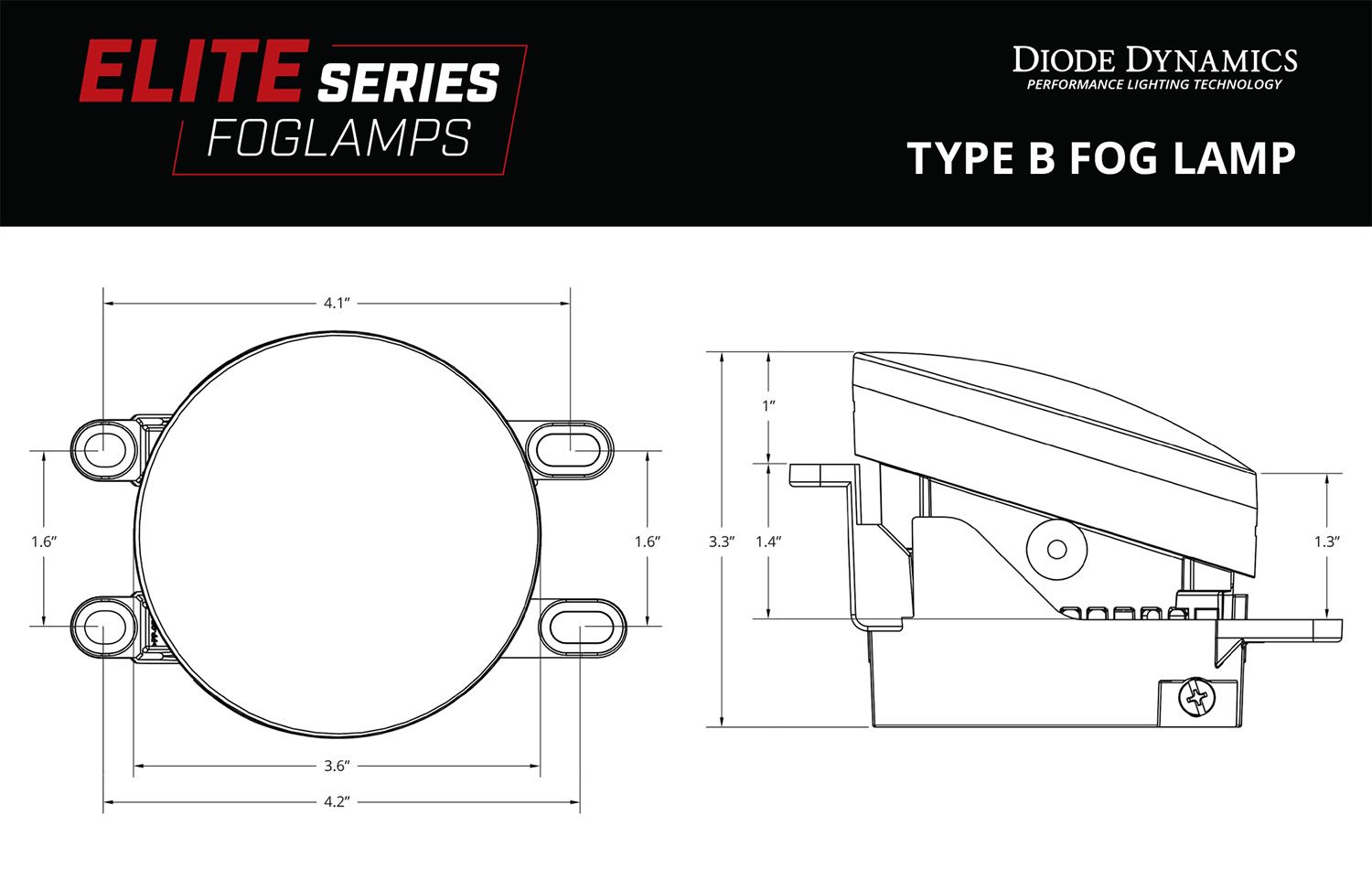

Fog lamps: Two (2) Elite Series Type B fog lamps
-
Backlight wiring: Two (2) H11 4-pin DT backlight tap wires
-
Electrical taps: Two (2) T-taps
-
Hardware: Mounting guide and installation accessories
-
Quantity: One pair (driver and passenger side)
Vehicle fitment
-
Make: Toyota
-
Model: Tundra
-
Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
-
Application: Fog light replacement
Warranty and returns
-
Warranty: 8-year limited warranty
-
Returns: 30-day return policy with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guaranteed
Installation
-
Install time: 30–60 minutes
-
Tools required: Basic hand tools
-
Modification: None required
-
Aiming: Post-install aiming recommended to meet SAE standards
