The Stage Series HitchMount Reverse Light Kit for the Toyota Tundra (2022–2026) adds powerful rear-facing illumination while maintaining simple, factory-style operation. Designed to mount directly into the trailer hitch receiver, this kit delivers a high-output reverse light, an additional running light, and optional 4th brake light functionality—dramatically improving visibility and safety when backing up at night or in low-light conditions.
Important notes
-
Trailer systems: Compatible with factory 7-pin trailer connectors
-
Vehicle monitoring: Designed to avoid trailer warnings on Toyota Tundra
-
Hitch requirement: Trailer hitch must have an open back
-
Lighting use: Not intended to replace factory tail lamps
-
Mounting option: Locking trailer pin compatible with minor modification

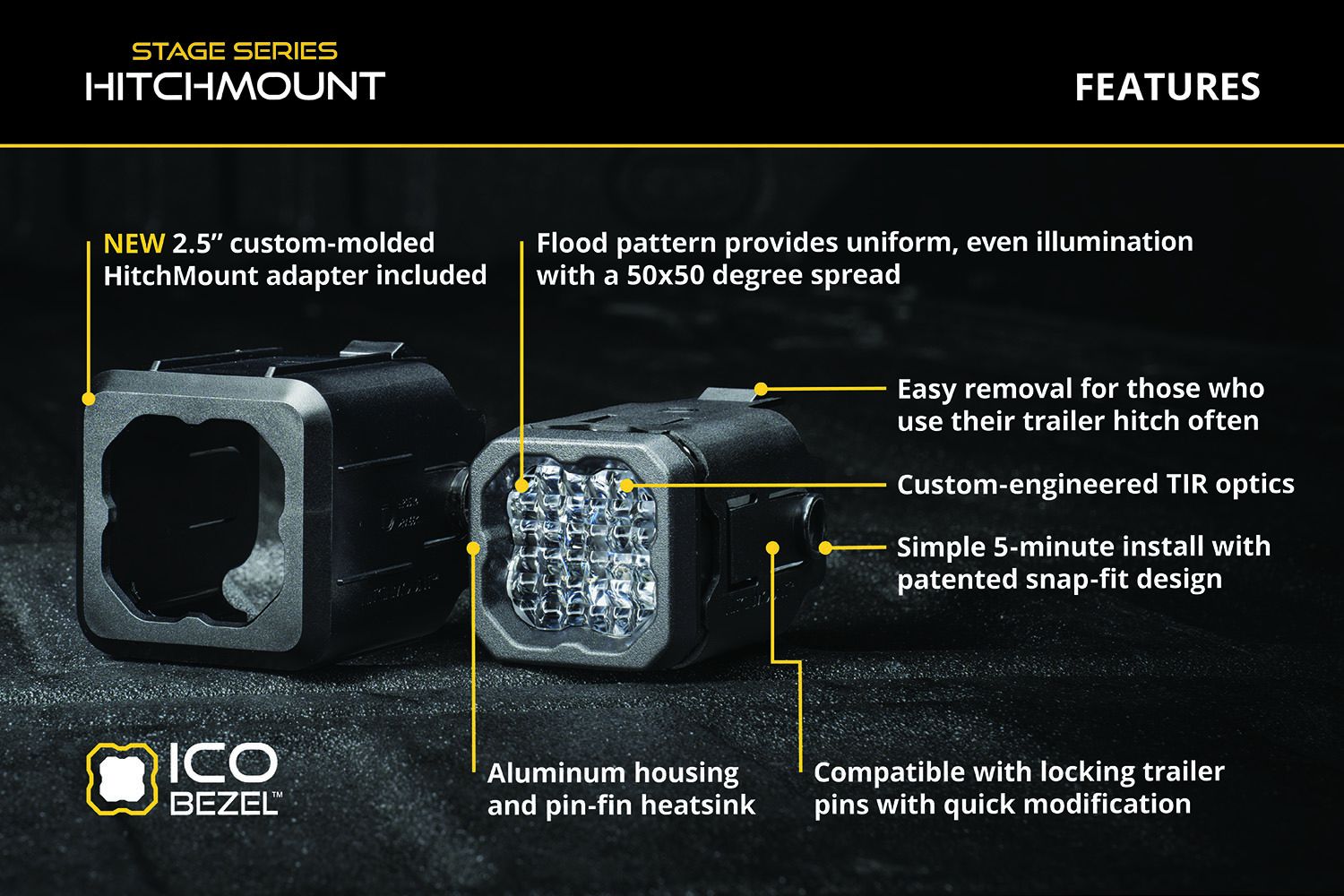

Features
-
Hitch-mounted design: Installs an SSC1 or C1R LED pod directly into the trailer hitch receiver
-
Multi-function lighting: Adds a reverse light, running light, and optional 4th brake light
-
Plug-and-play wiring: Connects directly to factory trailer wiring with no custom routing
-
SafetyStrobe option: Optional brake light strobing for increased rear visibility
-
Quick installation: Patent-pending snap-fit mount installs in minutes
-
USA built: Designed and assembled in the United States

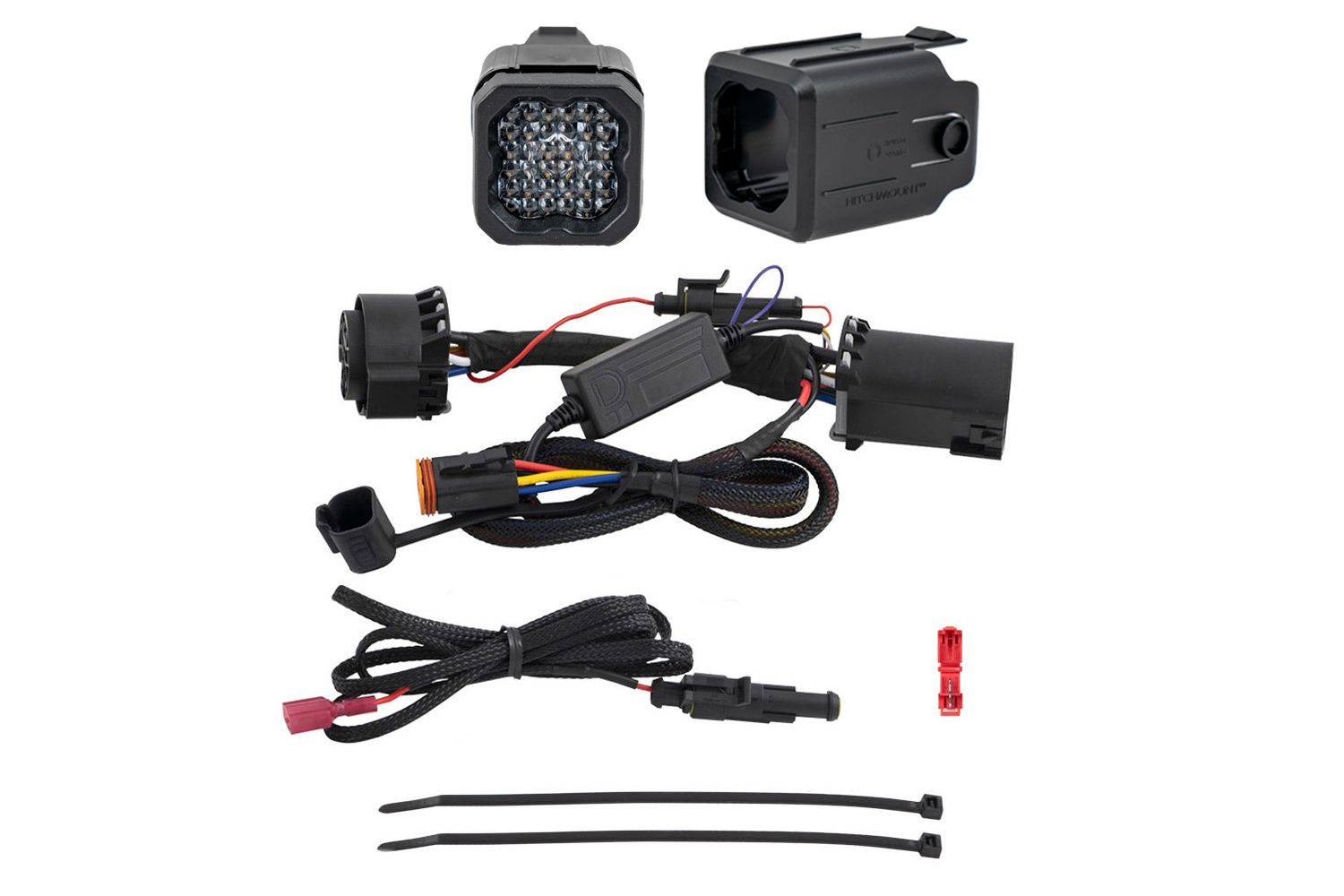

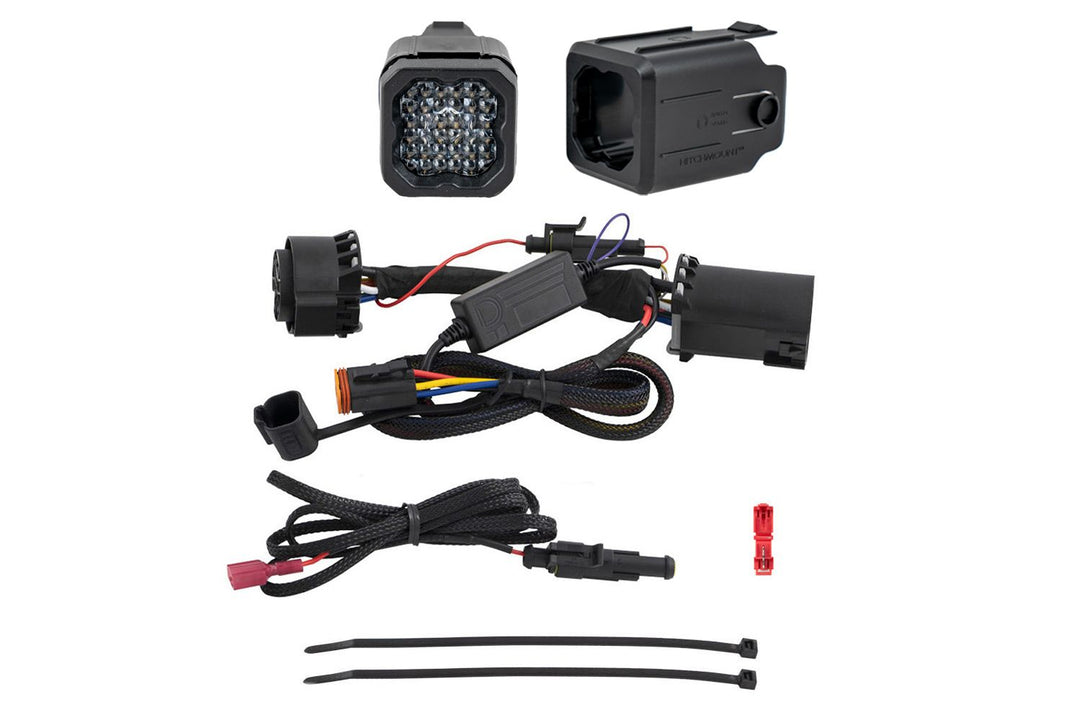

In the box
-

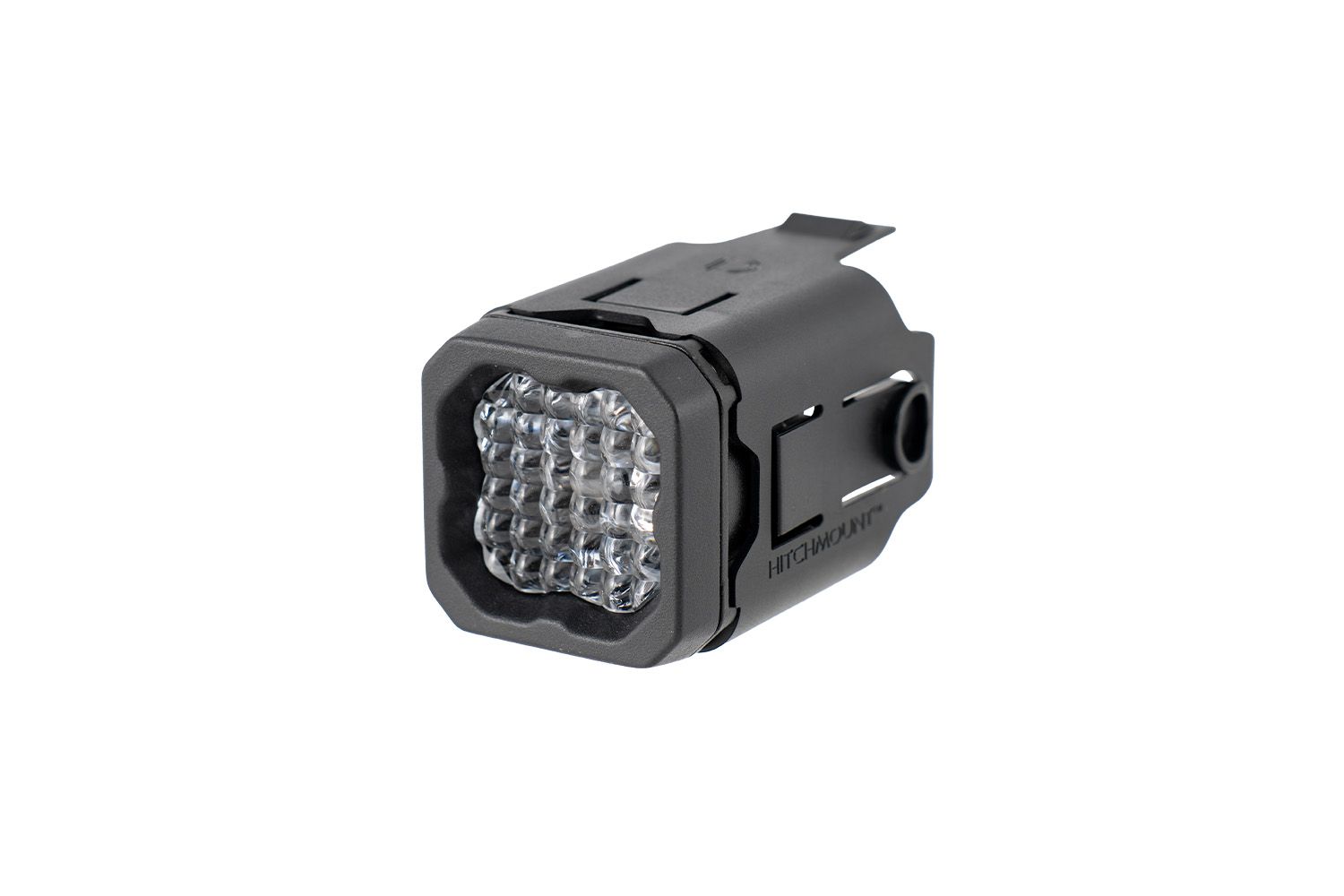

LED pod: One (1) SSC1 Sport or C1R HitchMount LED pod
-

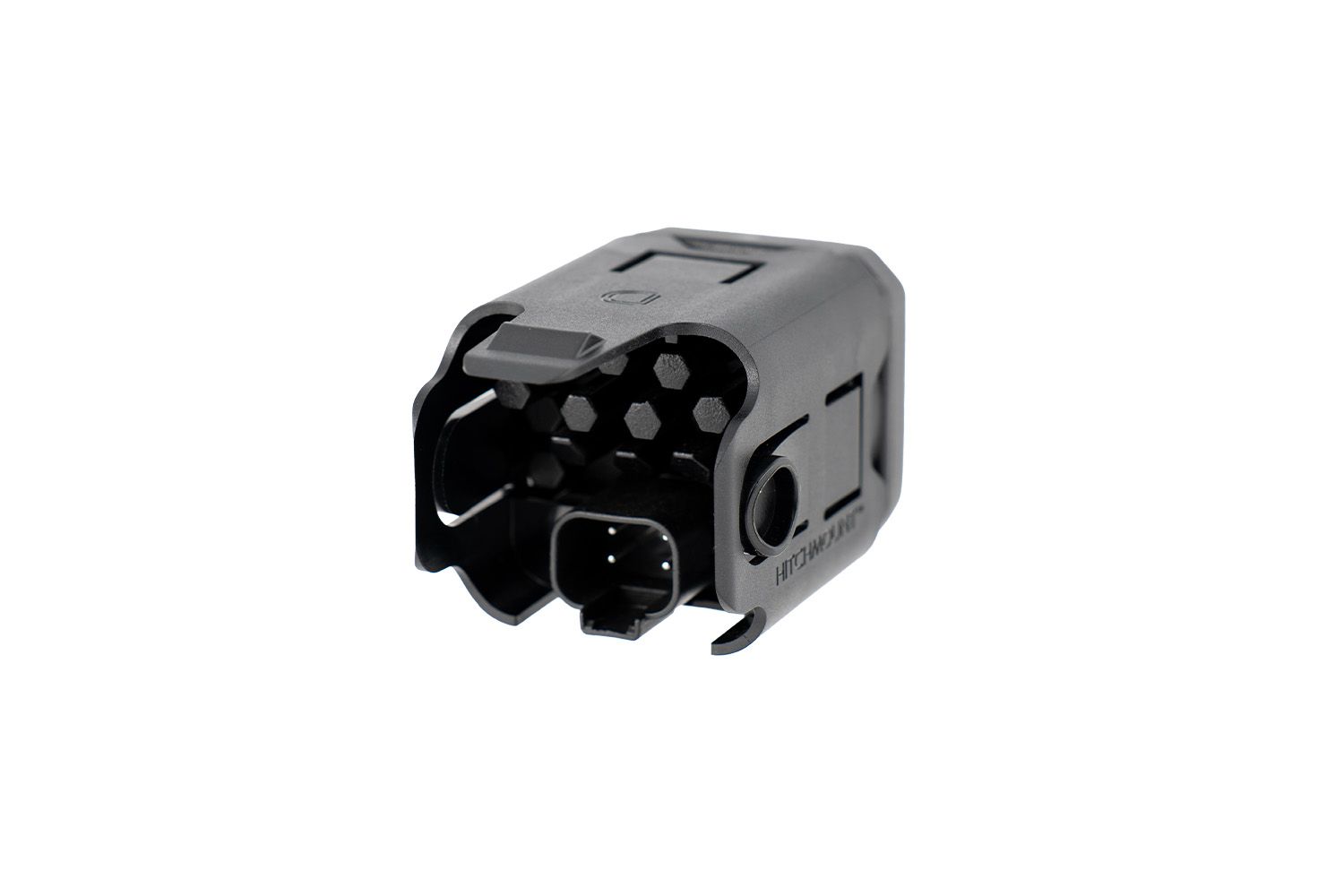

Receiver adapter: One (1) snap-in 2.5-inch receiver adapter
-
Wiring harness: One (1) 7-pin trailer single-output harness
-
Accessories: Two (2) zip ties
-
Documentation: Installation guide
-
Quantity: One (1) complete kit
Specifications
Light output
-
Measured lumens:
- SSC1 Sport: 1,030 lumens
- C1R: 1,080 lumens
-
Intensity:
- SSC1 Sport: 400 candela
- C1R: 480 candela
Electrical
-
Power:
- SSC1 Sport: 12.8W
- C1R: 14.1W
-
Current (@12.8V):
- SSC1 Sport: 1.0A
- C1R: 1.1A
-
Operating voltage: 9–16V
-
Polarity: Polarity specific
Construction
-
Color temperature: 6000K
-
LED emitters: Cree XP-L HI, Osram 1414 Pure
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high-pressure resistant
-
Operating temperature: -40°F to 185°F
Fitment
-
Application: Backup / reverse light
-
Make: Toyota
-
Model: Tundra
-
Years: (2022–2026)
Installation
-
Install time: 5–10 minutes
-
Tools needed: Basic toolset
-
Modification: None
Warranty & guarantee
-
Warranty: Limited lifetime warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
