Add serious visibility and safety to the rear of your Tacoma with the Stage Series C1R HitchMount Reverse Light Kit. Designed to mount directly into your trailer hitch receiver, this kit delivers a powerful reverse light, an additional running light, and a high-output 4th brake light—all in a compact, plug-and-play solution. With patented TIR optics and a simple snap-in design, this is one of the easiest and most effective rear lighting upgrades available.
Important note
-
Hitch requirement: Trailer hitch must have an open back for installation
-
Lighting disclaimer: This product is not intended to replace factory tail lamps
-
Locking pin option: Locking trailer pin use requires a minor modification

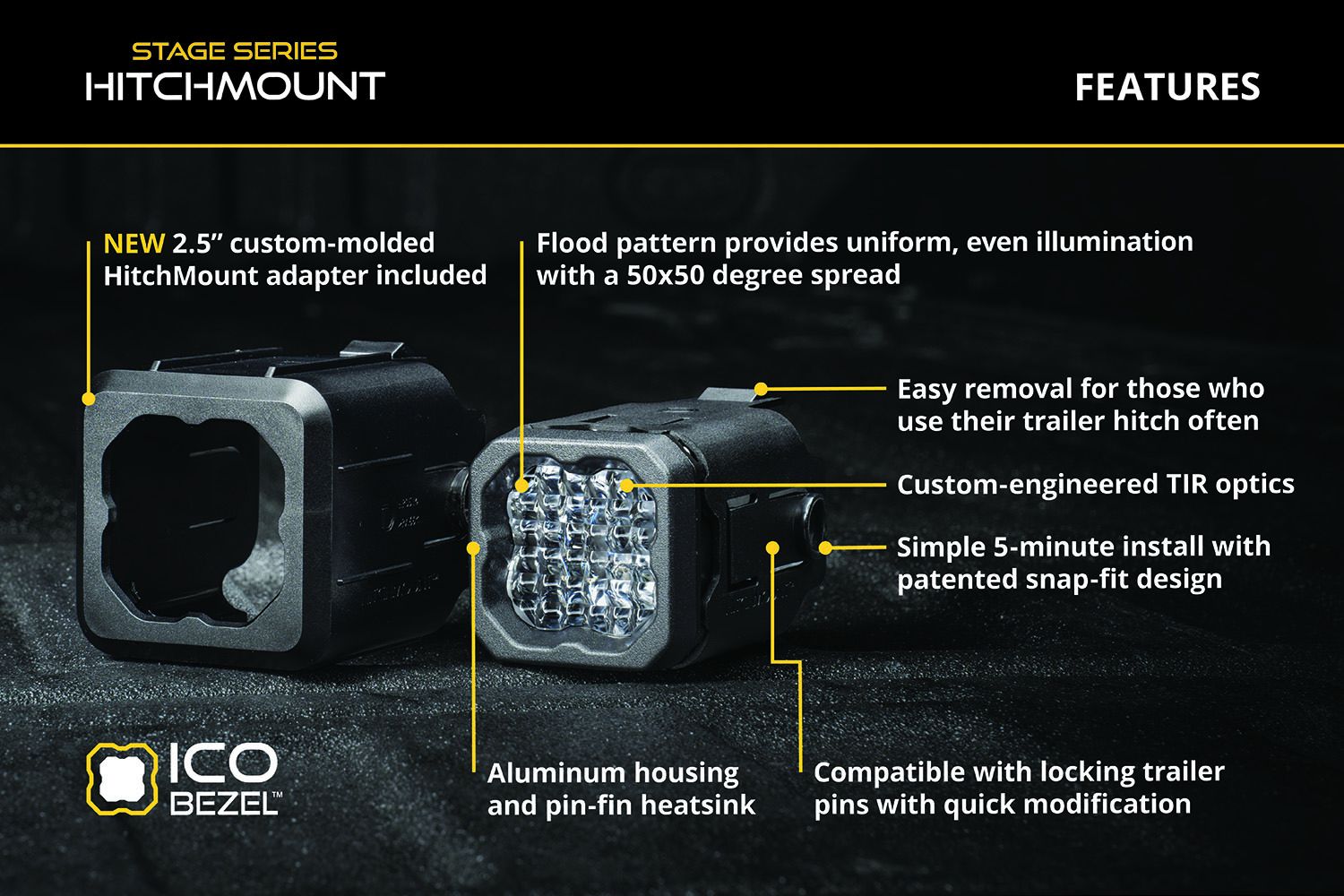

Features
-

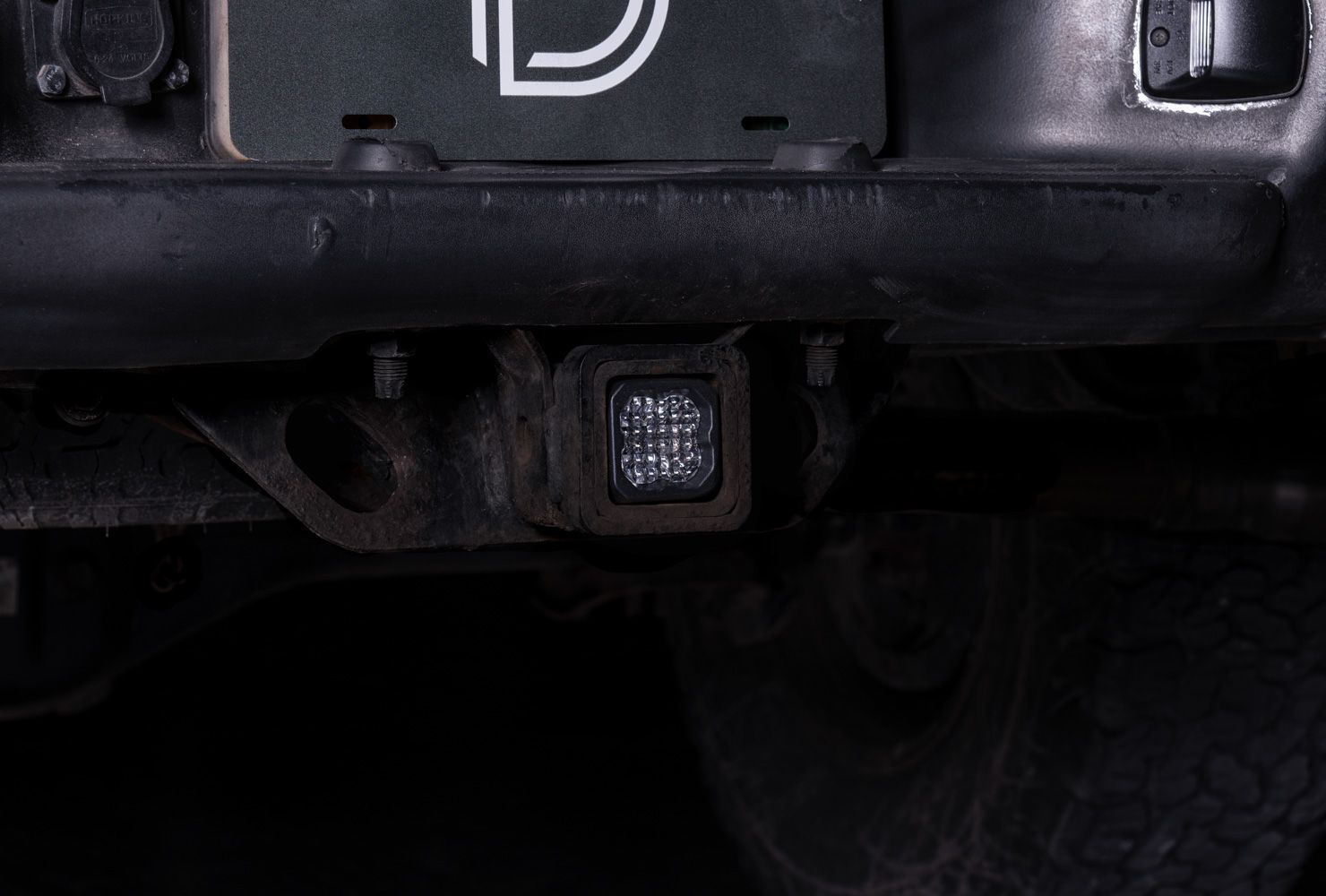

Hitch-mounted design: Mounts a single C1R LED pod directly in the trailer hitch receiver
-
Multi-function lighting: Adds a reverse light, red running light, and 4th brake light
-
Fast installation: Installs in as little as 5 minutes with no custom wiring
-
SafetyStrobe capability: Optional brake light strobing for increased visibility
-
Plug-and-play wiring: Harness connects directly to factory wiring
-
Made in USA: Designed and assembled in the USA using global materials
Lighting functions
-
Reverse light: High-power white output activates automatically in reverse
-
Running light: Red backlight operates with tail lights
-
4th brake light: High-power red output activates with braking
-
SafetyStrobe: Optional brake strobing for increased visibility
Specifications
-
Measured output: 1,080 lumens
-
Beam pattern: Flood, 80° x 50°
-
Intensity: 480 candela
-
Color temperature: 6000K
-
Power consumption: 14.1 watts
-
Current draw: 1.1 amps @ 13.2V
-
Operating voltage: 9–16V
-
Operating temperature: -40°F to 185°F
-
Ingress rating: IP69K waterproof
-
LED emitters: Cree XP-L HI, Osram 1414 Pure
-
Housing materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
Vehicle fitment
-
Application: Backup / Reverse light
-
Make: Toyota
-
Model: Tacoma
-
Years: 2005–2015

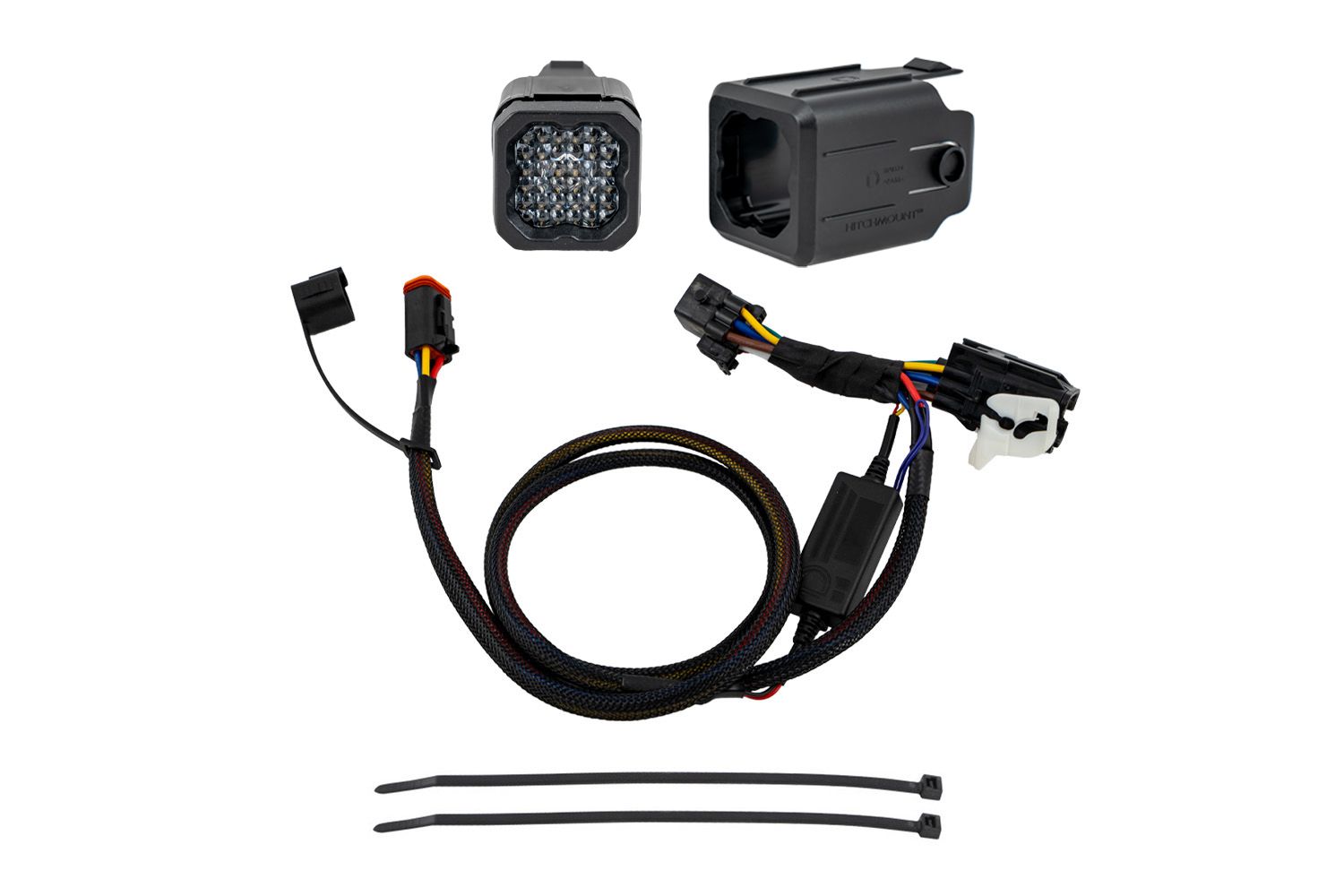

Included in the box
-

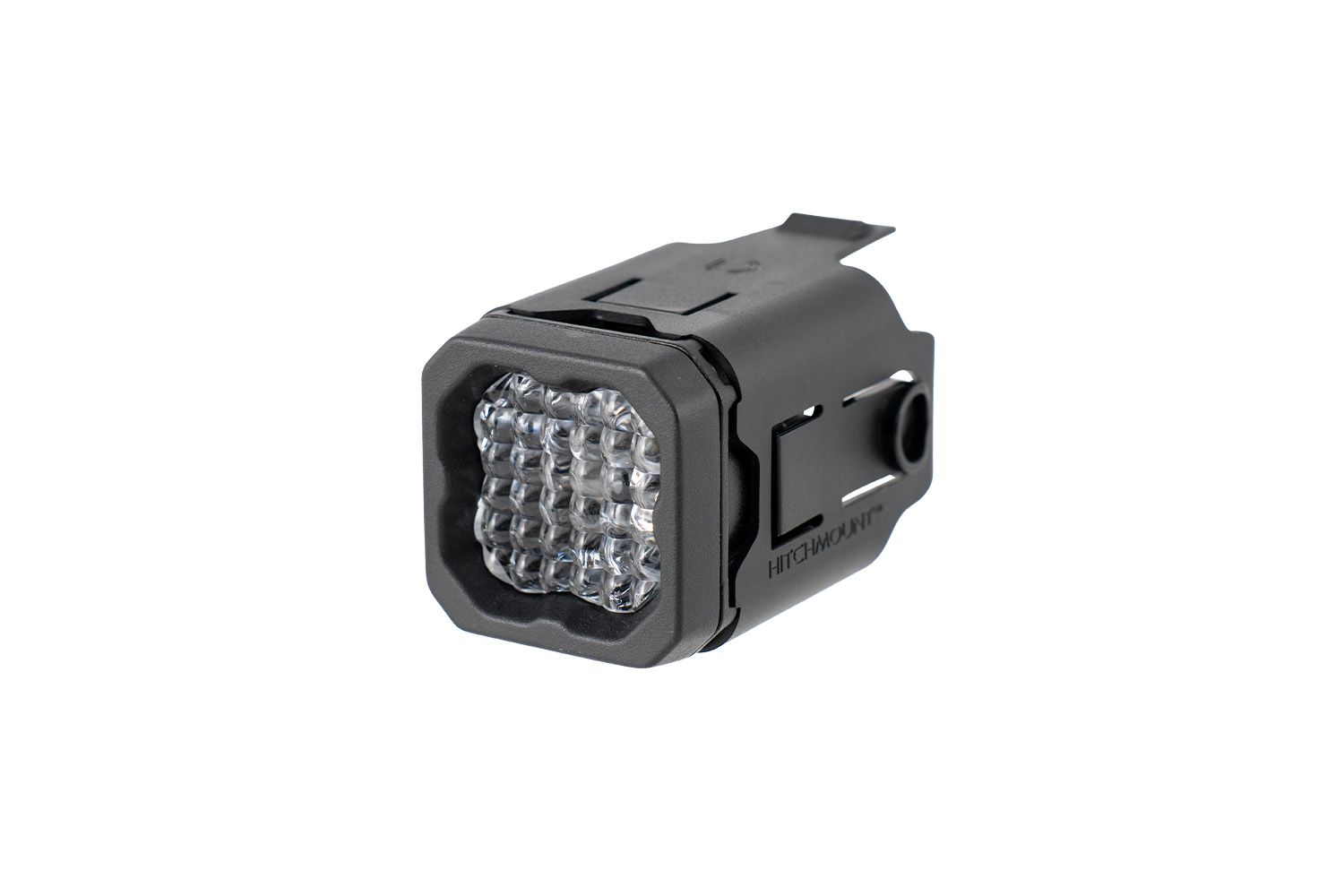

LED pod: One (1) C1R HitchMount LED pod
-

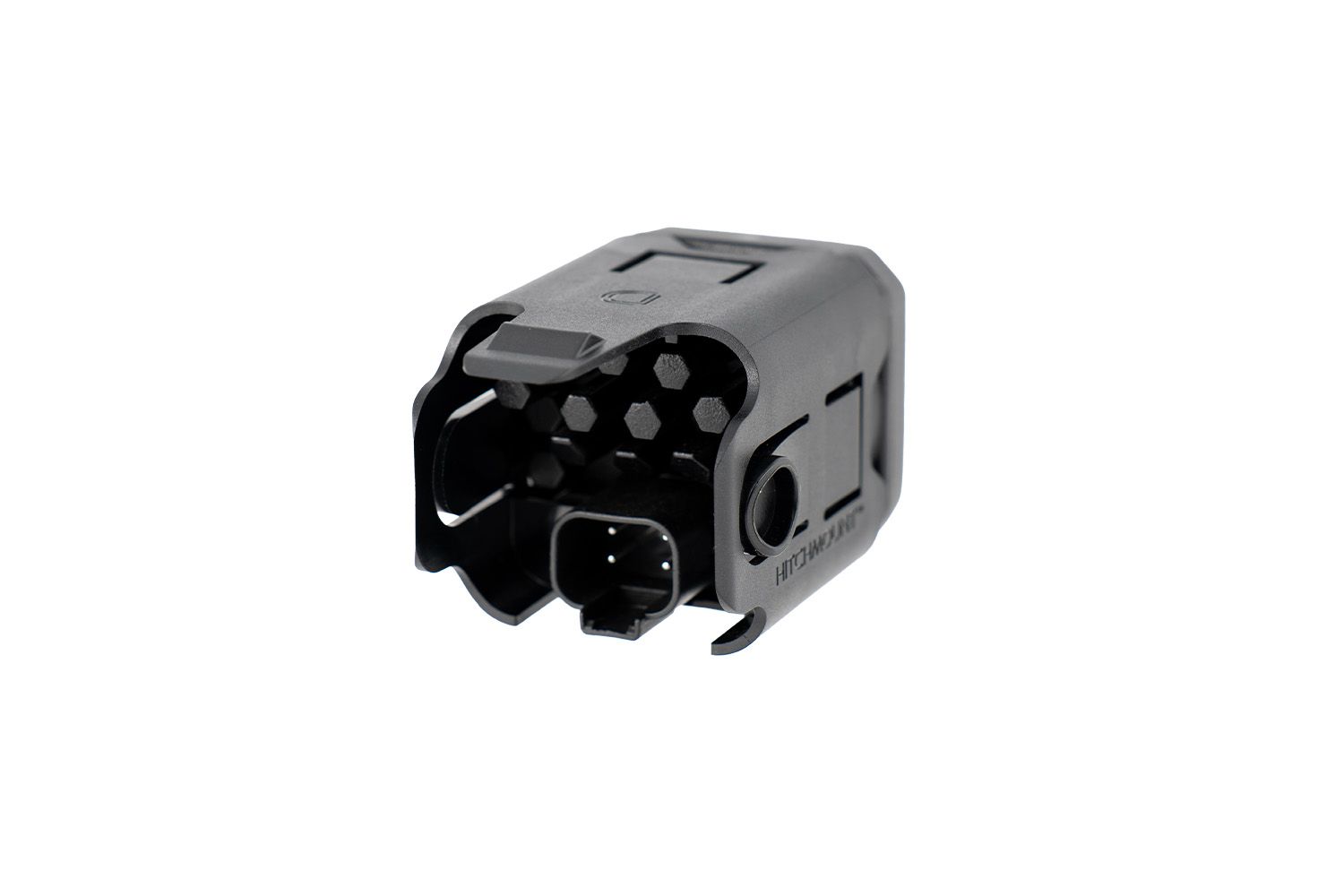

Receiver adapter: One (1) snap-in 2.5-inch receiver adapter
-
Wiring harness: One (1) C1R HitchMount harness for Toyota Tacoma
-
Installation items: Two (2) zip ties and installation guide
-
Quantity: One (1) complete kit
Warranty and returns
-
Warranty: Lifetime warranty
-
Returns: 30-day return policy with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
Installation
-
Installation time: 5–10 minutes
-
Tools required: Basic toolset
-
Modification: None required
