Diode Dynamics LED Bed Light Kit for Tundra (2022)

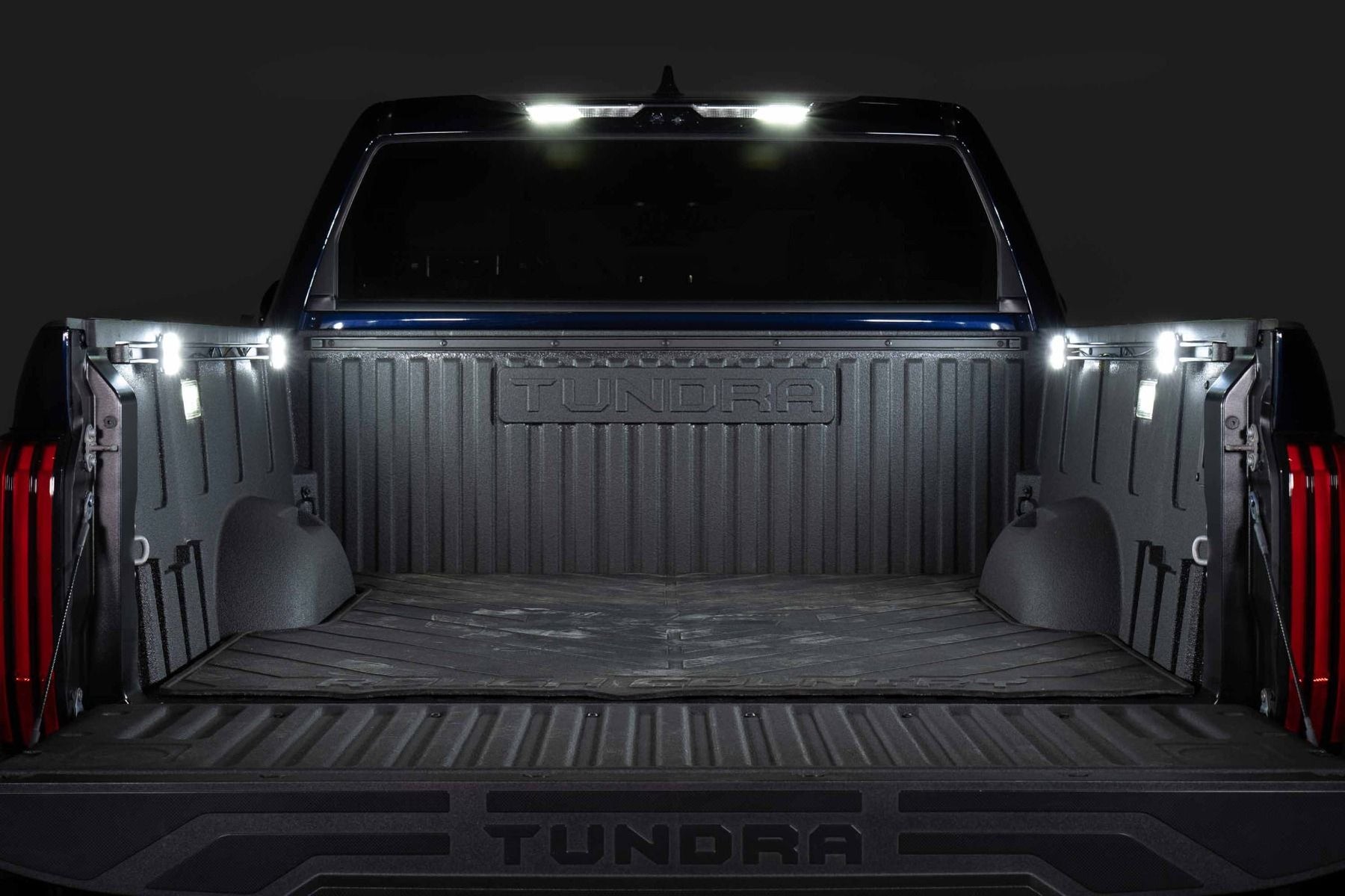

Add serious, usable lighting to your truck bed with the Stage Series LED Bed Light Kit for the Toyota Tundra. Designed to integrate seamlessly with the factory bed rail system, this kit installs four high-output Stage Series Rock Lights to dramatically improve visibility when loading, unloading, or working out of your bed at night. The lights activate automatically with the tailgate, just like OEM bed lights—only far brighter and more capable.

Important note

• Compatibility: This kit is only compatible with Toyota Tundra models equipped with OEM factory bed lighting

Features

• Direct fitment: Engineered specifically for the 2022+ Toyota Tundra bed rail system
• Four-light setup: Allows mounting of four Stage Series LED rock lights in the truck bed
• High output: Each light delivers 10 watts and up to 800 lumens of peak output
• Plug-and-play: Wiring harness connects directly to factory bed light wiring
• USA assembled: Engineered and assembled in the USA

Performance and optics

• Unmatched light output: Produces significantly more light than factory bed lights for safer nighttime use
• Dual power levels: 3-wire design allows selection between low-power and high-power modes using the included 3-way switch
• Optically engineered lenses: Four individual optics per light provide even spread and consistent coverage
• Interchangeable lenses: Thick automotive-grade polycarbonate lenses can be swapped between clear and diffused options

Installation

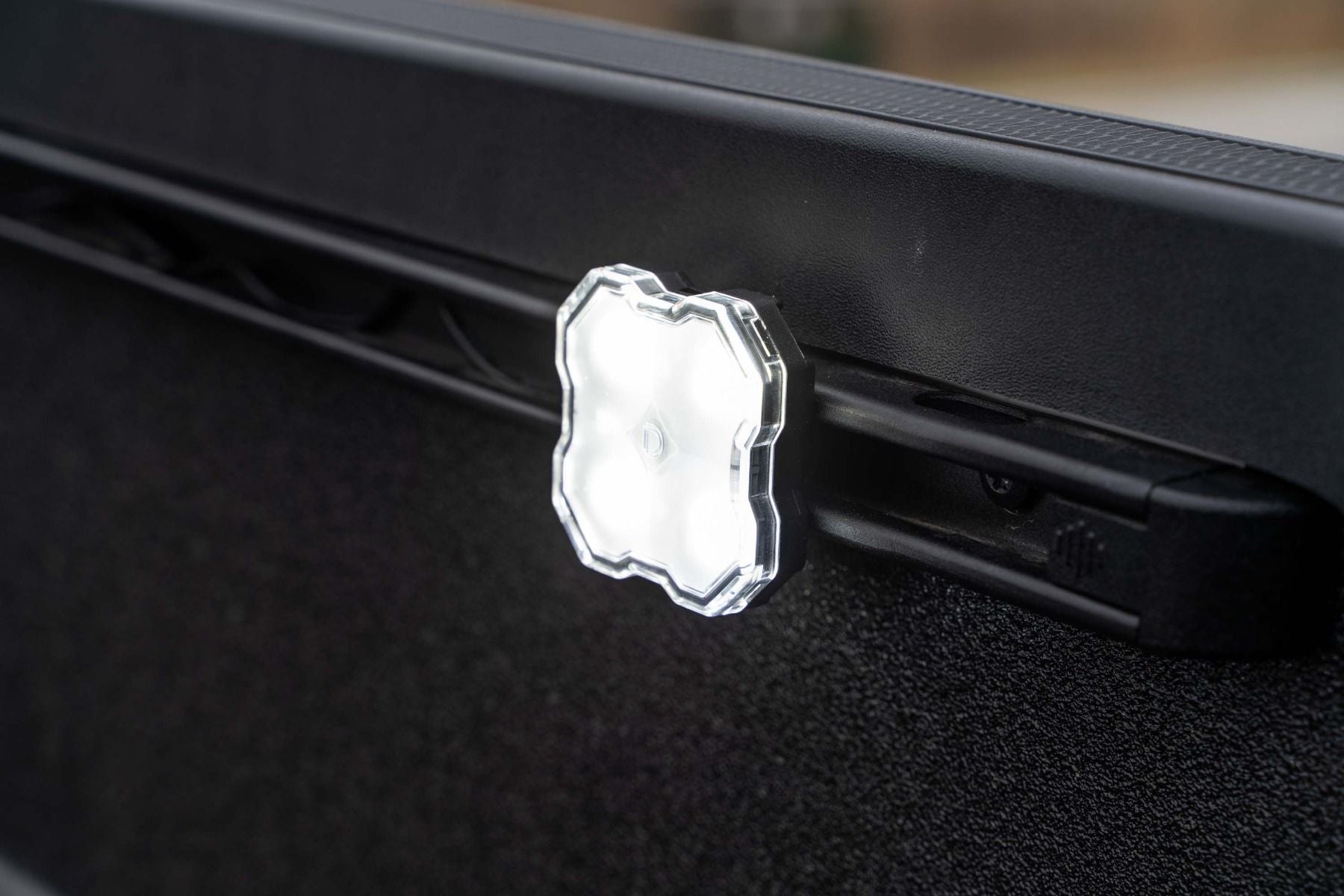

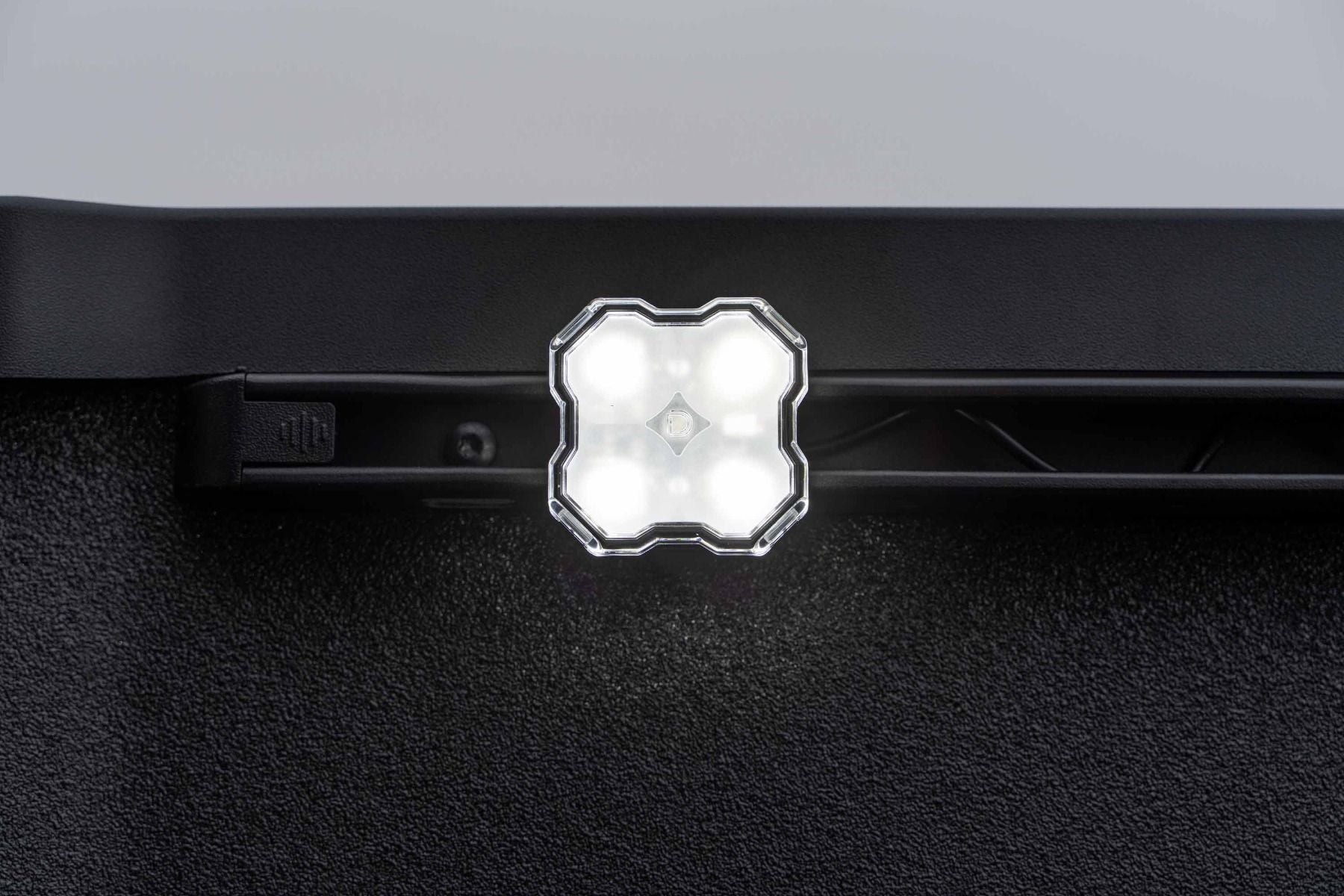

• Simple mounting: Lights install directly to the factory bed rail using included T-slot nuts
• Factory integration: Harness plugs directly into OEM bed light wiring
• No complex wiring: Designed for straightforward installation with minimal modification

Durability and reliability

• Weatherproof design: IP68 waterproof rating for all-weather use
• Thermal management: Cast aluminum housing with pin-fin heatsink for effective heat dissipation
• Tested performance: Validated from -40°F to 185°F with vibration, moisture, and corrosion testing
• Long-term support: Backed by a limited lifetime warranty

In the box

• Rock lights: Four (4) Stage Series Rock Lights
• Wiring: One (1) Stage Series Bed Light Wiring Kit
• Mounting hardware: Four (4) T-slot nuts and all required hardware
• Documentation: Installation guide
• Quantity: Four (4)

Specifications

• Measured lumens: 800 (per light)
• Intensity: 300 cd
• Color temperature: 5700K
• Beam angle: Round, 60°
• Current draw: 1.1A @ 13.2V
• Wire size: 28 AWG
• Polarity: Polarity specific
• Operating temperature: -40°C to 85°C (-40°F to 185°F)
• LED emitter: Lumileds Z ES
• Driver features: Linear regulated
• Materials: UV-coated polycarbonate lens, powder-coated aluminum housing
• Cooling: Passive pin-fin heatsink
• Ingress rating: IP68 waterproof
• Unit weight: 0.7 lb
• Product weight: 1.6 lb
• Shipped weight: 2.5 lb

Fitment

• Make: Toyota
• Model: Tundra
• Years: (2022–2026)

Installation details

• Install time: 30–60 minutes
• Tools needed: Basic toolset
• Modification: Minor modification

Warranty and guarantee

• Warranty: Lifetime warranty
• Returns: 30-day return with no restocking fee
• Guarantee: 100% satisfaction guarantee
