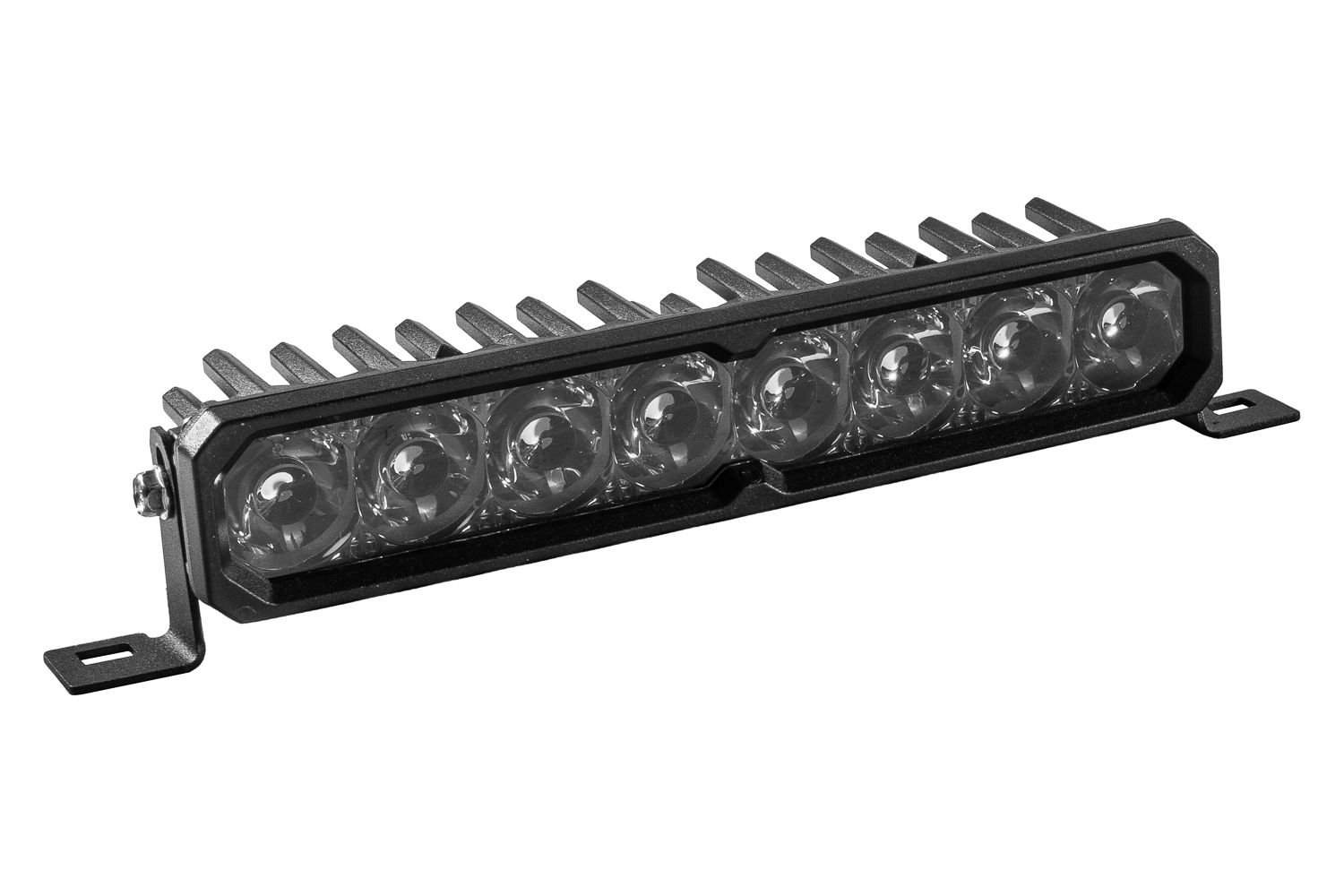

Diode Dynamics SS10 White LED Light Bar (one)

The Diode Dynamics Stage Series SS10 LED Light Bar is engineered to deliver unmatched intensity, precision, and configurability in a compact 10-inch platform. Featuring patented TIR (Total Internal Reflection) optics, the SS10 captures and directs nearly all usable light exactly where you need it—reducing glare while dramatically increasing efficiency and downrange visibility. With multiple beam patterns, three power levels, and SmartSelect multicolor backlight technology, the SS10 sets a new benchmark for premium LED light bars, proudly engineered and made in the USA.

Note

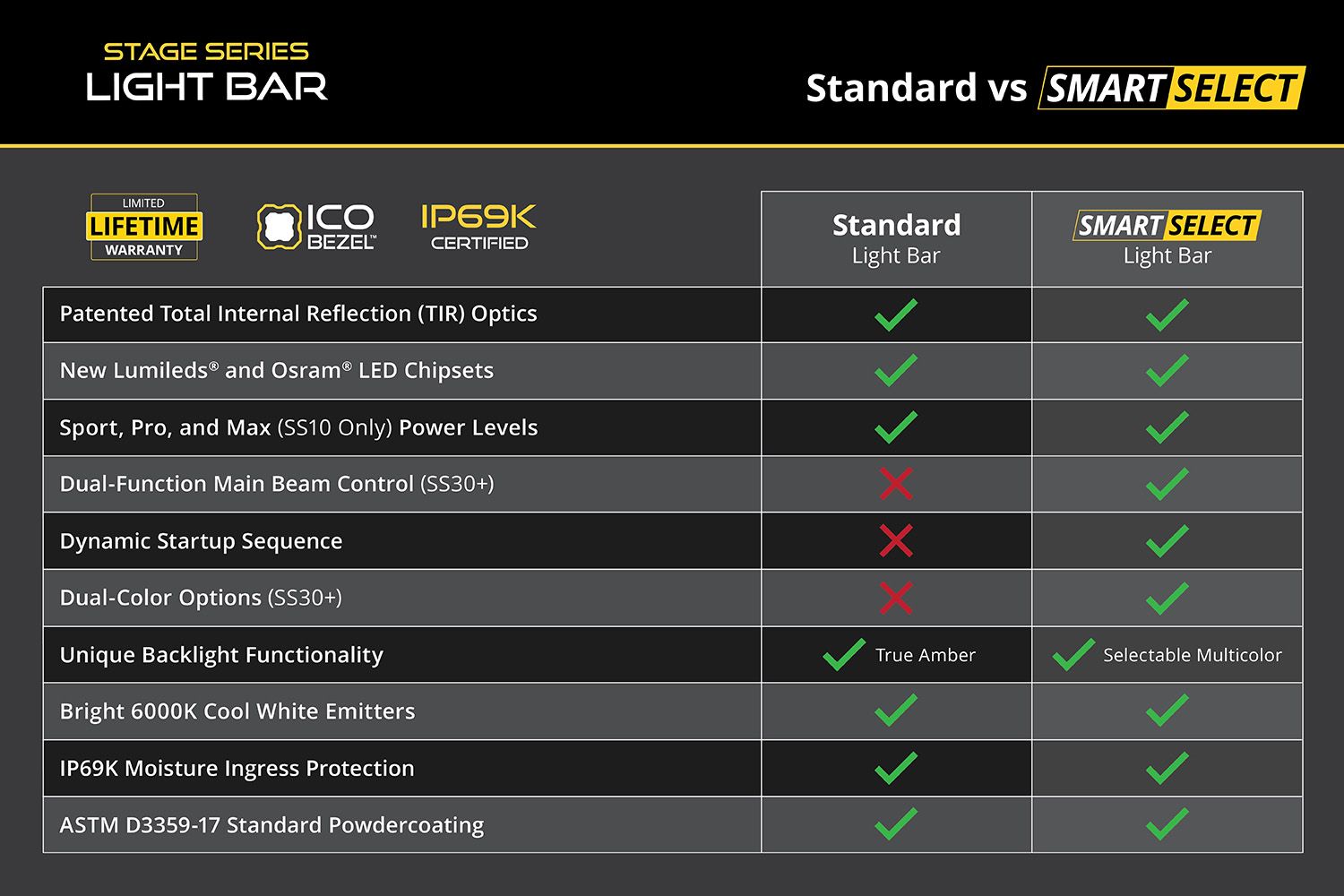

• Backlight Options:
  • SmartSelect models feature an 8-color selectable backlight with dynamic startup sequence
  • Standard models include an amber-only backlight with no startup sequence
• Backlight Selection: Color changes are made by cycling power—no controller required
• SAE Compliance: SAE Driving pattern meets SAE J581 when installed and aimed properly (check local regulations)
• Wiring: Wiring harness sold separately unless otherwise specified

Features

• Optics: Patented TIR optics for maximum efficiency and focused output

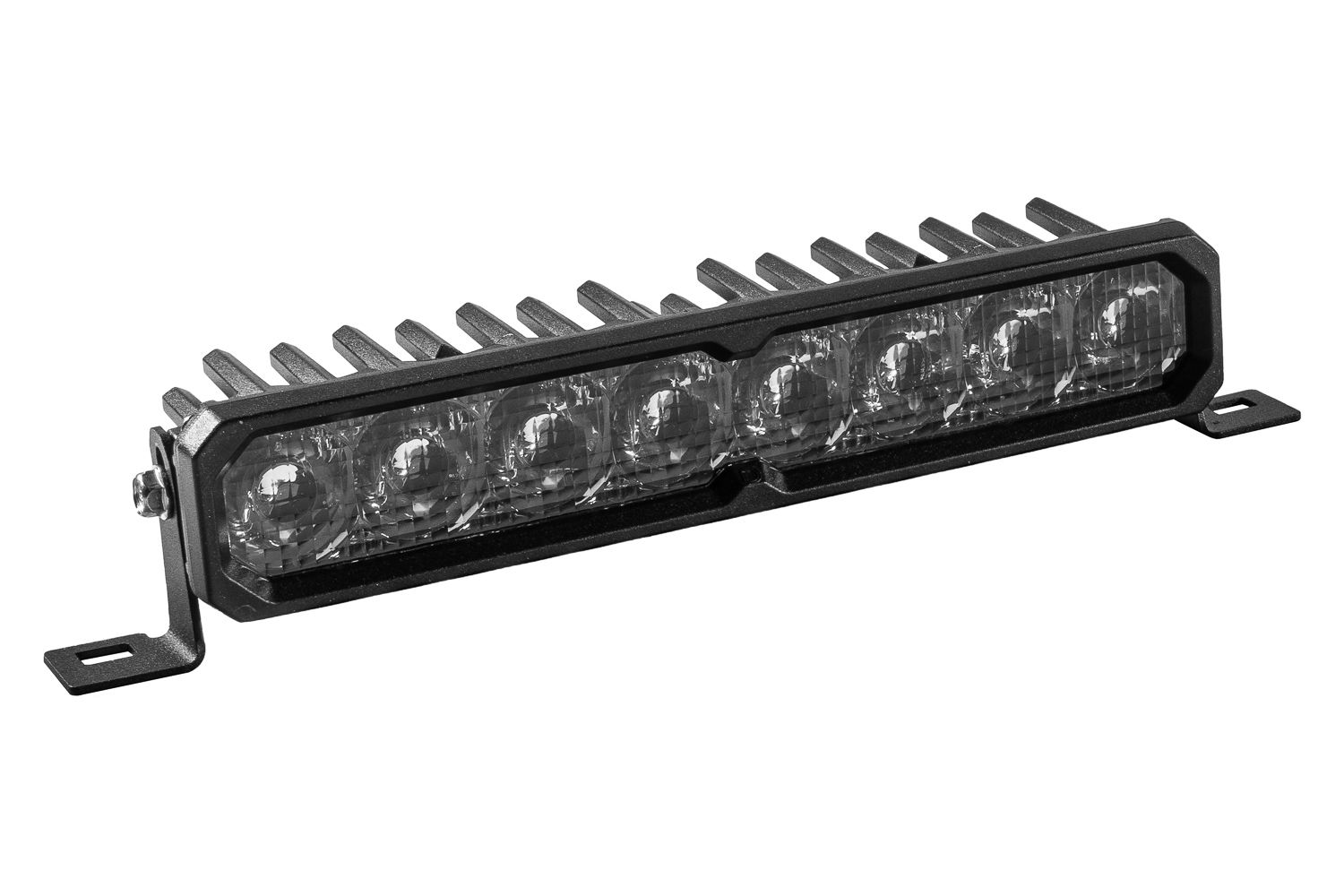

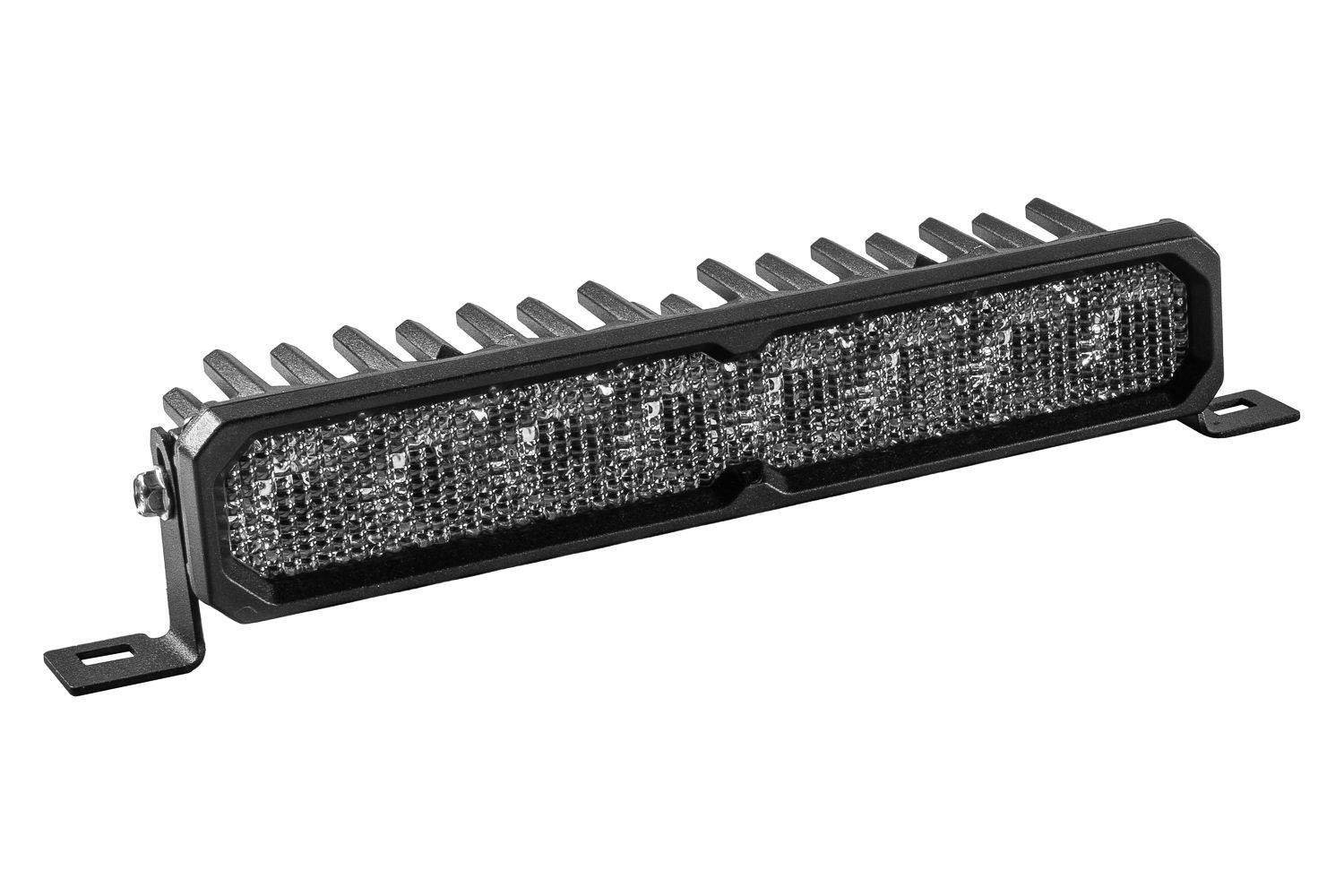

• Beam Patterns: Combo/Driving, SAE Driving, Flood, and Spot options available
• Power Levels: Available in Sport, Pro, and Max configurations
• Backlight Technology:
  • SmartSelect models include selectable 8-color RGBWA backlight with welcome sequence
  • Dedicated amber backlight chip ensures perfect color match with Diode Dynamics pods
• Construction: Durable aluminum housing with ASTM-standard powder coat finish
• Protection: IP69K waterproof and high-pressure wash resistant
• Thermal Management: Copper PCB and optimized heatsinks for sustained high output
• Customization: Swappable lenses, snap-on covers, and CrossLink compatibility
• Manufacturing: Engineered and manufactured in the USA with global materials
• Warranty: Limited lifetime warranty

Specs

General

• Color Temperature: 6000K (White)
• Operating Voltage: 9–30V
• Ingress Rating: IP69K
• Operating Temperature: -40°F to 185°F
• Connector: Deutsch DT
• Cooling: Passive heatsink

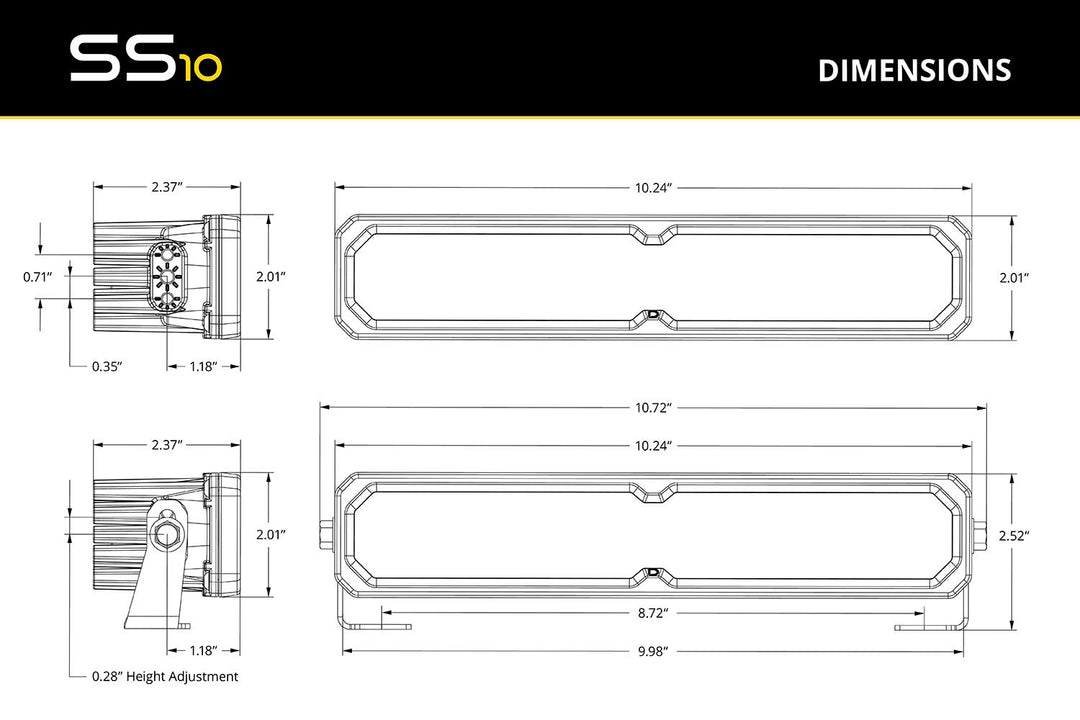

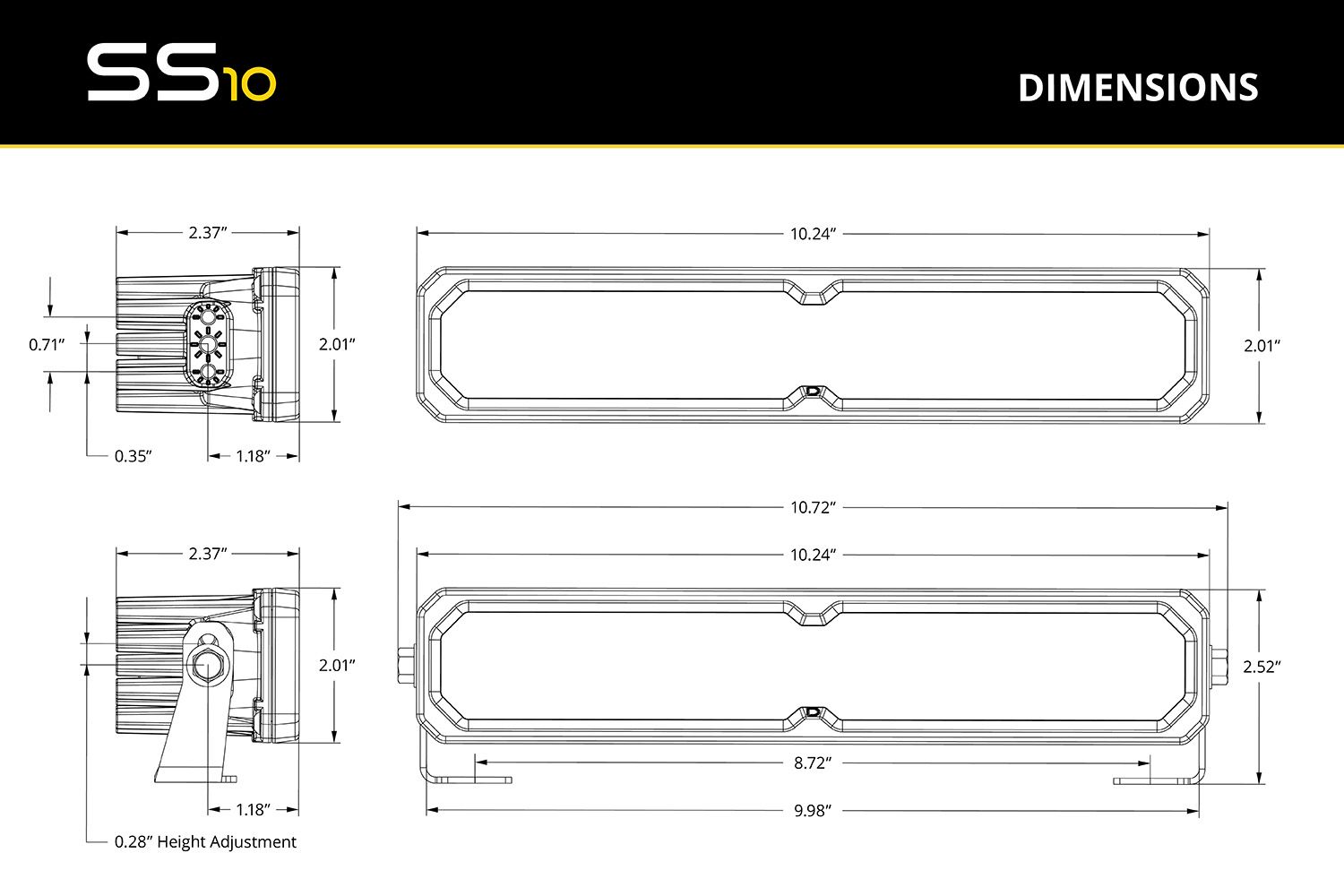

• Dimensions: 2.01" x 10.24" x 2.37"

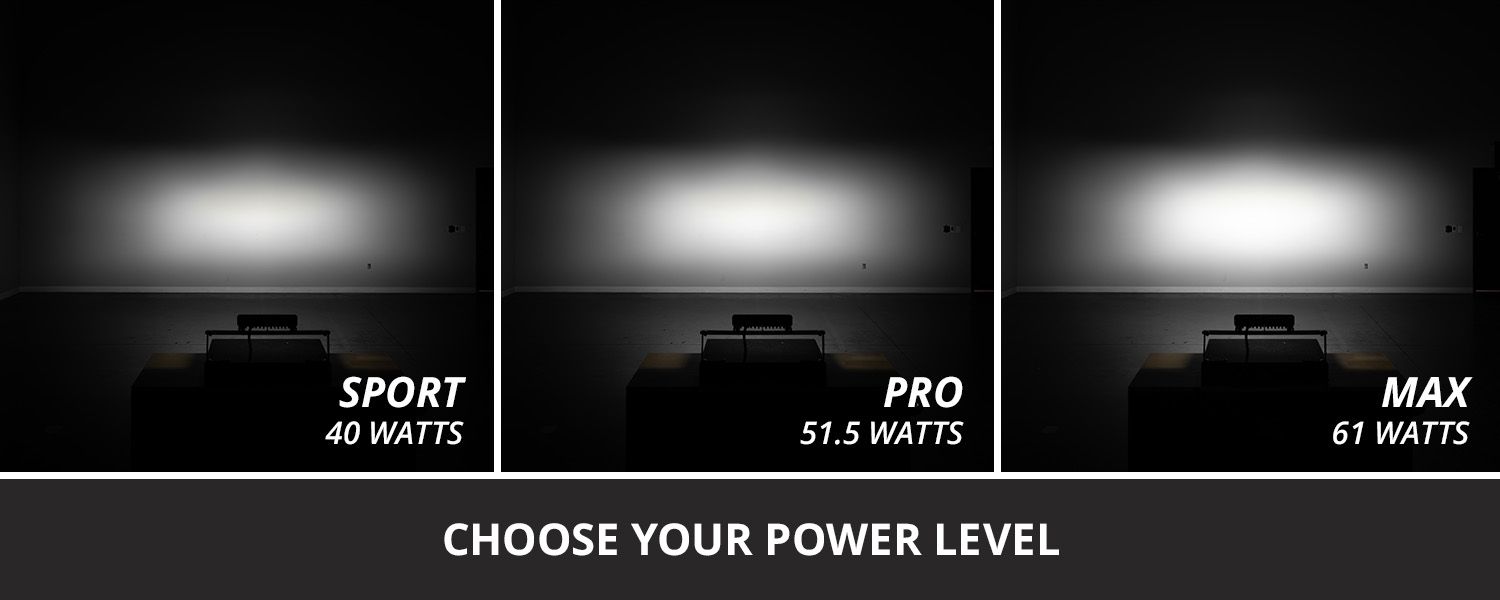

Power Output

• Sport: 40W / 3.13A
• Pro: 51.5W / 4.00A
• Max: 61W / 4.77A

Beam Angles

• Combo/Driving: 60° x 30°
• SAE Driving: 20° x 12°
• Flood: 100° x 80°
• Spot: 8° x 8°

Package Content

• Light Bar: One (1) Stage Series SS10 LED Light Bar
• Wiring: One (1) wire pigtail
• Mounting: Universal bracket set

Installation

• Install Time: 30–60 minutes
• Tools Required: Basic hand tools
• Programming: Power-cycle backlight selection (video available)
