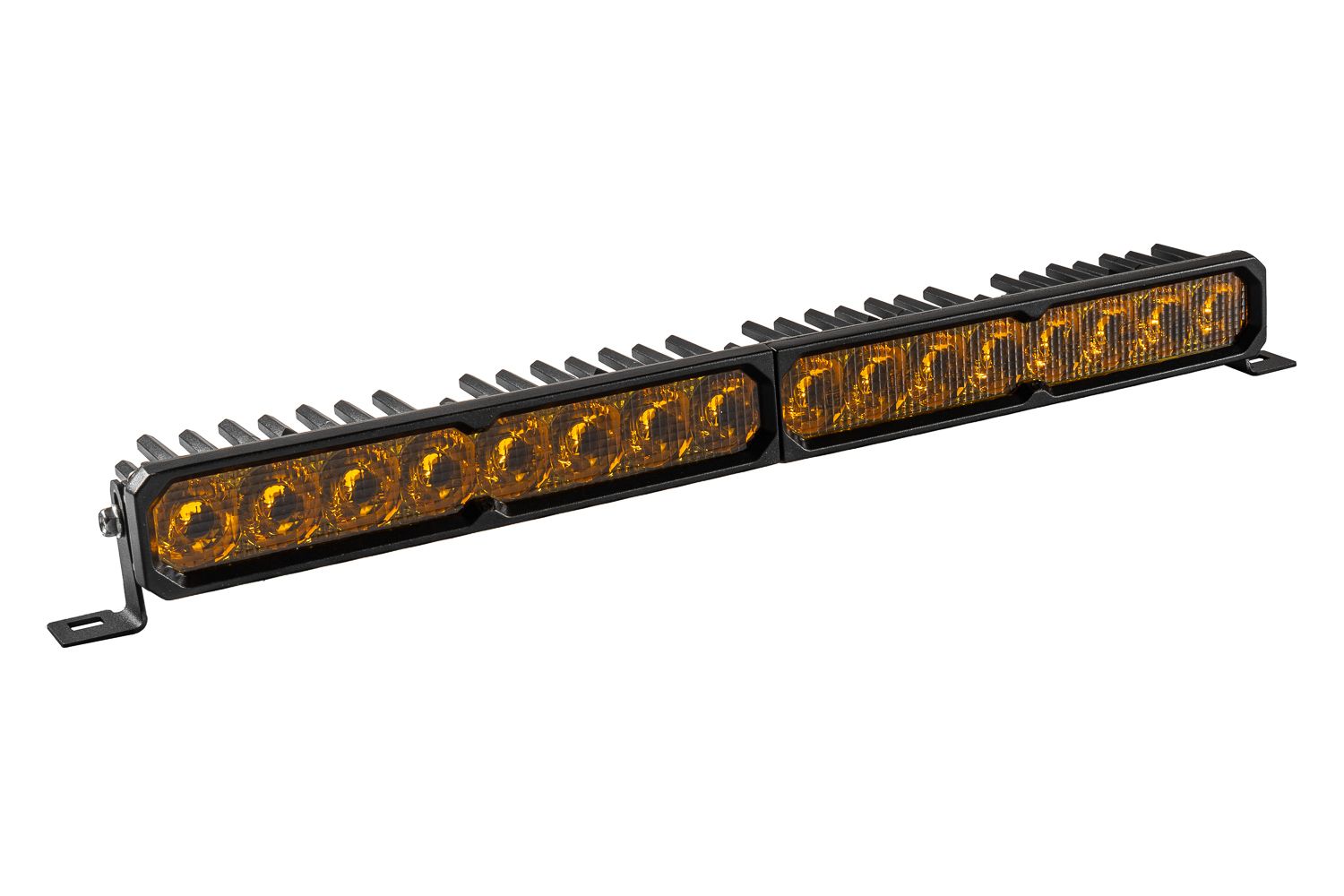

Engineered for maximum visibility in the harshest conditions, the Stage Series SS20 LED Light Bar combines Diode Dynamics’ patented TIR (Total Internal Reflection) optics with a powerful 3000K yellow output to deliver intense, usable light exactly where you need it. Designed and manufactured in the USA, the SS20 excels in fog, rain, snow, and dust while minimizing glare. With multiple beam pattern options, dual power levels, and a fully illuminated amber backlight, this light bar is built for serious off-road and overland use.
Note
-
Weather Performance: 3000K yellow output improves contrast and reduces glare in fog, rain, snow, and dust
-

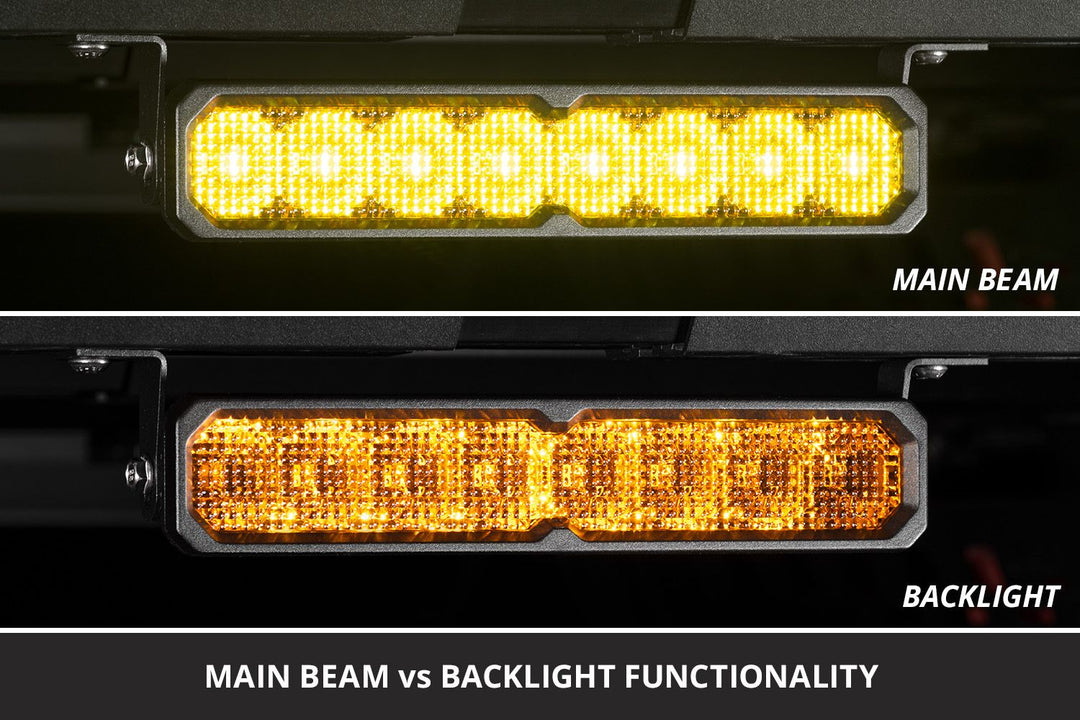

Backlight Function: Amber backlight is intended for forward-facing visibility when parked or stopped
-
Lens Swaps: Optics and colors can be changed via interchangeable lenses
-

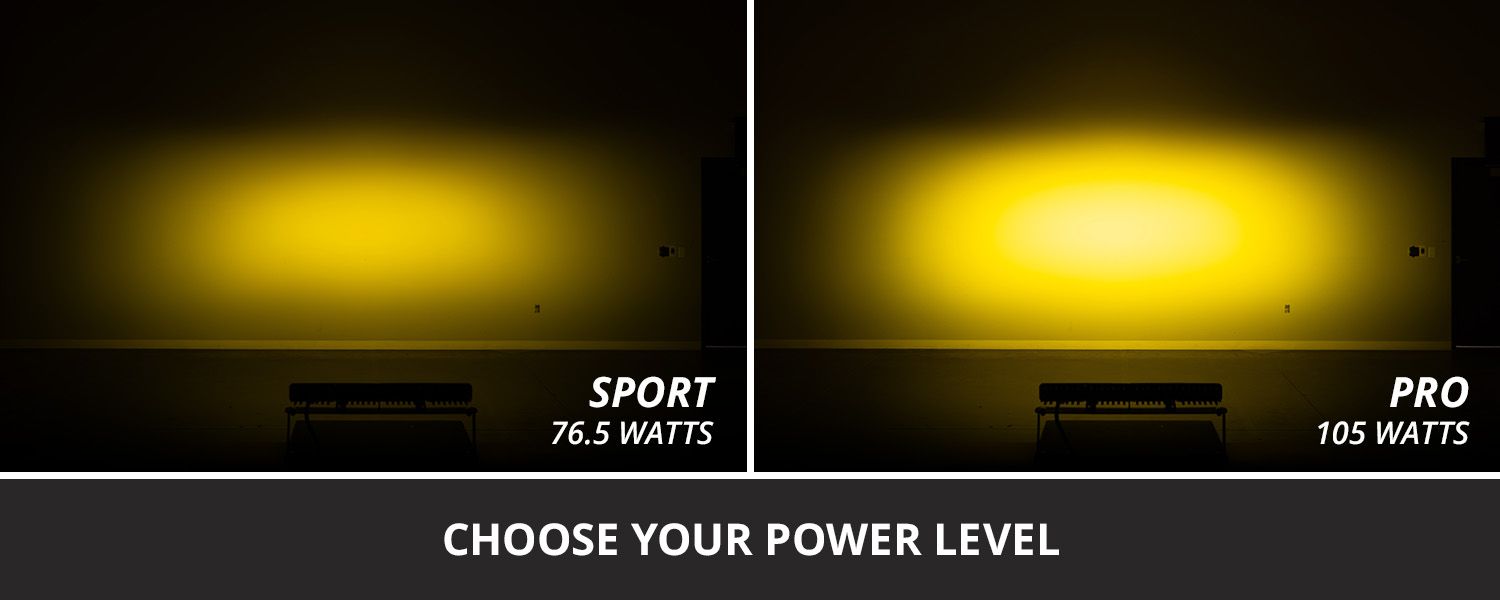

Power Options: Available in Sport and Pro power levels to suit different lighting needs
Features
-

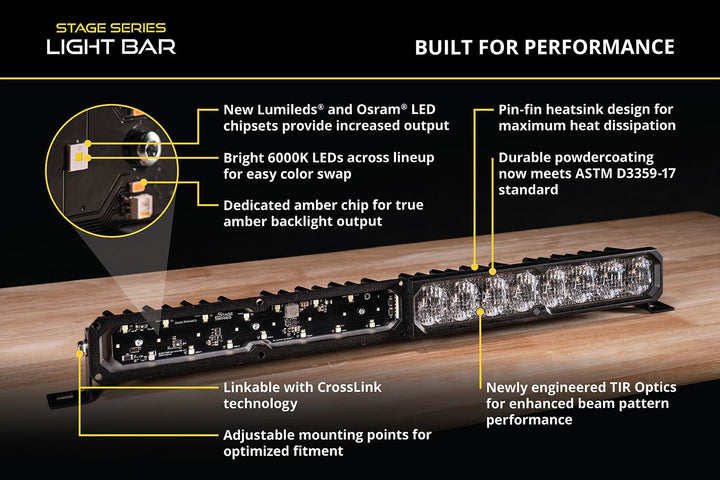

Optics: Patented TIR optics for maximum efficiency and focused light output
-
Beam Patterns: Multiple beam options engineered for real-world driving conditions
-
Backlight: Fully illuminated amber backlight integrated into the TIR optic
-
Output Levels: Available in Sport and Pro configurations
-
Construction: Heavy-duty aluminum housing with ASTM-standard powder coat finish
-
Weatherproofing: IP69K waterproof and high-pressure wash rated
-
Testing: SAE-standard vibration, moisture, corrosion, and temperature testing
-
Warranty: Limited lifetime warranty
-
Origin: Engineered and made in the USA using globally sourced materials
Beam Pattern Options
-

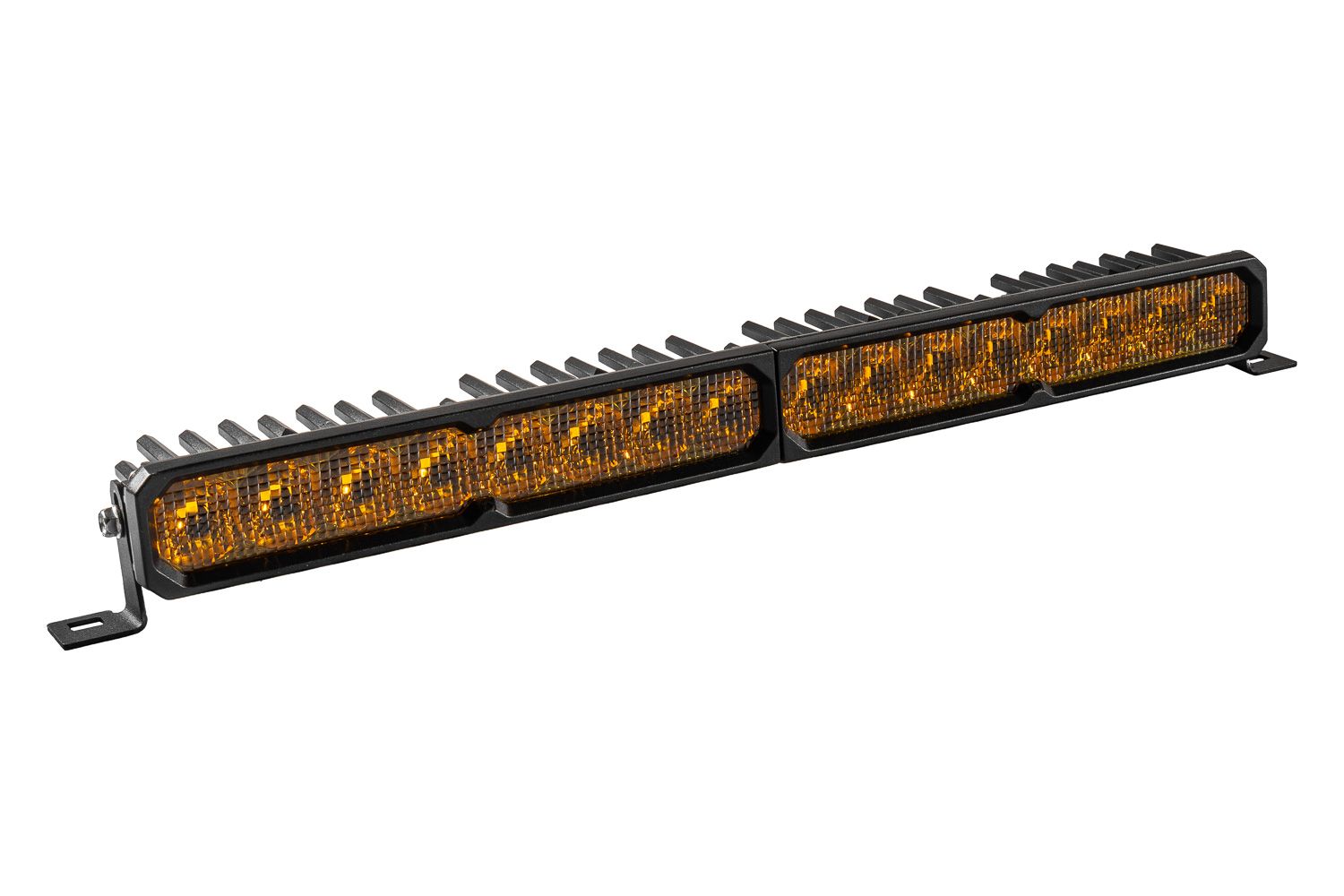

Combo / Driving: Balanced distance and width (60° x 30°) for all-around use
-
SAE Driving: Broad-spot beam (20° x 12°) to supplement factory high beams
-
Flood: Wide, even spread (100° x 80°) for work areas and low-speed use
-
Spot: Tight, long-distance beam (8° x 8°) for high-speed and open terrain
Specifications
-
Color Temperature: 3000K Yellow
-
Power (Sport): 76.5 watts
-
Power (Pro): 105 watts
-
Operating Voltage: 9–30V
-
Current Draw (Sport): 5.98A @ 12.8V
-
Current Draw (Pro): 8.20A @ 12.8V
-
LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink
-
Cooling: Passive heatsink design
-
Ingress Rating: IP69K
-

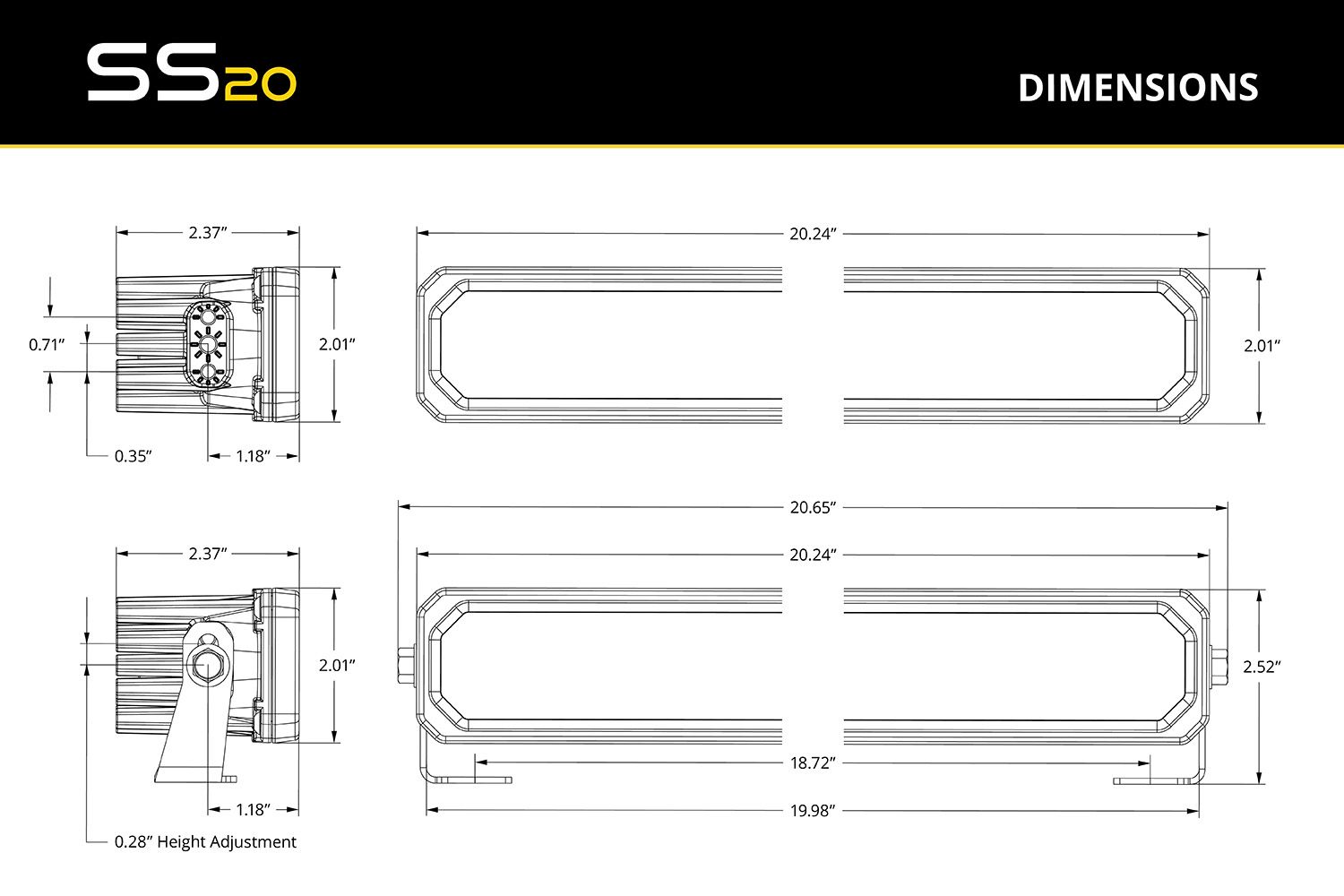

Dimensions: 2.01" x 20.24" x 2.37"
In the Box
-
Light Bar: One (1) SS20 LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal mounting bracket set
Installation
-
Install Time: 30–60 minutes
-
Tools Needed: Basic toolset
-
Mounting Type: Universal
