Upgrade the factory fog lights on your Toyota Tundra with the Diode Dynamics SS3 Fog Light Bracket Kit. Designed for drivers who want real performance without sacrificing OEM fit and finish, this kit delivers higher output intensity than any other 3-inch light on the market. With advanced TIR optics, a factory-style angled bezel, and true bolt-on installation, the SS3 Fog Kit provides serious visibility and a clean, modern appearance.
Important note
-
Trim compatibility: Not compatible with TRD Pro models
-
OEM fog lights required: Additional hardware may be needed if your vehicle was not equipped with factory fog lights
-
Road legal: SAE compliant when properly aimed
Features
-

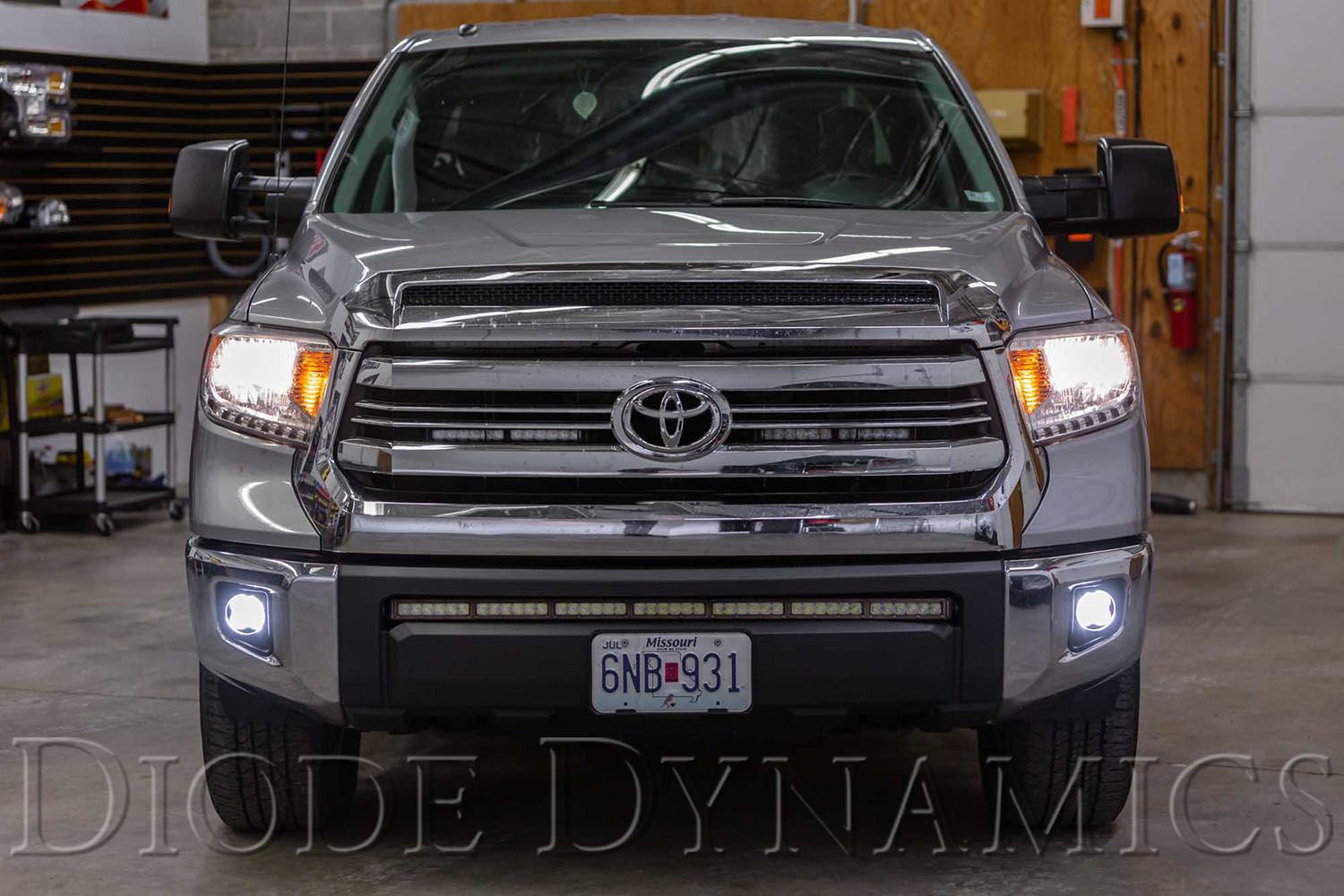

Direct replacement: Designed specifically for Toyota Tundra factory fog lamps
-
High-output performance: Delivers unmatched intensity from a compact 3-inch LED pod
-

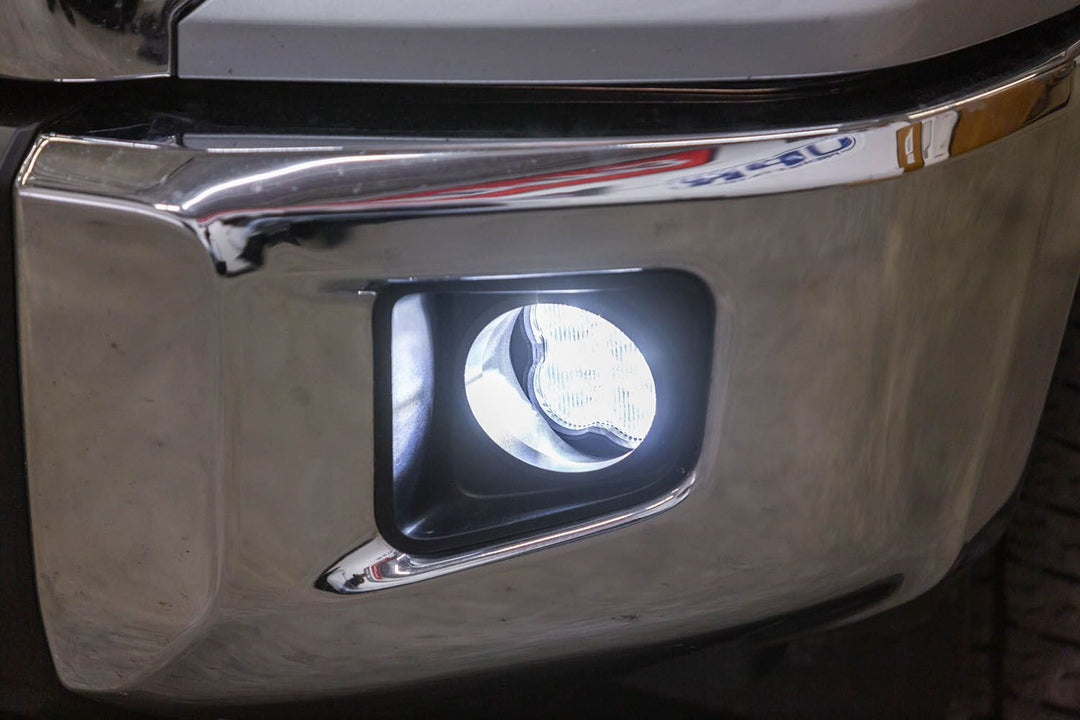

Factory-style appearance: Includes angled bezels for a clean OEM look
-
Advanced optics: Custom-engineered TIR optics maximize efficiency and reduce glare
-
SAE compliant: Road-legal fog beam pattern when installed and aimed correctly
-
Integrated amber backlight: Adds a distinctive accent light alongside the main beam
-
Plug-and-play installation: Connects directly to factory fog light wiring with no modification
-
Durable construction: Powdercoated aluminum die-cast housing built for harsh conditions
-
Made in USA: Engineered and assembled in the United States using global materials
Specifications
-
Beam pattern: SAE fog, 80° x 8°
-
Color temperature:
- White: 6000K

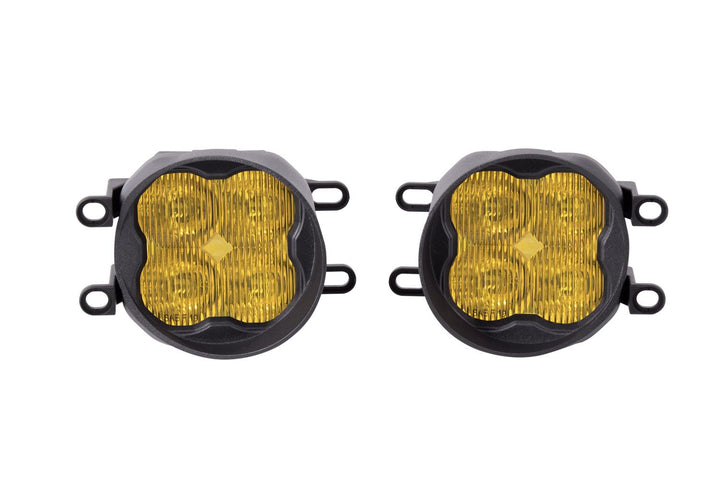

- Yellow: 3000K
-
Measured output (per pod):
- Sport: 1,520 lumens
- Pro: 3,000 lumens
- Max: 3,500 lumens
-
Raw output (per pod):
- Sport: 2,262 lumens
- Pro: 5,796 lumens
- Max: 7,920 lumens
-

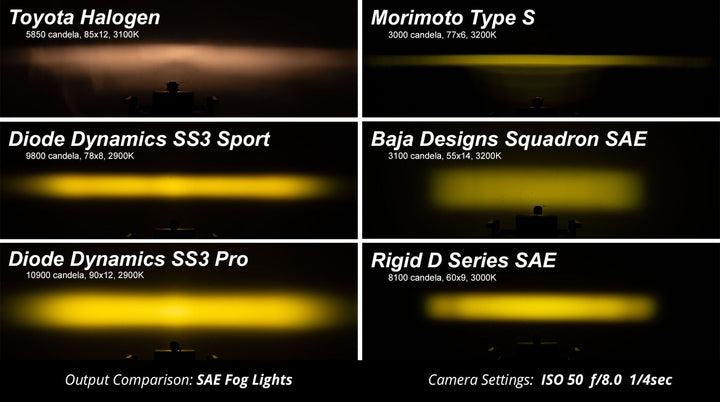

Peak intensity:
- Sport: 10,600 cd
- Pro: 11,900 cd
- Max: 18,000 cd
-
Main beam power:
- Sport: 14.5W
- Pro: 36W
- Max: 38.5W
-
Backlight power: 0.4W
-
Operating voltage: 9–30V
-
Ingress rating: IP69K waterproof
-
Operating temperature: -40°F to 185°F
-
LED emitters: Luxeon Z ES, Cree XP-L HI, Osram Boost HX
Package contents
-

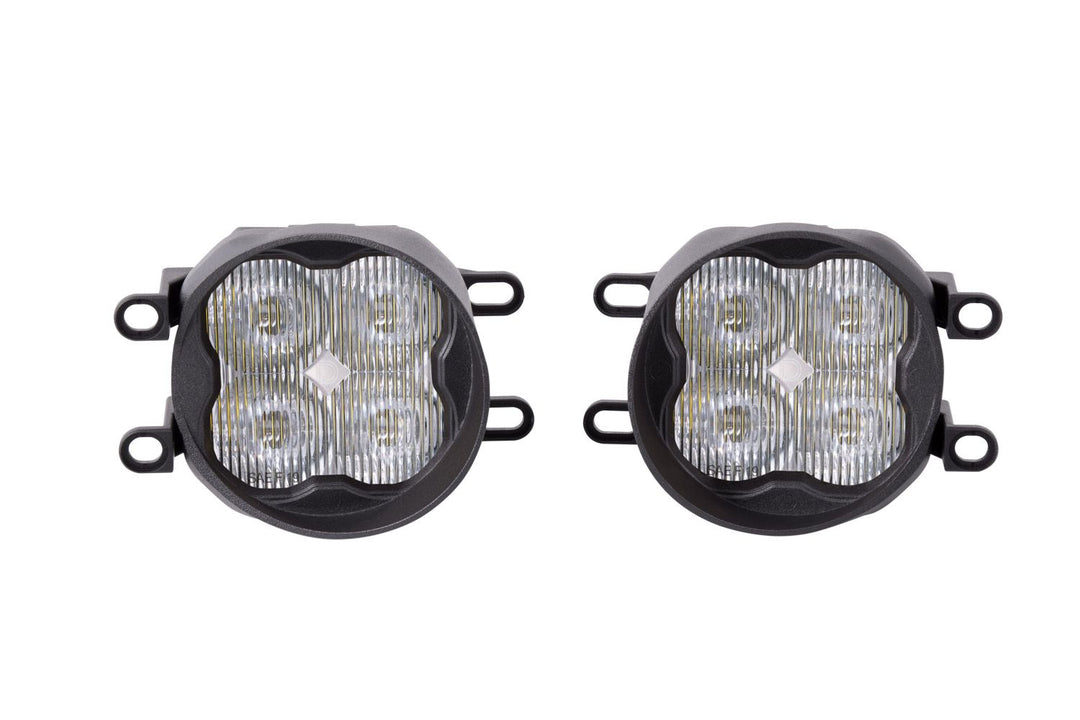

LED pods: Two (2) SS3 3-inch angled LED pods
-
Mounting brackets: Two (2) Type B brackets
-
Wiring: Two (2) H11 4-pin DT backlight tap wires
-
Hardware: Mounting hardware and guide
-
Quantity: One pair (driver and passenger side)
Vehicle fitment
-
Make: Toyota
-
Model: Tundra
-
Years: 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021
-
Application: Fog light replacement
Warranty and returns
-
Warranty: Lifetime warranty
-
Returns: 30-day return policy with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guaranteed
Installation
-
Install time: 30–60 minutes
-
Tools required: Basic hand tools
-
Modification: None required
-
Additional note: SR5 CrewMax trims may require additional zip ties for pod support
