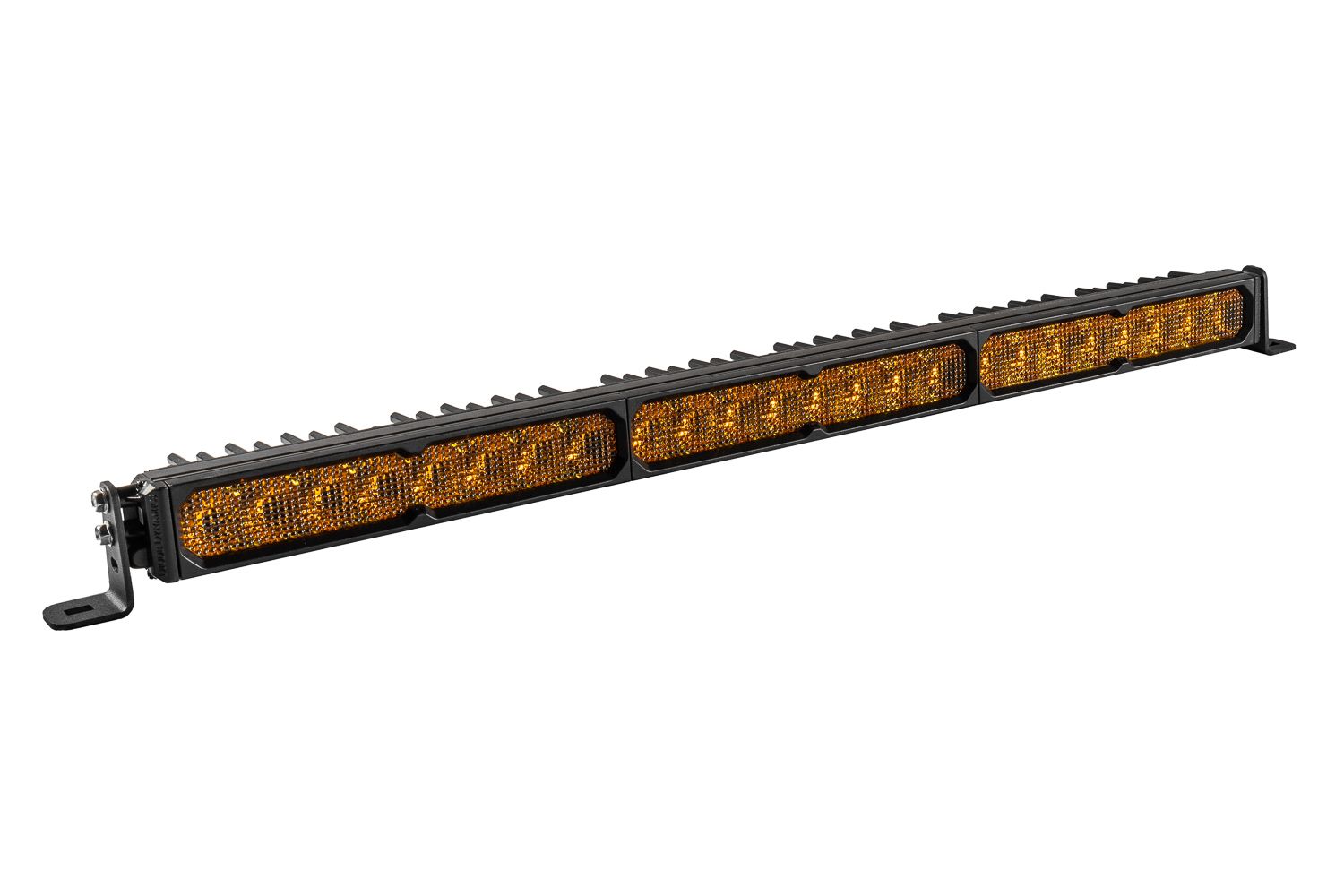

Built for extreme visibility in the harshest conditions, the Diode Dynamics Stage Series SS30 Yellow LED Light Bardelivers unmatched output, precision optics, and all-weather performance. Featuring patented TIR (Total Internal Reflection) optics and a true 3000K yellow output, this light bar cuts through fog, rain, snow, and dust while reducing glare and eye fatigue. Designed, engineered, and manufactured in the USA, the SS30 is built to perform when it matters most.
Note
-
Yellow Output: 3000K yellow light improves visibility in fog, rain, snow, and dusty conditions.
-
Amber Backlight: Yellow models include a fully illuminated amber backlight for added visibility and style.
-
Made in USA: Engineered and manufactured in the USA using globally sourced materials.
-
Lens Swapping: Lenses are interchangeable across the Stage Series lineup.
-
On-Road Use: Always verify local laws regarding auxiliary lighting and proper aiming.
Features
-

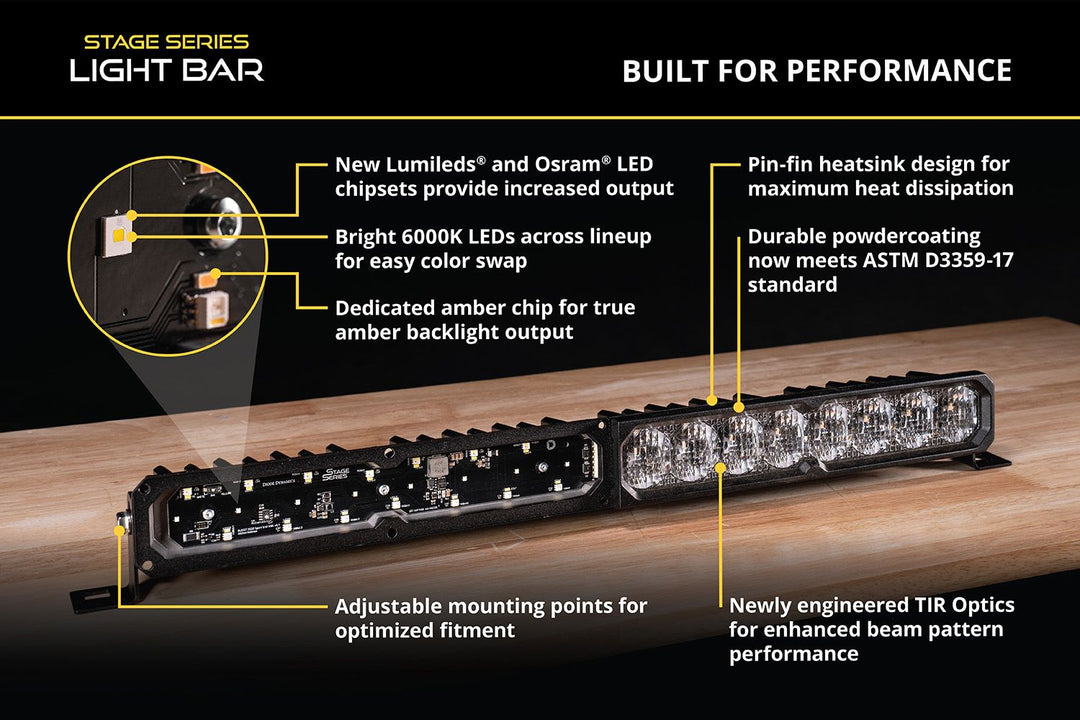

Optics: Patented TIR optics for maximum efficiency and focused output
-
Beam Patterns: Combo/Driving, SAE Driving, Flood, and Spot options
-

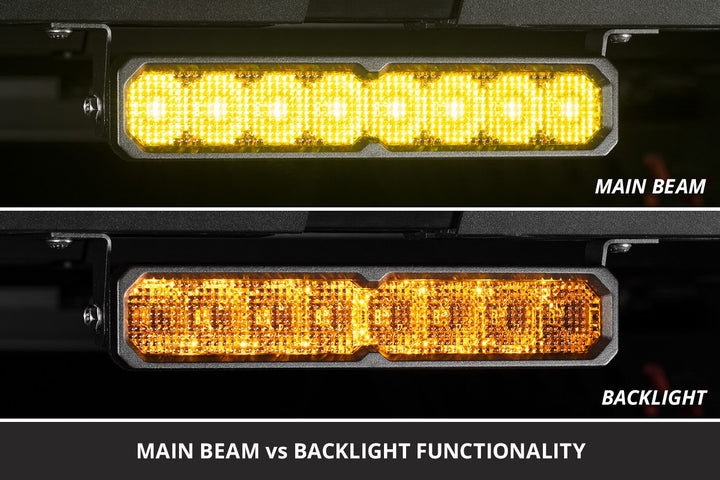

Backlighting: Fully illuminated amber backlight on all yellow models
-
Construction: Heavy-duty aluminum housing with ASTM-standard powder coat
-
Durability: IP69K waterproof and high-pressure resistant
-

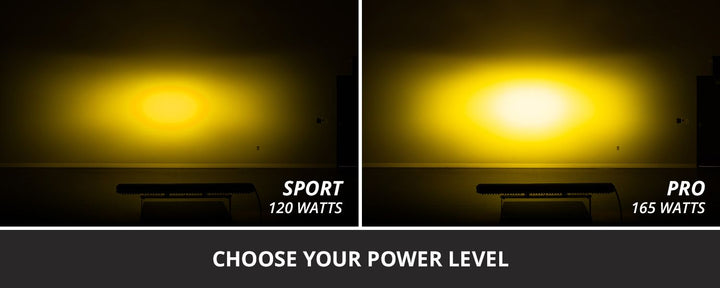

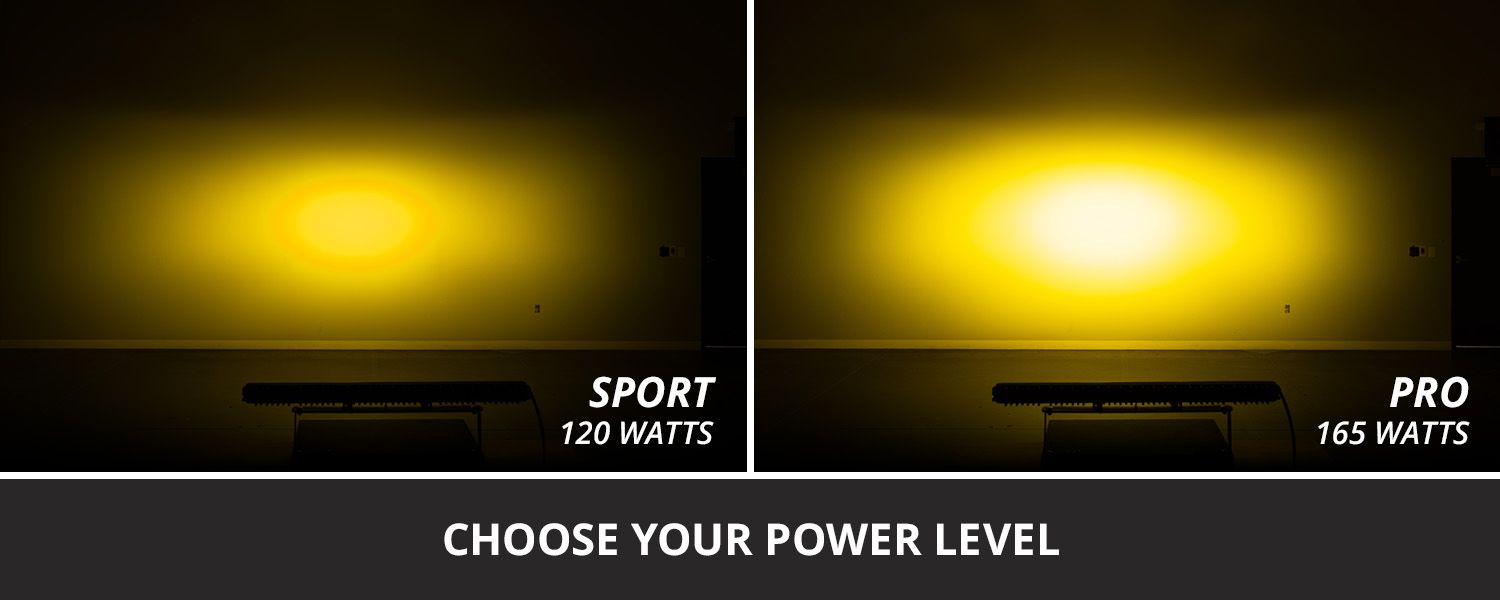

Power Levels: Available in Sport and Pro configurations
-
Cooling: Advanced thermal management with copper PCB on high-power models
-
Warranty: Limited lifetime warranty
-
Origin: Proudly made in the USA
Specs
Color Temperature: 3000K Yellow
Beam Angles:
- Combo/Driving: 60° × 30°
- SAE Driving: 20° × 12°
- Flood: 100° × 80°
- Spot: 8° × 8°
Power Output:
Current Draw @ 12.8V:
Operating Voltage: 9–30V
Operating Temperature: -40°C to 85°C (-40°F to 185°F)
LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade
Materials: Aluminum & copper PCB, polycarbonate lens, aluminum heatsink
Cooling: Passive heatsink cooling
Ingress Rating: IP69K waterproof

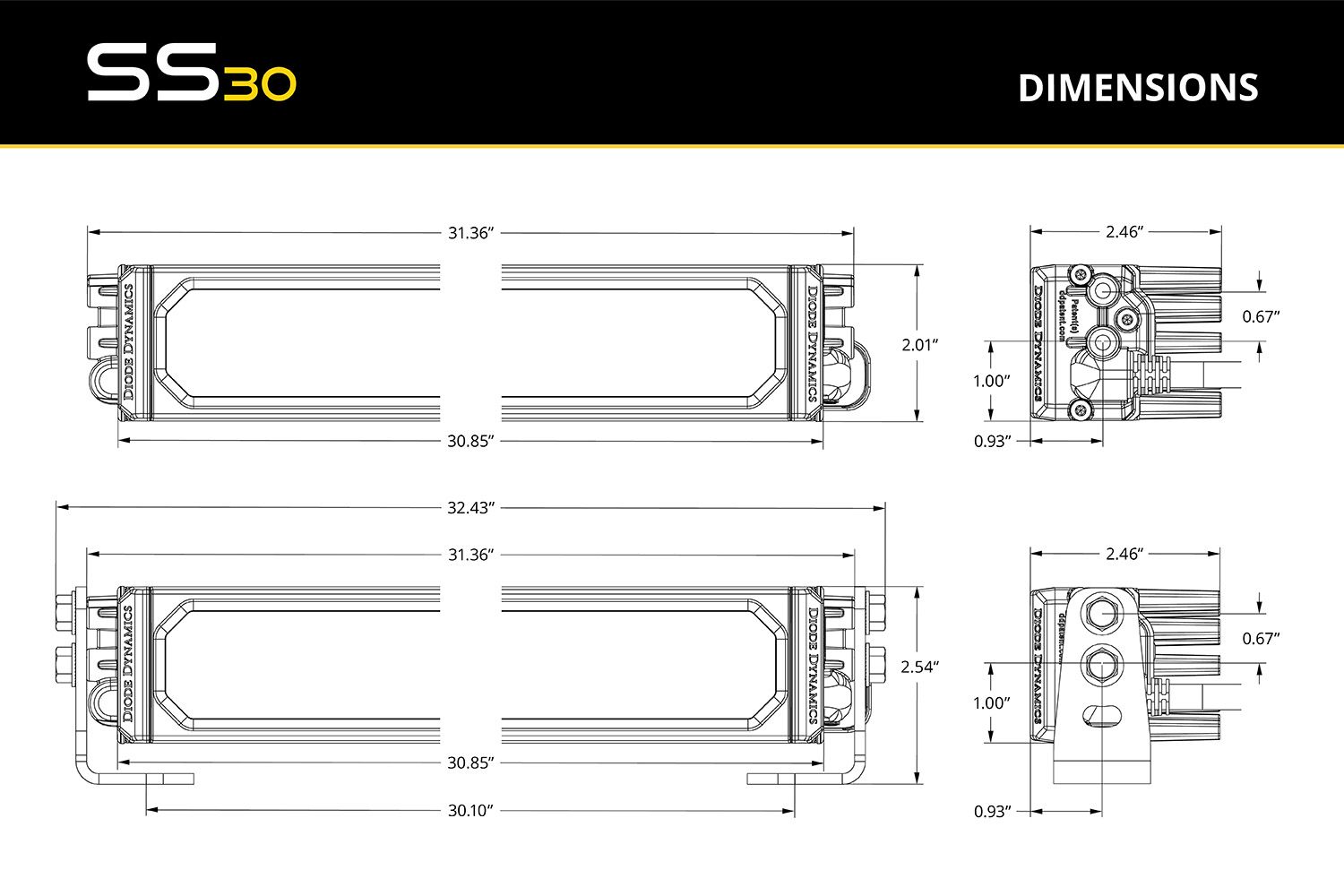

Dimensions: 31.63" × 2.01" × 2.46"
Polarity: Polarity specific
Connector Type: Deutsch DT-P input
In The Box
-
Light Bar: One (1) Stage Series SS30 Yellow LED Light Bar
-
Wiring: One (1) wire pigtail
Installation
-
Install Time: 30–60 minutes
-
Tools Needed: Basic hand tools
