The Diode Dynamics SS5 CrossLink Lightbar delivers extreme intensity and modular versatility in a compact 18.5-inch package. Built using patent-pending CrossLink technology, this setup links three SS5 LED pods into a single rigid lightbar while maintaining full adjustability. Featuring industry-leading output from 5-inch pods, advanced TIR optics, and selectable backlight colors, the SS5 CrossLink is engineered for drivers who demand serious distance, durability, and customization.
Important notes
-

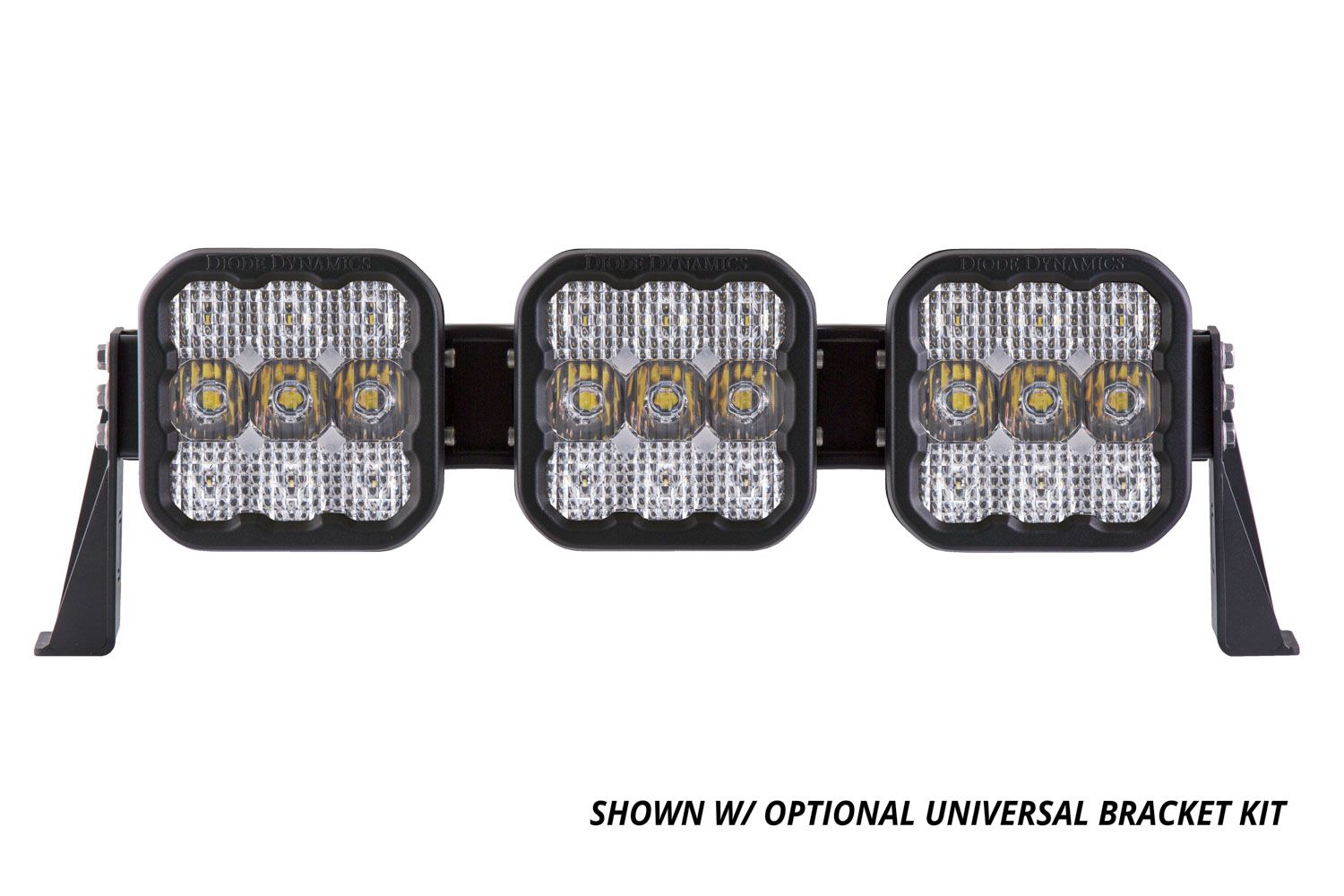

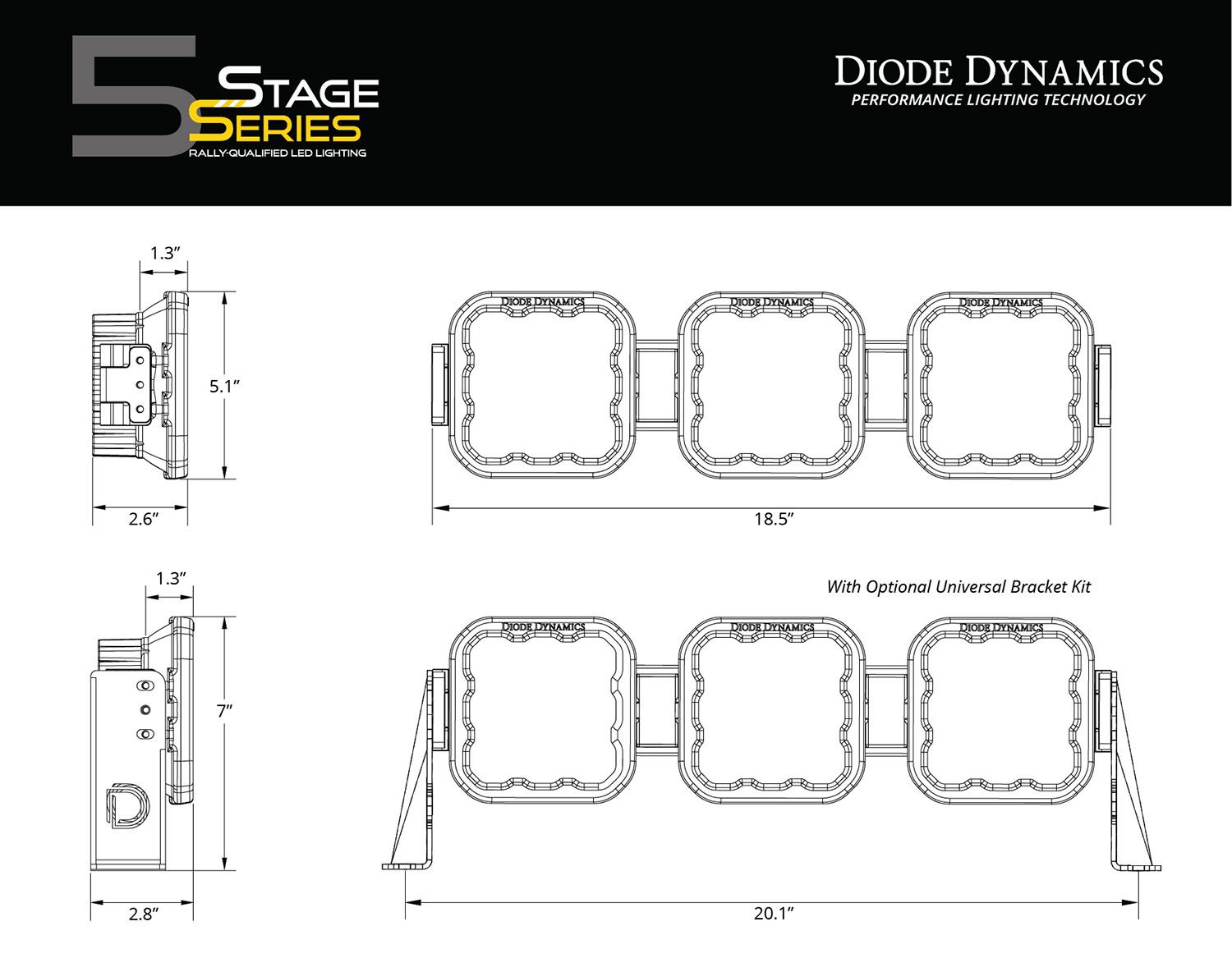

Configuration: Three linked SS5 LED pods (18.5-inch total width)
-
Beam patterns: Driving or Combo (Driving + Flood)
-
Output colors: 6000K white or 3000K selective yellow
-
Backlight: Selectable (eight colors; yellow kits include amber-only backlight)
-
Power levels: Available in Sport or Pro
-
Warranty: Lifetime manufacturer warranty
Features
-
CrossLink design: Patent-pending CNC aluminum links join multiple SS5 pods into a single rigid and adjustable lightbar.
-
Optics: Custom-engineered TIR optics focus nearly all usable light forward while reducing glare and wasted output.
-
Output: Ultra-high intensity shines nearly a mile downrange for maximum long-distance visibility.
-

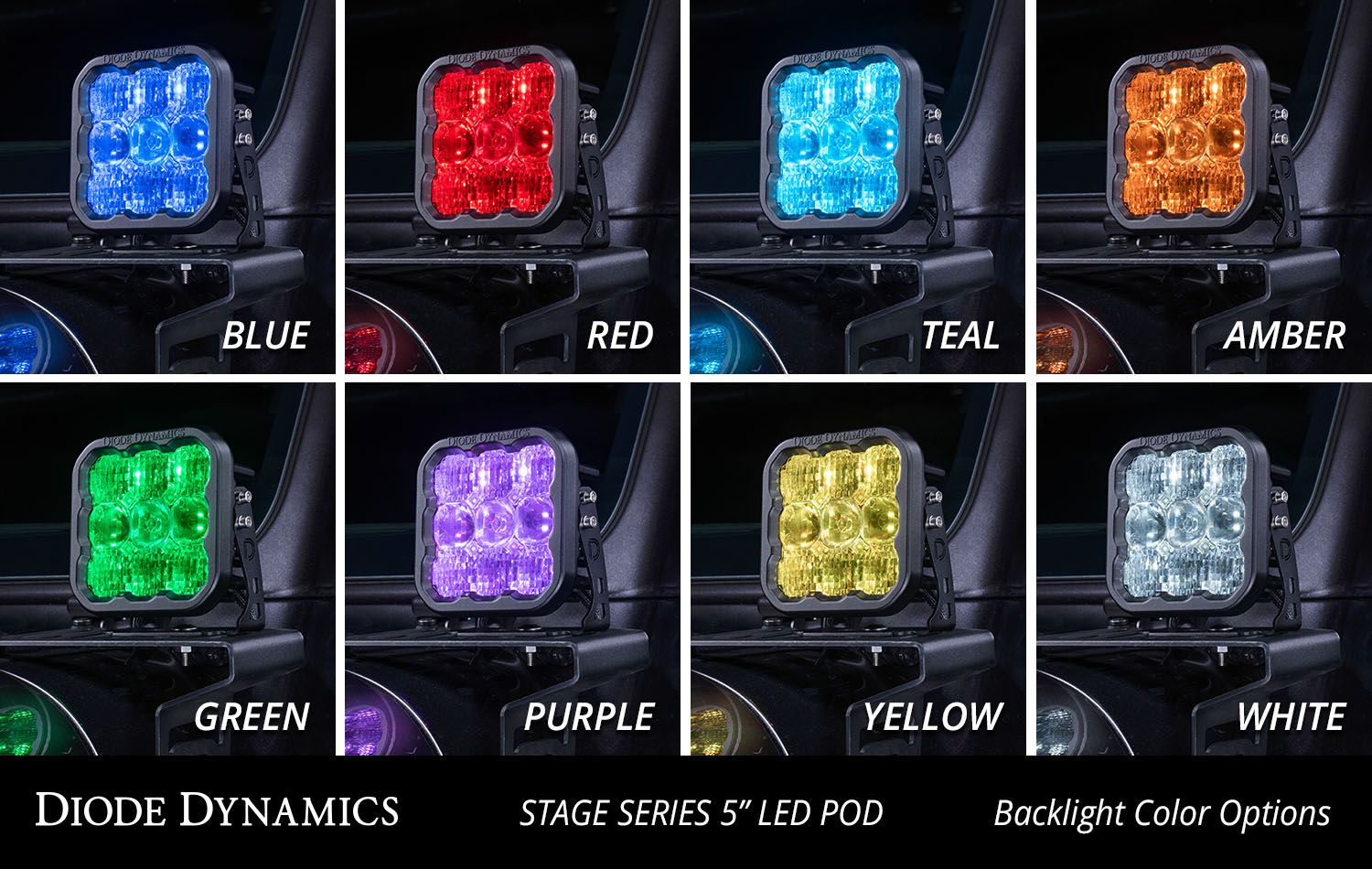

Backlight: Fully illuminated TIR optic backlight with eight selectable color options for accent lighting or visibility.
-
Adjustability: CrossLink system allows straight or curved mounting without special pod variants.
-
Beam patterns: Driving pattern for speed-focused distance or Combo pattern for balanced distance and area lighting.
-
Lens system: Interchangeable lenses allow easy changes to beam pattern or color.
-
Construction: Heavy-duty, torture-tested housing built for extreme off-road and high-speed use.
-
Electronics: Constant-current driver ensures stable output and long LED life.
-
Assembly: Designed, assembled, and quality-checked in the USA.

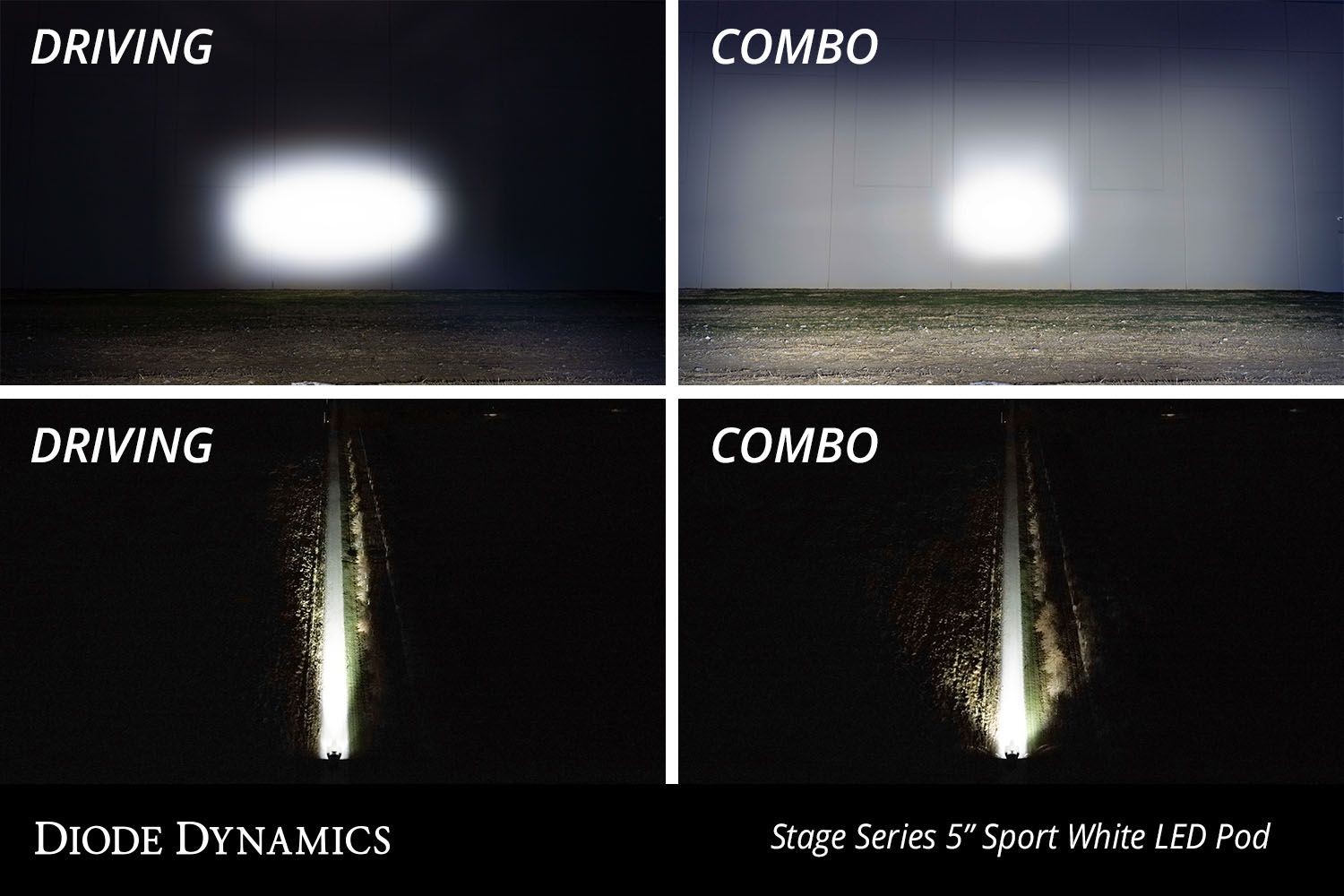

Beam pattern details
-
Driving: Focused 30° x 20° beam optimized for high-speed illumination without excessive foreground light.
-
Combo: Blends a 30° x 20° driving beam with surrounding flood illumination for a full 70° x 30° output pattern.
Specifications
Specifications listed below are per individual SS5 pod.
-
Main beam power: Sport: 40W, Pro: 90W
-
Backlight power: White: 3.17W, Yellow: 3.07W
-
Operating voltage: 9–16V
-
Color temperature: 6000K white or 3000K selective yellow
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
Operating temperature: -40°F to 185°F (-40°C to 85°C)
-
LED emitters: Luxeon Z ES, Cree XP-L HI
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Connector: Deutsch DT input

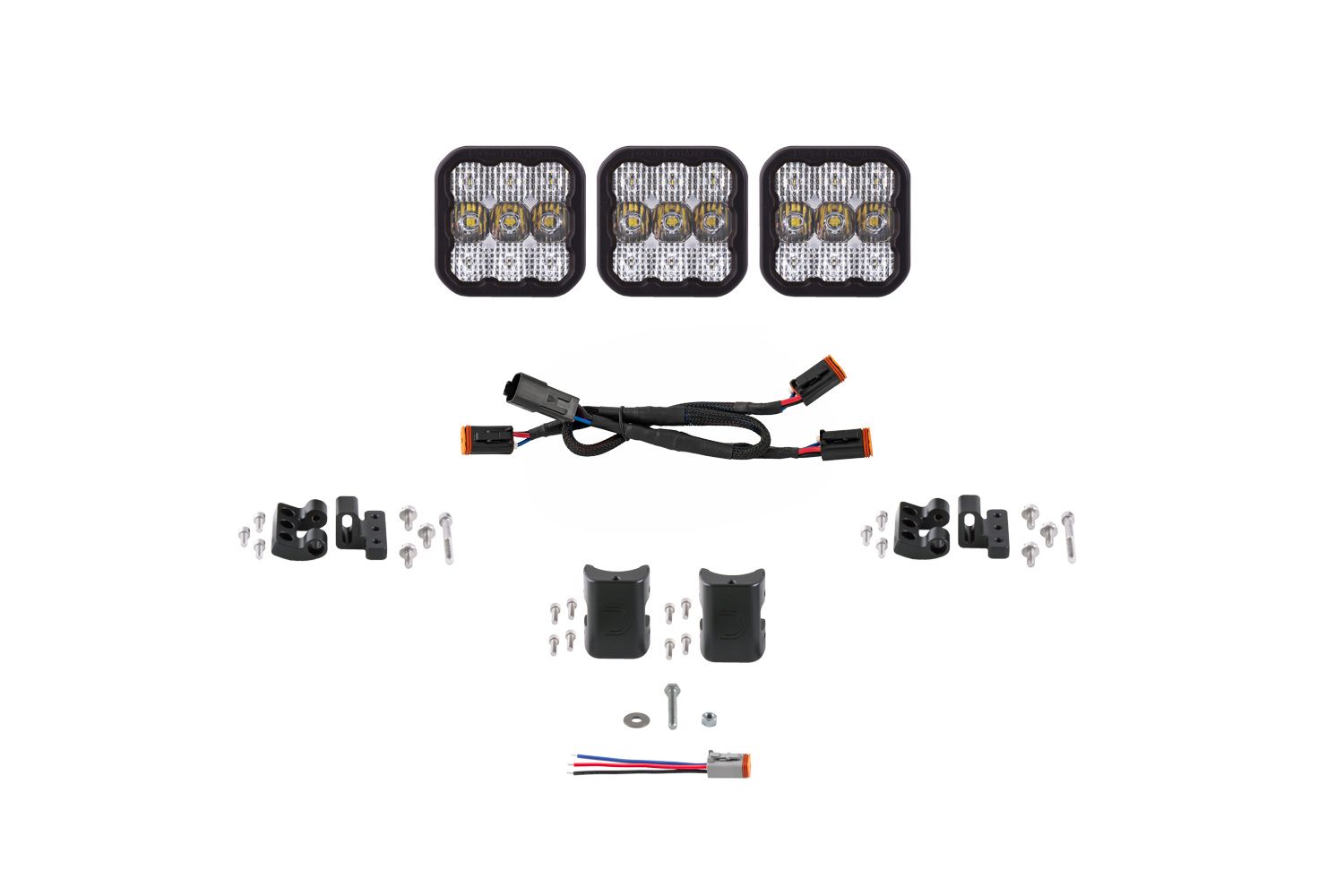

In the box
-
LED pods: Three (3) Stage Series SS5 5-inch LED pods
-
Links: Two (2) CrossLinks with mounting hardware
-
Mounting: One (1) CrossLink end-mount kit
-
Wiring: One (1) DT 3-pod connecting harness
-
Pigtail: One (1) Deutsch-style wire pigtail
-
Quantity: One (1) complete lightbar kit
Installation
-
Install time: 30–60 minutes
-
Tools needed: Basic toolset
-
Torque note: Recommended 5 ft-lbs on long end bolts with threadlocker
Warranty and guarantee
-
Warranty: Lifetime warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
