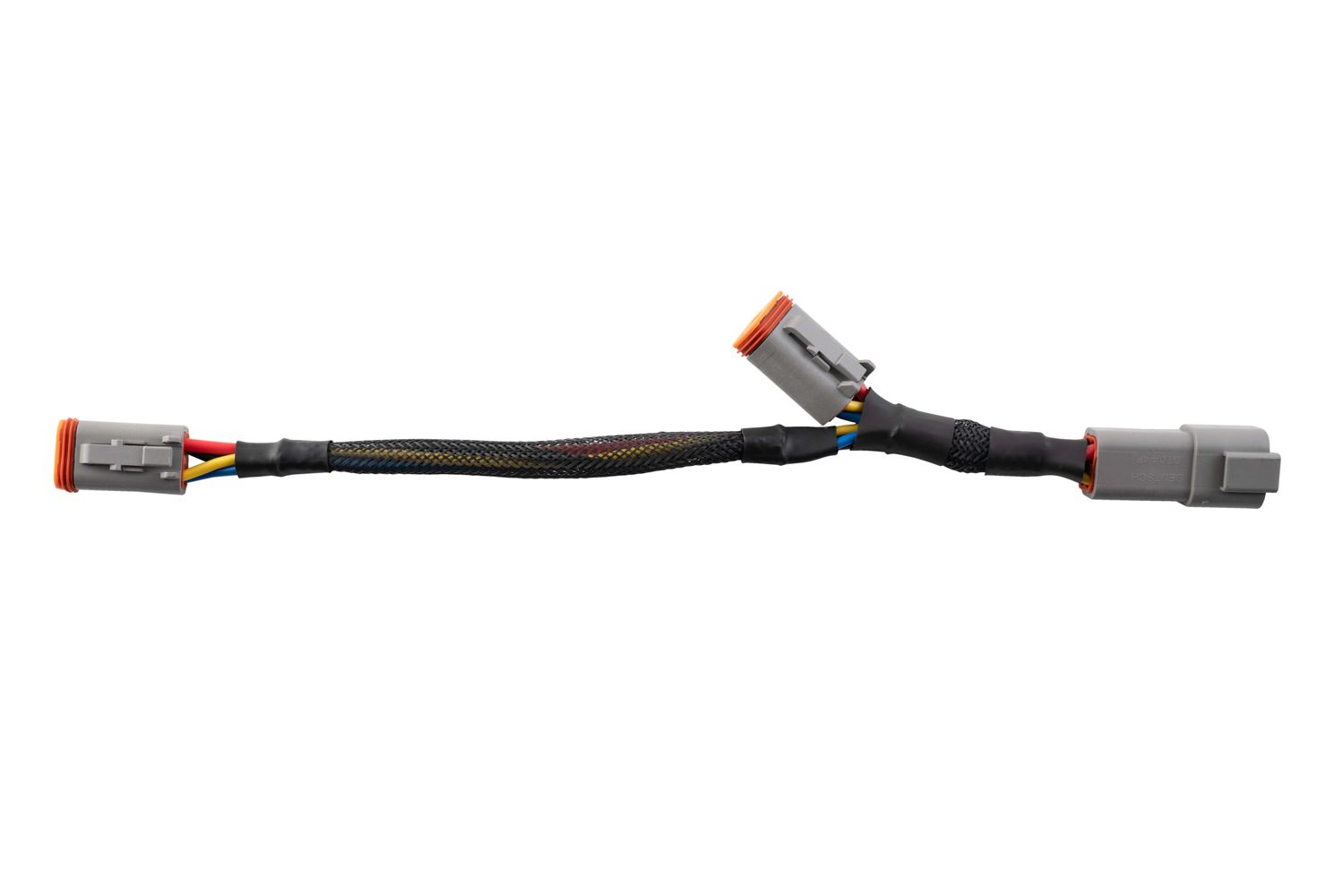

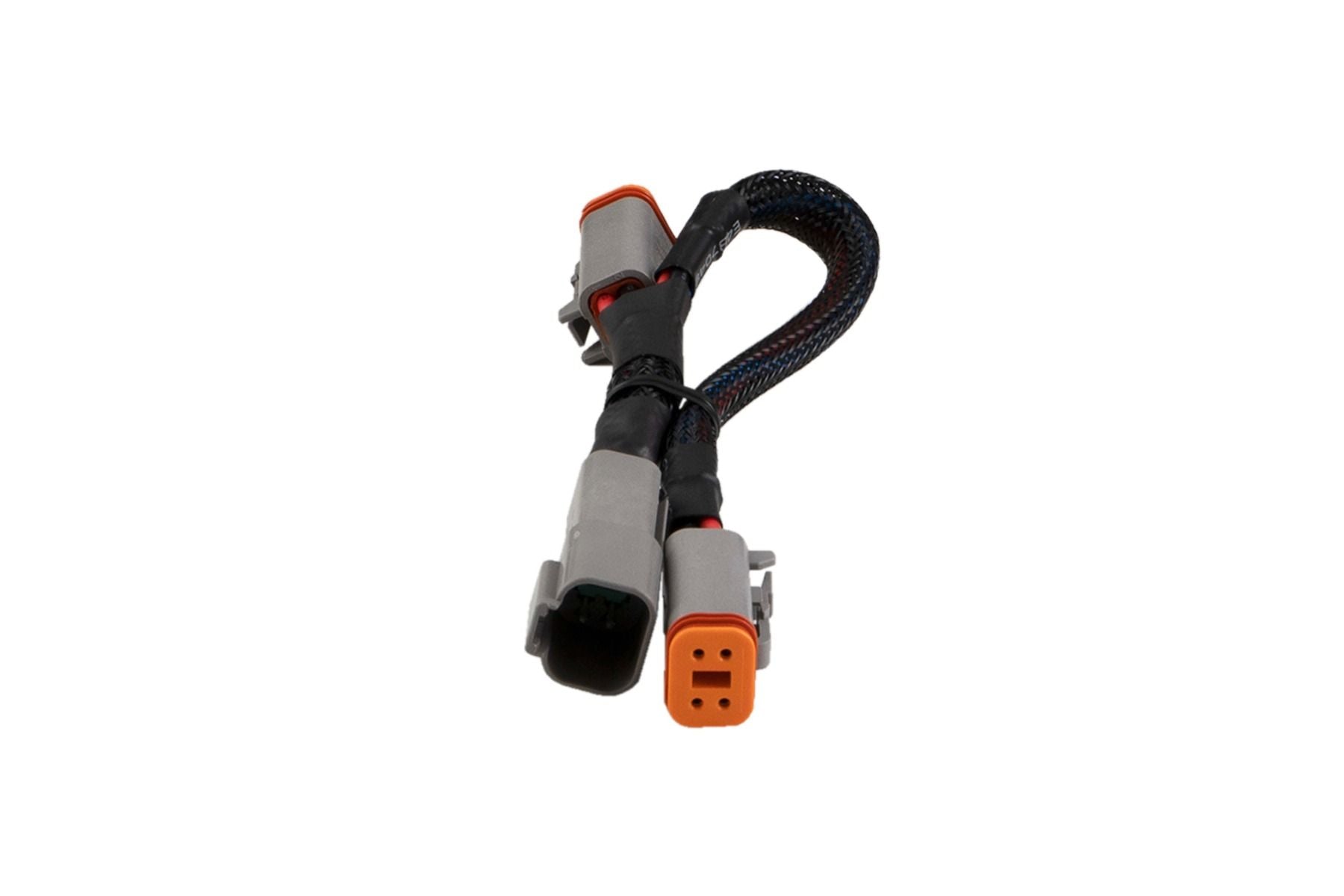

The Stage Series CrossLink SS5 Splitter Wire Harness is designed to power and connect additional SS5 LED pods within a CrossLink lightbar system. Built with high-quality wiring and OEM-style Deutsch connectors, this splitter allows for clean, plug-and-play expansion while maintaining reliable power delivery across your entire lightbar setup.
Note
-
Pod requirement: One (1) splitter wire is required for each additional SS5 pod
-

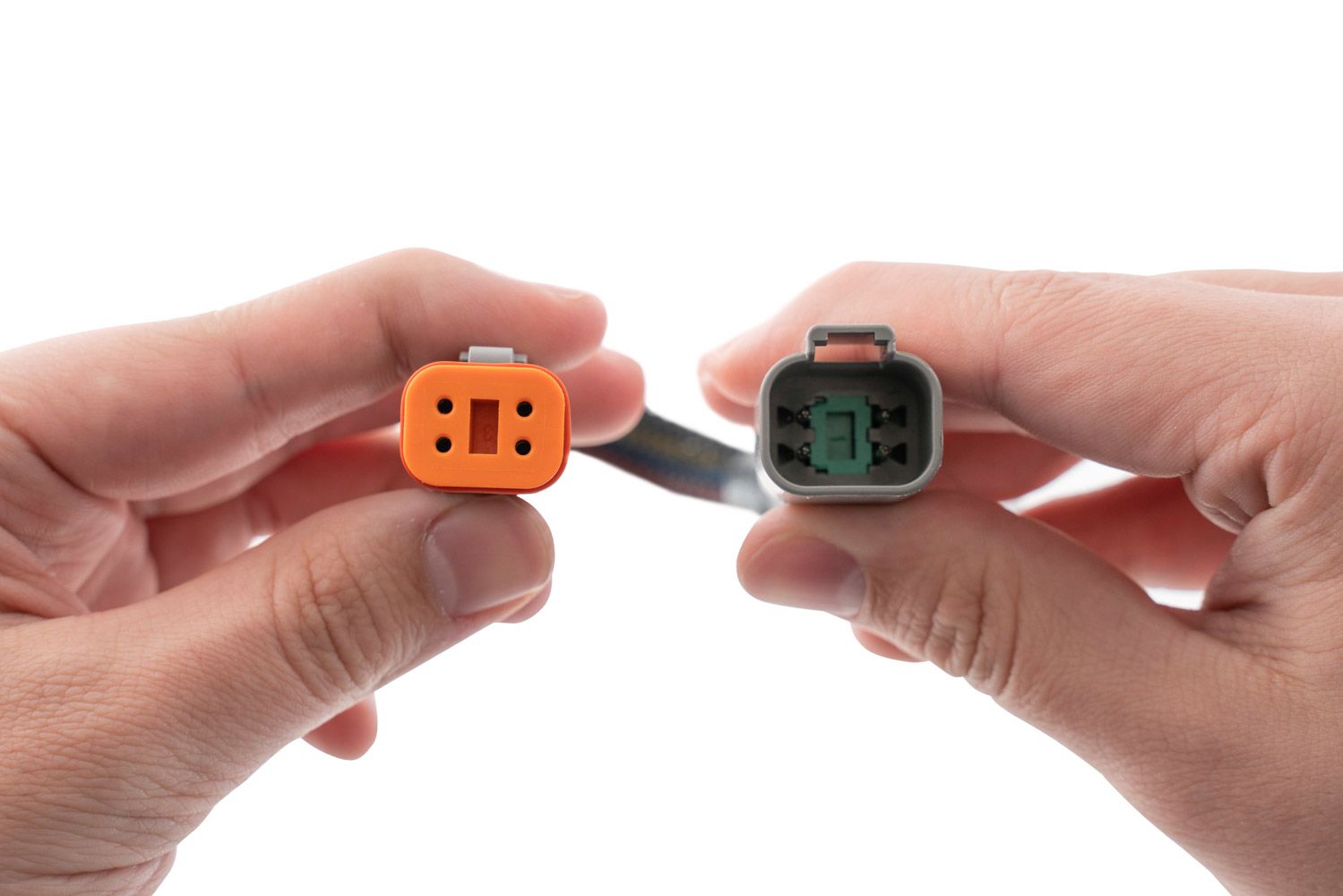

Connector type: Uses standard Deutsch DT 4-pin connectors
-
Compatibility: Designed specifically for Stage Series CrossLink Lightbars
-
Vehicle modification: No modification required
Features
-

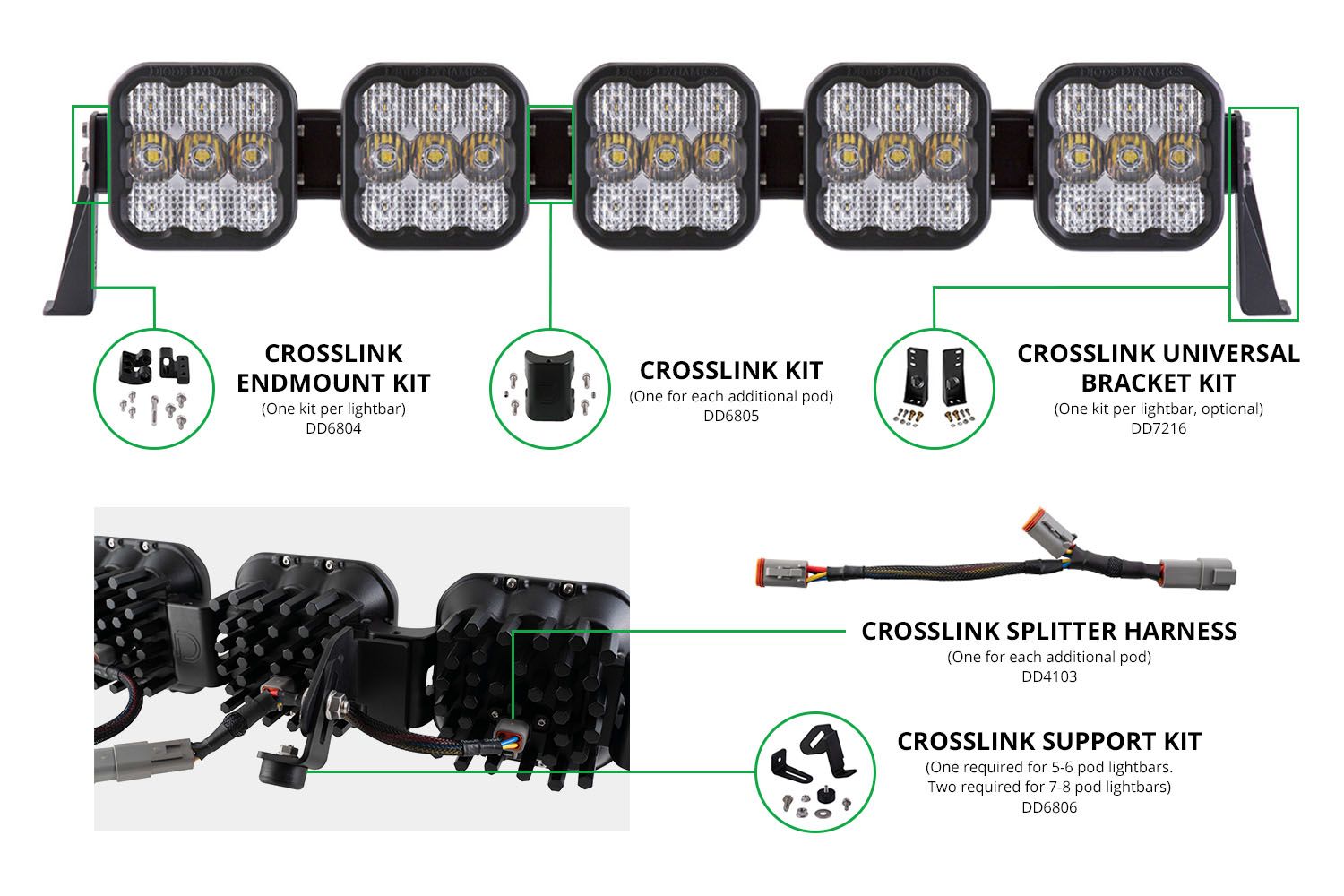

Pod expansion: Allows additional SS5 LED pods to be connected to a CrossLink lightbar
-
Deutsch connectors: Standard DT 4-pin connectors for secure, OEM-style connections
-
Plug-and-play design: Includes one female DT connector and two male DT connectors
-
Reliable power delivery: Built with 14 AWG wiring for consistent performance
-
Compact and lightweight: Minimal added weight to your lighting system
-
Made in USA: Engineered and assembled in the United States
Specifications
-
Operating voltage: 9–16V
-
Wire gauge: 14 AWG
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
Connector type: Deutsch DT 4-pin
-
Shipped weight: 0.2 lb
Package contents
-
Splitter harness: One (1) SS5 CrossLink splitter wire
Fitment
-
Light compatibility: Stage Series SS5 LED Pods
-
System compatibility: Stage Series CrossLink Lightbars
Warranty & installation
-
Warranty: 3-year limited warranty
-
Installation time: Approximately 5–10 minutes
-
Tools required: None
-
Modification required: None
