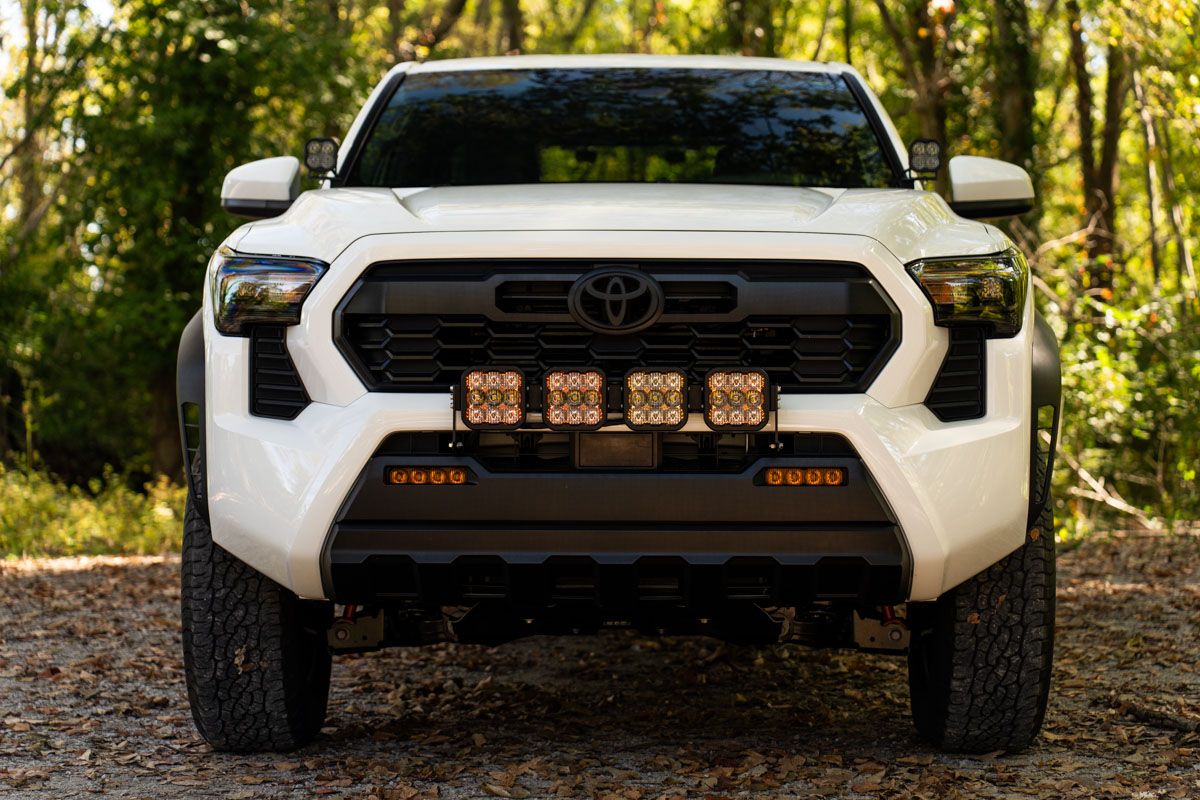

The Grille CrossLink Lightbar Kit for the Toyota Tacoma delivers unmatched intensity and customization by mounting four linked SS5 LED pods directly in front of the factory grille. Featuring custom CAD-designed brackets, patented TIR optics, and selectable backlighting, this bolt-on kit provides serious forward lighting with a clean, OEM-style installation.
Important note
-
Front camera: Vehicles equipped with a front camera may experience partial obstruction of the camera view.
-
Backlight color: Yellow lens kits are limited to an amber backlight only.
Features
-

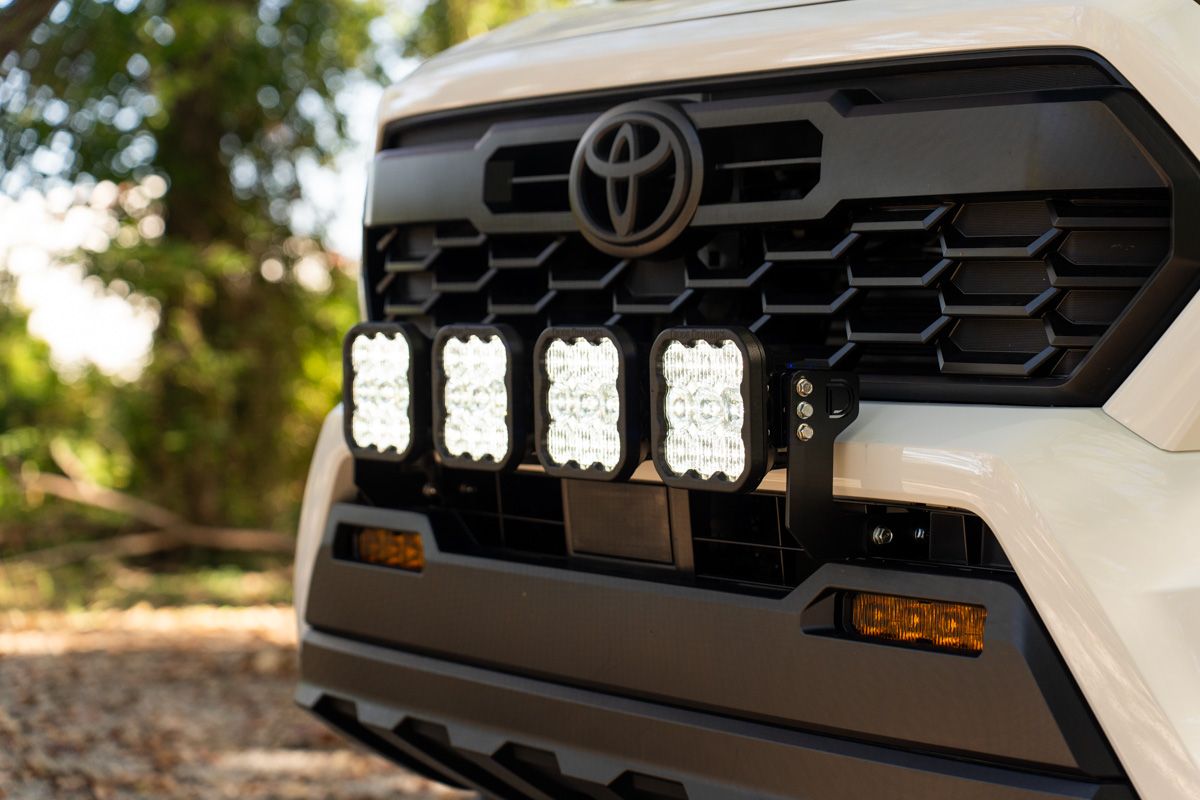

Four-pod CrossLink design: Mounts four SS5 LED pods linked together across the factory grille.
-

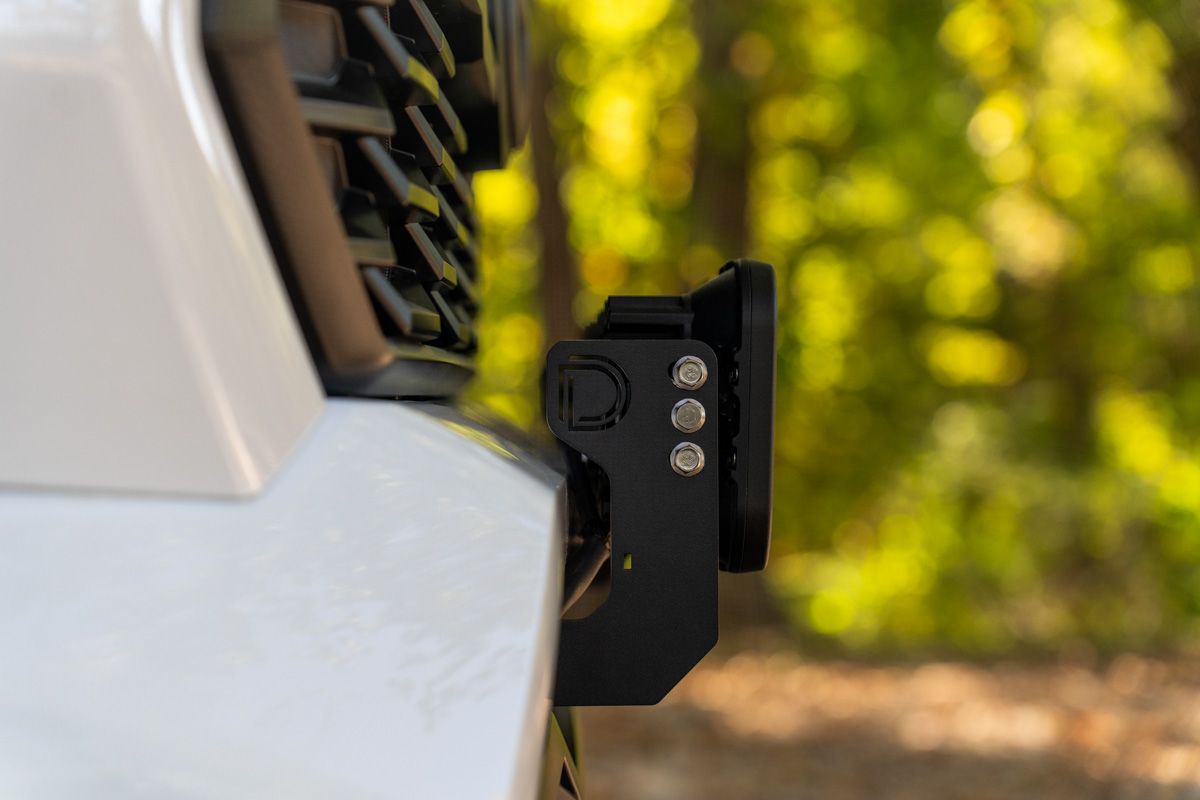

Bolt-on fitment: Application-specific brackets utilize factory mounting points with no cutting or drilling required.
-
Ultra-high intensity: Delivers the highest output intensity of any 5-inch LED pod in its class.
-
Patented TIR optics: Custom-engineered optics maximize efficiency and shape highly functional beam patterns.
-

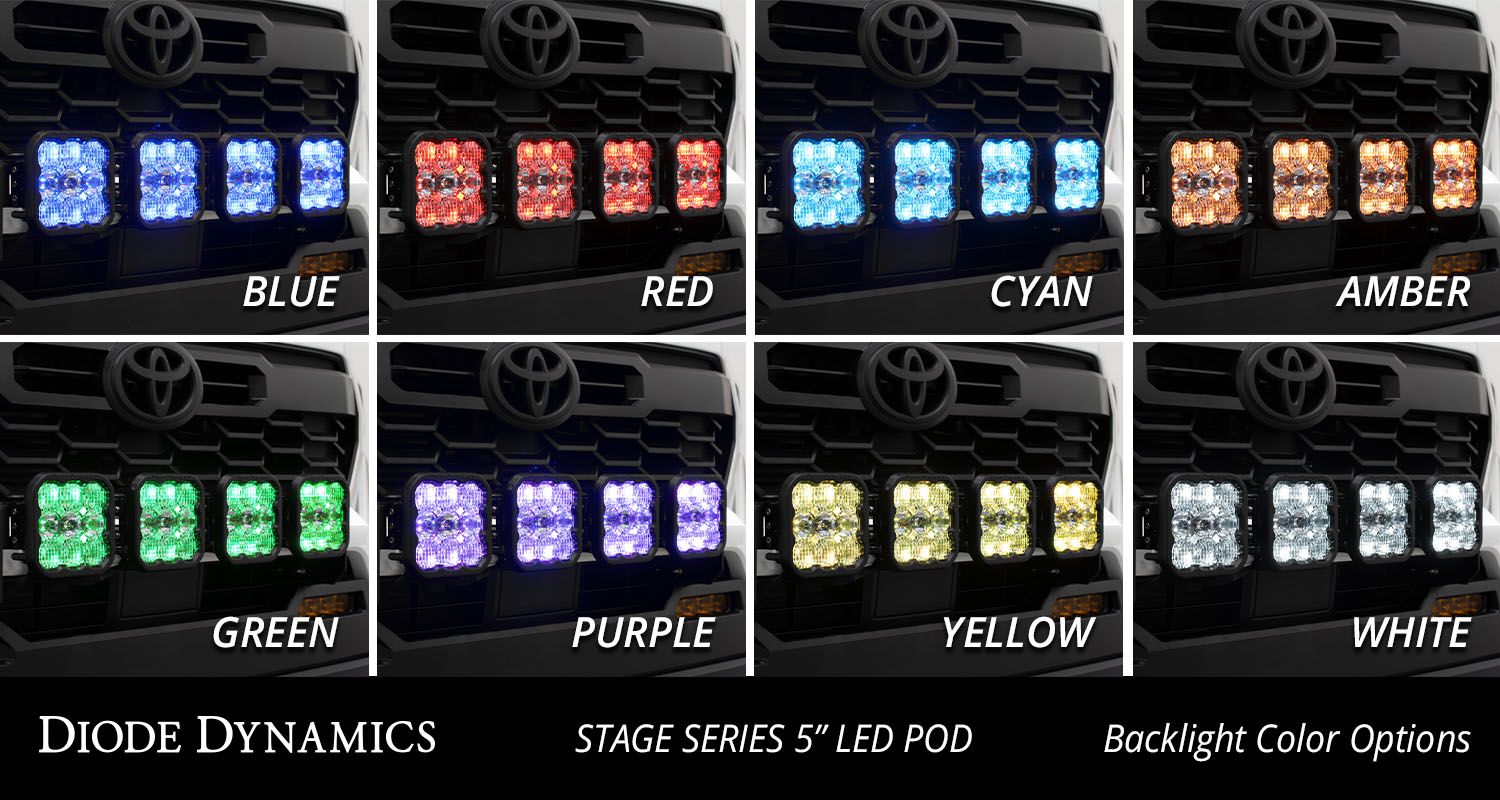

Selectable backlight: Eight selectable backlight colors on white kits for unique accent lighting.
-
CrossLink technology: CNC-machined aluminum links create a rigid, adjustable straight or curved lightbar.
-
Factory switch integration: Designed to work with the factory auxiliary switch bank using the included harness.
-
Combo beam pattern: Blends driving and flood optics for distance and wide-area illumination.
-
Color options: Available in cool white (6000K) or selective yellow (3000K).
-
Interchangeable lenses: Allows optic or color changes with available replacement lenses.
-
Multiple power levels: Offered in Sport and Pro configurations for tailored performance.
-
Snap-on cover compatibility: Optional covers available for protection and legal compliance.
-
Proven durability: Tested to SAE standards for vibration, moisture, corrosion, and extreme temperatures.
-
Assembled in USA: Built using globally sourced materials for long-term reliability.
Specifications
Per-pod output (Combo beam)
-
White Sport: 81,600 cd, 820 lux @10m, 3,800 lm measured, 4,800 lm raw
-
White Pro: 75,700 cd, 750 lux @10m, 9,600 lm measured, 9,700 lm raw
-
Yellow Sport: 71,200 cd, 820 lux @10m, 3,700 lm measured, 4,800 lm raw
-
Yellow Pro: 58,500 cd, 750 lux @10m, 7,900 lm measured, 8,900 lm raw
Electrical and construction
-
Main beam power: Sport – 40W, Pro – 90W
-
Backlight power: White – 3.17W, Yellow – 3.07W
-
Main beam current: Sport White – 2.75A, Sport Yellow – 2.8A, Pro – 6A @ 12.8V
-
Backlight current: White – 0.25A, Yellow – 0.24A @ 12.8V
-
Color temperature: 3000K, 6000K
-
Beam angle: Combo (Driving and Flood)
-
Operating voltage: 9–16V
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Luxeon Z ES, Cree XP-L HI
-
Connector: Deutsch DT input
-
Driver features: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high pressure
-
Product weight: 18 lb
-
Shipped weight: 20.5 lb
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)
Included in the box
-
Grille brackets: Four (4) application-specific heavy-duty steel brackets
-
LED pods: Four (4) SS5 LED pods
-
CrossLinks: Three (3) CrossLinks with hardware
-
End mount: One (1) CrossLink end mount kit
-
Pod harness: One (1) DT 4-pod connecting harness
-
Main harness: One (1) heavy-duty single-output harness
-
Documentation: Installation guide
Additional details
-
Quantity: One (1) kit
-
Installation time: 3–4 hours
-
Tools required: Basic toolset
-
Modification: Minor modification
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
