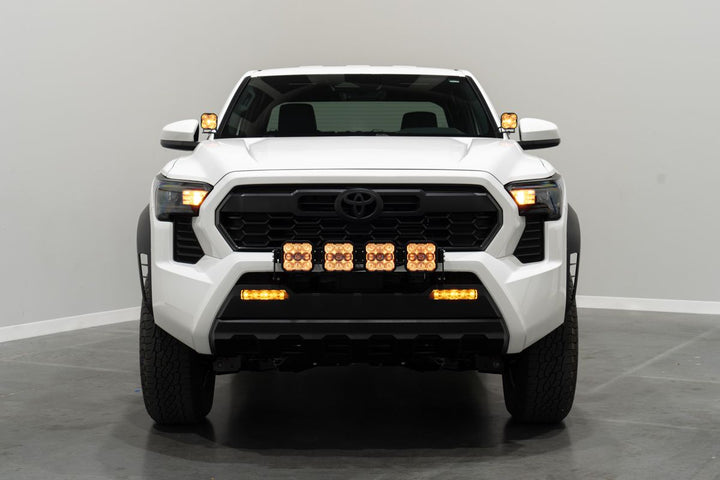

The Grille CrossLink Lightbar Kit for the 2024+ Toyota Tacoma delivers extreme forward lighting by mounting four linked SS5 LED pods cleanly in front of the factory grille. With CAD-designed, application-specific brackets and patented TIR optics, this bolt-on kit offers unmatched intensity, customizable backlighting, and a clean OEM-style install using factory mounting points.
Important note
-
Front camera: Vehicles equipped with a front-facing camera may experience partial obstruction of the camera view.
-
Backlight limitation: Yellow lens kits are only available with an amber backlight color.
Features
-

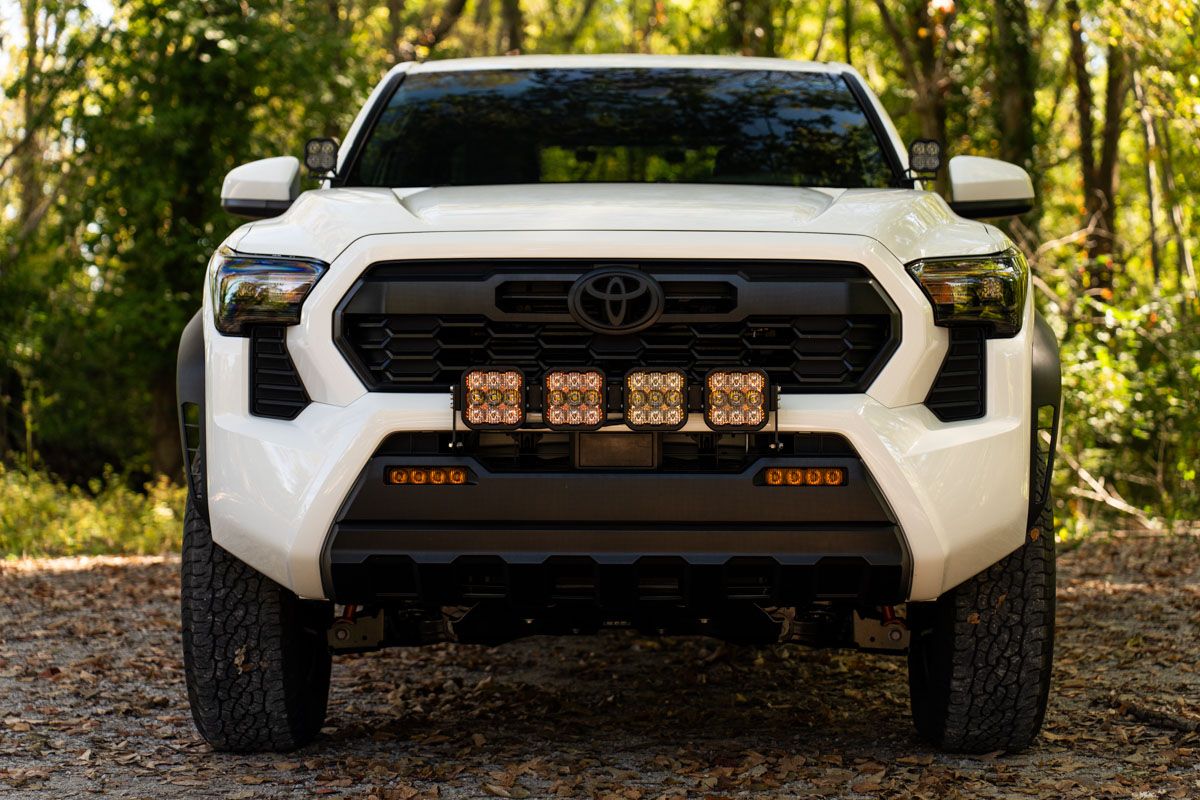

Four-pod CrossLink setup: Mounts four SS5 LED pods across the factory grille for a unified lightbar look.
-
Bolt-on fitment: CAD-designed brackets utilize factory mounting points with no cutting or drilling required.
-
Ultra-high intensity: Delivers industry-leading output from 5-inch LED pods.
-
Patented TIR optics: Advanced optical design maximizes efficiency and produces highly functional beam patterns.
-

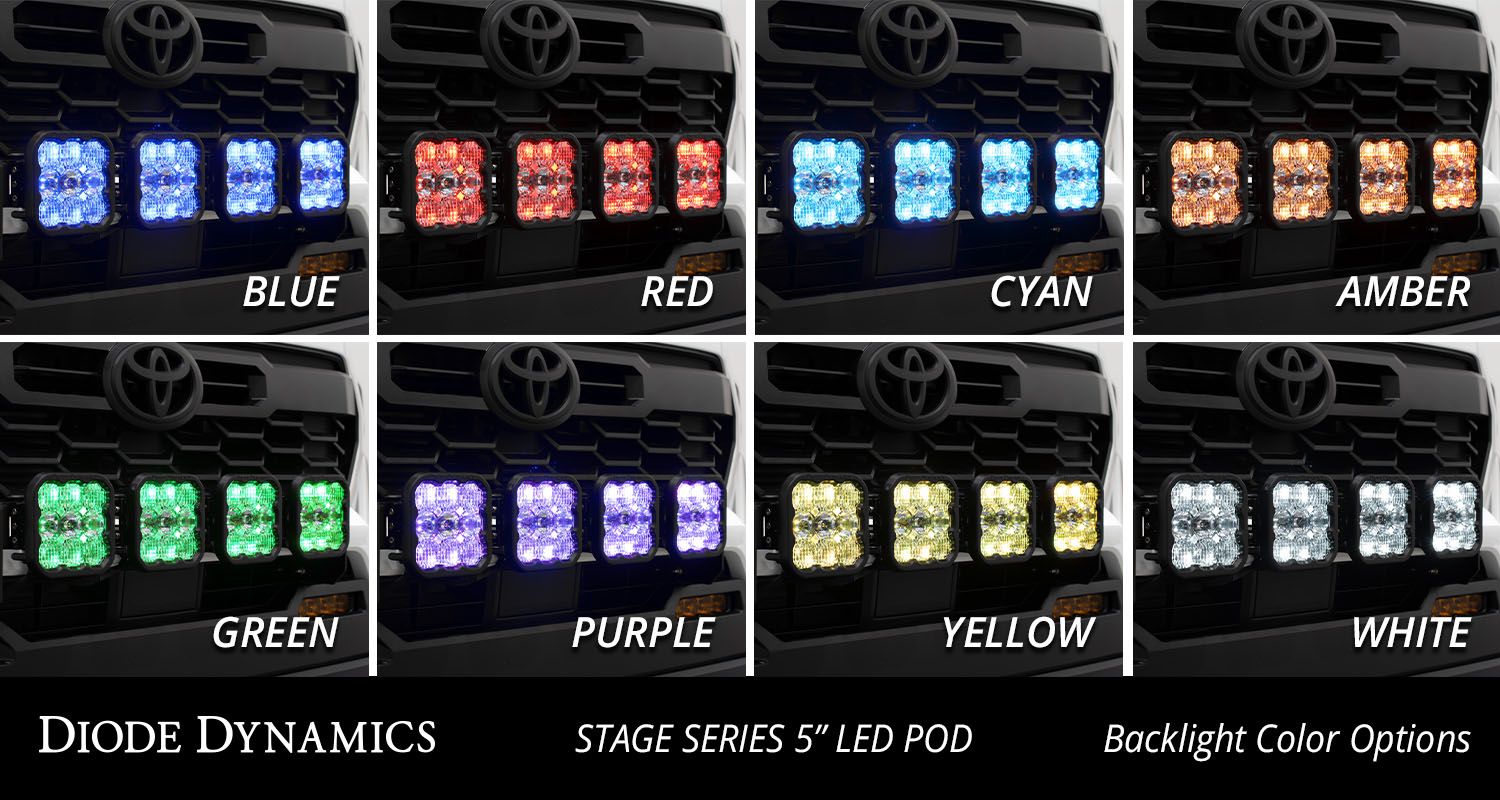

Selectable backlight: White kits feature eight selectable backlight colors for unique accent lighting.
-

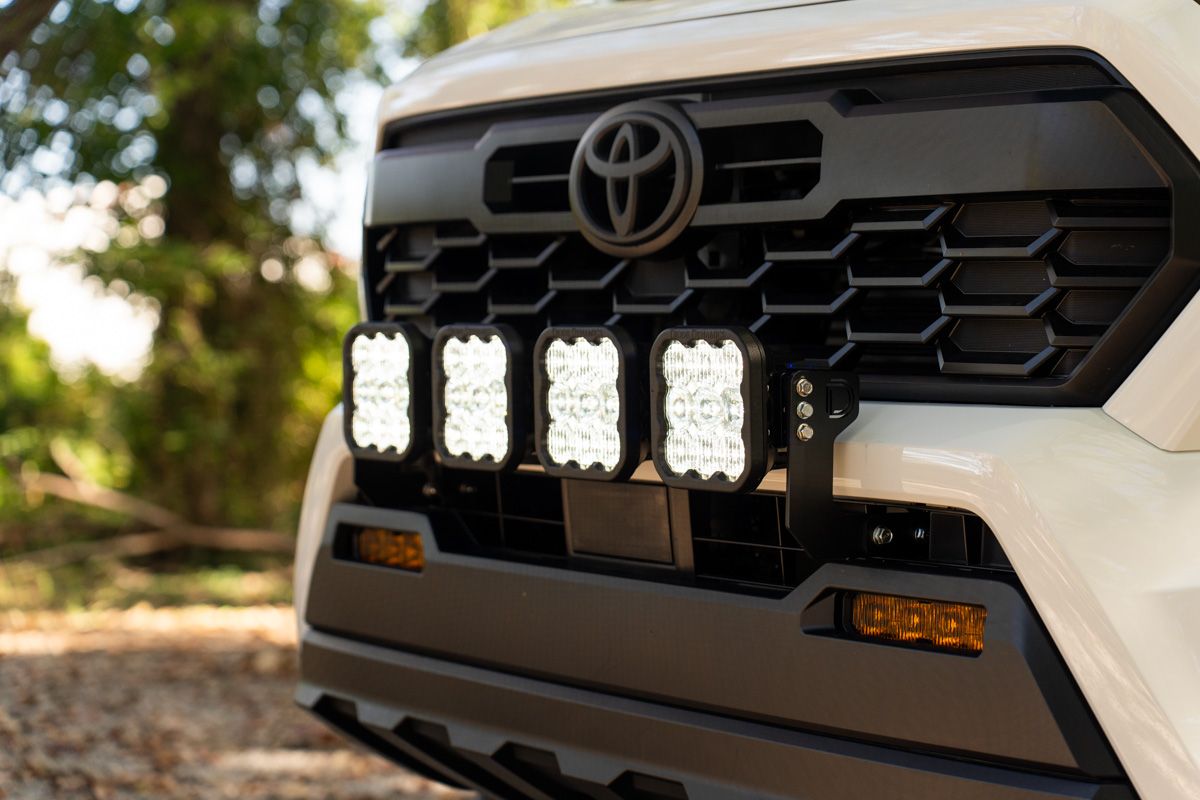

CrossLink technology: CNC-machined aluminum links create a rigid, adjustable straight or curved configuration.
-
Factory aux integration: Designed to work with the factory auxiliary switch bank using the included harness.
-
Combo beam pattern: Blends driving and flood optics for distance and wide-area illumination.
-
Color options: Available in cool white (6000K) or selective yellow (3000K).
-
Interchangeable lenses: Optional replacement lenses allow changes to beam pattern or color.
-
Power level choices: Offered in Sport and Pro configurations.
-
Snap-on cover compatibility: Optional covers available for protection and compliance where required.
-
Proven reliability: Tested to SAE standards for vibration, moisture, corrosion, and extreme temperatures.
-
Assembled in USA: Built using globally sourced materials.
Specifications
Per-pod output (Combo beam)
-
White Sport: 81,600 cd, 820 lux @10m, 3,800 lm measured, 4,800 lm raw
-
White Pro: 75,700 cd, 750 lux @10m, 9,600 lm measured, 9,700 lm raw
-
Yellow Sport: 71,200 cd, 820 lux @10m, 3,700 lm measured, 4,800 lm raw
-
Yellow Pro: 58,500 cd, 750 lux @10m, 7,900 lm measured, 8,900 lm raw
Electrical and construction
-
Main beam power: Sport – 40W, Pro – 90W
-
Backlight power: White – 3.17W, Yellow – 3.07W
-
Main beam current: Sport White – 2.75A, Sport Yellow – 2.8A, Pro – 6A @ 12.8V
-
Backlight current: White – 0.25A, Yellow – 0.24A @ 12.8V
-
Color temperature: 3000K, 6000K
-
Beam angle: Combo (Driving and Flood)
-
Operating voltage: 9–16V
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Luxeon Z ES, Cree XP-L HI
-
Connector: Deutsch DT input
-
Driver features: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high pressure
-
Product weight: 18 lb
-
Shipped weight: 20.5 lb
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)
Included in the box
-

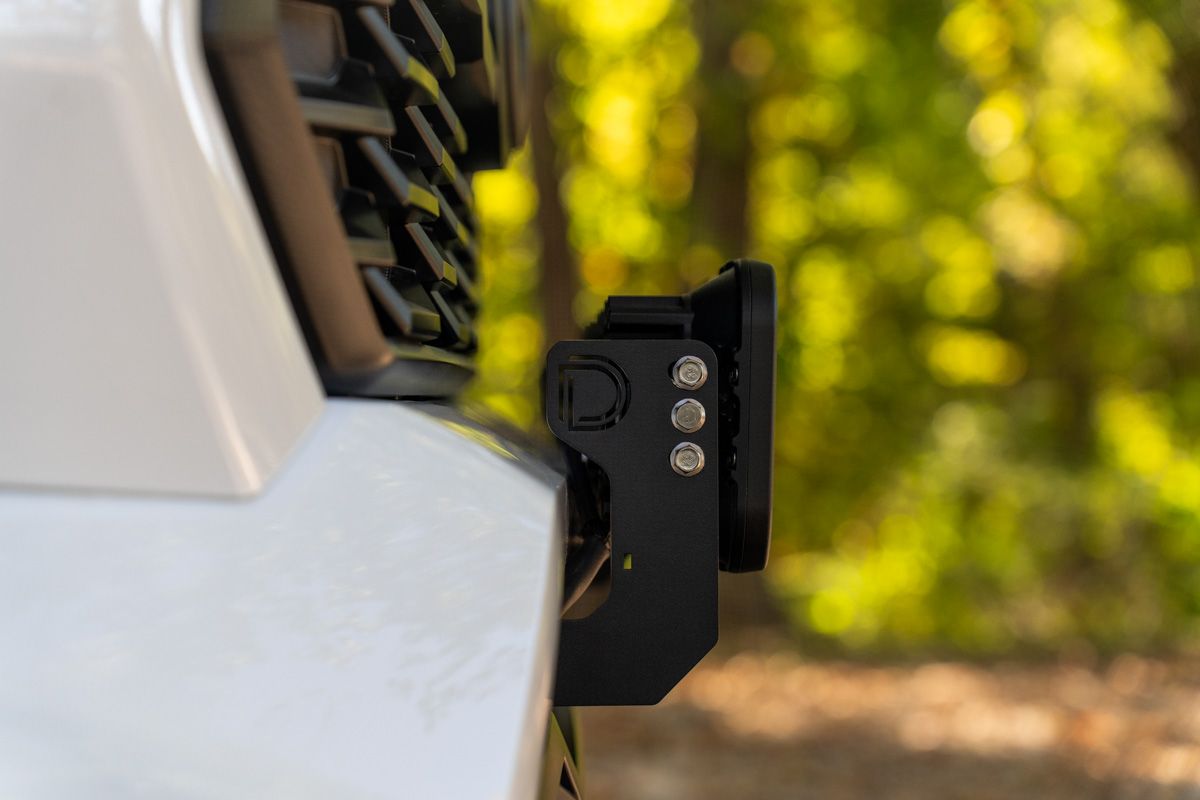

Grille brackets: Four (4) application-specific heavy-duty steel brackets
-
LED pods: Four (4) SS5 LED pods
-
CrossLinks: Three (3) CrossLinks with hardware
-
End mount: One (1) CrossLink endmount kit
-
Pod harness: One (1) DT 4-pod connecting harness
-
Main harness: One (1) heavy-duty single-output harness
-
Documentation: Installation guide
Additional details
-
Quantity: One (1) kit
-
Installation time: 3–4 hours
-
Tools required: Basic toolset
-
Modification: Minor modification
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
