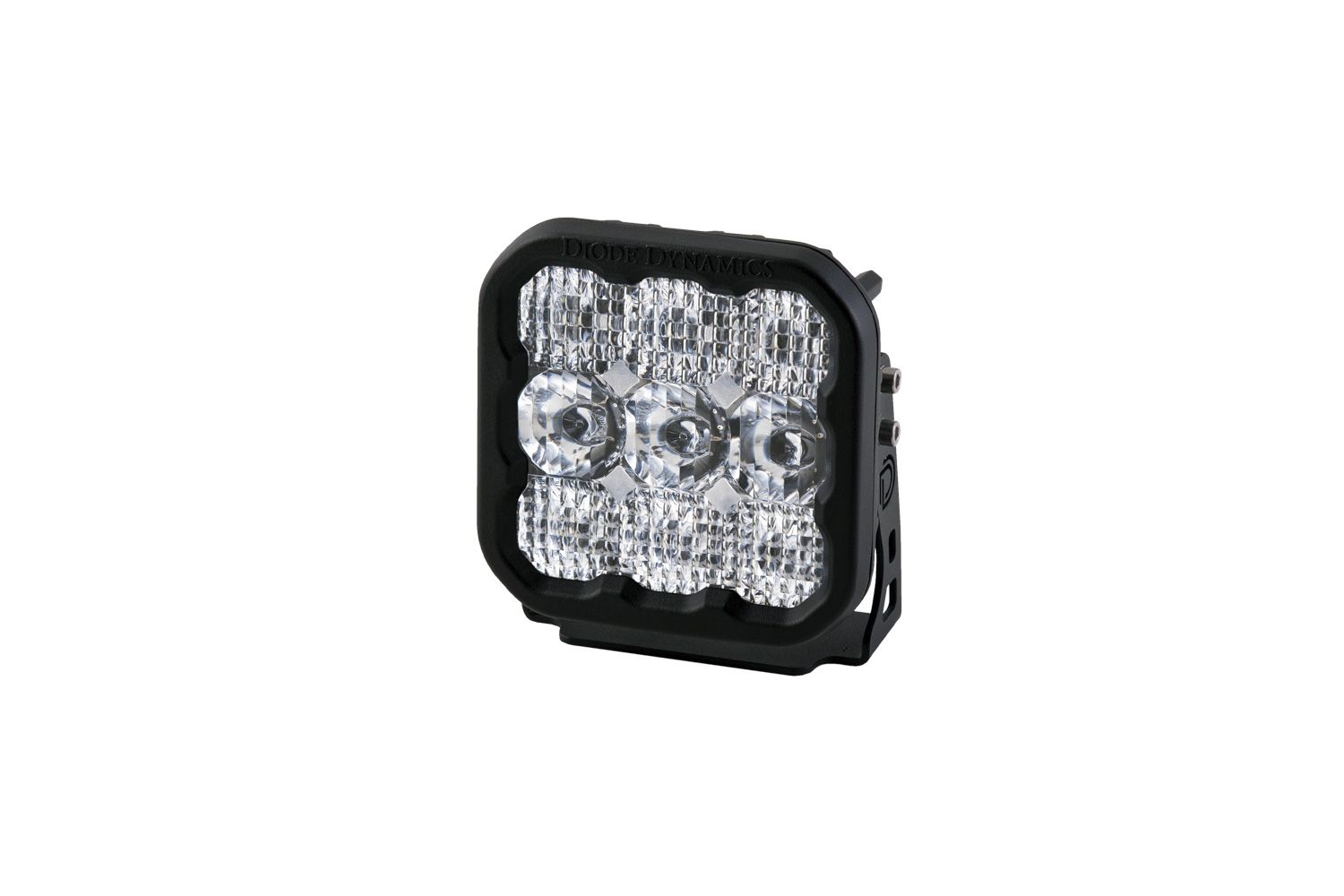

The Stage Series SS5 5” LED Pod sets the benchmark for compact auxiliary lighting, delivering industry-leading intensity through patented TIR (total internal reflection) optics. Designed for maximum efficiency and focus, the SS5 throws usable light farther with less glare than traditional reflector pods. Built tough, fully modular, and assembled in the USA, this pod is ready for everything from high-speed desert runs to slow technical trails.
Important note
-
Backlight: Selectable with 8 color options (no controller required)
-
Sold as: Single pod (1)
-
Power options: Sport (40W) or Pro (90W)
-
Street use: Extremely bright – intended for off-road/auxiliary use
-
Linkable: Can be linked into a custom light bar up to 50" wide
Features
-
TIR optics: Patented total internal reflection optics maximize intensity and reduce glare
-

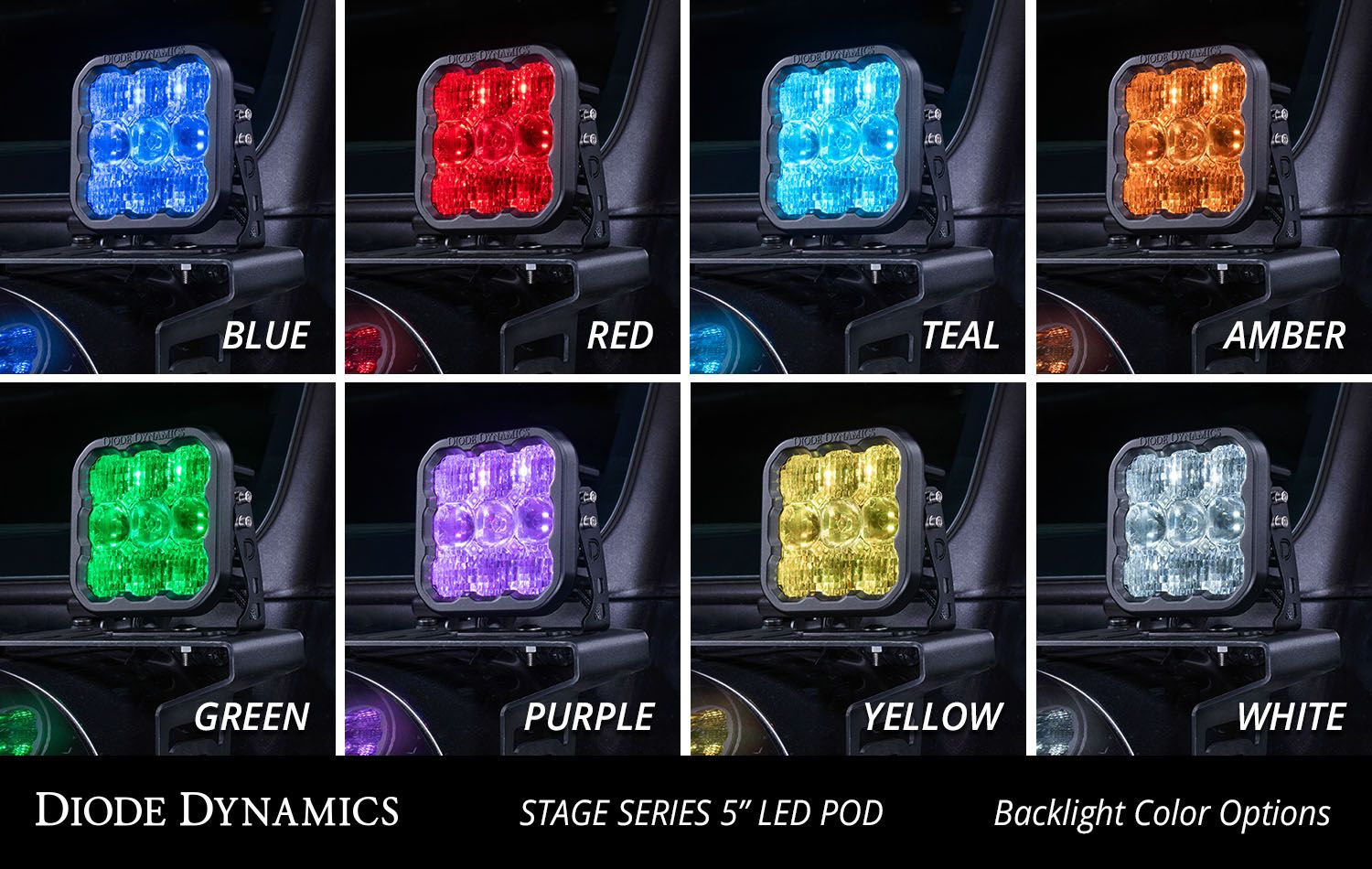

Selectable backlight: Eight color options, easily changed by cycling power
-
CrossLink technology: Link up to 8 pods using rigid CNC aluminum links
-
Beam pattern options: Driving, flood, spot, or combo
-
Heavy-duty construction: Torture-tested aluminum housing
-
Waterproof rating: IP69K for extreme water and pressure resistance
-
USA assembled: Engineered and assembled in the United States

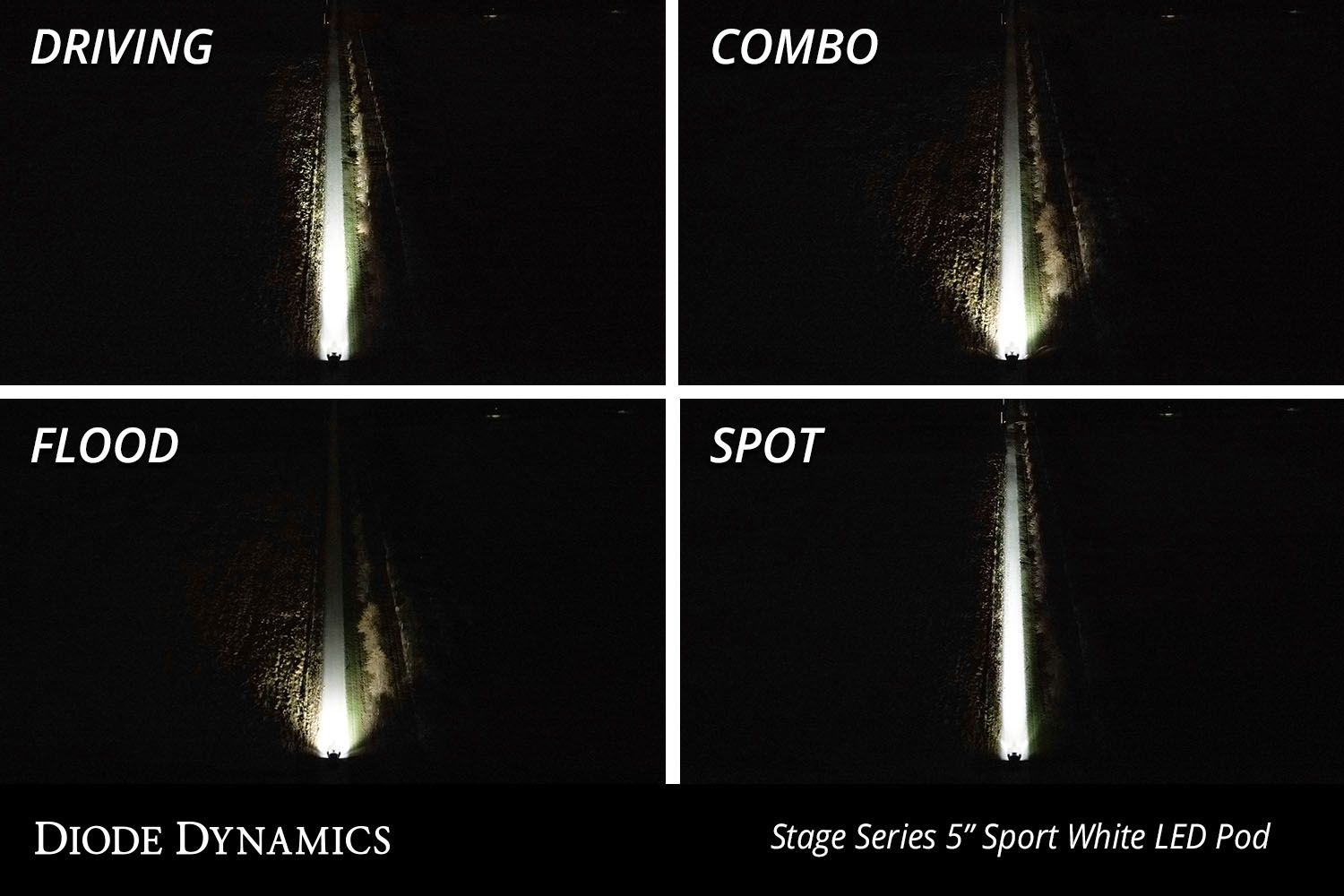

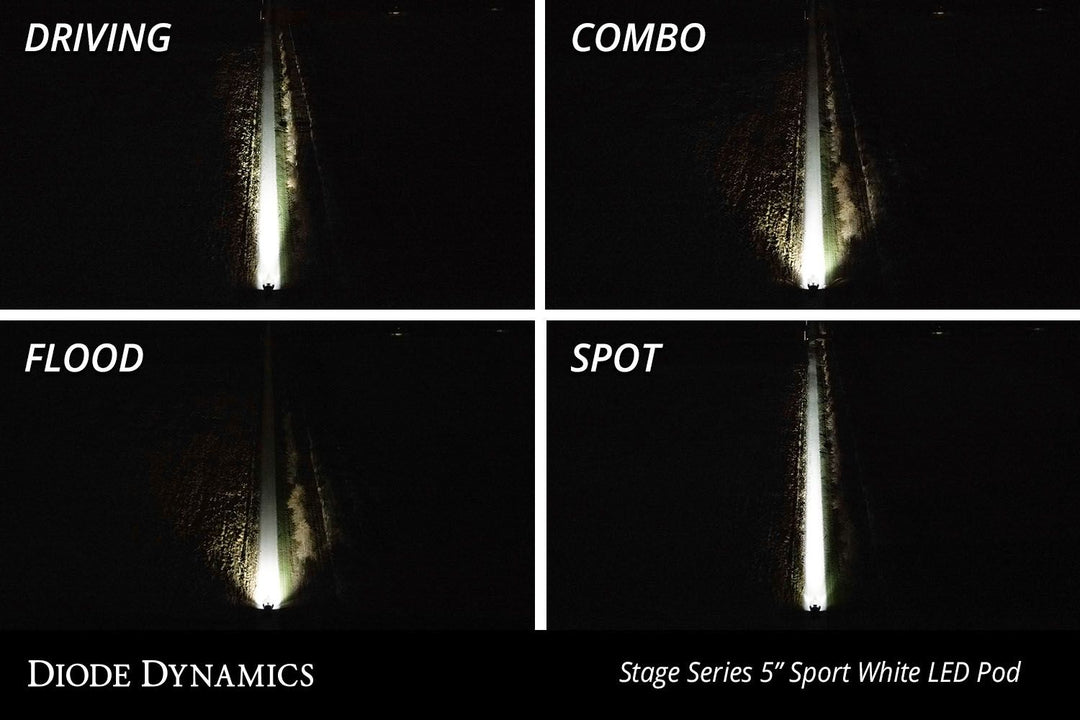

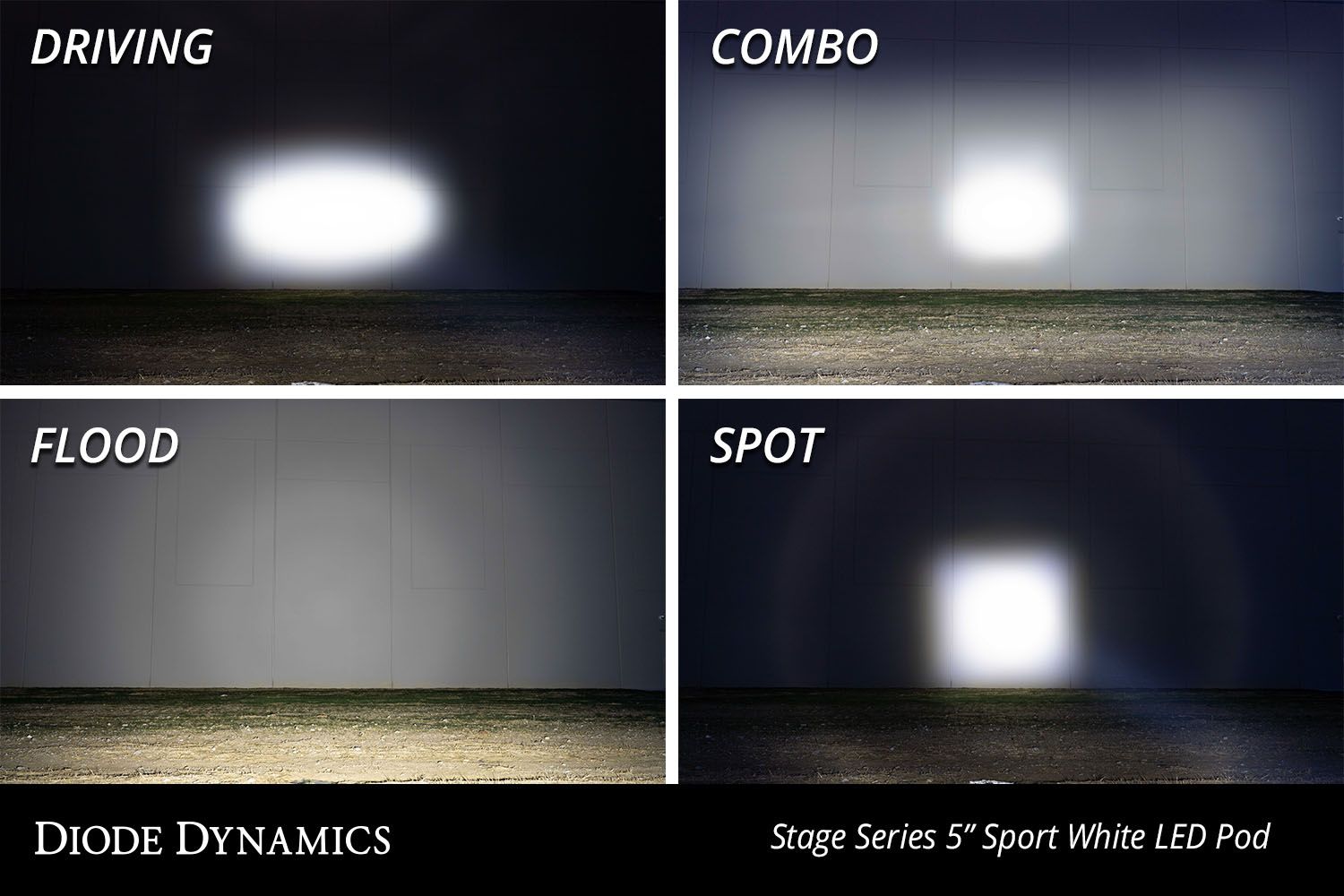

Beam patterns
-

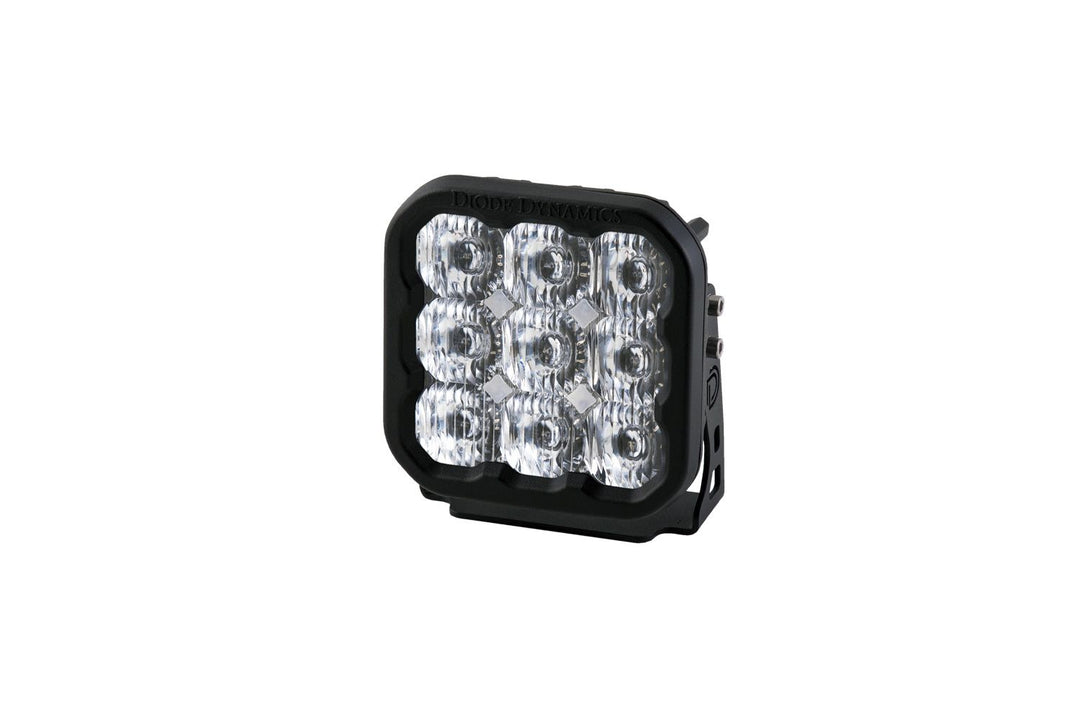

Driving: 30° x 20° spread for controlled high-speed illumination
-

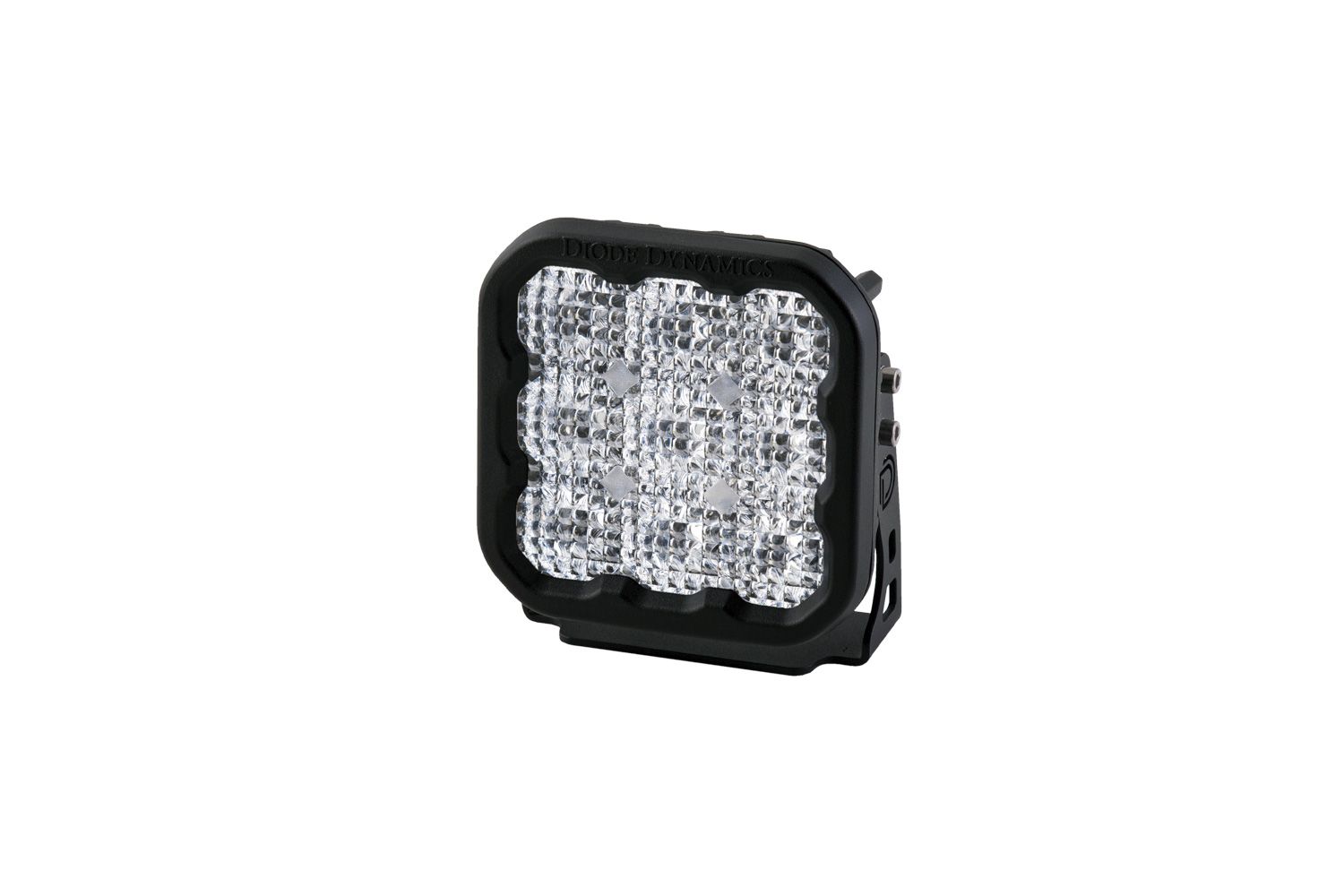

Flood: 70° x 55° wide, even lighting for low-speed trails and work zones
-

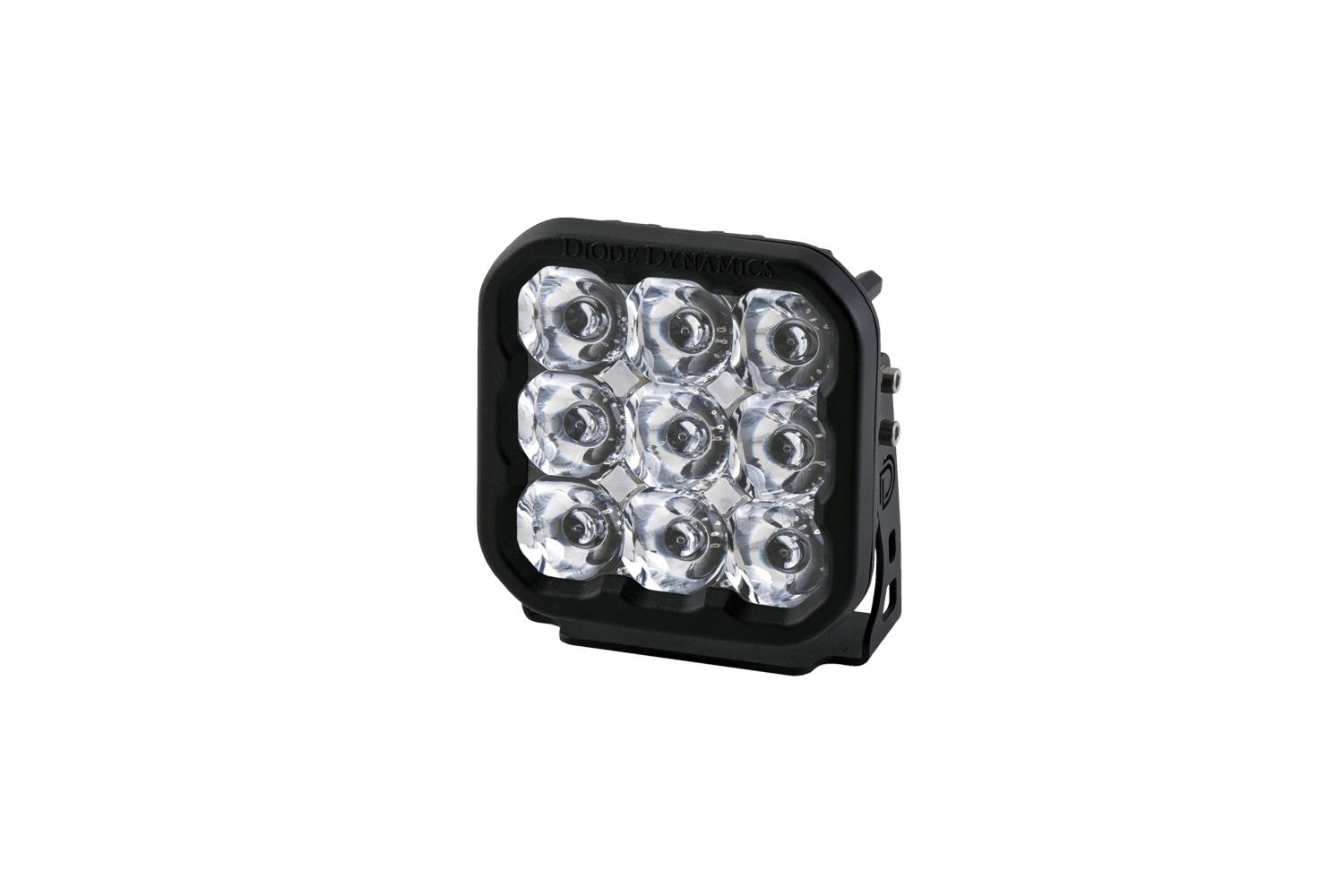

Spot: Ultra-focused long-range beam capable of nearly 1-mile reach
-

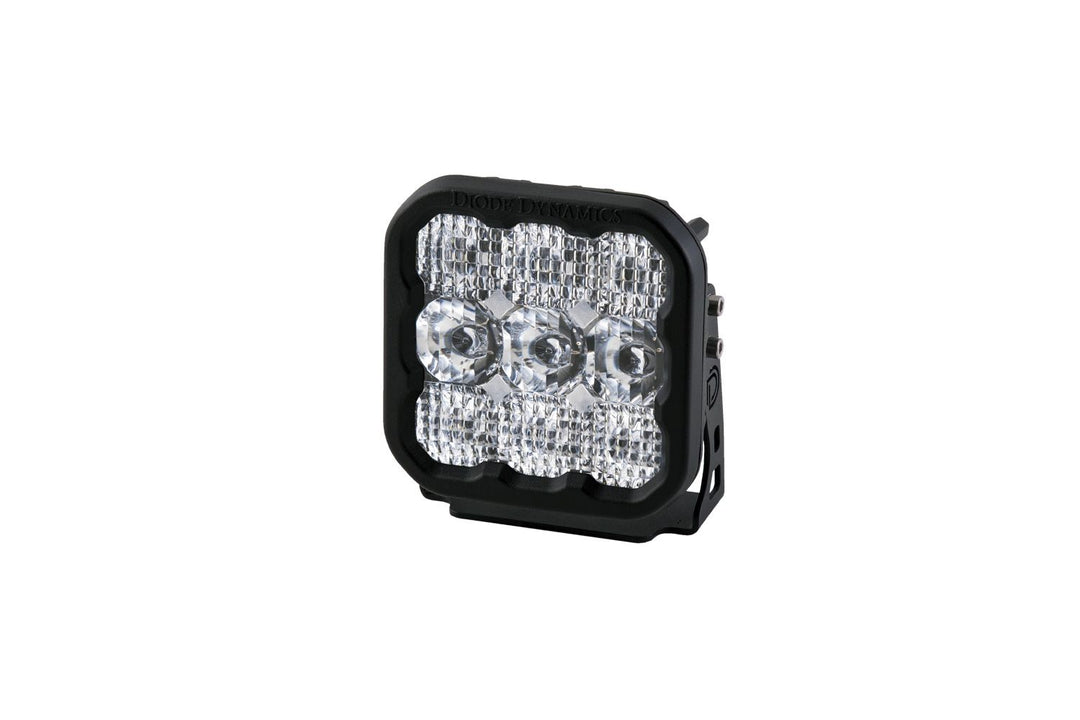

Combo: Balanced mix of distance and spread for all-around use
Specifications (per pod)
Color temperature: 6000K cool white
Backlight power: 3.17W
Operating voltage: 9–16V
Operating temperature: -40°F to 185°F
Connector: Deutsch DT
Materials: Polycarbonate lens, aluminum housing, rubber gasket
Cooling: Passive pin-fin heatsink
Compliance: SAE J575

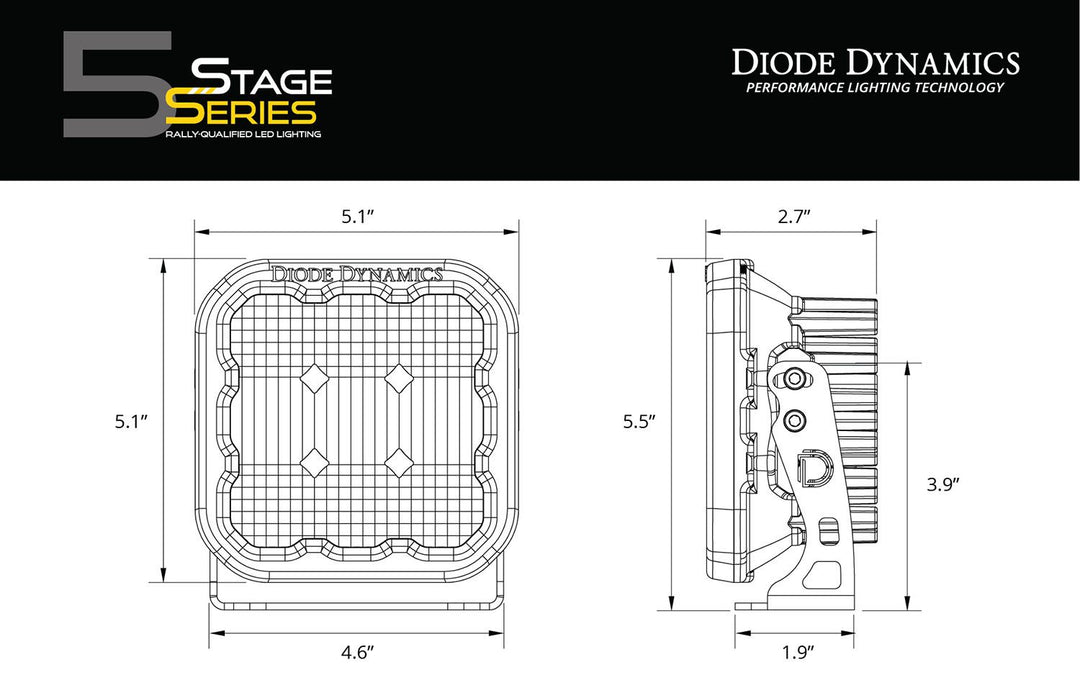

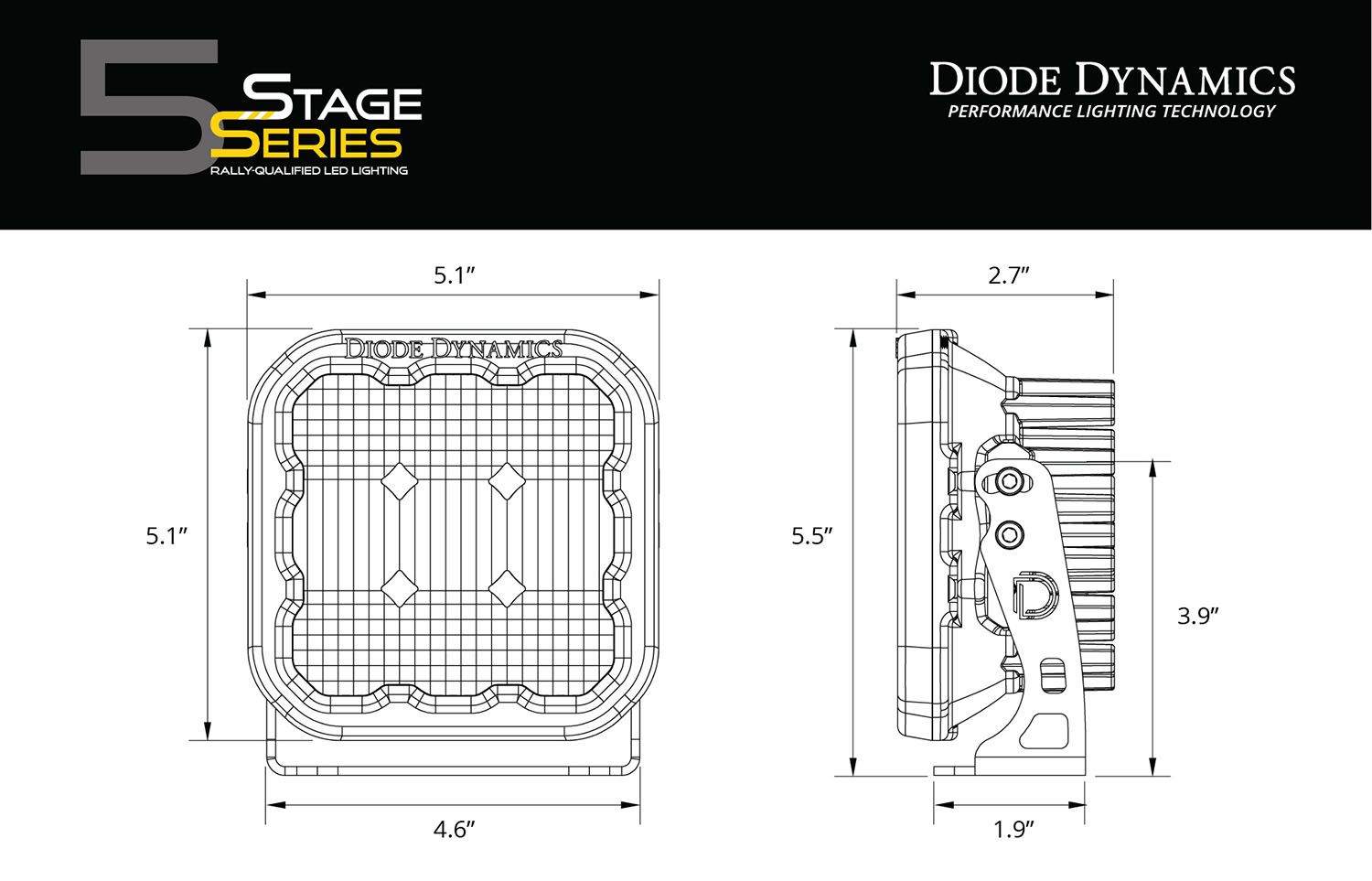

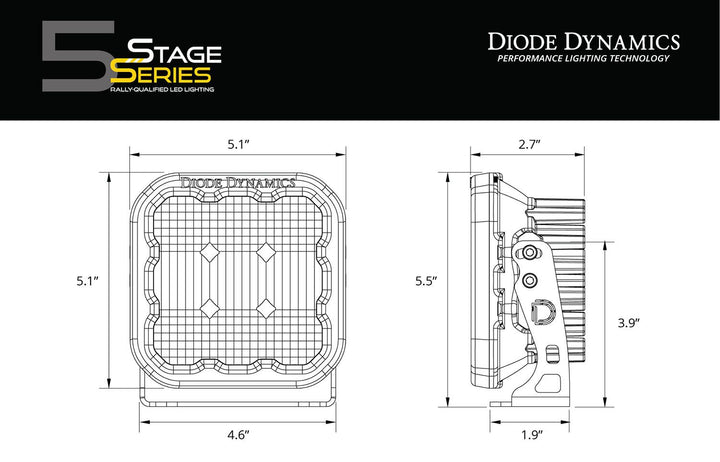

Dimensions: 5.1" x 5.1" x 2.7"

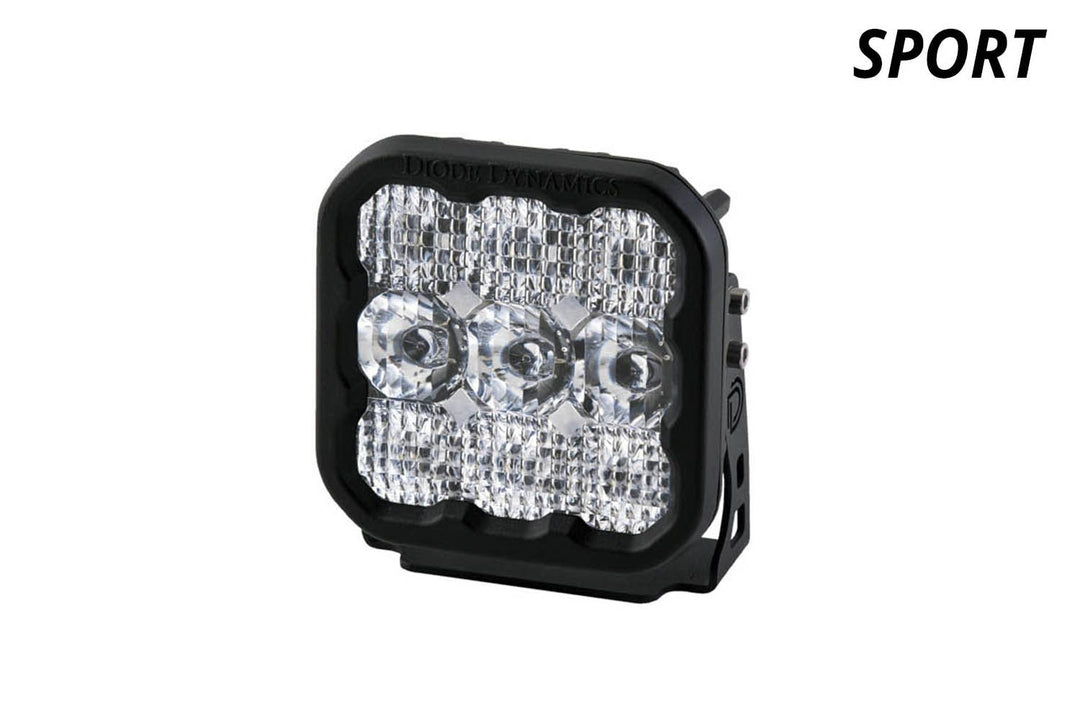

Sport model
-
Power: 40W (main beam)
-
Current draw: 2.75A @ 12.8V
-
LED emitter: Luxeon Z ES
-
Max intensity: Up to 406,100 candela

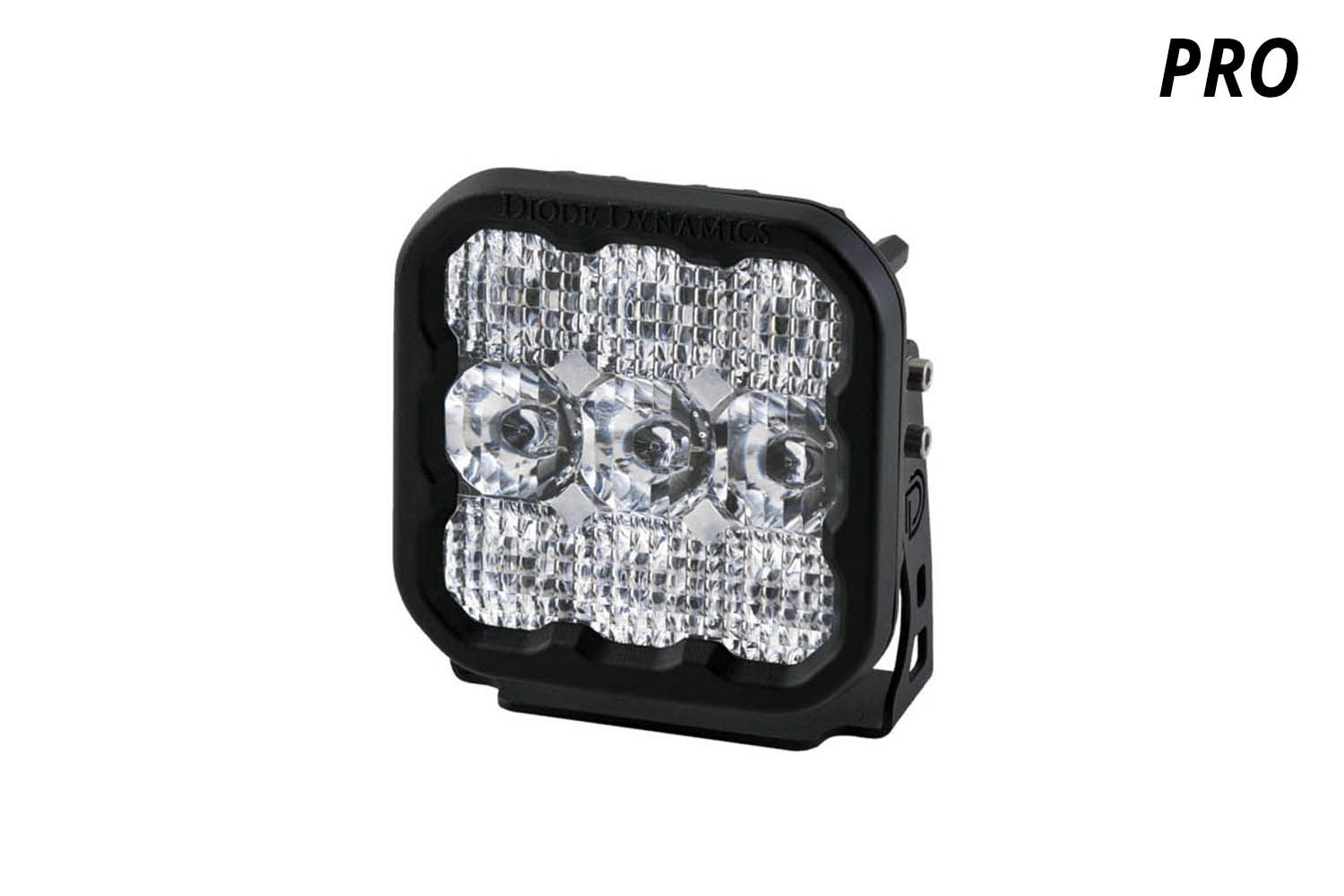

Pro model
-
Power: 90W (main beam)
-
Current draw: 6A @ 12.8V
-
LED emitter: Cree XP-L HI
-
Higher output: Increased lumens with wider beam dispersion

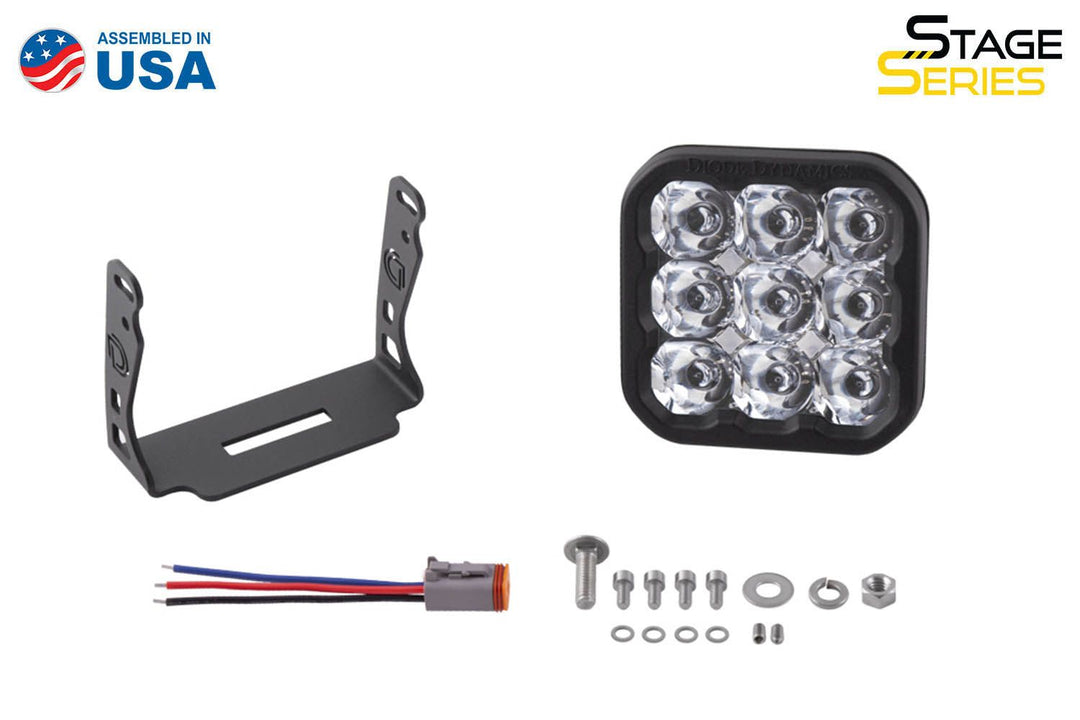

In the box
-

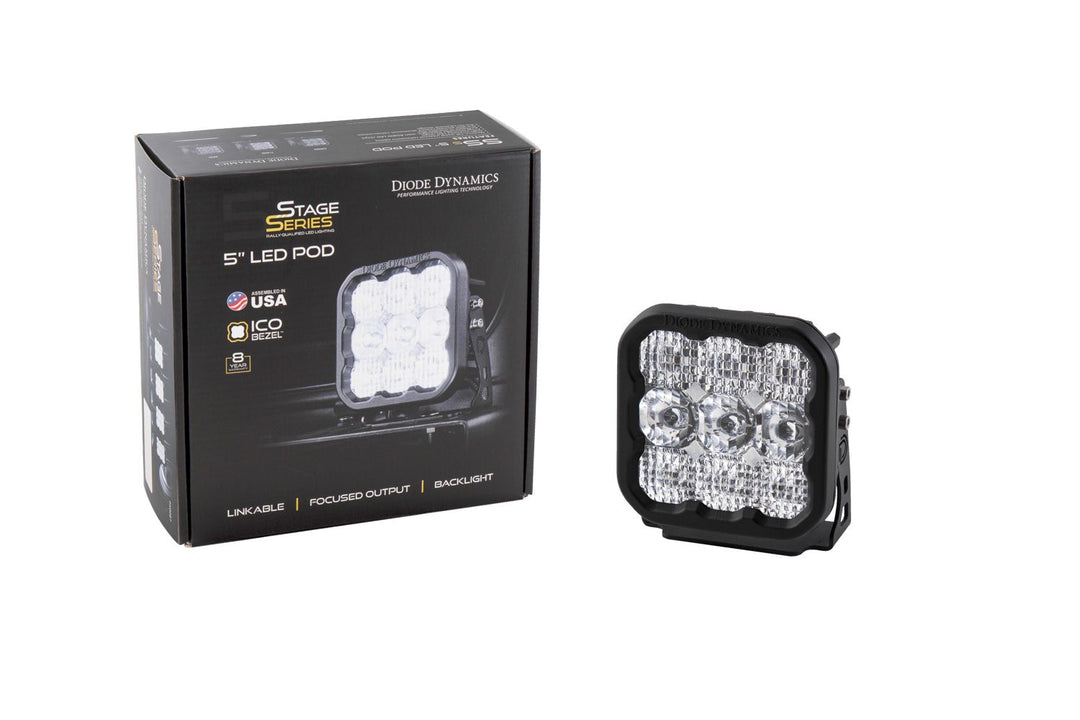

Quantity: One (1) SS5 5” LED pod
-
Wiring: One (1) Deutsch-style wire pigtail
-
Mounting: One (1) mounting bracket with hardware
Installation
-
Install time: 30–60 minutes
-
Tools required: Basic hand tools
-
Wiring: Compatible with optional Diode Dynamics wiring harness
Warranty & returns
-
Warranty: Lifetime
-
Returns: 30-day returns with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
