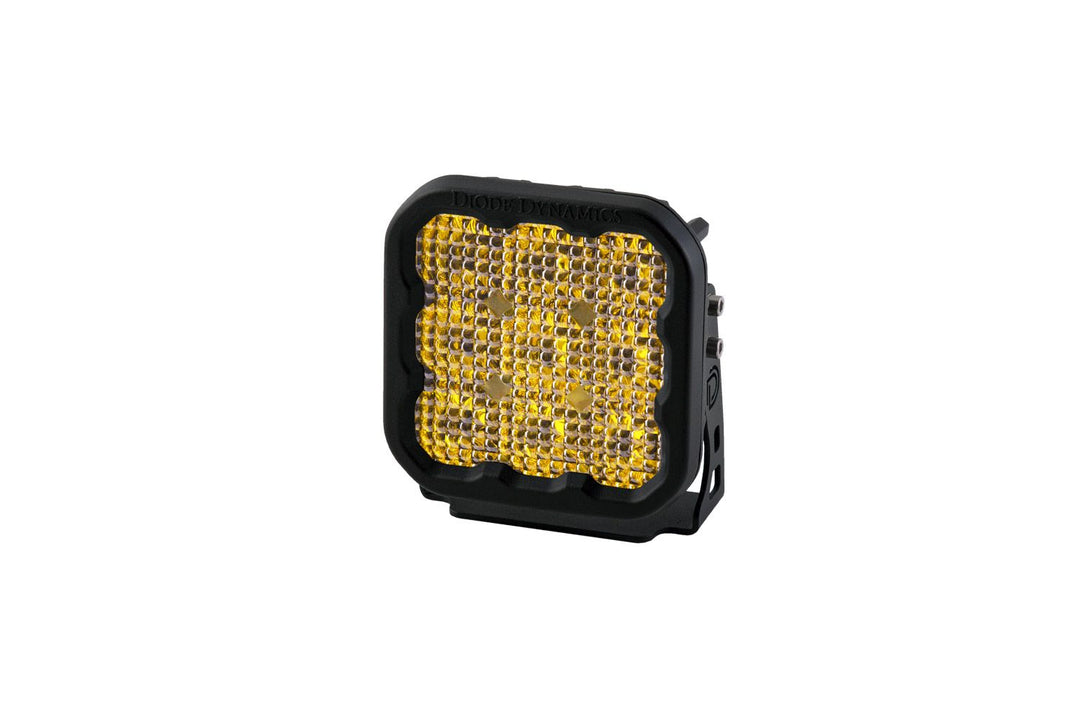

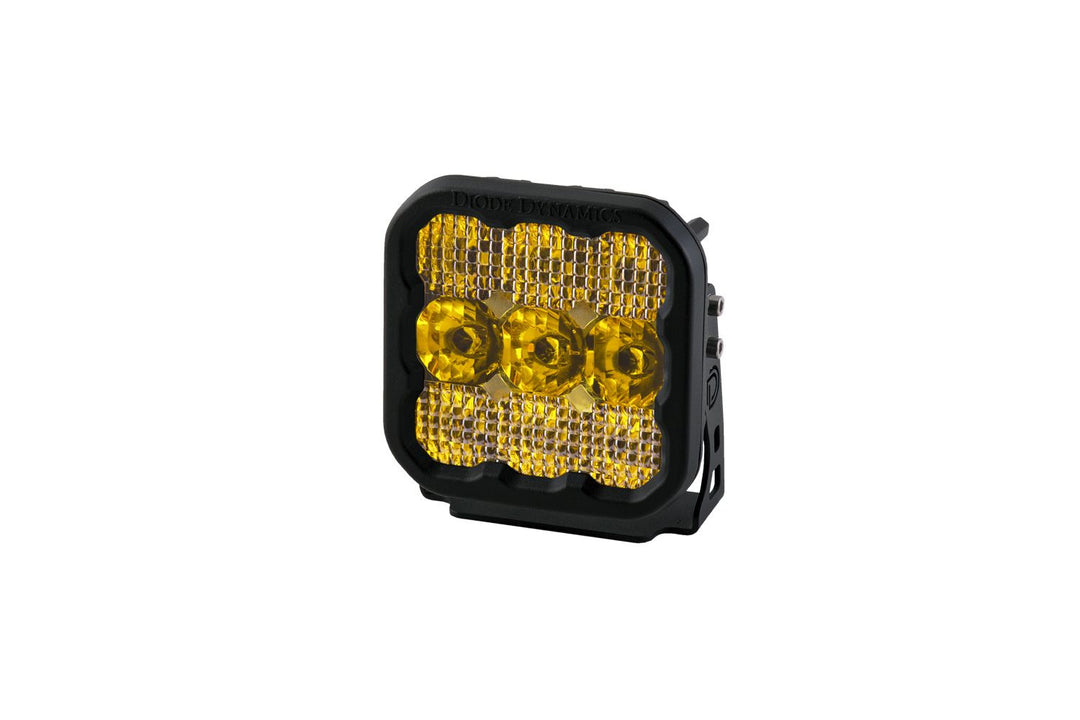

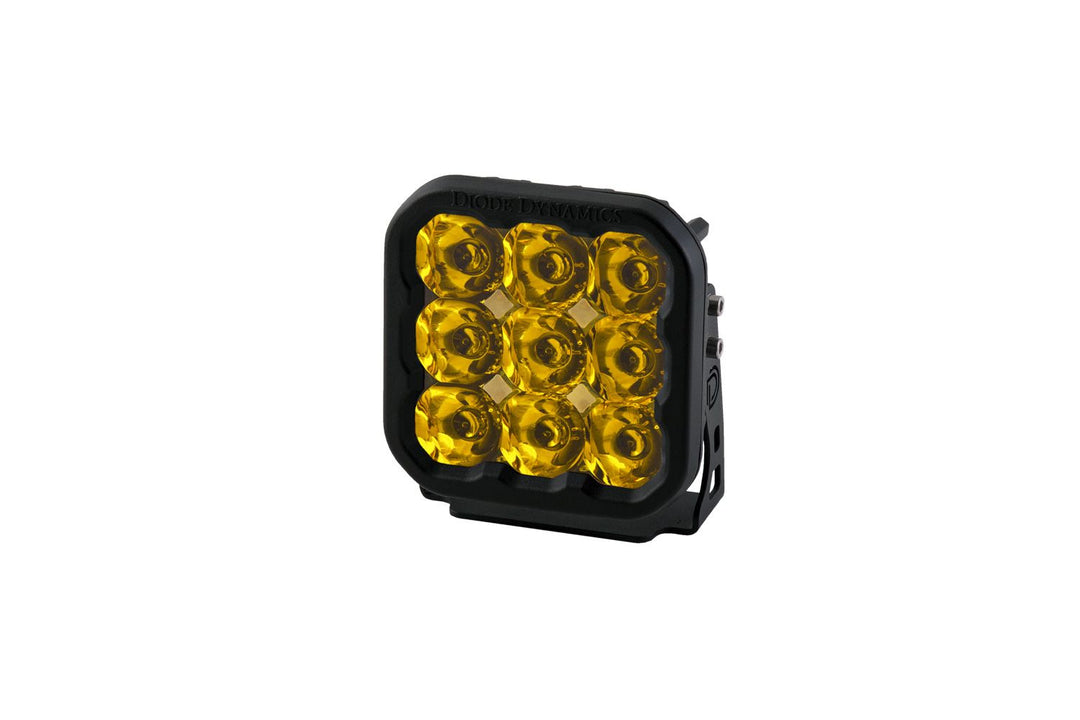

The Stage Series SS5 5” LED pod delivers extreme light output in a compact, rugged package. Using patented TIR (total internal reflection) optics, the SS5 focuses nearly all available light exactly where you need it, reducing glare and maximizing usable distance compared to traditional reflector-style pods. Designed for serious off-road use and assembled in the USA, this pod offers unmatched performance, durability, and modular flexibility.
Important note
-
Backlight: Amber only (yellow lens version)
-
Sold as: Single pod (1)
-
Power options: Sport (40W) or Pro (90W)
-
Street use: Extremely bright – intended for off-road/auxiliary lighting
-
Linkable: Can be linked into a custom light bar up to 50" wide
Features
-
TIR optics: Patented total internal reflection optics for maximum intensity and reduced glare
-

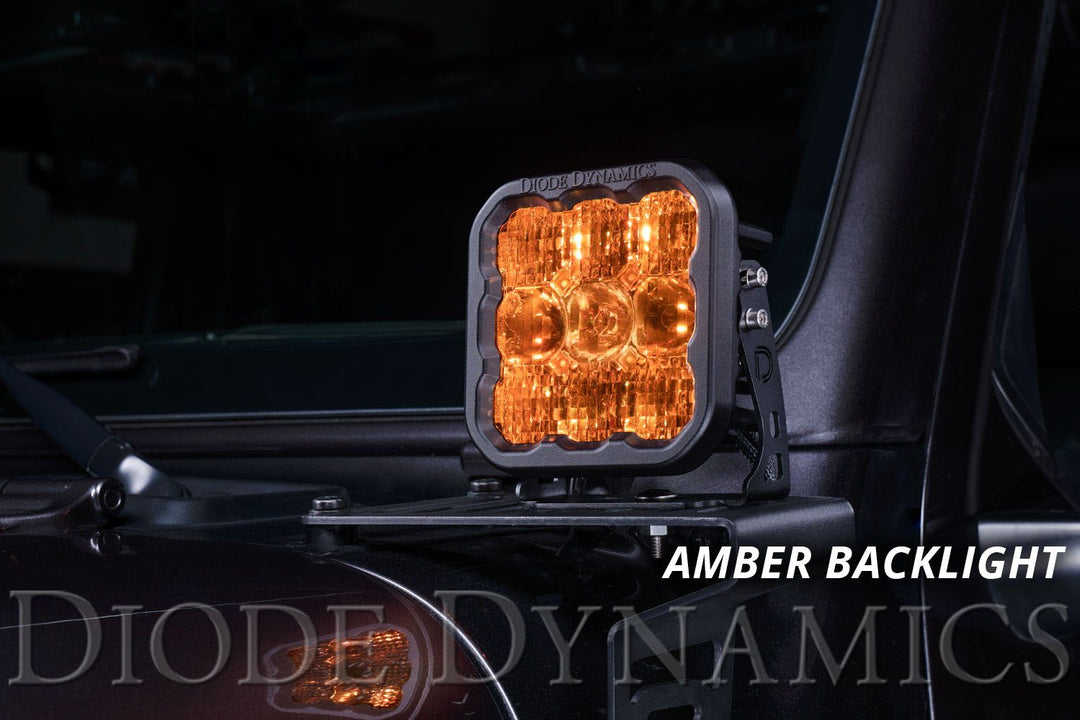

Amber backlight: Fully illuminates the optic for accent lighting or increased visibility
-
CrossLink technology: Link up to 8 pods using a rigid, single-piece CNC aluminum link
-
Beam pattern options: Driving, flood, spot, or combo
-
Heavy-duty construction: Torture-tested aluminum housing built for harsh environments
-
Waterproof rating: IP69K rated for extreme water and pressure exposure
-
USA assembled: Engineered and assembled in the United States

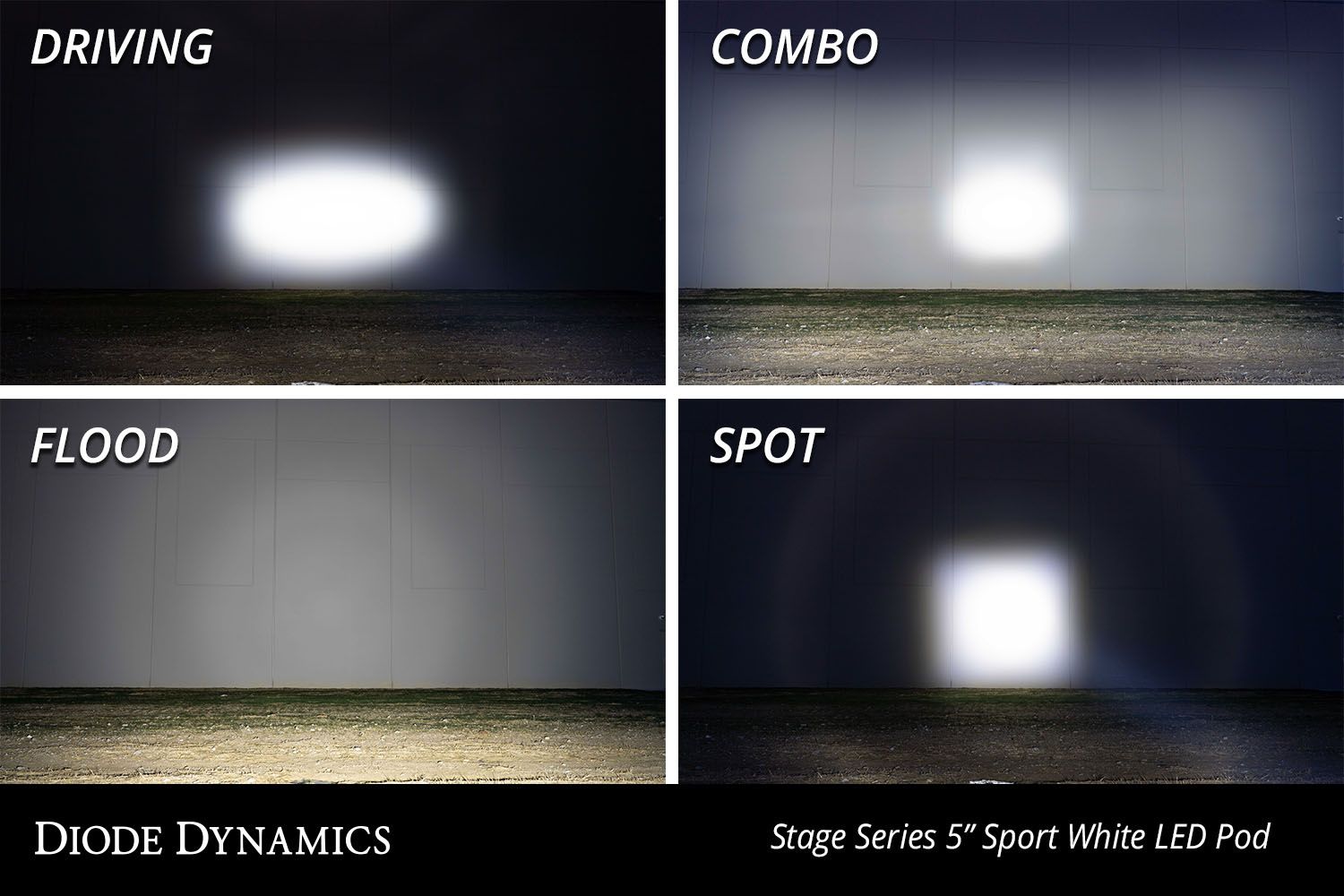

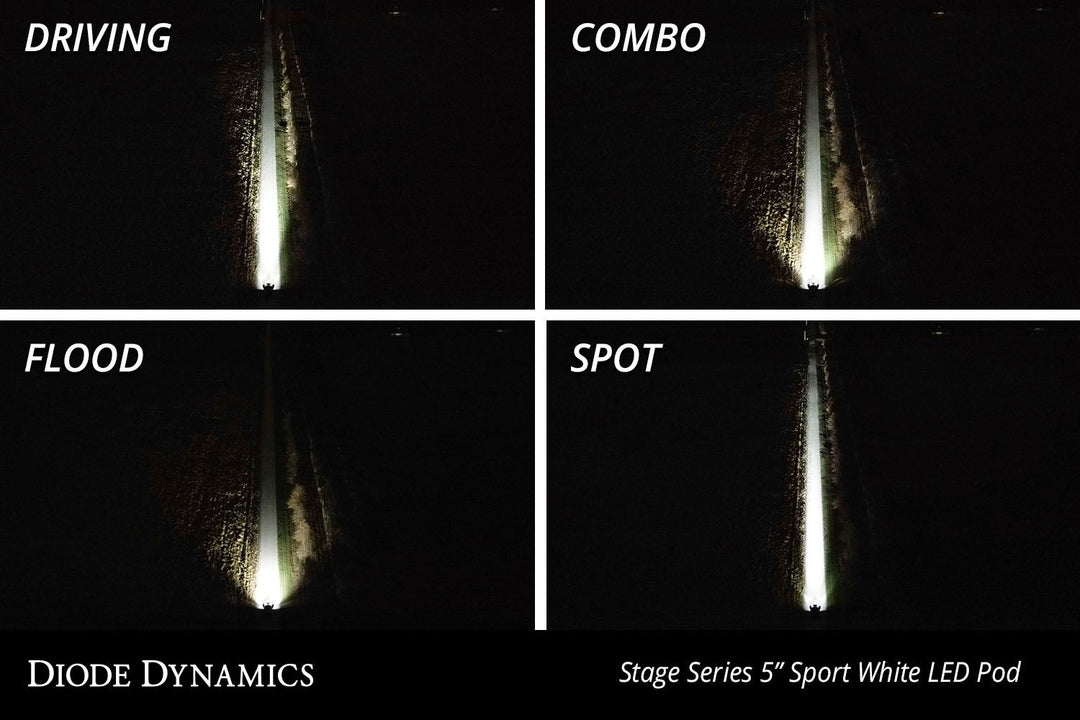

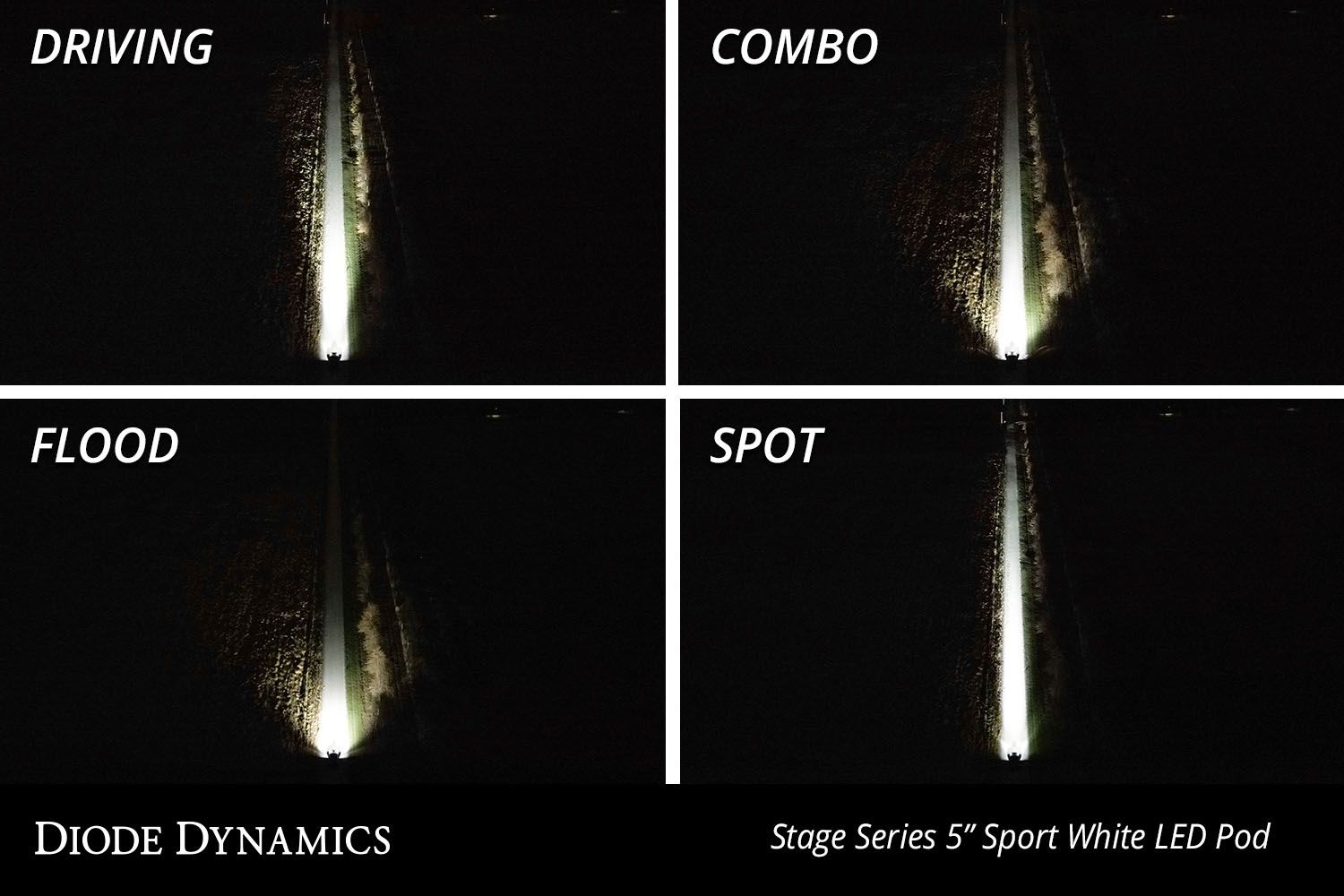

Beam patterns
-
Driving: 30° x 20° beam for controlled, high-speed illumination
-
Flood: 70° x 55° wide, even lighting for low-speed trails and work areas
-
Spot: Ultra-focused long-distance beam capable of nearly 1-mile reach
-
Combo: Balanced mix of distance and spread for all-around use
Specifications (per pod)
Color temperature: 3000K selective yellow
Backlight color: Amber
Operating voltage: 9–16V
Operating temperature: -40°F to 185°F
Connector: Deutsch DT
Materials: Polycarbonate lens, aluminum housing, rubber gasket
Cooling: Passive pin-fin heatsink
Compliance: SAE J575

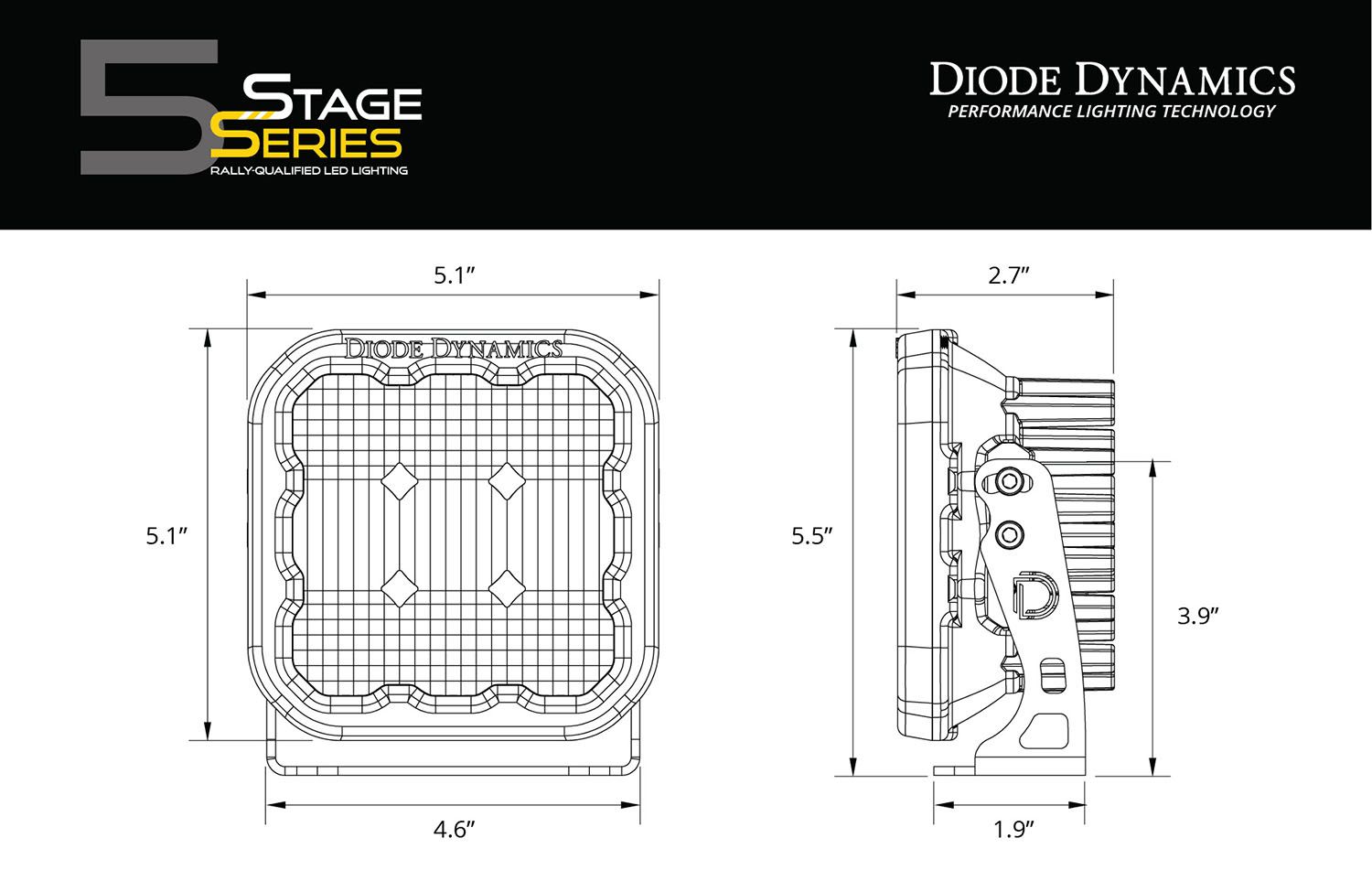

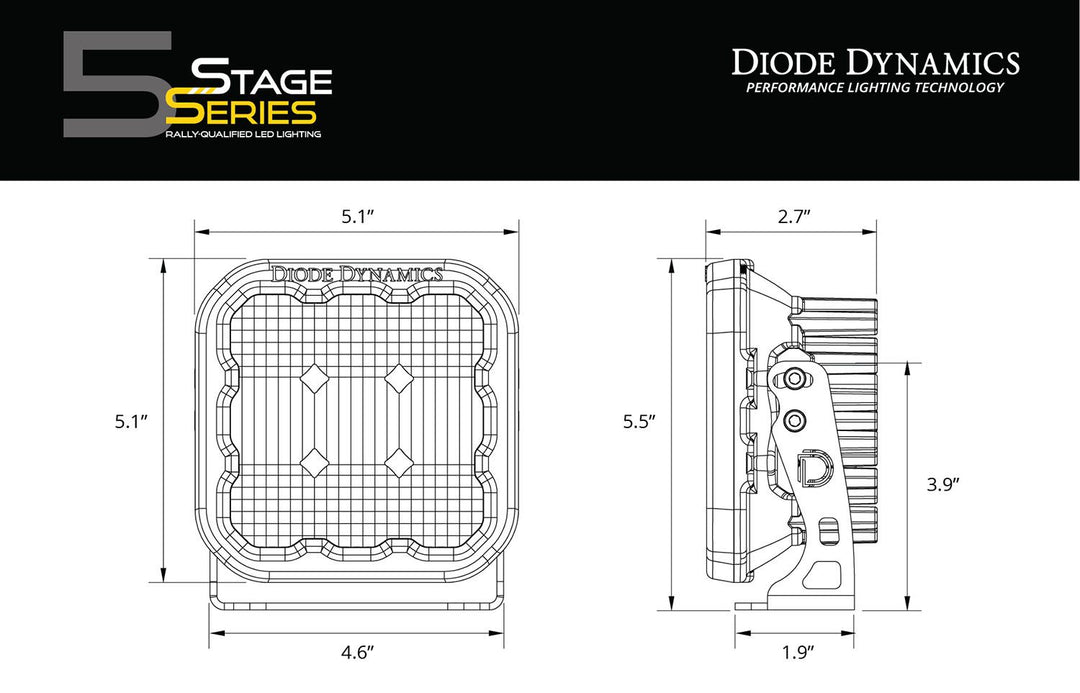

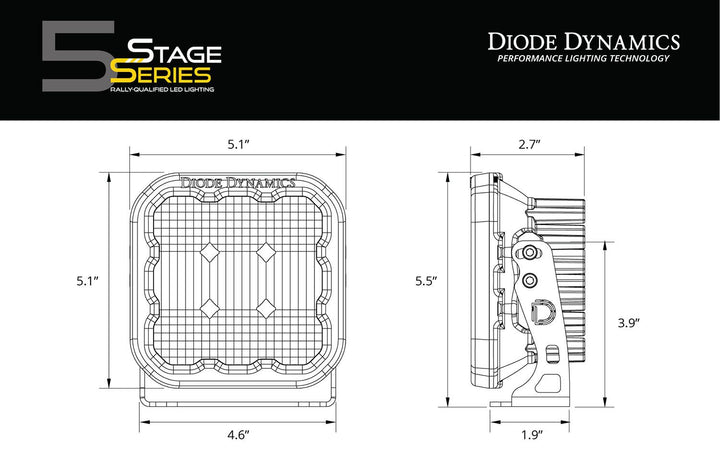

Dimensions: 5.1" x 5.1" x 2.7"
Sport model
-
Power: 40W (main beam) / 3.07W (backlight)
-
Current draw: 2.8A @ 12.8V (main beam)
-
LED emitter: Luxeon Z ES
-
Peak intensity: Up to 360,200 candela

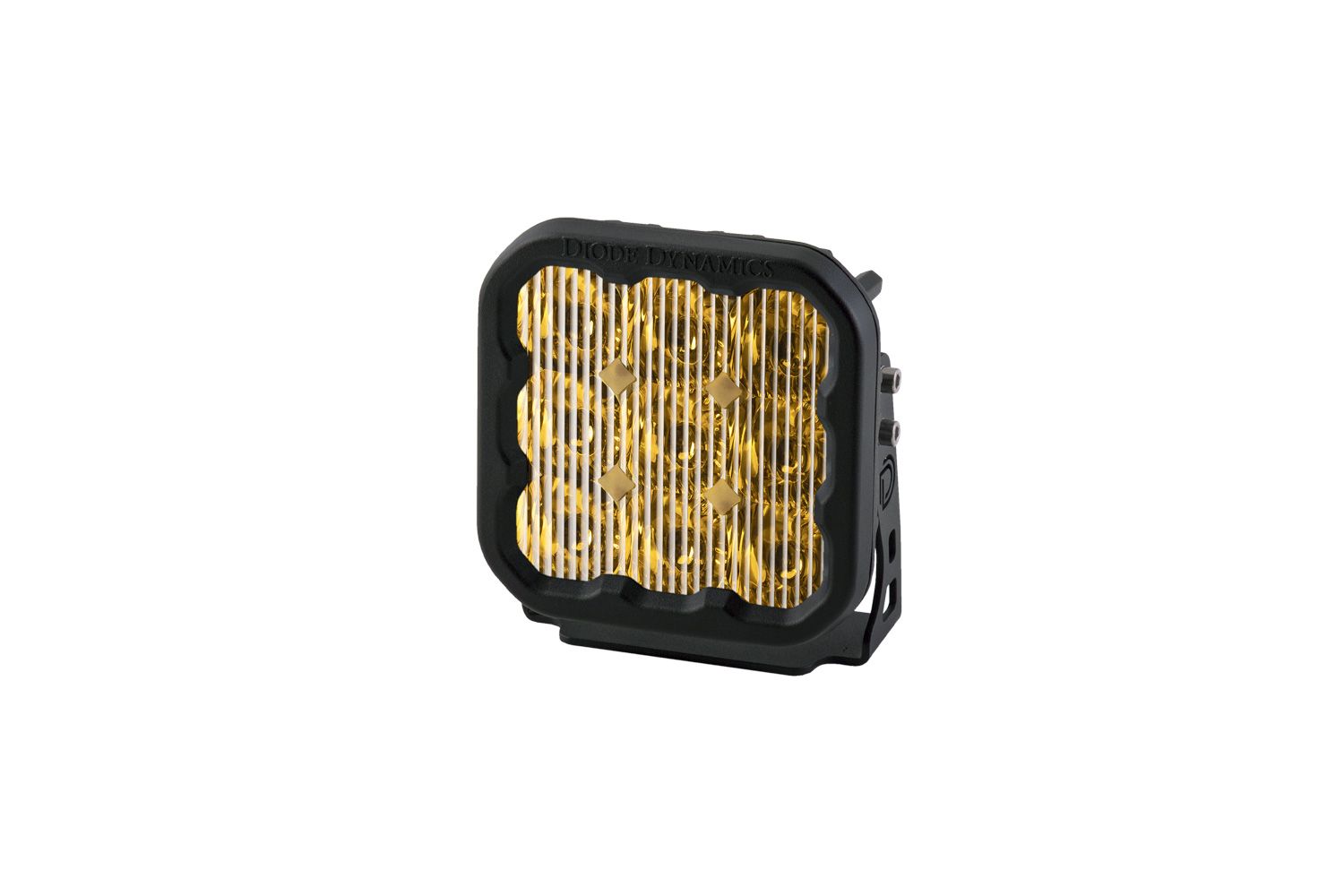

Pro model
-
Power: 90W (main beam) / 3.07W (backlight)
-
Current draw: 6A @ 12.8V (main beam)
-
LED emitter: Cree XP-L HI
-
Higher output: Increased raw lumens with wider beam dispersion

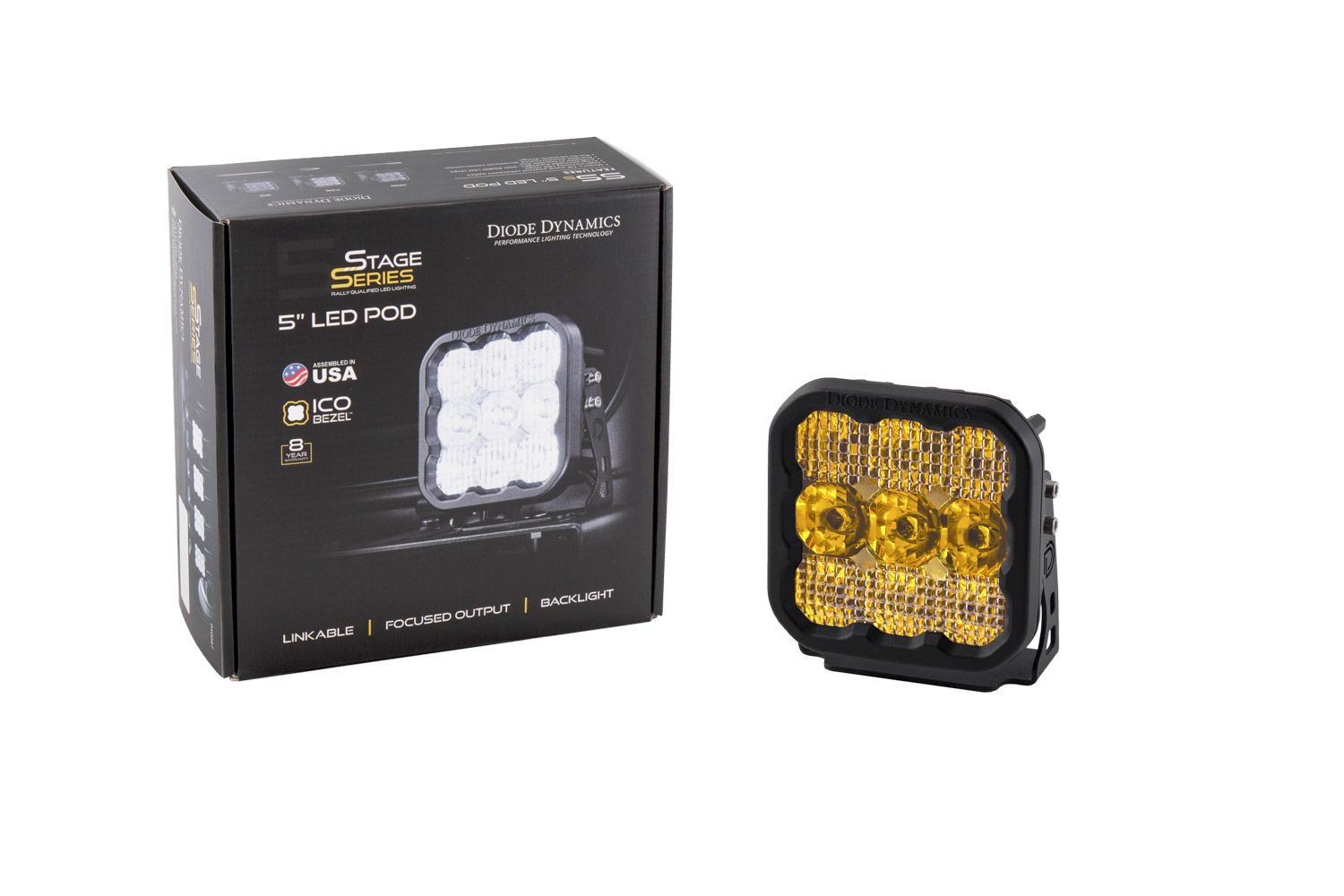

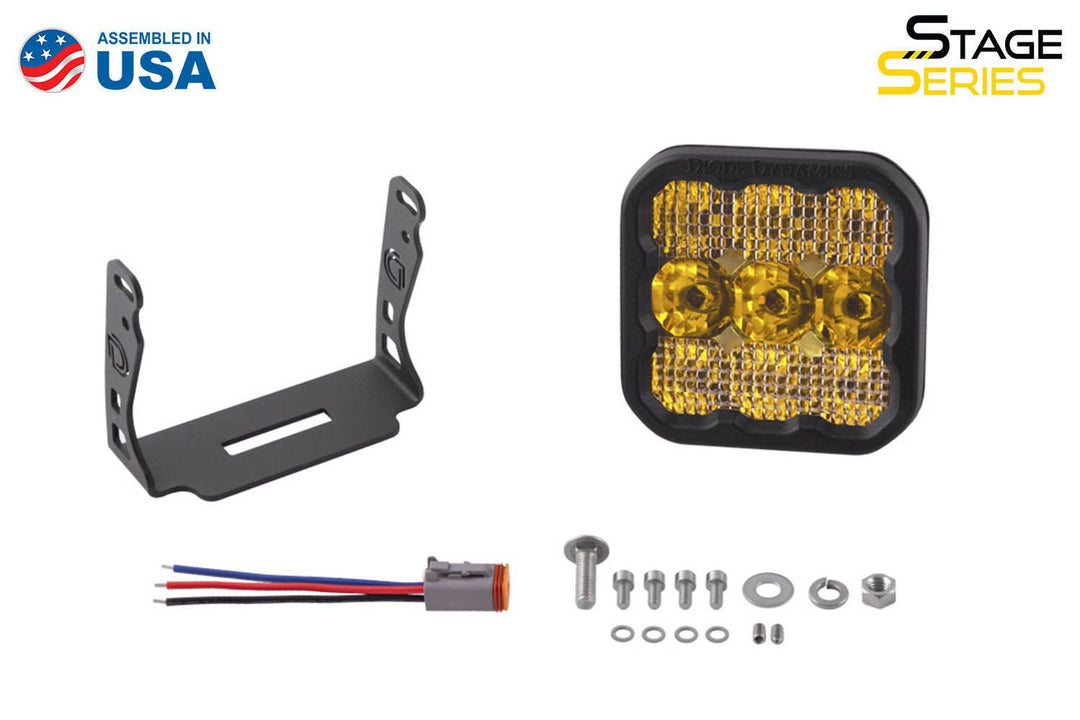

In the box
-
Quantity: One (1) Stage Series SS5 5” LED pod
-
Wiring: One (1) Deutsch-style wire pigtail
-
Mounting: One (1) mounting bracket with hardware
Installation
-
Install time: 30–60 minutes
-
Tools required: Basic hand tools
-
Wiring: Compatible with optional Diode Dynamics wiring harness
Warranty & returns
-
Warranty: Lifetime warranty
-
Returns: 30-day returns with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
