The Stage Series SS5 5” LED Pod delivers some of the highest intensity output available in a compact auxiliary light. Engineered with patented TIR (Total Internal Reflection) optics, the SS5 focuses every bit of light exactly where you need it—cutting glare, increasing usable distance, and outperforming traditional reflector-style pods. Built for serious off-road use and assembled in the USA, this is lighting you can trust when conditions get rough.
Note
-
Output Options: Available in Sport (40W) or Pro (90W) power levels
-
Light Color: Selective Yellow (3000K) with Amber backlight only
-
Street Use: Extremely bright – intended for off-road and auxiliary use
-
Linkable Design: Pods can be linked together to create a custom light bar
Features
-
TIR Optics: Patented Total Internal Reflection optics maximize intensity and reduce glare
-

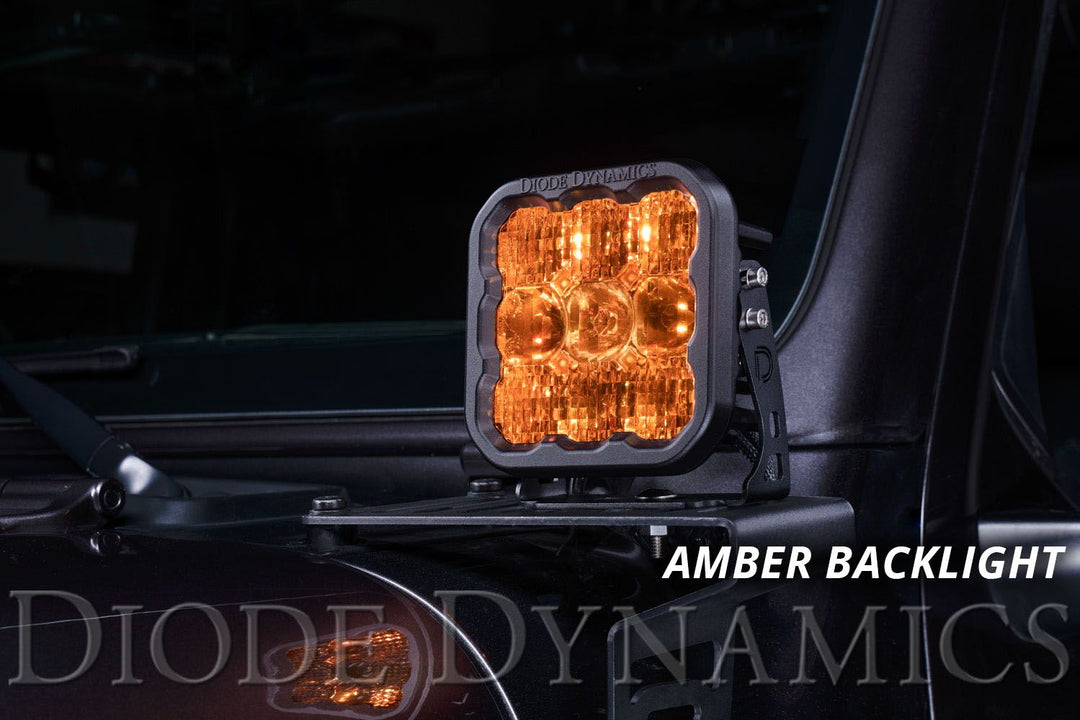

Amber Backlight: Fully illuminates the optic for a unique accent or low-visibility use
-
CrossLink Technology: Link up to 8 pods using a single-piece CNC aluminum link
-
Beam Patterns: Available in Driving, Flood, Spot, and Combo configurations
-
Heavy-Duty Construction: Torture-tested housing with aluminum casting
-
Waterproof Rating: IP69K rated for extreme water and pressure exposure
-
USA Assembled: Designed, tested, and assembled in the United States

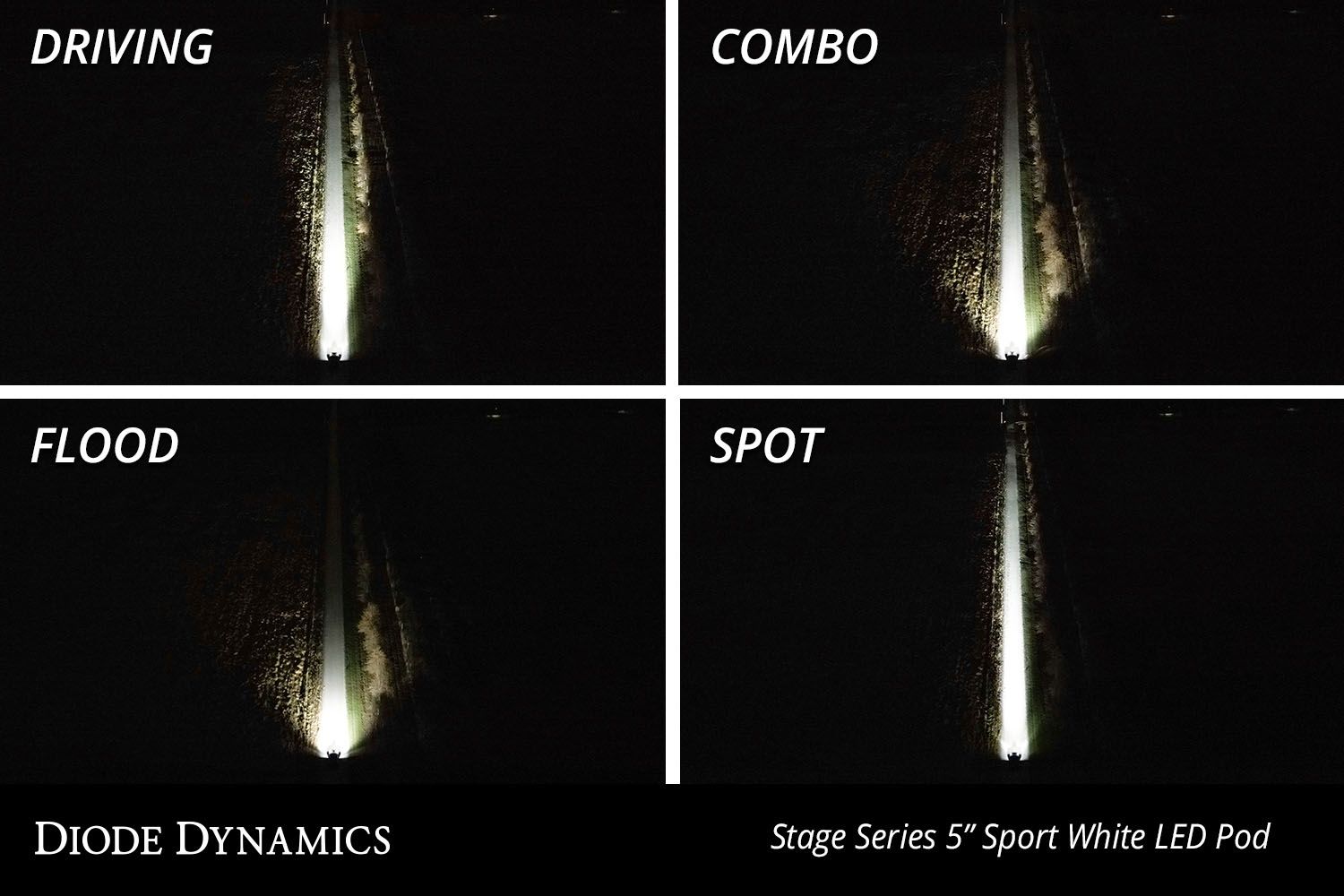

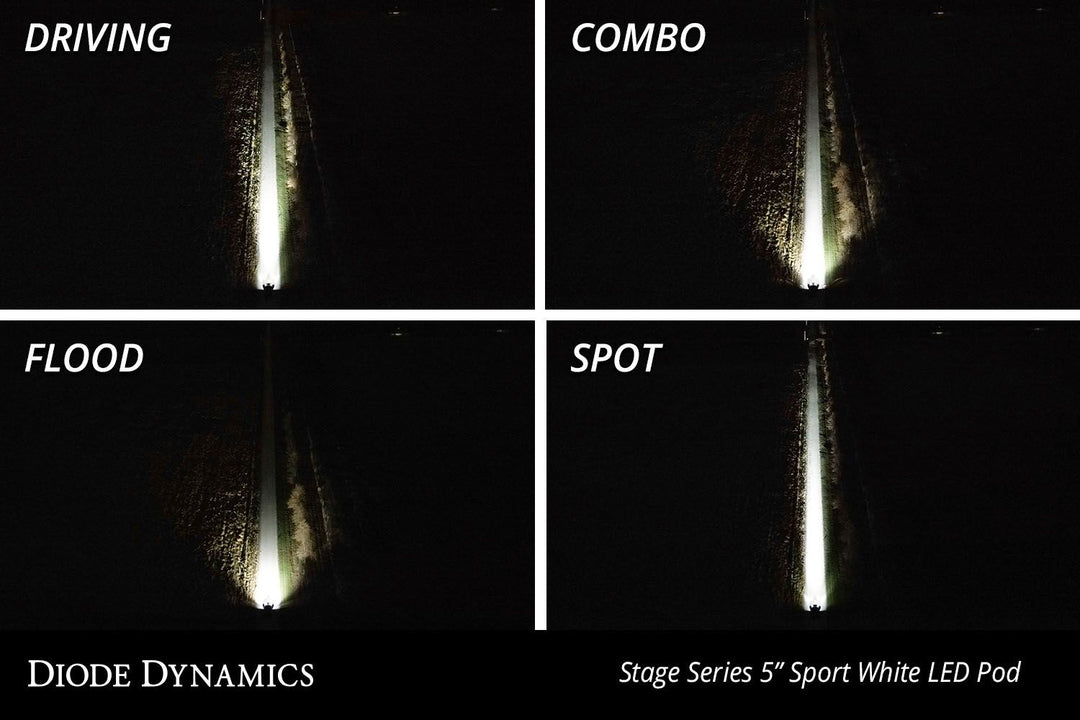

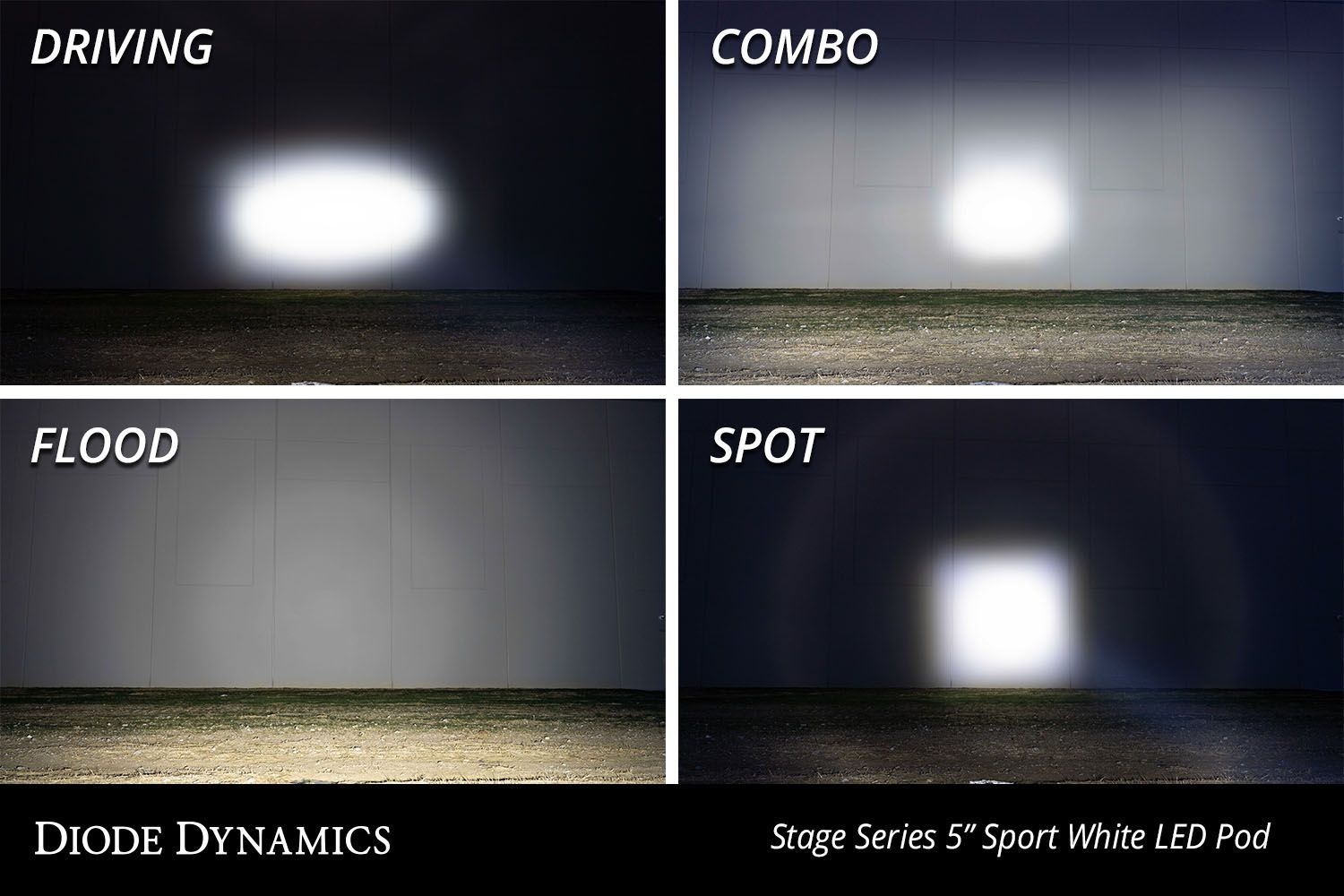

Beam Patterns
-

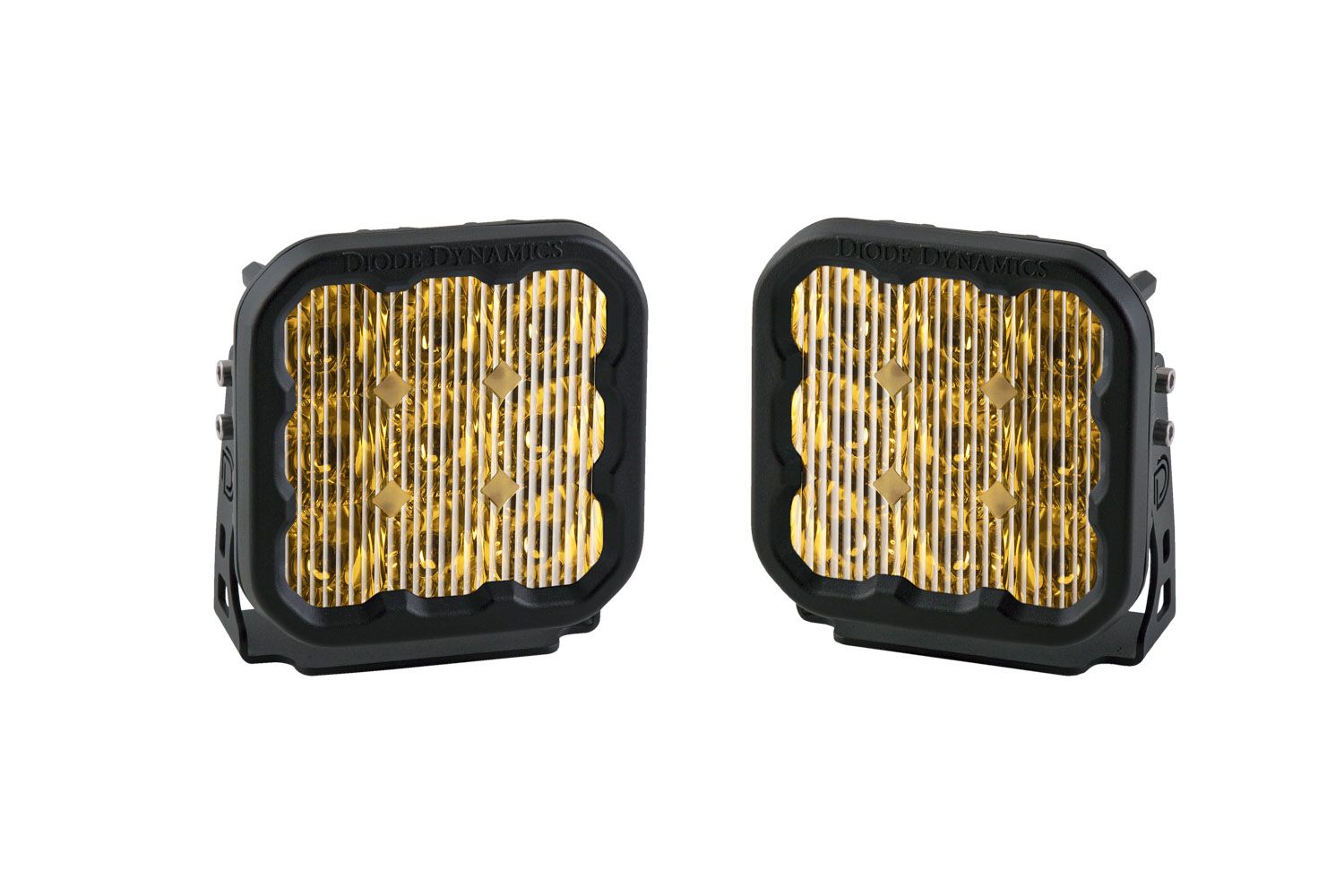

Driving: 30° x 20° beam for high-speed trail and road illumination
-

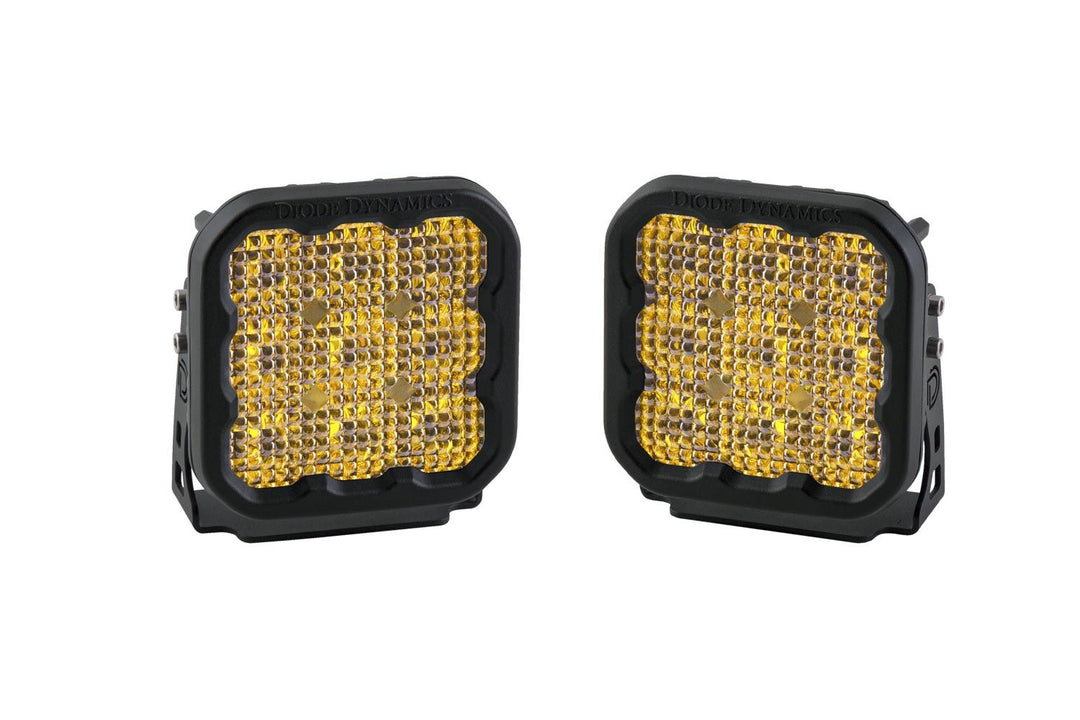

Flood: 70° x 55° wide, even light for low-speed trails and work areas
-

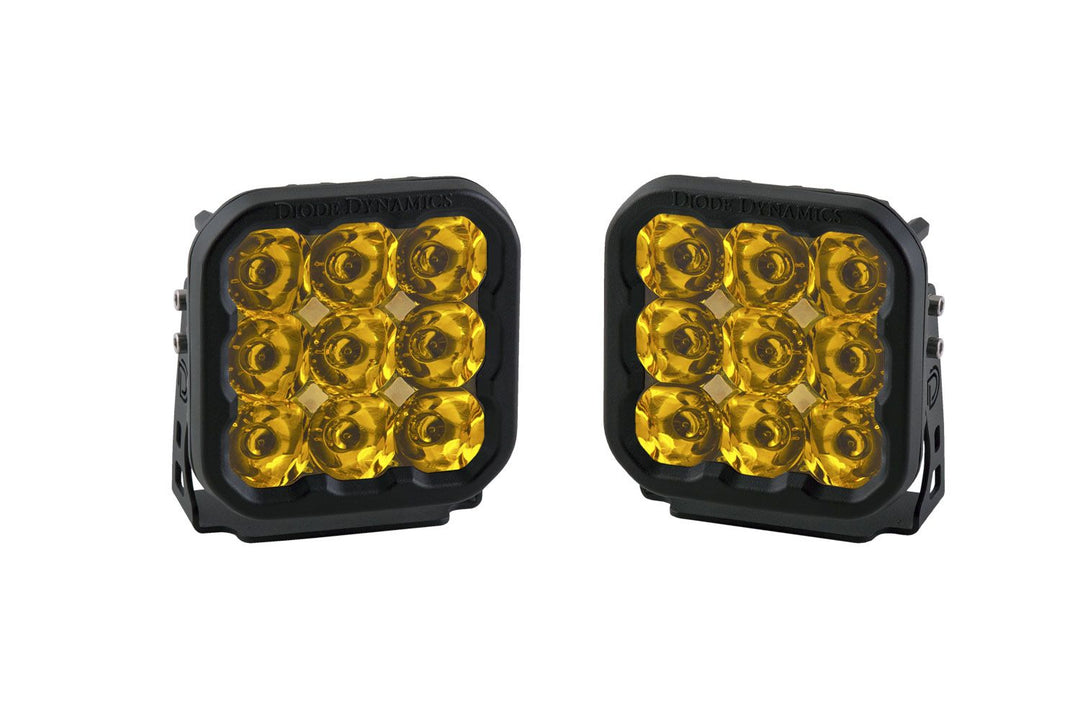

Spot: Focused long-distance beam capable of reaching nearly 1 mile
-

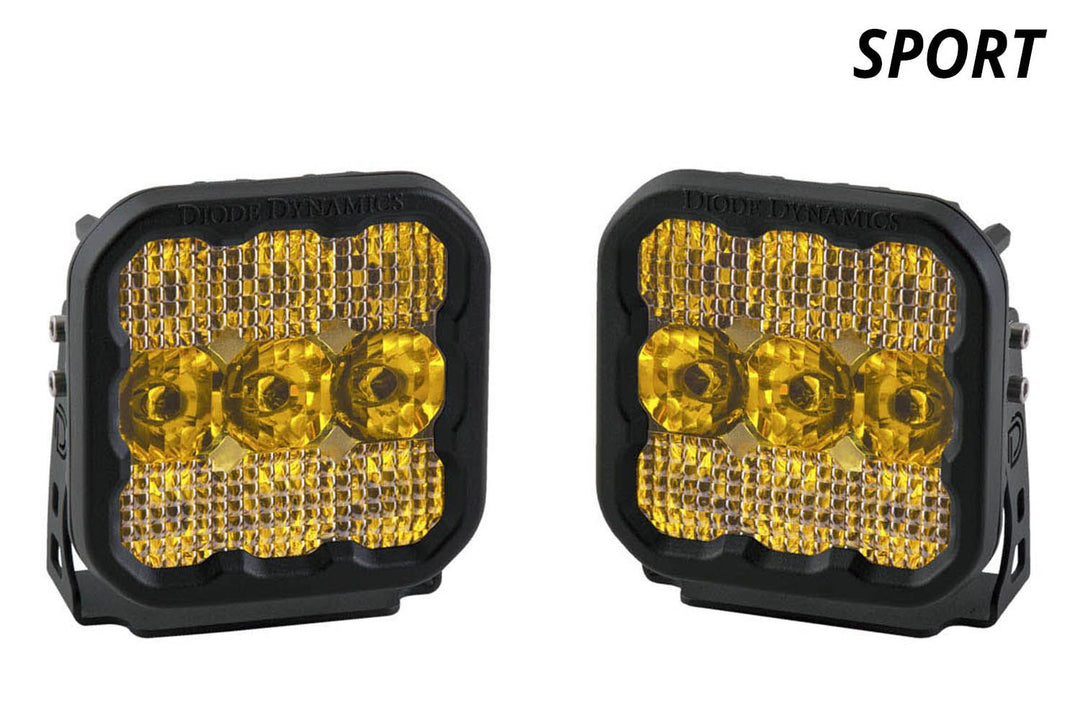

Combo: Balanced mix of distance and spread for all-around use
Specs (Per Pod)
Color Temperature: 3000K Selective Yellow
Backlight Color: Amber
Operating Voltage: 9–16V
Operating Temp: -40°F to 185°F
Connector: Deutsch DT
Housing Materials: Polycarbonate lens, aluminum housing, rubber gasket
Cooling: Passive pin-fin heatsink
Compliance: SAE J575

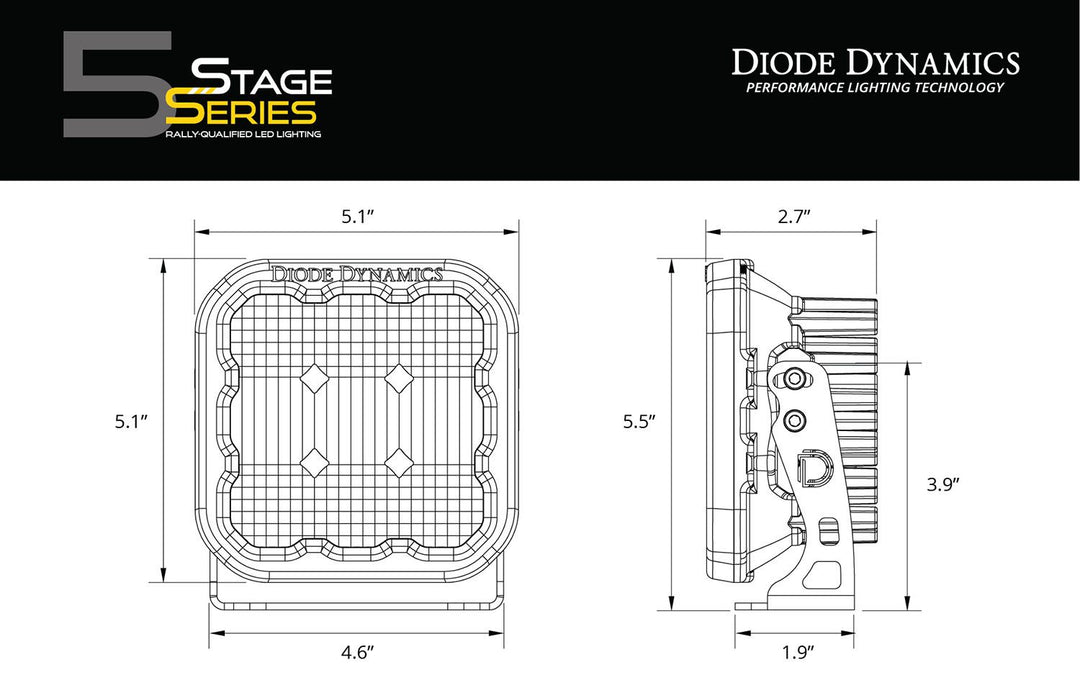

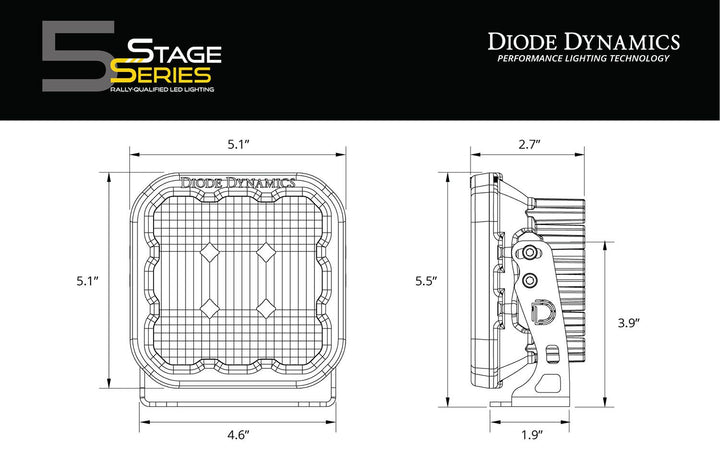

Dimensions: 5.1” x 5.1” x 2.7”
Unit Weight: 2.35 lb

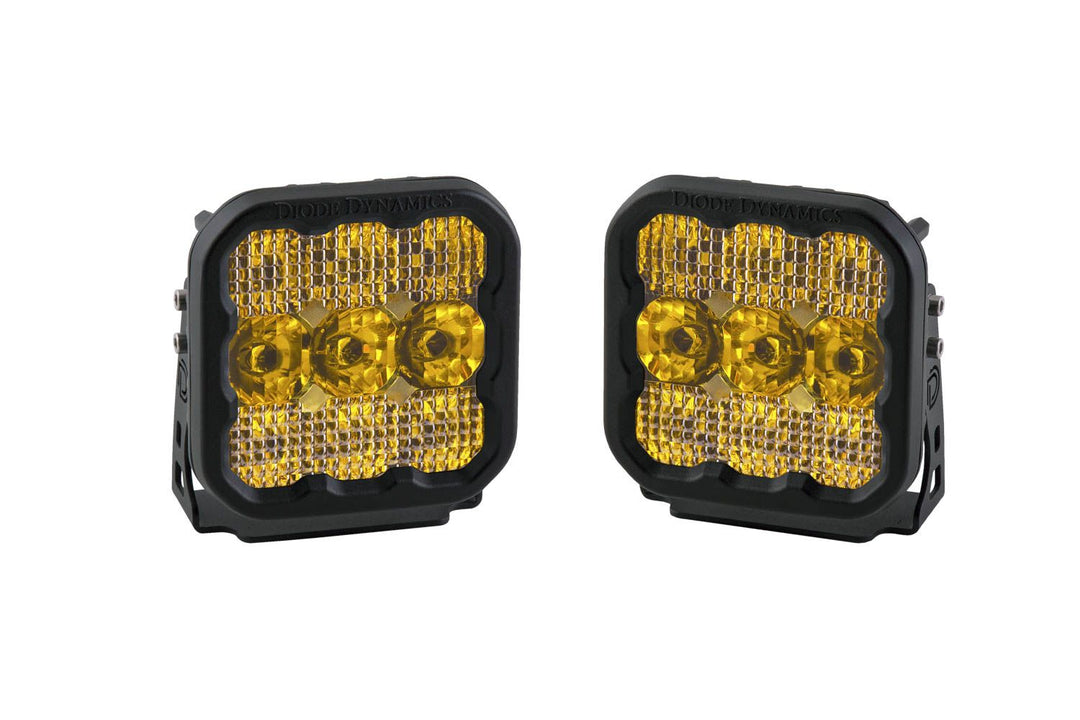

SPORT MODEL
-
Power: 40W (Main) / 3.07W (Backlight)
-
Current Draw: 2.8A @ 12.8V
-
Emitter: Luxeon Z ES
-
Max Intensity: Up to 360,200 candela

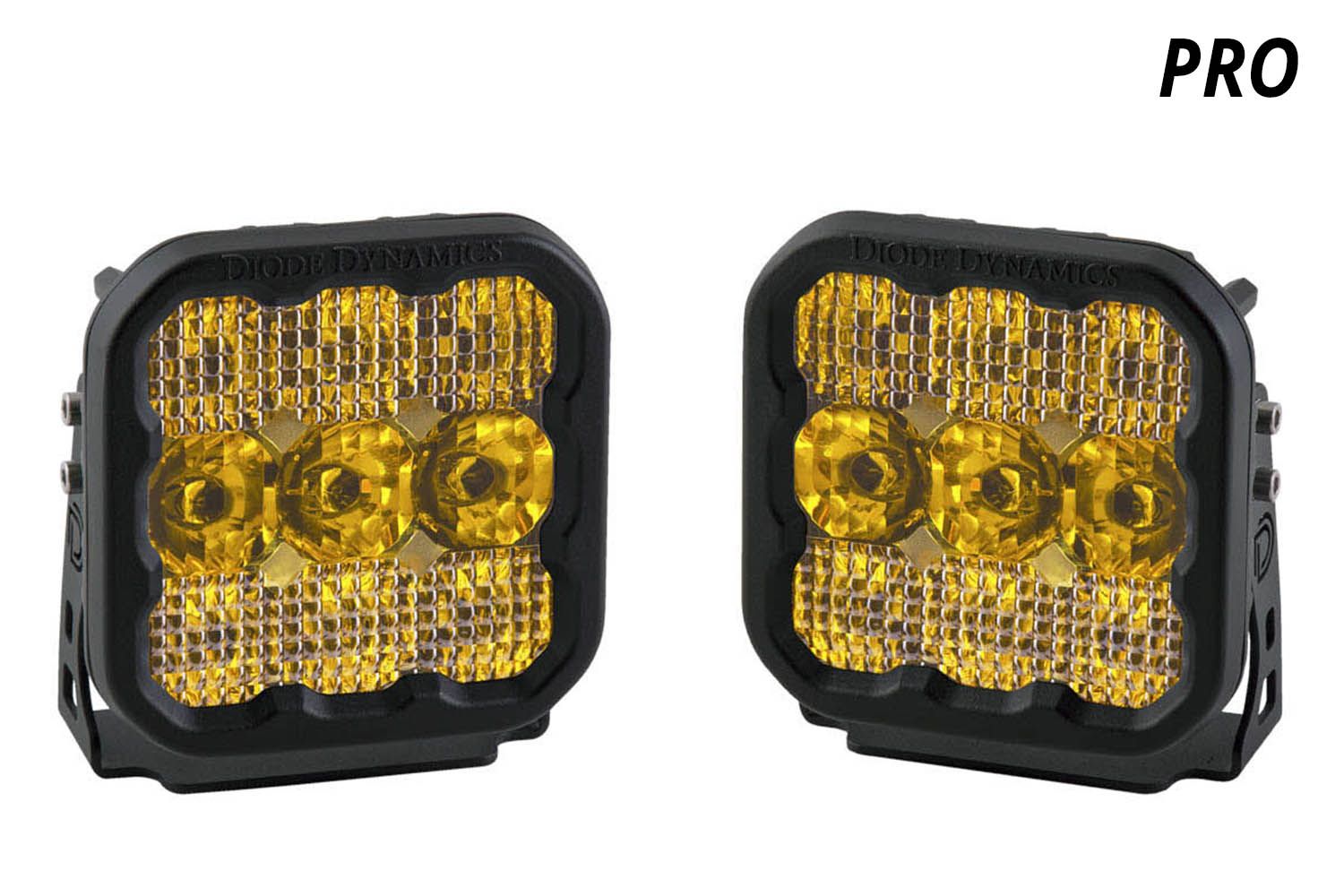

PRO MODEL
-
Power: 90W (Main) / 3.07W (Backlight)
-
Current Draw: 6A @ 12.8V
-
Emitter: Cree XP-L HI
-
Higher Output: Increased raw lumens with wider beam dispersion

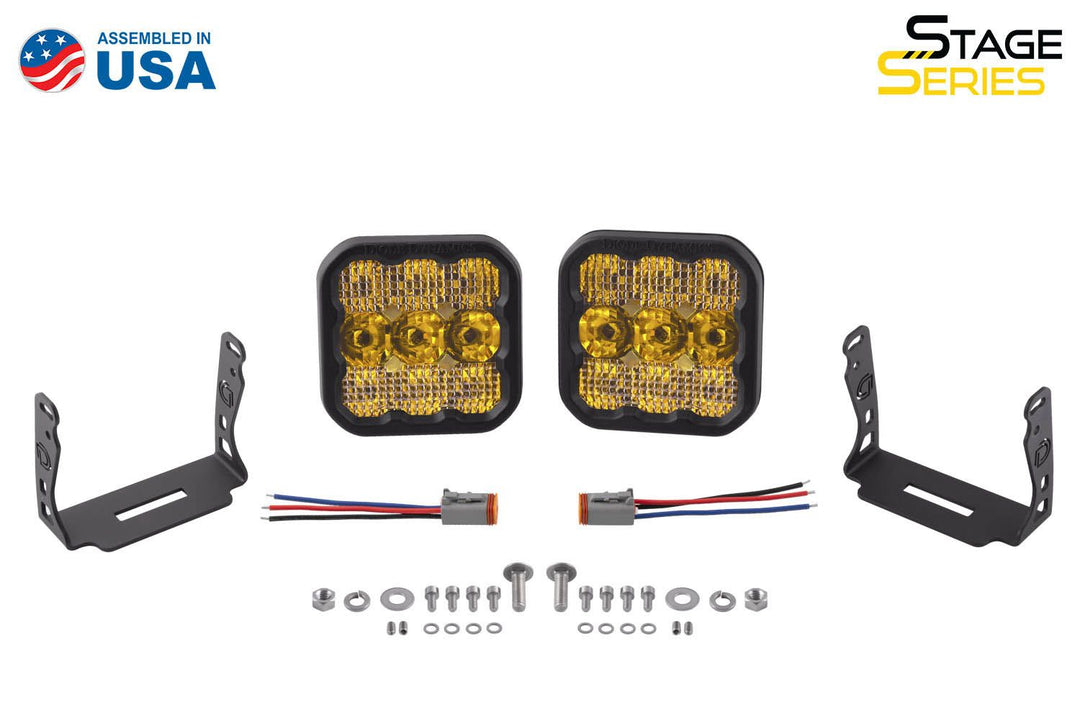

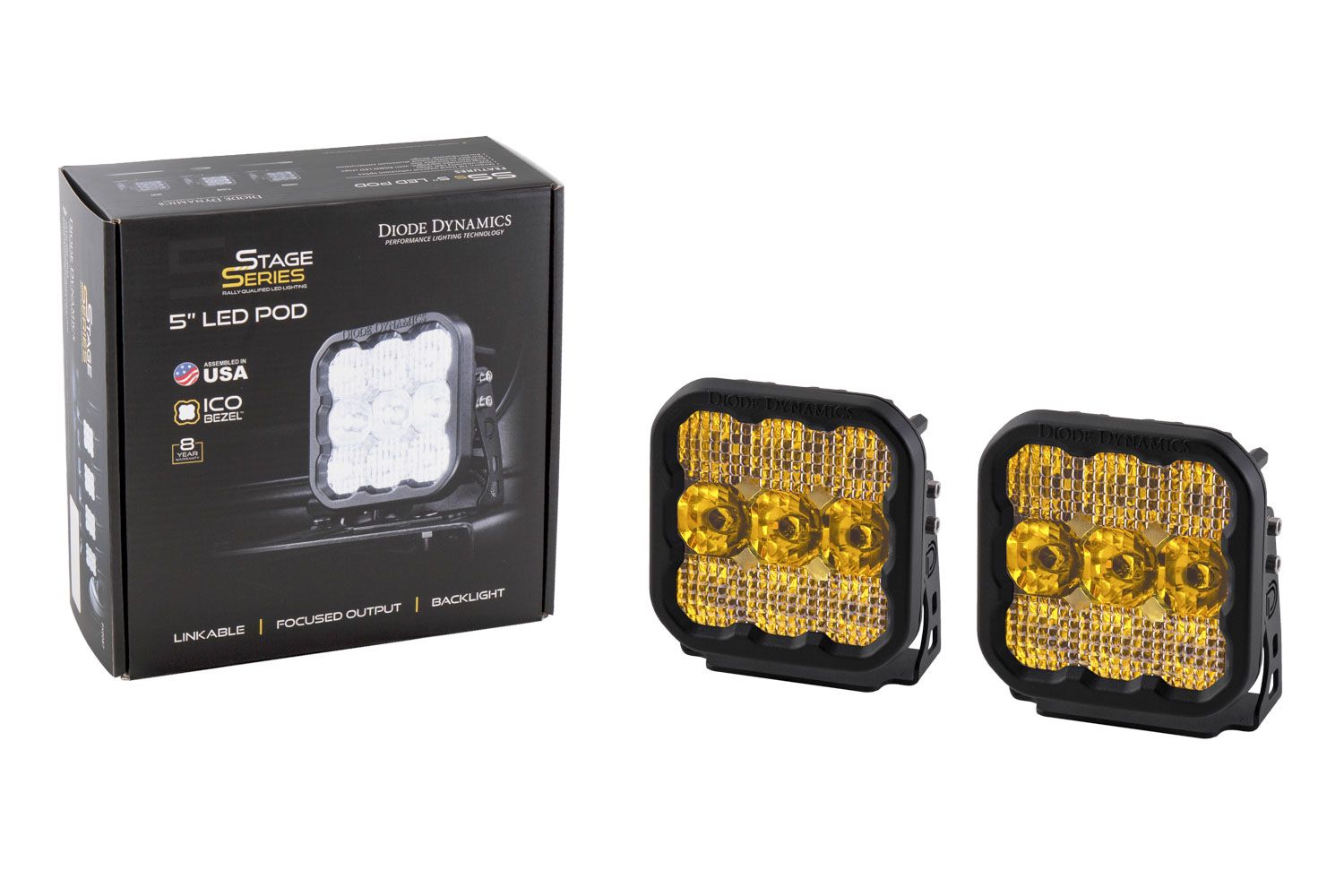

Included
-
Quantity: Two (2) SS5 5” LED Pods
-
Wiring: Two (2) Deutsch-style pigtails
-
Mounting: Two (2) mounting brackets with hardware
Installation
-
Install Time: 30–60 minutes
-
Tools Required: Basic hand tools
-
Wiring: Compatible with optional Diode Dynamics wiring harness
Warranty and Returns
-
Warranty: Lifetime
-
Returns: 30-day returns, no restocking fee
-
Guarantee: 100% Satisfaction Guaranteed
