The Diode Dynamics SS50 LED Light Bar is engineered for drivers who demand maximum output, intelligent control, and uncompromising durability. Featuring patented TIR optics, SmartSelect technology, and advanced beam patterns fine-tuned for real-world use, the SS50 delivers exceptional performance across a wide range of driving conditions. With powerful illumination, modern styling, and USA-built quality, this light bar sets a new benchmark for full-size auxiliary lighting.
Important notes
-

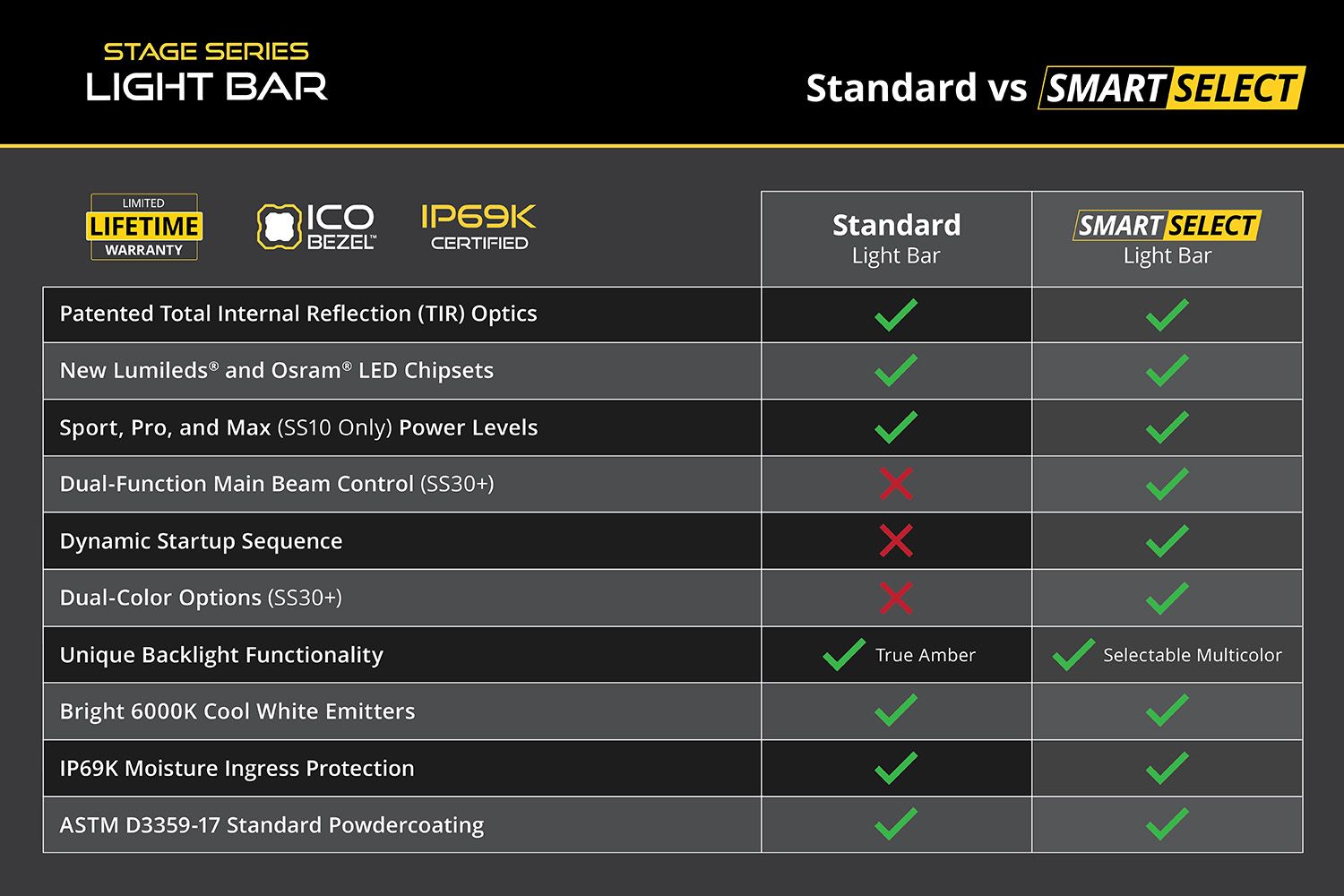

SmartSelect models: Allow beam mode changes by cycling power
-
Backlight: Selectable 8-color backlight with dynamic startup sequence on SmartSelect models
-
Warranty: Limited lifetime warranty
-
Origin: Designed and manufactured in the USA
Features
-
Optics: Patented TIR (Total Internal Reflection) optics maximize efficiency by directing light precisely where it’s needed while reducing glare.
-
Beam control: SmartSelect technology enables dual-function operation, allowing inner sections, outer sections, or the full bar to be activated without additional switches or wiring.
-
Performance tuning: Beam patterns are engineered and optimized for real-world driving conditions across multiple applications.
-
Combo output: Combo/Driving beam pattern blends distance and width using advanced pillow optics for balanced illumination and reduced wasted light.
-
SAE driving: SAE Driving pattern supplements factory high beams with added distance and clarity while remaining road-friendly when properly aimed.
-

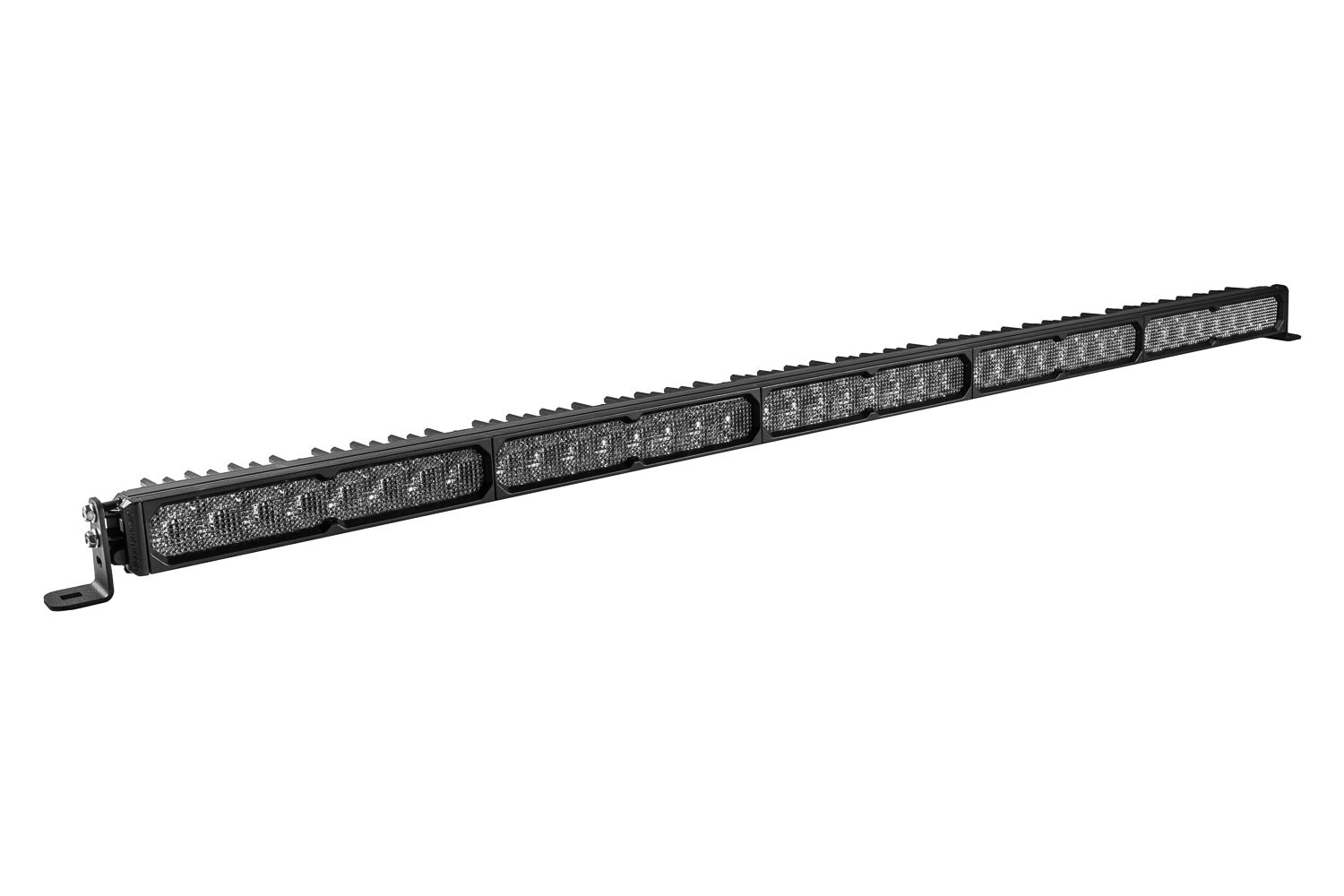

Flood coverage: Flood beam provides wide, uniform illumination ideal for low-speed use, work areas, campsites, and reverse lighting.
-

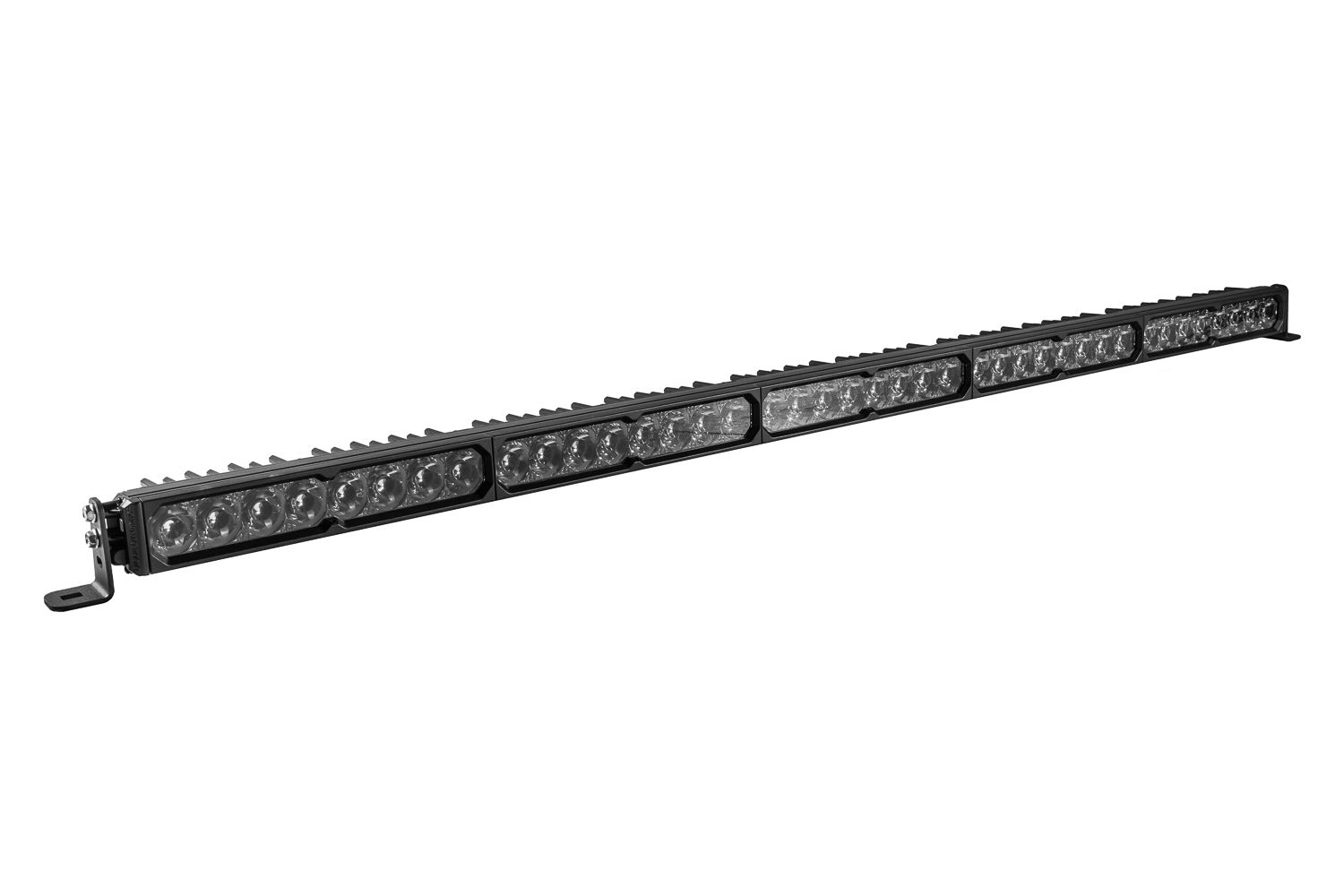

Spot projection: Spot beam delivers a tight, long-range pattern designed for high-speed desert driving and long straightaways.
-
Backlight: Fully illuminated backlight fills the TIR optics for a bold appearance, with SmartSelect models offering a selectable 8-color backlight and modern welcome sequence.
-
Power options: Available in Sport and Pro configurations, both utilizing high-intensity automotive-grade LED emitters.
-
Construction: Heavy-duty aluminum housing with ASTM-standard powdercoat finish for long-term corrosion resistance.
-
Weather resistance: IP69K rating ensures protection against dust, water intrusion, and high-pressure wash environments.
-
Engineering: Designed, tested, and assembled in the USA using globally sourced materials.
What’s included
-
Light bar: One (1) SS50 LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal bracket set
Specifications
-
Raw output: Sport 18,440 lumens, Pro 62,720 lumens
-
Color temperature: 6000K
-
Beam patterns: Combo/Driving 60° x 30°, SAE Driving 20° x 12°, Flood 100° x 80°, Spot 8° x 8°
-
Power: Sport 212W, Pro 295W
-
Voltage: 9–30V
-
Current: Sport 16.56A @ 12.8V, Pro 23.05A @ 12.8V
-
Ingress rating: IP69K
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-

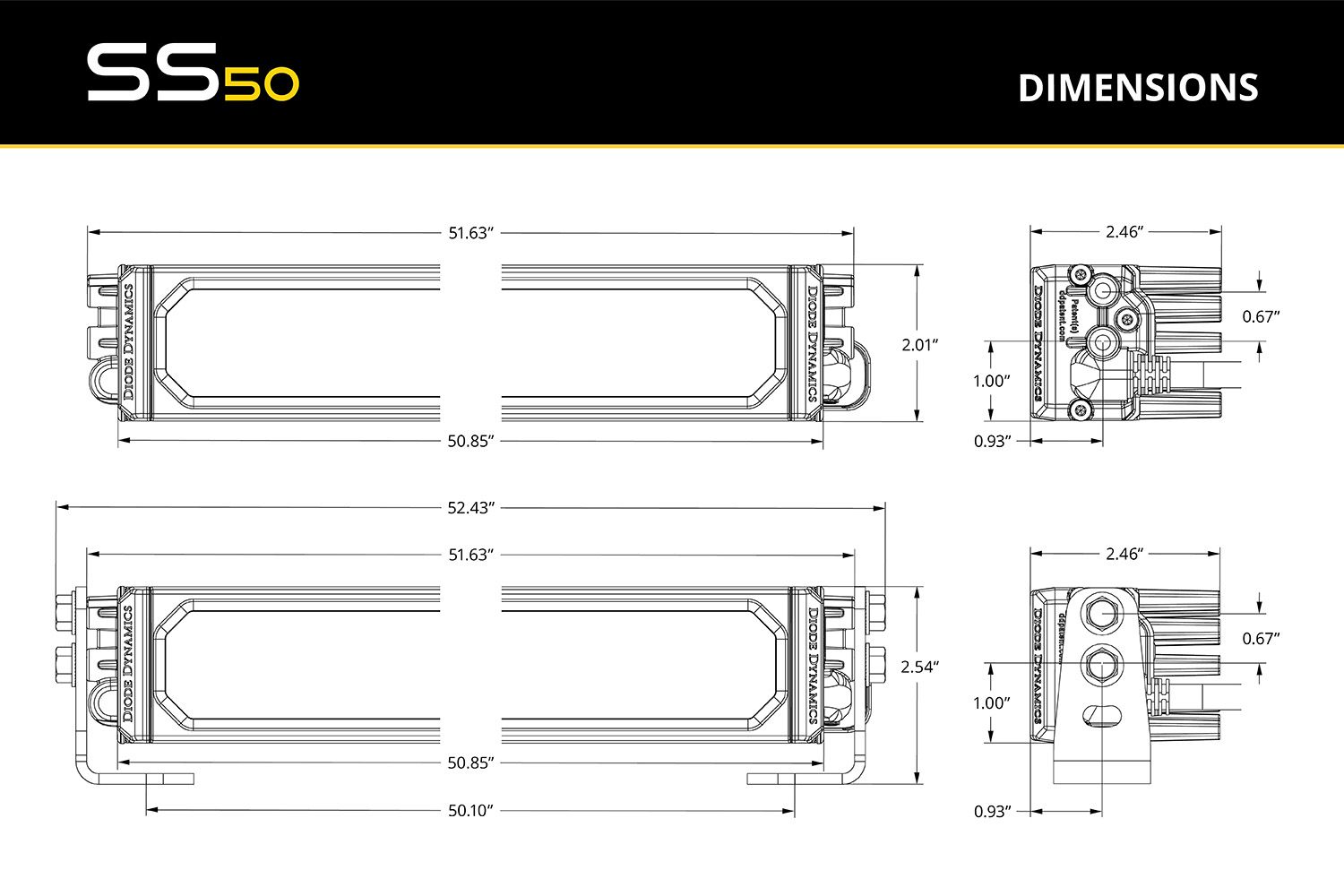

Dimensions: 2.01" x 51.63" x 2.46"
Installation
-
Install time: 30–60 minutes
-
Tools needed: Basic toolset
-
Modification: None required
