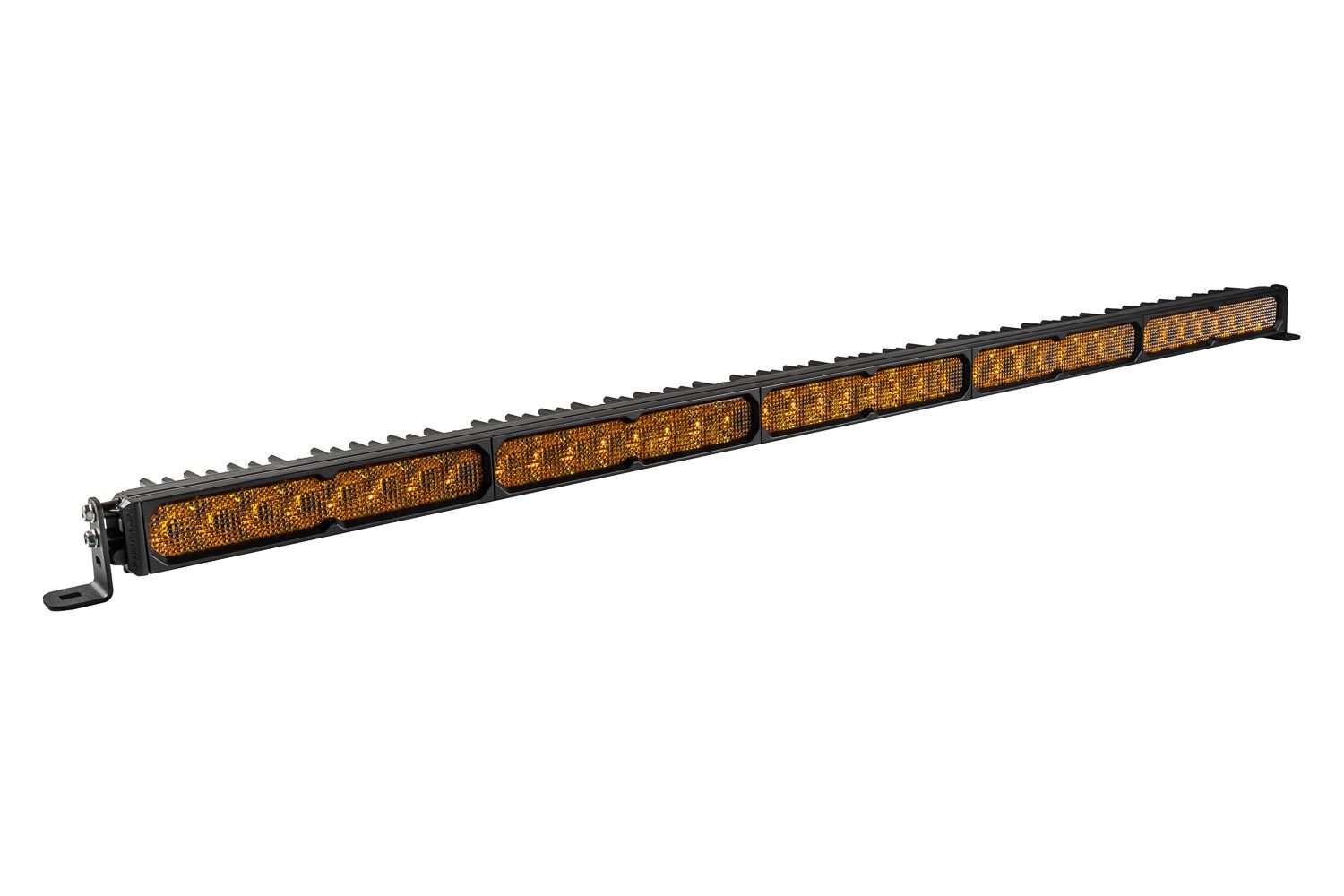

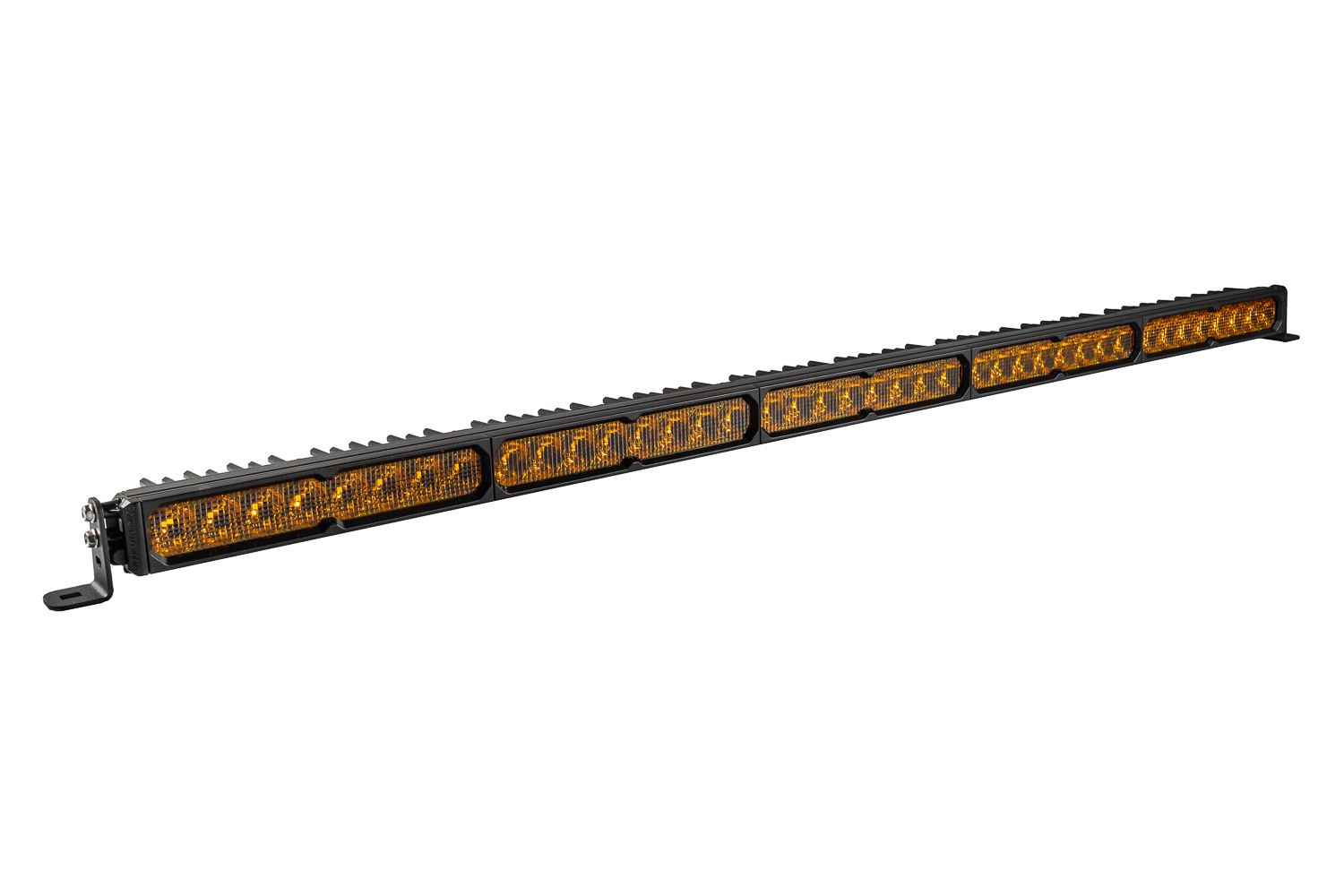

The Diode Dynamics SS50 Yellow LED Light Bar is built for maximum visibility in the harshest driving conditions. Featuring patented TIR optics, advanced beam patterns, and a true 3000K yellow output, this light bar is designed to cut through fog, rain, snow, and dust with reduced glare and improved contrast. Combined with rugged construction, an amber backlight, and USA-built quality, the SS50 delivers dependable performance whether you’re on the trail, highway, or worksite.
Important notes
-
Output color: 3000K yellow main beam with amber backlight
-
Backlight: Always-on amber backlight for added visibility
-
Warranty: Limited lifetime warranty
-
Origin: Designed and manufactured in the USA
Features
-
Optics: Patented TIR (Total Internal Reflection) optics maximize usable light output while minimizing glare and wasted light.
-
Weather performance: 3000K yellow output improves visibility in fog, rain, snow, and dust by reducing reflection and eye fatigue.
-
Beam tuning: Each beam pattern is engineered for real-world driving conditions and optimized for consistent, functional output.
-
Combo pattern: Combo/Driving beam blends distance and width using advanced pillow optics for balanced forward illumination.
-
SAE driving: SAE Driving pattern supplements factory high beams with increased reach while maintaining controlled light spread.
-
Flood coverage: Flood beam delivers wide, even illumination ideal for low-speed driving, work areas, campsites, and reversing.
-
Spot projection: Spot beam provides a tight, long-distance pattern for high-speed driving and open terrain visibility.
-
Backlight: Fully illuminated amber backlight fills the TIR optic for a distinctive appearance and added forward-facing visibility.
-
Power options: Available in Sport and Pro configurations using high-intensity automotive-grade LED emitters.
-
Construction: Heavy-duty aluminum housing with ASTM-standard powdercoat finish for corrosion resistance.
-
Protection: IP69K waterproof and dustproof rating for extreme environments and pressure washing.
-
Engineering: Designed, tested, and assembled in the USA using globally sourced materials.
What’s included
-
Light bar: One (1) SS50 Yellow LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal mounting bracket set
Specifications
-
Raw output: Sport 18,440 lumens, Pro 62,720 lumens
-
Color temperature: 3000K
-

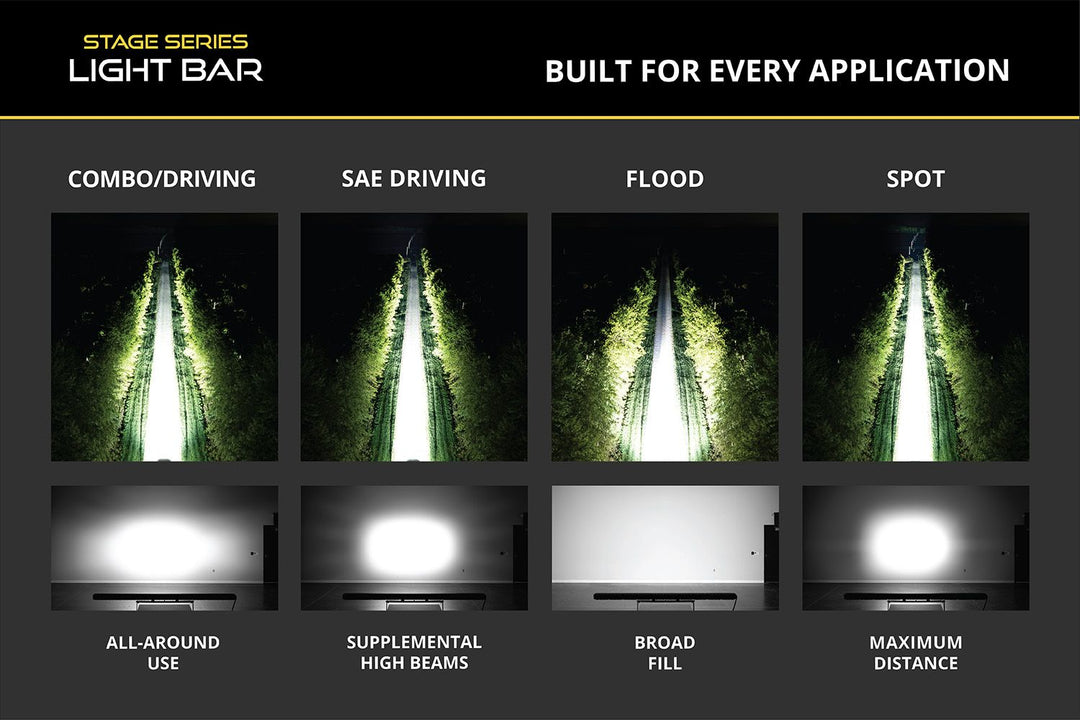

Beam patterns: Combo/Driving 60° x 30°, SAE Driving 20° x 12°, Flood 100° x 80°, Spot 8° x 8°
-

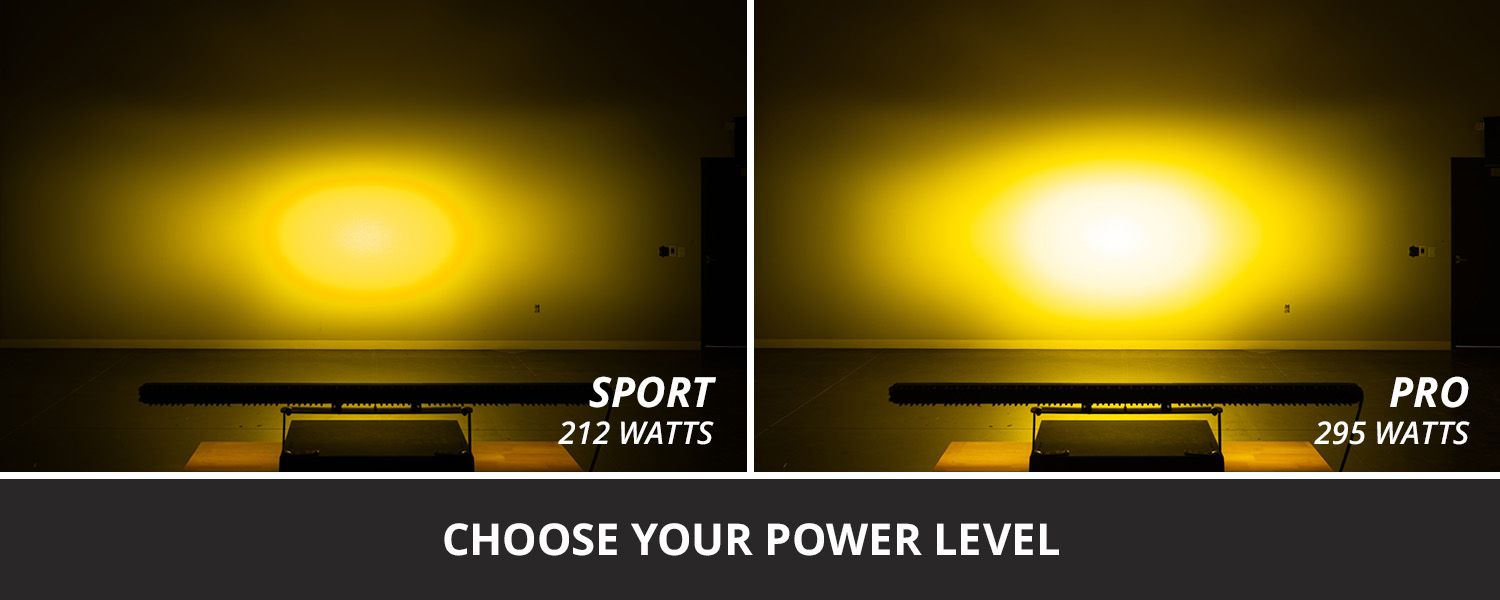

Power: Sport 212W, Pro 295W
-
Voltage: 9–30V
-
Current: Sport 16.56A @ 12.8V, Pro 23.05A @ 12.8V
-
Ingress rating: IP69K
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-

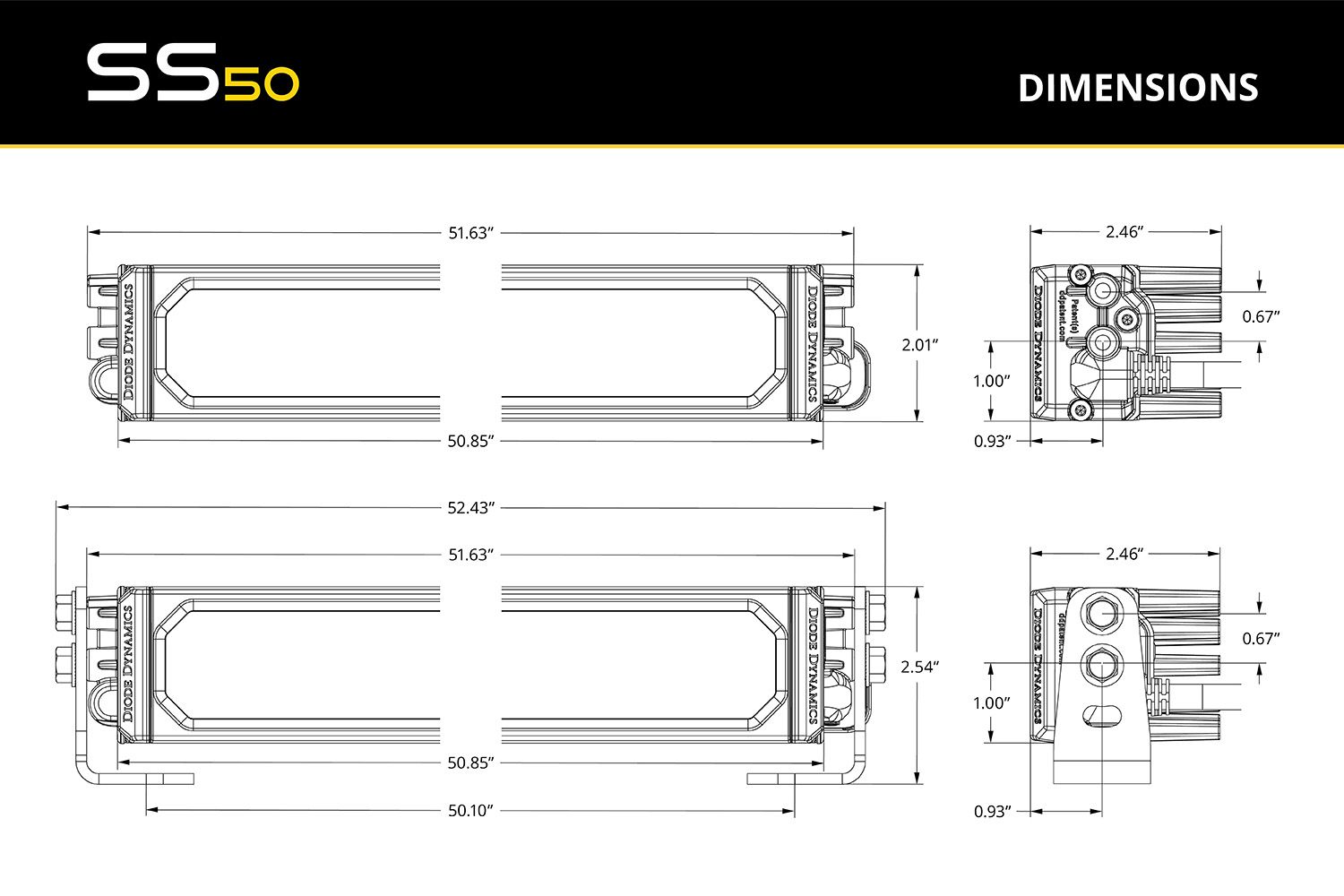

Dimensions: 2.01" x 51.63" x 2.46"
Installation
-
Install time: 30–60 minutes
-
Tools needed: Basic toolset
-
Modification: None required
