Upgrade your factory fog lights with the SS6 LED Fog Light Kit for the Toyota Tacoma and gain a major increase in usable light output without sacrificing on-road legality. This bolt-on kit installs two 6-inch Stage Series LED light bars using CAD-designed brackets and factory mounting points for a clean, OEM-style appearance—no cutting or drilling required.
Important note
-
Trim compatibility: Not compatible with the Trail Hunter trim or models equipped with Rigid Dual Color fog lights.
-
Legal use: SAE Fog beam pattern is designed for on-road use; verify local laws and regulations for aiming and installation.
Features
-

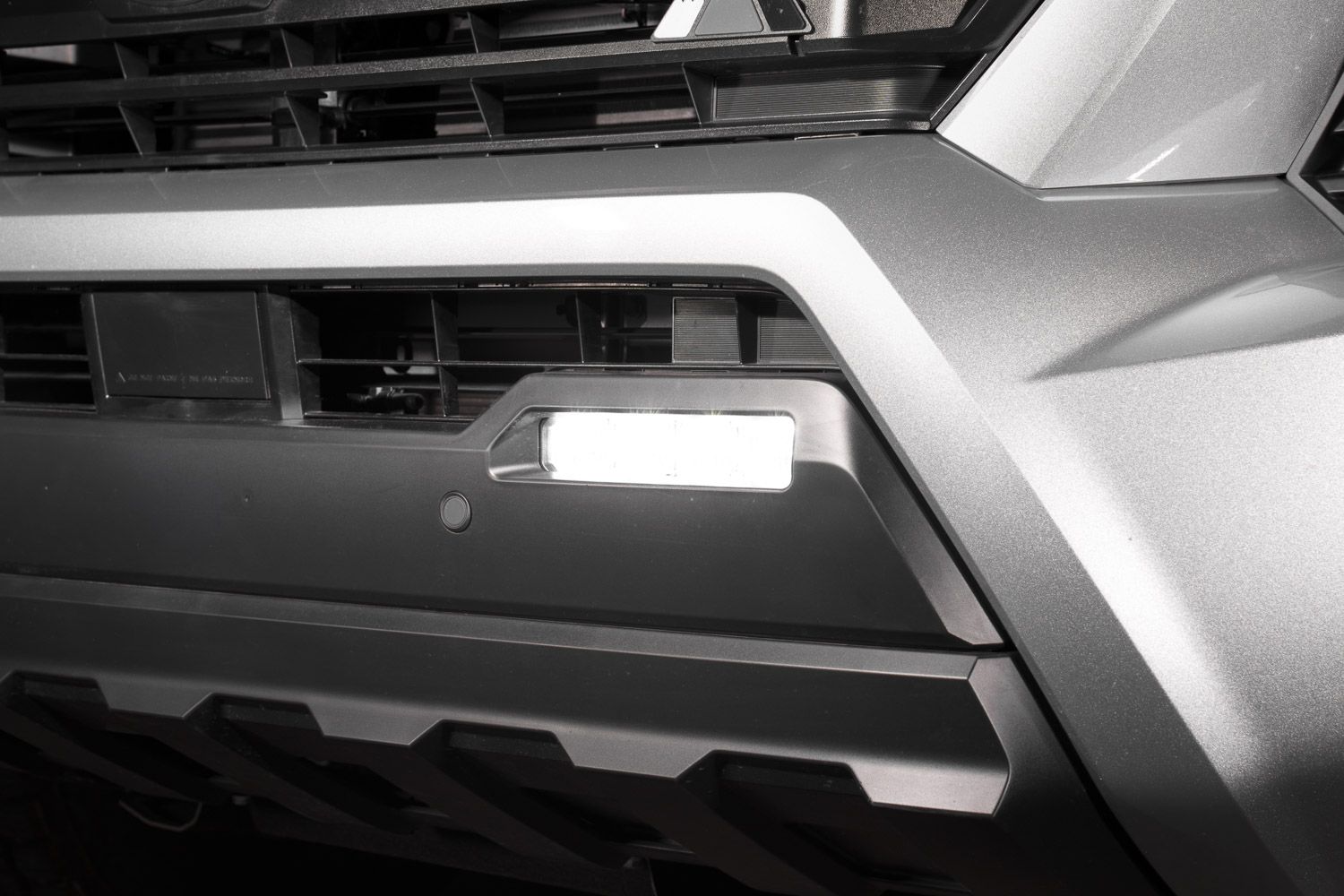

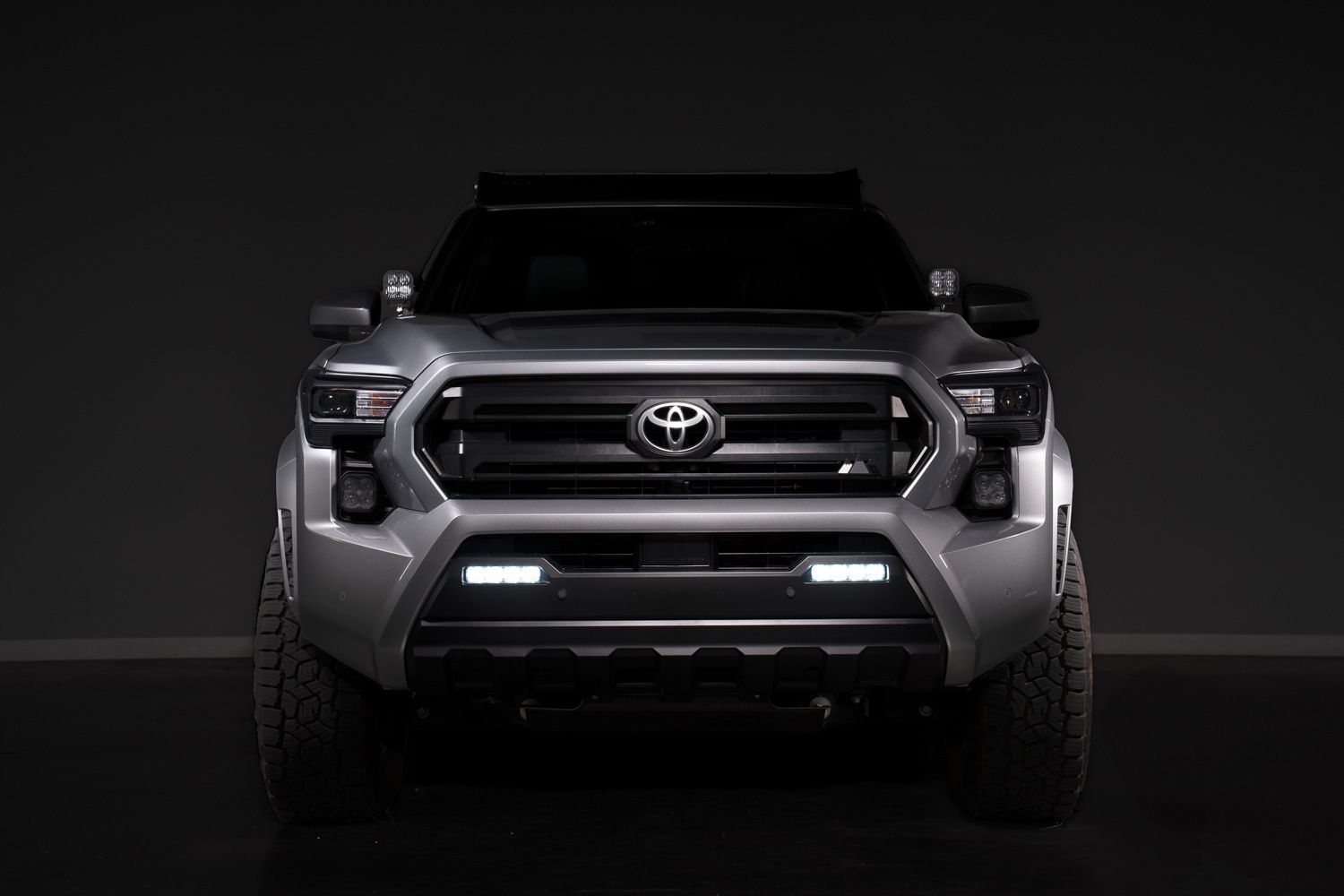

Direct fitment: Designed specifically for the Toyota Tacoma factory fog light locations.
-
SAE fog beam pattern: Wide, road-legal output optimized for fog, rain, and low-visibility conditions.
-
Patented TIR optics: Maximizes efficiency and usable light output while reducing glare.
-
Application-specific brackets: CAD-designed brackets ensure precise alignment and seamless installation.
-
Amber backlight: Integrated true amber backlight provides distinctive accent lighting.
-
Multiple power levels: Available in Sport, Pro, and Max configurations.
-
Factory mounting points: Utilizes existing mounting locations with no cutting or drilling required.
-
Advanced thermal design: Optimized heatsinks and premium materials allow sustained high output.
-
Proven durability: Tested to SAE standards for vibration, moisture, corrosion, and temperature extremes.
-
Made in USA: Engineered and manufactured in the USA using globally sourced materials.
-
Warranty coverage: Backed by a limited lifetime warranty.
Specifications
-
Color temperature: 2000K, 3000K, 6000K
-
Beam angle: Wide (100°x8°), SAE Fog (90°x10°)
-
Power: Sport – 31.5W, Pro – 35W, Max – 40.5W
-
Current draw: Sport – 2.46A, Pro – 2.73A, Max – 3.16A @ 12.8V
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Luxeon Z ES, Osram Boost HX, Osram Ostar Projection Compact, Lumileds automotive-grade LEDs
-
Connector: Deutsch DT input
-
Materials: Aluminum PCB, copper PCB, polycarbonate lens, aluminum heatsink
-
Cooling: Passive heatsink
-
Ingress rating: IP69K waterproof, high pressure
-
Unit weight: 1.8 lb
-
Product weight: 3.6 lb
-
Shipped weight: 5 lb
Output by configuration
-
White SAE Fog Sport: 15,000 cd, 150 lux @10m, 1,844 lm
-
White SAE Fog Pro: 16,000 cd, 160 lux @10m, 6,272 lm
-
White SAE Fog Max: 20,300 cd, 203 lux @10m, 7,920 lm
-
White SAE Fog Classic: 13,000 cd, 130 lux @10m, 2,280 lm
-
Yellow SAE Fog Sport: 1,844 lm
-
Yellow SAE Fog Pro: 6,272 lm
-
Yellow SAE Fog Max: 7,920 lm
-
Yellow SAE Fog Classic: 7,400 cd, 74 lux @10m, 1,140 lm
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)
-
Application: Fog light

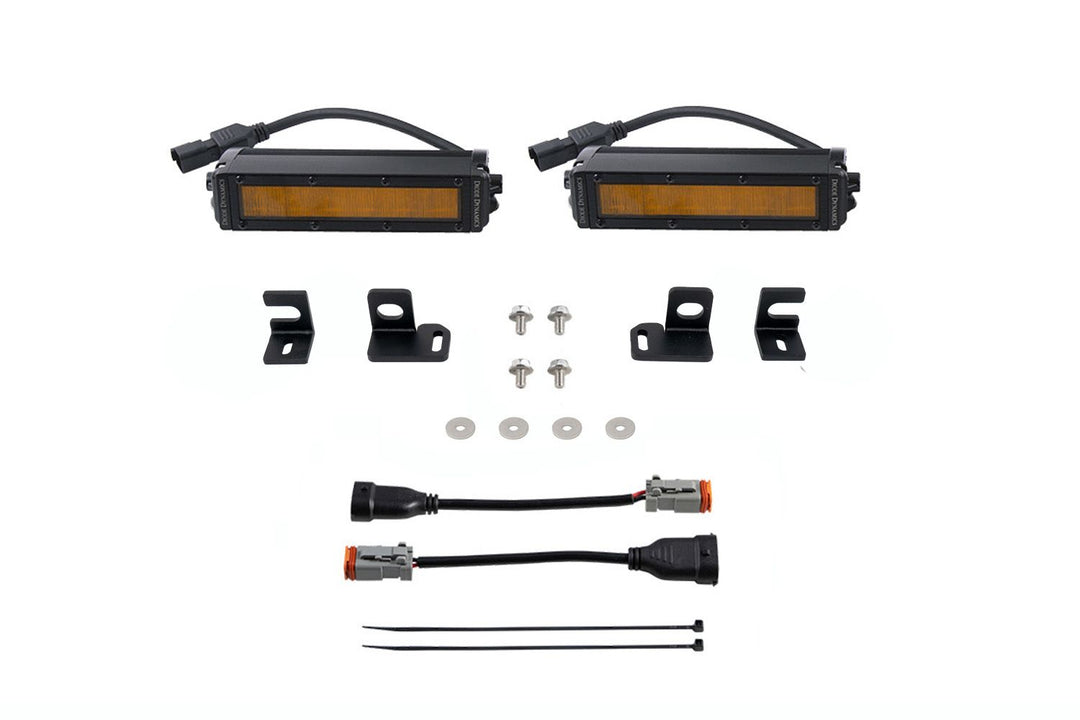

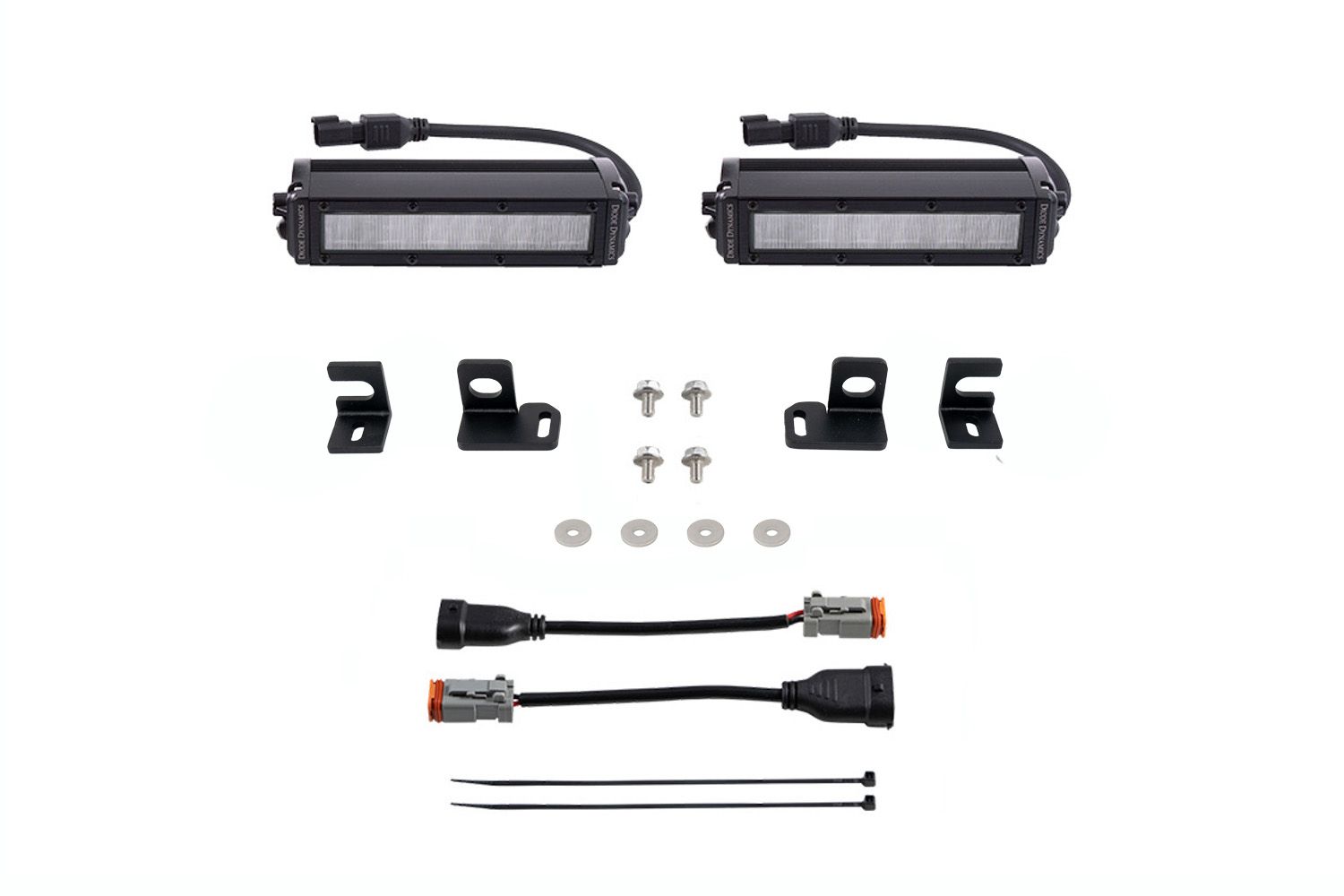

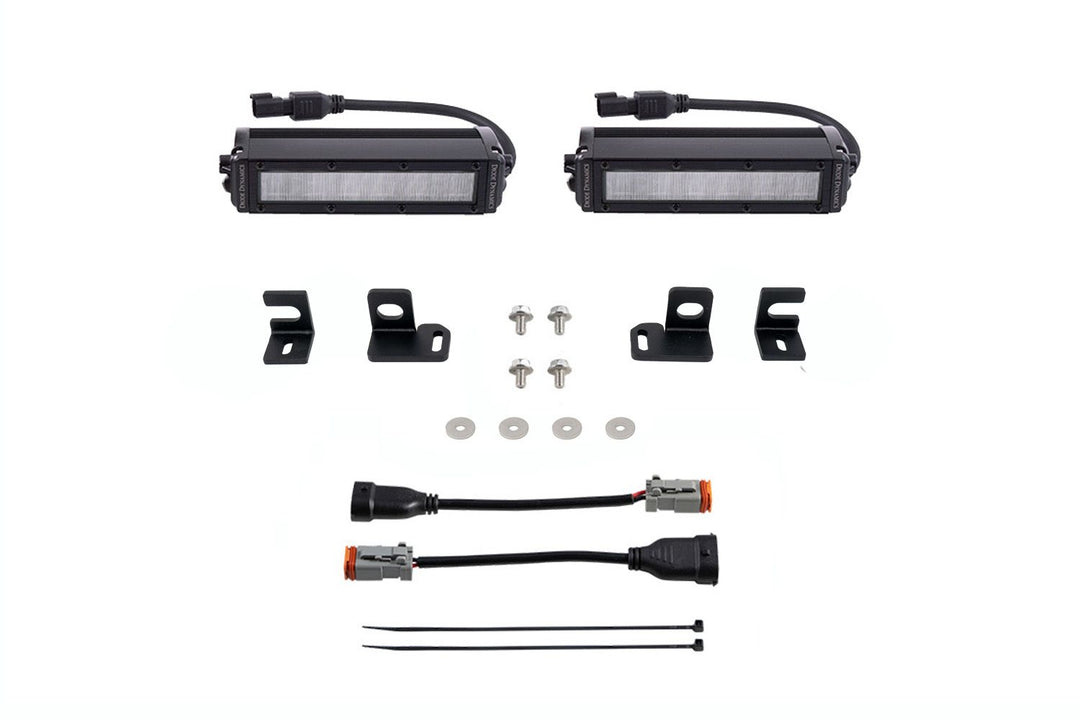

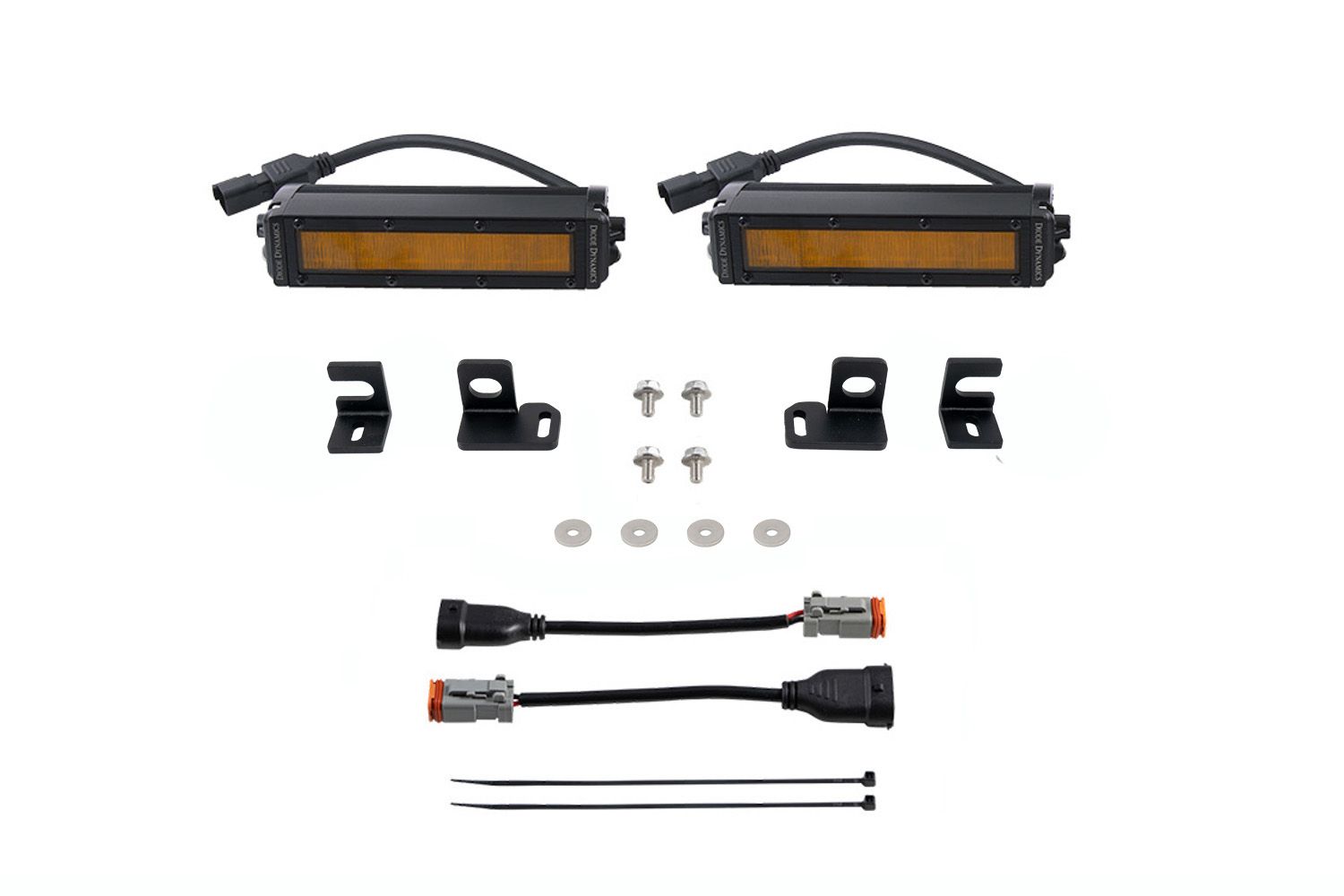

Included in the box
-
Mounting brackets: Four (4) application-specific brackets
-
LED light bars: Two (2) 6-inch Classic or SS6 LED light bars
-
Adapters: Two (2) H11 DT adapters
-
Documentation: Installation guide
Additional details
-
Quantity: Two (2)
-
Installation time: 1–2 hours
-
Tools required: Basic toolset
-
Modification: Basic wiring only
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
