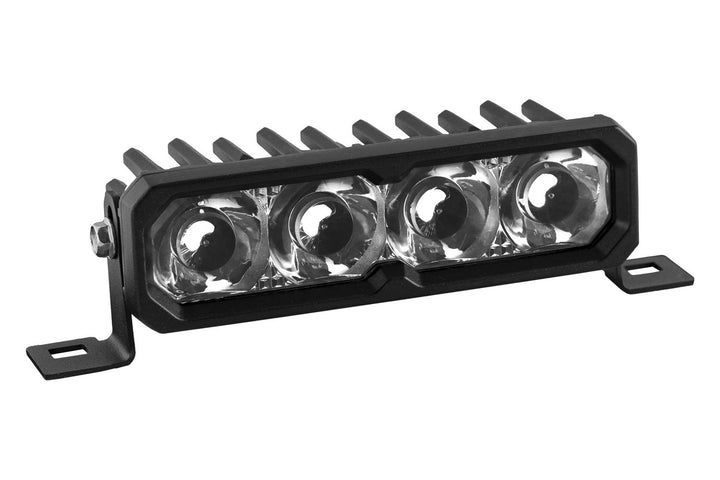

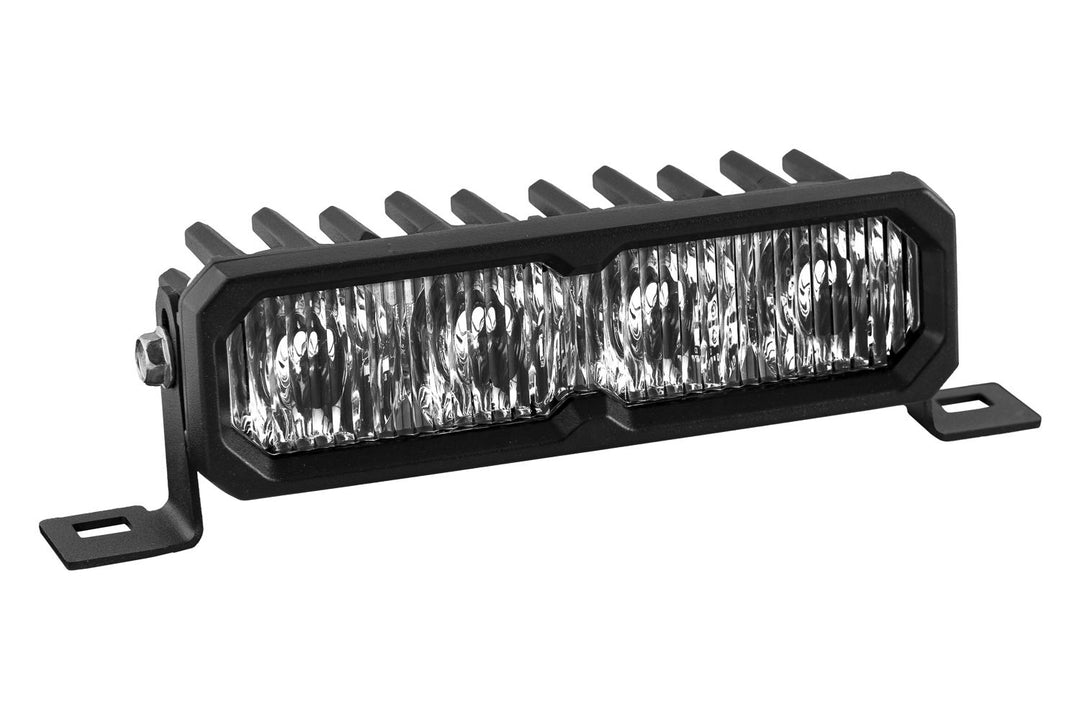

The Diode Dynamics Stage Series SS10 LED Light Bar is engineered to deliver unmatched light output, control, and durability in a compact 10-inch footprint. Featuring patented TIR (Total Internal Reflection) optics, the SS10 captures and precisely directs nearly all emitted light exactly where you need it—maximizing usable illumination while minimizing glare. With multiple beam patterns, selectable power levels, and a fully illuminated backlight, the SS10 is built to perform in everything from daily driving to extreme off-road conditions.
Notes
-
Power Levels: Available in Sport, Pro, and Max configurations.
-

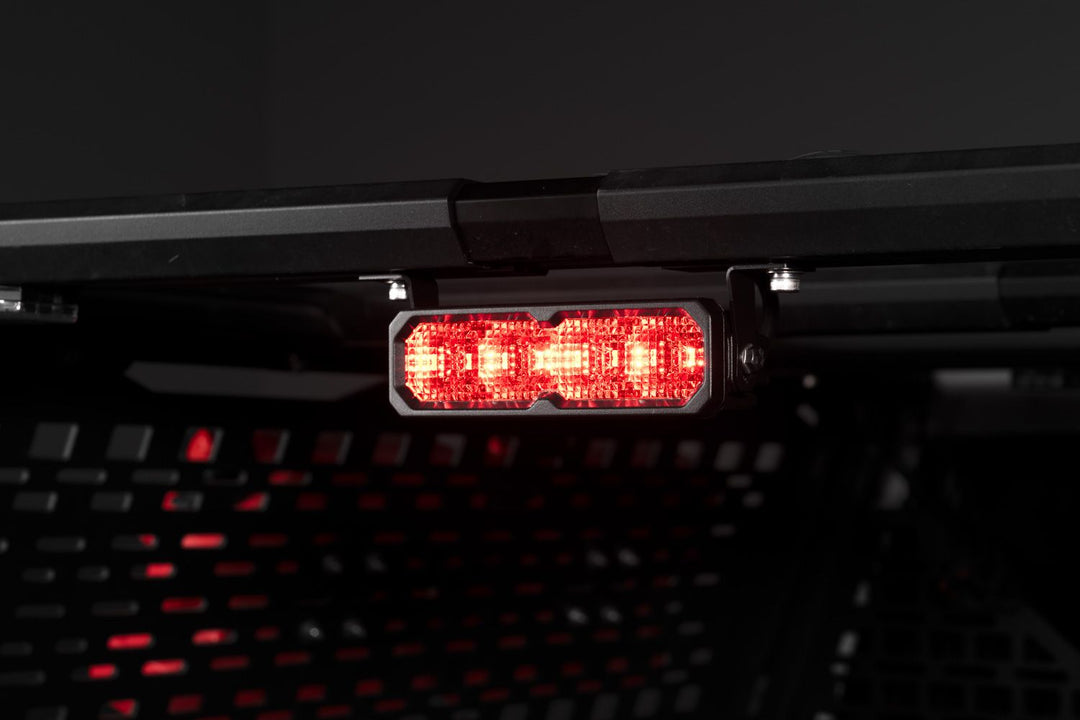

Backlight Options: Stage Series light bars feature a fully illuminated backlight; SS6 variants offer amber or red backlight options.
-
Optics: Beam patterns and lenses are interchangeable.
-
Manufacturing: Engineered and manufactured in the USA using globally sourced materials.
Features
-
TIR Optics: Patented Total Internal Reflection optics maximize efficiency and usable light output.
-
Beam Patterns: Multiple patterns fine-tuned for real-world driving and off-road use.
-
Power Options: Sport, Pro, and Max power levels to match your lighting needs.
-
Backlight: Fully illuminated backlight fills the optic for a bold, distinctive appearance.
-
Construction: Durable aluminum housing with ASTM-standard powder-coated finish.
-
Thermal Management: Advanced heatsink design allows sustained high-output performance.
-
Weatherproofing: IP69K-rated for extreme dust and water resistance.
-
Reliability: Extensively tested to SAE standards for vibration, moisture, and corrosion.
-
Warranty: Backed by a limited lifetime warranty.
Specs
-
Color Temperature: 6000K White
-

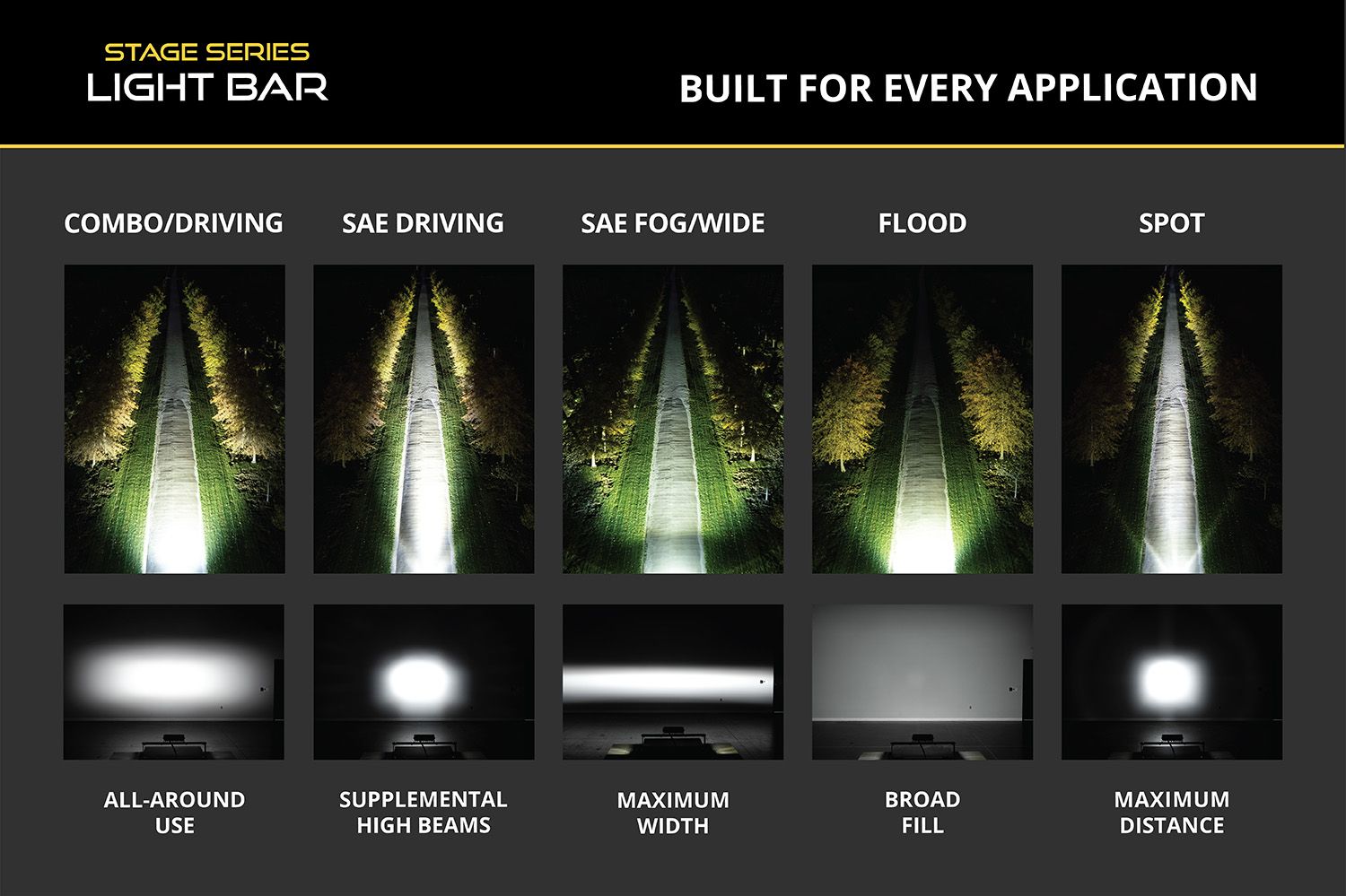

Beam Angles:
-
Combo/Driving: 60° x 30°
-
SAE Driving: 20° x 12°
-
SAE Fog/Wide: 90° x 10°
-
Flood: 100° x 80°
-
Spot: 8° x 8°
-

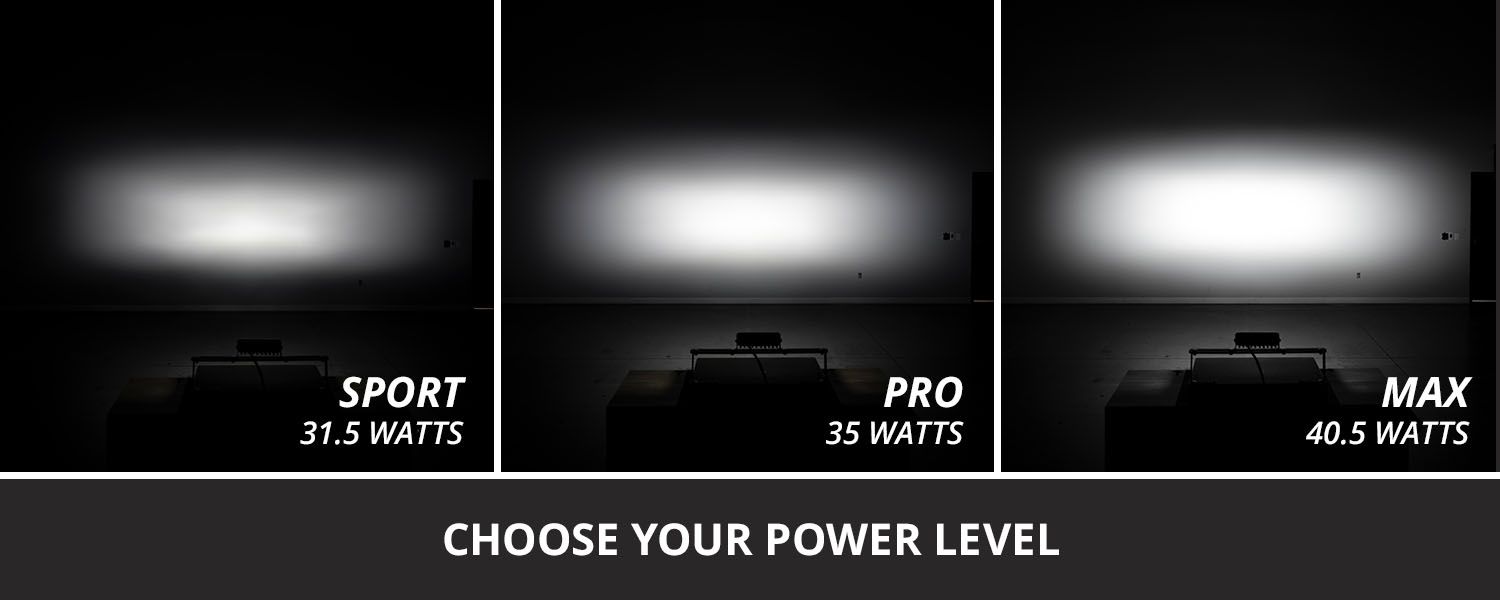

Power Output:
-
Sport: 31.5W
-
Pro: 35W
-
Max: 40.5W
-
Operating Voltage: 9–30V
-
Current Draw @ 12.8V:
-
Sport: 2.46A
-
Pro: 2.73A
-
Max: 3.16A
-
LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade
-
Materials: Aluminum heatsink, polycarbonate lens, copper PCB, stainless steel brackets
-
Cooling: Passive heatsink
-
Ingress Rating: IP69K waterproof / high-pressure resistant
-
Dimensions: 2.01" x 6.77" x 2.37"
In the Box
-
Light Bar: One (1) Stage Series SS10 LED light bar
-
Wiring: One (1) wire pigtail
-
Mounting: Universal bracket set
Installation
-
Install Time: Approximately 30–60 minutes
-
Tools Required: Basic hand tools
-
Mounting Style: Universal mounting brackets included
