Name: Diode Dynamics SS6 White LED Light Bar (pair)
Brand: Diode Dynamics
SKU: DD8136P
Price: 299.95 USD
Availability: InStock

Diode Dynamics SS6 White LED Light Bar (pair)

$299.95

Shipping calculated at checkout.

Low stock - 5 items left
Backordered, shipping soon

The Diode Dynamics Stage Series SS6 LED Light Bars feature patented TIR (Total Internal Reflection) optics, re-engineered to deliver more intensity, more usable light, and less glare than traditional reflector-based light bars. These optics capture nearly all available light from the LED and direct it exactly where you need it—maximizing efficiency and visibility in real-world driving conditions.

Designed, engineered, and made in the USA using globally sourced materials, the SS6 represents one of the most advanced and configurable LED light bars on the market today.

Note

Sold as a Pair: Includes two (2) SS6 LED light bars
Backlight Color: Available in Amber or Red
Power Levels: Sport / Pro / Max
Warranty: Limited Lifetime Warranty
Return Policy: 30-Day Returns, No Restocking Fee

Features

Focused Performance

Multiple beam patterns engineered for real-world use
Precision light placement with minimal glare

Multiple Power Levels

Sport: Best value and efficiency
Pro: Noticeable jump in output
Max: Extreme intensity using Osram HX Boost LEDs

Fully Illuminated Backlight

Entire TIR optic illuminates for a bold accent look
Amber: Ideal for forward-facing use
Red: Ideal for rear-facing or chase-light applications

Built for Extremes

Durable aluminum housing with ASTM-standard powdercoat
IP69K waterproof rating (high-pressure, high-temperature wash safe)
Tested from -40°F to 185°F

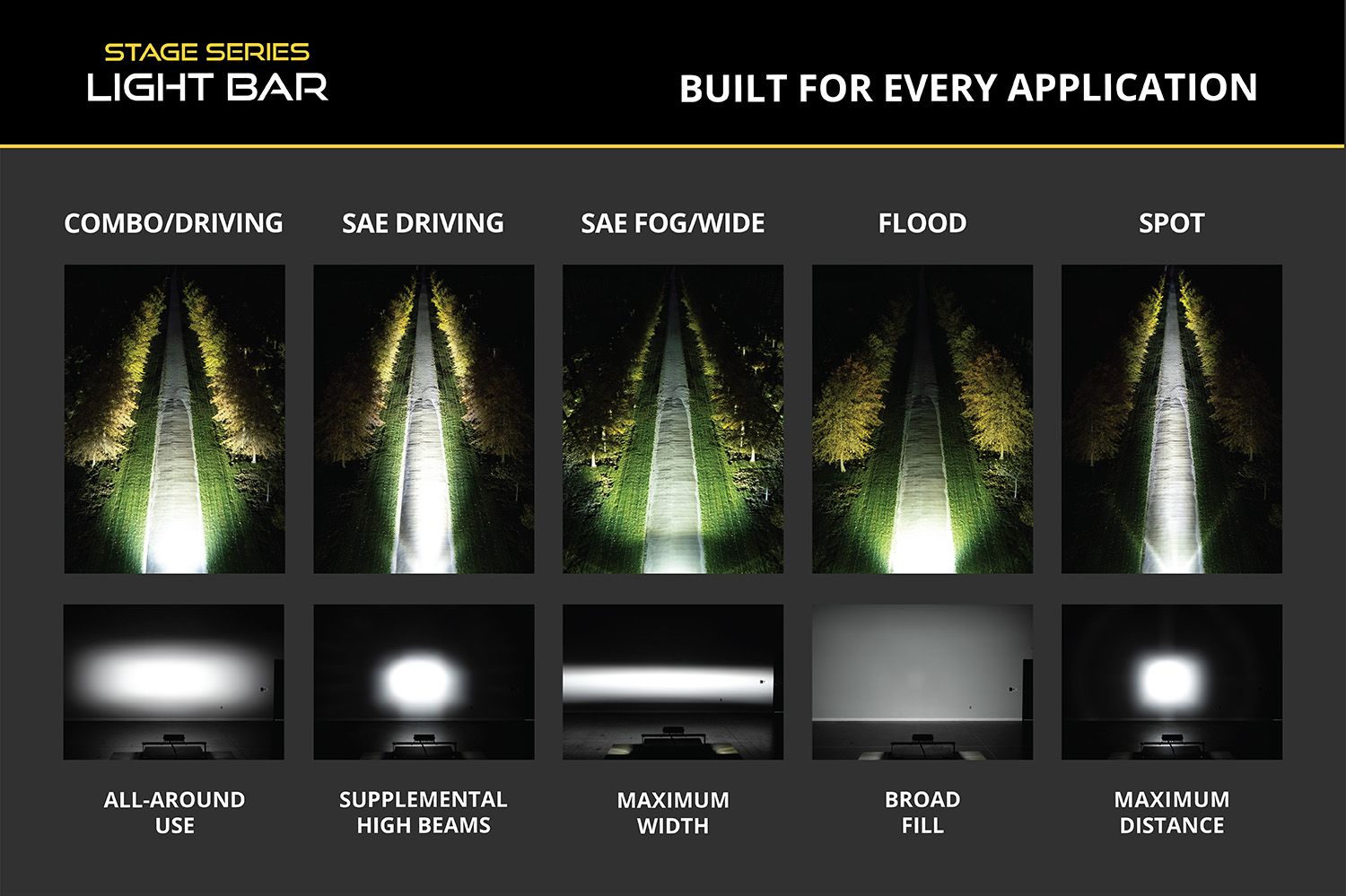

BEAM PATTERN OPTIONS

Combo / Driving (60° × 30°): Balanced distance + width
SAE Driving (20° × 12°): High-beam supplement
SAE Fog / Wide (90° × 10°): Wide foreground illumination
Flood (100° × 80°): Camps, work zones, reverse lighting
Spot (8° × 8°): Long-distance, high-speed visibility

WHAT’S IN THE BOX

(2) SS6 LED Light Bars
(2) Wire Pigtails
Universal Mounting Brackets

SPECIFICATIONS (PER BAR)

Electrical

Operating Voltage: 9–30V
Color Temperature: 6000K Cool White
Connector: Deutsch DT
Polarity: Polarity specific

Power & Output

Power Level	Watts	Lumens
Sport	31.5W	1,844 lm
Pro	35W	6,272 lm
Max	40.5W	7,920 lm

Materials

Copper PCB
Polycarbonate Lens
Aluminum Heatsink
Stainless Steel Brackets

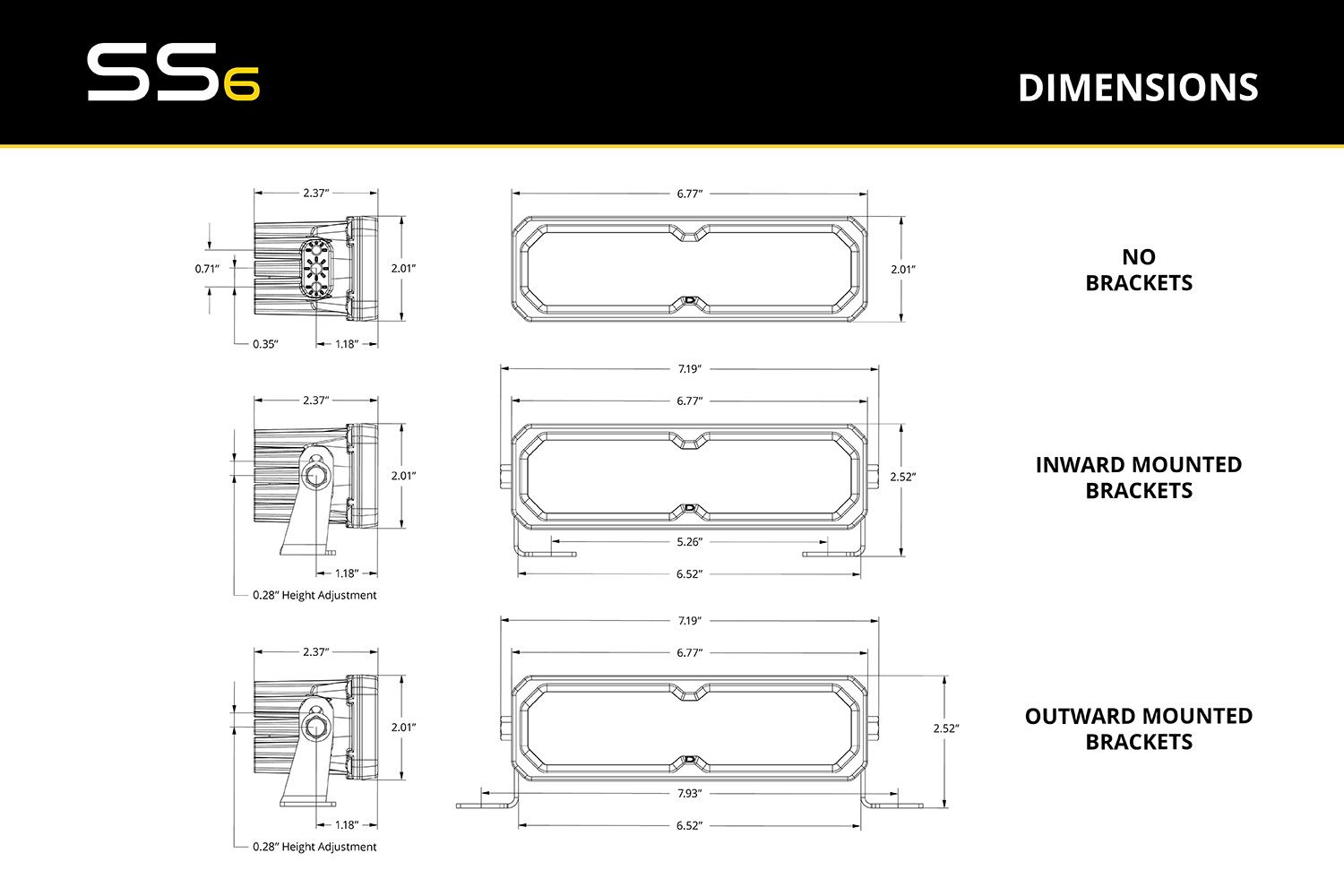

Dimensions

2.01” × 6.77” × 2.37” (each bar)

WHY STAGE SERIES?

TIR optics outperform traditional reflectors
Swappable lenses for color and beam customization
Snap-On lens covers available (clear, amber, smoked, black, yellow)
Compatible with CrossLink mounting for custom bar layouts

INSTALLATION

Estimated Time: 30–60 minutes
Tools Required: Basic hand tools
