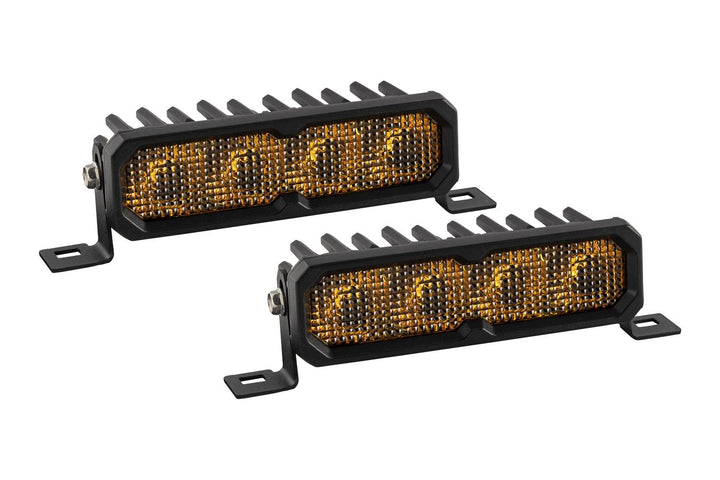

The Diode Dynamics Stage Series SS6 Yellow LED Light Bar is engineered to deliver unmatched performance, precision, and reliability in demanding driving conditions. Featuring re-engineered TIR (Total Internal Reflection) optics, this compact 6-inch light bar maximizes usable output by directing light exactly where you need it—reducing glare, improving efficiency, and enhancing visibility on-road and off-road. With multiple beam patterns, selectable power levels, and a distinctive amber backlight, the SS6 is built for drivers who demand serious lighting performance without compromise.
Notes
-
Yellow Output: All yellow models feature a fully illuminated amber backlight.
-
Power Levels: Available in Sport, Pro, and Max output configurations.
-
Road Use: Certain beam patterns may be SAE compliant—verify local regulations before on-road use.
Features
-
TIR Optics: Patented Total Internal Reflection optics for maximum efficiency and precise light control.
-
Beam Patterns: Multiple beam options engineered for real-world driving conditions.
-
Power Levels: Available in Sport, Pro, and Max for customizable output.
-
Amber Backlight: Fully illuminated backlight integrated into the optic for enhanced visibility and style.
-
Housing: Durable aluminum construction with ASTM-standard powder coat finish.
-
Weatherproofing: IP69K-rated for extreme water and dust resistance.
-
Thermal Management: Optimized heatsink design for sustained high-output performance.
-
Build Quality: Engineered and manufactured in the USA using globally sourced materials.
-
Warranty: Backed by a limited lifetime warranty.
Specs
-
Color Temperature: 3000K Yellow
-

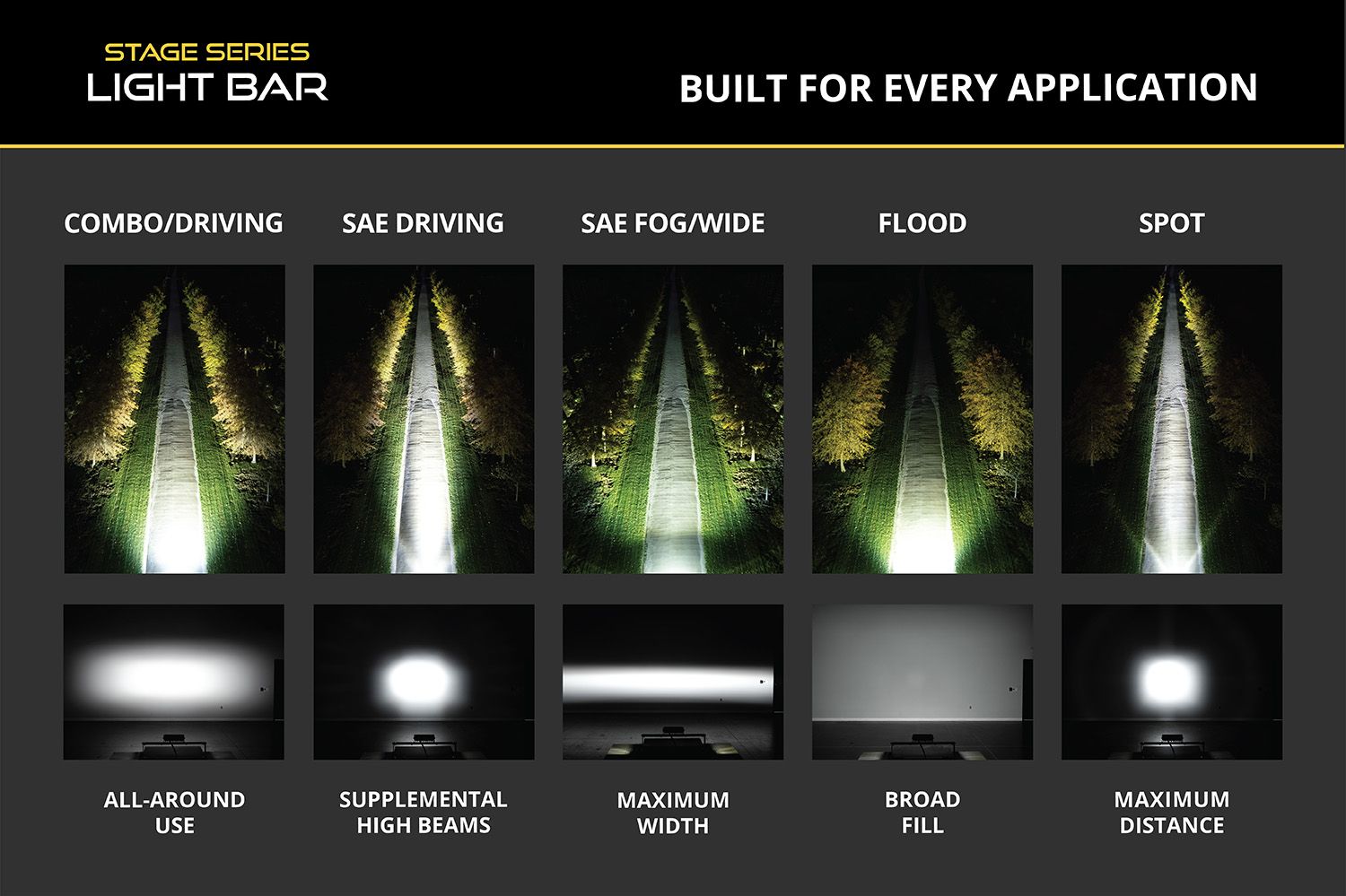

Beam Angles:
- Combo/Driving: 60° x 30°
- SAE Driving: 20° x 12°
- Flood: 100° x 80°
- Spot: 8° x 8°
- SAE Fog: 90° x 10°
-
Power Output:
- Sport: 31.5W
- Pro: 35W
- Max: 40.5W
-
Operating Voltage: 9–30V
-
Current Draw @ 12.8V:
- Sport: 2.46A
- Pro: 2.73A
- Max: 3.16A
-
LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade
-
Materials: Aluminum heatsink, polycarbonate lens, copper PCB, stainless steel brackets
-
Cooling: Passive heatsink
-
Ingress Rating: IP69K waterproof and high-pressure resistant
-

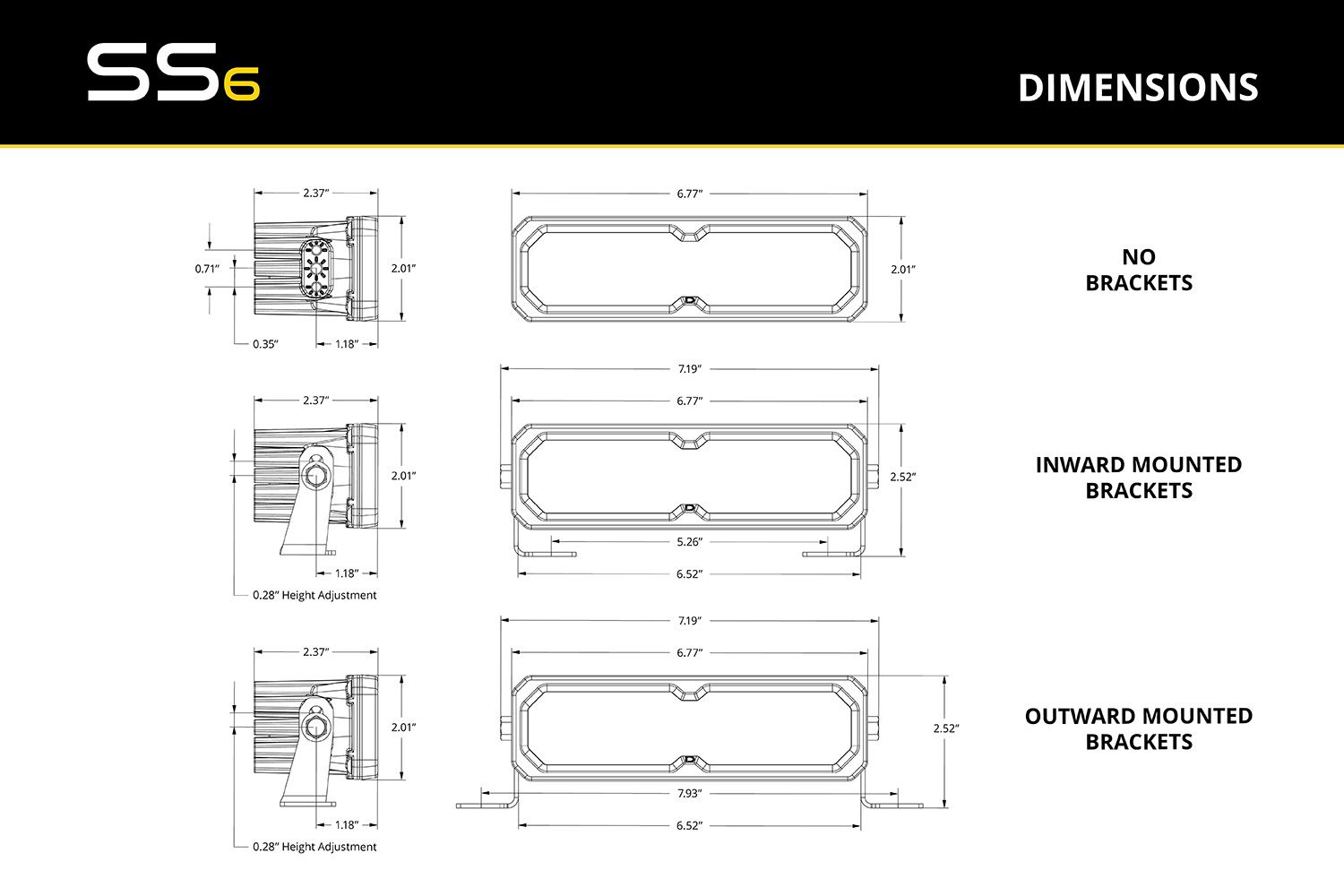

Dimensions: 2.01" x 6.77" x 2.37"
Included
-
LED Light Bars: Two (2) SS6 LED light bars
-
Wiring: Two (2) wire pigtails
-
Mounting: Universal mounting brackets
-
Quantity: Sold as a pair
Installation
-
Install Time: Approximately 30–60 minutes
-
Tools Required: Basic hand tools
-
Mounting: Universal brackets included for flexible installation
