Built to deliver unmatched performance in a compact footprint, the Diode Dynamics Stage Series SS10 LED Light Bar uses patented TIR (Total Internal Reflection) optics to maximize usable light exactly where you need it. Each beam pattern is precisely engineered for real-world driving conditions, reducing glare while increasing efficiency and downrange visibility. With multiple beam patterns, three power levels, and a fully illuminated backlight, the SS10 stands out as one of the most capable 10-inch LED light bars available—engineered, tested, and proudly made in the USA.
Note
-
Backlight: SS10 features a fully illuminated backlight for a bold, distinctive appearance
-
Power Levels: Sport, Pro, and Max output options available
-
Wiring: Wiring harness sold separately unless otherwise stated
-
Application: SAE patterns are road-legal only when properly aimed and installed
Features
-
Optics: Patented TIR optics for maximum efficiency and focused output
-

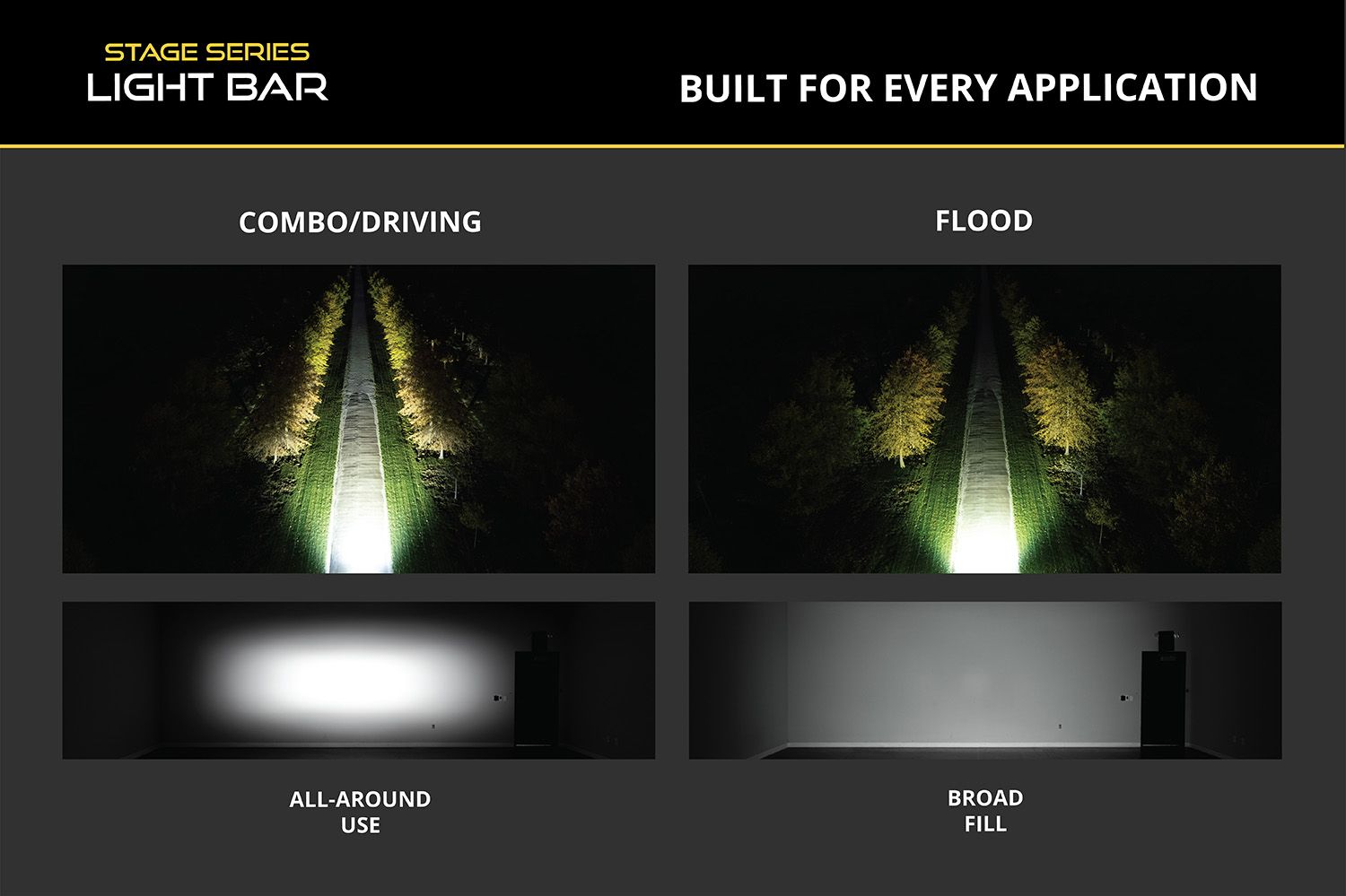

Beam Patterns: Combo/Driving and Flood options engineered for real-world performance
-
Power Levels: Available in Sport, Pro, and Max configurations
-

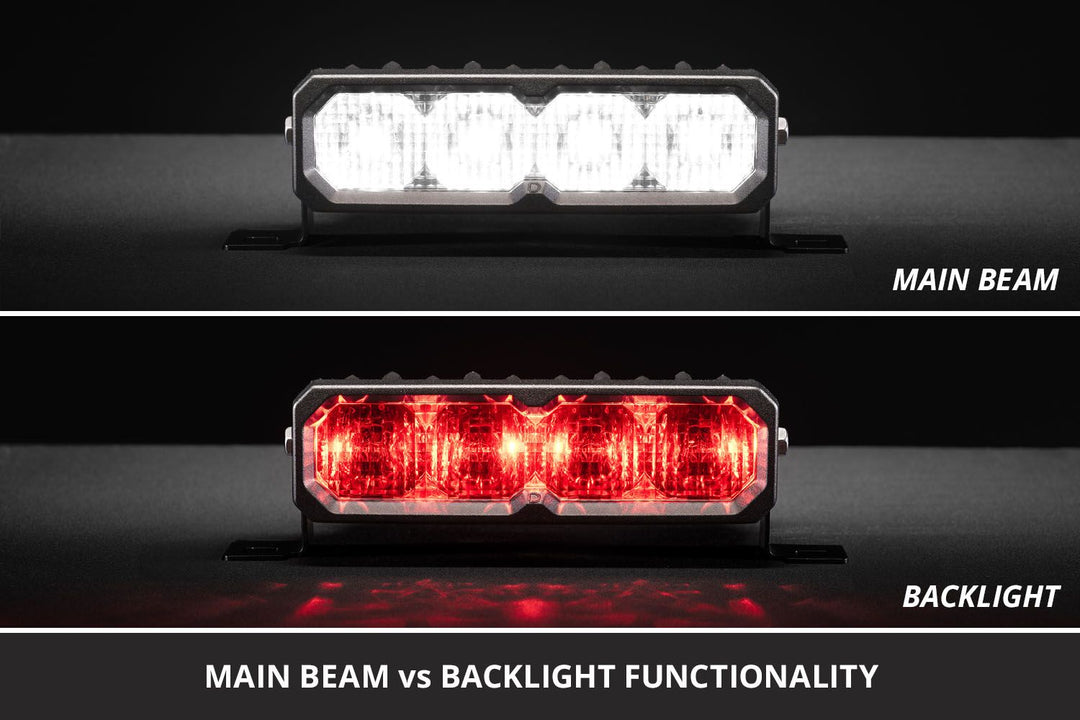

Backlight: Fully illuminated backlight fills the TIR optic for unique accent lighting
-
Construction: Durable aluminum housing with ASTM-standard powder coat finish
-
Protection: IP69K waterproof and dustproof rating for extreme environments
-
Thermal Management: Copper PCB and optimized heatsinks for sustained performance
-
Manufacturing: Engineered and manufactured in the USA with global materials
-
Warranty: Limited lifetime warranty
Specs
-
Color Temperature: 6000K (White)
-
Operating Voltage: 9–30V
-

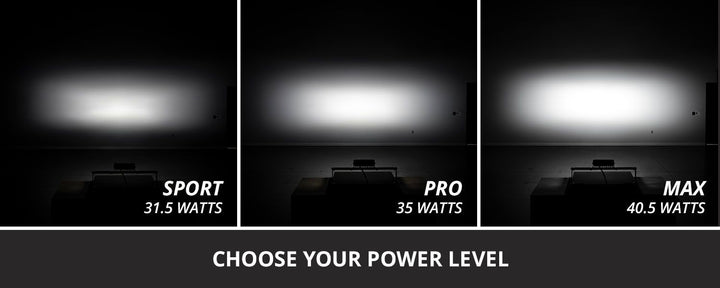

Power Output:
- Sport: 31.5W
- Pro: 35W
- Max: 40.5W
-
Beam Angles:
- Combo/Driving: 60° x 30°
- Flood: 100° x 80°
-
Ingress Rating: IP69K
-
Operating Temperature: -40°F to 185°F
-
Materials: Copper PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Connector: Deutsch DT
-
Dimensions: 2.01" x 6.77" x 2.37"
Package Content
-
Light Bar: One (1) SS10 LED Light Bar
-
Wiring: One (1) wire pigtail
-
Mounting: Flush mount bezel kit
Installation
-
Install Time: 30–60 minutes
-
Tools Required: Basic hand tools
