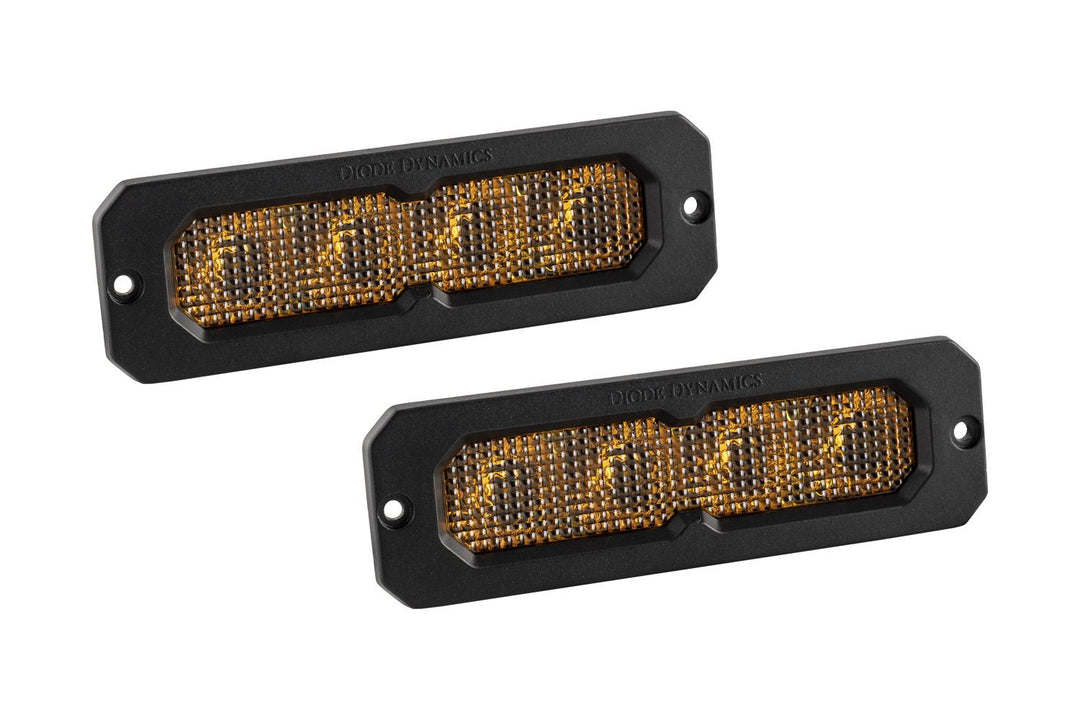

The Diode Dynamics Stage Series SS6 LED Light Bar is engineered for maximum usable light output in real-world driving conditions. Utilizing patented TIR (Total Internal Reflection) optics, the SS6 captures and focuses nearly all available light exactly where it’s needed—reducing glare while dramatically increasing efficiency. With selectable beam patterns, multiple power levels, and a fully illuminated amber backlight, the SS6 delivers premium performance in a compact, trail-ready package.
Notes
-
Backlight Color: Yellow models feature a fully illuminated amber backlight.
-
Power Levels: Available in Sport, Pro, and Max configurations.
-
Lens System: Optics and lens colors are swappable.
-
Pair Included: Sold as a set of two light bars.
Features
-
TIR Optics: Patented Total Internal Reflection optics maximize efficiency and usable output.
-
Beam Patterns: Multiple patterns engineered for real-world driving and trail conditions.
-
Power Options: Choose Sport, Pro, or Max output to match your needs.
-
Amber Backlight: Fully illuminated backlight fills the optic for a bold, distinctive appearance.
-
Construction: Durable aluminum housing with ASTM-standard powder coat finish.
-
Thermal Control: Advanced heatsink design allows sustained high-output performance.
-
Weatherproofing: IP69K-rated for extreme water and dust resistance.
-
Manufacturing: Engineered and manufactured in the USA using globally sourced materials.
-
Warranty: Backed by a limited lifetime warranty.
Specs
-
Color Temperature: 3000K Yellow
-

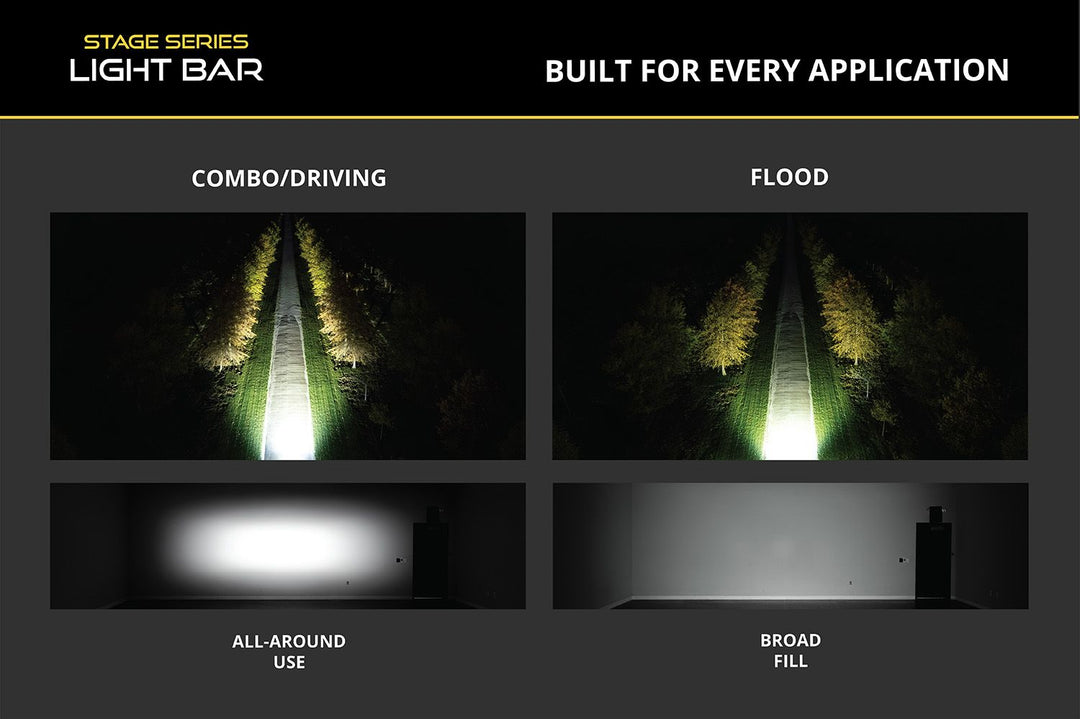

Beam Angles:
-
Combo/Driving: 60° x 30°
-
SAE Driving: 20° x 12°
-
Flood: 100° x 80°
-
Spot: 8° x 8°
-
SAE Fog: 90° x 10°
-
Power Output:
-
Sport: 31.5W
-
Pro: 35W
-
Max: 40.5W
-
Operating Voltage: 9–30V
-
Current Draw @ 12.8V:
-
Sport: 2.46A
-
Pro: 2.73A
-
Max: 3.16A
-
LED Emitters: Osram Boost HX, Osram Ostar Projection Compact, Lumileds Automotive Grade
-
Materials: Aluminum heatsink, polycarbonate lens, copper PCB, stainless steel brackets
-
Cooling: Passive heatsink
-
Ingress Rating: IP69K waterproof / high-pressure resistant
-
Dimensions: 2.01" x 6.77" x 2.37"
In the Box
-
Light Bars: Two (2) SS6 LED light bars
-
Wiring: Two (2) wire pigtails
-
Mounting: Flush mount bezel kit
Installation
-
Install Time: Approximately 30–60 minutes
-
Tools Required: Basic hand tools
-
Mounting Style: Flush mount using included bezel kit
