Designed for maximum visibility in harsh conditions and tight mounting locations, the Diode Dynamics Stage Series Amber LED Light Bars deliver focused, high-contrast lighting in a compact, race-proven package. Inspired by professional rally drivers, these lights combine advanced TIR optics, high-intensity automotive-grade LEDs, and a slim low-profile housing to cut through fog, rain, dust, and snow with ease. Whether used as fog lights, auxiliary lighting, or trail illumination, the Stage Series Amber lights are built to perform wherever conditions get demanding.
Important notes
-
Output color: 2000K amber
-
Beam patterns: Driving or SAE Fog/Wide
-
On-road use: SAE Fog/Wide pattern is road legal when properly aimed
-
Quantity: Sold as a pair (two light bars included)
-
Warranty: Backed by an 8-year manufacturer warranty

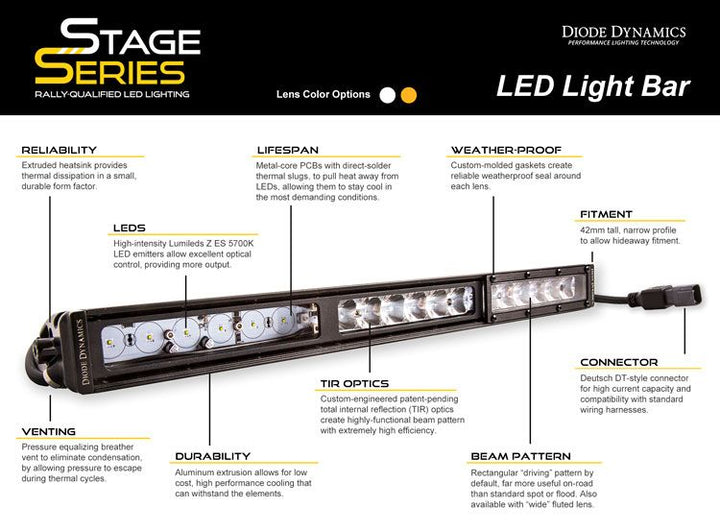

Features
-

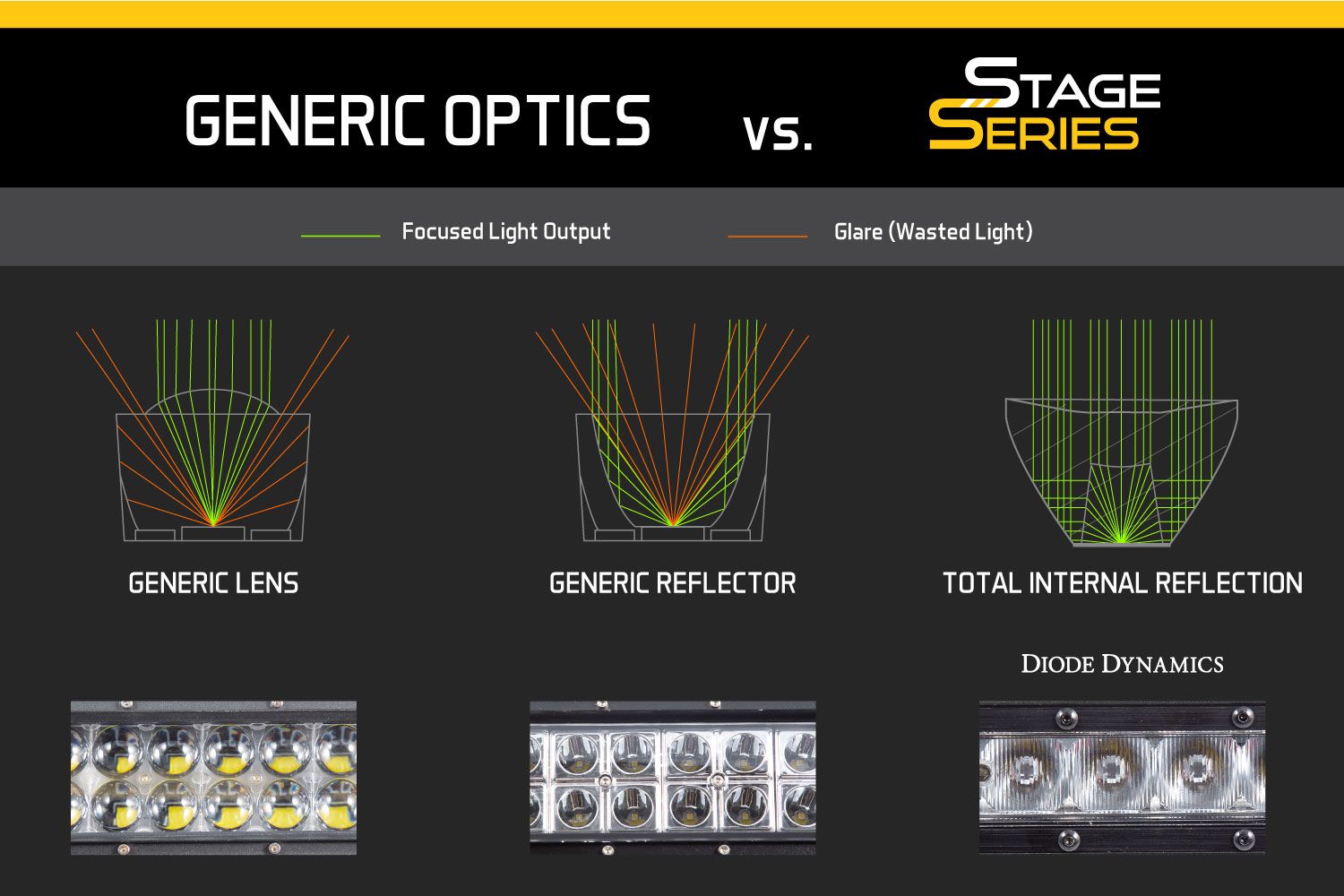

Optics: Advanced TIR (Total Internal Reflection) optics focus light precisely where it’s needed, reducing glare and maximizing efficiency.
-
LEDs: High-intensity automotive-grade LEDs produce a deep amber output ideal for poor weather and high-contrast visibility.
-
Housing: Slim 42mm extruded aluminum housing allows low-profile mounting in tight spaces.
-
Aerodynamics: Compact heatsink design minimizes wind noise compared to traditional dual-row light bars.
-
Driving beam: Rectangular 20° x 8° pattern engineered to supplement high beams and project usable light downrange.
-
Fog/Wide beam: Wide 100° x 8° pattern designed to illuminate the road and trail edges without wasting light upward.
-
Modular design: Six-inch segmented construction allows quick lens swaps to change beam pattern or color.
-
Sealing: Individual double-wall sealed lenses provide superior resistance to moisture and debris.
-
Connectivity: Deutsch DT connectors with included pigtails support custom wiring or optional Diode Dynamics harnesses.
-
Durability: Matte powdercoated aluminum housing resists corrosion, vibration, and off-road abuse.
-
Testing: SAE/DOT tested for vibration, moisture intrusion, corrosion, and extreme temperature operation.
Specifications
-
Color temperature: 2000K amber
-
Beam angles: Driving 20° x 8°, Wide 100° x 8°
-
Measured output: 800 lumens (per light)
-
Raw output: 1,140 lumens (per light)
-
Peak intensity: Up to 33,000 candela depending on beam pattern
-
Power: 26.6 watts (per light)
-
Operating voltage: 9–24V
-
Current draw: 1.9 amps @ 14V
-
Ingress rating: IP69K waterproof and high-pressure resistant
-
Materials: Aluminum PCB, polycarbonate lens, aluminum heatsink, stainless steel brackets
-
Cooling: Passive heatsink
-
LED emitter: Luxeon Z ES
-
Dimensions: 7" x 3" x 1.63"
Fitment
-
Compatibility: Universal fitment
-

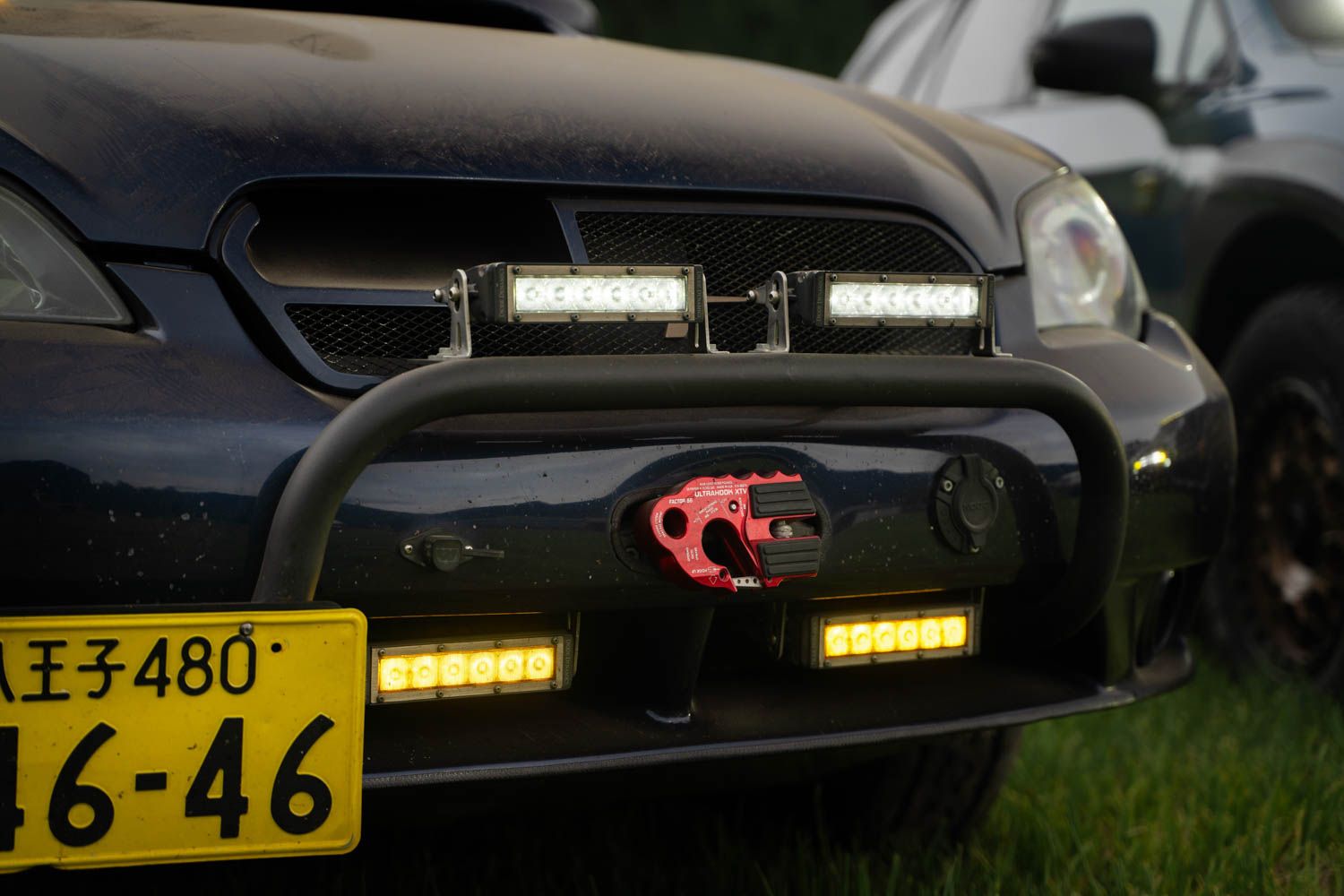

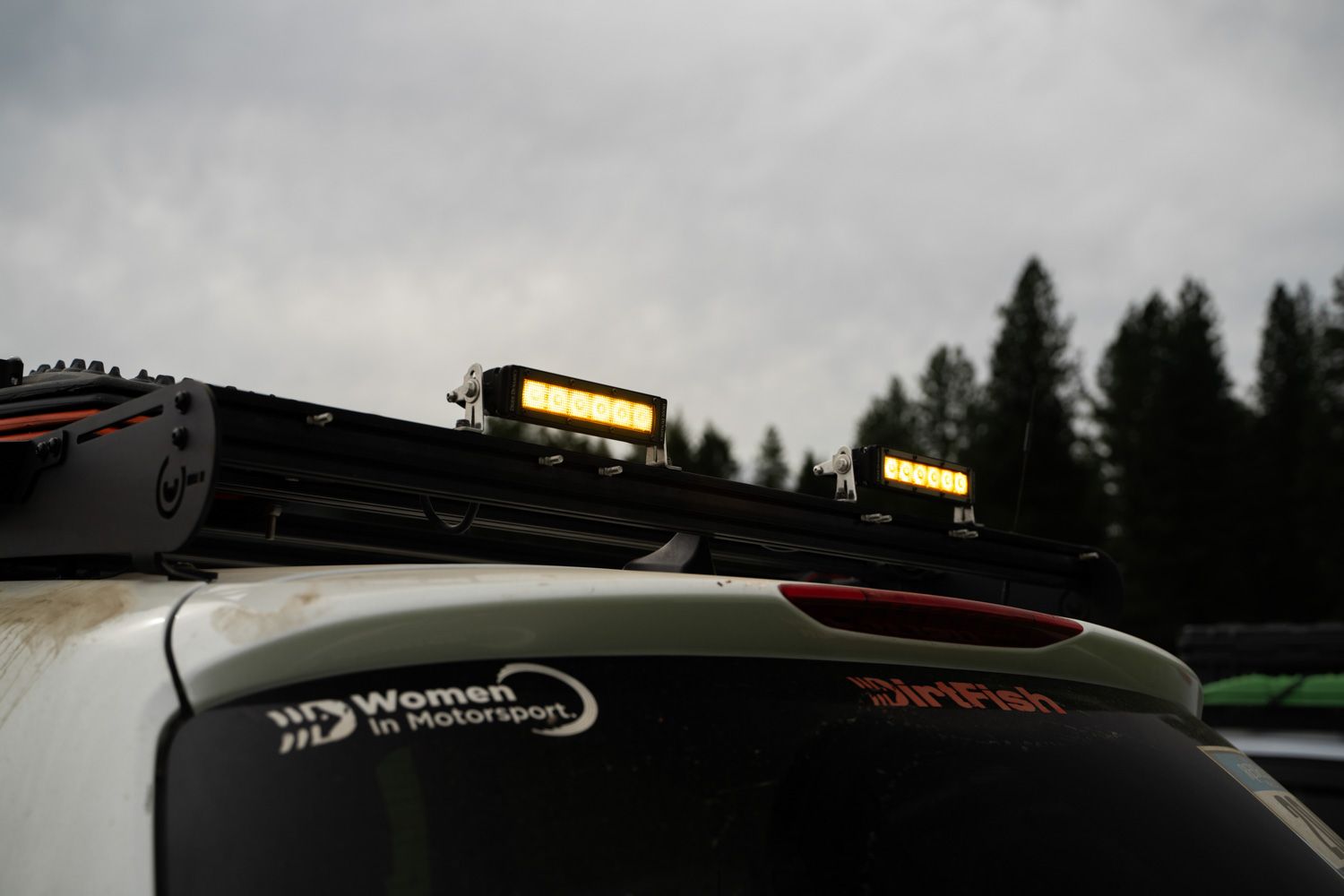

Installation: Mounts to any vehicle using the included universal bracket sets
In the box
-

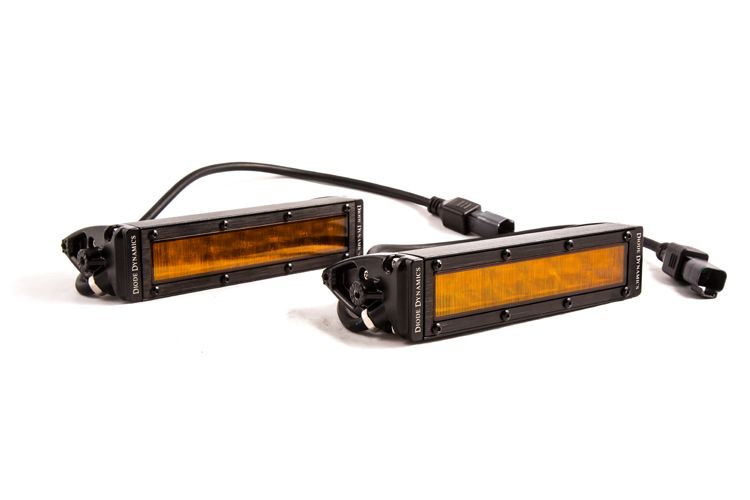

Light bars: Two (2) Stage Series Amber LED Light Bars
-
Wiring: Two (2) wire pigtails
-
Mounting: Two (2) universal bracket sets
-
Hardware: Two (2) M6 hex screws and two (2) M5 hex screws
Warranty and support
-
Warranty: 8-year limited warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
