Diode Dynamics Stage Series Backlit Ditch Light Kit for 4Runner (2025+)

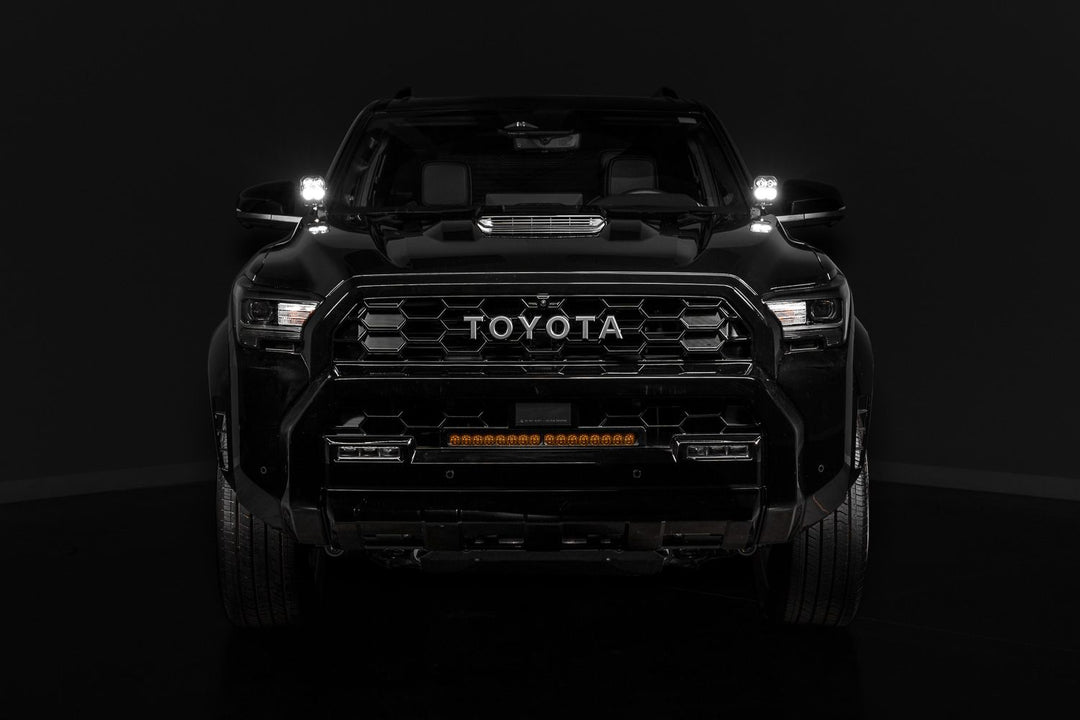

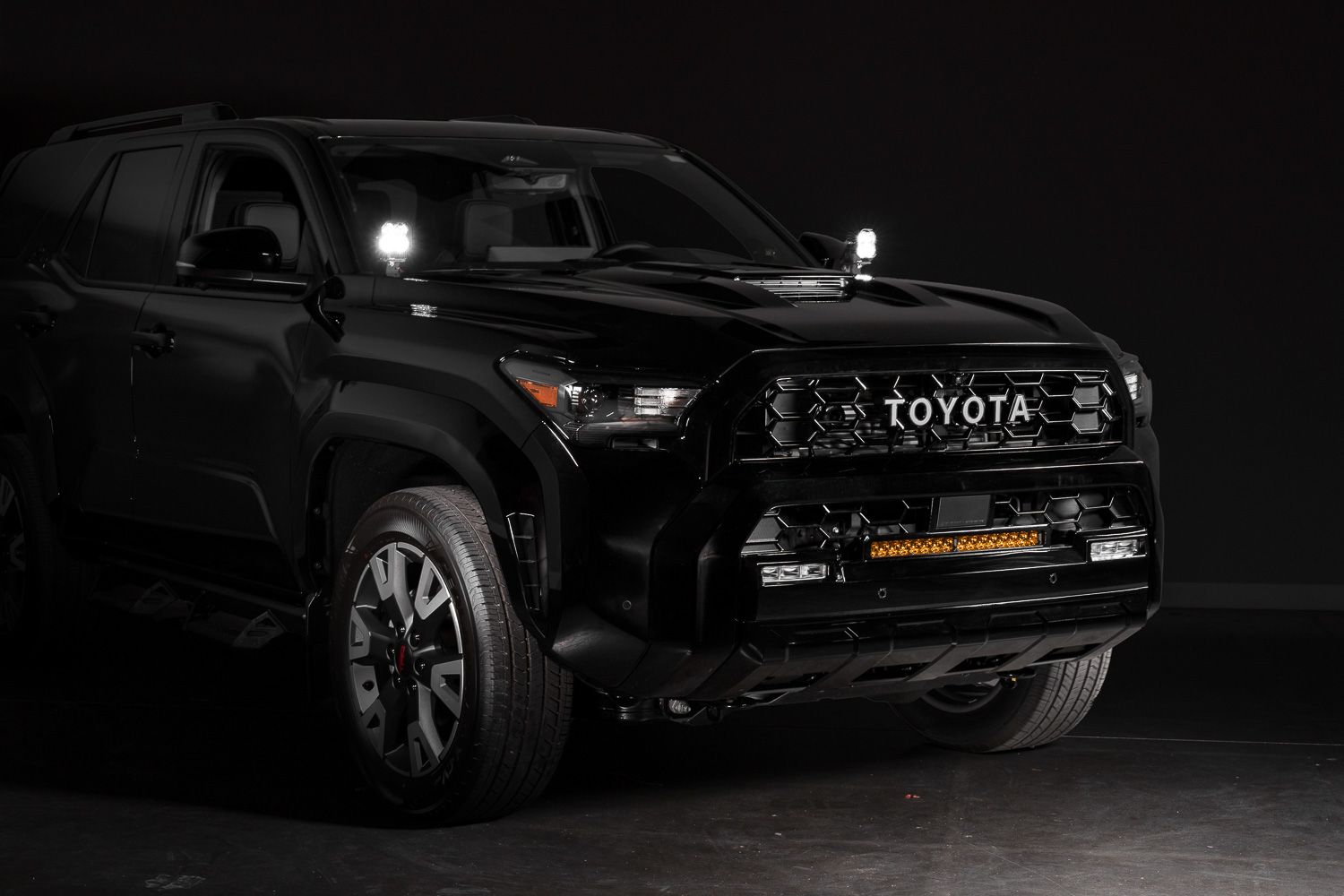

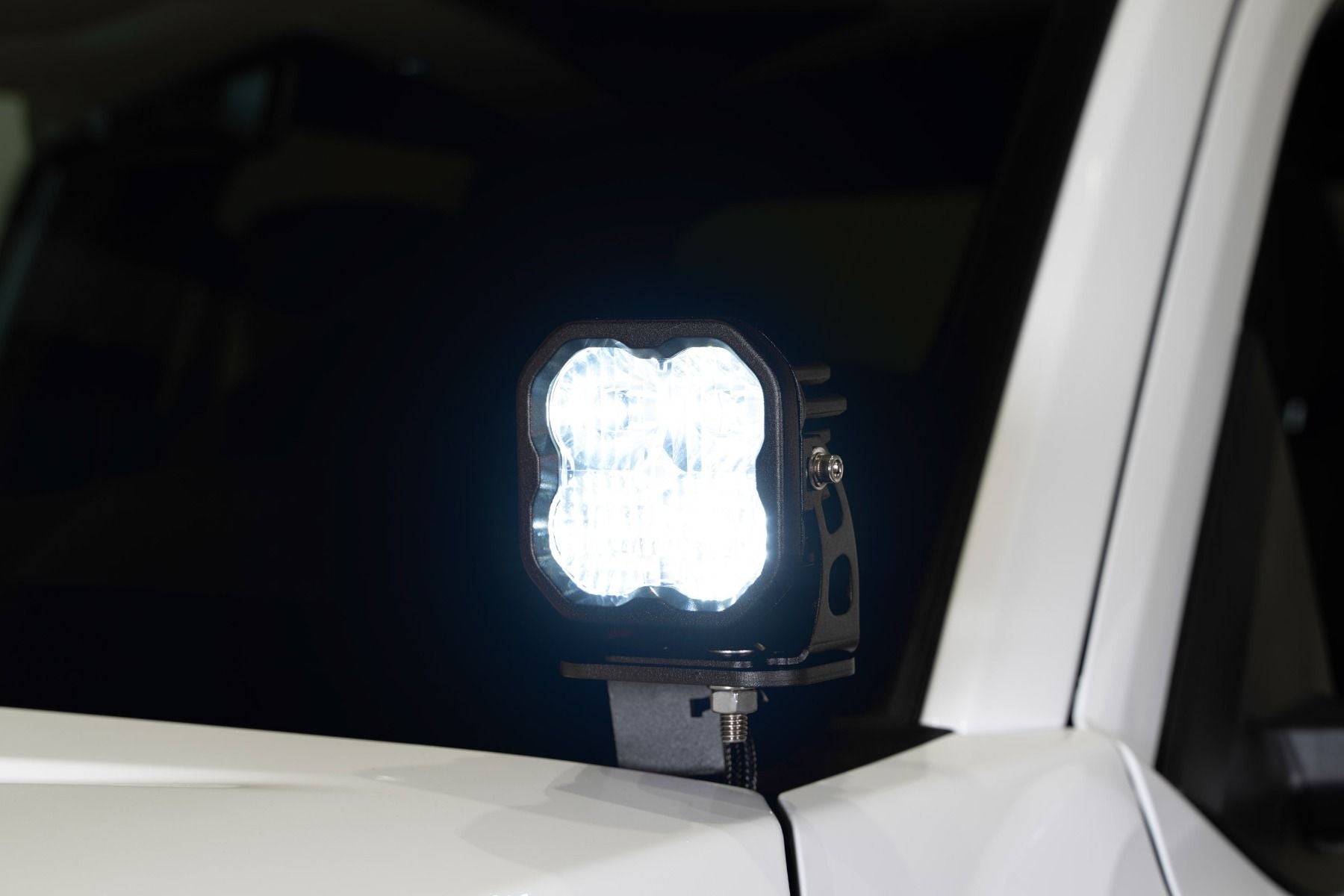

The Diode Dynamics Stage Series Backlit Ditch Light Kit for the 2025+ Toyota 4Runner is designed to deliver powerful, functional auxiliary lighting with a clean, factory-style fit. This application-specific kit allows you to mount two SS3 or C2 2.0 Backlit LED Pods above the hood using factory mounting points—no drilling or cutting required. With a low-profile design that minimizes glare and preserves full hood operation, this kit is the perfect solution for trail visibility, cornering light, and all-around off-road confidence.

Note

• Fitment: Designed specifically for 2025–2026 Toyota 4Runner
• Car Wash Warning: Do not use automatic car washes with this kit installed
• Backlight Wiring: Amber backlight requires connection using included harness
• Lens Options: Pods available in 6000K white or 3000K selective yellow
• Replacement Lenses: Optics and colors can be changed with Stage Series lenses
• 3" Pro BACKORDER: 4 WEEKS ESTIMATE TIME SHIPPING

Features

• Mounting: Bolt-on fitment using factory mounting points
• Pod Compatibility: Mounts two SS3 or C2 2.0 Stage Series LED Pods
• Construction: Thick-gauge stainless steel brackets for maximum durability
• Design: Low-profile bracket design minimizes glare and hood interference
• Finish: Corrosion-resistant stainless steel construction
• Lighting Technology: Patented TIR (Total Internal Reflection) optics

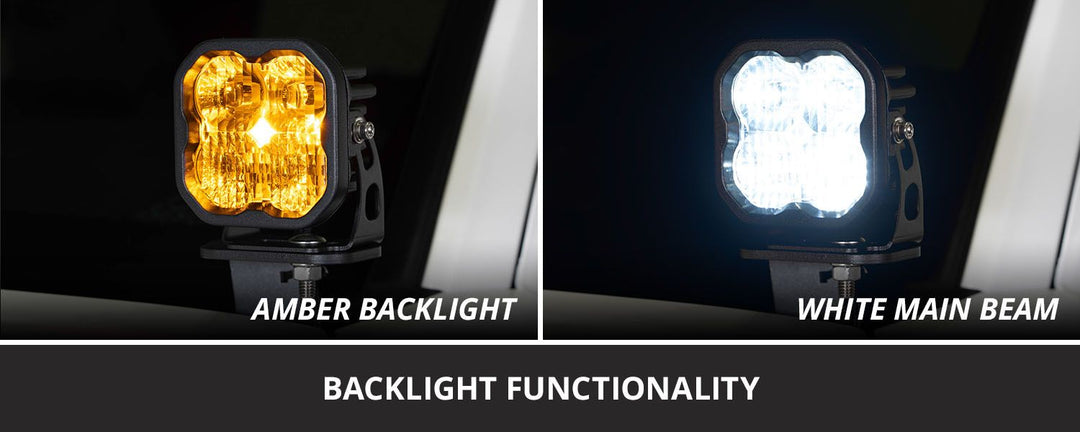

• Backlighting: Integrated amber backlight fully illuminates the TIR optic
• Power Levels: Available in Sport or Pro output configurations
• Assembly: Assembled in the USA
• Warranty: Limited lifetime warranty

PERFORMANCE & LIGHT OUTPUT

Traditional reflector-style optics lose light to glare and inefficiency. Stage Series LED Pods use custom-engineered TIR optics that collect and focus nearly all available light directly where it’s needed. Unlike competing designs that lose up to 10% of output through outer lenses, the SS3 and C2 2.0 pods use a single-piece optic that functions as both the lens and reflector, delivering higher efficiency, improved beam control, and superior real-world visibility.

The Combo/Driving beam pattern blends distance and width for trail use, ditch illumination, and peripheral visibility—ideal for tight trails, high-speed desert runs, or nighttime overlanding.

Specs (Per Pod)

SS3 LED Pods

• Sport White: 6000K | 1,520 lm measured | 2,262 lm raw
• Pro White: 6000K | 3,000 lm measured | 5,796 lm raw
• Sport Yellow: 3000K | 1,300 lm measured | 1,930 lm raw
• Pro Yellow: 3000K | 2,700 lm measured | 5,220 lm raw

Power:

• Sport: 14.5W
• Pro: 36W

C2 2.0 LED Pods

• Sport White: 6000K | 1,190 lm raw
• Pro White: 6000K | 3,140 lm raw
• Sport Yellow: 3000K | 1,190 lm raw
• Pro Yellow: 3000K | 3,140 lm raw

Power:

• Sport: 15W
• Pro: 23W

GENERAL SPECS

• Beam Pattern: Combo (Driving + Flood)
• Operating Voltage: 9–30V
• Operating Temp: -40°C to 85°C (-40°F to 185°F)
• Cooling: Passive pin-fin heatsink
• Ingress Rating: IP69K waterproof
• Connectors: Deutsch DT
• Materials: Polycarbonate lens, aluminum casting, stainless steel brackets

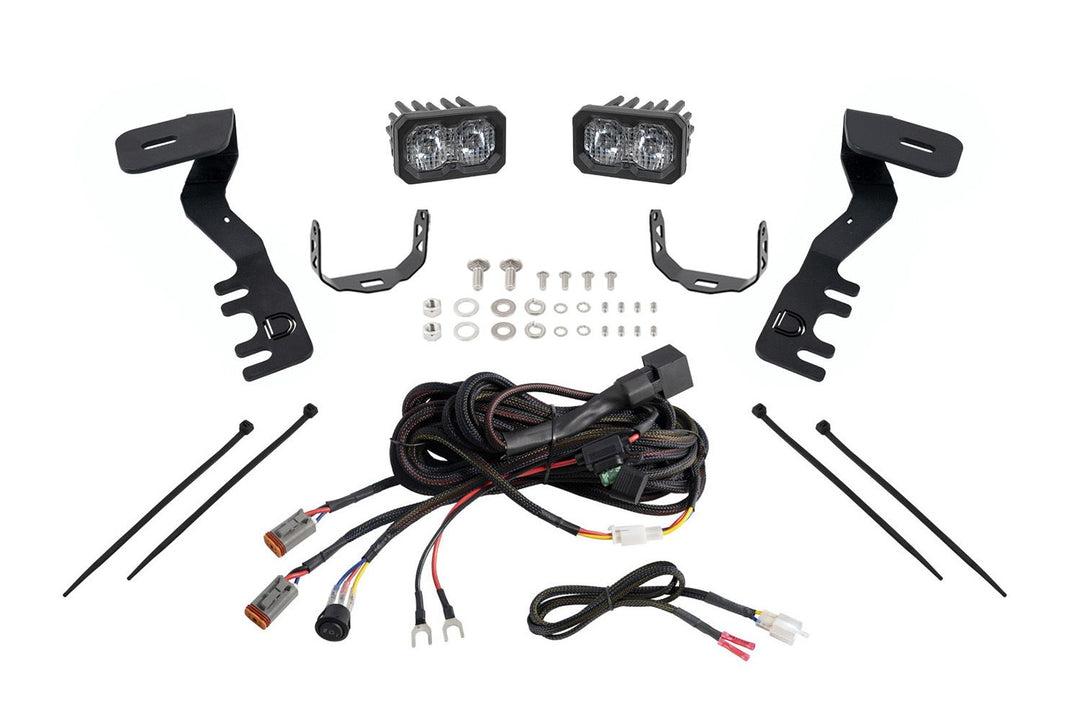

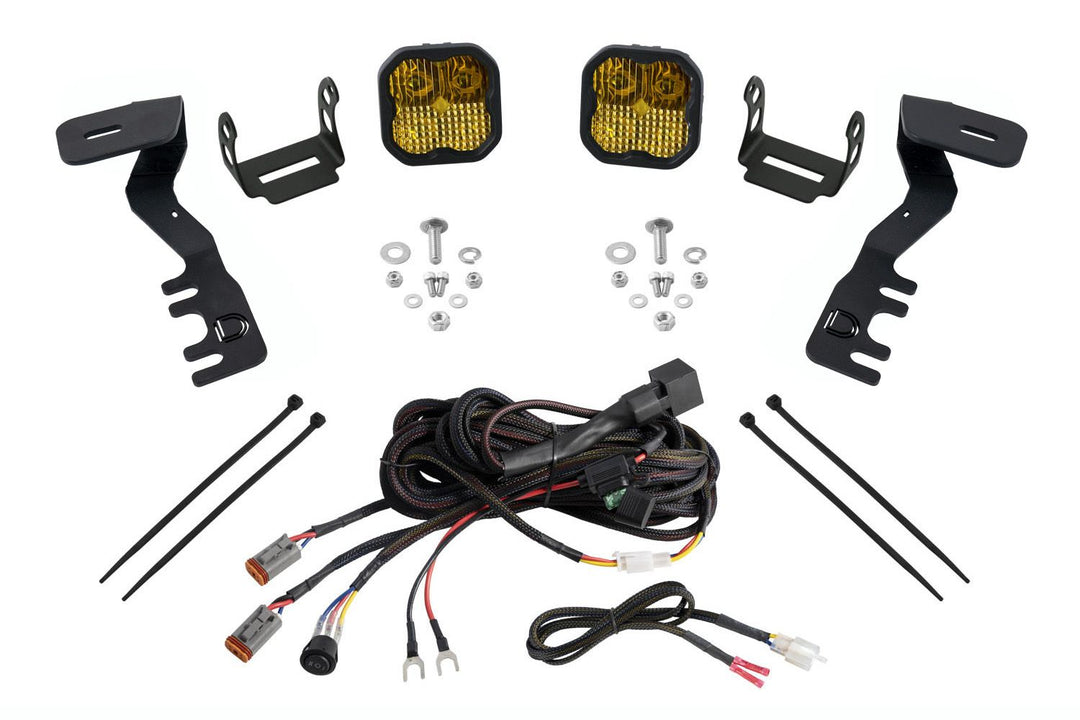

WHAT’S IN THE BOX

• Pods: Two (2) SS3 or C2 2.0 Standard LED Pods

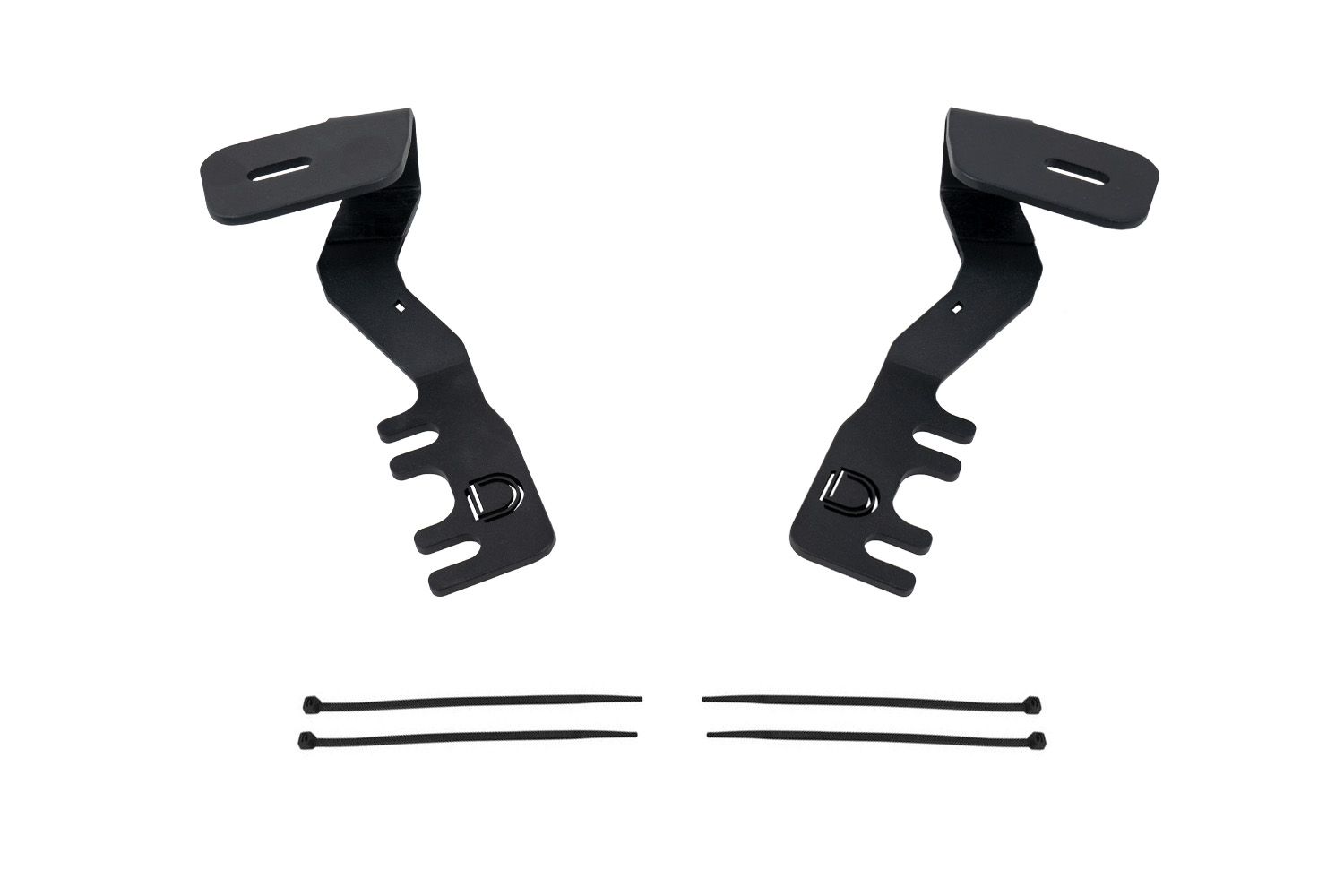

• Brackets: Two (2) stainless steel ditch light brackets
• Mounts: Two (2) pod mounting brackets
• Wiring: One (1) heavy-duty dual-output 4-pin wiring harness
• Hardware: Complete mounting hardware
• Guide: Installation guide

Quantity: Pair (Left & Right)

INSTALLATION

• Install Time: 20–30 minutes
• Tools Required: Basic hand tools
• Modification Required: None
