The Stage Series LED Bed Light Kit for the 2024+ Toyota Tacoma delivers a massive upgrade in usable light right where you need it most. Featuring four high-output Stage Series Rock Lights mounted cleanly to the factory bed rails, this kit dramatically outperforms the stock bed lights while retaining OEM-style operation. Designed and assembled by Diode Dynamics, it’s the ultimate solution for loading, unloading, and working out of your truck bed at night.
Important note
-
Factory bed lights required: This kit is only compatible with Tacoma trim levels equipped with factory bed lights.
Features
-

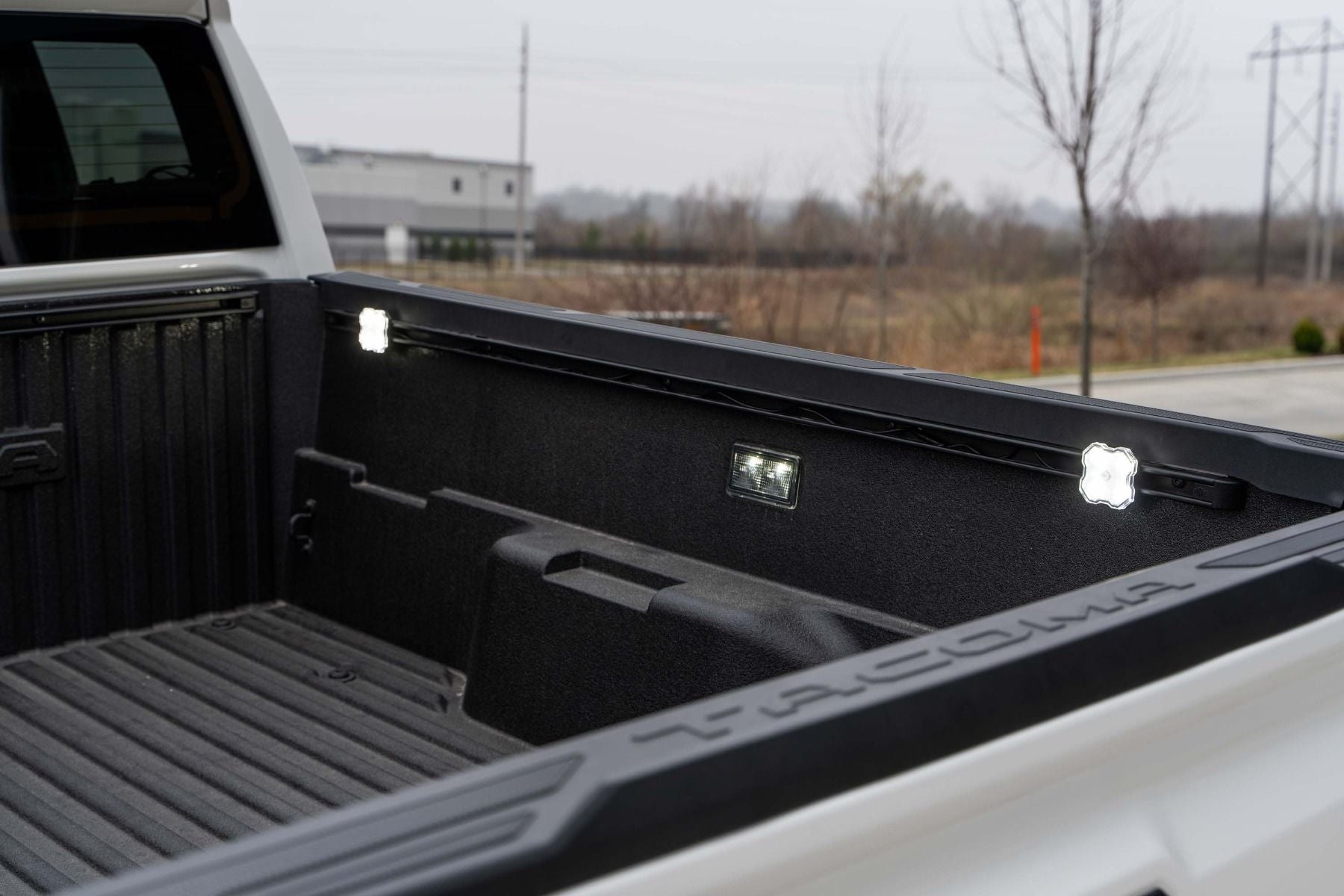

Four-light configuration: Allows you to mount four Stage Series LED rock lights along the factory bed rail.
-
High output: True 10-watt draw per light with up to 800 lumens of peak output.
-
Plug-and-play wiring: Harness plugs directly into the factory bed light wiring.
-

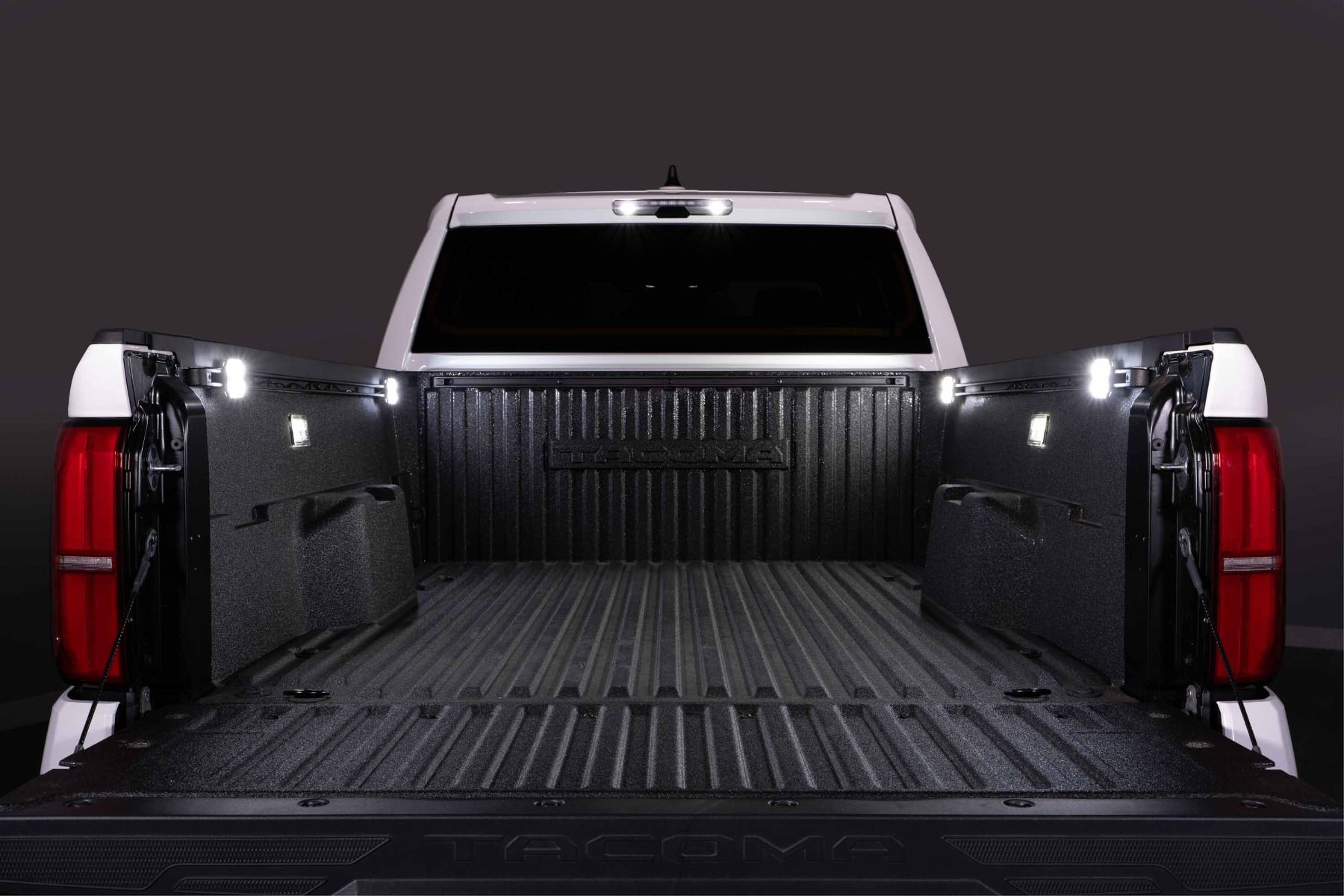

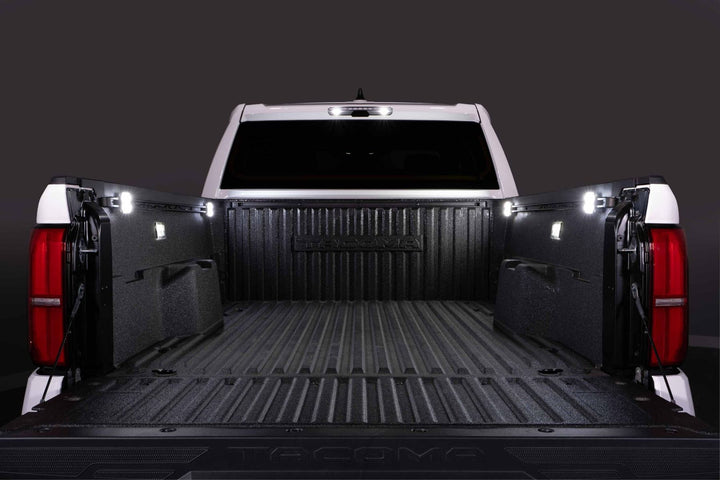

Automatic operation: Lights activate when the tailgate is opened, just like factory bed lights.
-

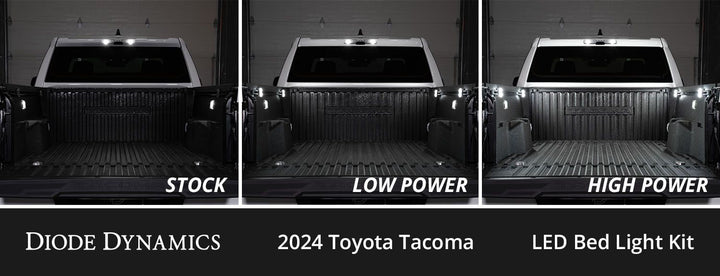

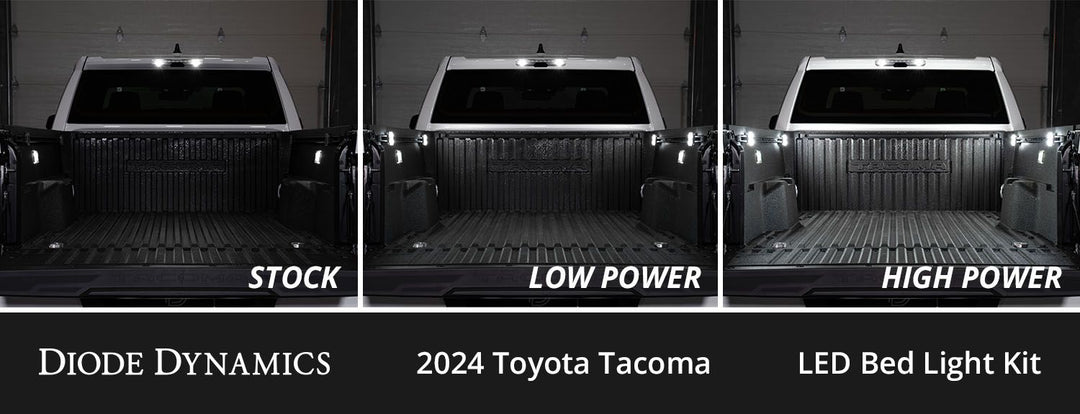

Dual power modes: Three-wire system with low-power and high-power operation.
-
Included switch: 3-way switch allows easy toggling between output levels.
-

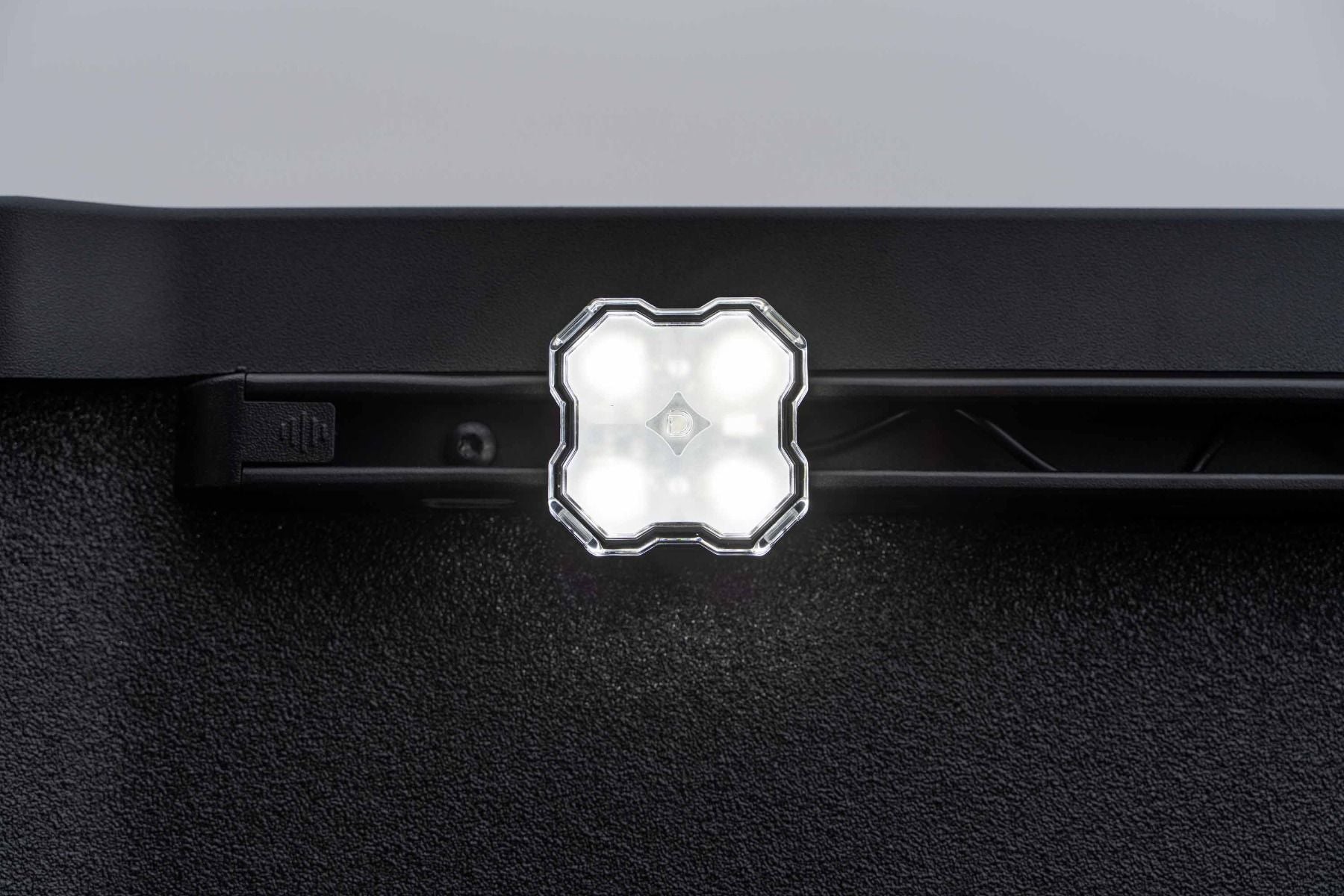

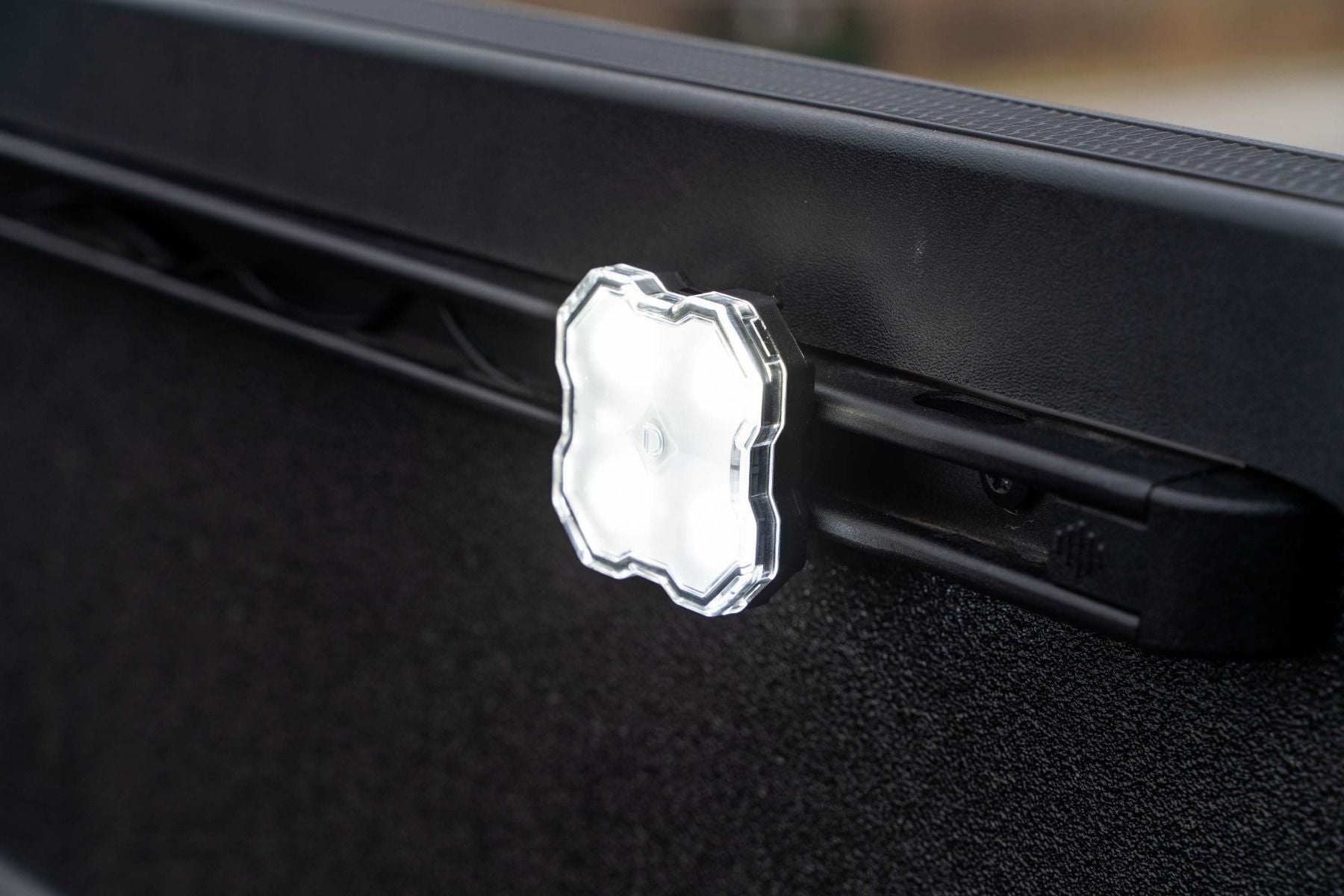

T-slot mounting: Installs directly to the factory bed rail using included T-slot nuts.
-
USA assembly: Engineered and assembled in the USA using globally sourced materials.
Specifications
-
Measured lumens: 800
-
Intensity: 300 cd
-
Color temperature: 5700K
-
Beam angle: Round, 60°
-
Current (@13.2V): 1.1A
-
Wire size: 28 AWG
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitter: Lumileds Z ES
-
Driver features: Linear regulated
-
Materials: UV-coated polycarbonate lens, powdercoated aluminum housing
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP68 waterproof
-
Unit weight: 0.7 lb
-
Product weight: 1.6 lb
-
Shipped weight: 2.5 lb
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)

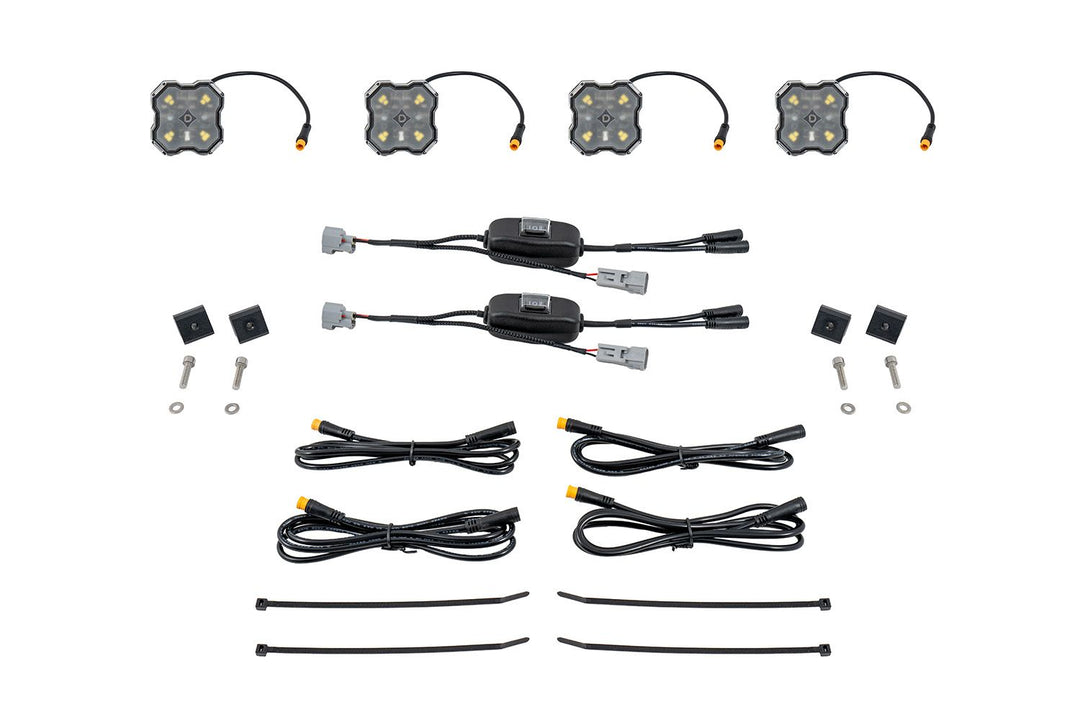

Included in the box
-
Rock lights: Four (4) Stage Series LED rock lights
-
Wiring: One (1) Stage Series bed light wiring kit
-
Mounting hardware: Four (4) T-slot nuts and mounting hardware
-
Documentation: Installation guide
Additional details
-
Quantity: Four (4)
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
-
Modification: Minor modification
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
