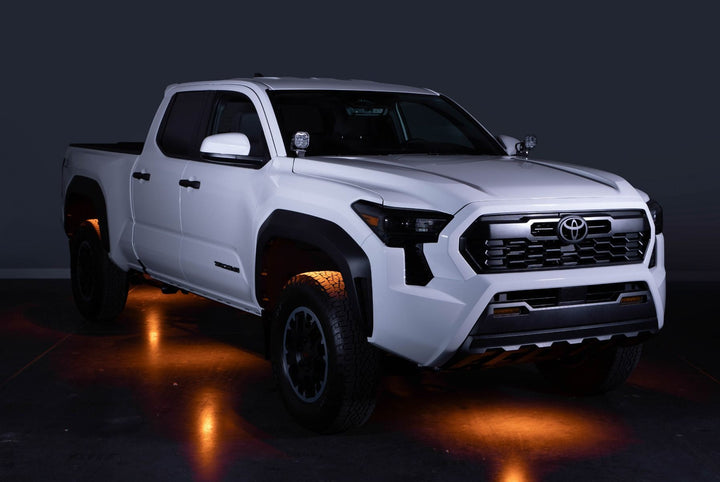

The Stage Series LED Rock Light Kit for the Toyota Tacoma sets a new benchmark for off-road lighting. With true high-power output, optically engineered lenses, and modular mounting options, this eight-light kit delivers unmatched illumination and durability for serious trail use. Designed and assembled by Diode Dynamics, it’s built to outperform generic rock lights in every measurable way.

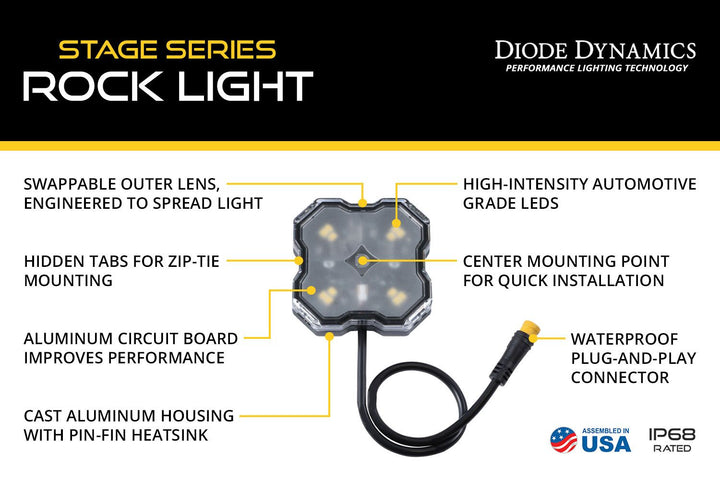

Features
-

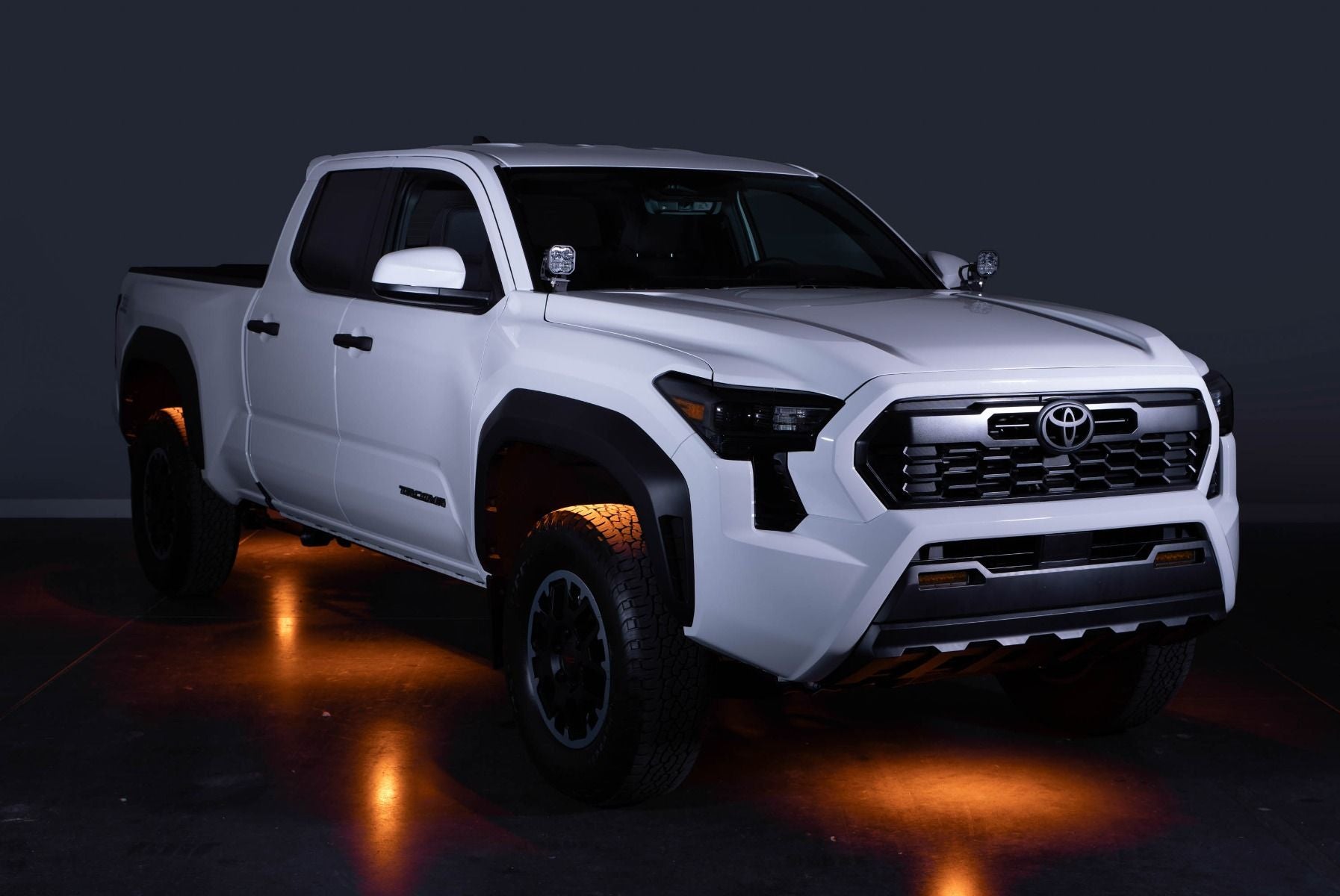

Eight-light system: Allows you to mount eight Stage Series rock lights under your Toyota Tacoma.
-

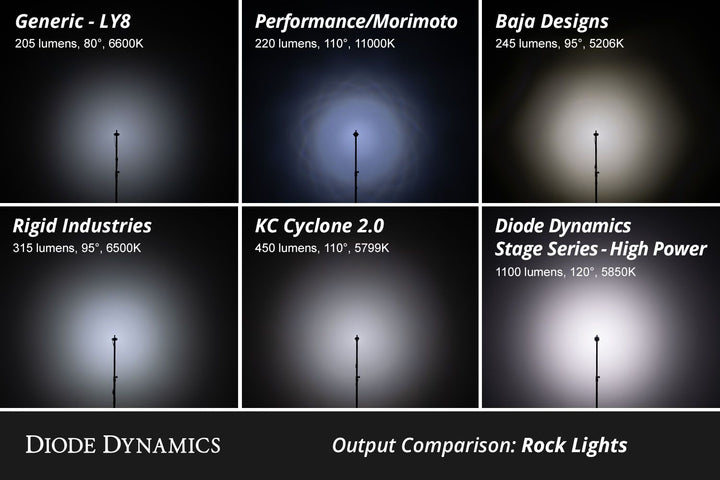

High-output performance: True power draw of over 10 watts per light with up to 1000 lumens of peak output on single-color lights.
-
Optically engineered lenses: Four molded optics per lens provide wide, even, and consistent light spread.
-

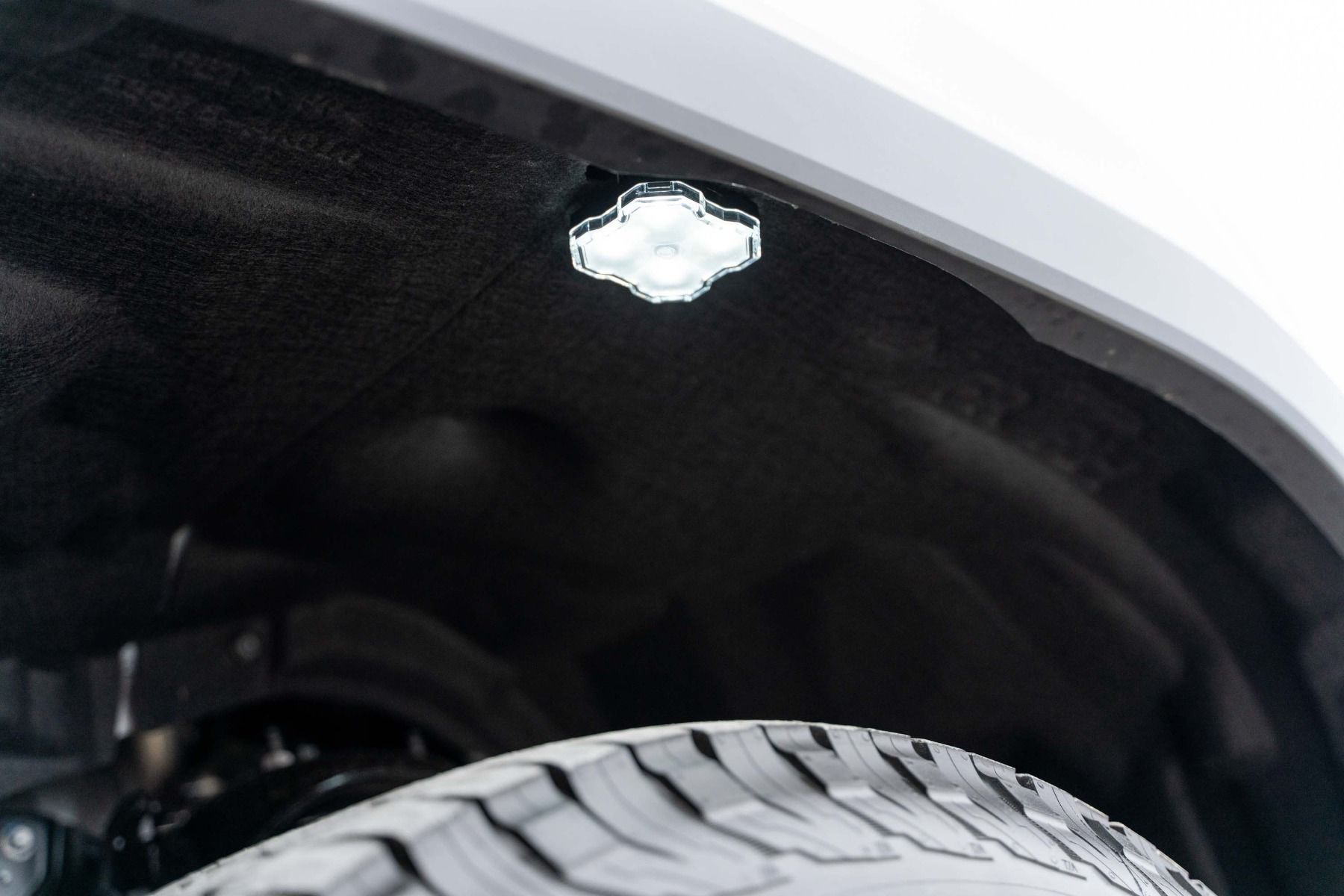

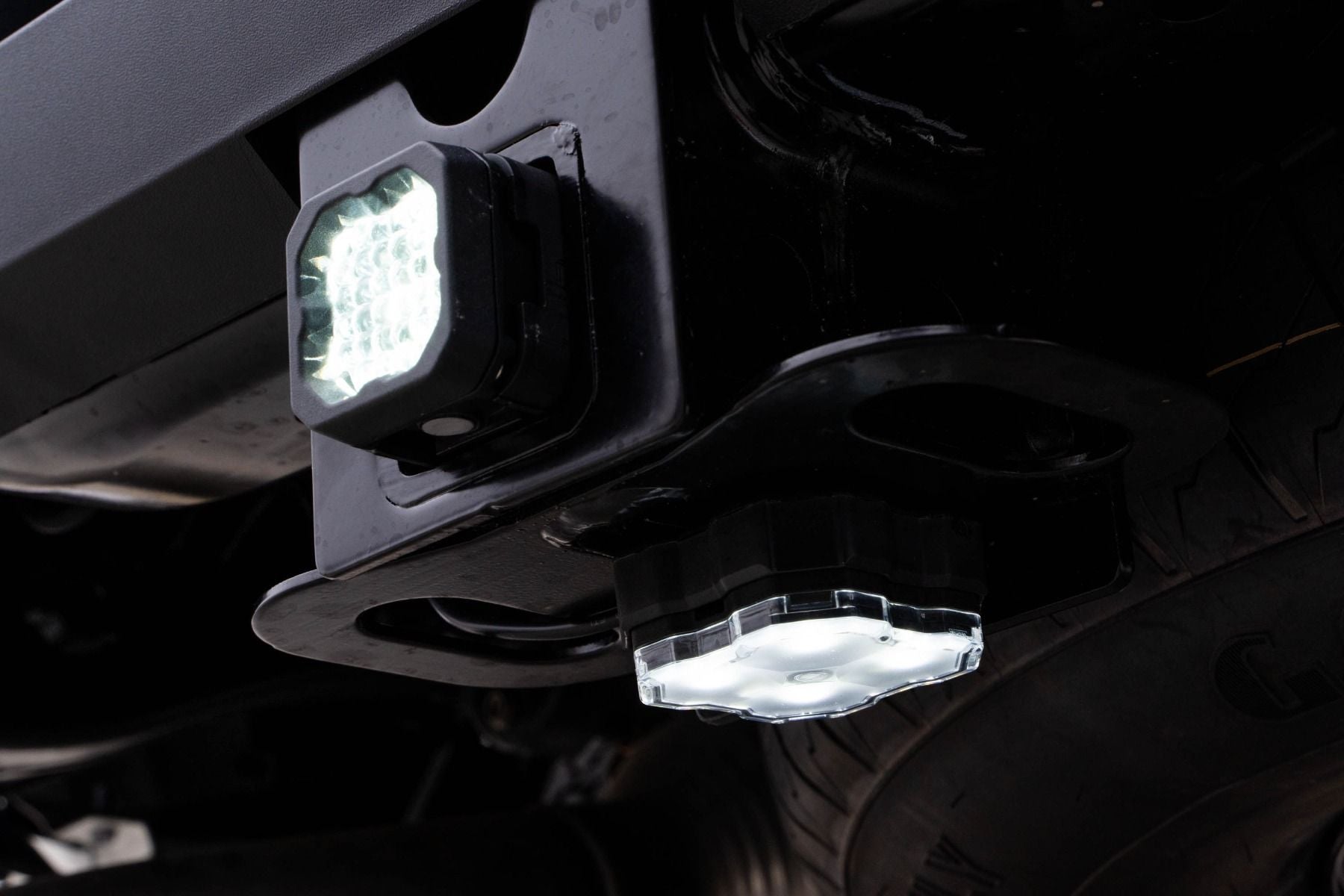

Modular mounting options: Installs using a hidden center-bolt mount or optional overmolded magnet mounts.
-
Mounting flexibility: Magnet mounts use N42 magnets with approximately 35 lb holding force per light.
-
Durable construction: Cast aluminum housing with pin-fin heatsink for effective thermal dissipation.
-
Weather resistance: Fully encapsulated design with IP68 waterproof rating.
-
Lens versatility: Thick automotive-grade polycarbonate lenses with UV coating; interchangeable on single-color models.
-

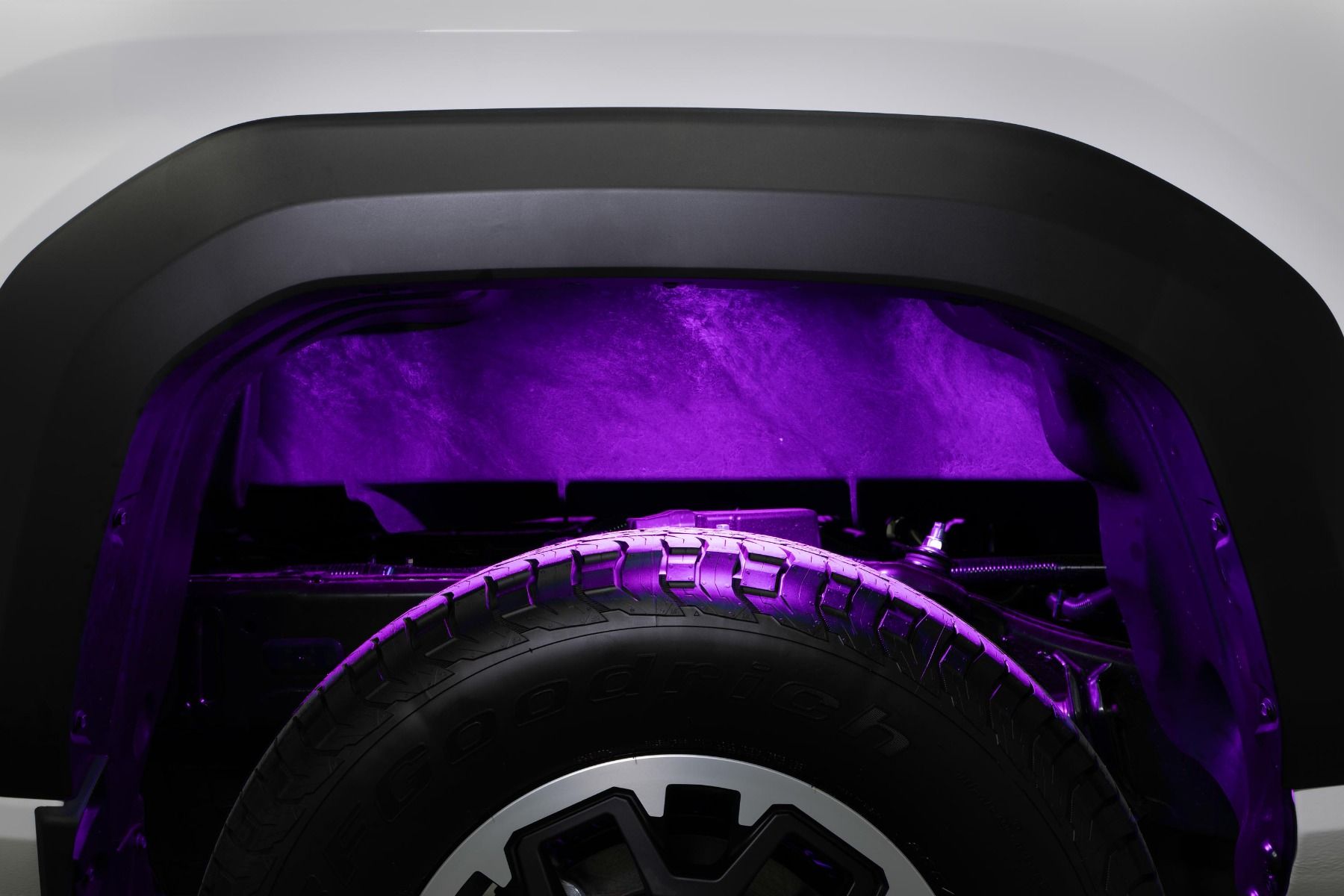

Output options: Available in single-color or RGBW configurations.
-
USA assembly: Engineered and assembled in the USA using globally sourced materials.
Specifications
-
Beam angle: Round, 60°
-
Current (@13.2V): 1.1A
-
Wire size: 28 AWG
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitter: Lumileds Z ES
-
Connector: M8 input
-
Driver features: Linear regulated
-
Materials: UV-coated polycarbonate lens, powdercoated aluminum housing
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP68 waterproof

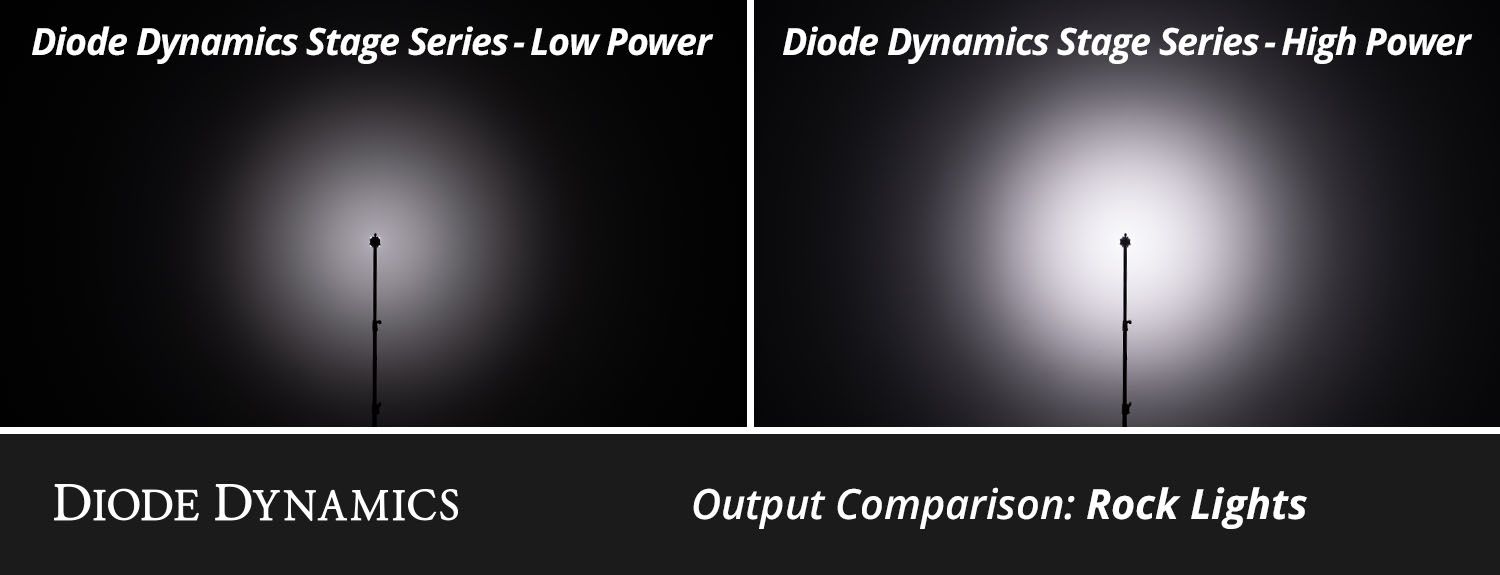

Output performance
Single-color rock light (per light)
-
No lens: 1000 lm high / 330 lm low, 360 cd
-
White diffused: 800 lm high / 240 lm low, 300 cd
-
Amber diffused: 410 lm high / 130 lm low, 150 cd
-
Green diffused: 160 lm high / 80 lm low, 105 cd
-
Red diffused: 70 lm high / 25 lm low, 31 cd
-
Blue diffused: 20 lm high / 5 lm low, 9 cd
RGBW rock light (per light)
-
White diffused: 75 lm, 30 cd
-
Green diffused: 60 lm, 25 cd
-
Red diffused: 50 lm, 20 cd
-
Blue diffused: 20 lm, 10 cd
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)

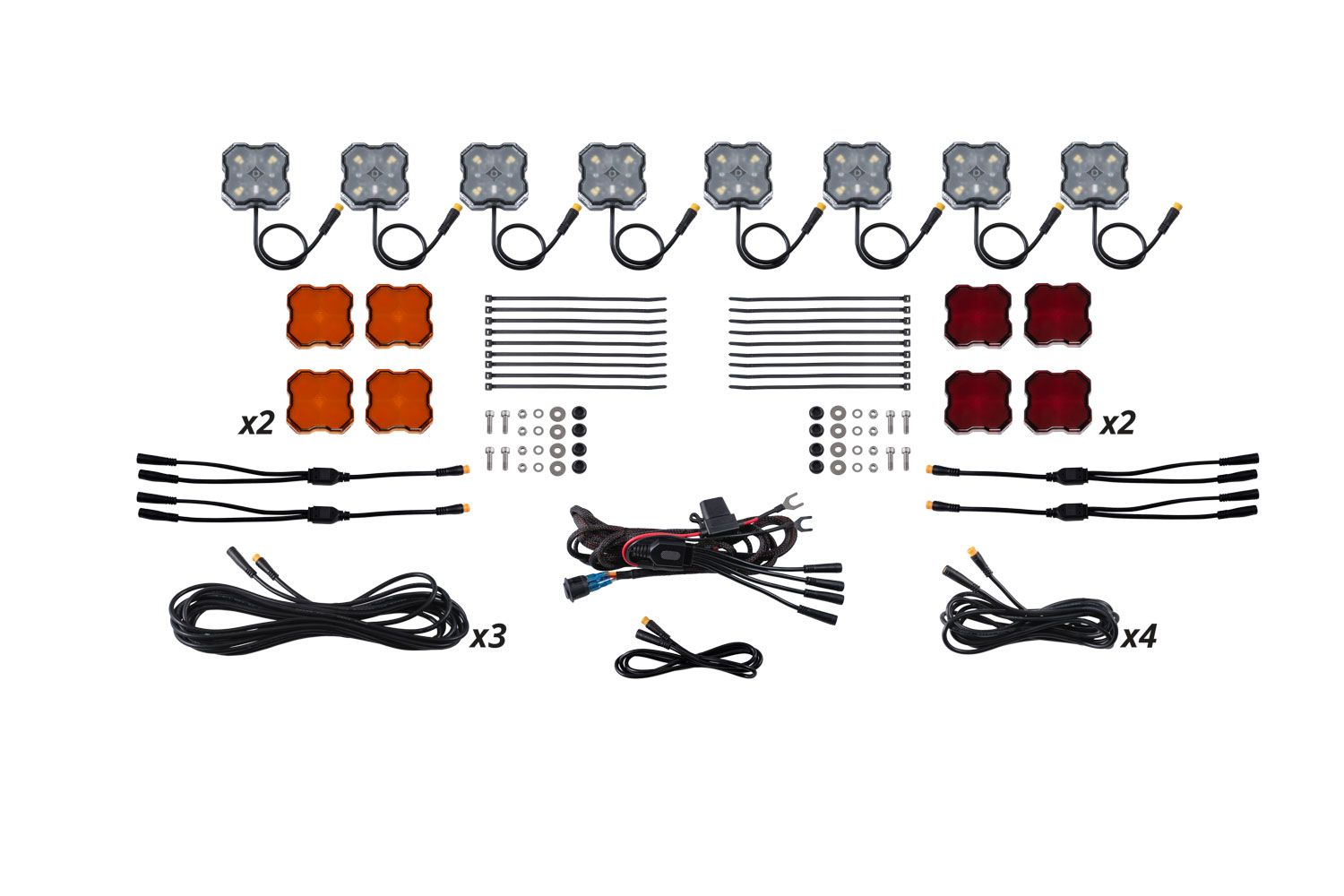

Included in the box

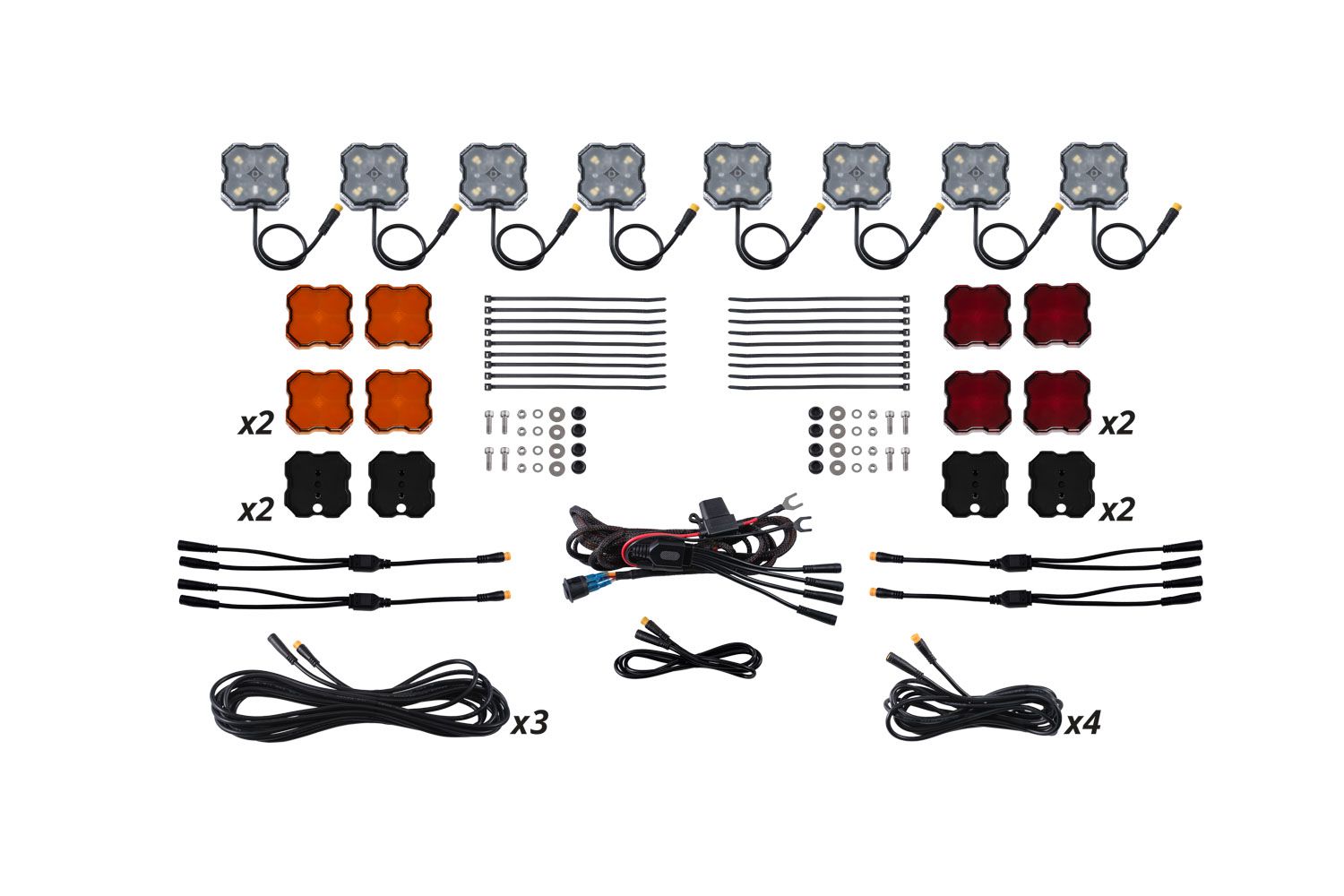

Single-color kit
-
Rock lights: Eight (8) Stage Series single-color rock lights
-
Extensions: Three (3) 1 m, five (5) 3 m, five (5) 5 m
-
Splitters: Four (4)
-
Wiring: One (1) single-color rock light wiring harness
-
Mounting: Eight (8) hardware kits, eight (8) magnet mounts (optional)
-
Accessories: Eighteen (18) zip ties
-
Documentation: Installation guide

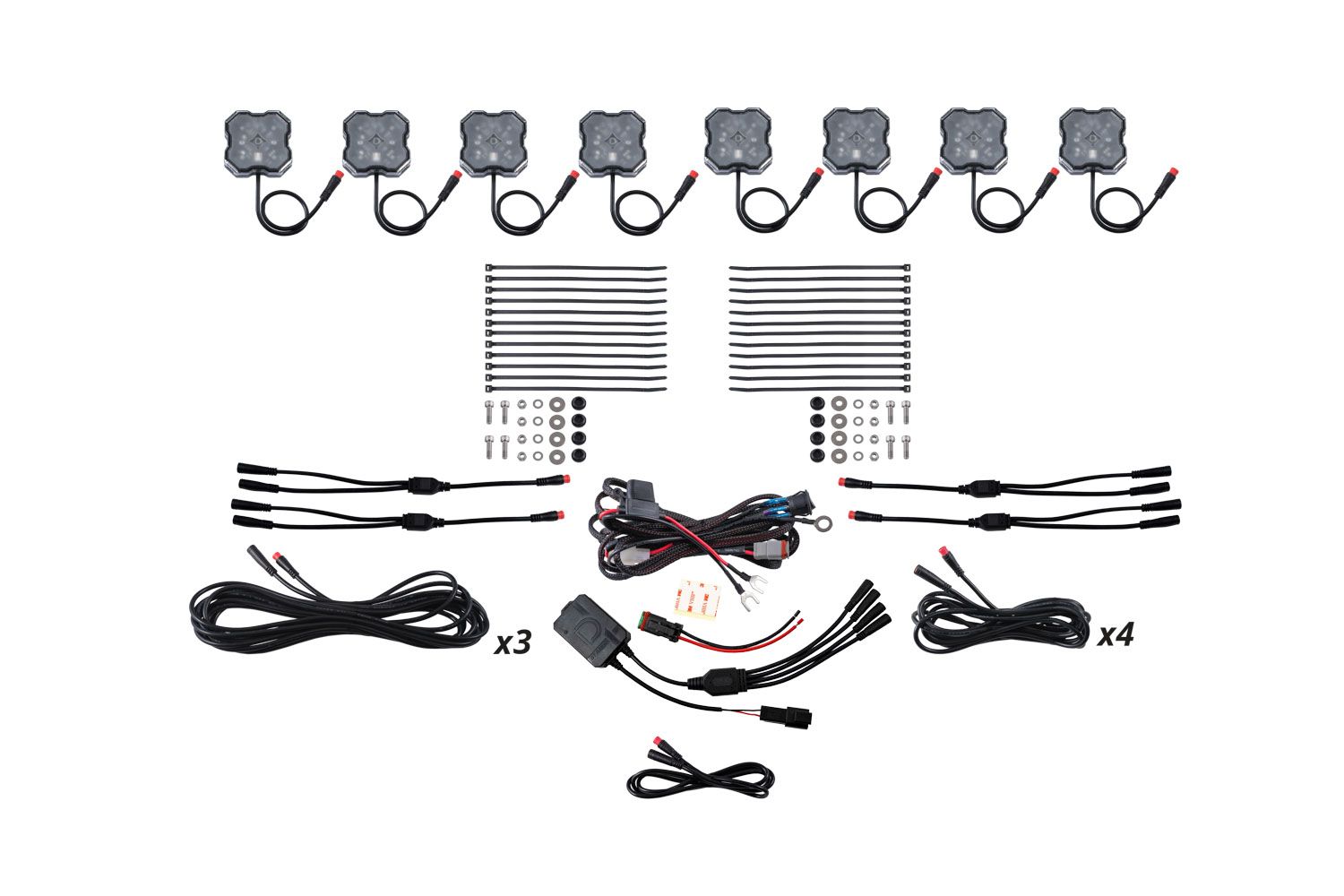

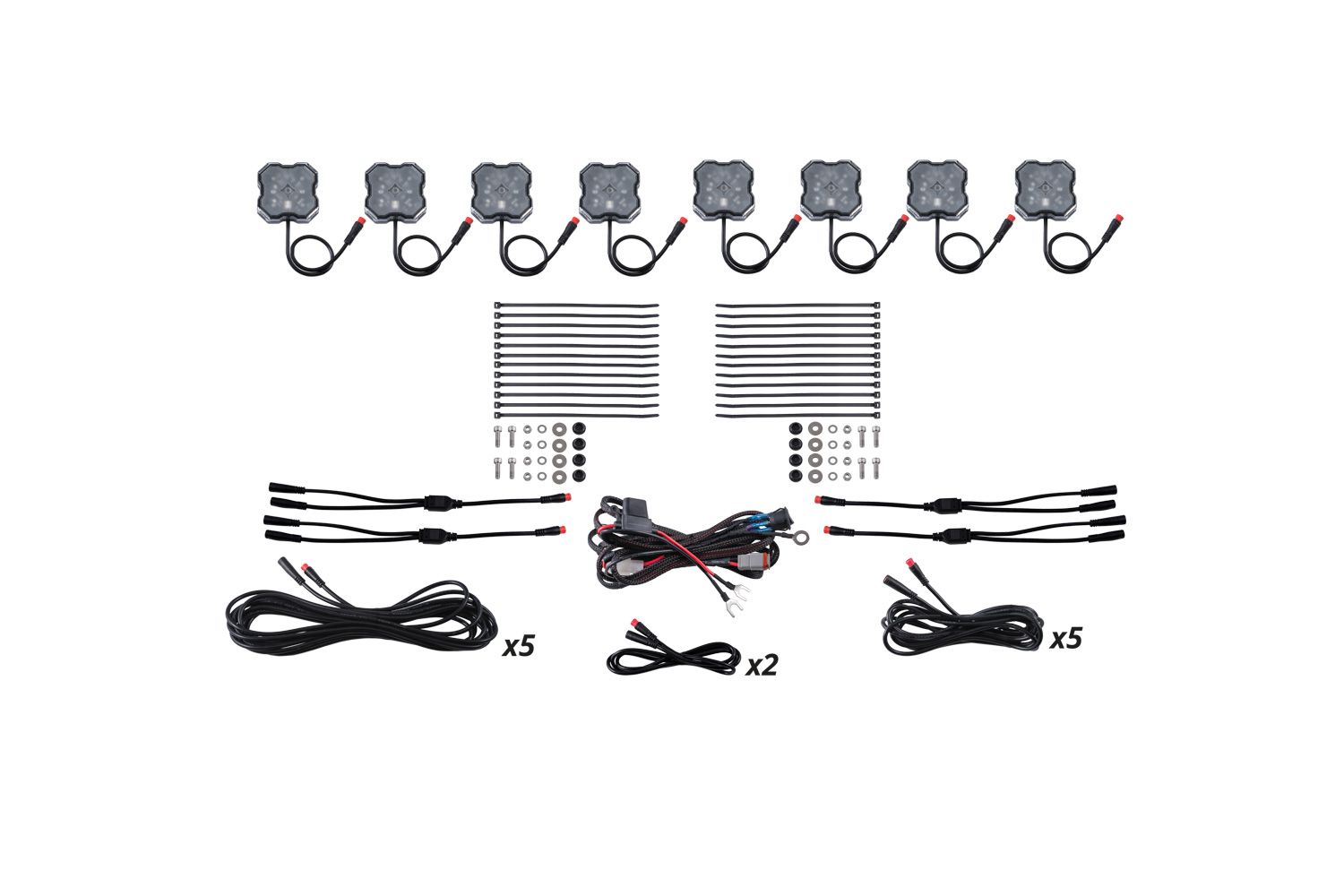

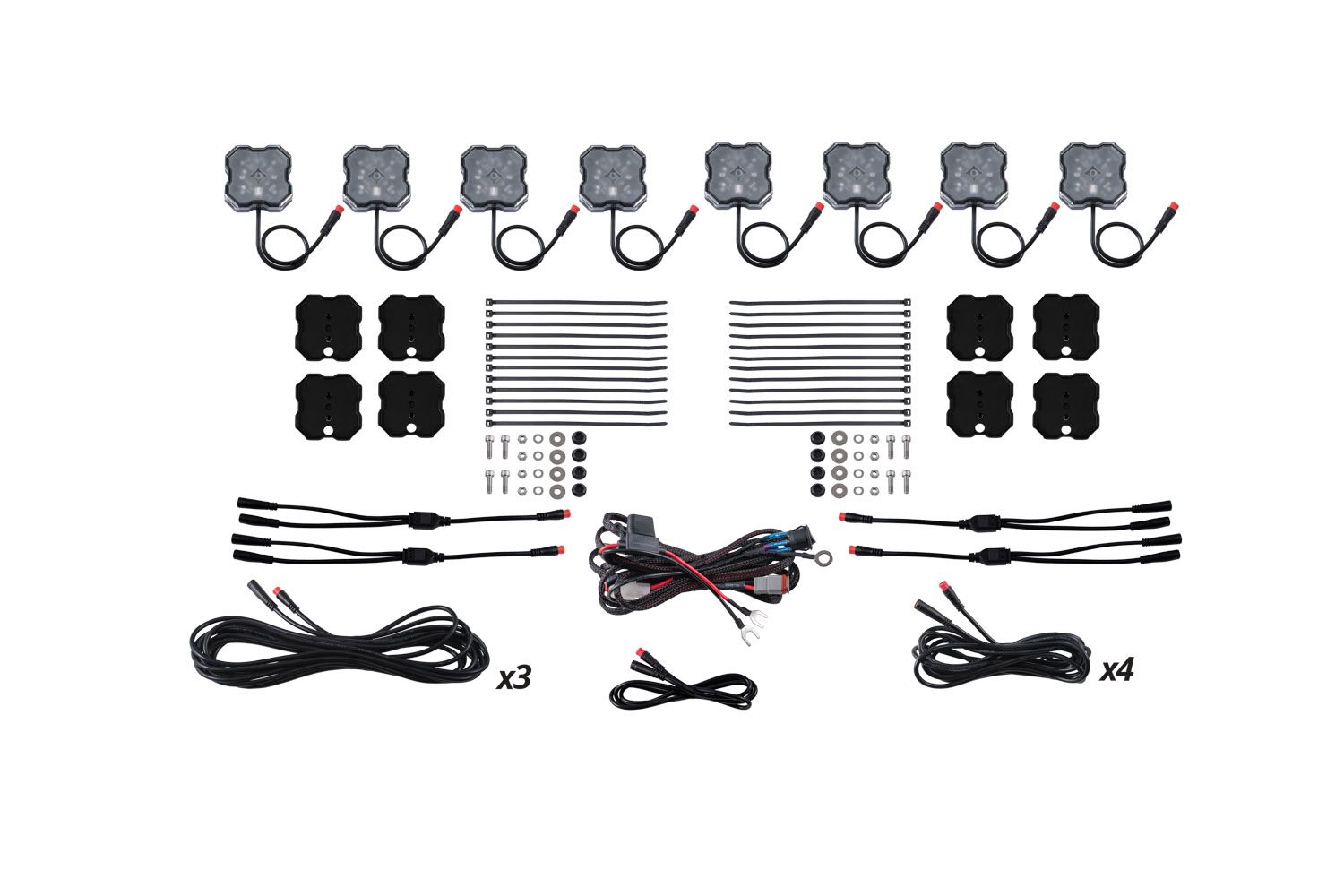

RGBW kit
-
Rock lights: Eight (8) Stage Series RGBW rock lights
-
Extensions: Two (2) 1 m, five (5) 3 m, five (5) 5 m
-
Splitters: Four (4)
-
Wiring: One (1) RGBW rock light wiring harness
-
Controller: One (1) Bluetooth RGBW controller (optional)
-
Mounting: Eight (8) hardware kits, eight (8) magnet mounts (optional)
-
Accessories: Eighteen (18) zip ties
-
Documentation: Installation guide
Additional details
-
Quantity: Eight (8)
-
Tools required: Basic toolset
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
