Diode Dynamics Stage Series Reverse Light Kit for 4Runner (2010-2024)

The Stage Series Rear Bumper Reverse Light Kit is a powerful, integrated lighting solution designed to dramatically improve rear visibility on your Toyota 4Runner. This kit mounts a pair of SSC1 or C2 2.0 LED pods underneath the rear bumper and connects directly to factory wiring for seamless operation. Featuring high-output reverse lighting, an integrated red accent light, and an override switch for manual control, this kit delivers trail-ready performance with OEM-level integration.

Notes

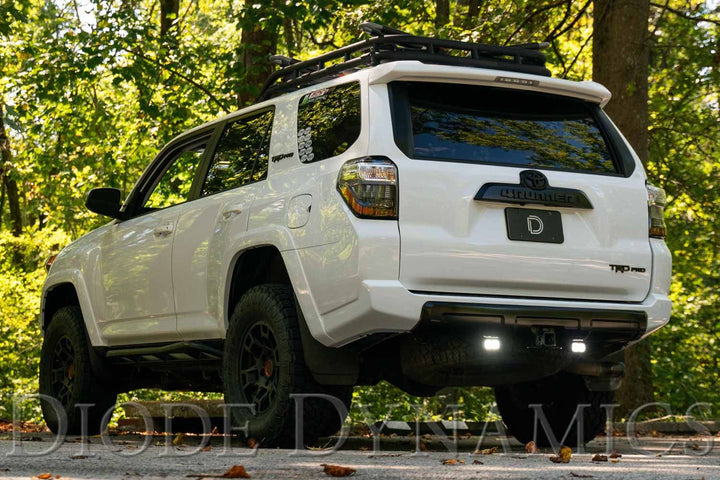

• Mounting Location: Installs underneath the factory rear bumper
• Control Options: Operates automatically with reverse lights or manually via included toggle switch
• Wiring: Fully plug-and-play with OEM-style connectors
• Lighting Disclaimer: Not intended to replace factory tail lamps

Features

• Rear Bumper Mounting: Secures SSC1 or C2 2.0 pods beneath the factory rear bumper
• Plug-and-Play Harness: Includes OEM-style connectors for quick, no-cut installation
• Manual Override Switch: Allows the reverse lights to be turned on anytime
• High-Power Output: Provides a massive increase in rear-facing illumination
• Red Accent Light: Integrated backlight functions as an additional rear marker light
• USA Assembled: Designed and assembled in the USA for long-term reliability

Lighting Functions

• Reverse Light: Automatically activates when shifting into reverse
• Accent Light: Red backlight illuminates with tail lights for added visibility
• Override Control: Toggle switch allows manual activation of the main beam

Optics and Beam Pattern

• TIR Optics: Custom-engineered Total Internal Reflection optics maximize usable light
• Flood Pattern:
  • SSC1: 50° × 50° uniform flood
  • C2 2.0: 70° × 45° wide flood
• Glare Reduction: Optically controlled output minimizes wasted light and glare

Power Level Options

• Sport: Efficient output with excellent performance for daily use
• Pro: Doubled power for maximum brightness and trail visibility

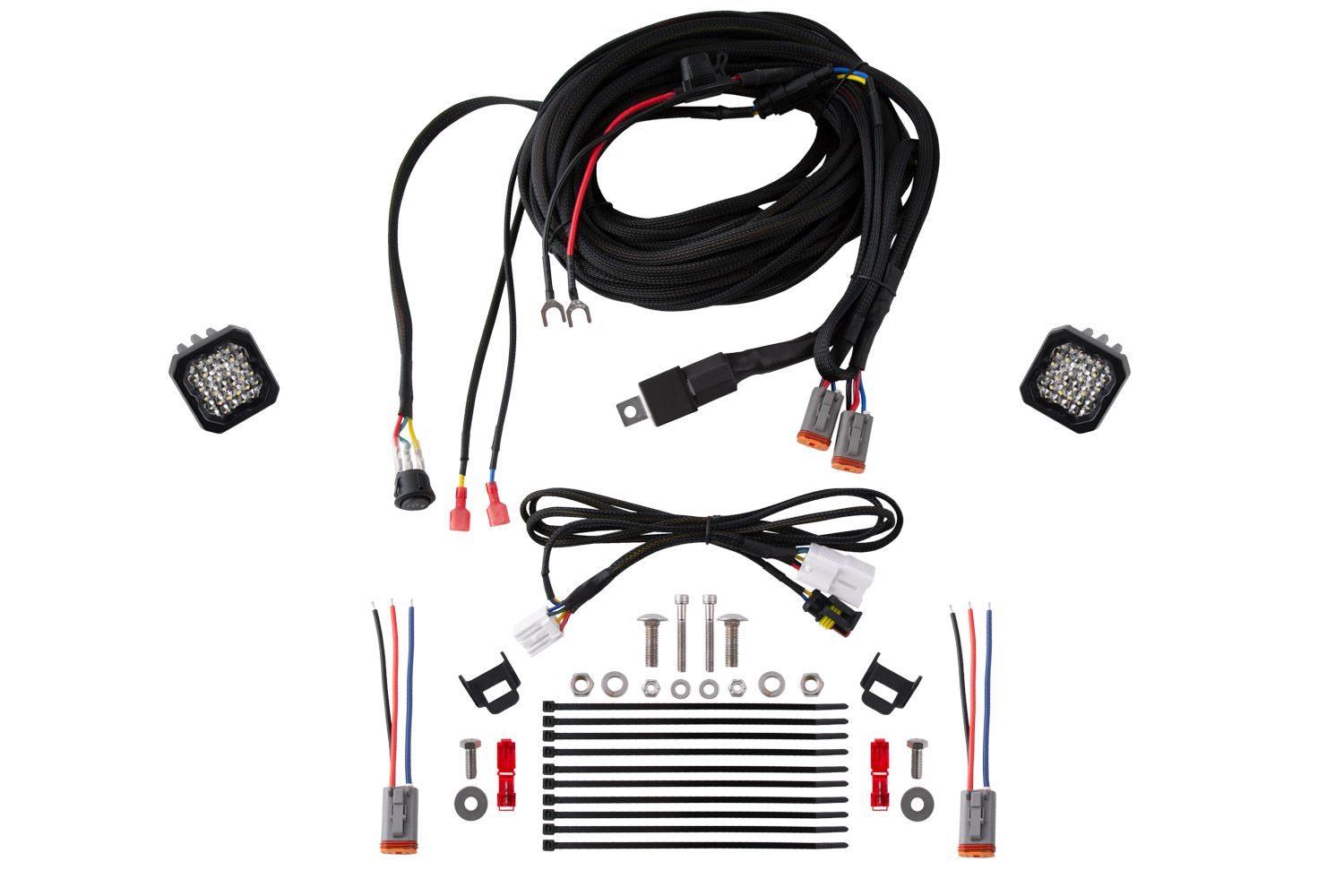

What’s Included

• LED Pods: Two (2) SSC1 or C2 2.0 Standard LED pods
• Wiring Harness: One (1) universal reverse light wiring harness
• Adapter Harness: One (1) vehicle-specific adapter for 2010–2024 Toyota 4Runner
• Mounting Brackets: Two (2) rear bumper brackets
• Hardware: Mounting hardware, ten (10) zip ties, two (2) T-taps
• Quantity: Pair (left and right side)

Specifications

(Per LED pod)

Output

• SSC1 Sport: 1,449 lumens
• SSC1 Pro: 2,375 lumens
• C2 2.0 Sport: 1,190 lumens
• C2 2.0 Pro: 3,140 lumens

Electrical

• Operating Voltage: 9–16V
• Power:
  • SSC1 Sport: 12.8W
  • SSC1 Pro: 19W
  • C2 2.0 Sport: 15W
  • C2 2.0 Pro: 23W
• Current @ 12.8V:
  • SSC1 Sport: 1.0A
  • SSC1 Pro: 1.5A
  • C2 2.0 Sport: 0.6A
  • C2 2.0 Pro: 2.0A

Construction

• Color Temperature: 6000K
• LED Emitters: Osram Ostar Projection Compact, Lumileds Automotive Grade
• Housing: Aluminum casting with polycarbonate lens
• Cooling: Passive pin-fin heatsink
• Ingress Rating: IP69K waterproof, high-pressure resistant
• Operating Temperature: -40°C to 85°C (-40°F to 185°F)

Fitment

• Application: Backup / Reverse Light
• Make: Toyota
• Model: 4Runner
• Years: 2010–2024

Installation

• Install Time: 30–60 minutes
• Tools Required: Basic toolset
• Modification Required: None
