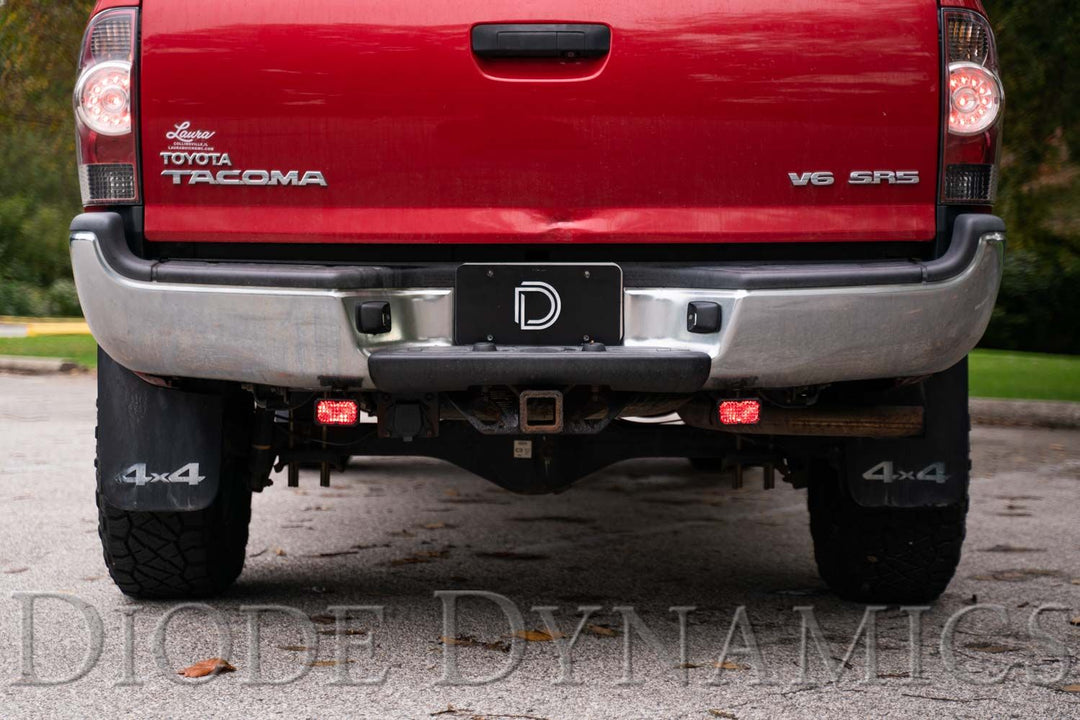

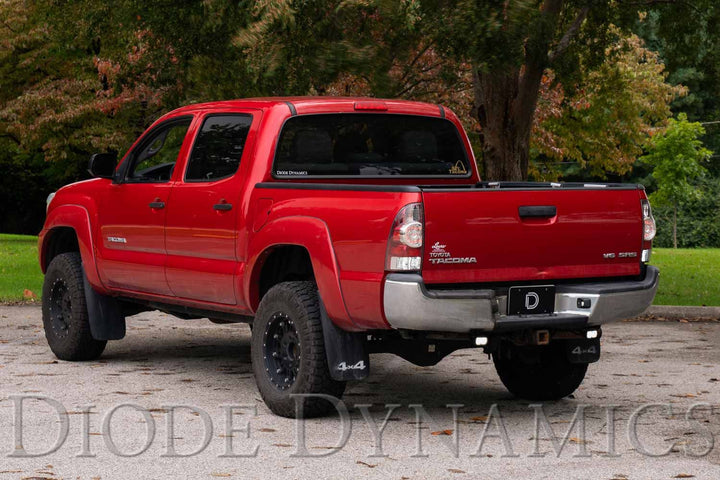

Add powerful rear-facing illumination to your Tacoma with the Stage Series Reverse Light Kit. Designed to mount discreetly underneath the rear bumper, this kit dramatically improves visibility when backing up while adding a clean red accent light for daily driving. With a true plug-and-play wiring solution and integrated toggle switch, this is one of the most functional and user-friendly reverse light upgrades available.
Features
-
Under-bumper mounting: Allows you to mount SSC1 or C2 2.0 LED pods beneath the rear bumper
-
Plug-and-play wiring: OEM-style connectors plug directly into factory tail light wiring
-
Toggle switch override: Manually activate the reverse lights anytime, independent of reverse gear
-
Dual-function lighting: Provides high-power reverse illumination and red accent lighting
-
Made in USA: Designed and assembled in the USA using high-quality materials
Beam patterns
-
Flood pattern:
- SSC1: 50° × 50° spread for uniform illumination
- C2 2.0: 70° × 45° spread for wider coverage
Unlike generic flood lights, these optics are purpose-built using optical simulation to deliver smooth, even light without hotspots.
Power level options
-
Sport: High-performance output with excellent efficiency
-
Pro: Double the power for maximum brightness and intensity
Reliability and durability
Stage Series LED lighting is tested for extreme conditions, including vibration, moisture, corrosion, and temperatures from -40°F to 185°F. All testing meets SAE standards to ensure long-term reliability on and off the road.
Vehicle fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: 2005–2015

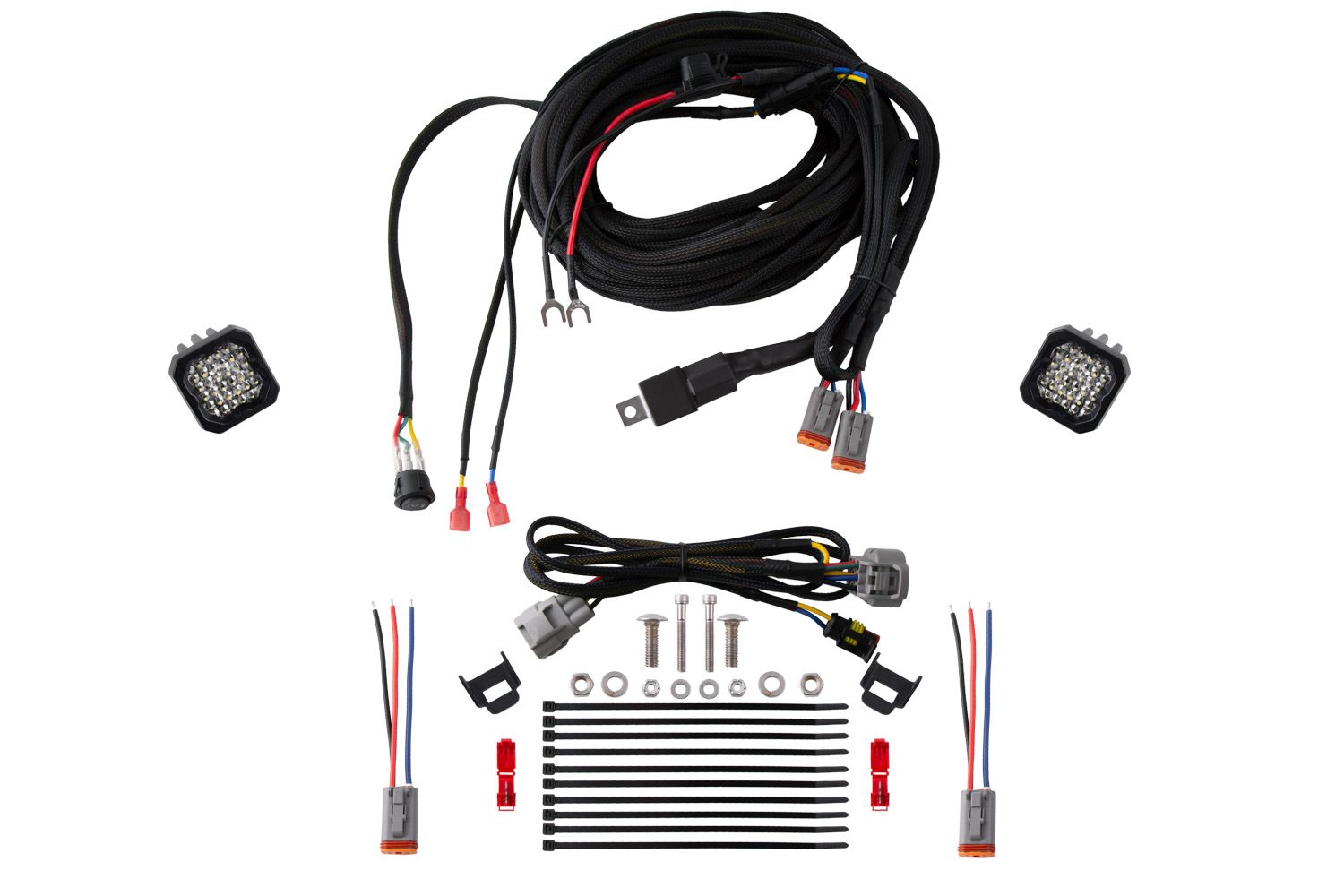

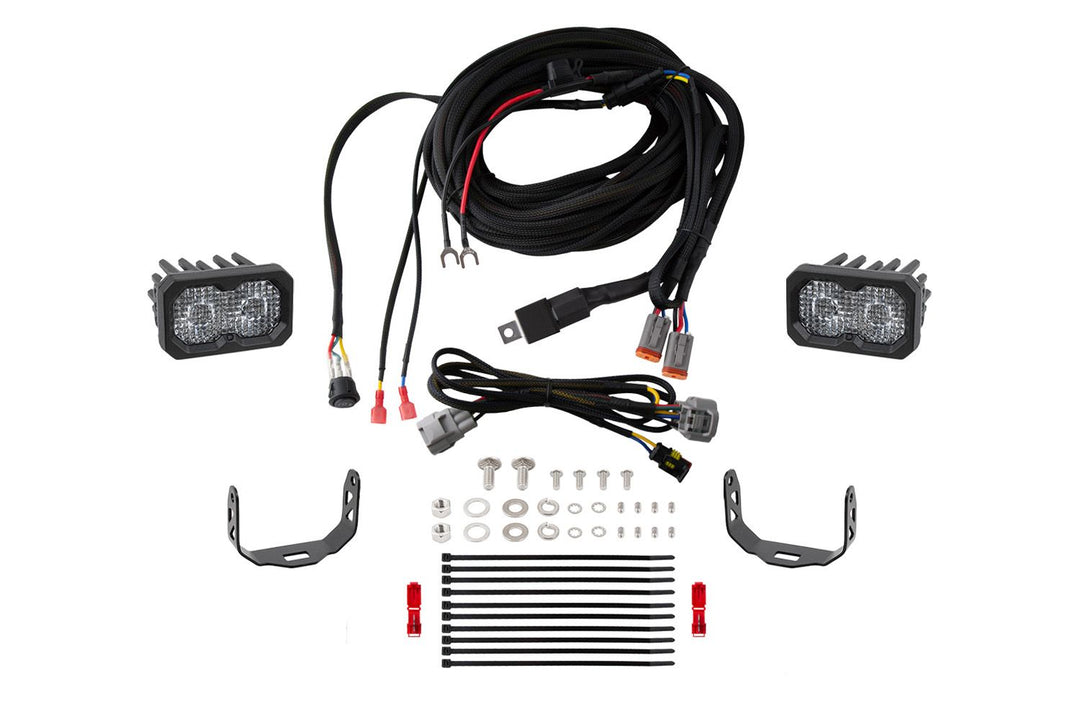

Included in the box
-
LED pods: Two (2) SSC1 or C2 2.0 standard LED pods
-
Wiring harness: One (1) universal reverse light wiring harness
-
Vehicle adapter: One (1) adapter harness for 2005–2015 Toyota Tacoma
-
Mounting hardware: Two (2) mounting brackets and hardware
-
Accessories: Ten (10) zip ties and two (2) T-taps
-
Quantity: Complete two-light kit
Specifications (per pod)
-
Output color: 6000K white
-
Beam pattern: Flood
-
Operating voltage: 9–16V
-
Operating temperature: -40°F to 185°F
-
Ingress rating: IP69K waterproof
-
Cooling: Passive pin-fin heatsink
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Compliance: SAE J575 durability tested
Output options:
- SSC1 Sport: 1,449 lumens
- SSC1 Pro: 2,375 lumens
- C2 2.0 Sport: 1,190 lumens
- C2 2.0 Pro: 3,140 lumens
Warranty and returns
-
Warranty: Lifetime warranty
-
Returns: 30-day return policy with no restocking fee
-
Guarantee: 100% satisfaction guaranteed
Installation
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
-
Modification: None required
