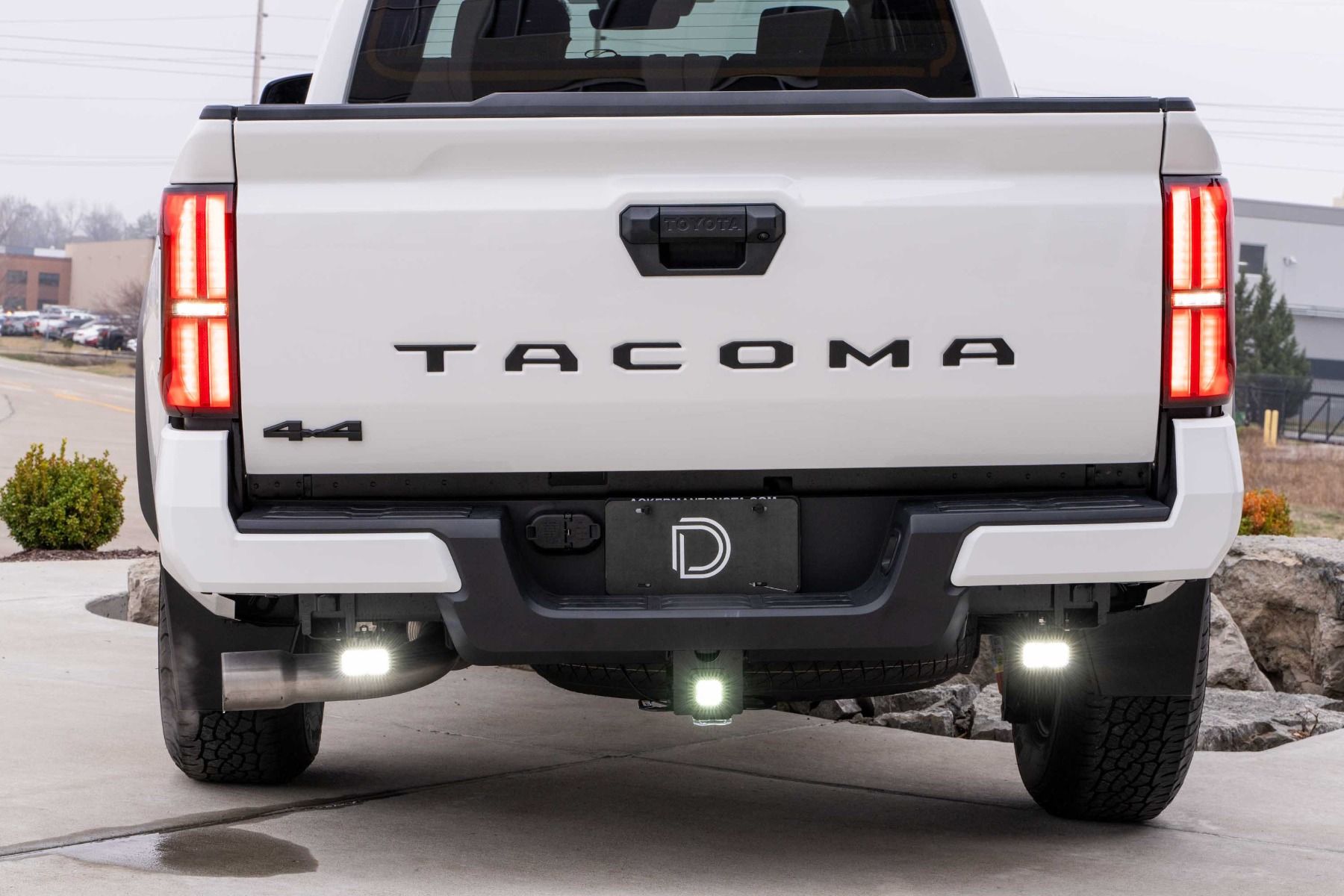

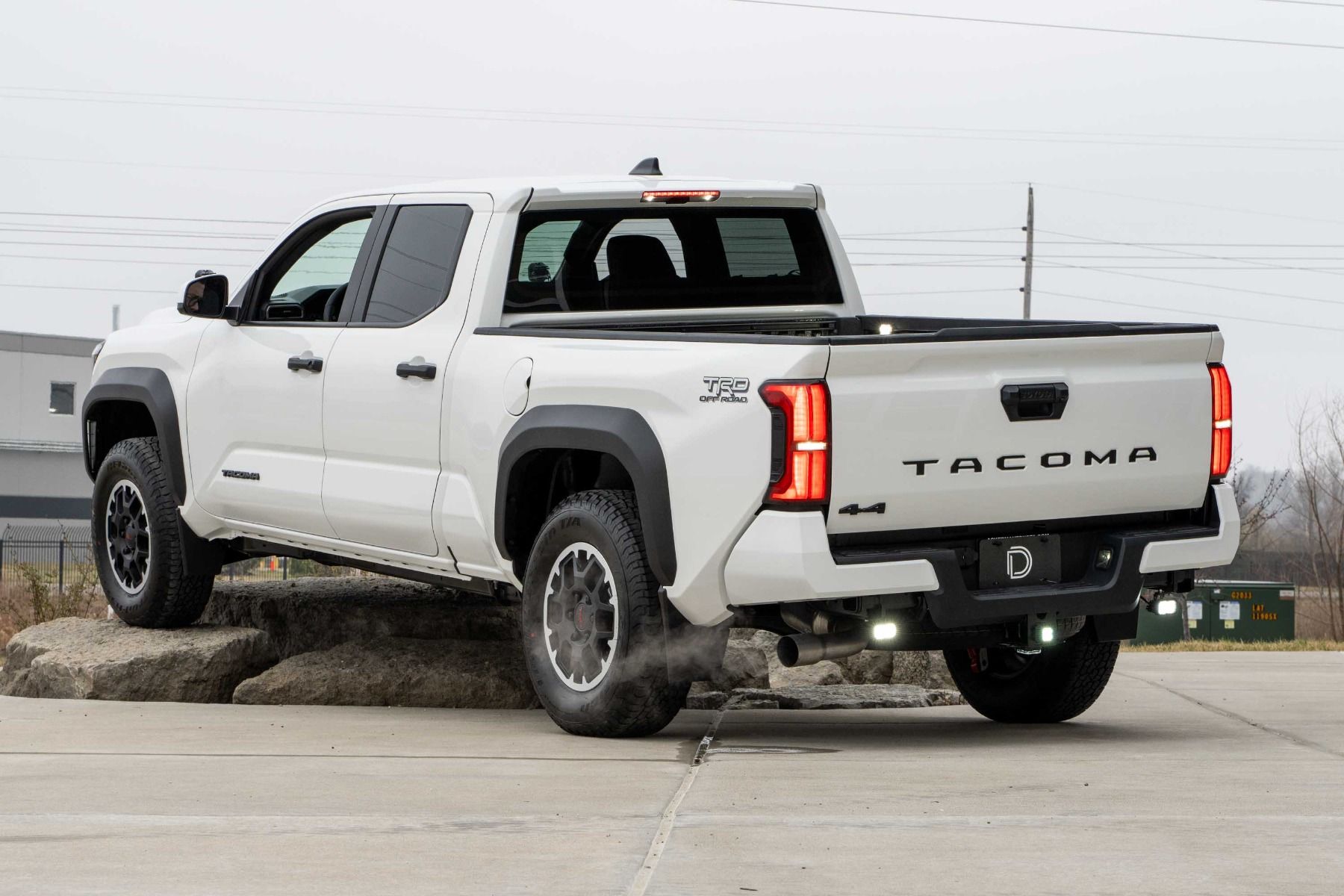

The Stage Series Rear Bumper Reverse Light Kit for the 2024+ Toyota Tacoma delivers a clean, factory-style upgrade with serious functionality. By mounting two high-output LED pods beneath the rear bumper and connecting through the factory 7-pin harness, this kit adds a powerful reverse light, a red running light, and—when equipped with the C1R—an optional 4th brake light. Designed and assembled by Diode Dynamics, it’s a straightforward way to dramatically improve rear visibility.
Features
-
Dual-pod mounting: Allows mounting of SSC1, C1R, or C2 2.0 LED pods under the rear bumper.
-
3-in-1 lighting: Adds a high-power reverse light, red accent running light, and optional 4th brake light (C1R).
-
Plug-and-play harness: Includes a 7-pin trailer wiring harness for simple installation and operation.
-

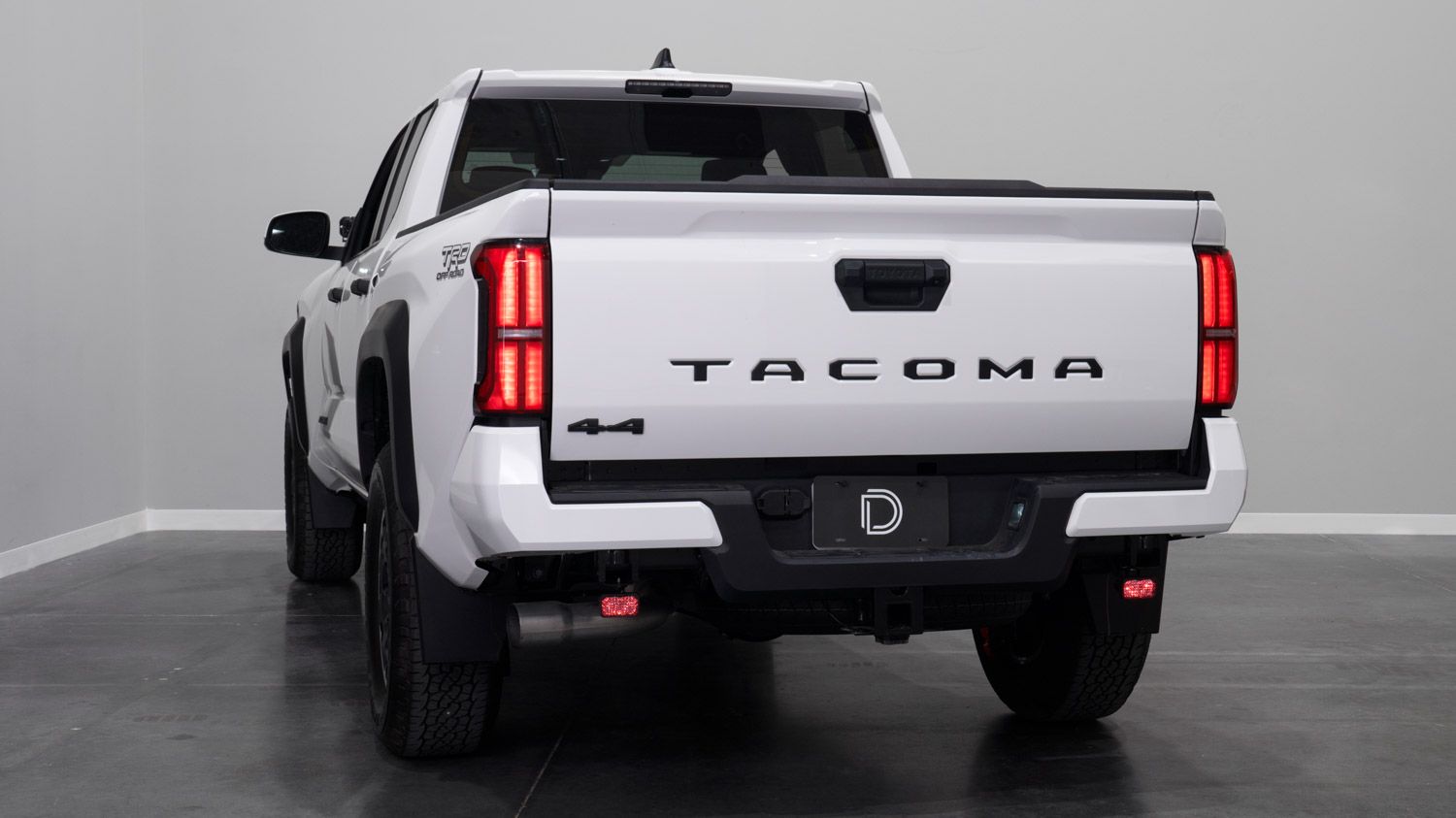

Backlight function: Integrated red backlight provides a distinctive accent while driving.
-
SafetyStrobe option: C1R supports optional brake-light strobing with three flashes on initial brake application.
-
TIR optics: Custom Total Internal Reflection optics maximize usable output and reduce glare.
-
Multiple power options: Available in Sport, Pro, or C1R configurations.
-
Proven durability: Tested to SAE standards for vibration, moisture, corrosion, and extreme temperatures.
-
USA assembly: Designed and assembled in the USA using globally sourced materials.
Specifications
Per-pod performance
-
SSC1 Sport: 400 cd, 4 lux @10m, 1,449 lm, 6000K
-
SSC1 Pro: 925 cd, 9 lux @10m, 2,375 lm, 6000K
-
C2 2.0 Sport: 750 cd, 8 lux @10m, 1,190 lm, 6000K
-
C2 2.0 Pro: 1,550 cd, 16 lux @10m, 3,140 lm, 6000K
Electrical & construction
-
Color temperature: 6000K
-
Power: SSC1 Sport 12.8W; SSC1 Pro 19W; C2 2.0 Sport 15W; C2 2.0 Pro 23W
-
Current (@12.8V): 1.1A
-
Polarity: Polarity specific
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
LED emitters: Osram Ostar Projection Compact, Lumileds automotive-grade LEDs
-
Connector: Deutsch DT input
-
Driver features: Constant current
-
Materials: Polycarbonate lens, aluminum casting, rubber gasket
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high pressure
Weights
-
Unit weight: SSC1/C1R 1.2 lb; SSC2 2.4 lb
-
Product weight: SSC1/C1R 2.4 lb; SSC2 4.8 lb
Fitment
-
Make: Toyota
-
Model: Tacoma
-
Years: (2024–2026)

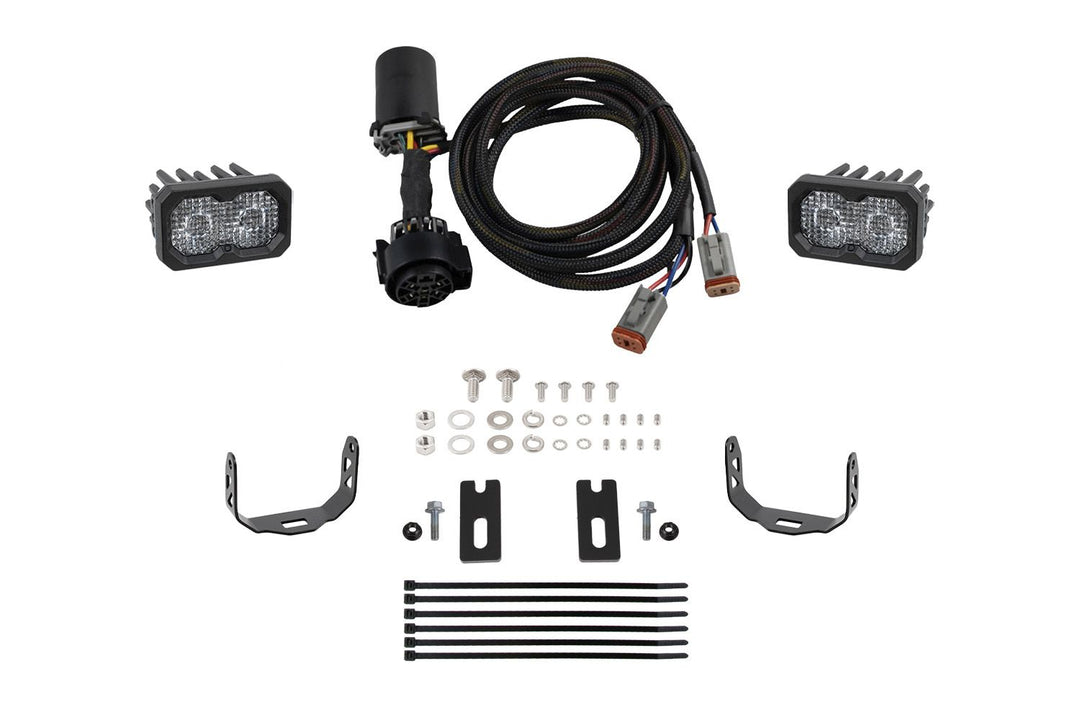

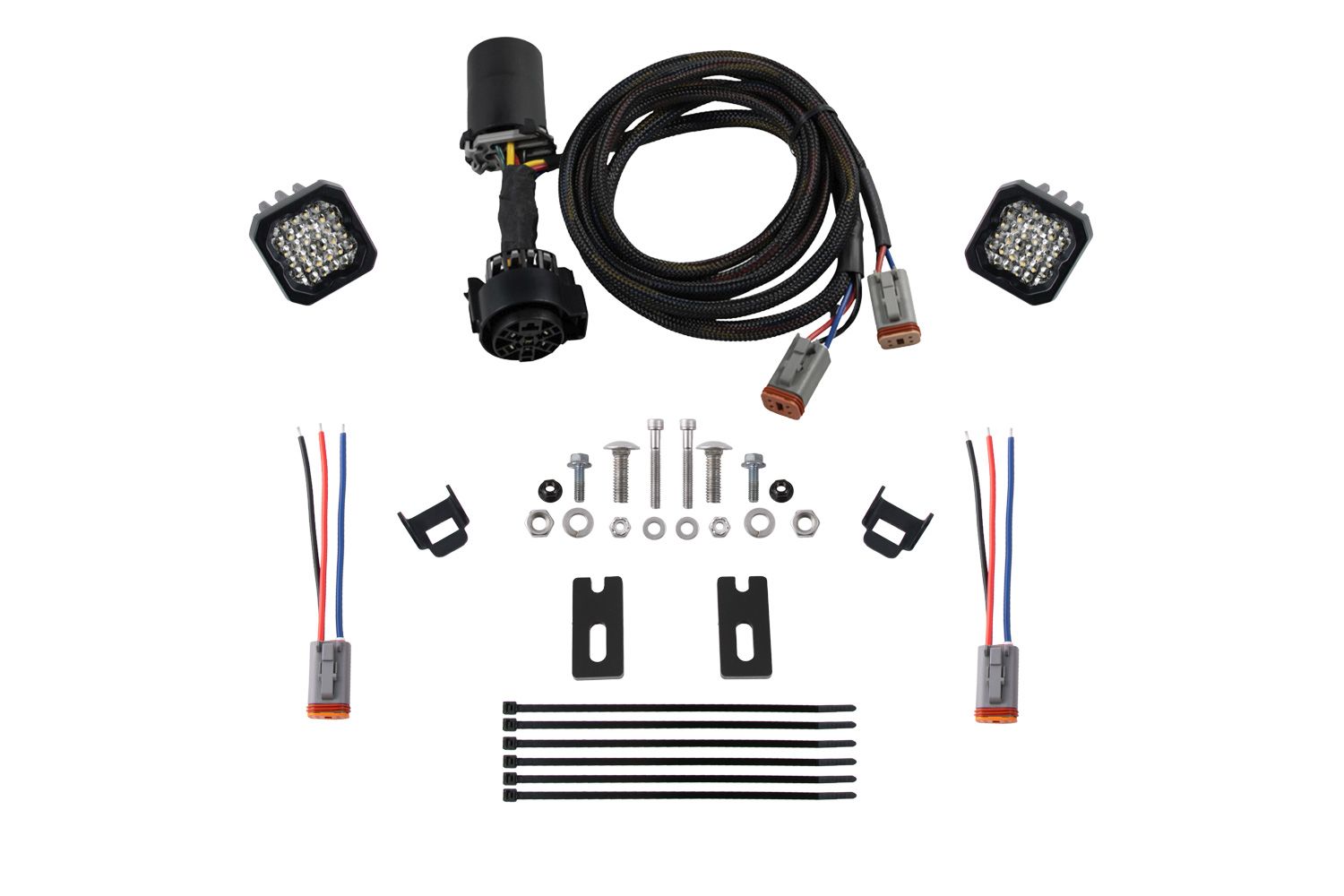

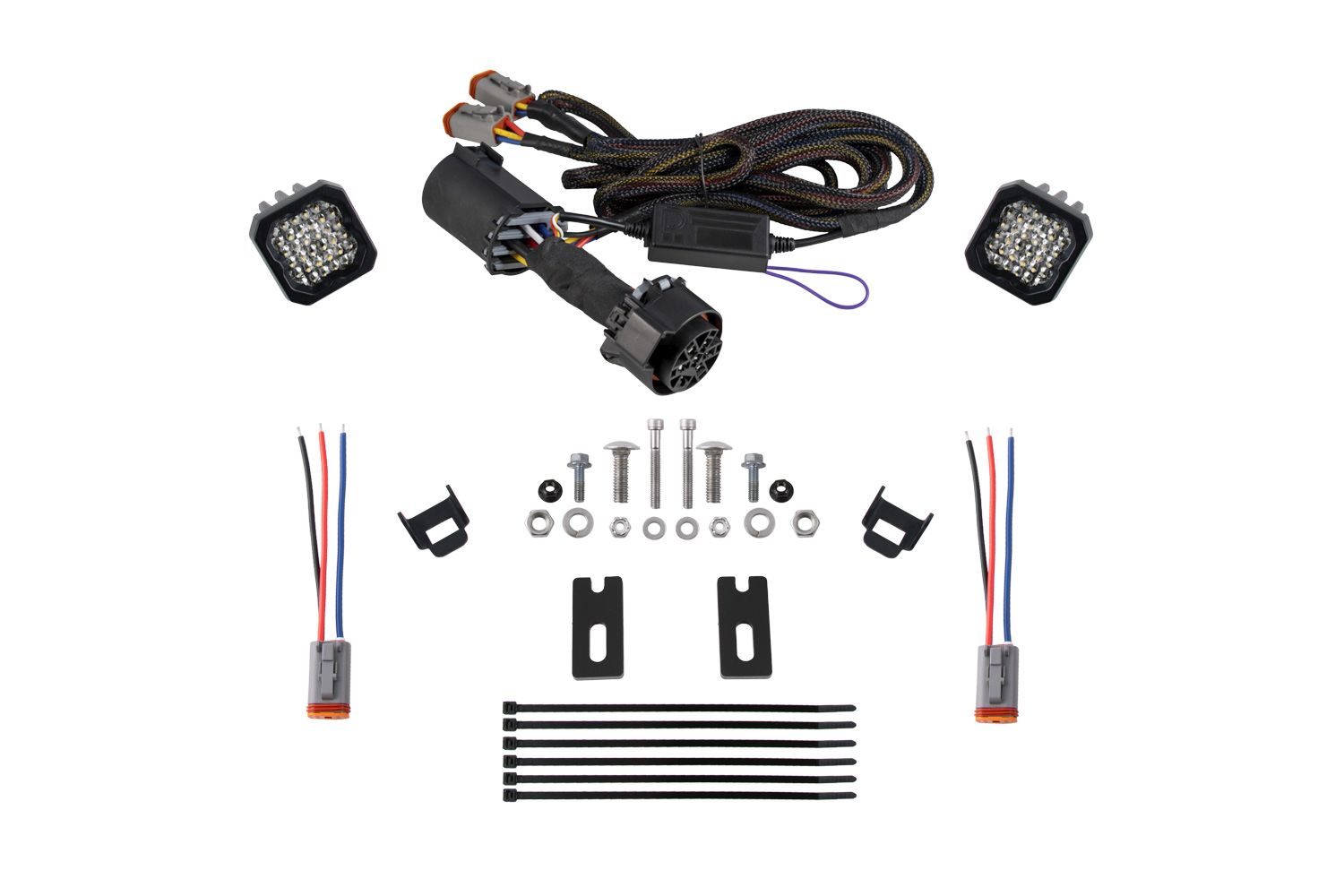

Included in the box
-
LED pods: Two (2) SSC1 or C2 2.0 standard LED pods
-
Wiring: One (1) trailer reverse light wiring harness
-

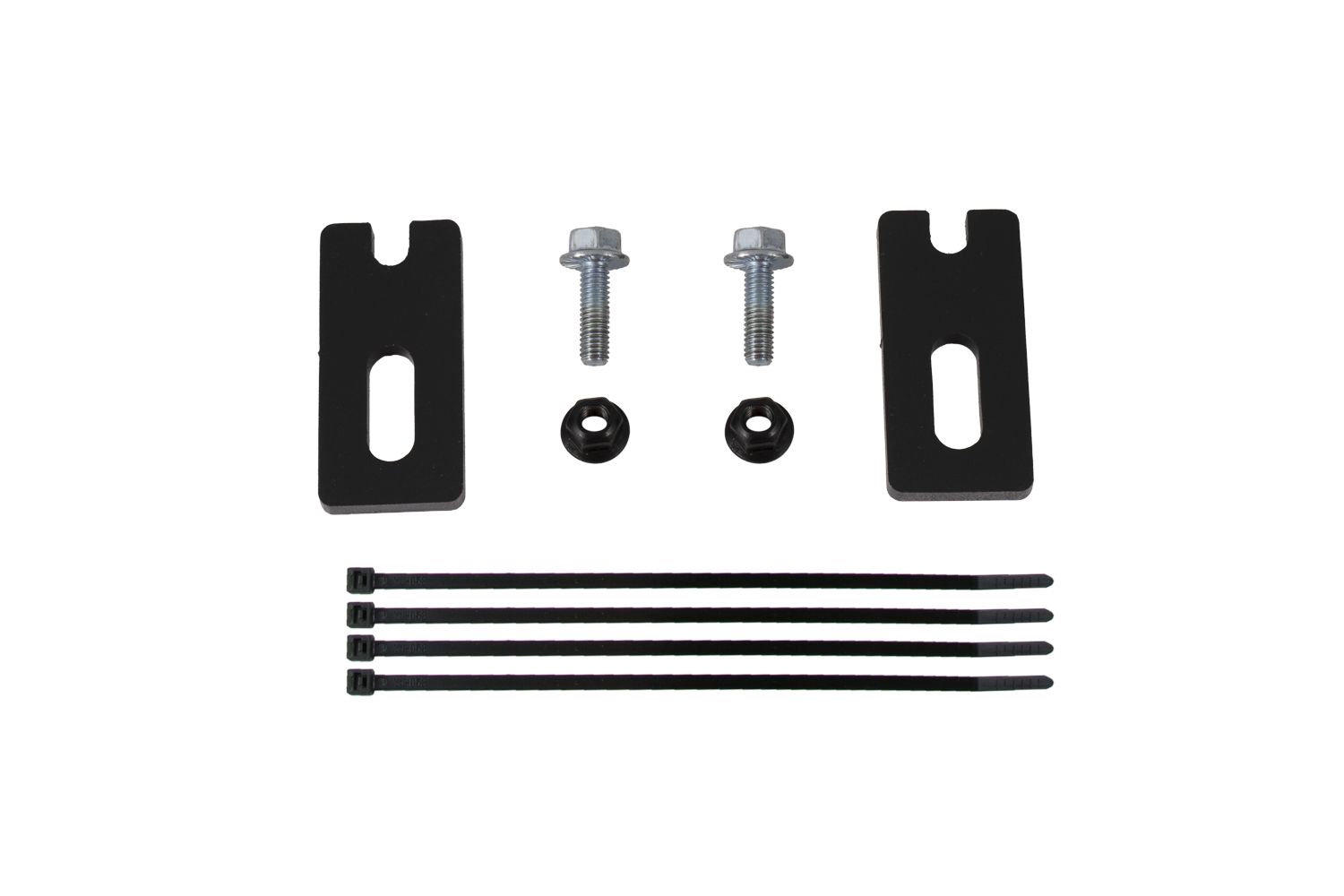

Hardware: Mounting hardware
-
Documentation: Installation guide
Additional details
-
Quantity: Two (2)
-
Installation time: 30–60 minutes
-
Tools required: Basic toolset
-
Modification: None
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Satisfaction guarantee: 100% satisfaction guarantee
