Upgrade your rear-facing visibility with the Stage Series Rear Bumper Reverse Light Kit for the Toyota Tundra. Designed to mount cleanly underneath the factory rear bumper, this kit delivers a massive increase in usable reverse lighting while adding a distinctive red accent light for enhanced visibility and style. With true plug-and-play integration into the factory trailer hitch wiring and no cutting or bumper modification required, this is one of the cleanest and most functional reverse light upgrades available for the 2022+ Tundra.
Important notes
-
Compatibility note: The C2 2.0 option is not compatible with models equipped with the Toyota Bed Step accessory
-
Manual override: A universal backup harness is required for manual-on functionality outside of reverse
Features
-

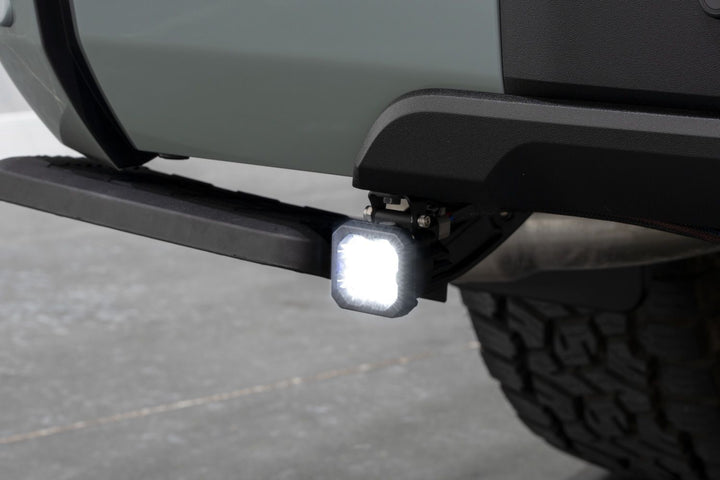

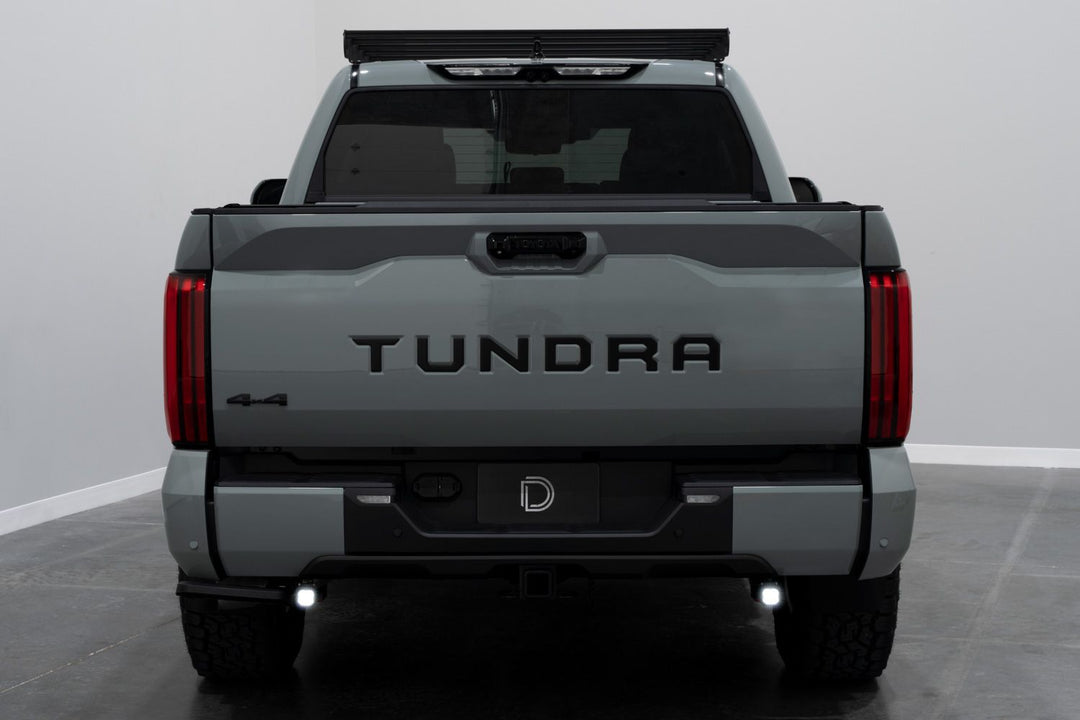

Under-bumper mounting: Mounts two SSC1 or C2 2.0 pods discreetly beneath the rear bumper
-
High-power reverse output: Dramatically improves rear visibility when backing up
-
Red accent backlight: Integrated red backlight functions as an additional running light
-
Plug-and-play wiring: Connects directly to factory trailer hitch wiring
-
Bolt-on install: Uses existing mounting points with no cutting or bumper modification
-
Fast installation: Complete install in as little as 10 minutes
-
USA built: Designed and assembled in the USA
Optics and light control
-
TIR optics: Custom-engineered Total Internal Reflection optics focus light efficiently and reduce glare
-
Integrated lens design: The optic also serves as the main lens, improving efficiency and output
-
Flood beam pattern:
- SSC1: 50° x 50° uniform spread
- C2 2.0: 70° x 45° wide coverage
Power level options
-
Sport: Excellent performance upgrade with efficient power draw
-
Pro: Noticeable increase in output and intensity
-
Max (C2 2.0 only): Uses Osram HX Boost LEDs delivering up to 3,900 raw lumens
Reliability
-
Extreme testing: Validated for vibration, moisture, corrosion, and temperature extremes
-
SAE tested: Built to the same durability standards as OEM components
-
Long-term use: Designed to perform reliably from -40°F to 185°F

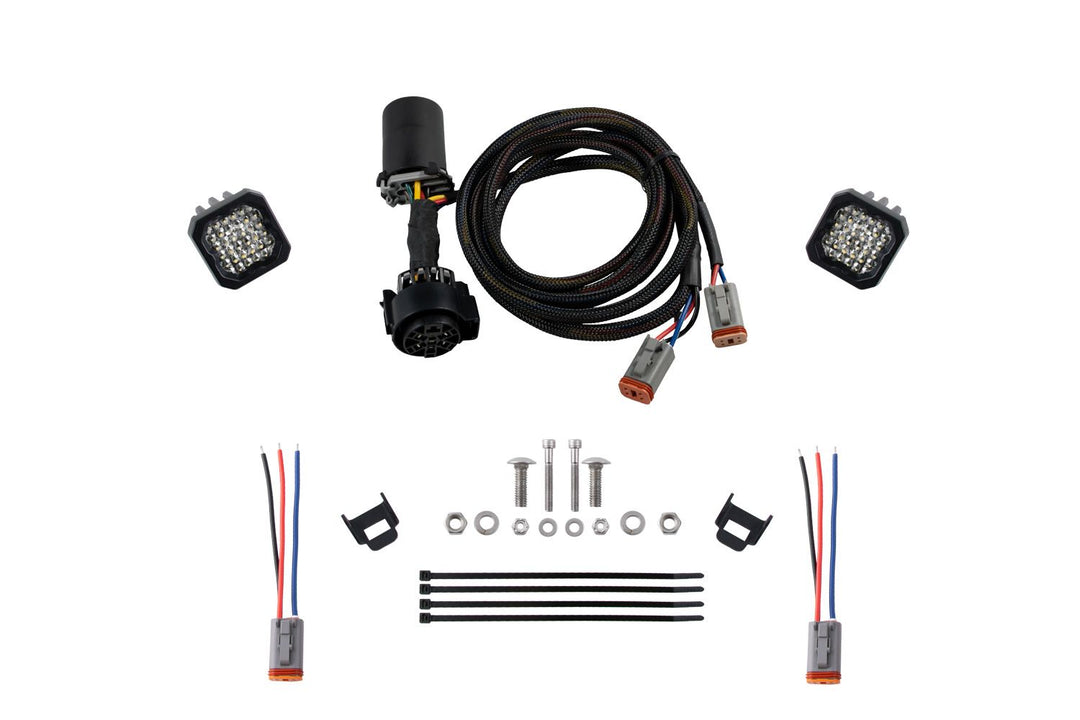

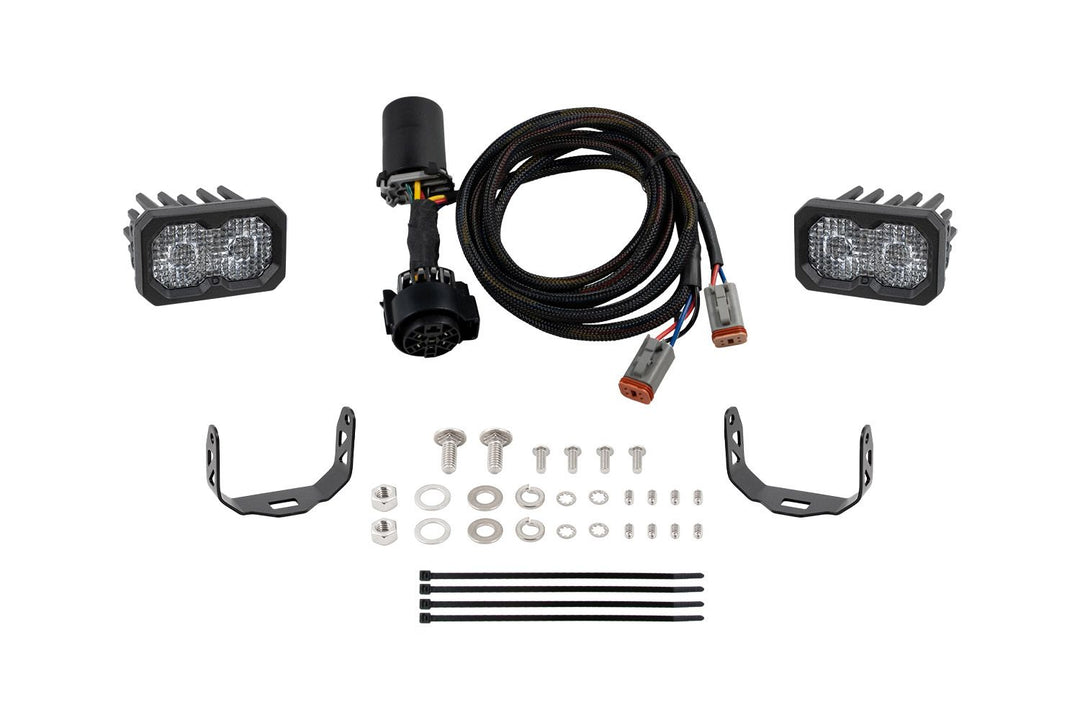

In the box
-
LED pods: Two (2) SSC1 or C2 2.0 Standard LED Pods
-
Wiring harness: One (1) trailer reverse light wiring harness
-
Hardware: All required mounting hardware
-
Documentation: Installation guide
-
Quantity: Two (2)
Specifications
Per individual pod
-
Color temperature: 6000K
-
Operating voltage: 9–16V
-
Polarity: Polarity specific
-
Operating temperature: -40°F to 185°F
-
Cooling: Passive pin-fin heatsink
-
Ingress rating: IP69K waterproof, high pressure
Output options
-
SSC1 Sport: 1,449 lumens | 12.8W
-
SSC1 Pro: 2,375 lumens | 19W
-
C2 2.0 Sport: 1,190 lumens | 15W
-
C2 2.0 Pro: 3,140 lumens | 23W
Fitment
-
Make: Toyota
-
Model: Tundra
-
Years: (2022–2026)
Installation
-
Install time: 10–20 minutes
-
Tools needed: Basic toolset
-
Modification: Basic wiring only
Warranty and guarantee
-
Warranty: Lifetime warranty
-
Returns: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
