Regular price$379.95
/
Shipping calculated at checkout.

Select Optic and Color
Select Power Level
  • Low stock - 5 items left
  • Backordered, shipping soon

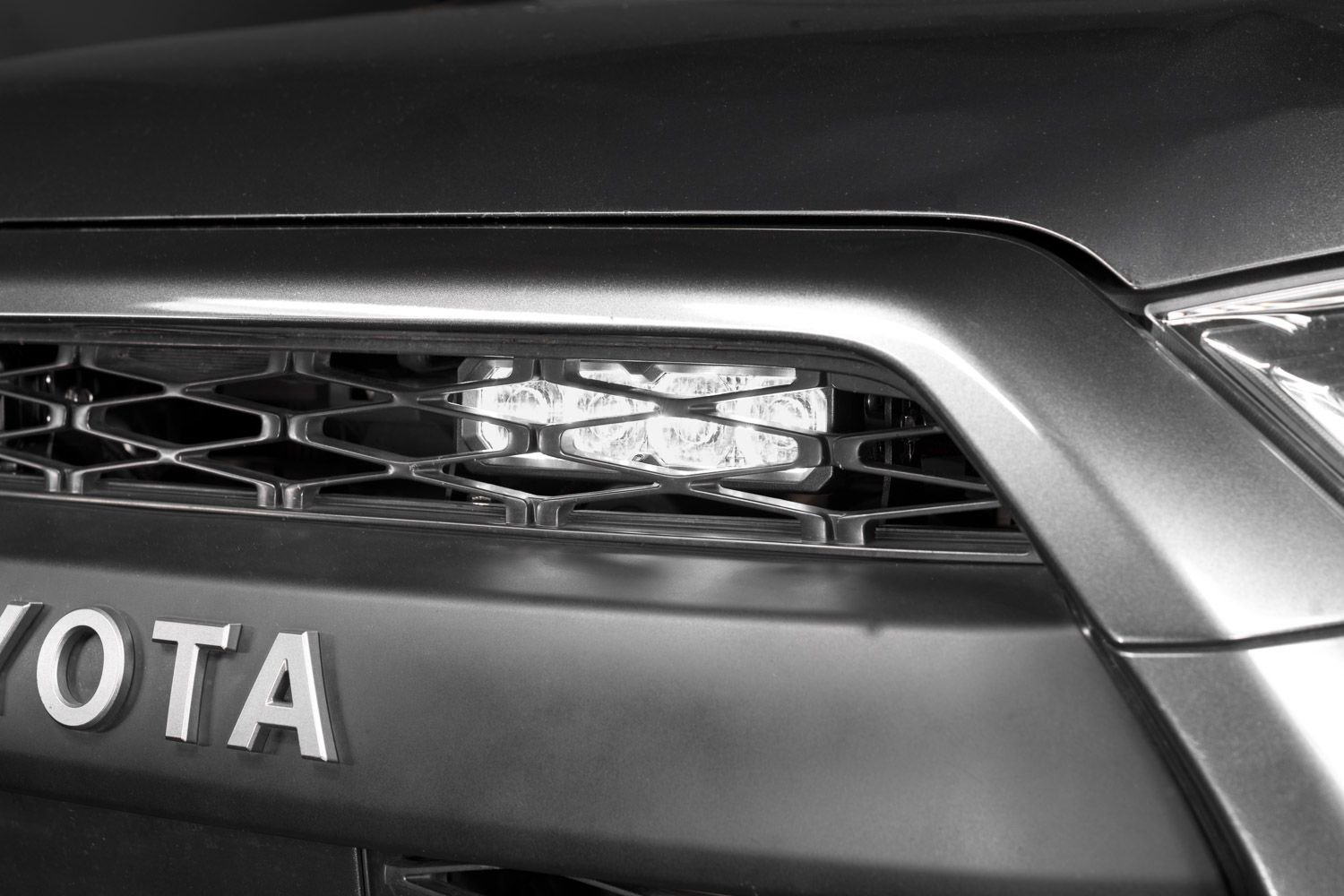

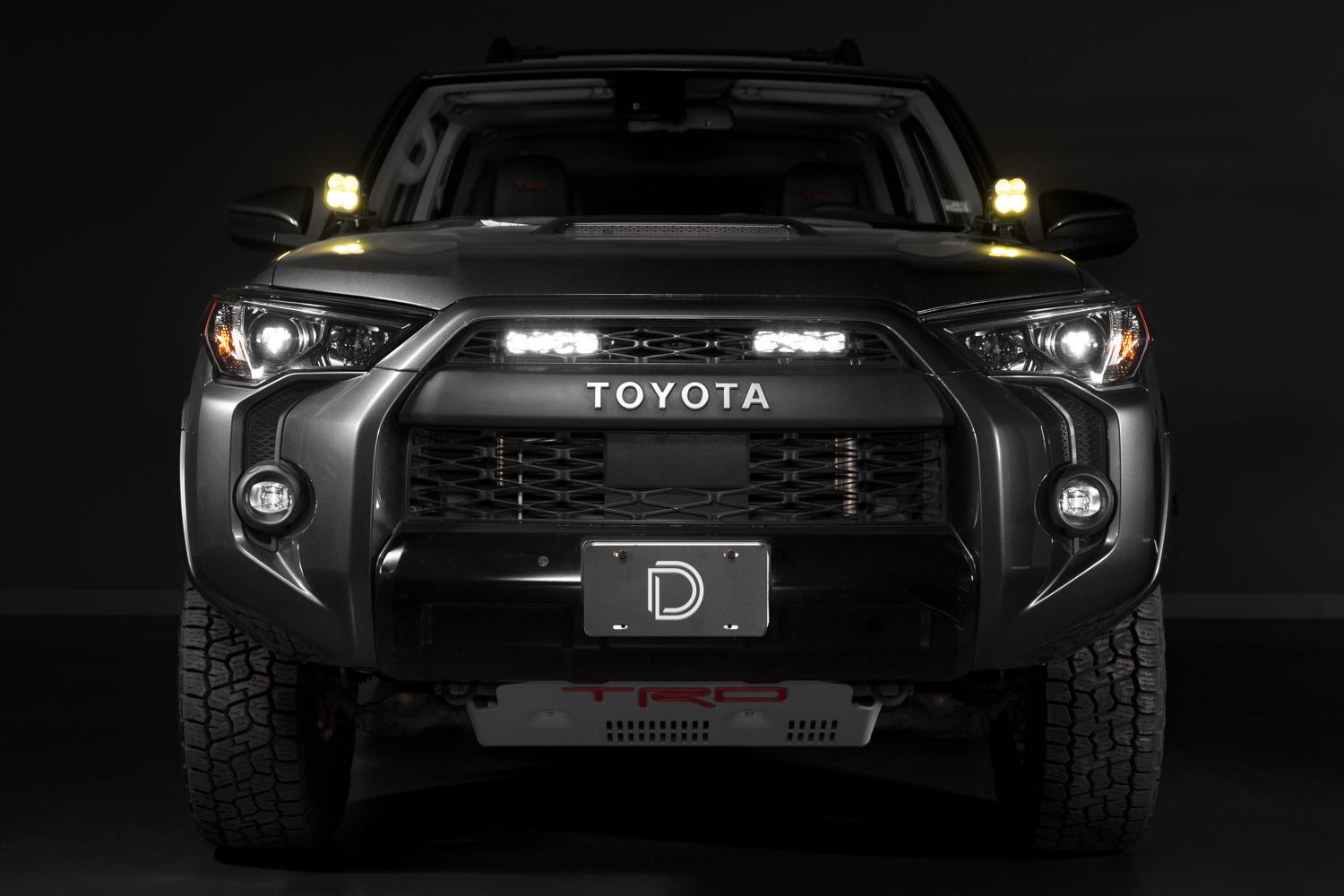

The SS6 LED Driving Light Kit for the Toyota 4Runner is designed to deliver serious forward lighting while maintaining a clean, OEM-style appearance. This bolt-on kit mounts a pair of 6-inch Stage Series LED light bars behind the upper grille using factory mounting points—no cutting or drilling required. With advanced optics, multiple beam patterns, and unmatched output options, this kit dramatically improves visibility for both on-road and off-road driving.

Notes

  • Trim Compatibility: Fits all 2014–2019 trims; 2020–2024 TRD Pro models only
  • Installation: Uses factory mounting points — no cutting or drilling required
  • Road Use: SAE Fog and SAE Driving options are road-legal when properly aimed (check local regulations)

Features

  • Direct Fitment: Designed specifically for 2014–2024 Toyota 4Runner upper grille mounting
  • TIR Optics: Patented Total Internal Reflection optics maximize efficiency and usable light output

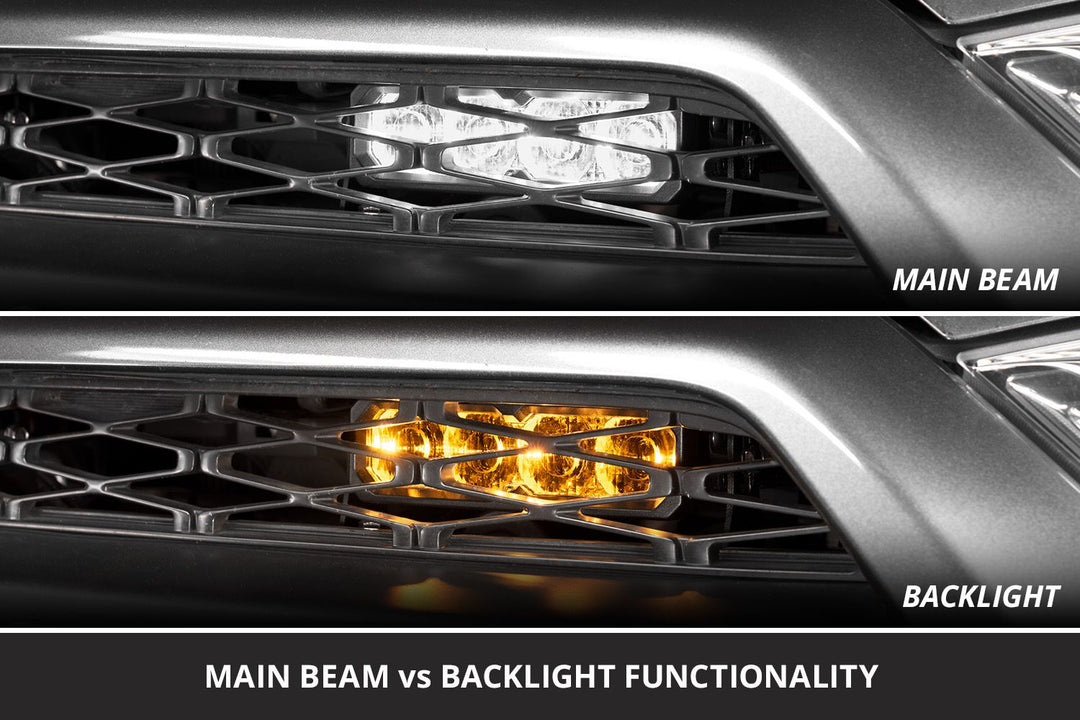

  • Amber Backlight: Integrated true amber backlight for distinctive accent lighting and visibility
  • Multiple Power Levels: Available in Sport, Pro, and Max configurations to match your needs
  • Factory Mounting: Utilizes existing OEM mounting points for a true bolt-on install
  • Built to Last: Extensive SAE-standard testing for vibration, moisture, and corrosion
  • Made in USA: Manufactured in the USA using globally sourced materials
  • Warranty: Backed by a limited lifetime warranty

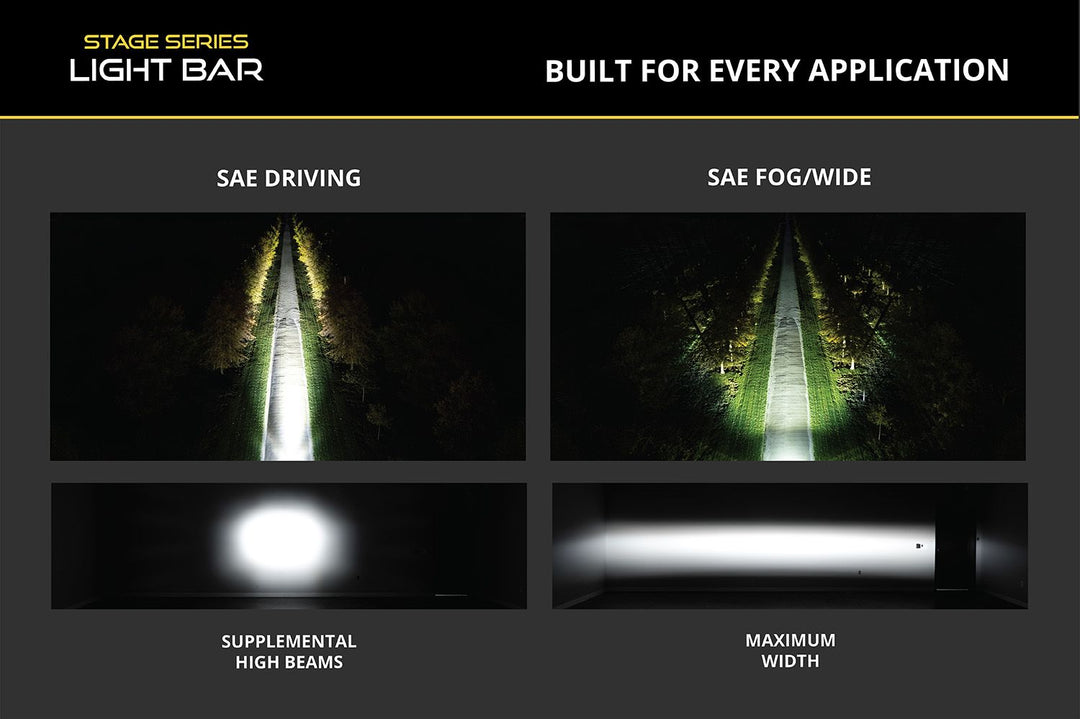

Beam Pattern Options

  • SAE Fog: Wide 90° × 10° pattern using FineLine optics to fully illuminate the foreground
  • SAE Driving: Balanced 20° × 12° pattern designed to supplement high beams with added reach
  • Wide & Driving Options: Additional beam patterns available depending on configuration

Output Color Options

  • White (6000K): Crisp, cool white that closely matches factory LED lighting
  • Yellow (3000K): High-contrast output ideal for fog, dust, rain, and snow

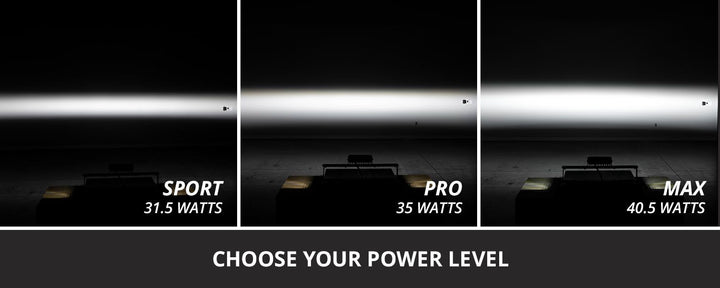

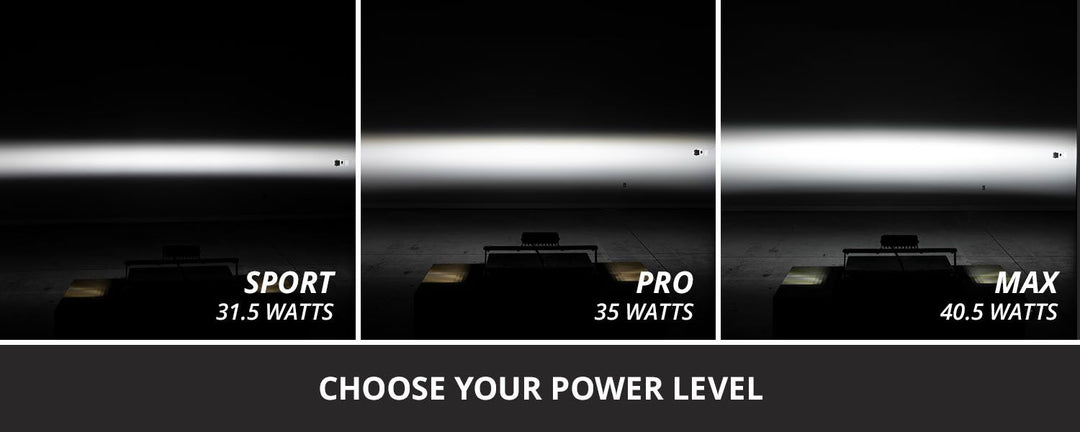

Power Level Options

  • Sport: Best balance of performance and value
  • Pro: Increased output and intensity over Sport
  • Max: Maximum performance using Osram HX Boost LEDs for extreme intensity

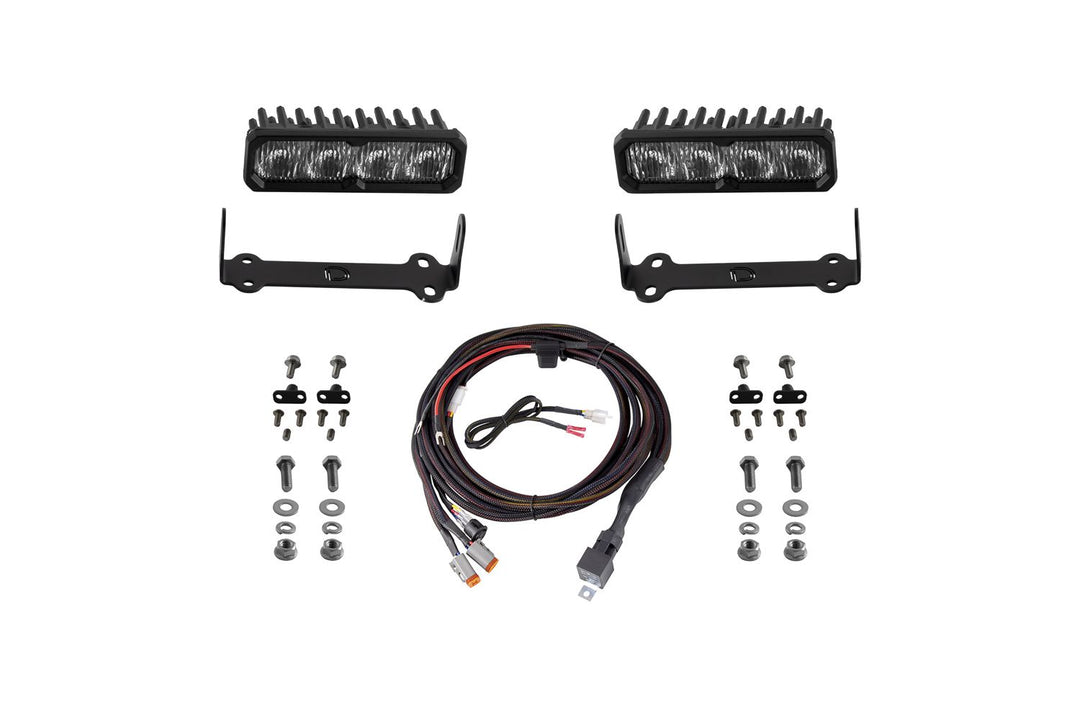

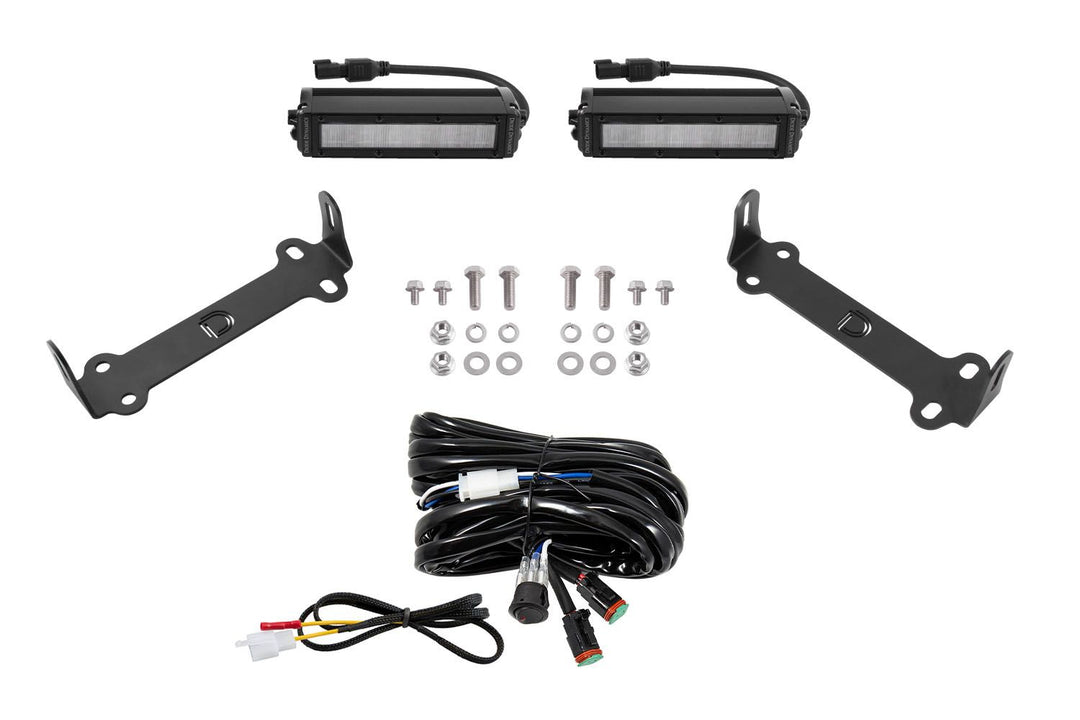

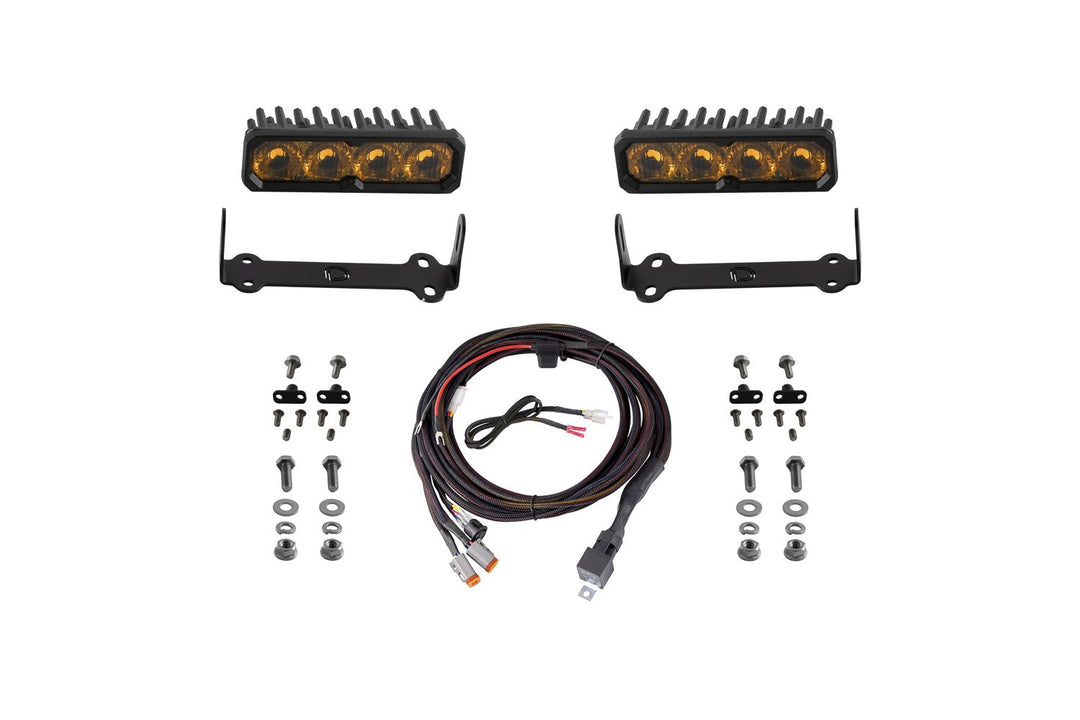

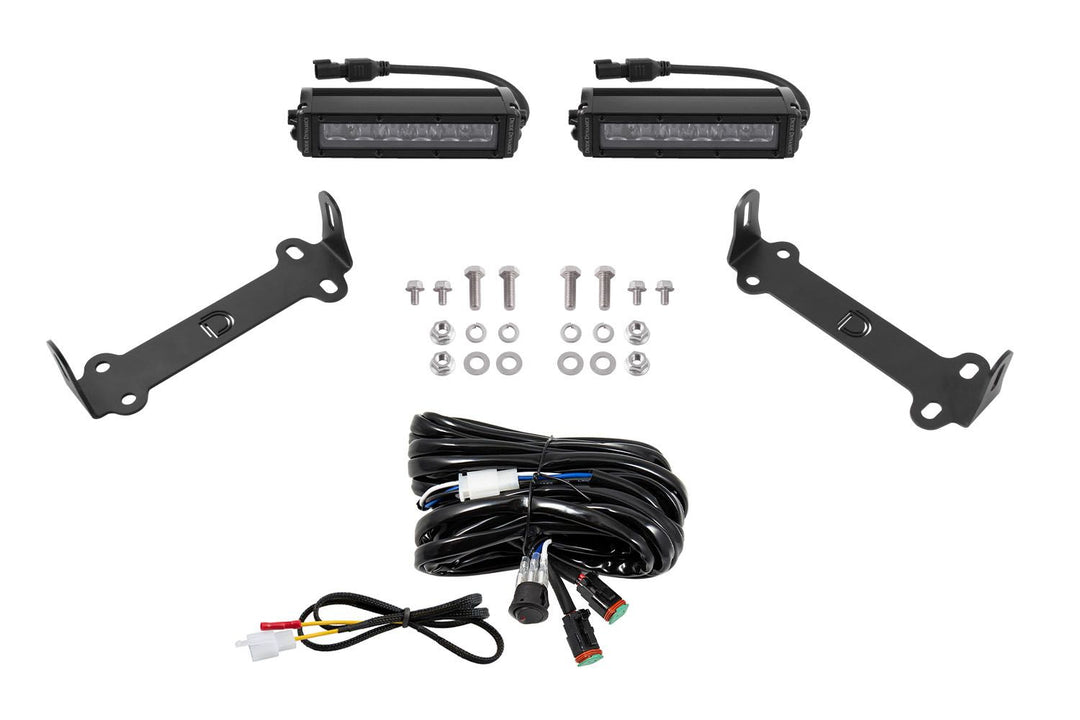

What’s Included

  • Brackets: Two (2) application-specific SS6 upper grille brackets
  • Light Bars: Two (2) 6" Classic or SS6 LED light bars
  • Wiring: One (1) wiring harness
  • Adapter: One (1) auxiliary switch adapter wire
  • Hardware: Mounting hardware and installation guide

Specifications

  • Color Temperature (CCT): 2000K, 3000K, 6000K
  • Beam Angles:
    • Wide: 100° × 8°
    • Driving: 20° × 8°
    • SAE Driving: 20° × 12°
    • SAE Fog: 90° × 10°
  • Power (per light bar):
    • Sport: 31.5W
    • Pro: 35W
    • Max: 40.5W
  • Operating Voltage: 9–30V
  • Current @ 12.8V: Sport 2.46A | Pro 2.73A | Max 3.16A
  • Operating Temperature: -40°C to 85°C (-40°F to 185°F)
  • Materials: Aluminum PCB, Copper PCB, Polycarbonate Lens, Aluminum Heatsink
  • Ingress Rating: IP69K Waterproof (High Pressure)
  • Dimensions: 7" × 3" × 1.63"

Fitment

  • Application: Upper Grille Driving / Fog Lights
  • Make: Toyota
  • Model: 4Runner
  • Years: 2014–2024
  • Electrical Compatibility: No electrical issues (tested and confirmed)

Installation

  • Install Time: 1–2 hours
  • Tools Needed: Basic toolset
  • Modification Required: None
