Add flexible, low-profile mounting to your lighting setup with the Stage Series Universal Roll Bar Mount Kit. Designed for strength, adjustability, and a clean install, this compact solution lets you securely mount Stage Series LED pods exactly where you need them on roll bars, bull bars, or tubular surfaces.
Important note
-
Not compatible: This kit is not intended to mount or support SS5 pods or CrossLink lightbars
Features
-

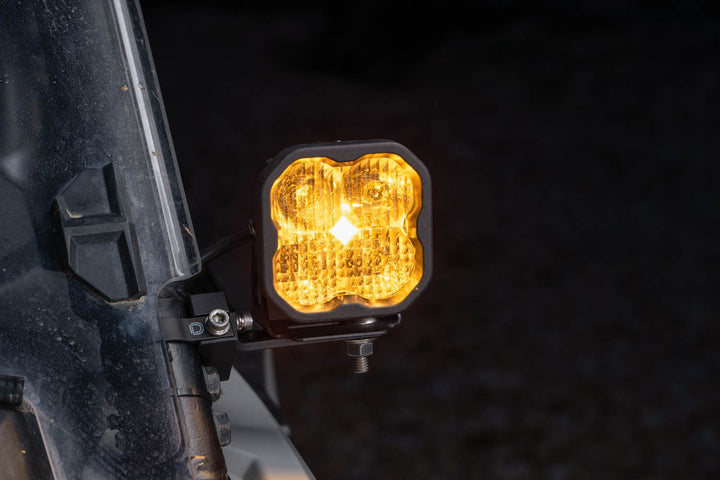

Universal mounting capability: Allows mounting of Stage Series C1, C2, and SS3 LED pods on roll bars, bull bars, or tubes
-
Multiple mounting positions: Adjustable orientation lets you aim light precisely where it’s needed
-
Compact design: Low-profile mounting solution ideal for tight spaces and clean installs
-
Durable construction: Made from black anodized 6061 aluminum for long-term corrosion resistance
-
Simple installation: Installs in minutes using a standard 5mm Allen wrench

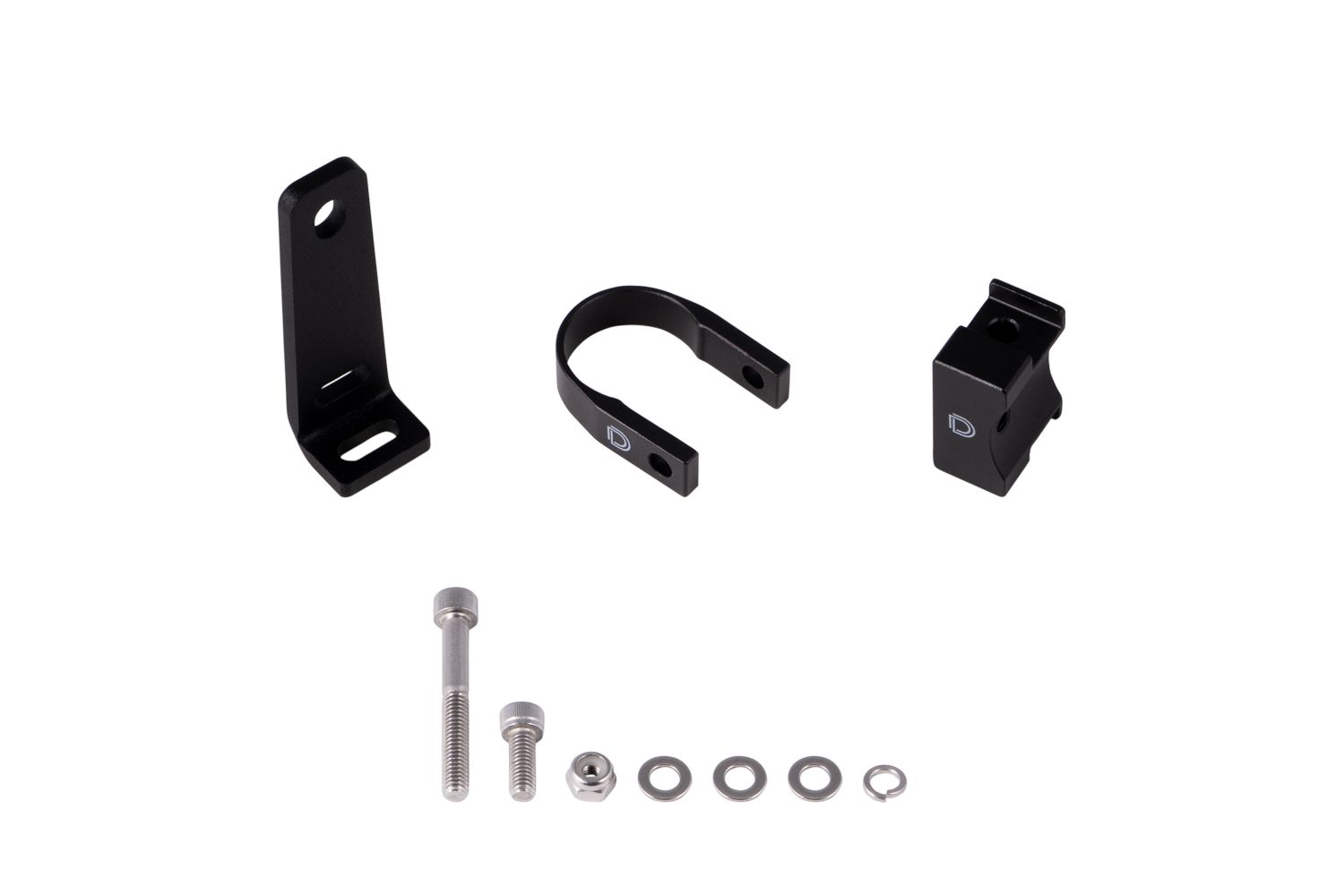

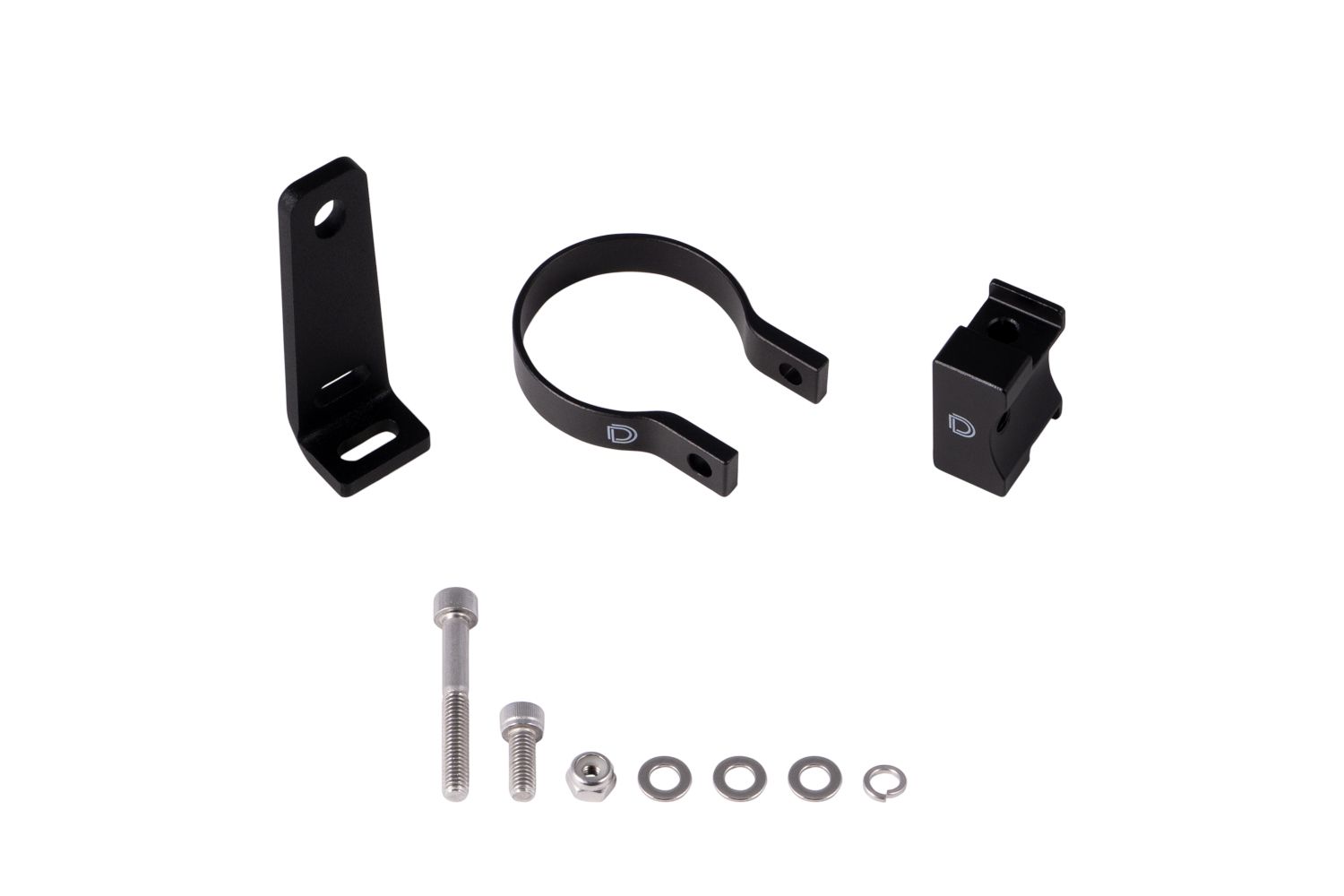

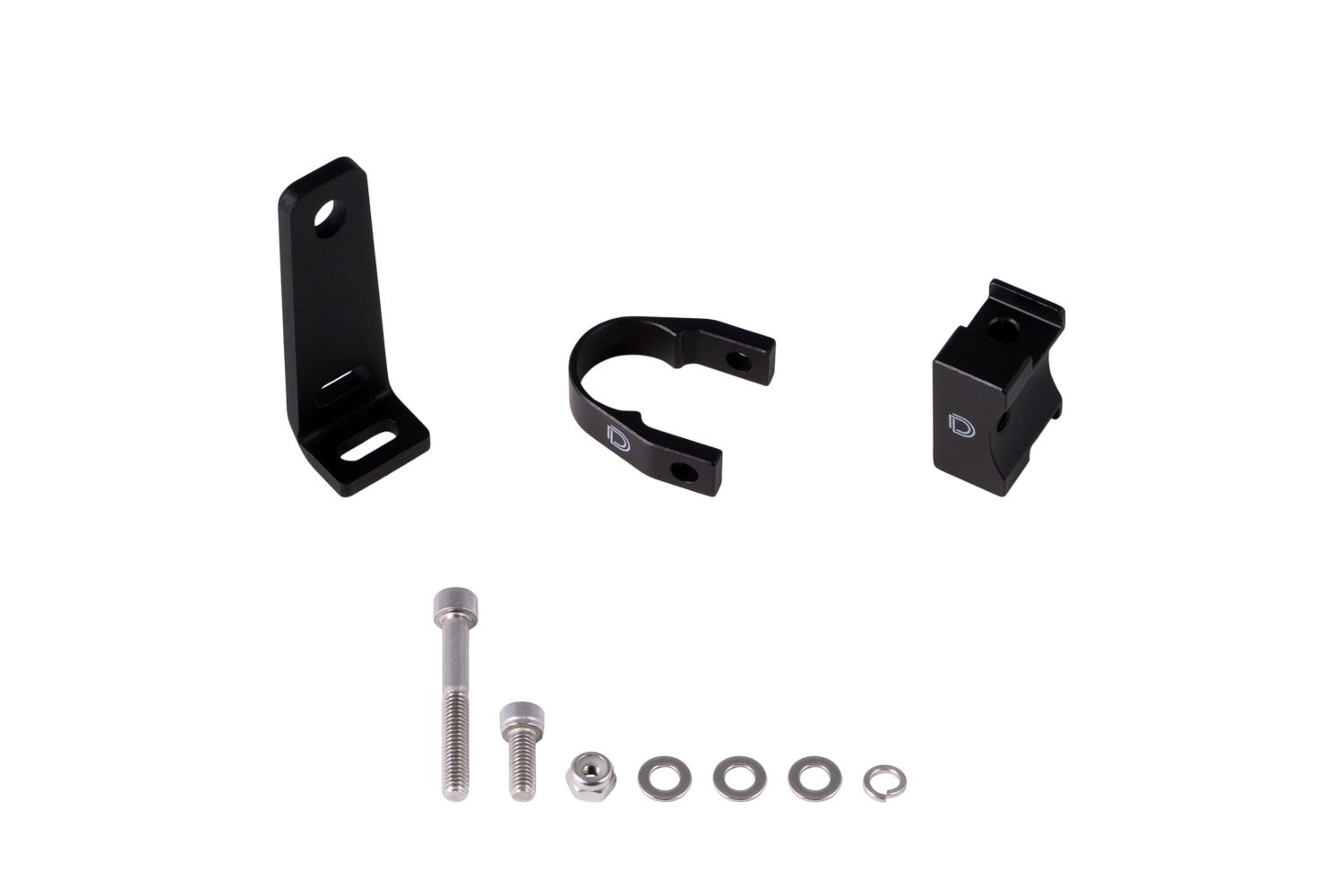

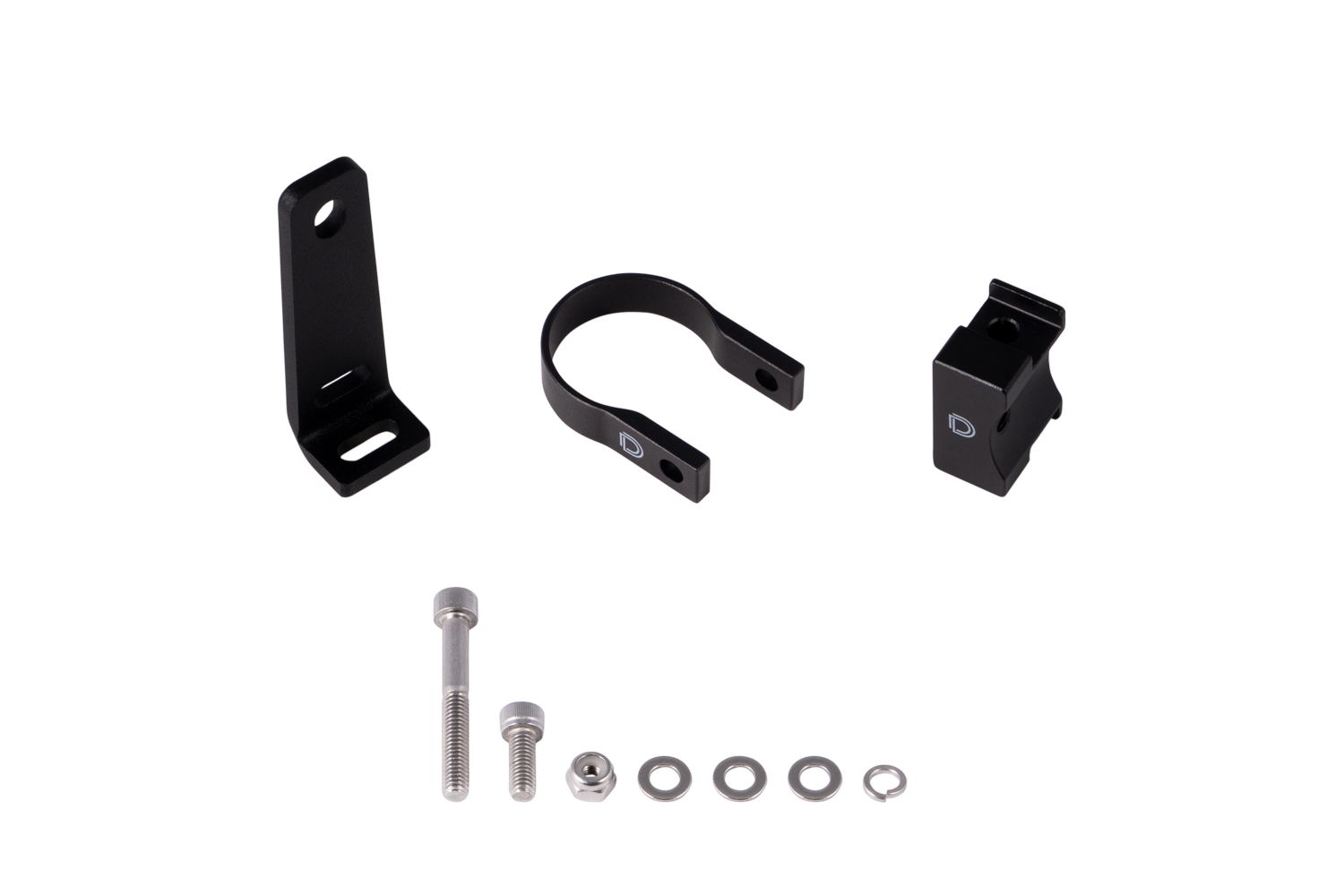

Included in the box
-
Universal mounting block: One (1)
-
Stage Series roll bar clamp: One (1)
-
Universal bracket: One (1)
-
Mounting hardware: Included
Warranty and returns
-
Warranty: Lifetime warranty
-
Return policy: 30-day return with no restocking fee
-
Guarantee: 100% satisfaction guarantee
Fitment
-
Compatible lights: Stage Series C1, C2, and SS3 LED pods
Specifications
-
Operating temperature: -40°C to 85°C (-40°F to 185°F)
-
Materials: Black anodized 6061 aluminum, stainless steel brackets
-
Unit weight: 0.30 lb
-
Product weight: 0.30 lb
-
Shipped weight: 0.35 lb
Installation
-
Installation time: 10–20 minutes
-
Tools needed: 5mm Allen wrench
