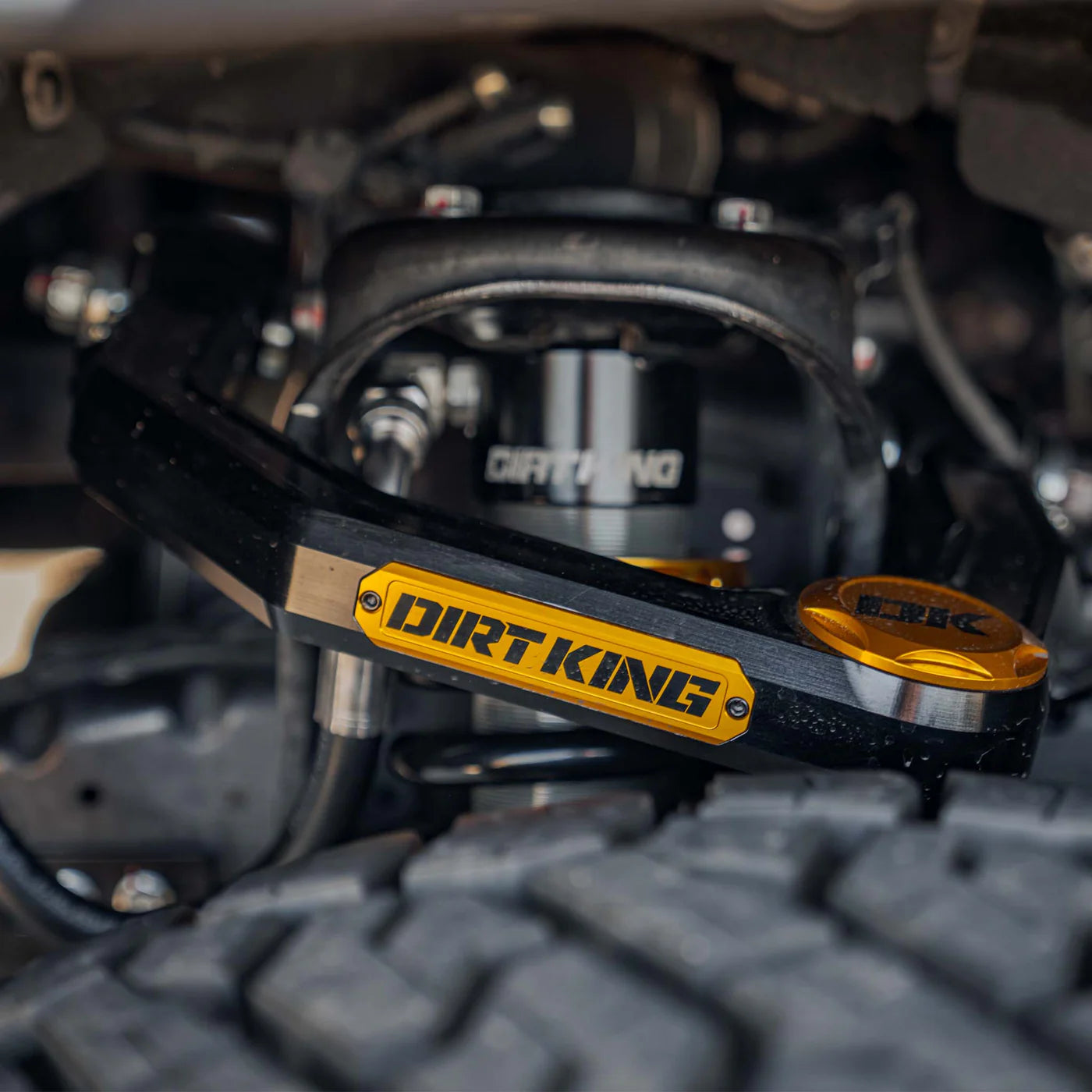

Improve front suspension geometry, articulation, and alignment capability with the Dirt King Billet Upper Control Arms. Precision machined from high strength aluminum and engineered for lifted applications, these control arms deliver enhanced handling, increased suspension travel, and long term durability for both daily driving and demanding off road use.
Important notes
• Lift compatibility: Allows for 0 to 3 inches of front lift depending on suspension setup.
• System pairing: Designed to work with OEM components and Dirt King shocks for optimal performance.
• Wheel clearance: Requires minimum 17 inch wheels and supports up to 5.75 inch maximum backspacing.
• Warranty coverage: Limited lifetime warranty on control arms with one year coverage on ball joints and bushings or rod ends.
• Compatibility: Use with other aftermarket brands must be approved by the respective manufacturer.
Features

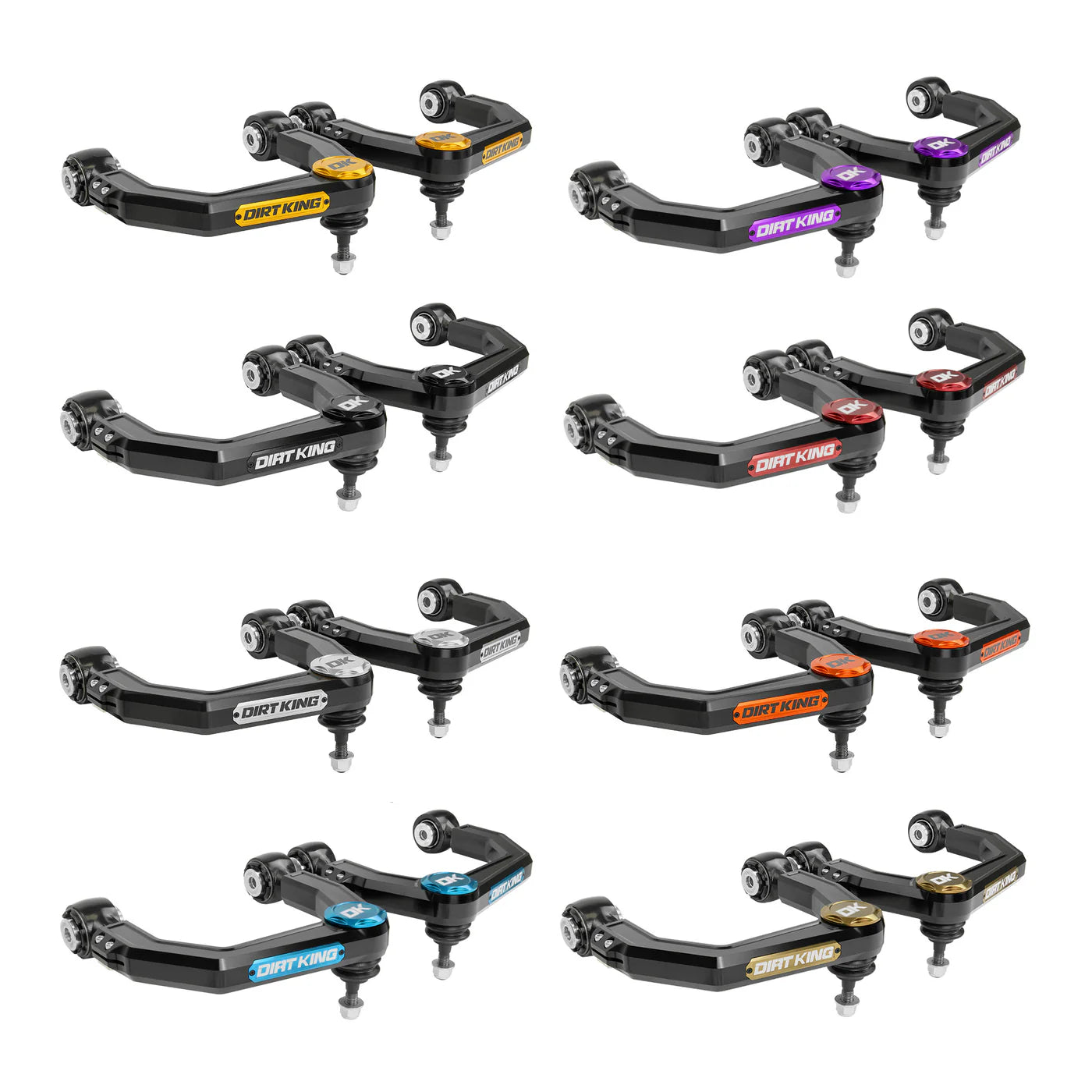

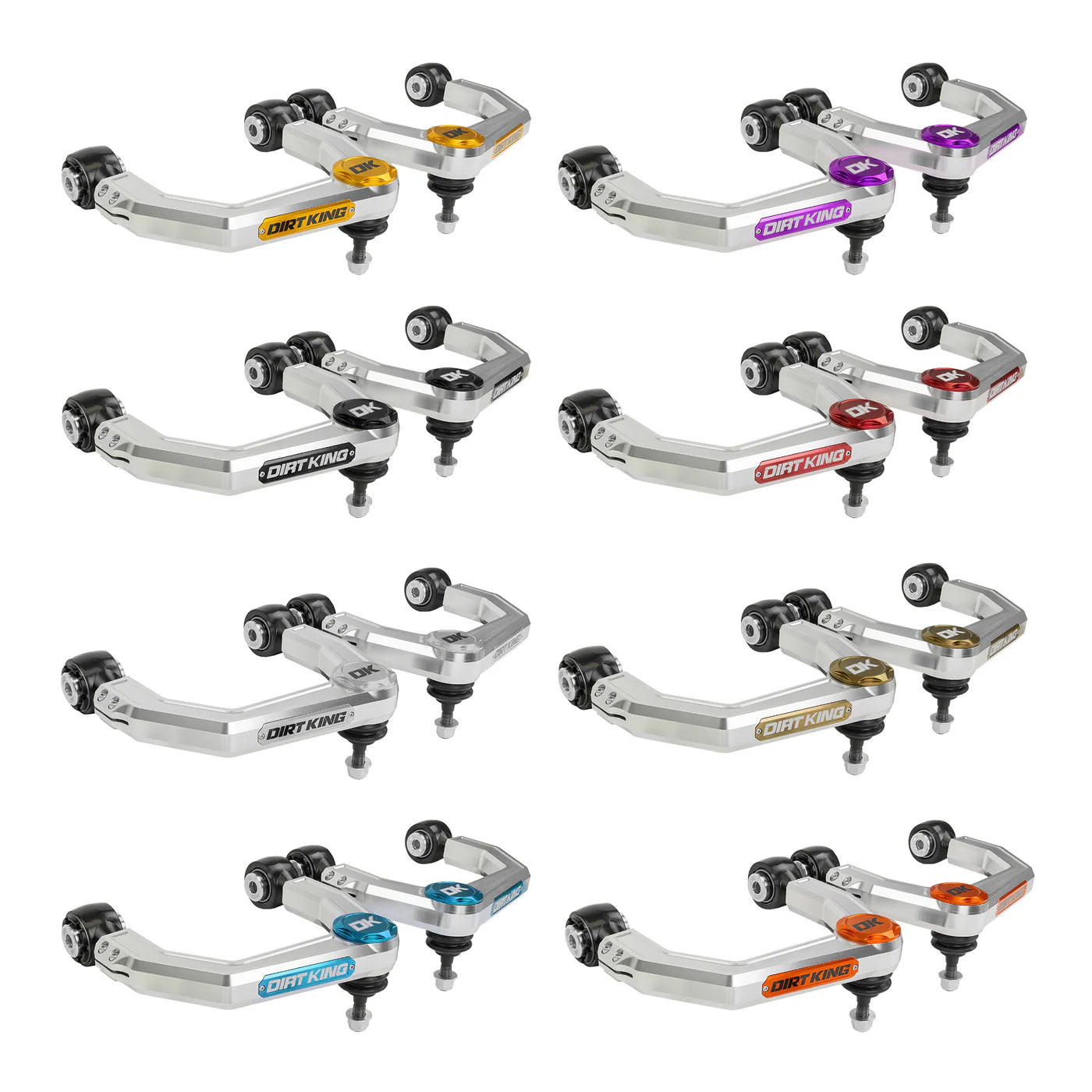

• Billet aluminum construction: Precision machined from 6061 aluminum for strength, corrosion resistance, and premium appearance.
• Improved suspension geometry: Enhanced caster settings and re engineered pivot angles increase articulation and handling stability.
• Adjustable inner pivot: Enables camber and caster tuning for proper alignment on lifted vehicles.
• SilentSpin bushing option: Maintenance free self lubricating composite core with polyurethane outer layer reduces noise and improves ride comfort.
• Chromoly rod end option: ¾ inch Probearing rod ends provide firmer feedback and increased responsiveness for performance focused setups.
• Heavy duty ball joints: Probearing ball joints deliver long lasting durability in harsh off road environments.
• Increased suspension travel: Optimized design allows greater articulation when paired with Dirt King suspension components.
• Fully rebuildable design: All wear components can be serviced or replaced for extended product life.
• Direct installation: CAD engineered for proper fitment using factory mounting locations.
Specifications
• Control arm material: 6061 aluminum.
• Lift range: 0 to 3 inches.
• Track width: Stock.
• Maximum backspacing: 5.75 inches.
• Minimum wheel size: 17 inches.
• Ball joints: Heavy duty Probearing.
• Adjustability: Camber and caster adjustable.
Included in the box

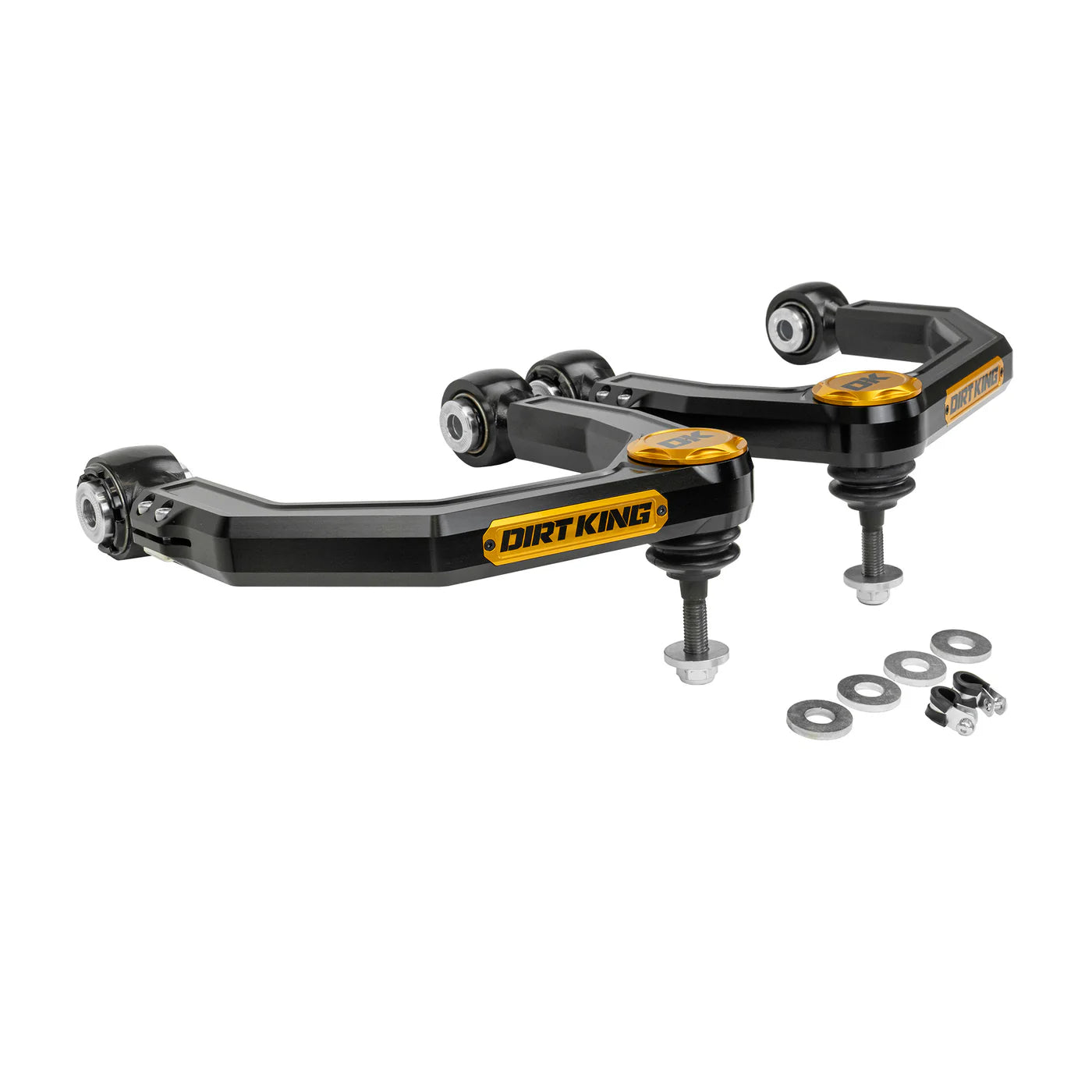

• Control arms: Two billet upper control arms left and right.
• Ball joints: Pre installed heavy duty Probearing ball joints.
• Bushings or rod ends: SilentSpin bushings or ¾ inch chromoly rod ends depending on configuration.
• Adjustment hardware: Camber and caster adjustment sleeve for rod end option.
• Installation hardware: All required mounting hardware.
• Instructions: Detailed installation guide.
Fitment

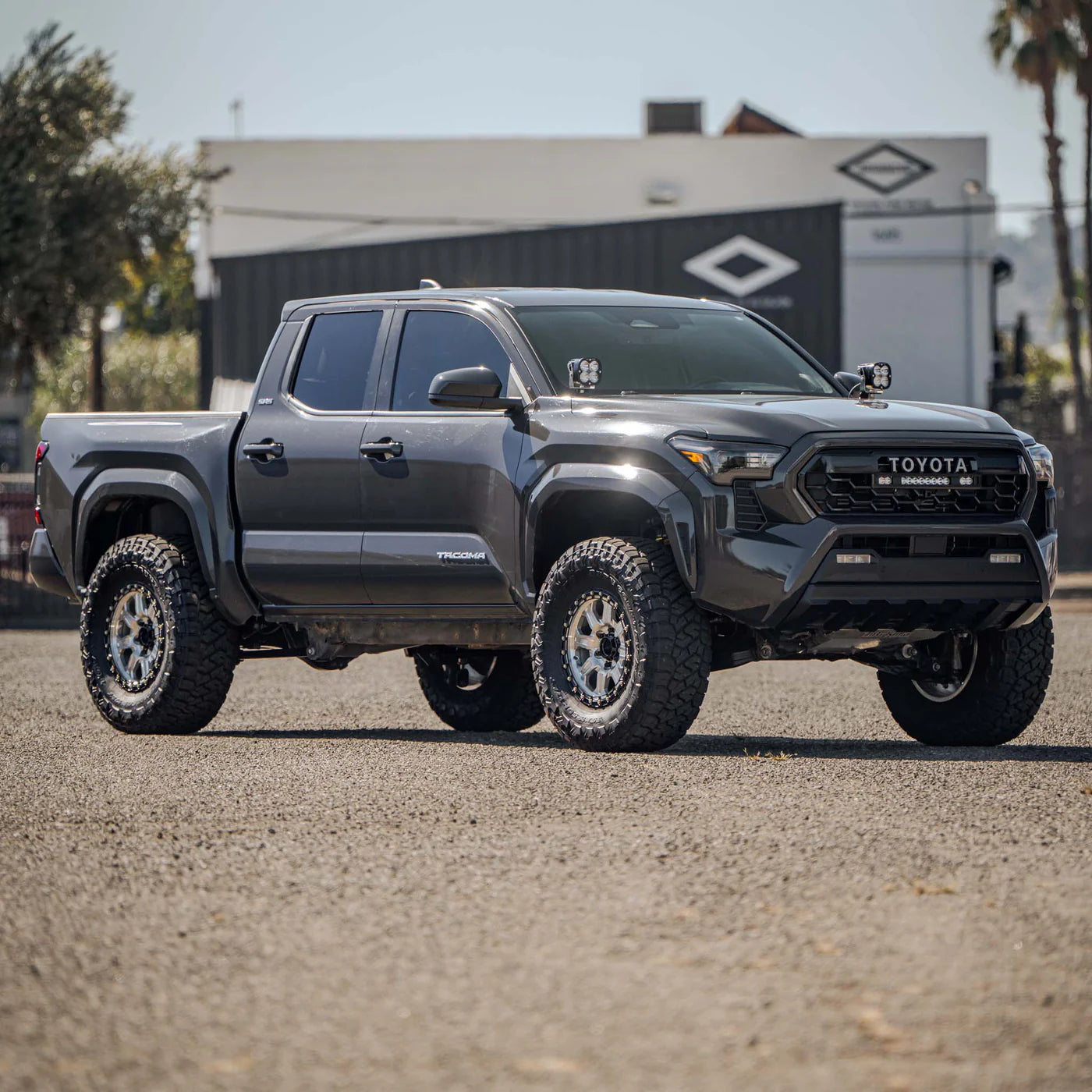

• Toyota Tacoma: 2024 to 2025 2WD and 4WD.

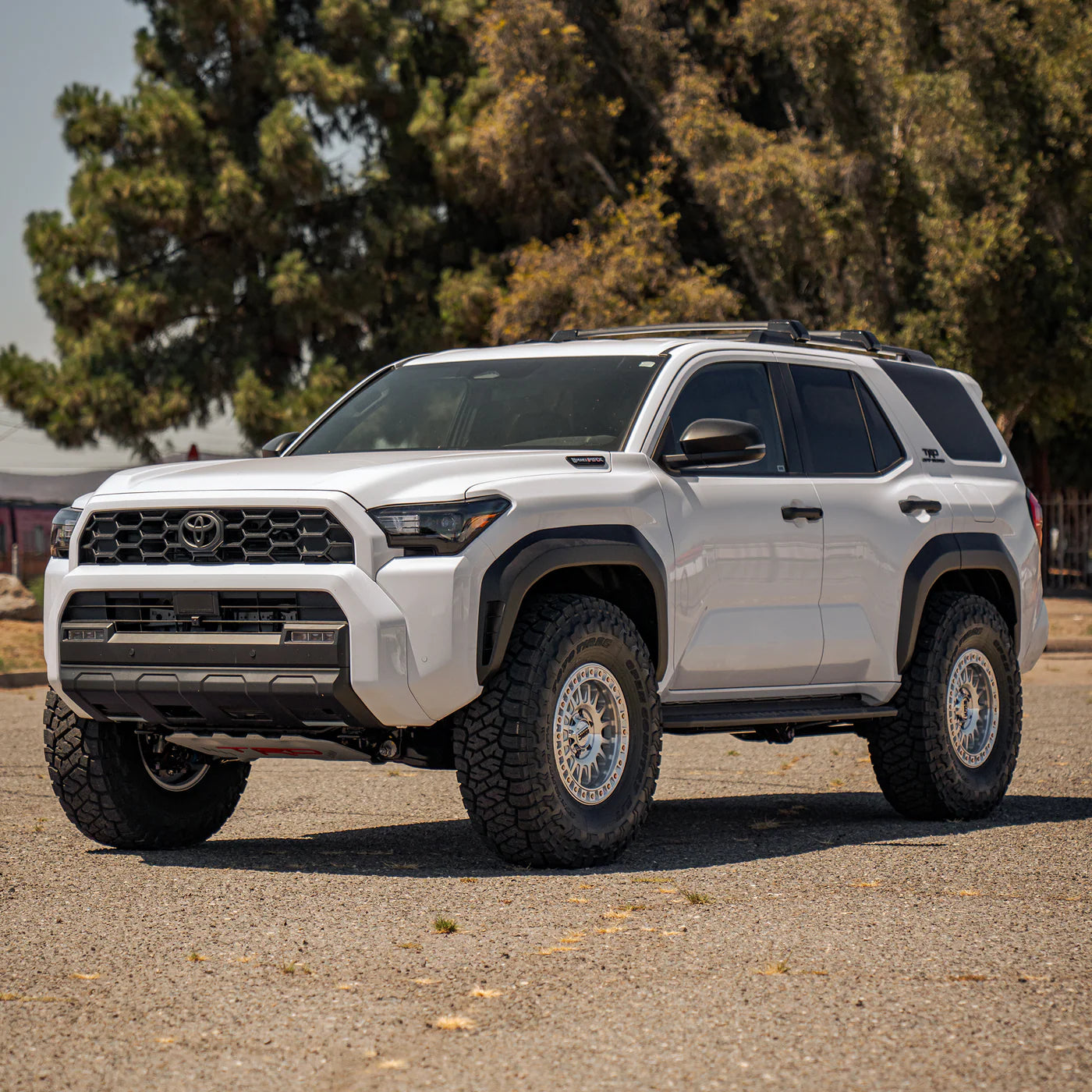

• Toyota 4Runner: 2025 2WD and 4WD.
