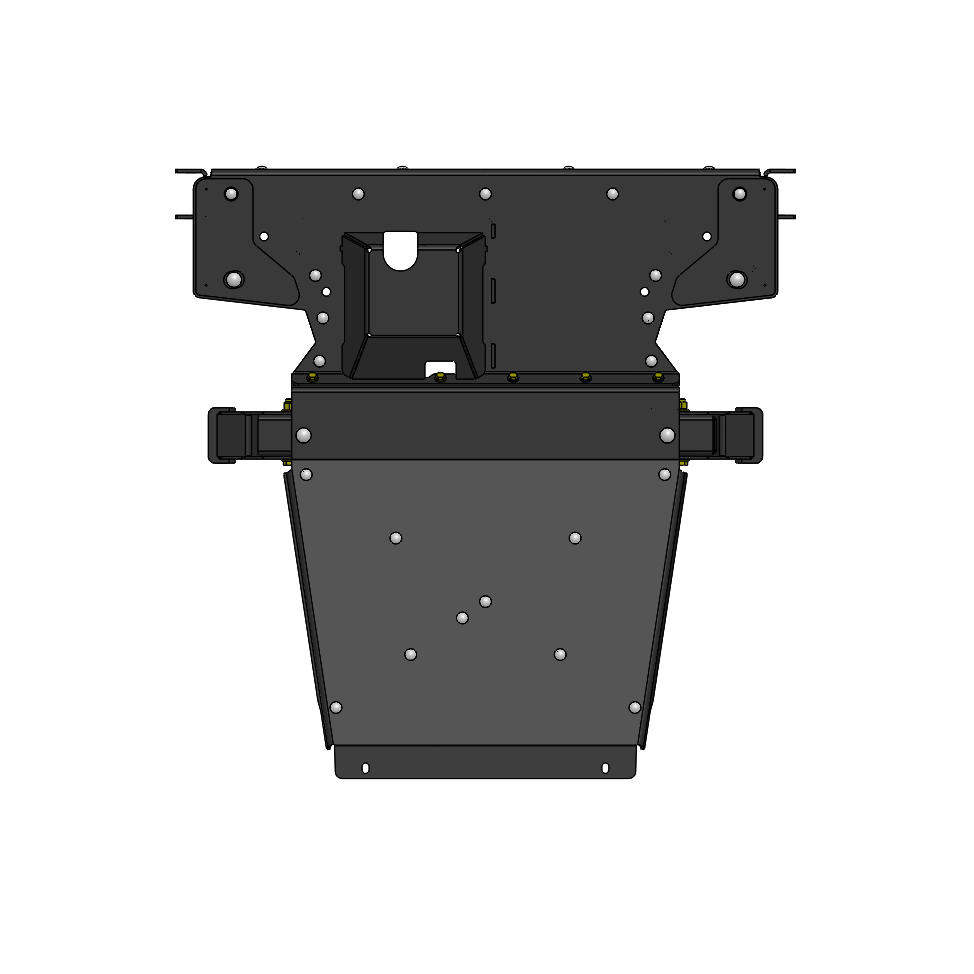

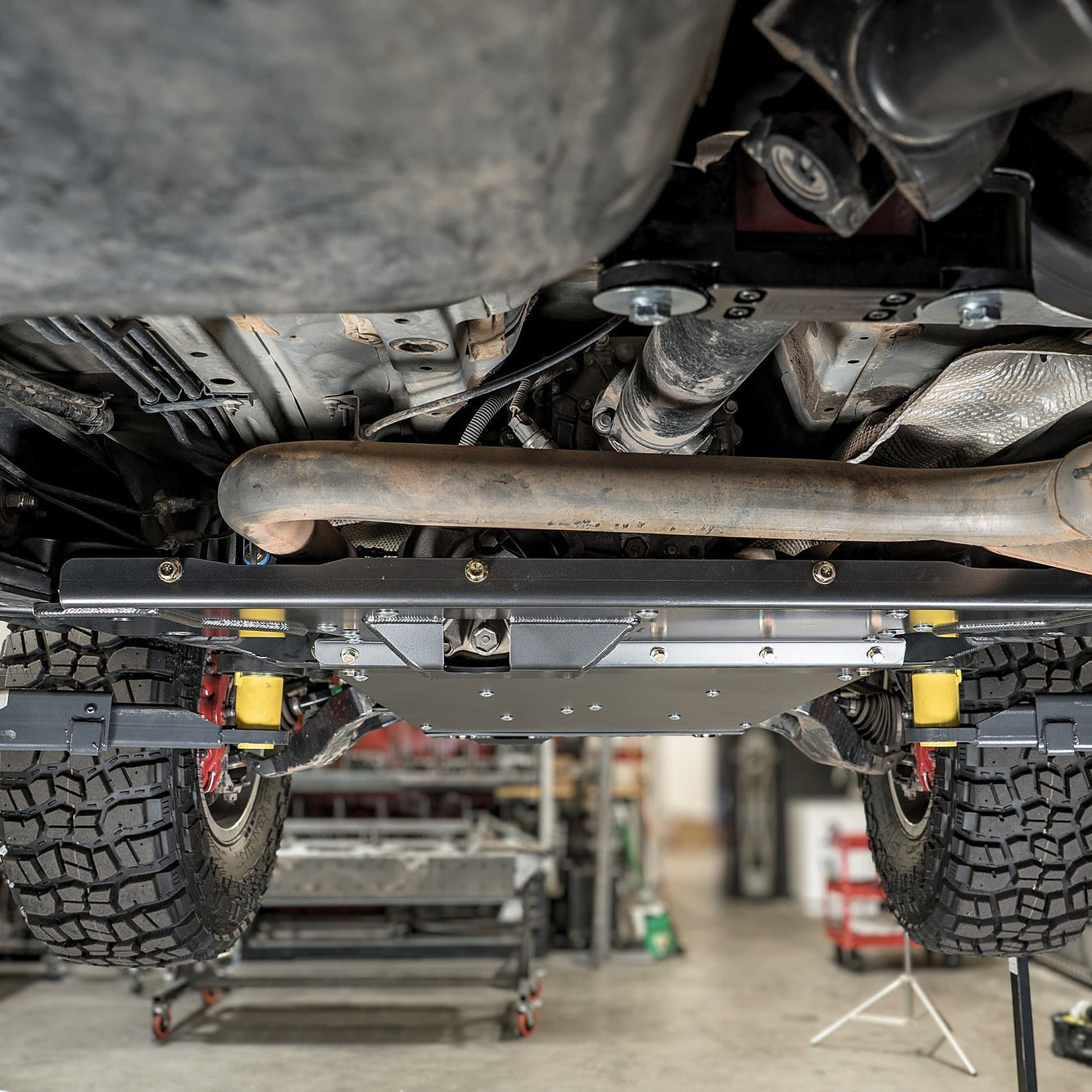

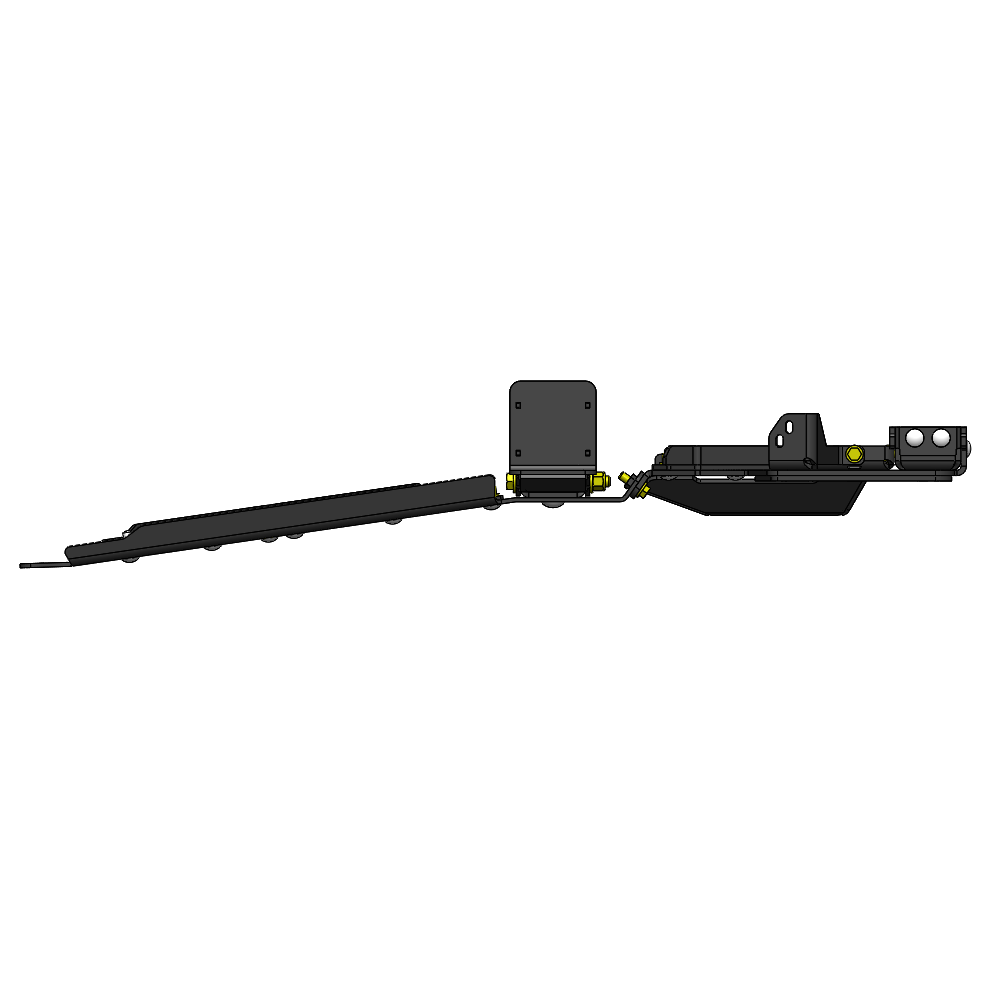

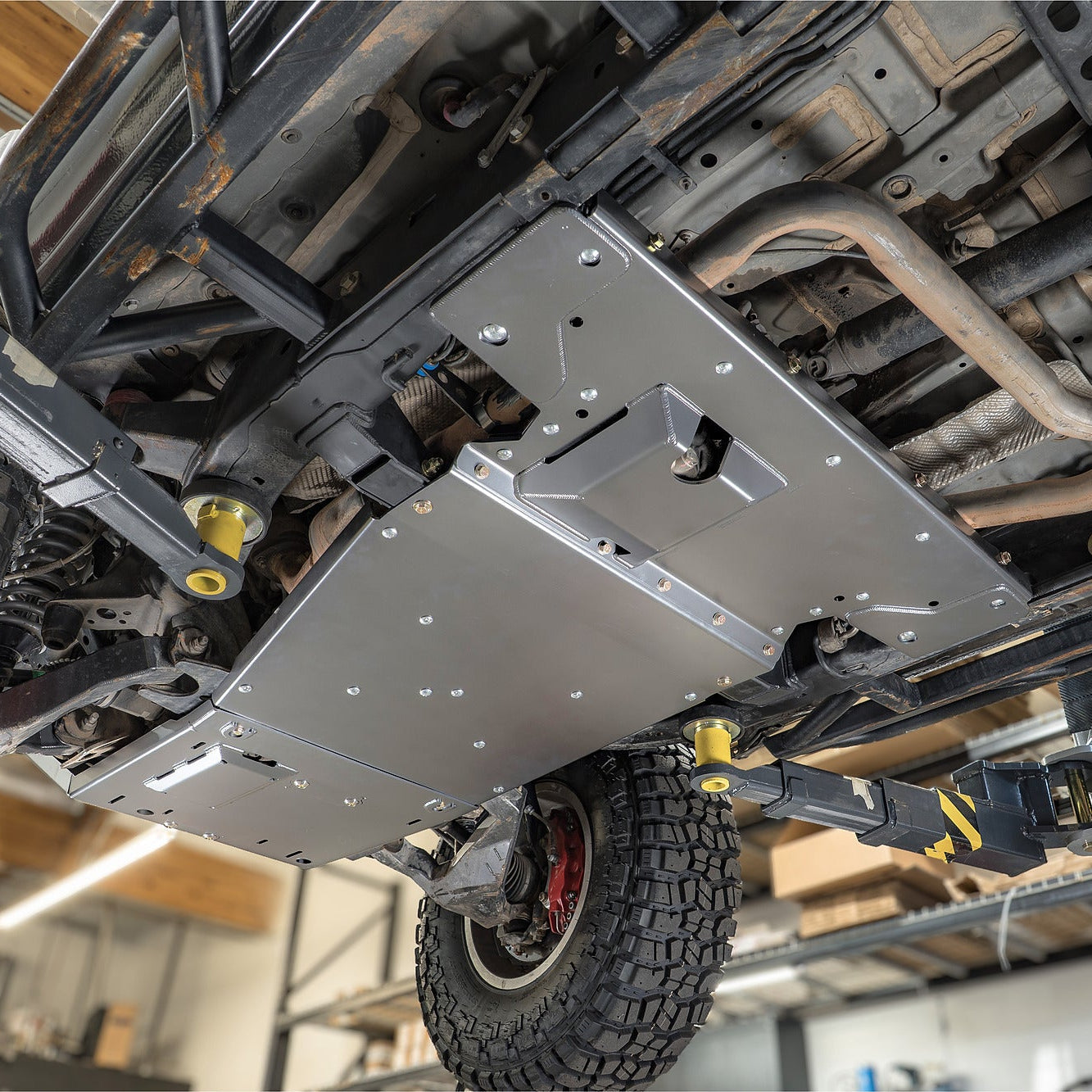

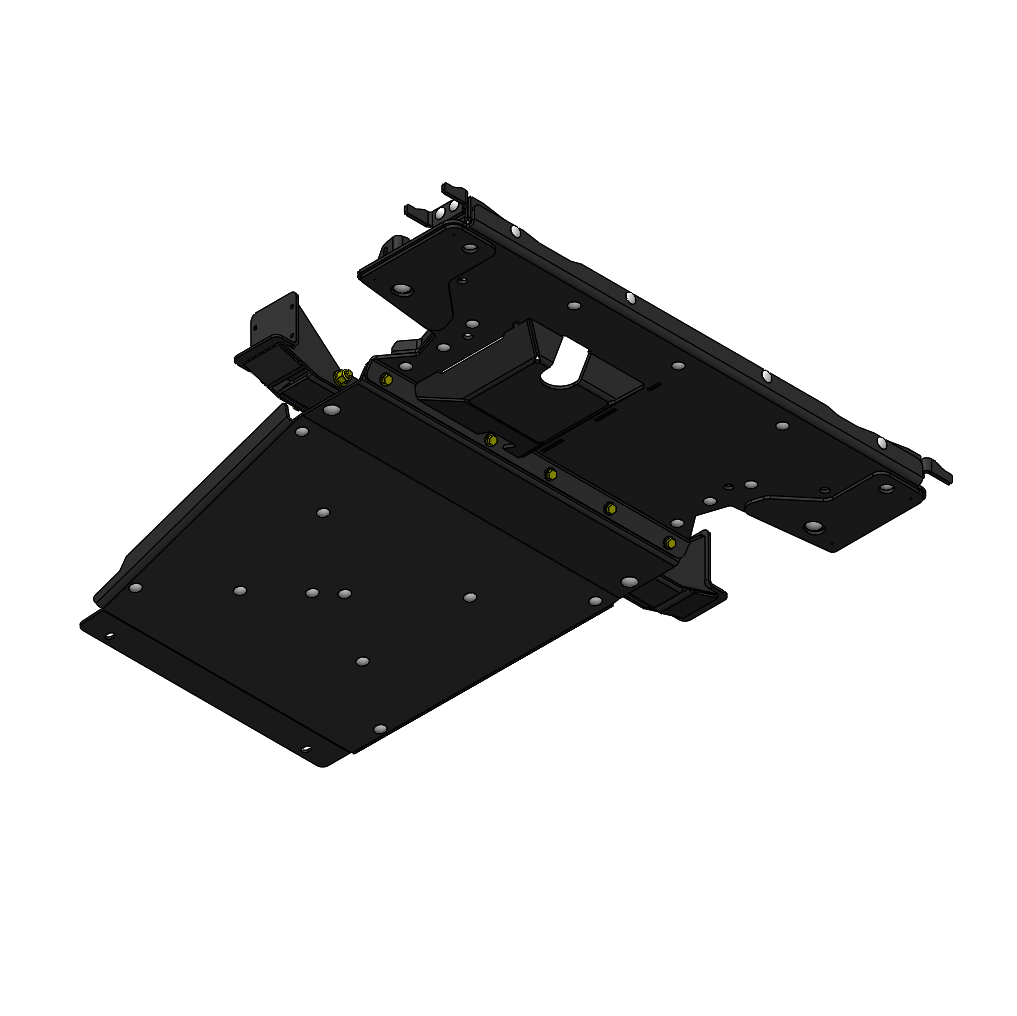

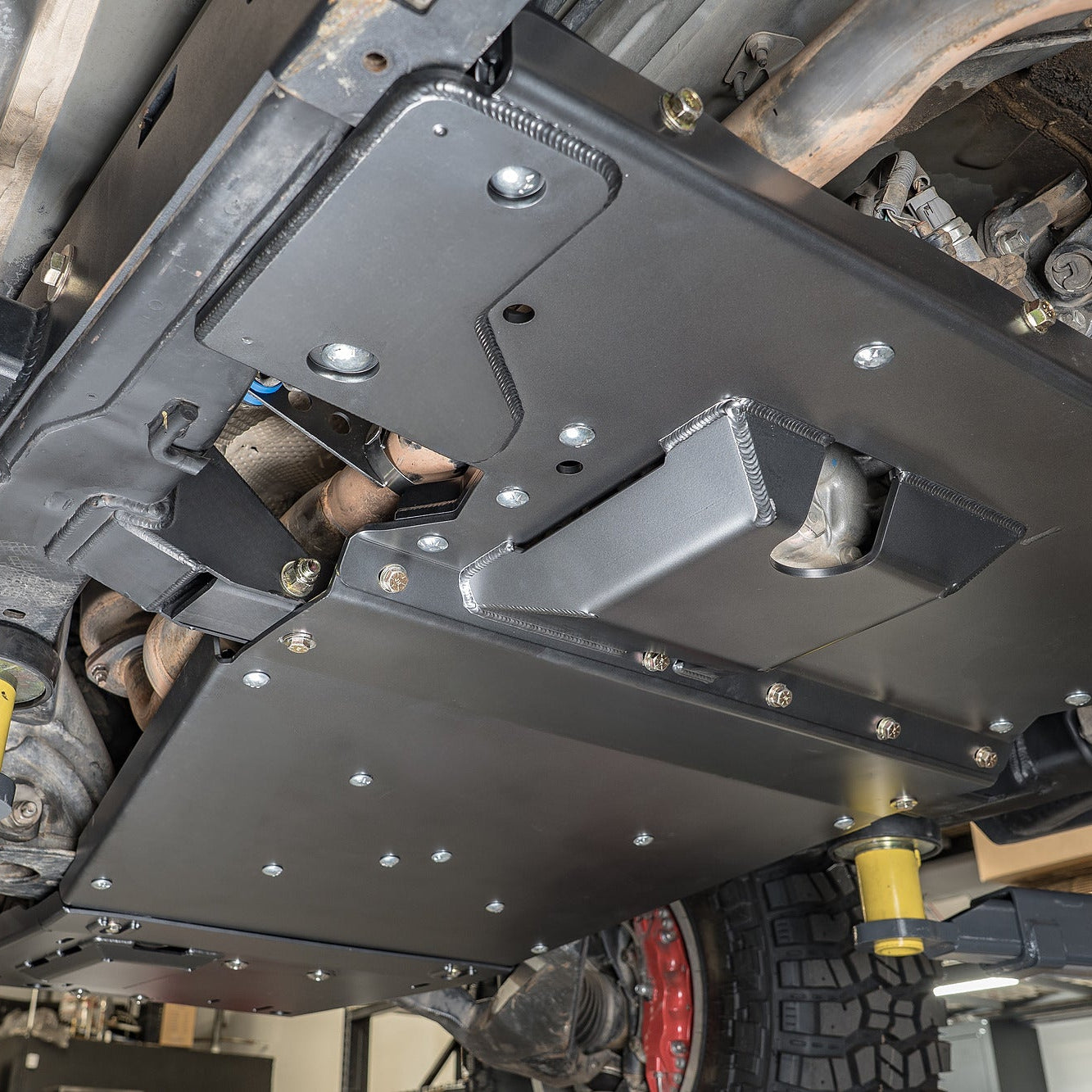

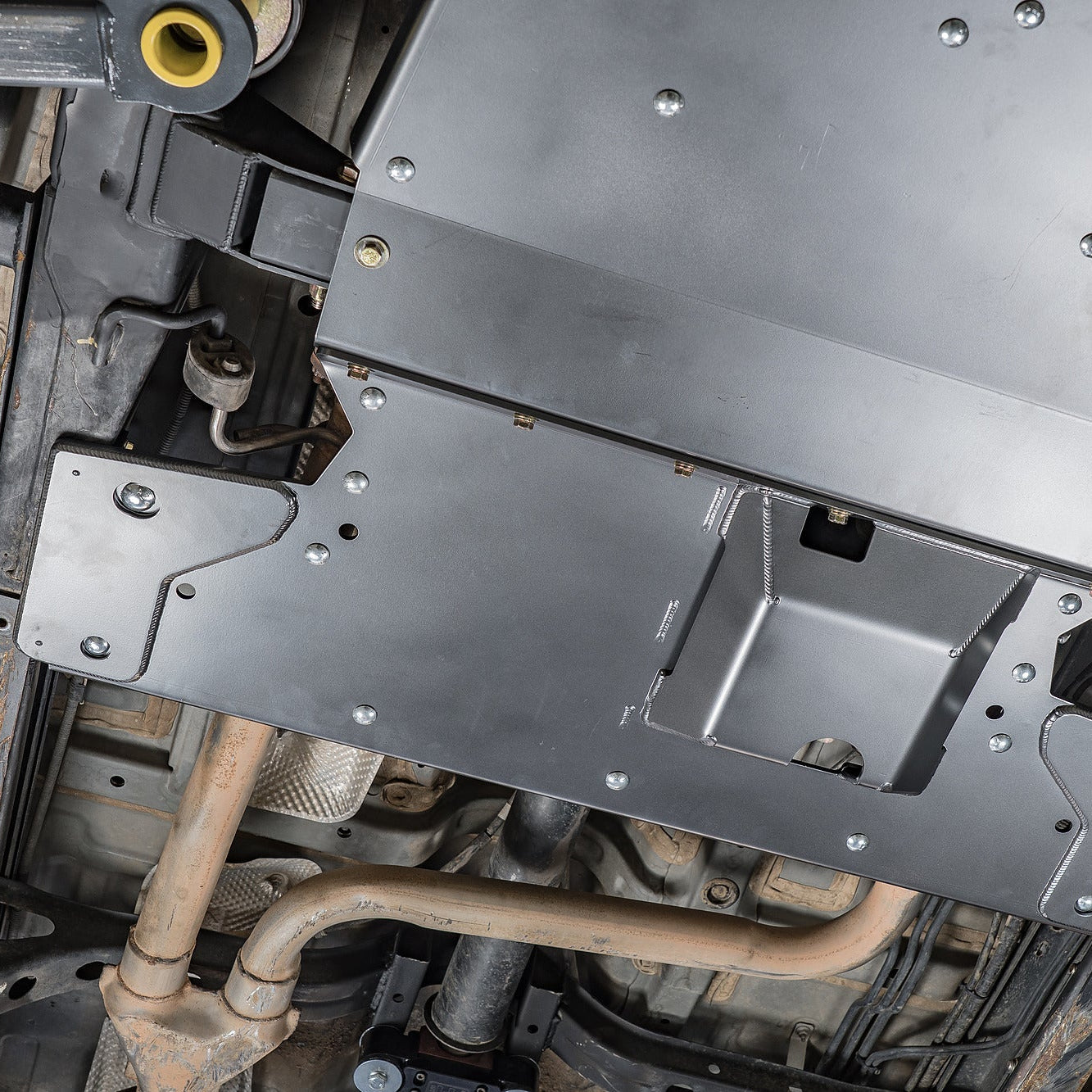

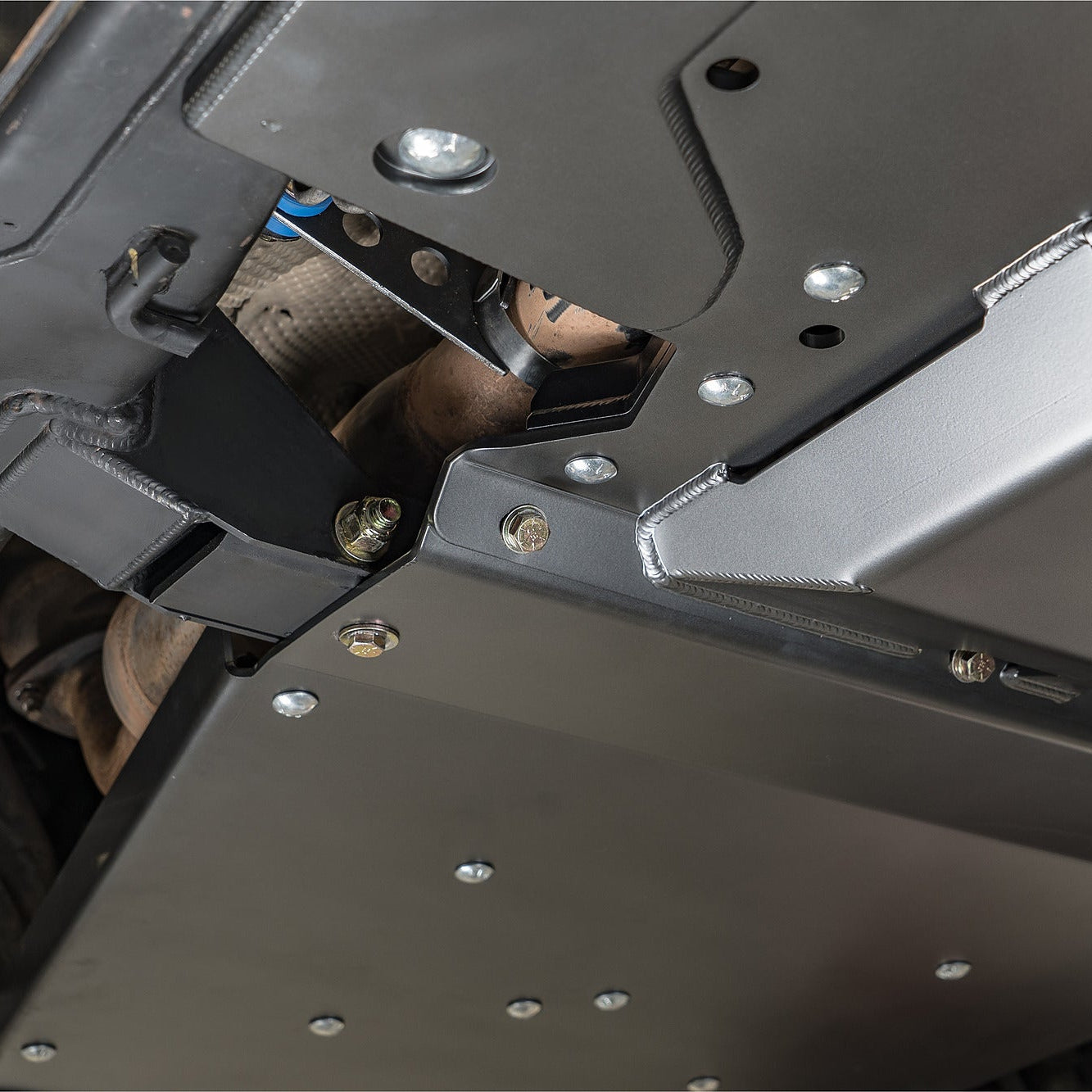

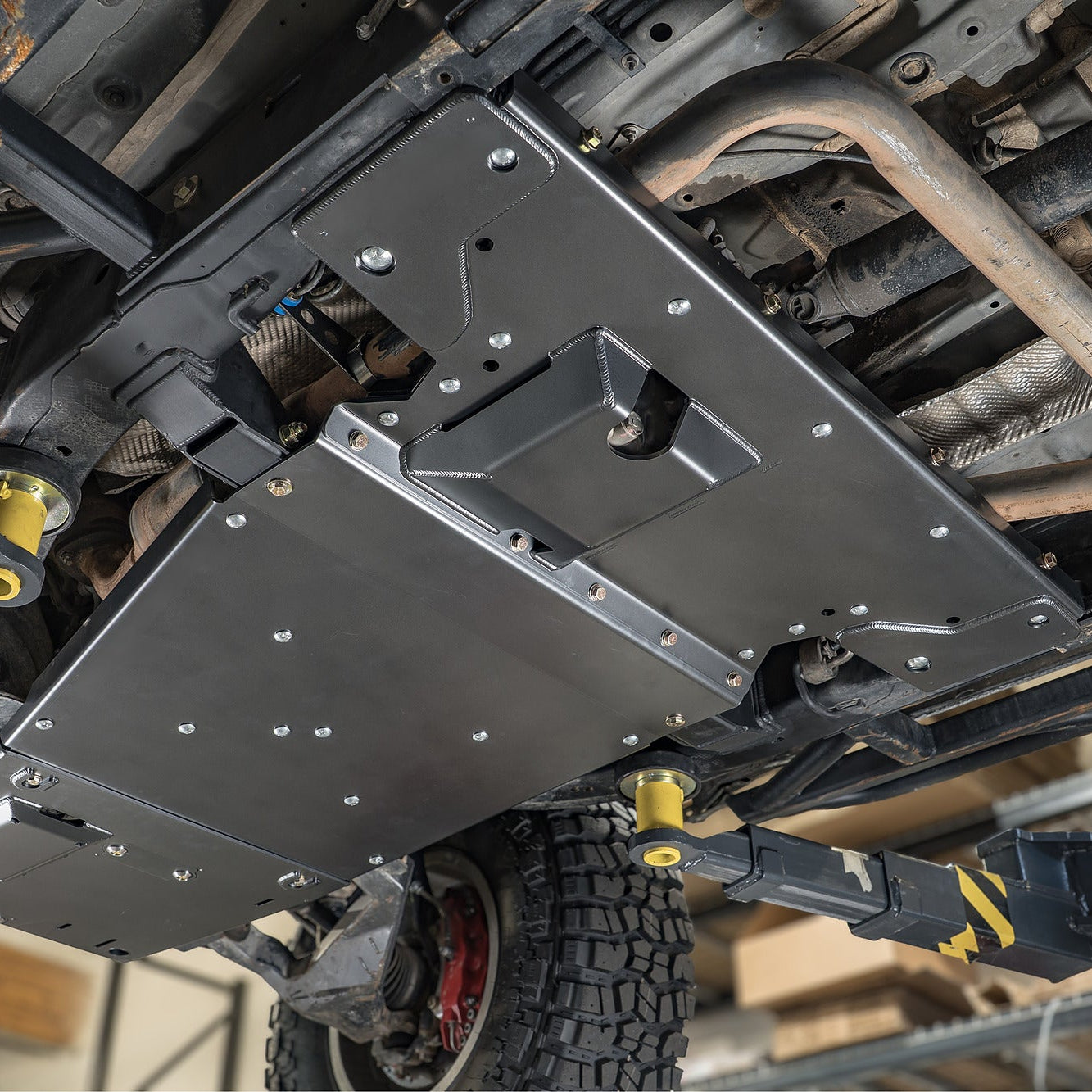

The DRT Fabrication Flat Belly Skid Plate Kit is a completely new approach to skid plate design for the 2005-2023 Toyota Tacoma, focused on one thing: real ground clearance gains and real world performance. The kit replaces the factory transmission crossmember with a high-clearance unit and a flat belly skid system, gaining approximately 2 inches at the transmission crossmember and up to 4 inches at the transfer case.
- Improved breakover clearance
- Reduced hang-ups on rocks, ledges, and ruts
- Smoother underbody profile
- Better obstacle transition and departure
- Increased confidence in technical terrain

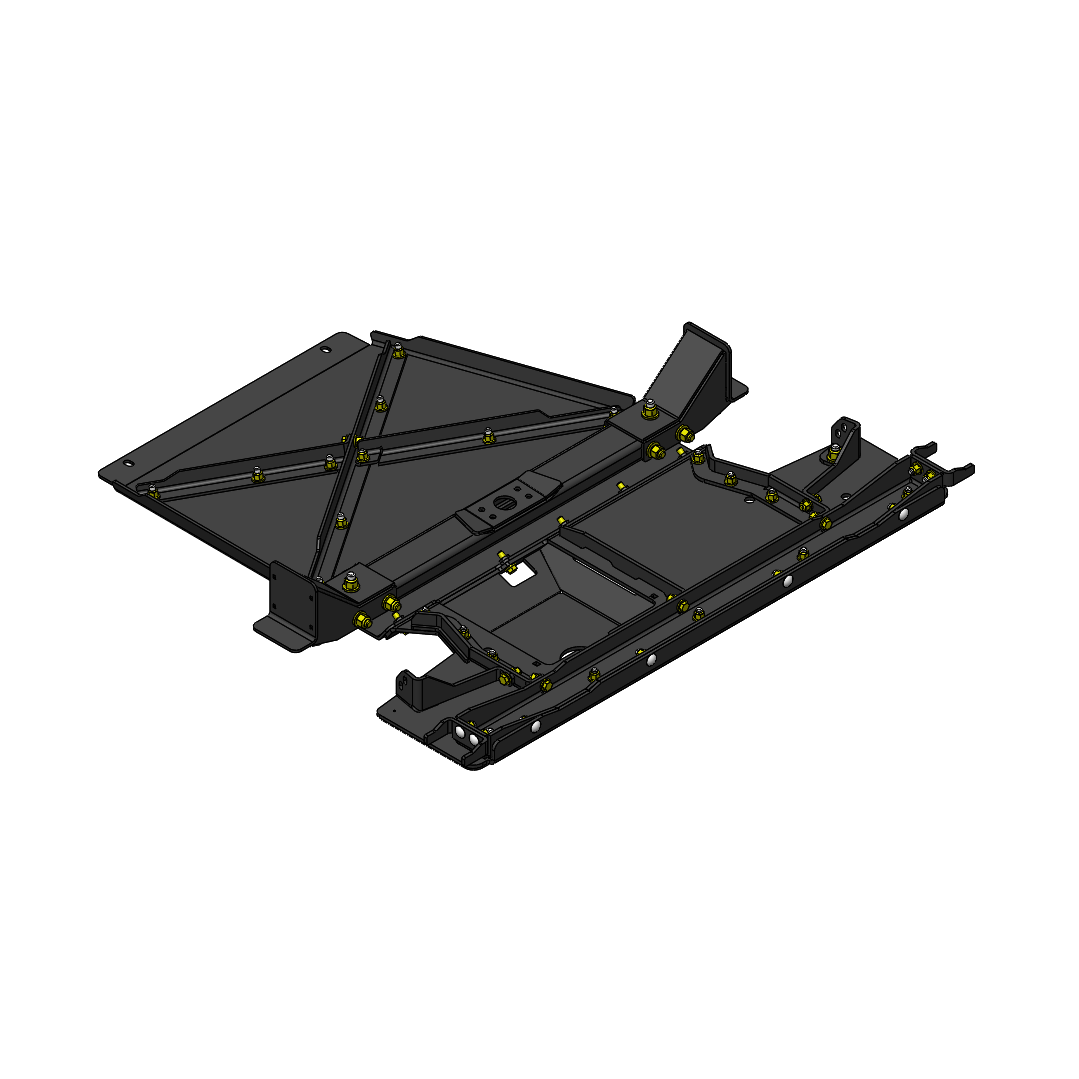

What's Included

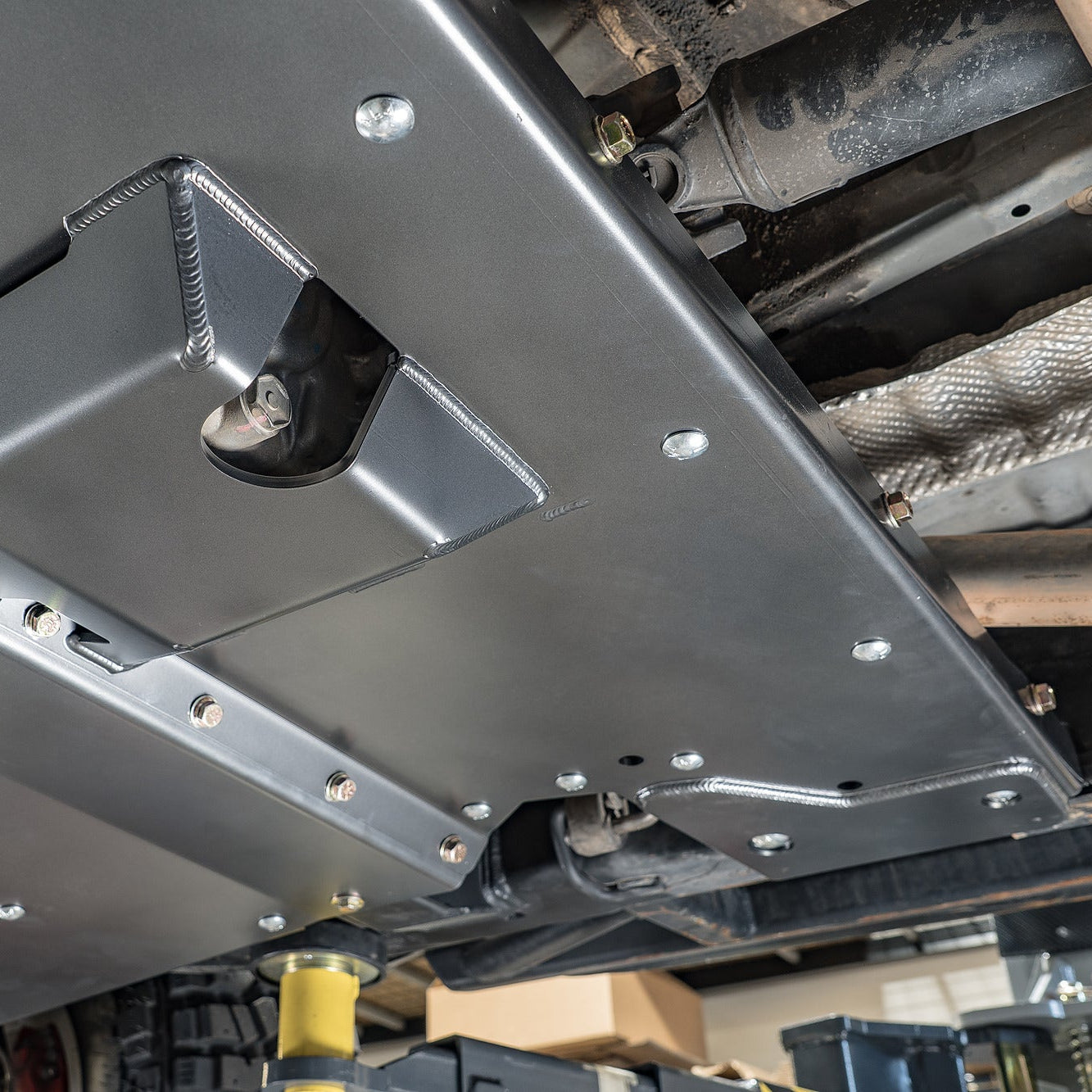

- Transmission skid plate
- New high clearance transmission crossmember
- Transfer case skid plate
- Transfer case crossmember
- Necessary hardware
Specs
- Approximately 2" of clearance gained at the transmission crossmember, up to 4" at the transfer case

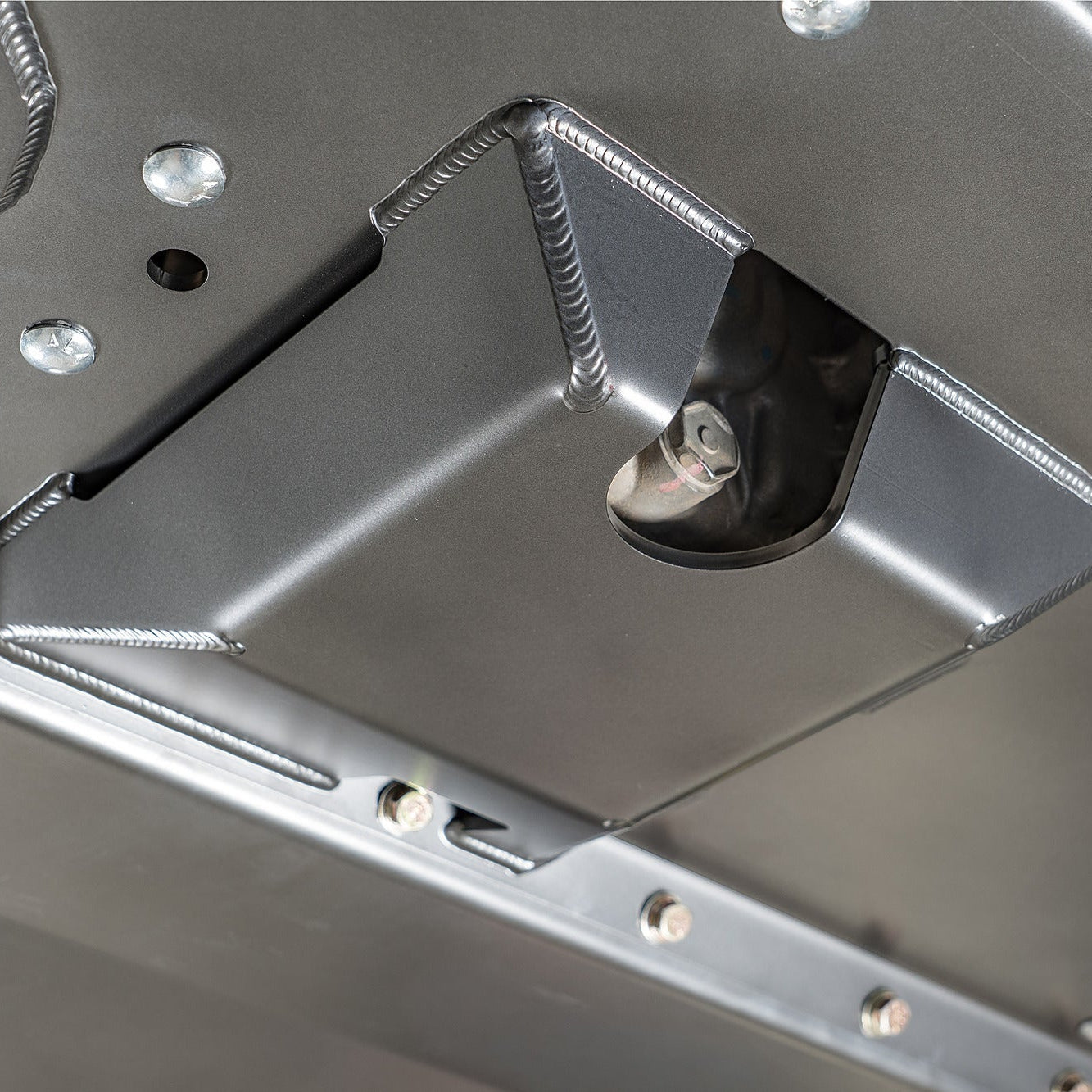

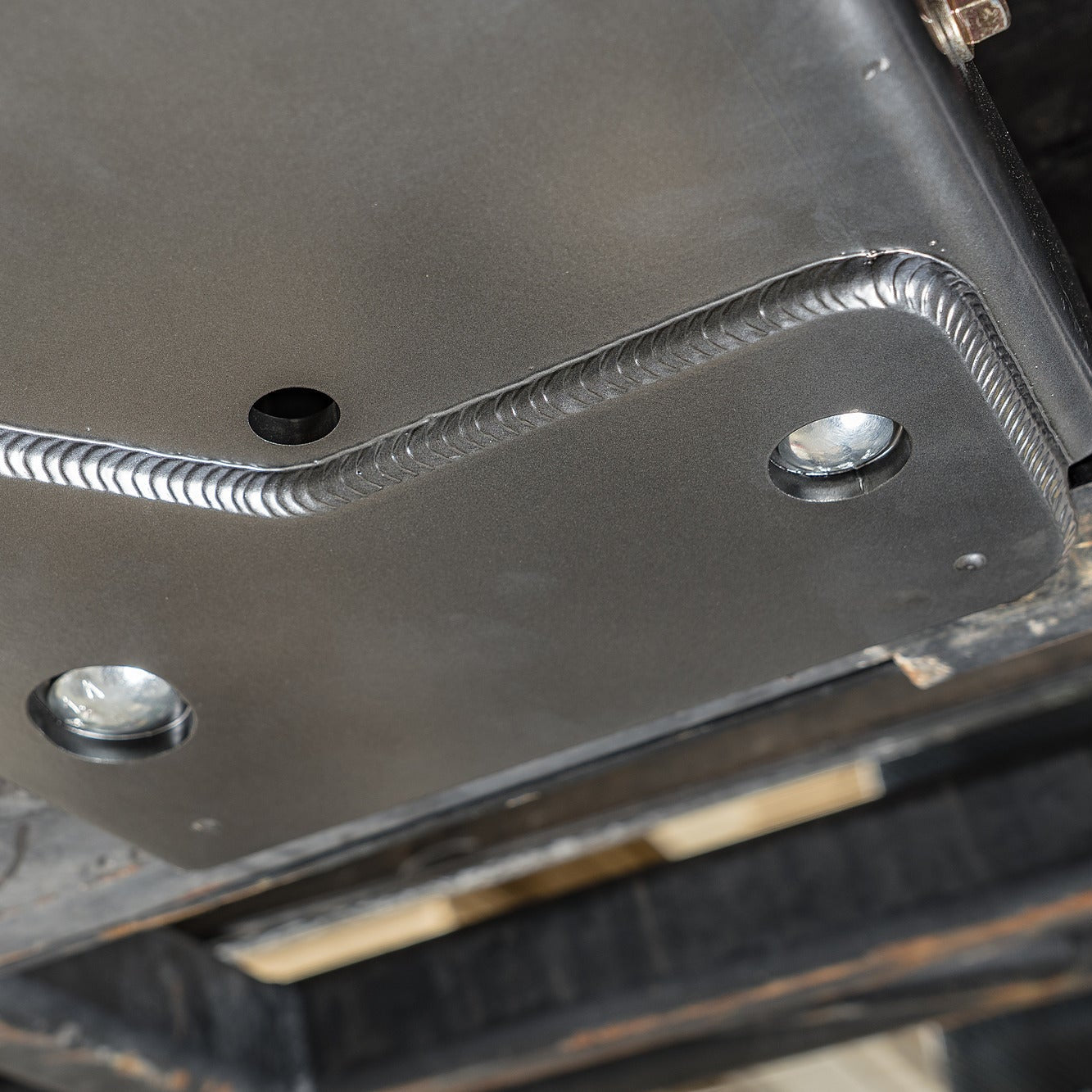

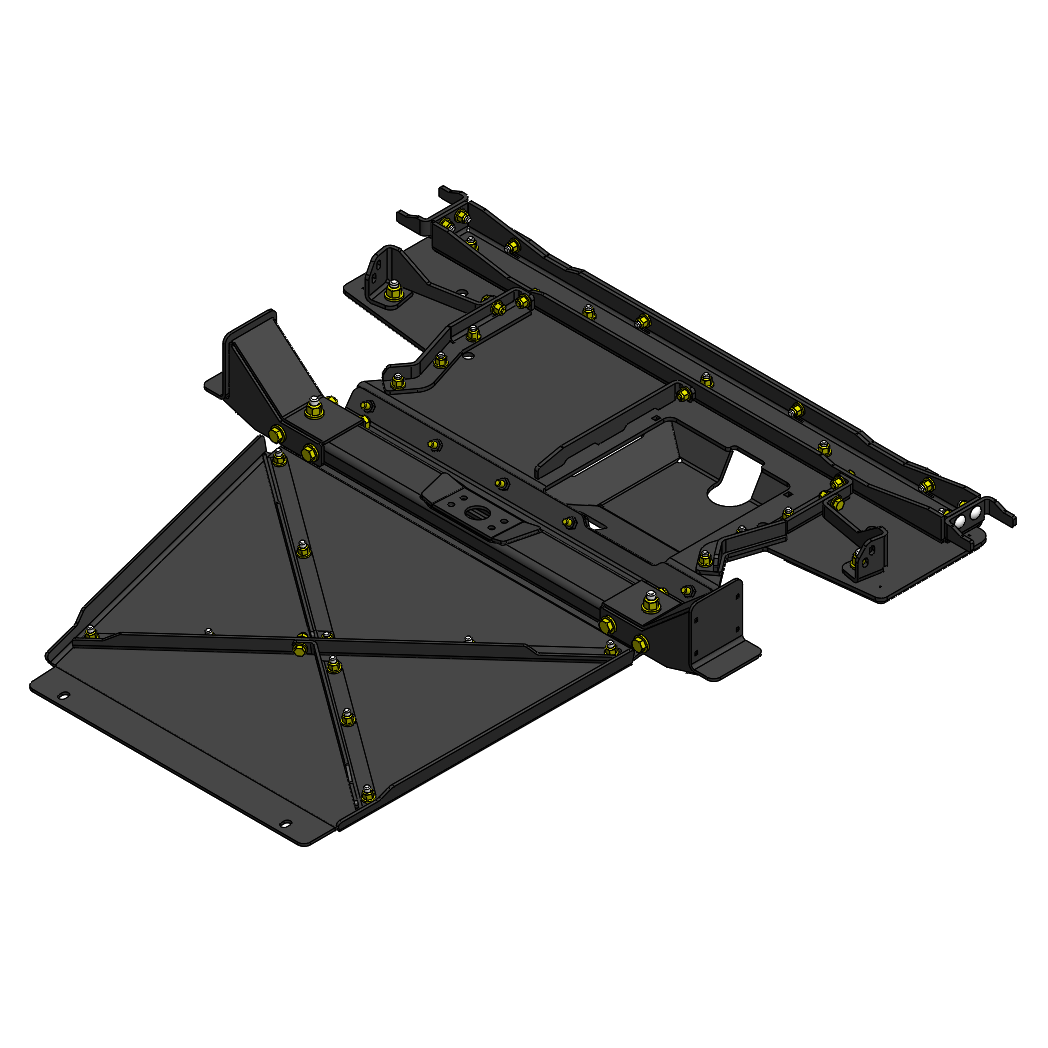

- Laminated gusset structure: the inner rib structure bolts to the skid plates for full coating coverage and serviceability
- Finish: ships raw, or add Textured Black powder coat
- Hand-built in the USA (Gilbert, AZ)
Fitment
- 2005-2023 Toyota Tacoma, 2WD/4WD, automatic transmission, 4.0L/3.5L V6
- Access Cab and Double Cab configurations only
Installation
This is not a bolt-on kit. Exhaust rerouting and transmission crossmember modification (cutting and welding) are required. Full requirements are on this page under Compatibility & Installation Requirements.
Lead Time
Estimated lead time: 8-10 weeks. Adding powder coat adds 2-4 weeks to the lead time. Made to order and can not be canceled after production begins.
Shipping
Shipping is calculated by destination region and shown at checkout. Free shipping for Southwest addresses.
