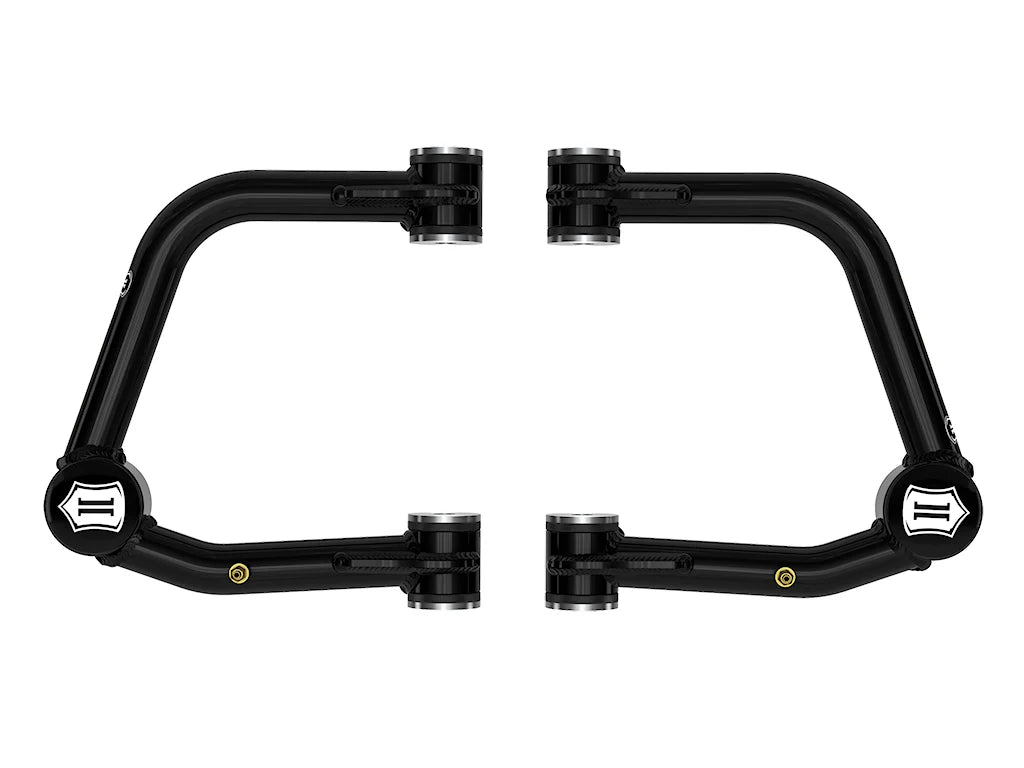

Icon Front, Tubular Upper Control Arms, W/ Delta Joint Pro for Tundra (2022+) & Sequoia (2023+)

Upgrade front suspension strength, alignment capability, and articulation on lifted full-size Toyota builds with ICON Tubular Upper Control Arms featuring the advanced Delta Joint PRO. Designed specifically for the 2022–2025 Toyota Tundra and 2023–2025 Toyota Sequoia, these heavy-duty UCAs improve caster correction, maximize suspension travel, and deliver long-term durability for aggressive off-road use and daily driving comfort.

Important notes

• Lift compatibility: Designed for vehicles running approximately 2–3.5 inches of front lift, with additional compatibility notes depending on trim and suspension setup.

• ICON 6 inch lift compatibility: Compatible with ICON 6 inch lift systems only, not compatible with other manufacturers’ 6 inch kits.

• Factory wheel fitment: Factory wheels and tires can be retained depending on lift configuration.

• Serviceable design: Delta Joint PRO and pivot bushings are rebuildable to extend service life.

Features

• Built-in caster correction: Improves alignment range and front-end handling on lifted vehicles.

• Delta Joint PRO articulation: Provides up to 90 degrees of bind-free suspension movement for maximum travel.
• Rebuildable joint system: Allows individual components to be inspected and replaced without purchasing a full joint.

• Dual-stage pivot bushings: Heavy-duty greaseable bushings deliver responsive handling and durability.

• DOM tubular construction: Heavy-wall 1026 DOM tubing offers strength while maintaining lighter weight than billet arms.

• CNC machined housings: Precision-machined bushing and joint housings ensure proper fitment and performance.
• Protective billet dust caps: Anodized aluminum caps shield grease fittings and improve longevity.

• Powder coat finish: Multi-stage black powder coat enhances corrosion resistance and appearance.

Specifications

• Vehicle fitment: 2022–2025 Toyota Tundra, 2023–2025 Toyota Sequoia.

• Material: Heavy-wall 1026 DOM steel tubing with CNC machined components.

• Joint type: ICON Delta Joint PRO rebuildable articulation joint.

• Recommended tire size: Up to 35x12.50 with typical 2–3.5 inch lift setups.

• Shipping weight: Approximately 25 lbs.

Included in the box

• Upper control arms: Tubular UCAs pre-assembled with Delta Joint PRO installed.

• Billet dust caps: Protective caps for grease fittings.

• Hardware: Required installation hardware for complete bolt-on installation.
