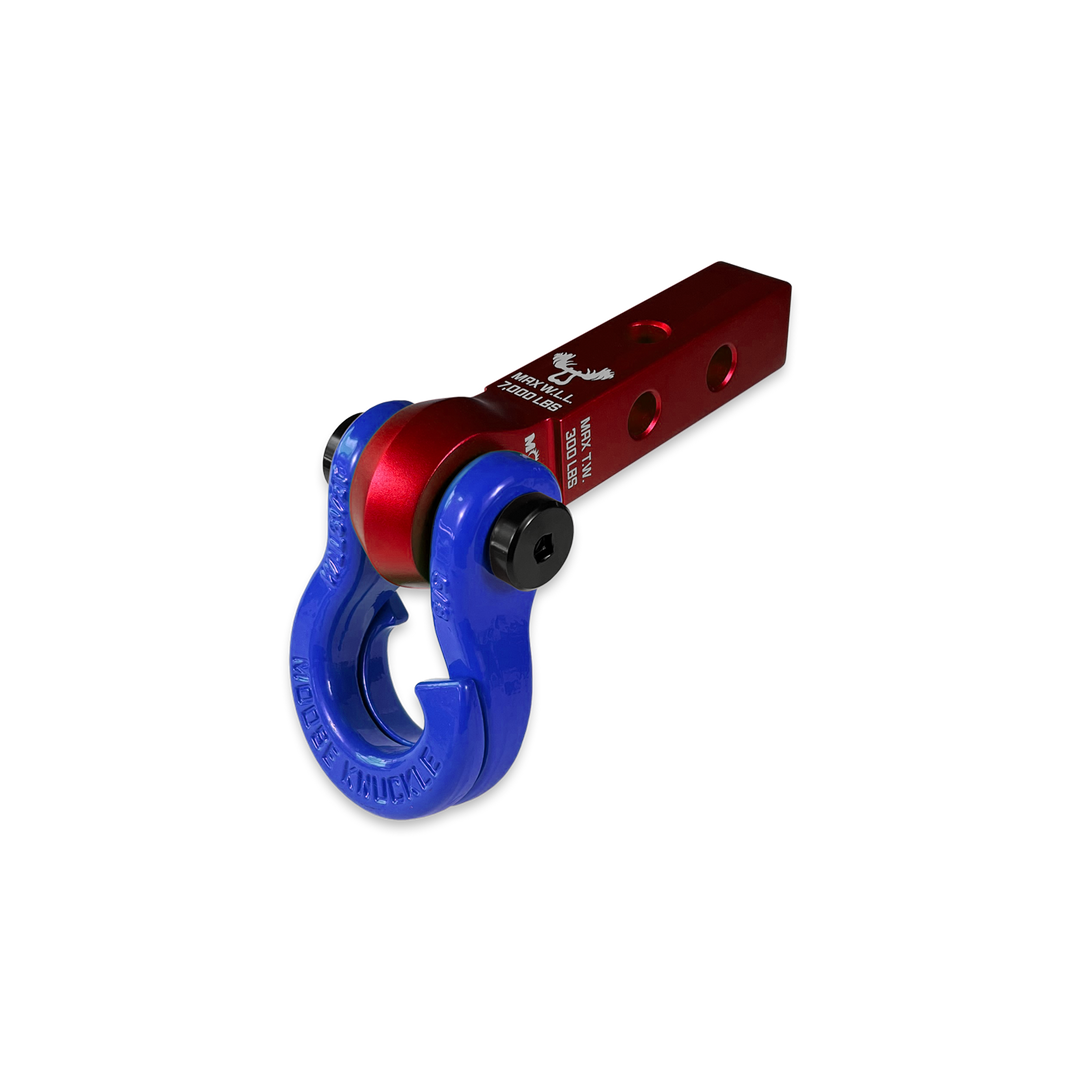

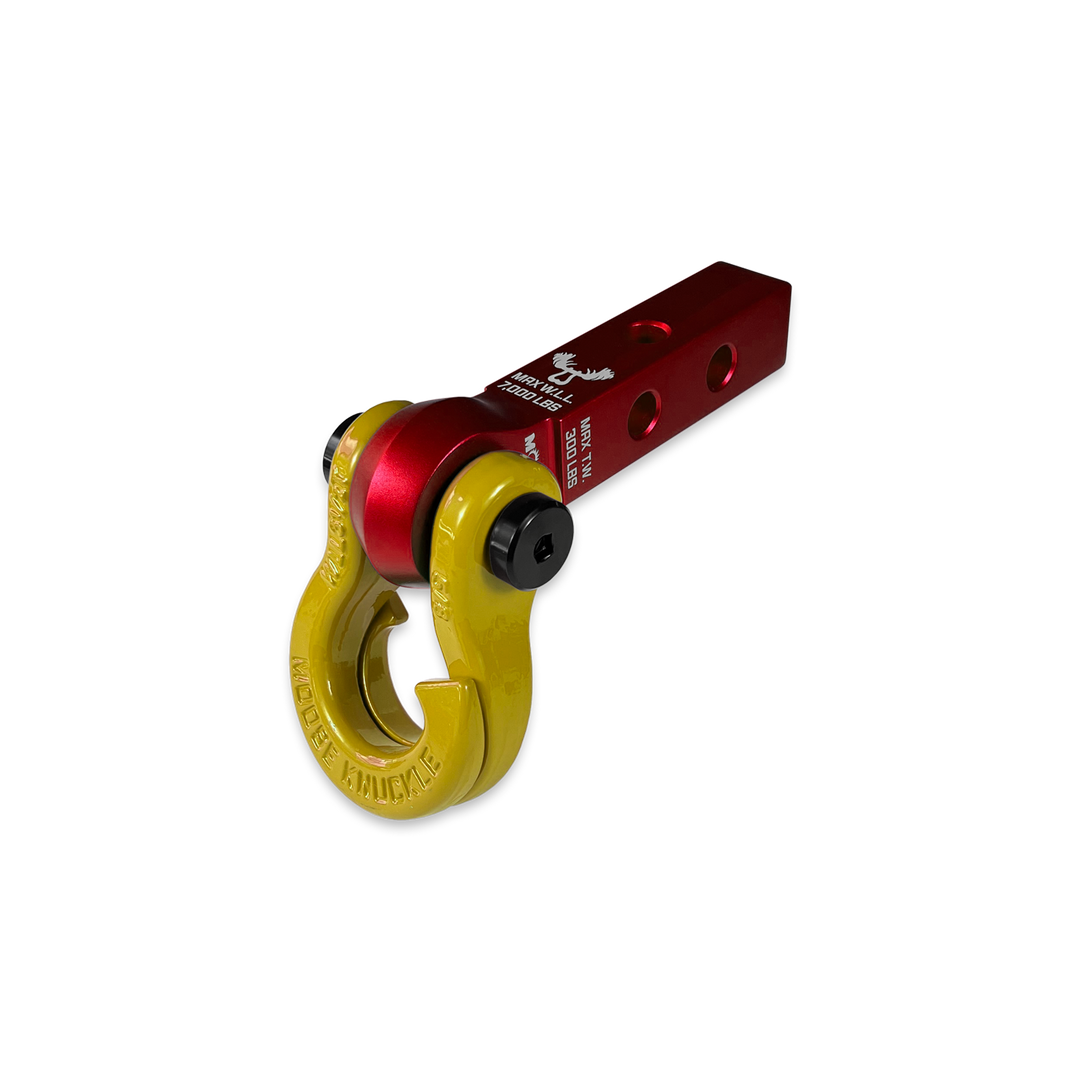

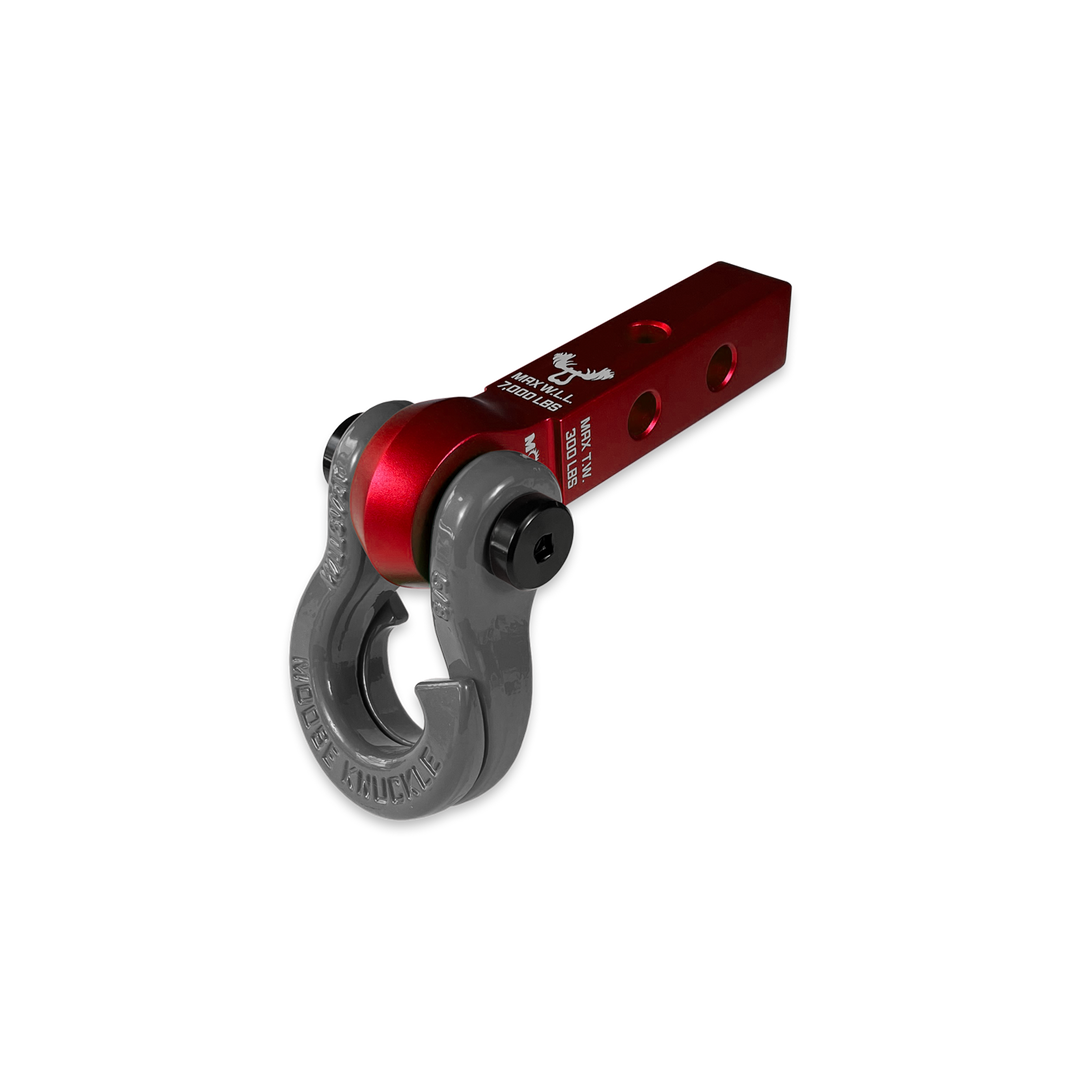

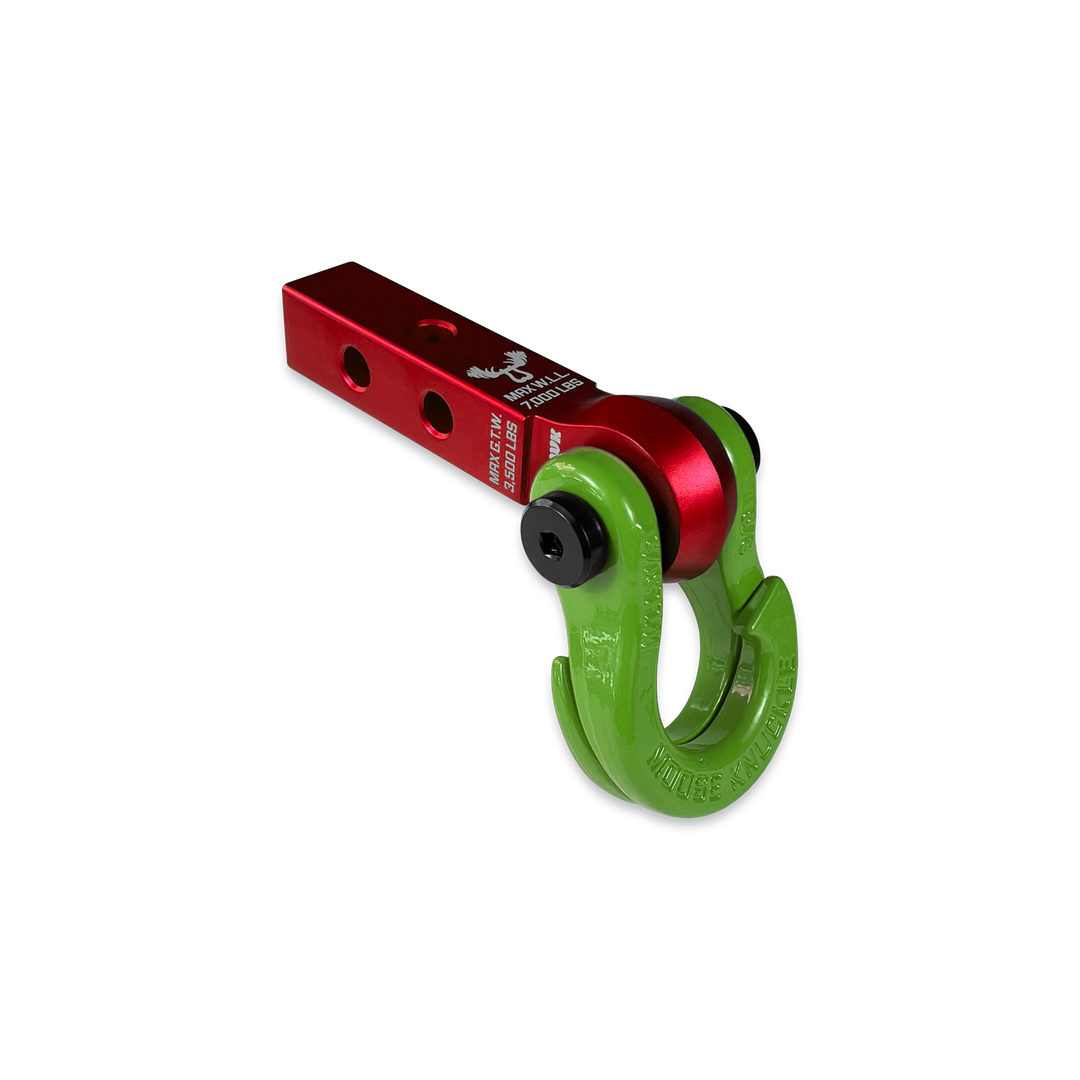

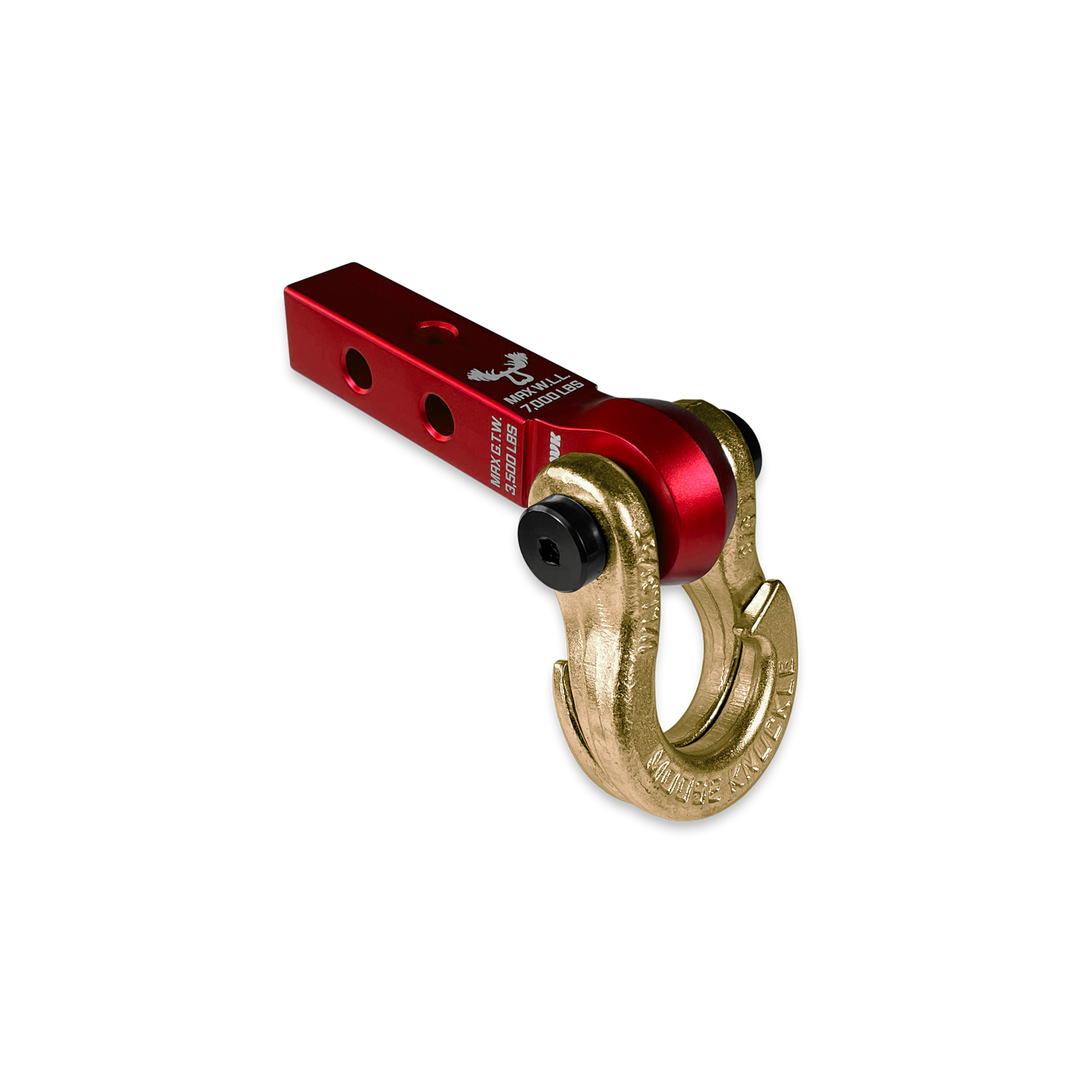

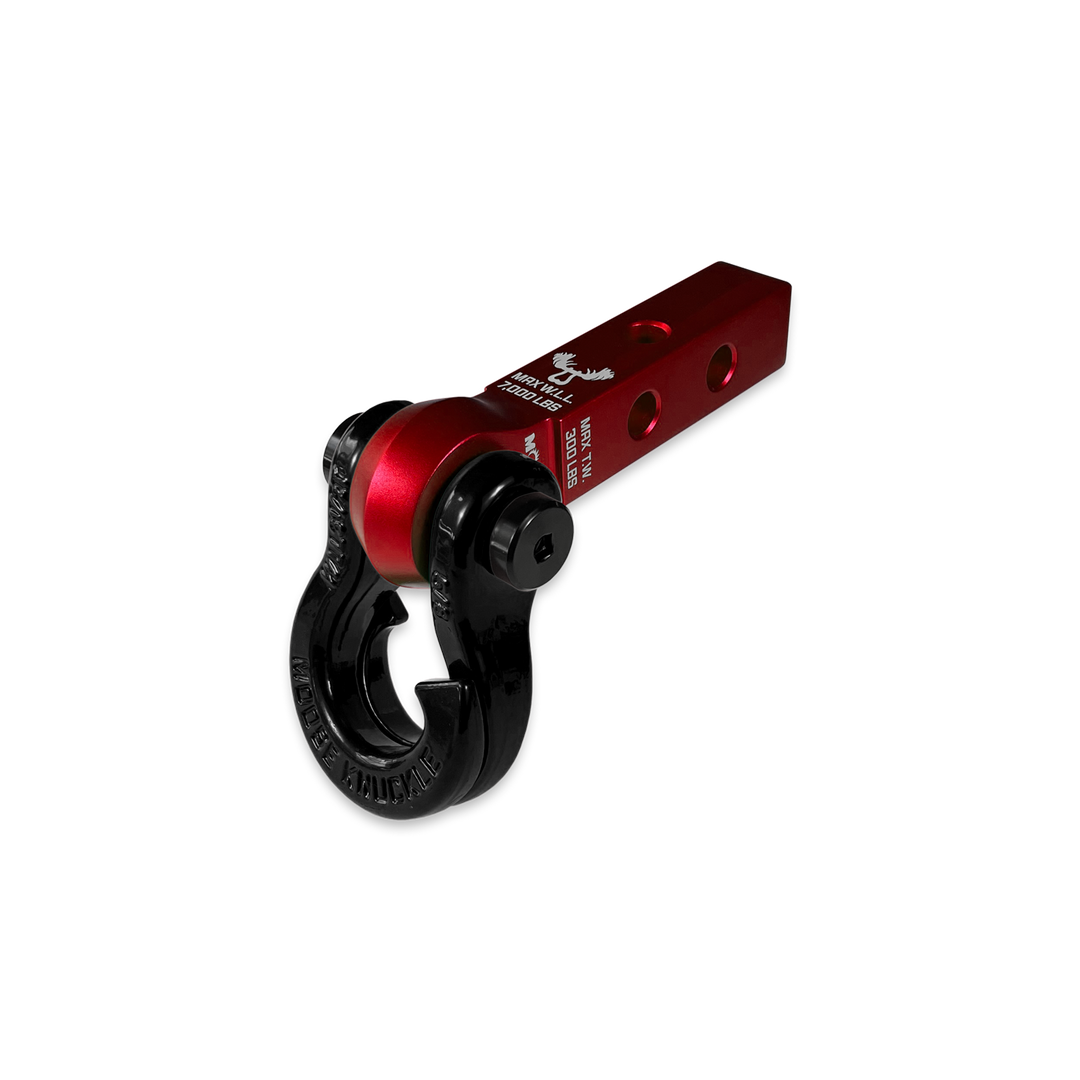

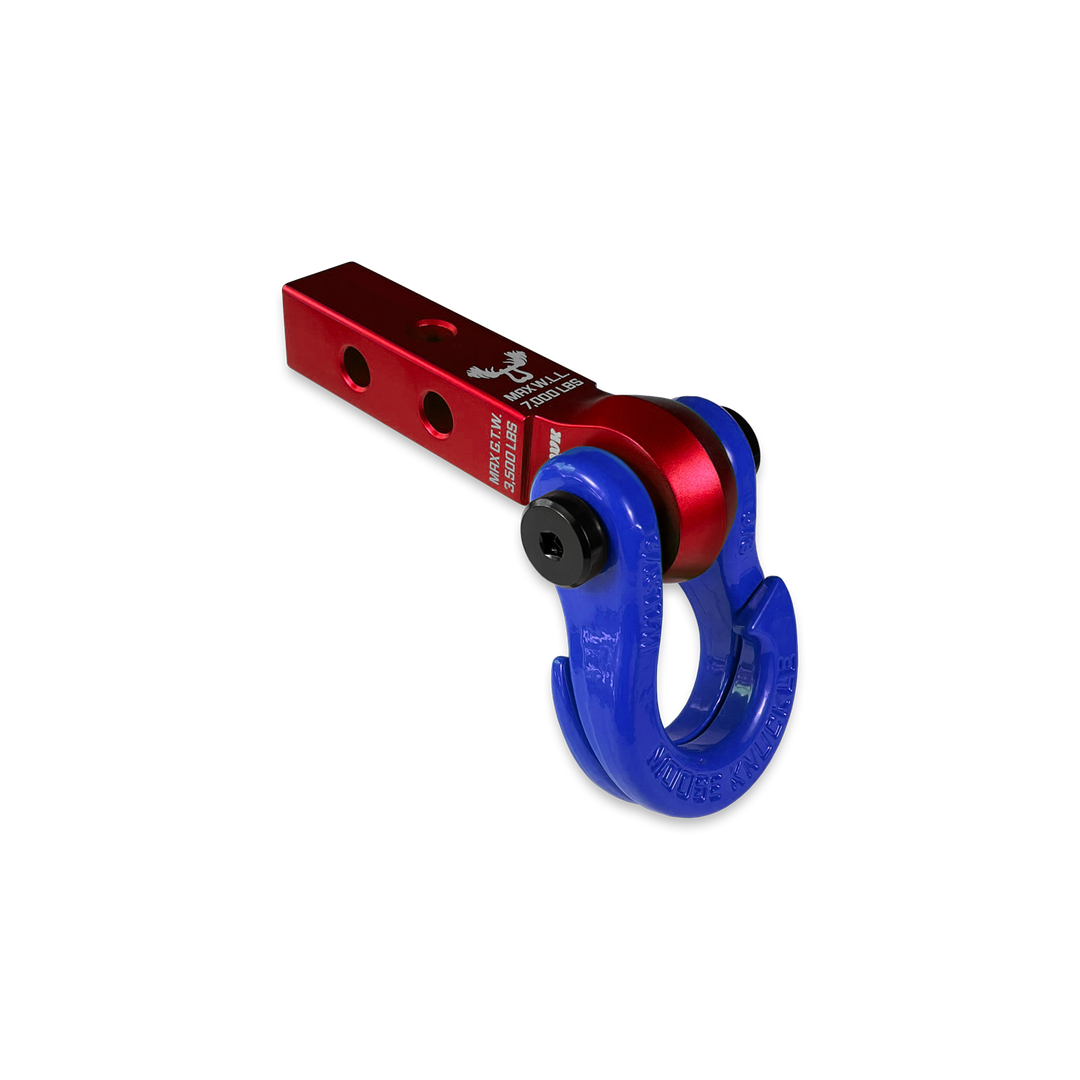

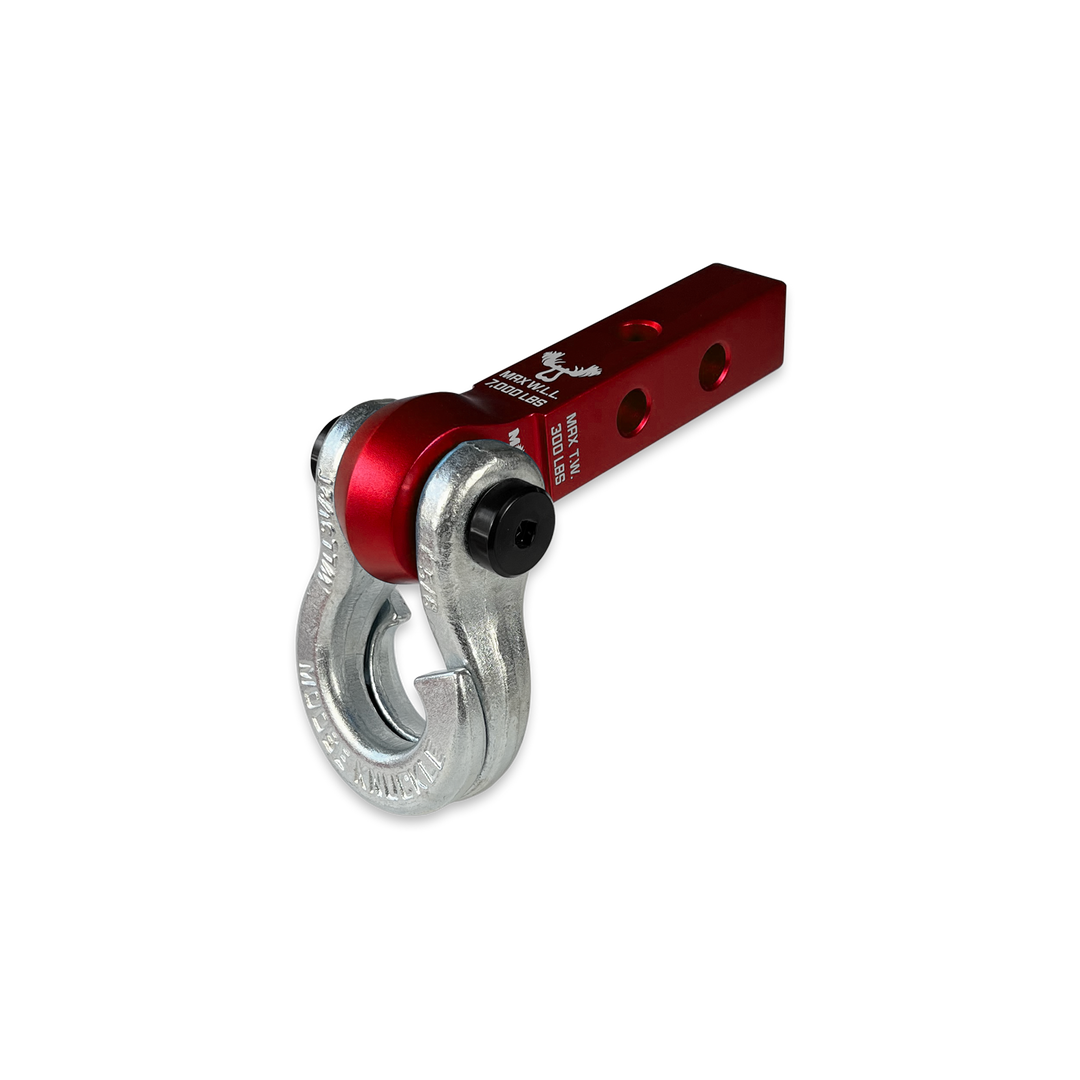

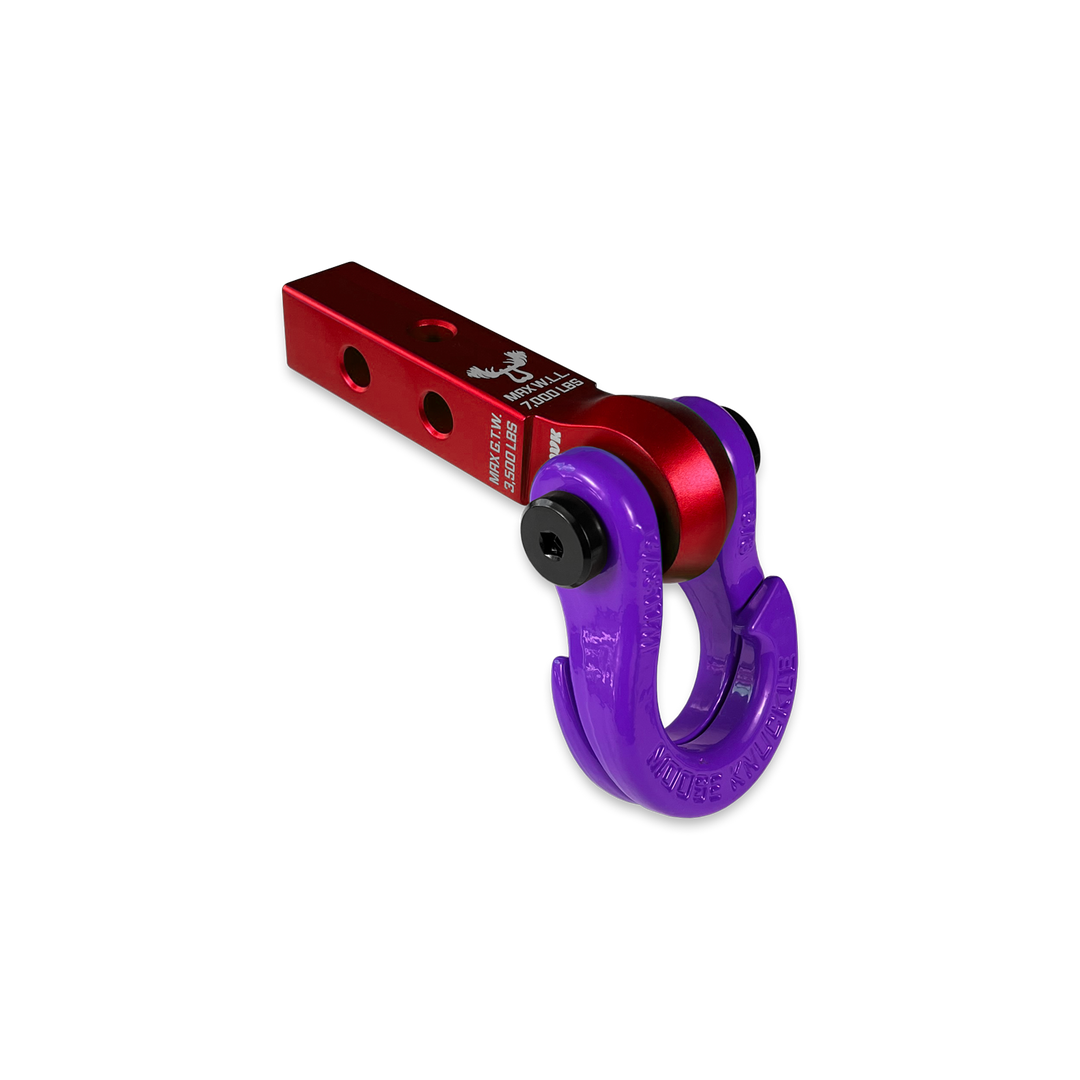

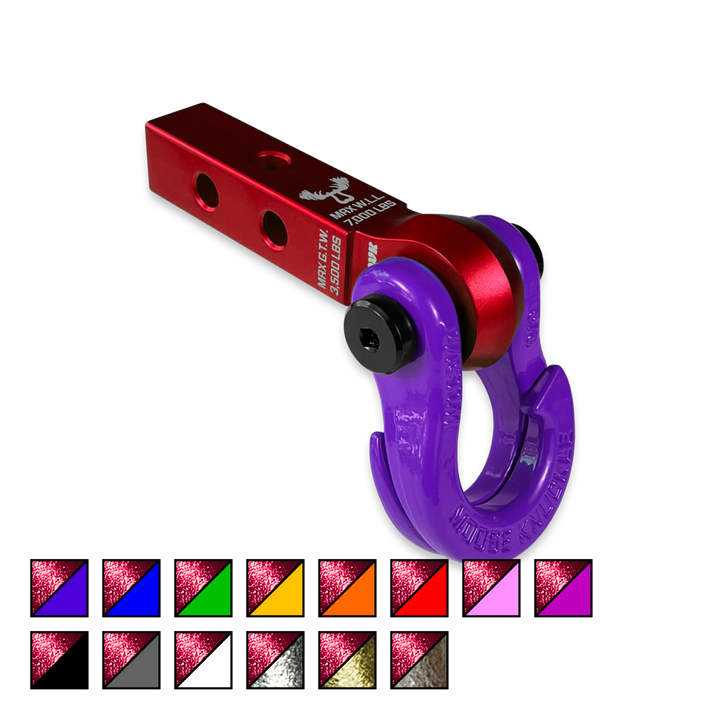

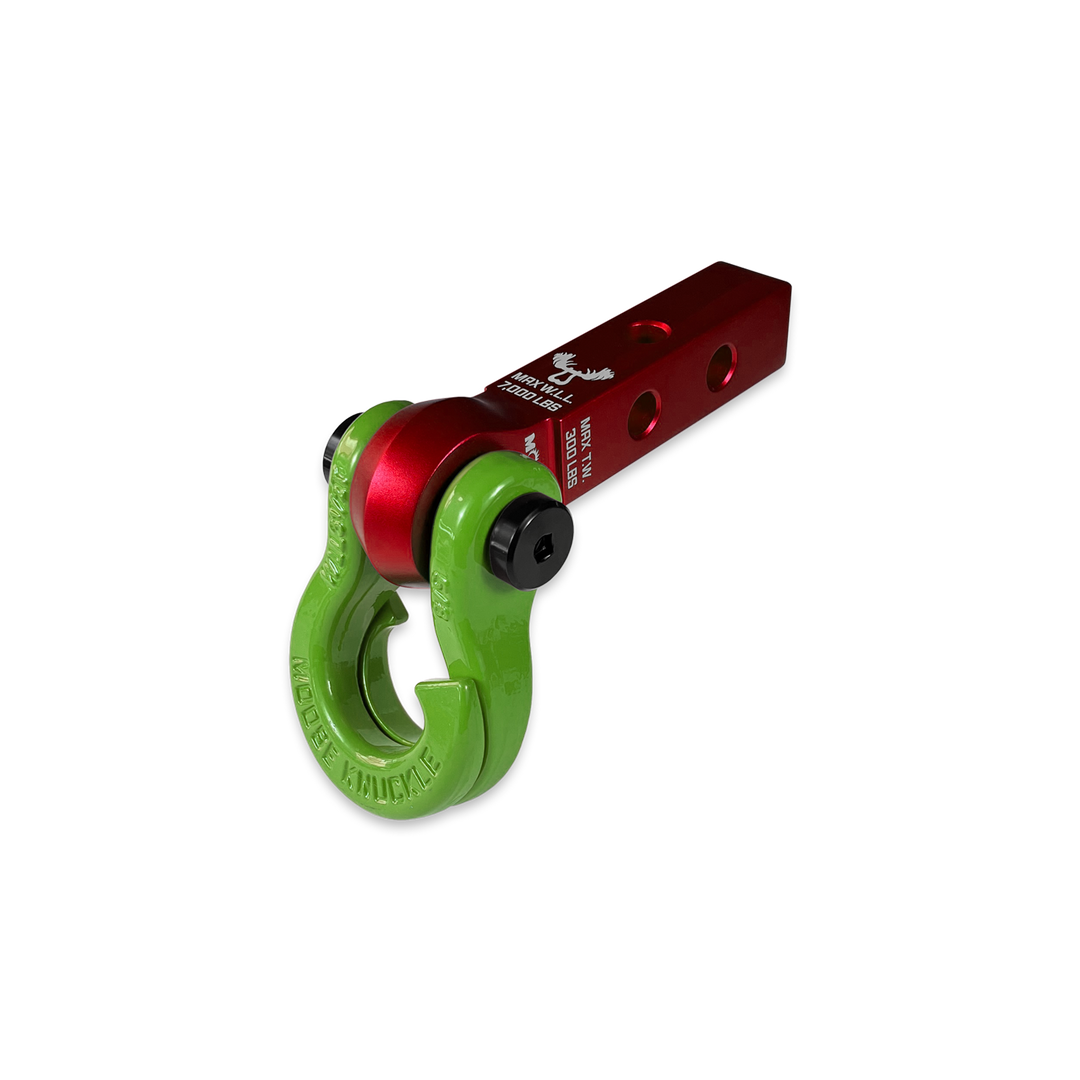

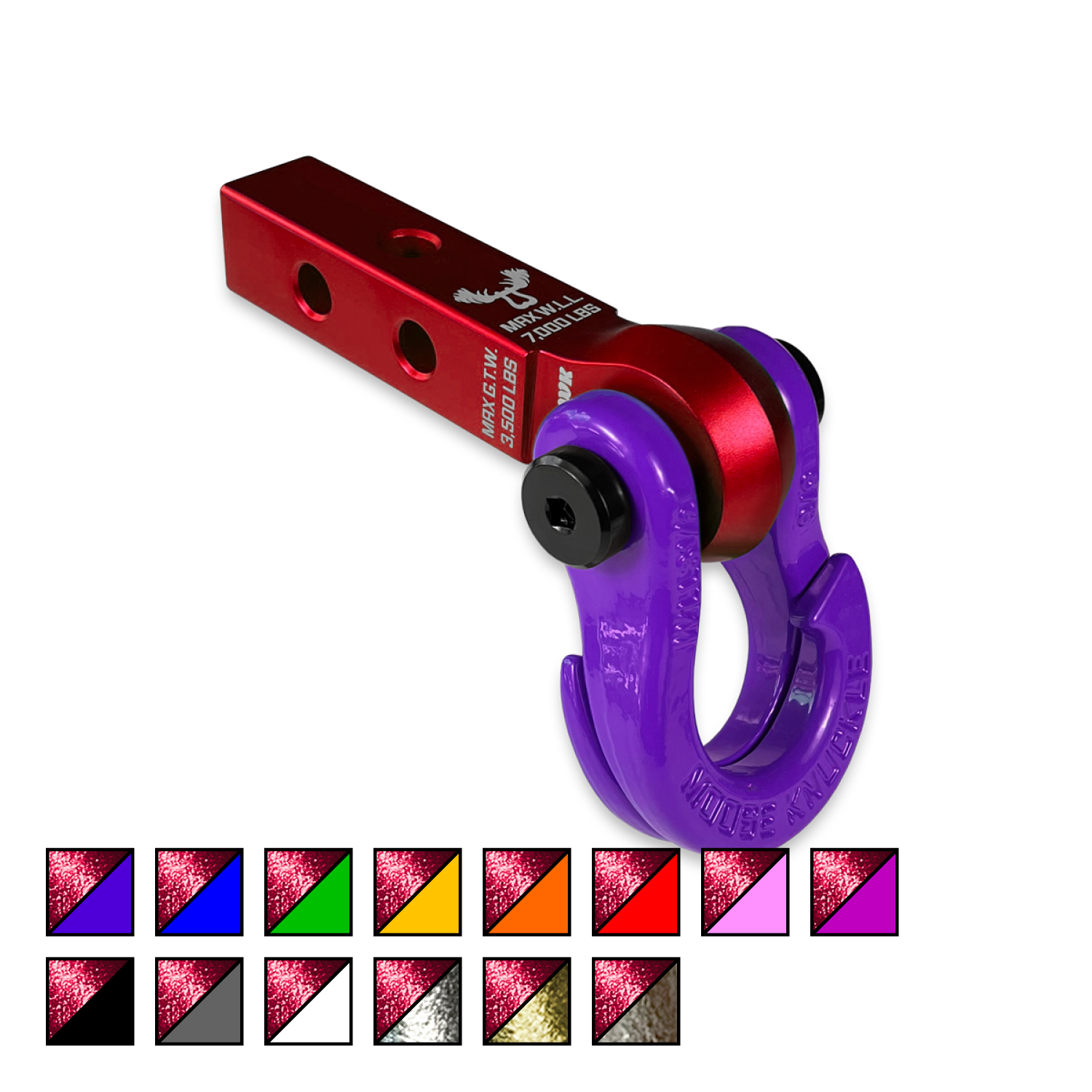

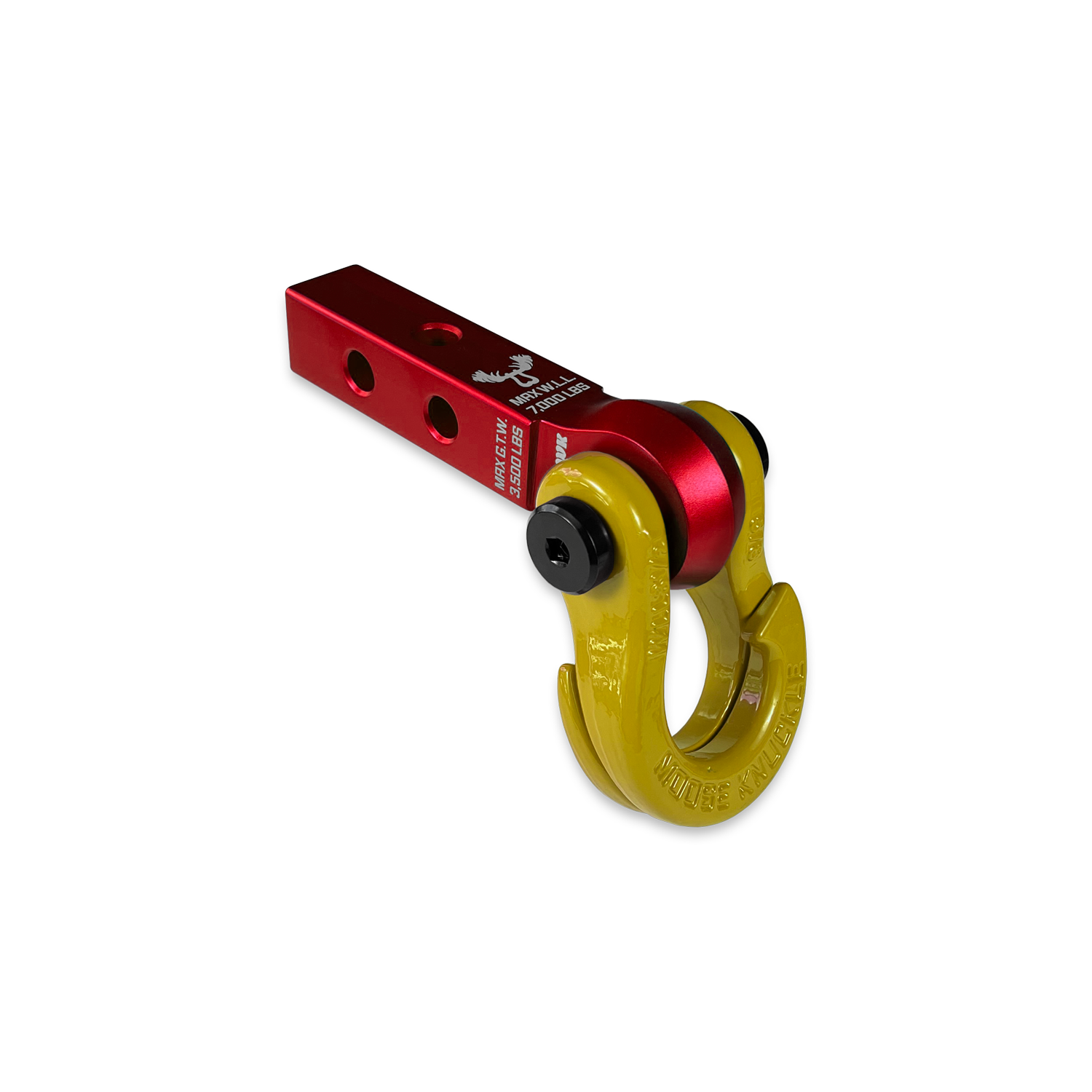

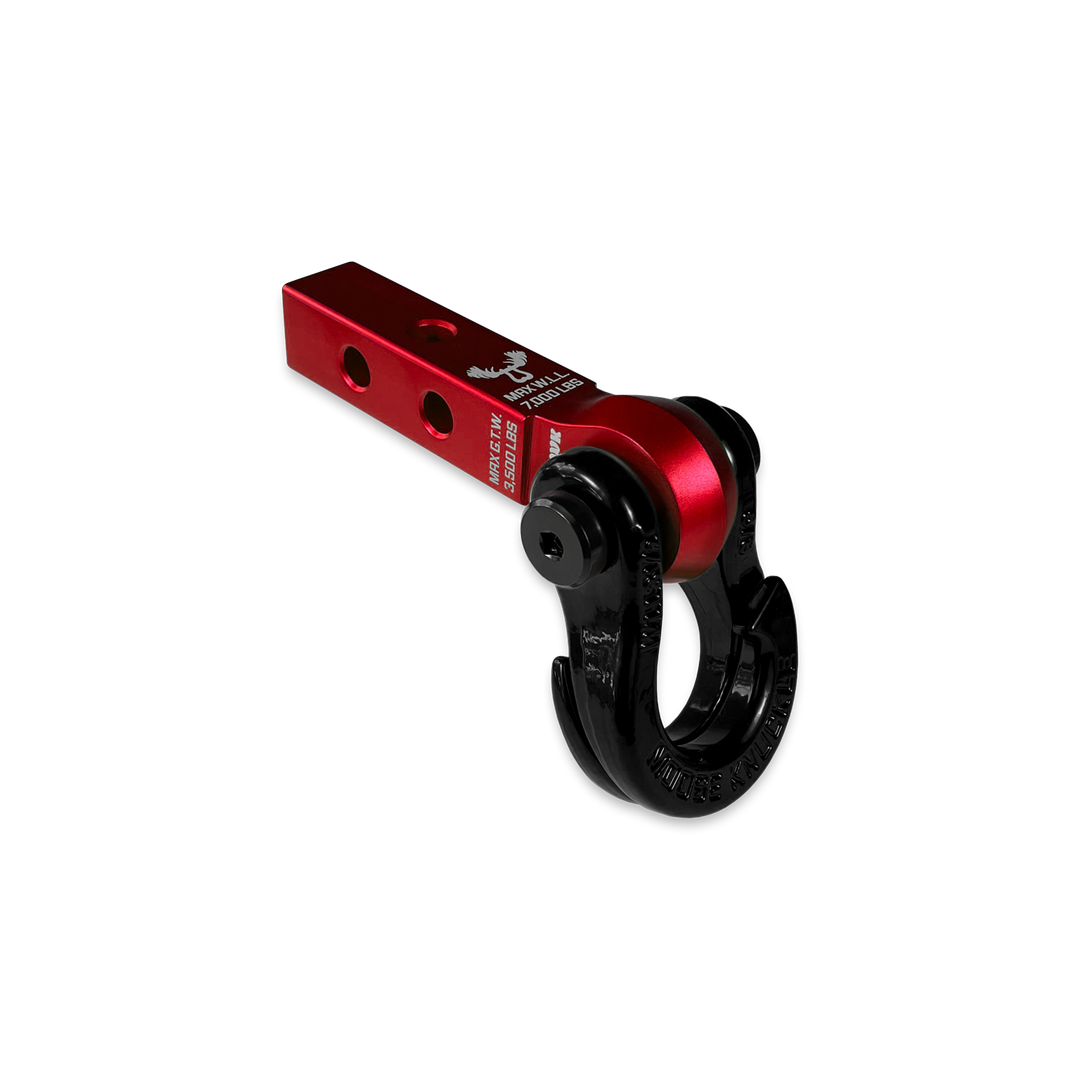

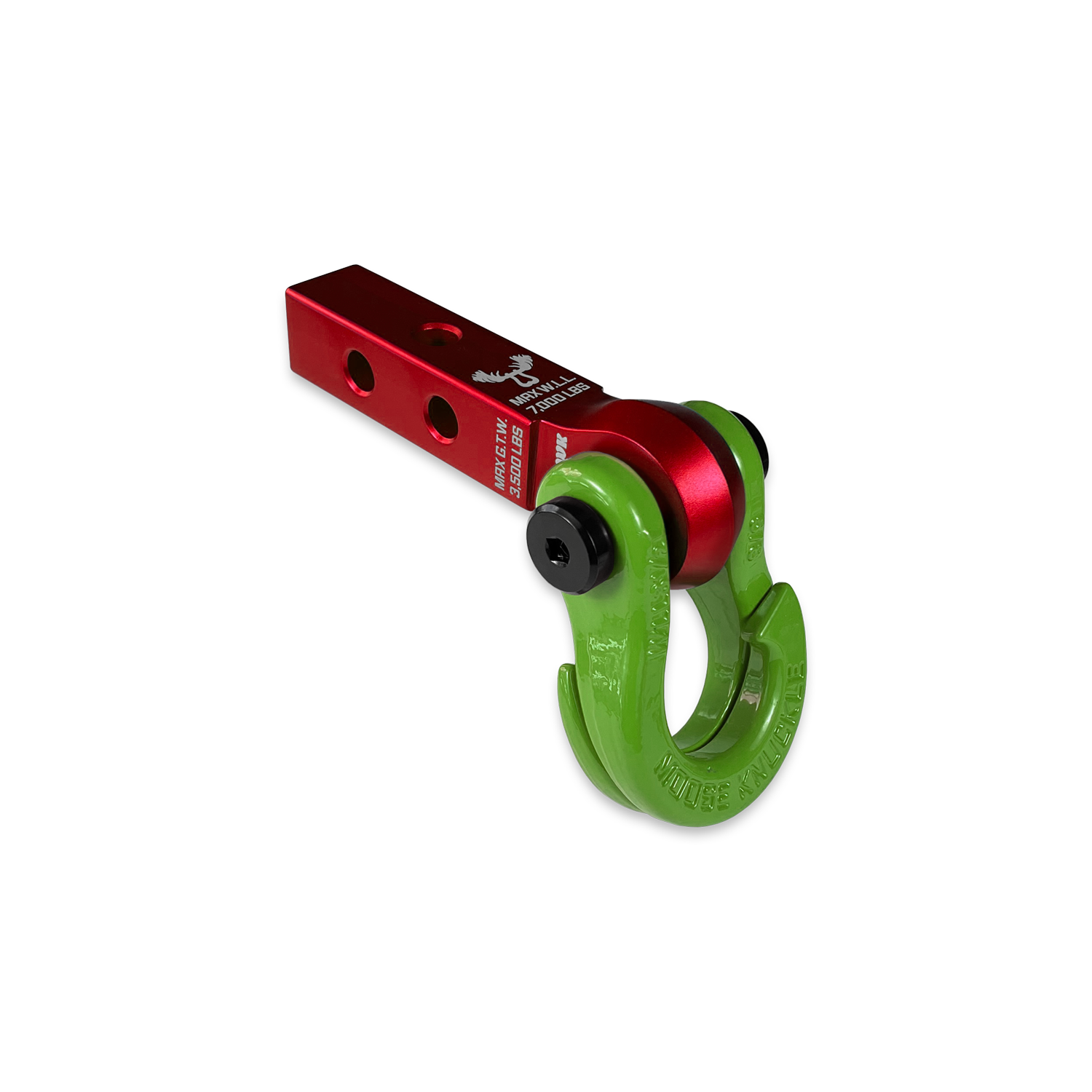

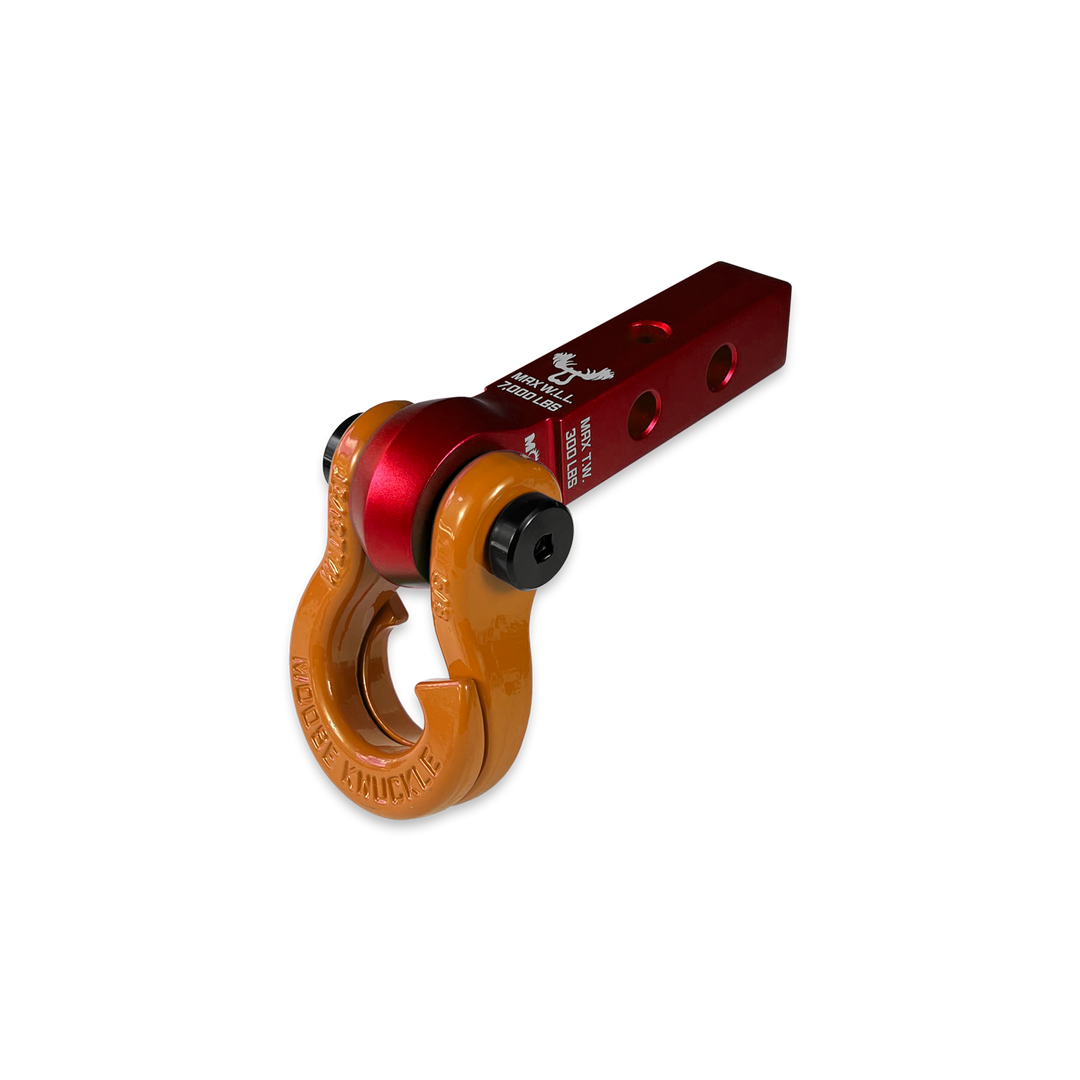

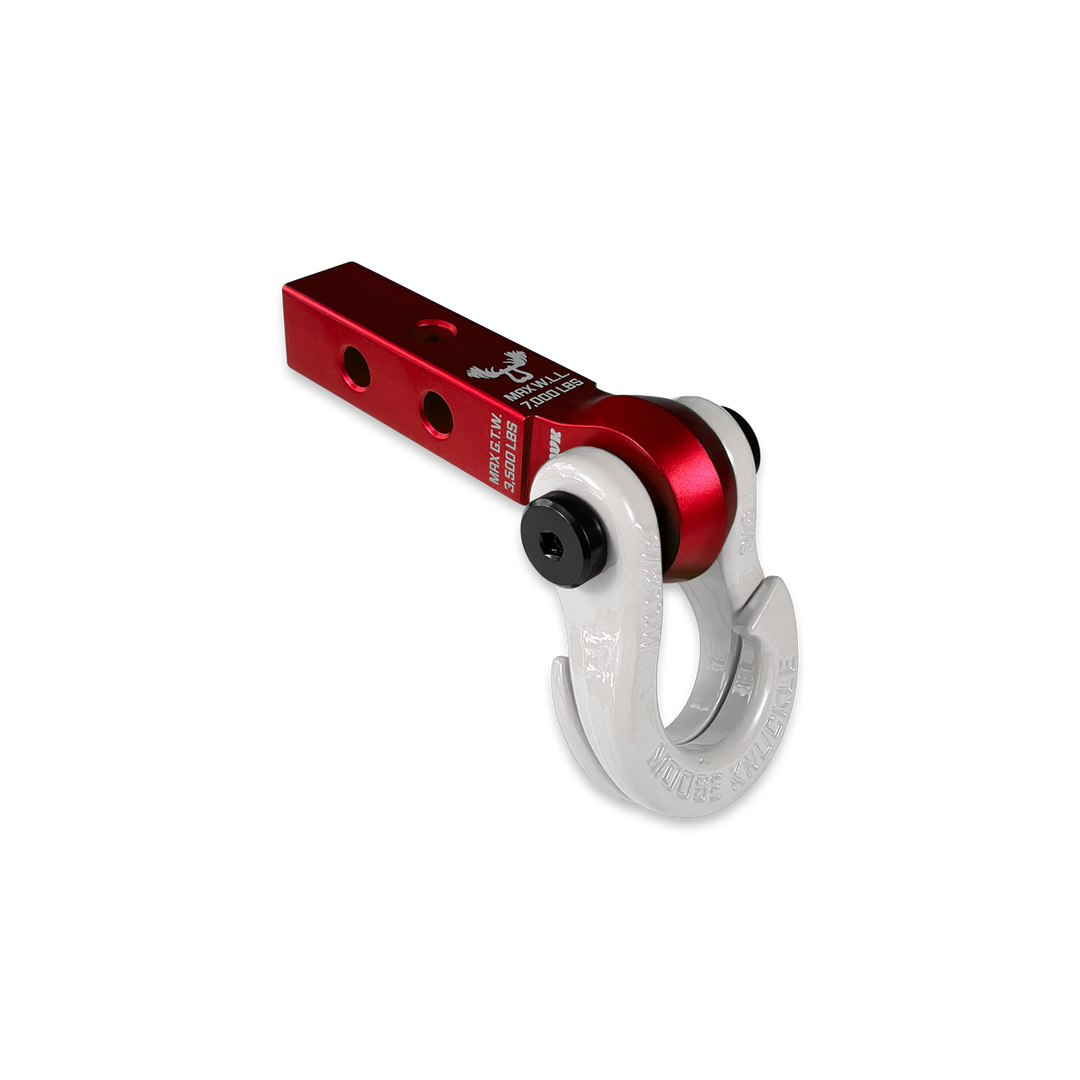

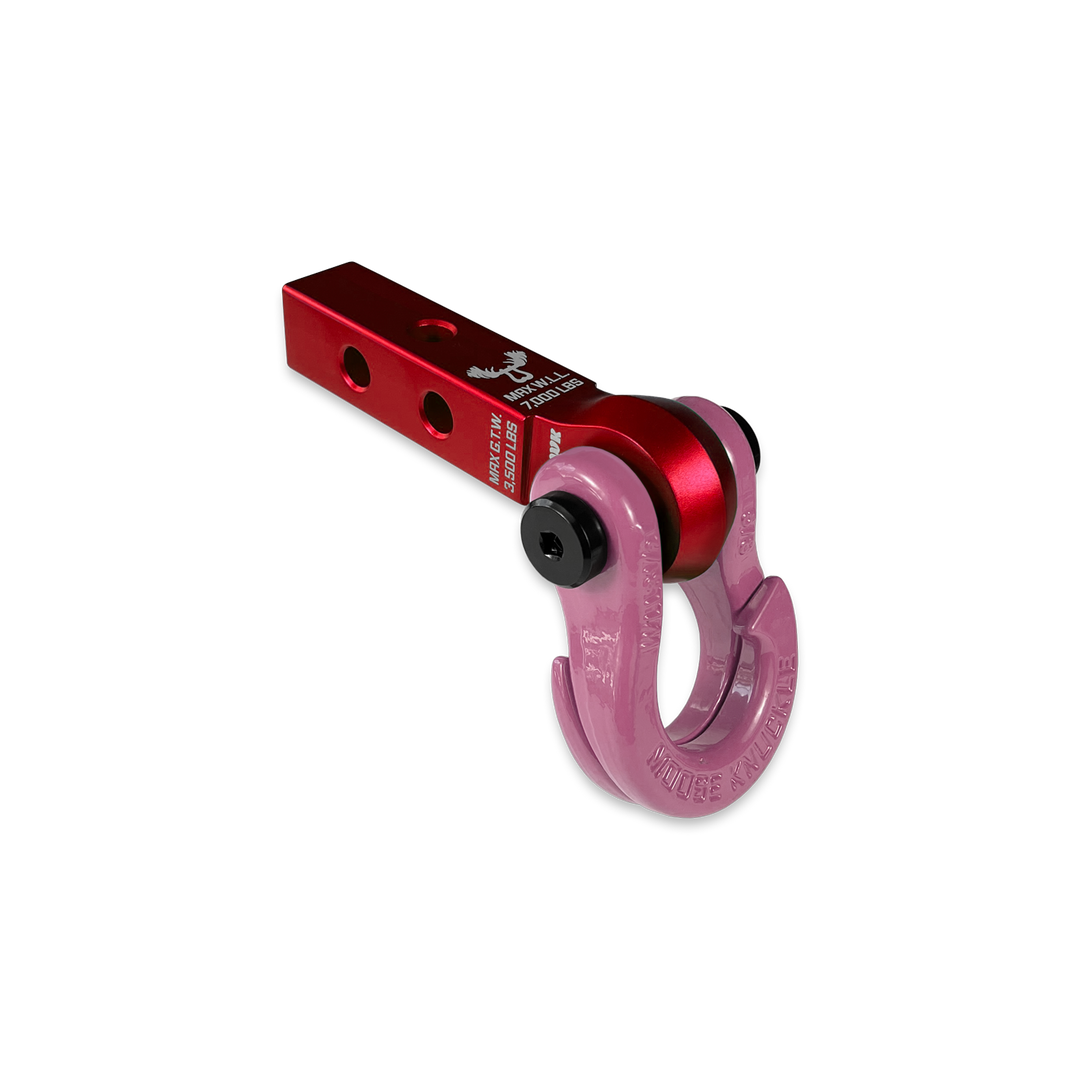

The JOWL® 5/8 Split Shackle + Mohawk 1.25 Receiver Combo is the ultimate recovery setup for SxS, UTV, and ATV owners looking for fast, tool-less, closed-loop recovery with maximum strength and convenience. This patented split-shackle system lets you hook up a rope or strap instantly—no soft shackles, no tools, no removing hardware from your bumper or hitch receiver. Just snap, rotate, pull tight, and recover. Paired with the warm-forged Mohawk 1.25 Receiver, this combo delivers unmatched durability, smoother strap routing, and multiple mounting positions.
Important Notes
-

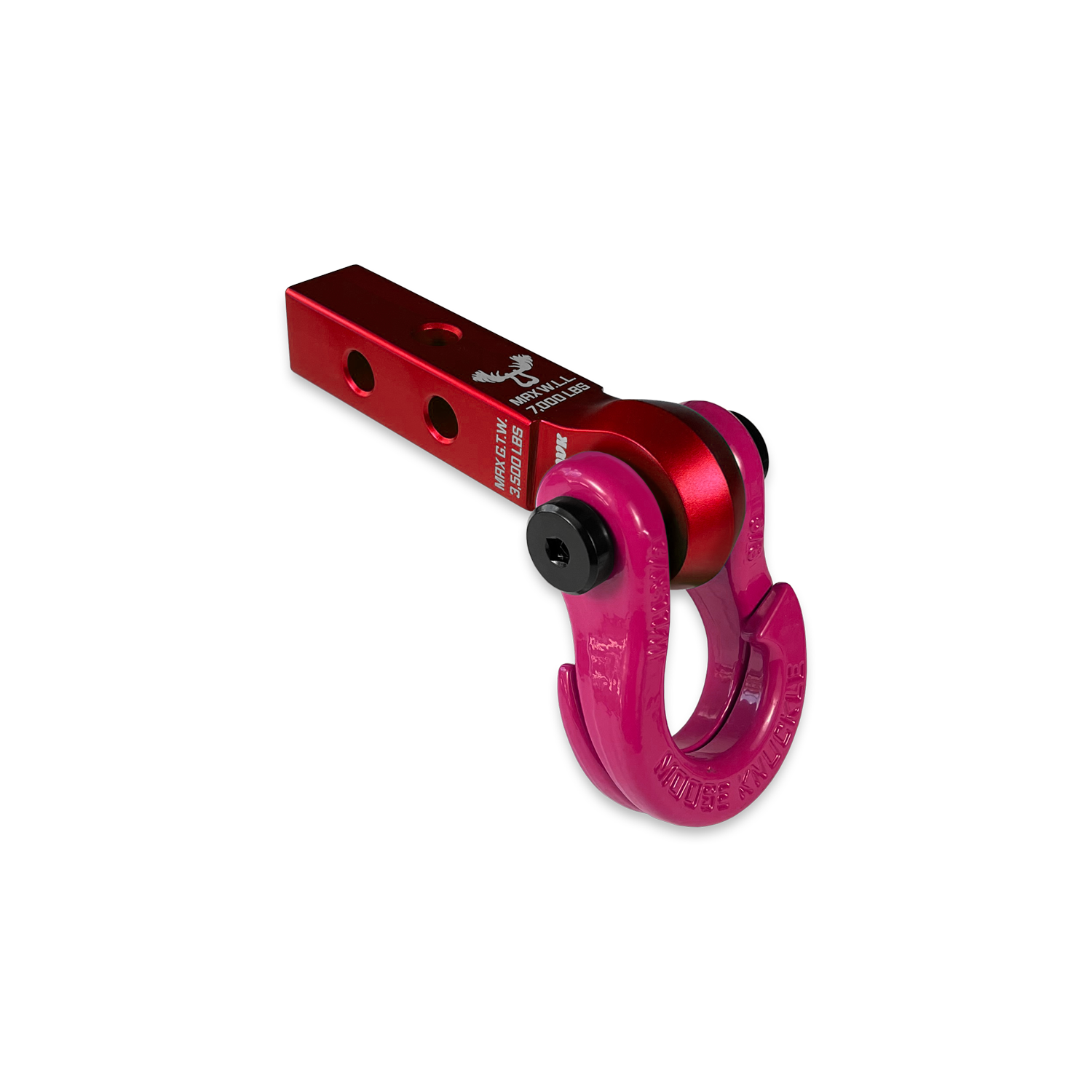

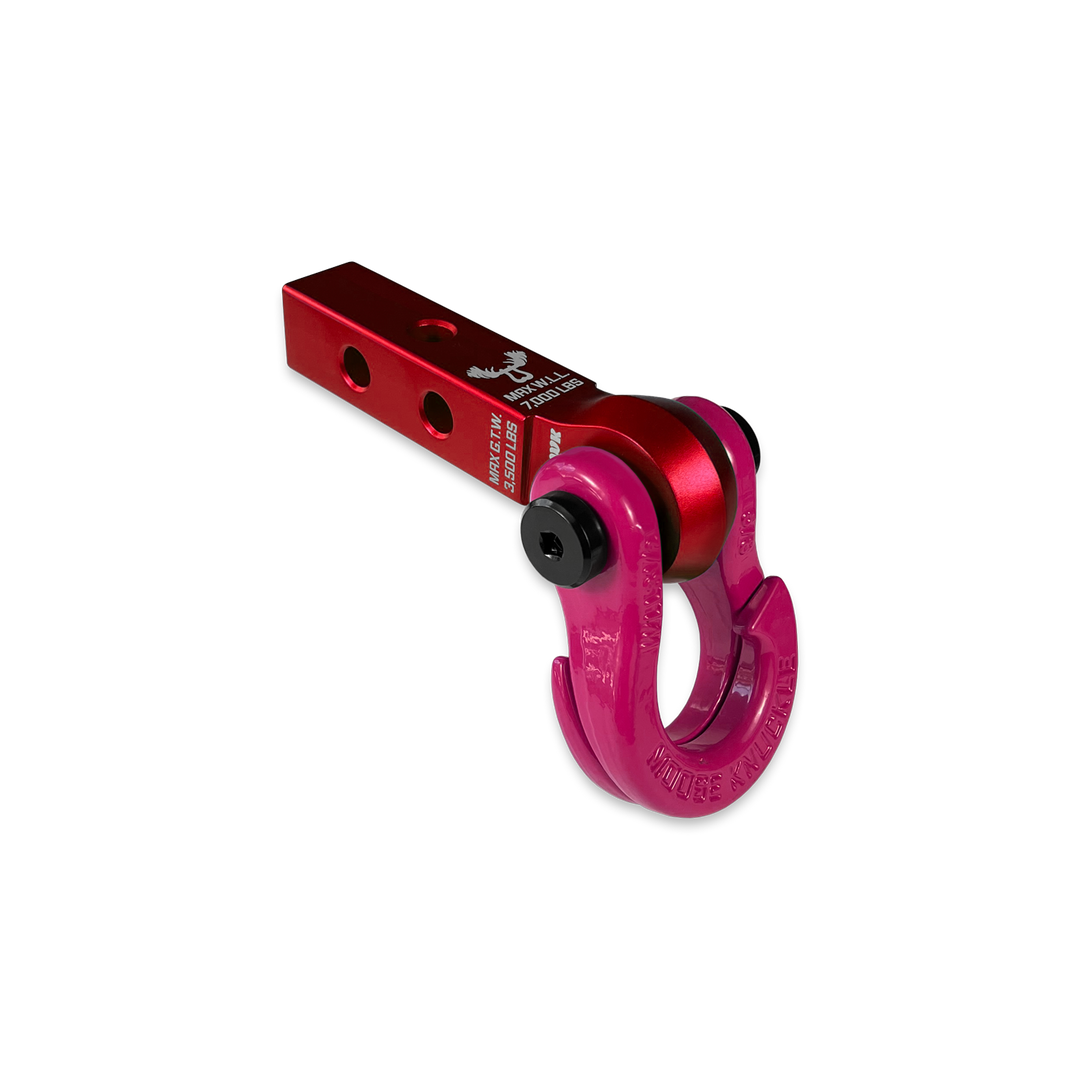

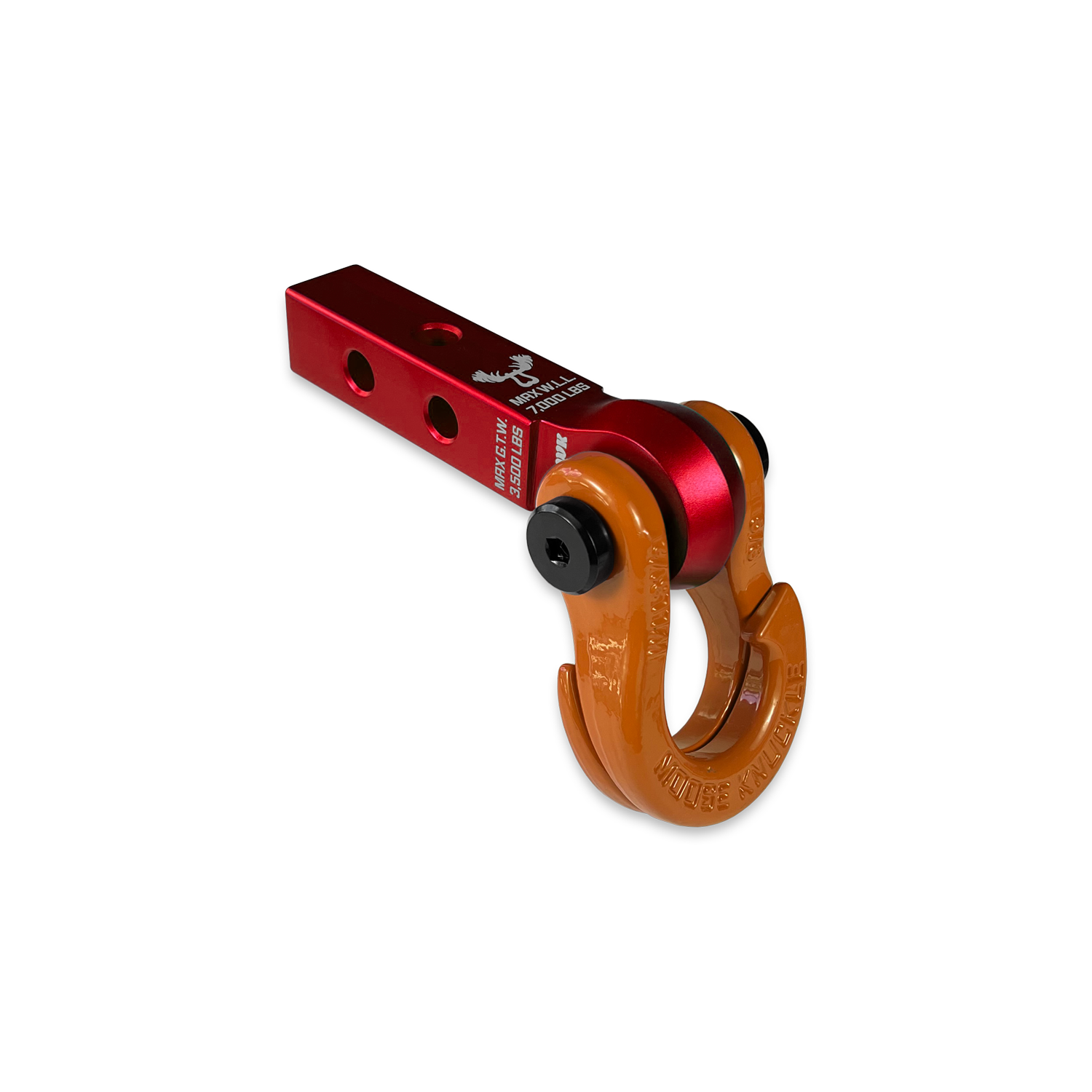

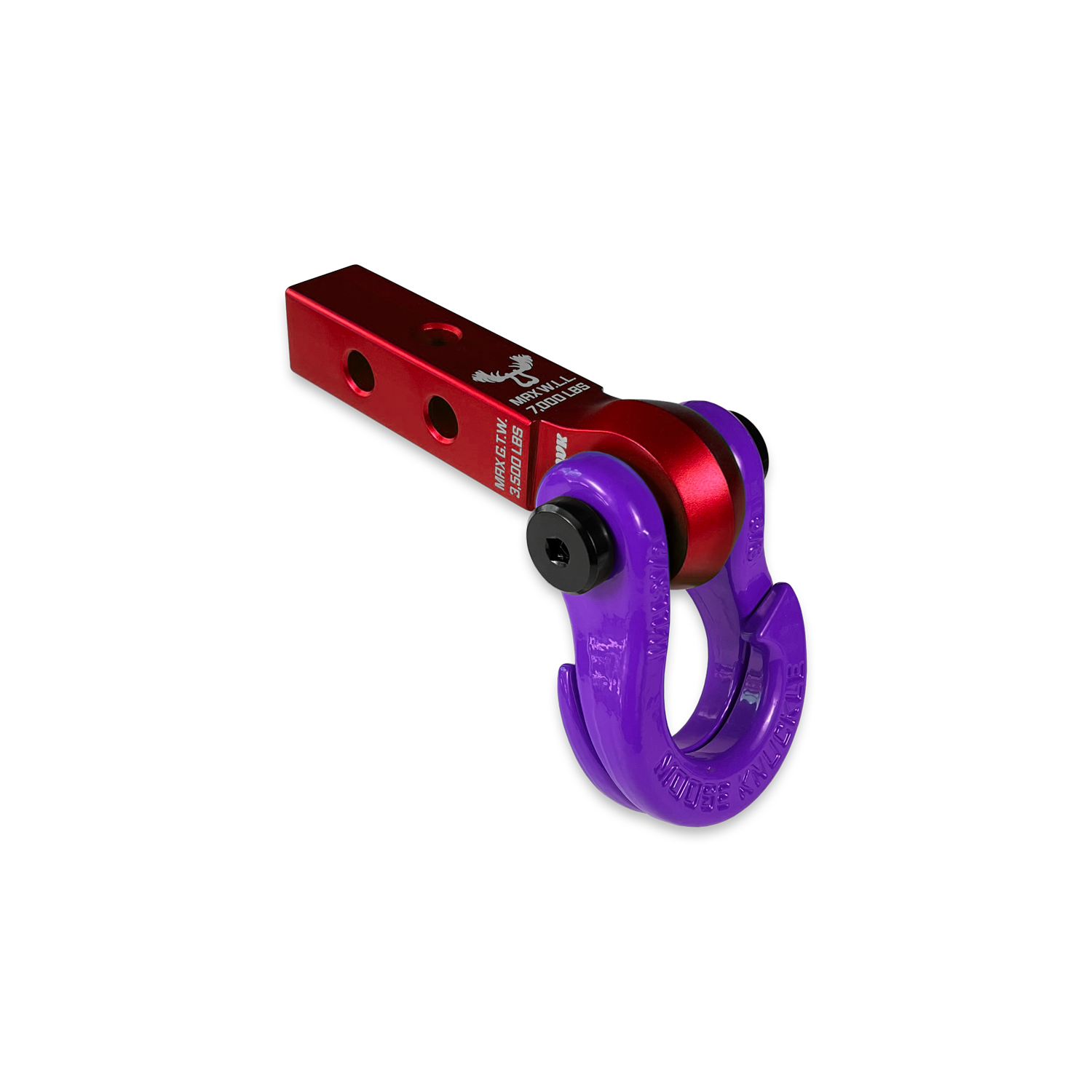

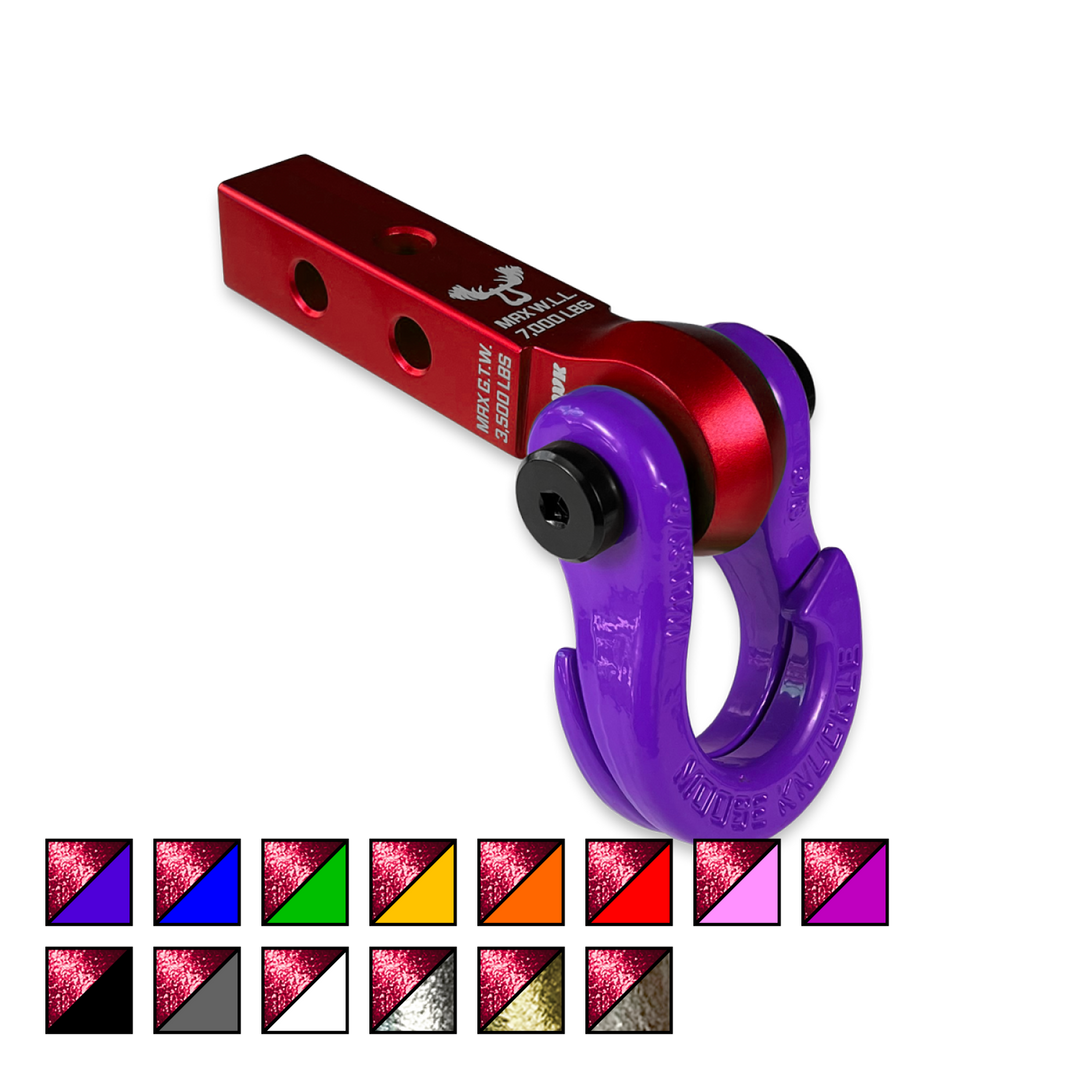

Color selection: Shackles come in 14 colors—use dropdown to select color.
-

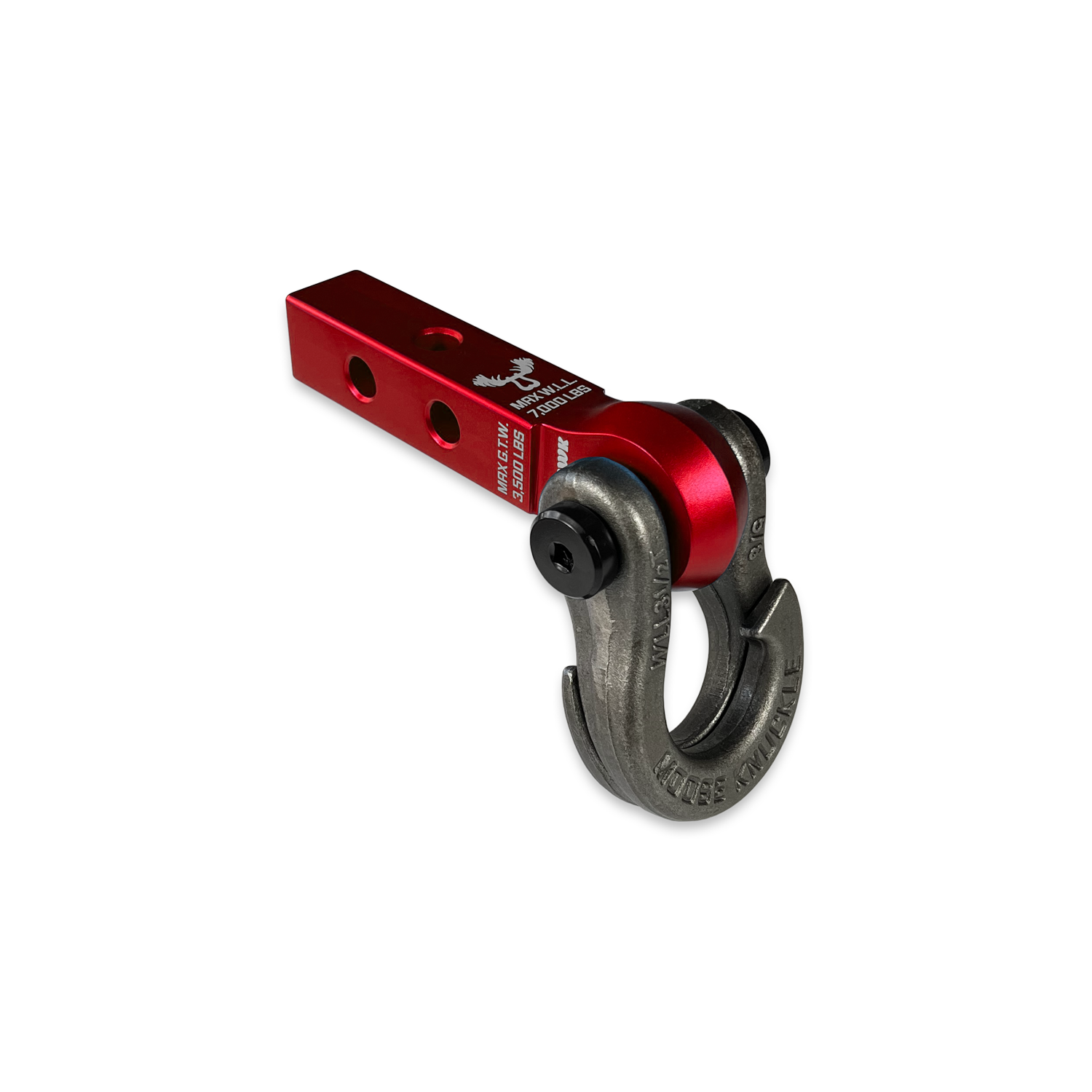

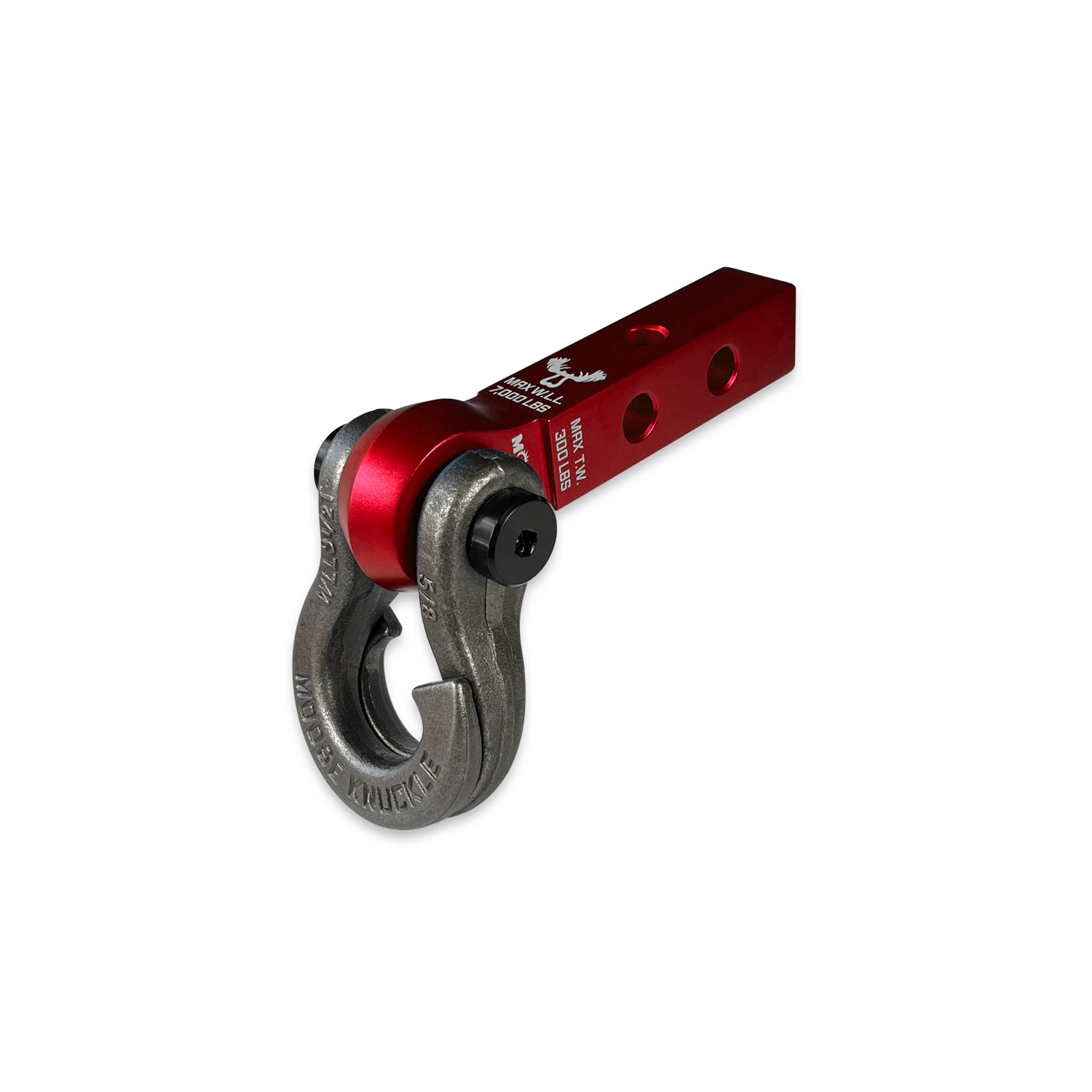

Raw Dog caution: Ships uncoated and will rust unless painted or powder-coated.
-
Compatibility: Fits 1.25" hitches; shackle fits mounts with 3/4" pin hole and 1" width or less.
-
Tool-less use: Only one cap screw needs removal to mount or remove the shackle.
Features (Shackle)
-
Tool-less recovery: Split “J” design allows instant strap or rope attachment without removing the shackle.
-
Fast closed-loop connection: Open hooks, insert loop, rotate to lock both sides, and recover immediately.
-
Traditional bow-shackle shape: Gives SxS/UTV builds a familiar, rugged look.
-
Pull-angle stops: Built-in indicators help keep recovery angles safe and controlled.
-
Wide mounting compatibility: Fits 1.25" or 2.0" receivers and mounts with a 3/4" pin hole and ?1.0" width.
-
Interchangeable colors: Mix and match color halves for custom looks.
-
Durable coating: Powder-coated hooks matched to popular off-road vehicle colors.
-
High-strength pin: Black Nickel-plated Grade 8 carbon steel for superior durability.
-
Strong forged body: Rated at 3.5T (7,000 lb WLL) for reliable real-world recovery.
-
Anti-chatter pads: Reduce vibration and noise across rocky terrain.
-
Nylon isolators included: Six washers (3.0mm, 2.0mm, 1.0mm) for proper centering on any mount.
-
Easy mounting system: Secured using two M14 cap screws compatible with any 1/4" socket wrench
Shackle Specs
- Item: 5/8 Split Shackle / Anchor Shackle
- Pin Style: Screw
- WLL: 7,000 lbs
- MBS: 35,000 lbs (17.5T)
- FoS: 5:1
- Width Between Eyes: 1.06"
- Finish: Powder Coated
- Pin Finish: Black Nickel Plated
- Pin Diameter: 3/4" (0.75")
- Thread Size: M14 x 2.0mm
- Body Material: Chromoly Steel
- Pin Material: Grade 8 Carbon Steel
- Patent: D1,050,874
Features (Receiver)
-
Forged 6082 aluminum: Stronger and more corrosion-resistant than 6061 with optimized grain flow.
-
7,000 lb workload limit: Built for serious towing and recovery.
-
Dual mounting positions: Two hitch pin holes increase compatibility and adjustability.
-
90° rotation option: Use the included spacer to mount a 3/4" shank hitch ball.
-
Smooth rope-safe edges: Large radiused opening prevents abrasion of straps and soft shackles.
-
Aggressive Mohawk design: Reinforced body enhances strength where it's needed most.
-
Weatherproof finish: UV-resistant anodized coating with laser-etched logos.
Receiver Specs
- Material: Warm Forged 6082 Aluminum
- Color: Red Rum
- Receiver Tube Size: 1.25"
- Hitch Pin Hole Size: 1/2"
- Shackle Compatibility: 5/8" shackles (3/4" pin) with spacer; 3/4" shackles (7/8"
- pin) without spacer
- WLL: 7,000 lbs
- GTW: 3,500 lbs
- Tongue Weight: 300 lbs
- Ball Hitch Compatibility: Fits Class I/II 3/4" shank balls with included spacer
